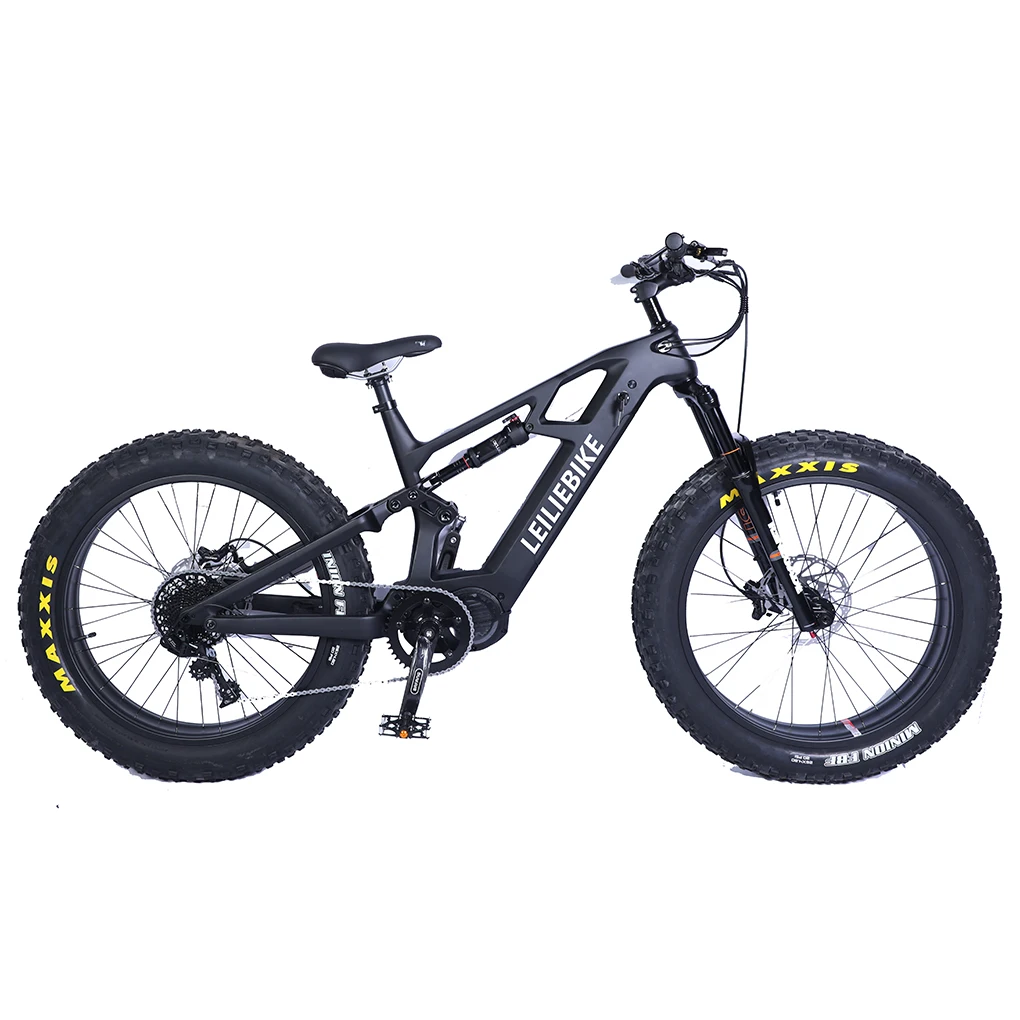

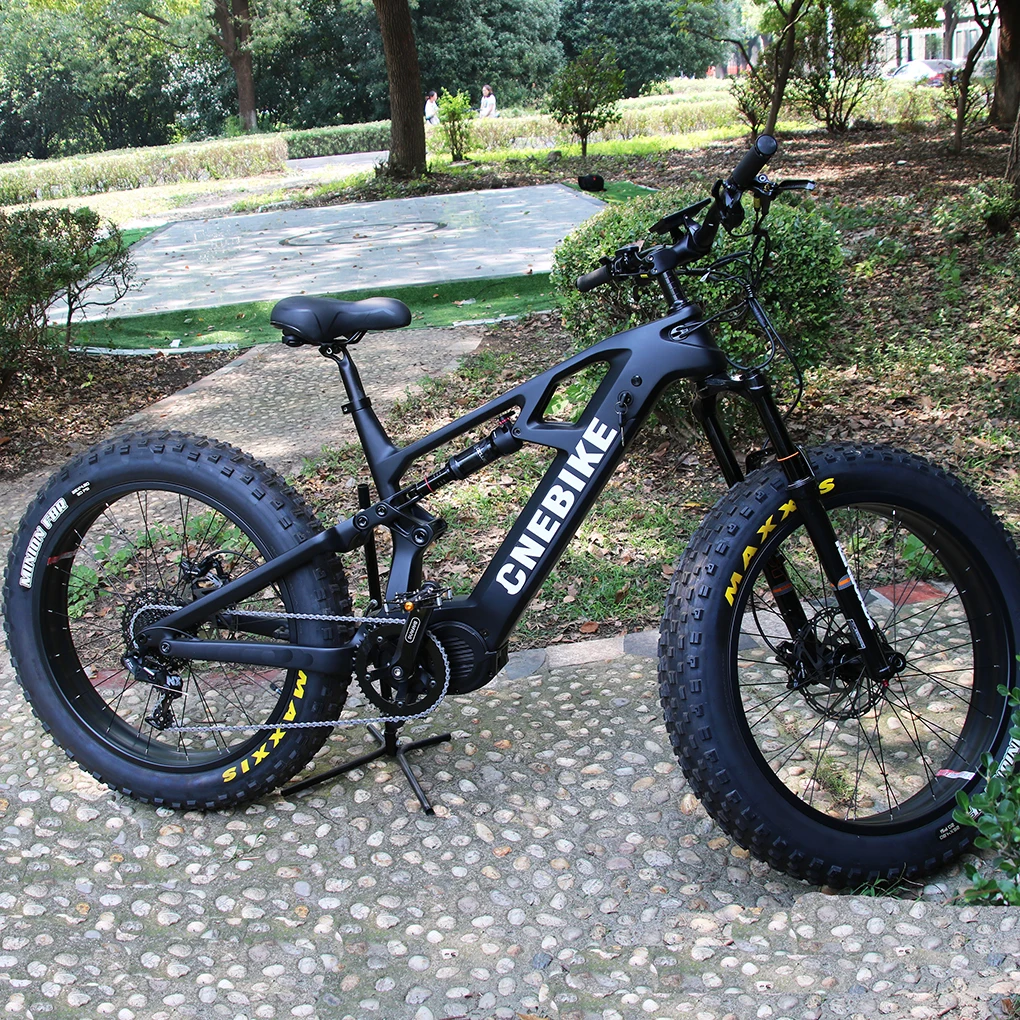

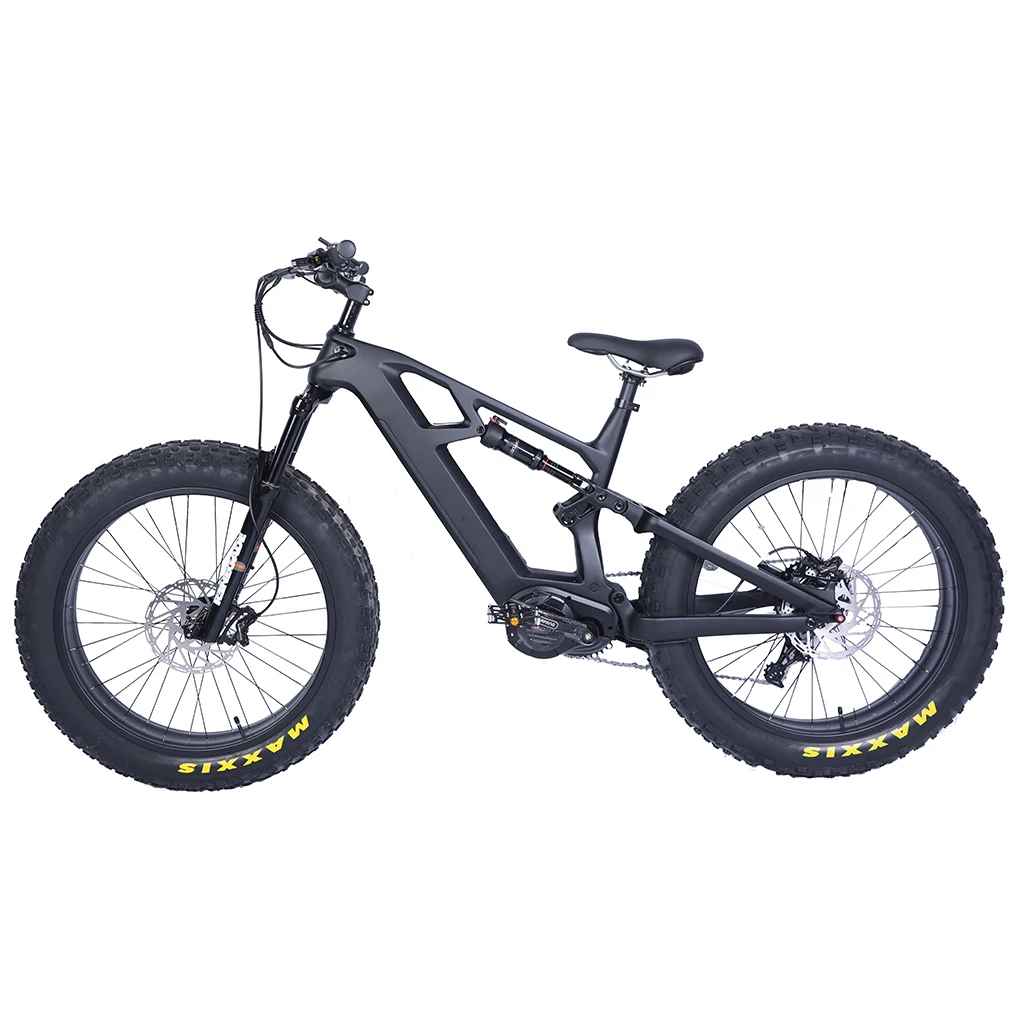

48V 1000W Bafang M620 MID Motor Snow Fat Tyre Ebike 26 Inch Off Road Electric Dirt Bike Carbon Fiber Full Suspension E Bicycle
- Category: >>>
- Supplier: Changzhou Leili Vehicle Parts Co. Ltd.
Share on (1601020847719):
Product Overview
Description
Product Description
26 Inch Downhill Electric Bicycle 48V 1000W Bafang Ultra Frame M620 MID Drive Ebike Carbon Fiber Full Suspension Electric Bike
THE Full Suspension carbon fiber electric bicycle has one of the most powerful 1000W motor on the E-Bike,The frame is made out of a light-weight CARBON FIBER and is integrated with the 1000W motor that provides you with the boost you need for any dirt trail you might tackle.
The 48V 17.5AH battery charges quickly and can give you a long range on one charge.
The 11-speed gearing system gives you the control you need and the front and rear disc brakes allow you to stop on a dime!
The 48V 17.5AH battery charges quickly and can give you a long range on one charge.
The 11-speed gearing system gives you the control you need and the front and rear disc brakes allow you to stop on a dime!

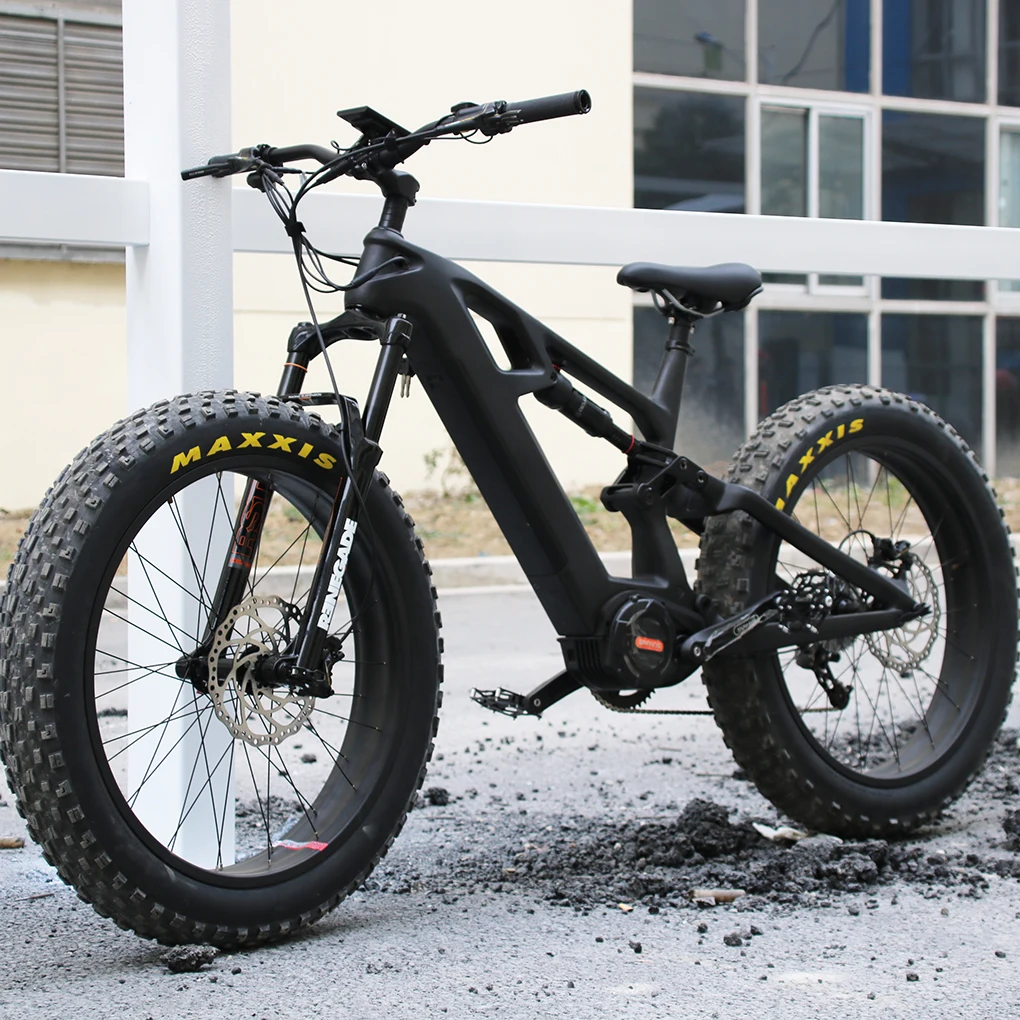

Detailed Images

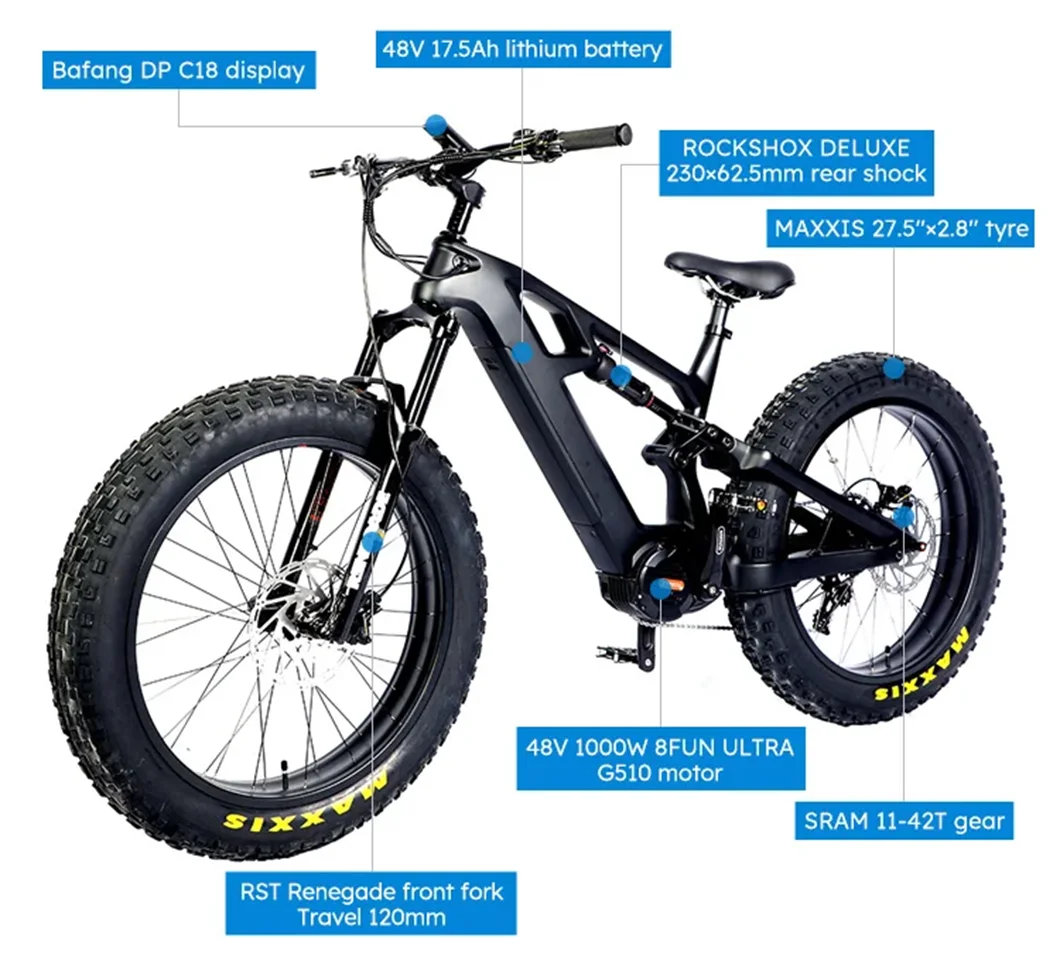

Model | 48V/1000w BAFANG G510 motor |
Frame | CARBON FIBER frame (Fat Bike) |
Motor | BAFANG ULTRA 1000W motor |
Battery | 48V 17.5Ah li-ion battery |
Charger | 48v/3A100-240v AC smart Dpower |
Charing time | 6 hours |
Max Speed | 50km/h |
Disc Brake | Tectro E725, hydraulic disc brake |
Front Fork | KKE AIR front fork |
Rear Suspension | KKE Spring rear shock (Travel 220mm) |
Mileage | 50KM per charge with throttle only |
Tyre | KENDA 26*4.5'' |
Saddle | comfortable sport type |
Chain | KMC brand High strength rust resistant chain |
Derailleur | SRAM NX 11-speed |
Spoke | front 13g ,rear 13g |
Stem | high quality stem |
headset | VP brand high quality headset |
Kickstand | No side kickstand |
Color | black |
Motor:
G510/M620 48V 1000W mid crank motor with torque sensor (including adapter )
Color :Black
Color :Black
Peak power: 1500W
Torque:160 N.M
Torque:160 N.M
Display:
DPC 18 LCD colorful display
Function :
1.Energy Saving Mode Screen
2.Sports Mode Screen
3.Five Support Levels
Function :
1.Energy Saving Mode Screen
2.Sports Mode Screen
3.Five Support Levels
Front fork:
KKE air front fork
Travel: 140MM
Rear Shock:
KKE rear shock
Travel: 220MM
Travel: 220MM
Shifter:
SRAM NX 11 speed
Gear:
SRAM 11-42T gear
Battery
48V 17.5Ah lithium battery
With 3A charger
Brake
Tektro E725 hydraulic disc brake
With 4 piston
Upgrades:
Upgrade to ROCKSHOX DELUXE rear shock (travel: 220mm), add extra $150;
Upgrade to RST front fork, add extra $150;
Upgrade to Maxxis 26''×4.8'' tyre, add extra $60;
Upgrade to RST front fork, add extra $150;
Upgrade to Maxxis 26''×4.8'' tyre, add extra $60;
Change to SRAM 9 speeds, minus -$50;

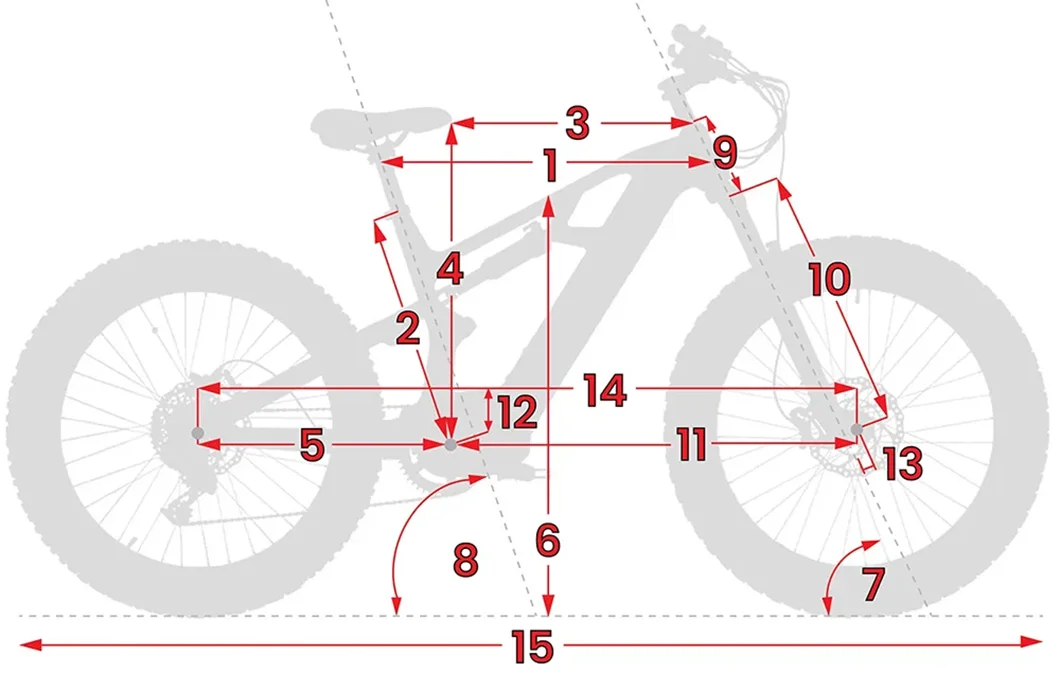

Frame Size
BOOST FRAME | ||||||
1 | Effective Top Tube Length | 560 mm | 22 inches | |||
2 | Seat Tube Length (Classic Bike Size) | 480 mm | 18.9 inches | |||
3 | Reach | 480 mm | 18.9 inches | |||
4 | Stack | 600 mm | 23.6 inches | |||
5 | Chainstay Length | 470 mm | 18.5 inches | |||
6 | Standover Height | 700 mm | 27.6 inches | |||
7 | Head Angle | 64 ° | - | |||
8 | Seat Angle | 70 ° | - | |||
9 | Head Tube Length | 120 mm | 4.7 inches | |||
10 | Fork Length | 570 mm | 22.4 inches | |||
11 | Front Center | 790 mm | 31.1 inches | |||
12 | BB (Bottom Bracket) Drop | 40 mm | 1.6 inches | |||
13 | Fork Offset | 40 mm | 1.6 inches | |||
14 | Wheelbase | 1270 mm | 50 inches | |||
15 | Total Length | 2000 mm | 78.7 inches | |||
16 | Max Seat Height | 1065 mm | 41.9 inches | |||
17 | Min Seat Height | 920 mm | 36.2 inches | |||
18 | Handlebar Height | 1160 mm | 45.7 inches | |||
19 | Weight (Without Battery) | 23.1 kg | 50.9 lb | |||

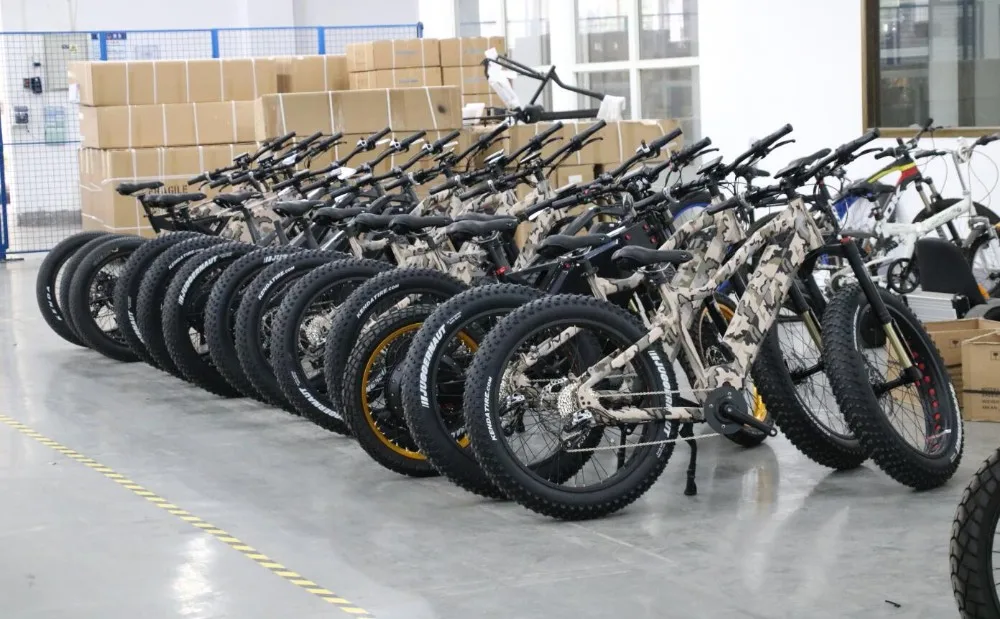

Our Company

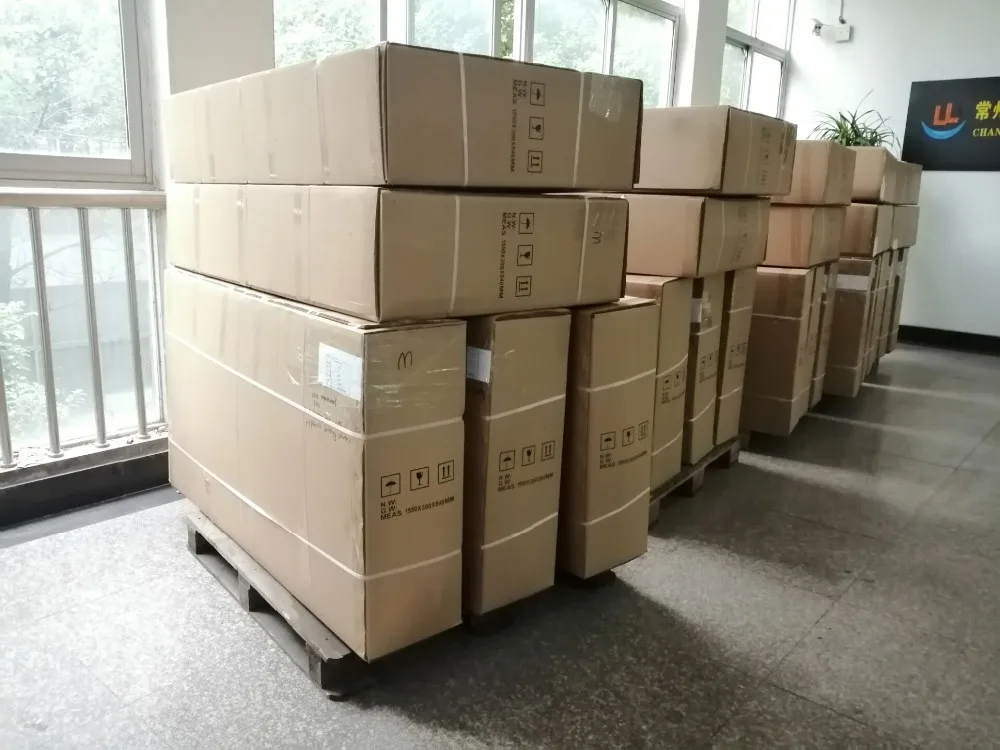

Packing & Delivery
FAQ
Q: Can I get some samples of this beach cruiser electric bike ? Are you trading company or manufacturer ?
A: We are honored to offer you samples for quality check.
Q: Do you have the products in stock?
A : Yes , Leilicn co., ltd have few model samples could supply to you.
Q: What's the delivery time of this beach cruiser electric bike ?
A: It usually takes about 30 days to produce an order from MOQ to 20FT container. Butthe exact delivery time might be different for different orders or at different time.
Q: Can I mix different models in one container?
A: Yes, different models can be mixed in one container, but the quantity of each model should not be less than MOQ.
Other questions:
Q: How does your factory do regarding quality control
A: Quality is priority.
Leilicn CO., ltd always attach great importance to quality control from the very beginning to the end of the production.
Every product will be fullyassembled and carefully tested before it's packed for shipment.
Q: What are your warranty terms?
A: It is one year warranty for all parts .
Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit.
Q: What's the payment you accept ?
A: As usual our payment is 30%T/T as down payment, 70% balance by T/T before sending .
But we could also accept the payment such as, West Union, Escrow Or PayPal .
