harting connectors 6 pin heavy duty SVLEC for
- Category: >>>
- Supplier: Kunshan SVL Electric Co. Ltd
Share on (1601020855358):
Product Overview
Description
Products Description

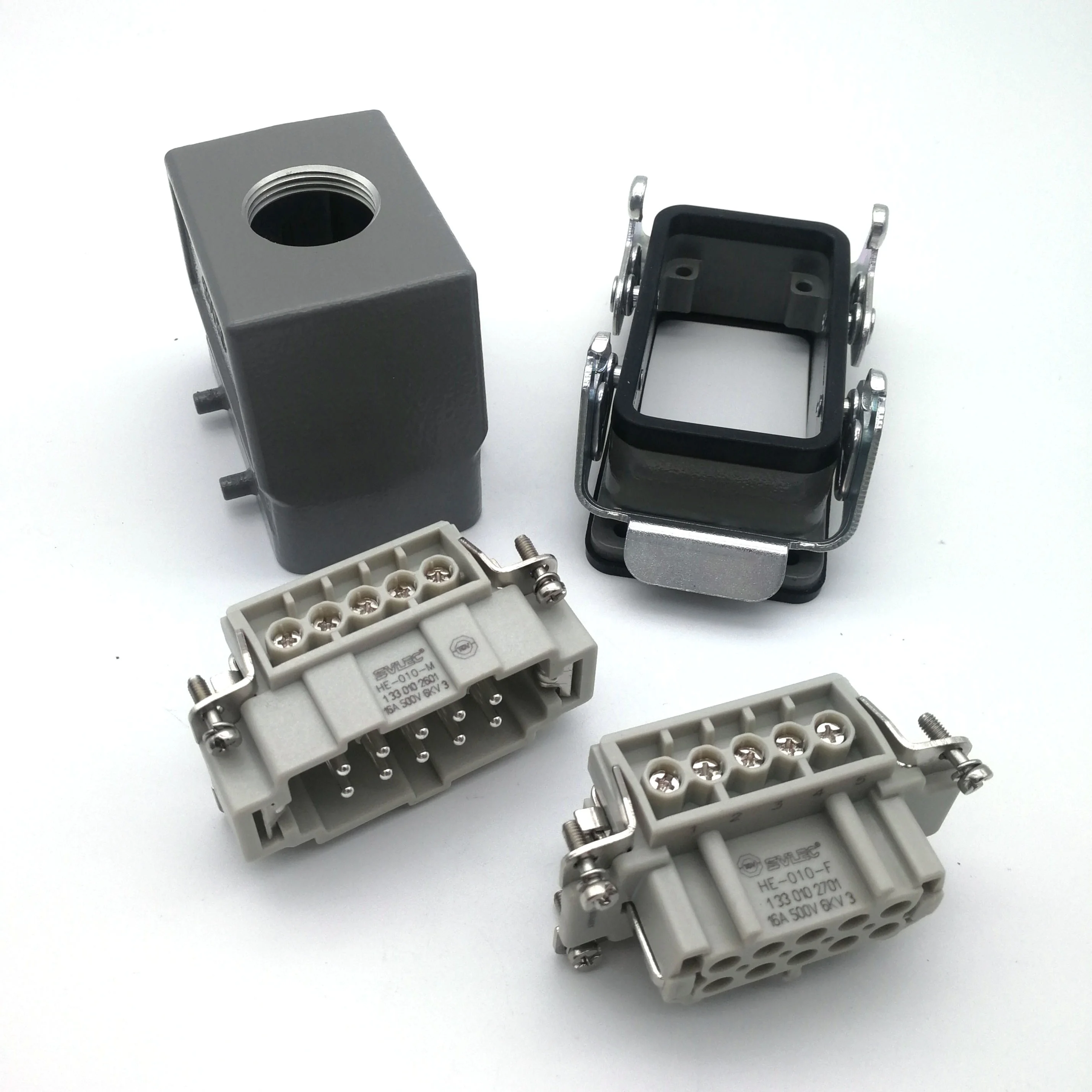

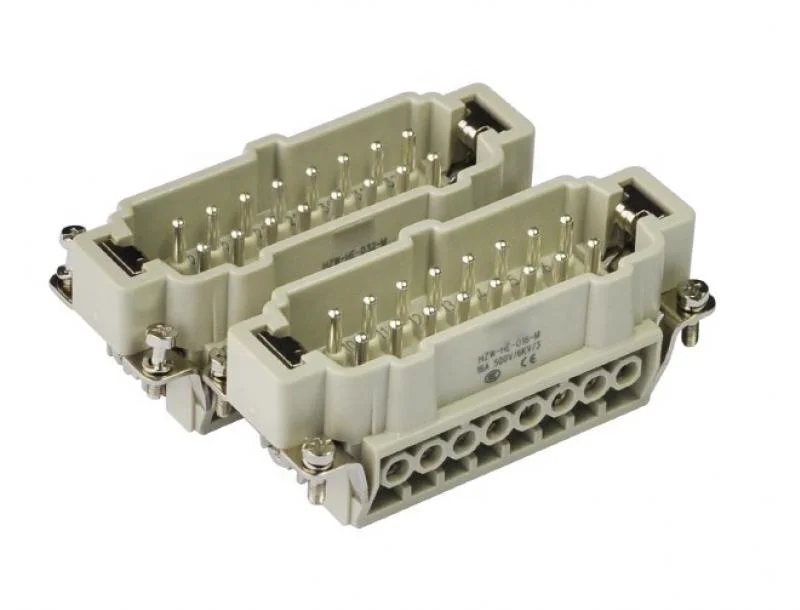

HSB high current male and female rectangular heavy duty connector
Modular units is a logical development of the product series which already offers the combination of power and signal circuits in one connector.
Product Name | Heavy duty connector |
Model NO. (screw terminals) | 1310062601 male, 1310062701 female |
Number of contacts | 6+PE |
Rated current | 35A |
Rated voltage | 690V |
Wire gauge | 6.0mm² |
AWG | 10 |
Termination terminal | screw terminal |
Insulation resistance | ≥1010 Ω |
Insert material | PA66 |
Flammability acc | V0 |
Mating cycles | ≥500 |
Contacts material | Copper alloy (Hard-silver plated) |
Contact resistance | ≤1mΩ |
Tightening tourque | 1.2Nm |
Related products
Company Profile
Kunshan SVL Electric Co., Ltd (Used name Kunshan svl electric system.co.,ltd ) is an innovative Scientific and technological enterprise integrating R&D, production and sales. We can provide automatic components such as connectors and wiring harness, heavy-duty connectors, servo wiring harness, panel interface, valve plug, cable entry system, magnetic switch, pressure switch, industrial LED lighting, bus module, etc.
SVLEC 's high-quality, innovative products are strictly tested in the laboratory and long-term user integration. Our laboratory fully conforms to the IEC 61984 & IEC 17025 construction standards. Our products have passed CE, TUV, UL certification successively.
SVLEC 's high-quality, innovative products are strictly tested in the laboratory and long-term user integration. Our laboratory fully conforms to the IEC 61984 & IEC 17025 construction standards. Our products have passed CE, TUV, UL certification successively.
