Factory Outlet 20mm 100mm grinding ball media mining cement forged steel balls for mineral grinding mill
Factory Outlet 20mm 100mm grinding ball media mining cement forged steel balls for mineral grinding mill
Factory Outlet 20mm 100mm grinding ball media mining cement forged steel balls for mineral grinding mill
Factory Outlet 20mm 100mm grinding ball media mining cement forged steel balls for mineral grinding mill
Factory Outlet 20mm 100mm grinding ball media mining cement forged steel balls for mineral grinding mill
Factory Outlet 20mm 100mm grinding ball media mining cement forged steel balls for mineral grinding mill
Factory Outlet 20mm 100mm grinding ball media mining cement forged steel balls for mineral grinding mill

Factory Outlet 20mm 100mm grinding ball media mining cement forged steel balls for mineral grinding mill

Share on (1601020863840):


Price:$0.01 - $0.02

Quantity:


Product Overview

Description



Product Description

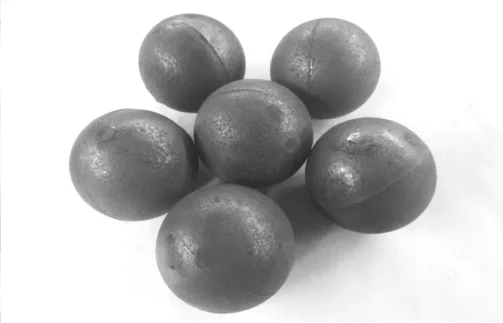

Forged Rolling Steel Ball Description

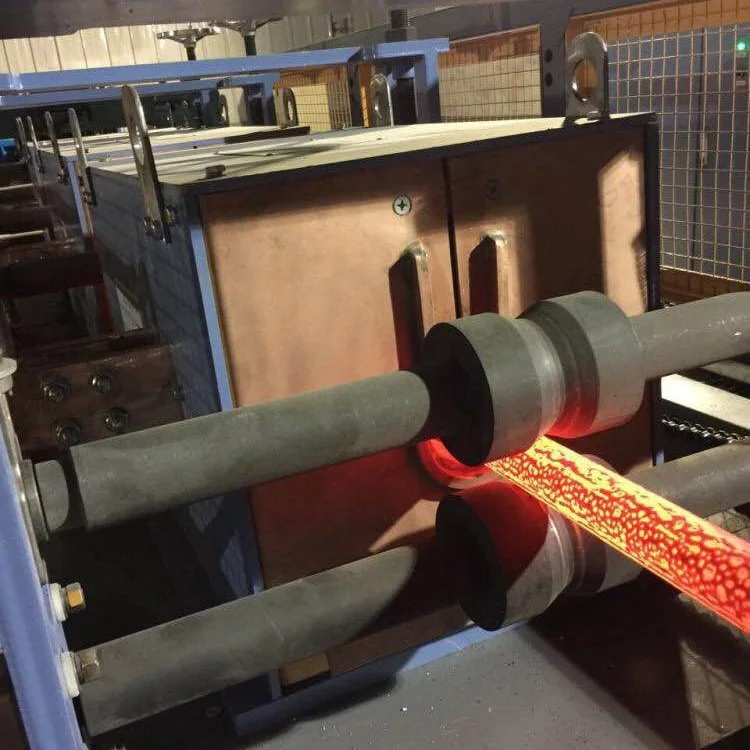

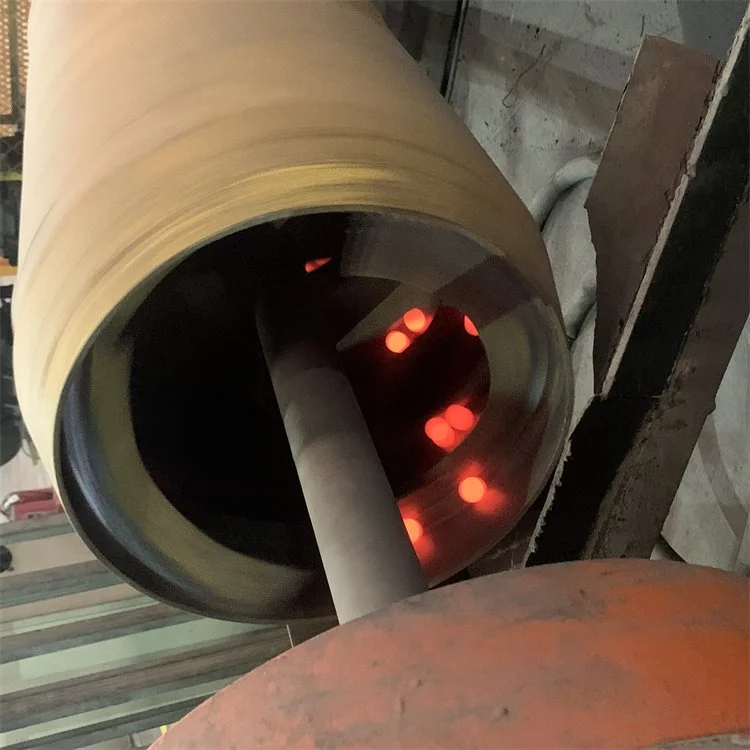

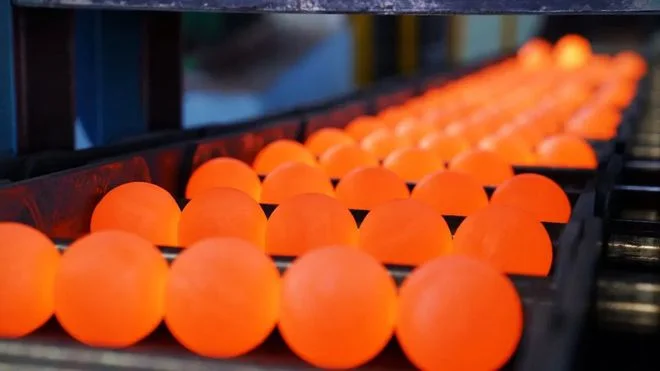

Heating the customed steel until the temperature reaches 1100C( 土50C) in the way of hot rolling and forging，the rollig forging machinery will put pressure on the metal blank and producing a grinding ball with certain mechanical property, shape and size . This is our processing methods of the grinding balls.

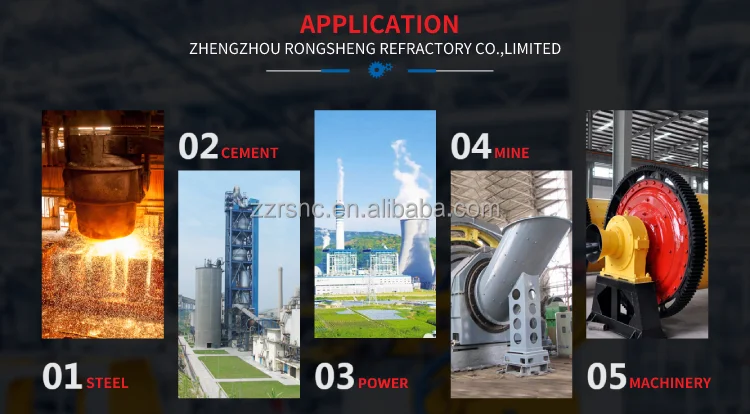

Applications


Rongsheng is able to manufacture accurate-size, high-roundness，high-hard rolling balls. They have great wear resistance, difficult deformation and less broken, uniform hardness distribution, high impact toughness( over 12j/cm2). Mainly suitable for industries such as mining, steel, chemical industry, cement plants, power plants, ball coal machine, semi-automatic ball mills, and ball mills,etc.




Specification


Diameter Tolerance and Roundness
Nominal diameter
30
40
50
60
70
80
90
Tolerance（mm）
±2
+3，-2
Roundness (%)
≤2
≤3


Nominal diameter
100
110
120
125
150
Tolerance（mm）
+4，-3
+5，-4
Roundness (%)
≤4
≤5


Chemical Composition
Brand
C（%）
Si（%）
Mn（%）
Cr（%）
Cu（%）
Mo（%）
P（%）
S（%）
Ni(%)
45#
0.42-0.50
0.17-0.37
0.5-0.80
0-0.25
0-0.25
0-0.30
0-0.035
0-0.035
0-0.30
40Mn
0.37-0.44
0.17-0.37
0.7-1.0
0-0.25
0-0.25
0-0.30
0-0.035
0-0.035
0-0.30
50Mn
0.48-0.56
0.17-0.37
0.60-1.0
0-0.25
0-0.25
0-0.30
0-0.035
0-0.035
0-0.30
60Mn
0.57-0.65
0.17-0.37
0.70-1.0
0-0.25
0-0.25
0-0.30
0-0.035
0-0.035
0-0.30
65Mn
0.62-0.70
0.17-0.37
0.90-1.0
0-0.25
0-0.25
0-0.30
0-0.035
0-0.035
0-0.30
70Mn
0.67-0.75
0.17-0.37
0.90-1.20
0-0.25
0-0.25
0-0.30
0-0.035
0-0.035
0-0.30
40Cr
0.37-0.45
0.17-0.37
0.50-0.8
0.80-1.1
0-0.25
0-0.30
0-0.035
0-0.035
0-0.30
42CrMo
0.38-0.45
0.17-0.37
0.50-0.80
0.90-1.2
0-0.03
0.15-0.25
0-0.035
0-0.035
0-0.30
70Cr2
0.65-0.75
0.20-0.30
0.75-0.90
0.55-0.70
0-0.25
0-0.30
0-0.030
0-0.030
0-0.30
40Mn2
0.37-0.44
0.17-0.37
1.4-1.8
0-0.25
0-0.25
0-0.30
0-0.035
0-0.30
0-0.30
70Mn2
0.65-0.75
0.20-0.45
1.4-1.8
0-0.25
0-0.25
0-0.30
0-0.035
0-0.030
0-0.30
B-1
0.52-0.65
0.17-0.37
0.60-1.2
0-0.25
0-0.25
0-0.30
0-0.035
0-0.035
0-0.30
B-2
0.70-0.80
0.17-0.37
0.70-0.80
0.50-0.60
0-0.25
0-0.30
0-0.035
0-0.035
0-0.30
B-3
0.58-0.66
1.2-1.6
0.65-0.80
0.70-0.90
0-0.25
0-0.30
0-0.035
0-0.035
0-0.30
B-4
0.60-0.65
1.6-1.7
0.7-0.8
0.7-0.8
0-0.25
0-0.30
0-0.035
0-0.035
0-0.30
B-6
0.75-0.85
0.2-0.40
0.9-1.0
0.85-0.95
0-0.25
0.06-0.13
0-0.035
02-0.035
0.06-0.13
B-6A
0.82-0.95
0.20-0.40
0.92-1.02
0.80-0.95
0-0.25
0.06-0.10
0-0.035
0-0.035
0.06-0.10
B-7
0.35-0.40
0.17-0.37
0.7-0.8
0.9-1.0
0-0.25
0-0.30
0-0.035
0-0.035
0-0.30
BU
0.95-1.05
0.17-0.37
0.9-1.10
0.40-0.60
0-0.15
0-0.05
0-0.035
0-0.035
0-0.30
Gr15
0.95-1.05
0.15-0.35
0.20-0.40
1.30-1.65
0-0.25
0-0.10
0-0.027
0-0.020
0-0.10


Technical Specification
Brand
Breakage rate
Hardness(HRC)
Impact value
(J/cm²）
Drop times
Micro structure
45#
<1%
≥45
≥12
≥8000
M+C
40Mn
<1%
≥50
≥12
≥10000
M+C
50Mn
<1%
≥55
≥12
≥10000
M+C
60Mn
<1%
≥55
≥12
≥12000
M+C
65Mn
<1%
≥58
≥12
≥12000
M+C
70Mn
<1%
≥60
≥12
≥12000
M+C
40Cr
<1%
≥55
≥12
≥12000
M+C
42CrMo
<1%
≥55
≥12
≥12000
M+C
70Cr2
<1%
≥58
≥12
≥12000
M+C
40Mn2
<1%
≥55
≥12
≥12000
M+C
70Mn2
<1%
≥58
≥12
≥12000
M+C
B-1
<1%
≥55
≥12
≥12000
M+C
B-2
<1%
≥58
≥12
≥15000
M+C
B-3
<1%
≥60
≥12
≥15000
M+C
B-4
<1%
≥60
≥12
≥15000
M+C
B-6
<1%
≥60
≥12
≥15000
M+C
B-6A
<1%
≥60
≥12
≥15000
M+C
B-7
<1%
≥60
≥12
≥15000
M+C
BU
<1%
≥60
≥12
≥15000
M+C
Gr15
<1%
≥60
≥12
≥15000
M+C


Recommend Products

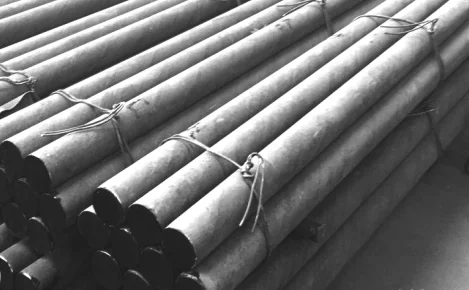

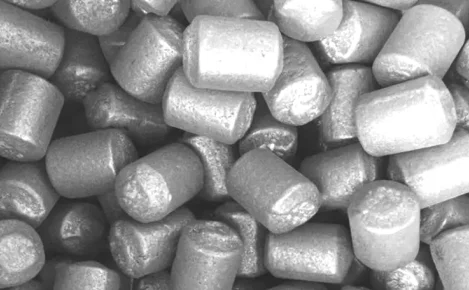

Grinding Steel Cylpebs Grinding Steel Balls Grinding Steel Rods

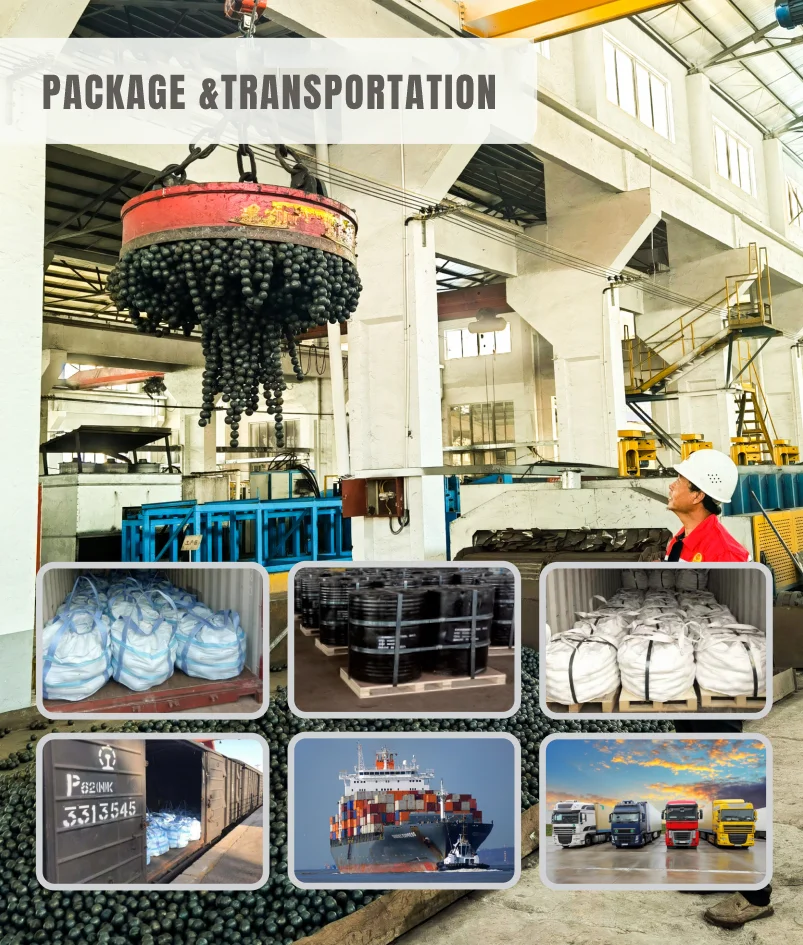

Packing & Delivery


1. Industrial package
2.Plastic bag/Pallet/Outer Carton
3. on customers's request
4.Transportation: express delivery, land transportation, sea transportation, air transportation




Company Profile




ZHENGZHOU RONGSHENG REFRACTORY CO., LIMITED has 30 years of experience in R & D and design of unshape refractory experts, holds 20 utility model patents and 7 invention patents, and has passed the ISO quality, environment and safety management system certification. The company is committed to the R & D, production and service of refractories used in metallurgy, electric power, nonferrous metals, building materials, chemical industry and other industries. Its products cover 198 kinds of materials and 2369 varieties in three categories (acidic, neutral and alkaline), providing overall solutions for refractories for 1200 domestic and 200 foreign customers.The products are mainly all kinds of stereotyped and amorphous refractories, with full refractory physical and chemical index testing equipment and testing system, through ISO quality, environment, safety three management systems.




Rongsheng Refractory has established complete quality system and conducted quality control through the whole staff and process that from raw materials, production, check and various parts strictly according to ISO9001 standard.Annual production capacity is up to 60000 tons. There are light and heavy weight materials production lines and all kinds of complete production, testing and check equipment.








FAQ


1.Are you a manufacturer or a trader?

Manufacturer, some time we help our clients to purchase related products as a trader.

2.What’s the MOQ?

3.The MOQ varies for different products. Please contact us to understand.

4.how can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment;

5.Can you provide samples for free?

Yes, we can supply samples for free, and the freight will be undertaken by clients.

6.May I visit your factory?

Yes, we will arrange professional reception personnel to patiently explain to you.

7.Why choose us over other suppliers?

We have a large scale, strong strength, and rich experience, professional technology, and perfect customer service, and have obtained various certifications such as CE/ISO9001/ISO45001.
