Product Overview
Description
Bluetooth Low Energy Tamper Beacon Tag Overview
HCBB07 is a Bluetooth BLE tag based on Bluetooth BLE technology . There are standard type (excluding key anti-tamper function) HCBB07, key anti-tamper type HCBB07-K, key anti-tamper + acceleration type HCBB07-KA. HCBB07 can be used with the Bluetooth gateway of HoneyComm IoT Technology(Shenzhen）Co.,Ltd. The product is widely used in asset tracking and management , and can also be used as a Bluetooth badge to manage personnel .
HCBB07 series products adopt low-power Bluetooth technology, low power consumption, long use time, small product size, and can be fixed on the asset surface with 3M glue.
HCBB07 series products adopt low-power Bluetooth technology, low power consumption, long use time, small product size, and can be fixed on the asset surface with 3M glue.
HCBB07-K has a button anti-tampering function, which can ensure the safety of assets. Once the Bluetooth tag is removed, the
Bluetooth tag will immediately broadcast a removal alarm signal . HCBB07-KA integrates a three-axis acceleration sensor,
which can determine whether assets or personnel are in motion.
Bluetooth tag will immediately broadcast a removal alarm signal . HCBB07-KA integrates a three-axis acceleration sensor,
which can determine whether assets or personnel are in motion.
Features
▶ Replaceable battery
▶ It has different product forms such as key anti-tampering, key anti-tampering + acceleration , etc.
▶ Reading distance up to 70 meters ( 0dBm broadcast )
▶ Beacon parameters can be flexibly configured through the mobile APP ( when the broadcast interval is less than 1s )
▶ Support BLE4.2 protocol
▶ Ultra-low power consumption, standby time up to 3 years ( 0dBm transmit power, 10s broadcast interval )
▶ Small and lightweight
▶ Easy installation: 3M double-sided adhesive
▶ RoHS Compliant
▶ Replaceable battery
▶ It has different product forms such as key anti-tampering, key anti-tampering + acceleration , etc.
▶ Reading distance up to 70 meters ( 0dBm broadcast )
▶ Beacon parameters can be flexibly configured through the mobile APP ( when the broadcast interval is less than 1s )
▶ Support BLE4.2 protocol
▶ Ultra-low power consumption, standby time up to 3 years ( 0dBm transmit power, 10s broadcast interval )
▶ Small and lightweight
▶ Easy installation: 3M double-sided adhesive
▶ RoHS Compliant
Hardware Parameters | ||||
Part Number | HCBB07 : Without tamper function | |||
HCBB07-K : key tamper | ||||
HCBB07-KA : key tamper + acceleration | ||||
shell material | ABS | |||

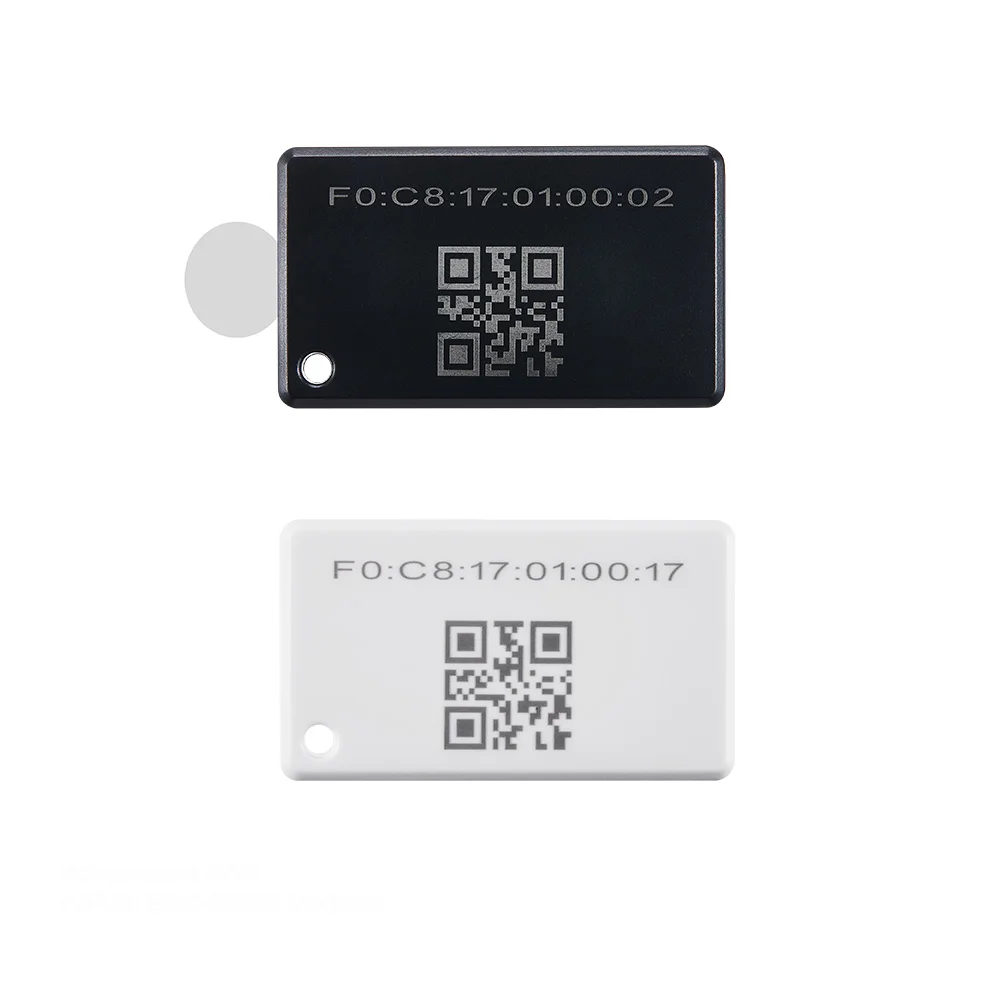

shell color | Black (default), other colors can be customized (batch order not less than 3K) | |||
Dimensions | 25*44*5. 7 mm ( without 3M glue, the thickness is 5.8mm with 3M glue ) | |||
battery model | CR2032, 225mAh ( replaceable battery ) | |||
supply voltage | DC 3V | |||
installation method | 3M double-sided tape | |||

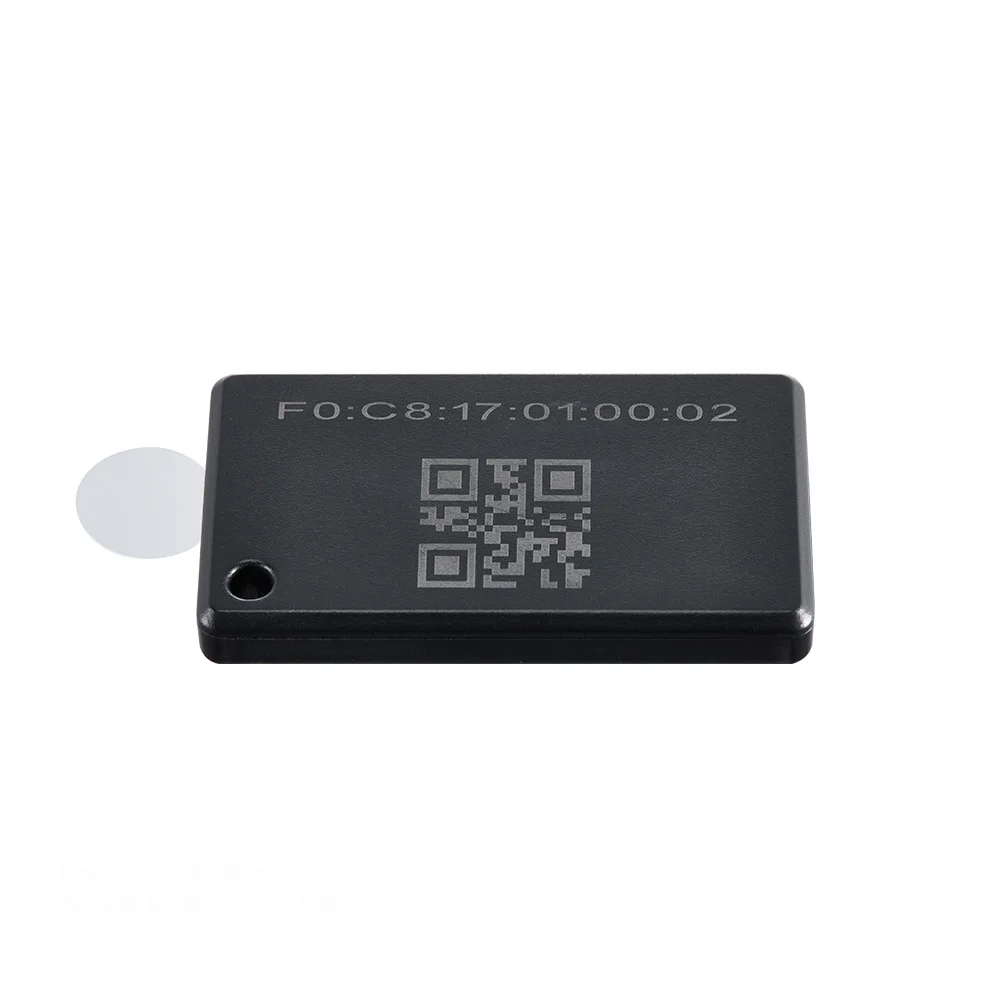

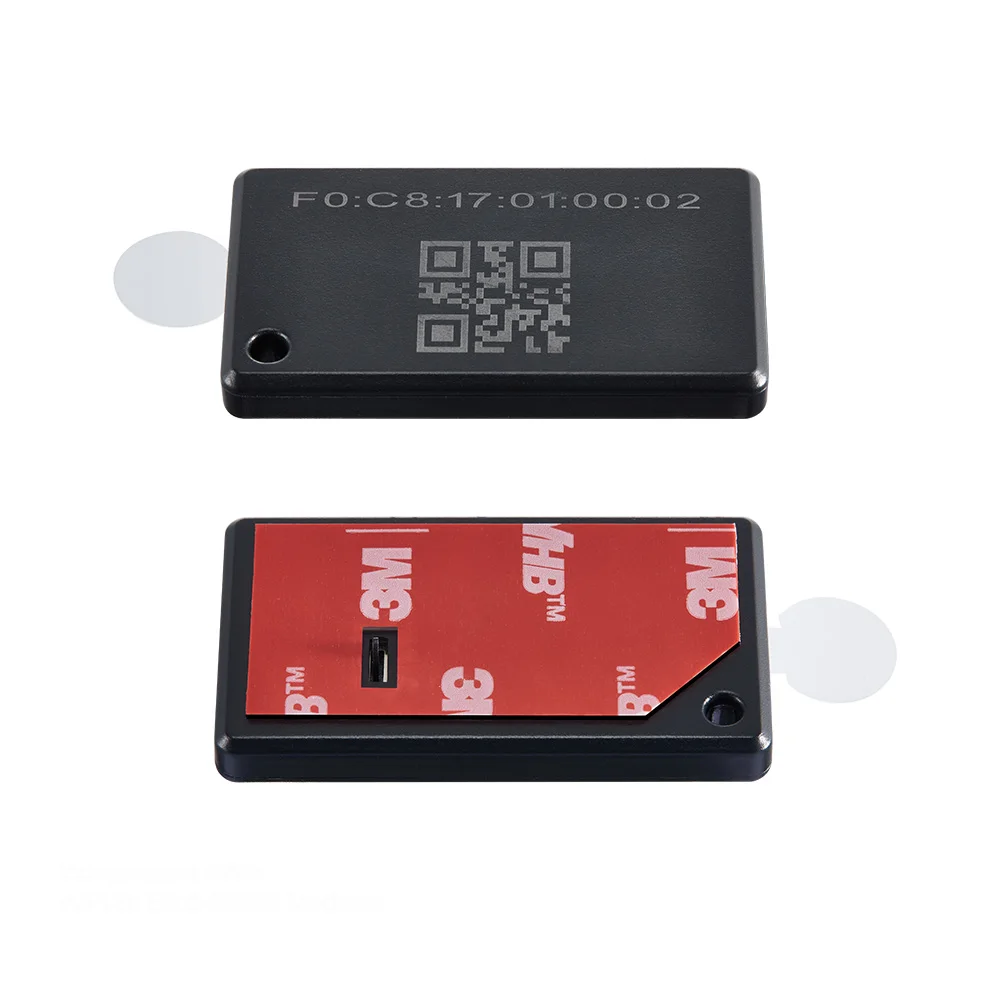

Beacon Tag with Printed Mac address

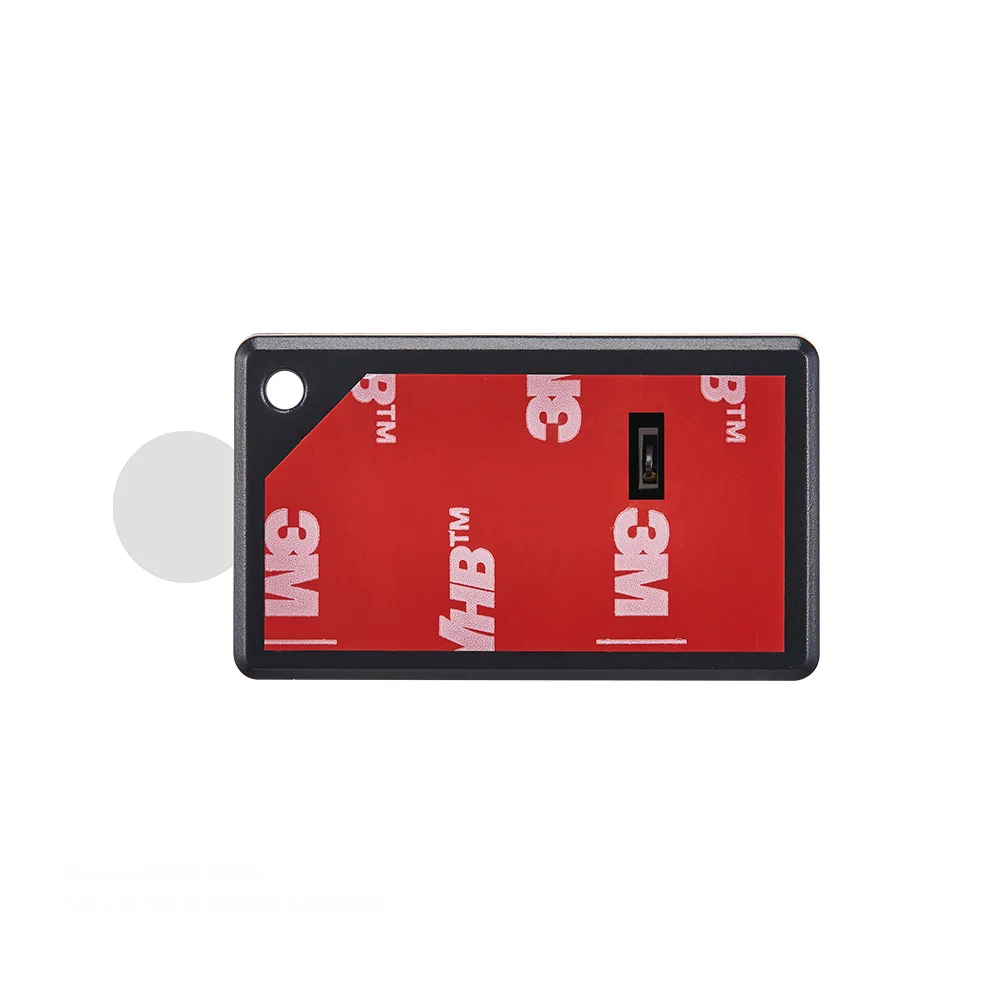

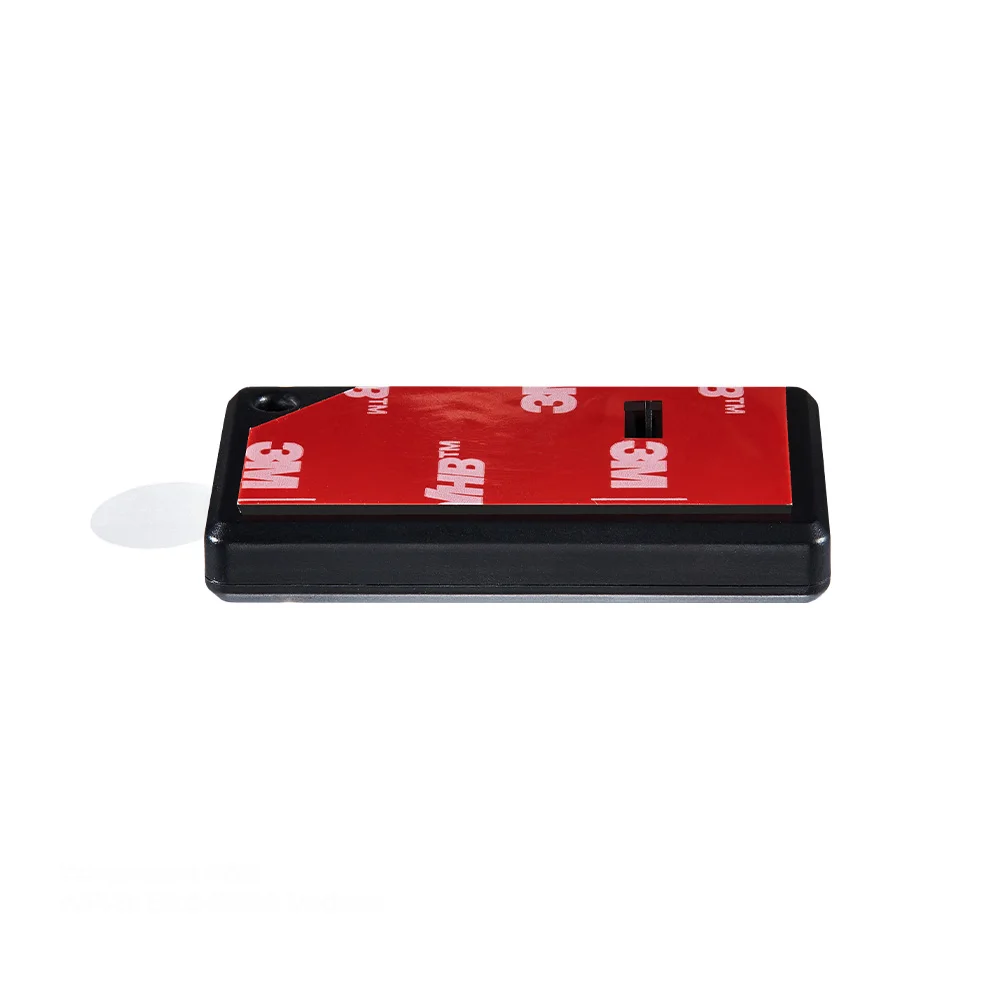

BLE Beacon Tag with 3M Glue

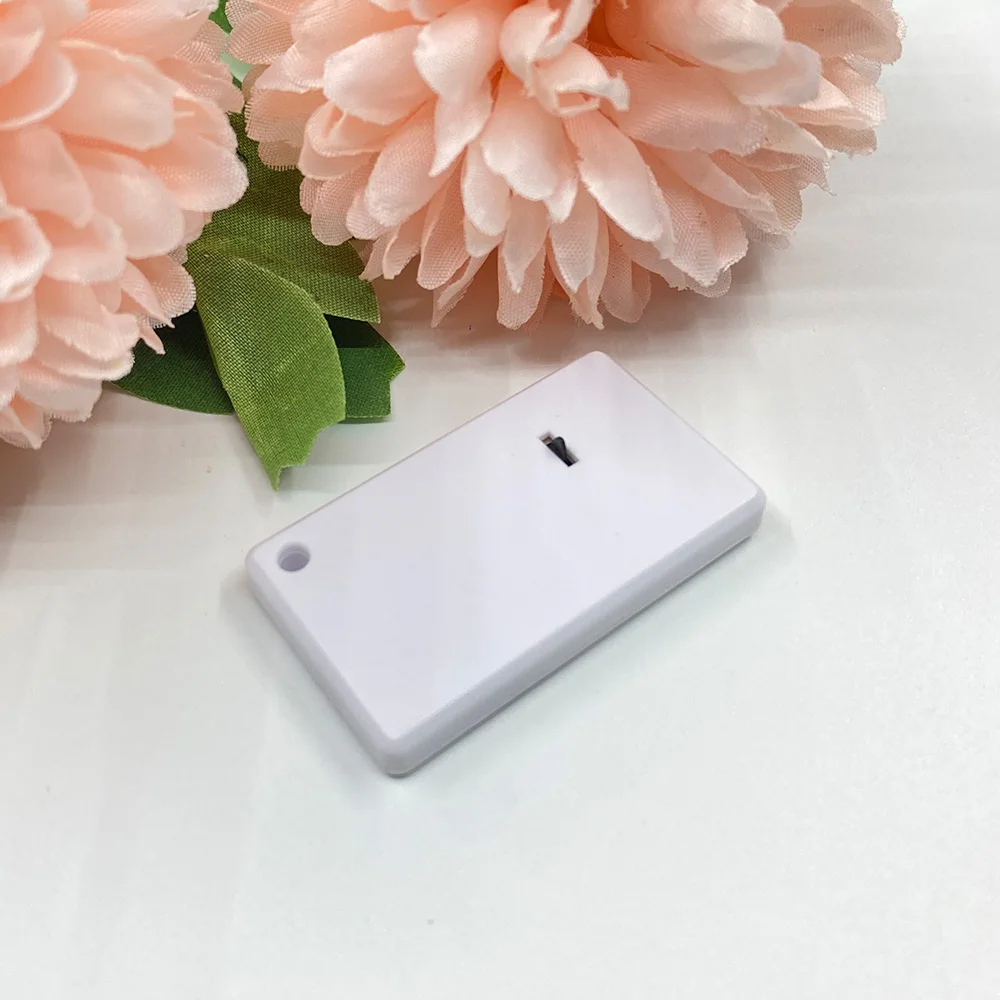

Ble Tamper Beacon Tag with Button
Specifications | ||||
communication method | BLE4.2 | |||
Operating mode | Broadcasting data | |||
transmit power | -30~+4dB, default 0dB | |||
broadcast interval | 100ms~10s, default 3s | |||
working frequency | 2400MHz-2483.5MHz | |||
Transmission distance | The open limit transmission distance is 70 meters (0dBm) | |||
Safety | Support password connection ( when the broadcast interval is less than 1s ) and non-connectable mode, anti-malicious connection function | |||
System Requirement | IOS7.0 and above, Android 4.3 and above | |||
Electrical Characteristics | ||||
Quiescent Current | <=3uA | |||
Peak Current | 7 mA | |||
Average Current | <7 uA (0dB/3s) | |||
<3 uA (0dB/10s) | ||||
Remarks: Depending on the software and firmware, whether there is a response packet (with a broadcast Bluetooth name), whether it can be connected, and the current are slightly different. | ||||
Battery Type | CR2032 (replaceable battery) | |||
Battery Capacity | 225mAh | |||
Beacon Lifetime | 3 years (0dB/10s) | |||
other | ||||
Working Environment | Working temperature: -20℃~+ 70 ℃ | |||
Storage temperature: -20℃~+ 70 ℃ | ||||
Working humidity: 10%~90% (non-condensing state) | ||||
Storage humidity: 5%~90% (non-condensing state) | ||||
Default Parameters | ||
UUID | FDA50693-A4E2-4FB1-AFCF-C6EB07647825 | |
Major | 10818 | |
Minor | 1 (increment) | |
RSSI @ 1m | -61dBm | |
transmit power | 0dBm | |
connection password | not connectable | |
broadcast interval | 3s | |
broadcast name | The last 6 digits of KTBB+mac | |
Is it connectable | Non-connectable mode (default), connectable mode ( optional , connectable mode is not recommended if the broadcast interval is greater than 1s) | |
battery power | Broadcast battery voltage, update the voltage value every 12 hours | |
