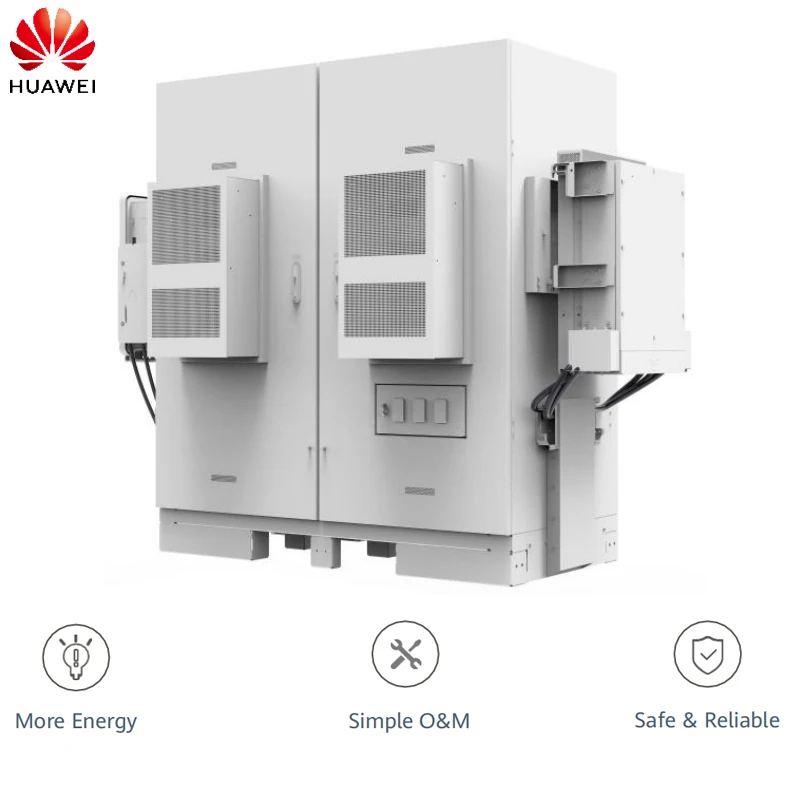

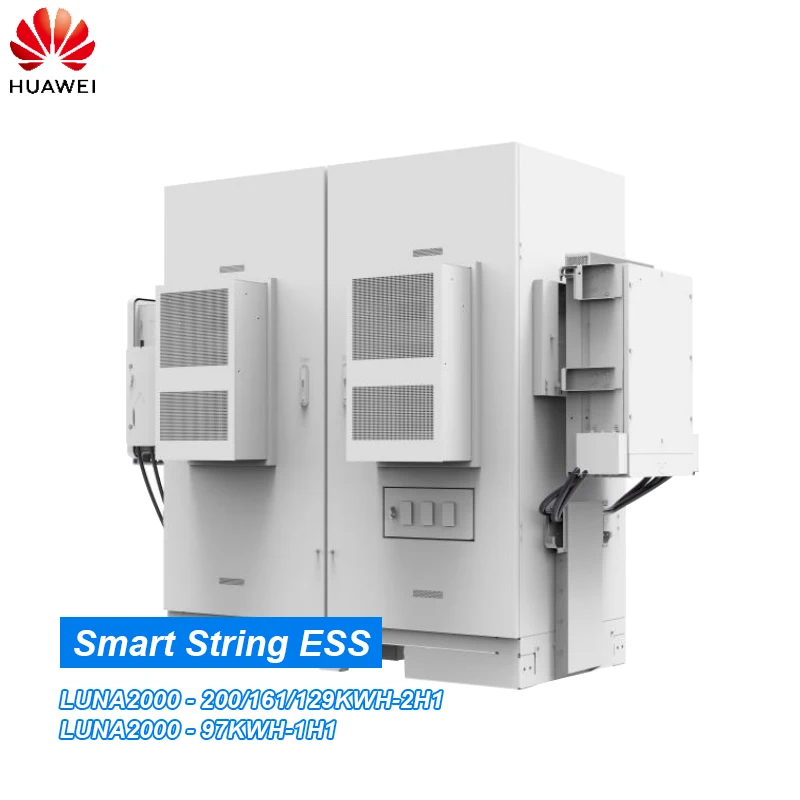

huawe1 Solar Battery energy storage system luna 2000 00/161/129KWH 2H1 LUNA2000 97KWH 1H1 ESS Container 600KW for industry
- Category: >>>
- Supplier: Wuxi Yifeng Technology Co. Ltd.Wuxi Ltd.
Share on (1601021052306):
Product Overview
Description
Product Description

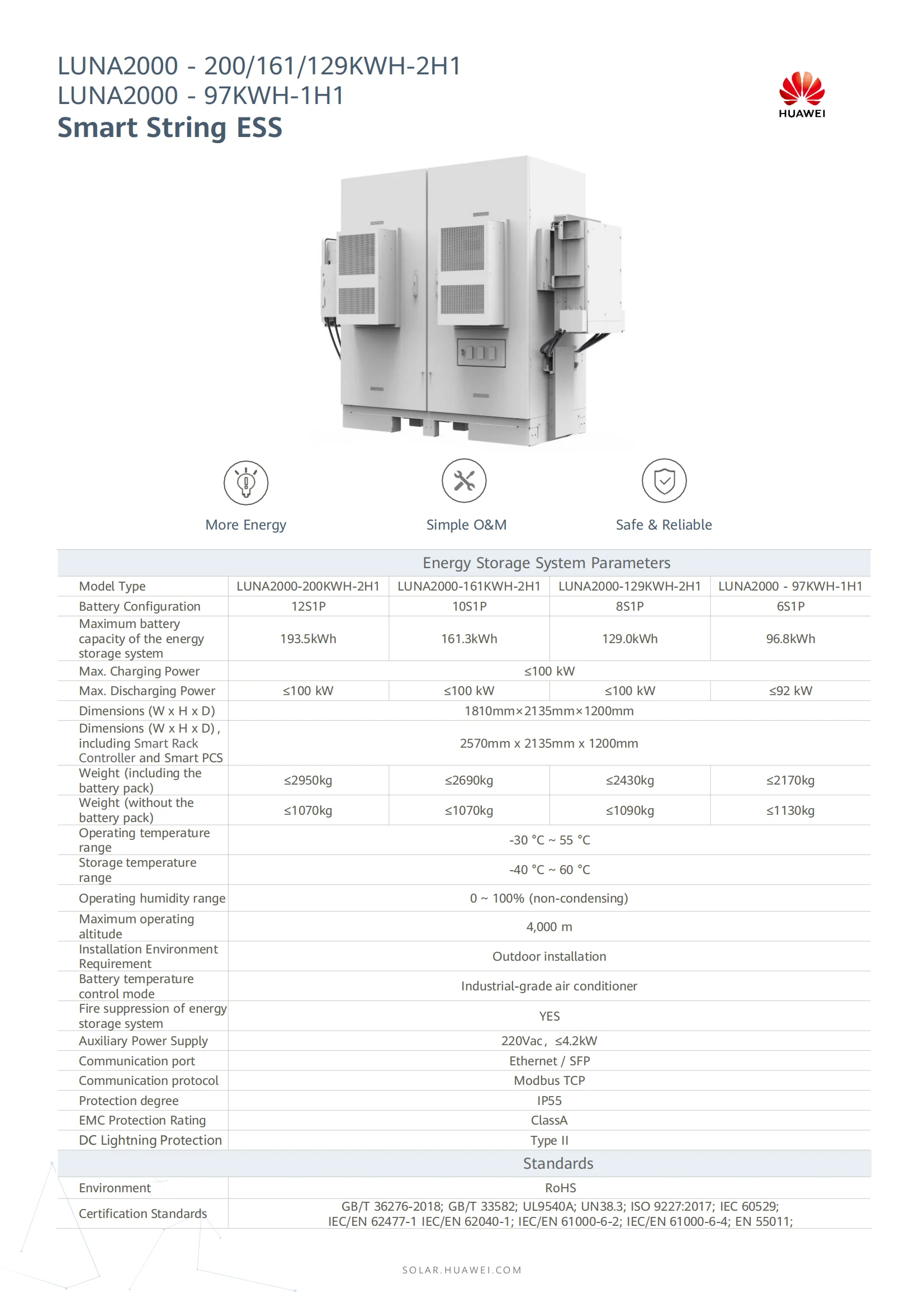

Technical Parameters

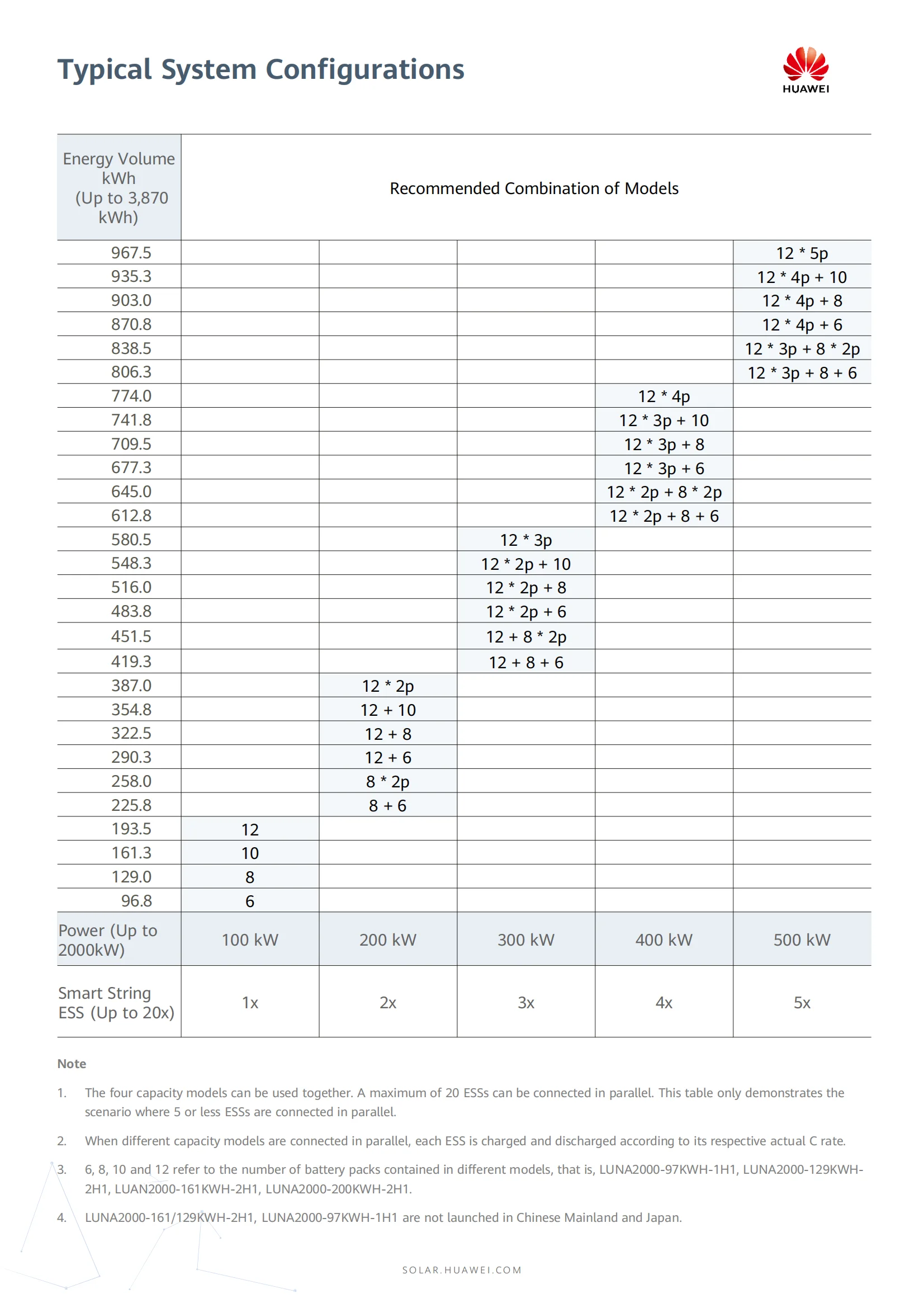

Model Type | LUNA2000-200KWH-2H1 | LUNA2000-161KWH-2H1 | LUNA2000-129KWH-2H1 | LUNA2000 -97KWH-1H1 | ||||||||
Battery Configuration | 12S1P | 10S1P | 8S1P | 6S1P | ||||||||
Maximum battery capacity of the energy storage system | 193.5kWh | 161.3kWh | 129.0kWh | 96.8kWh | ||||||||
Max.Charging Power | ≤100 kW | |||||||||||
Max.Discharging Power | ≤100 kW | ≤100 kW | ≤100 kW | ≤92 kW | ||||||||
Dimensions (WxHx D) | 1810mm×2135mm×1200mm | |||||||||||

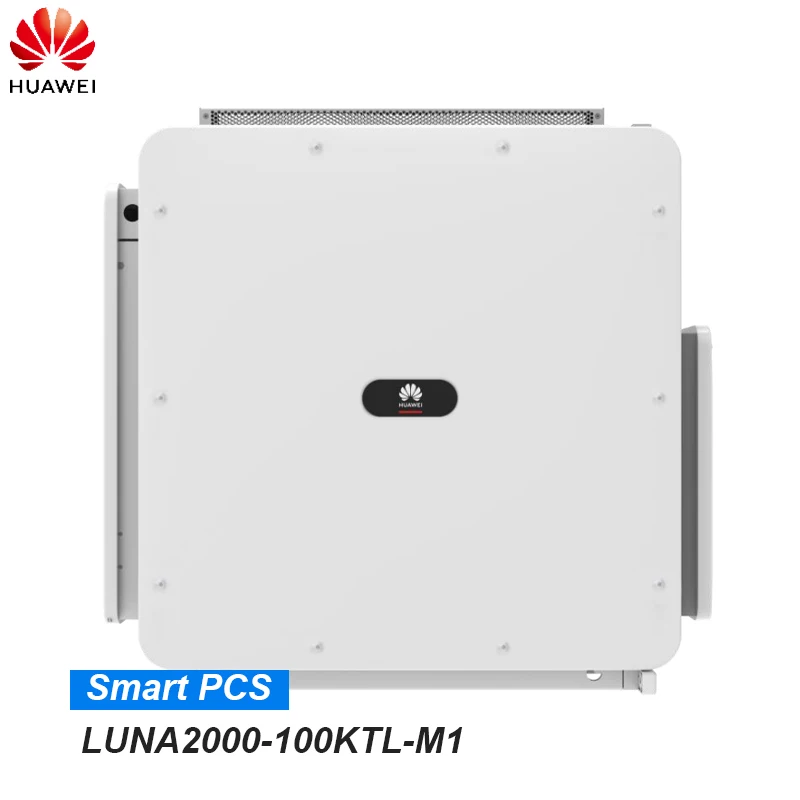

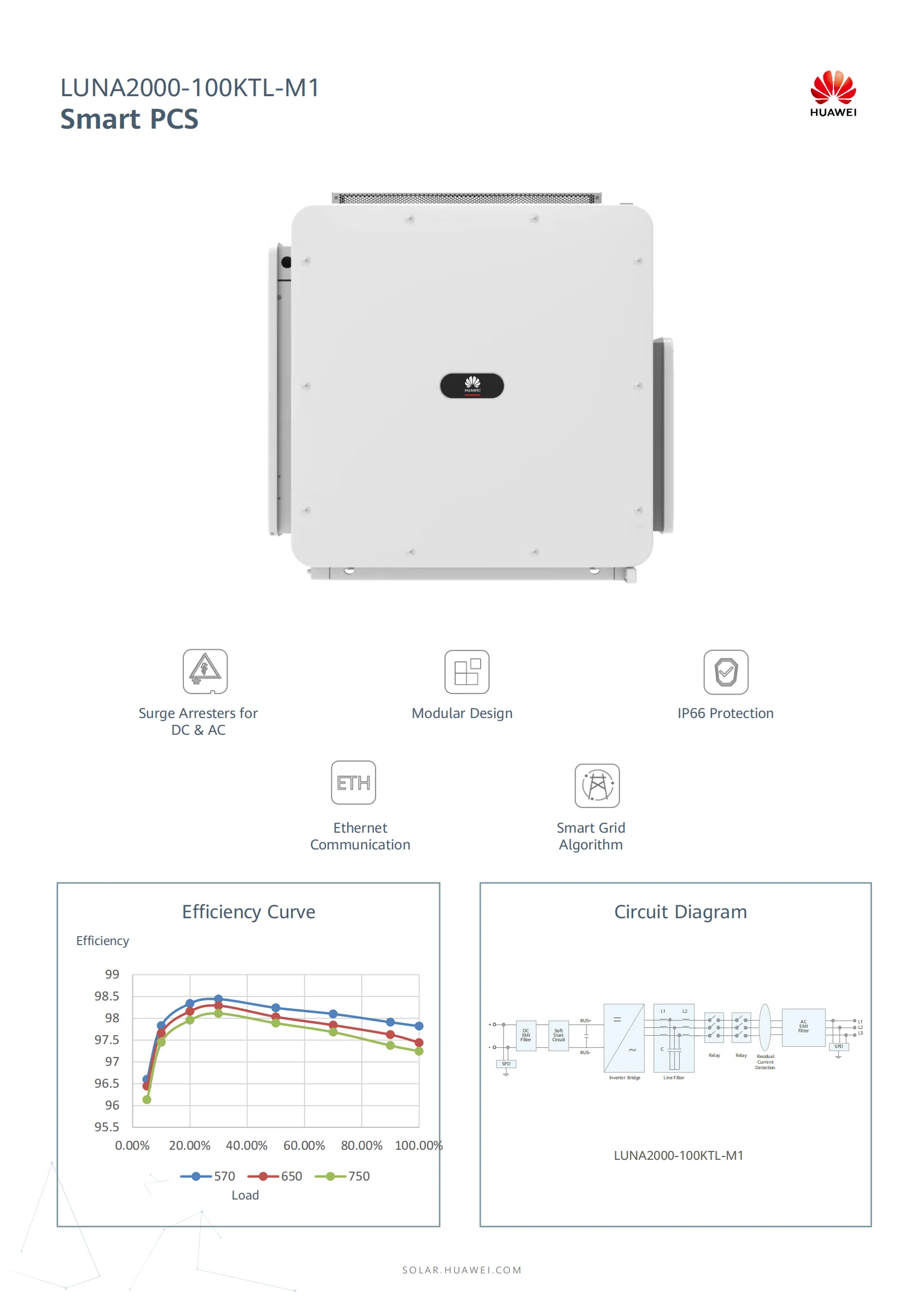

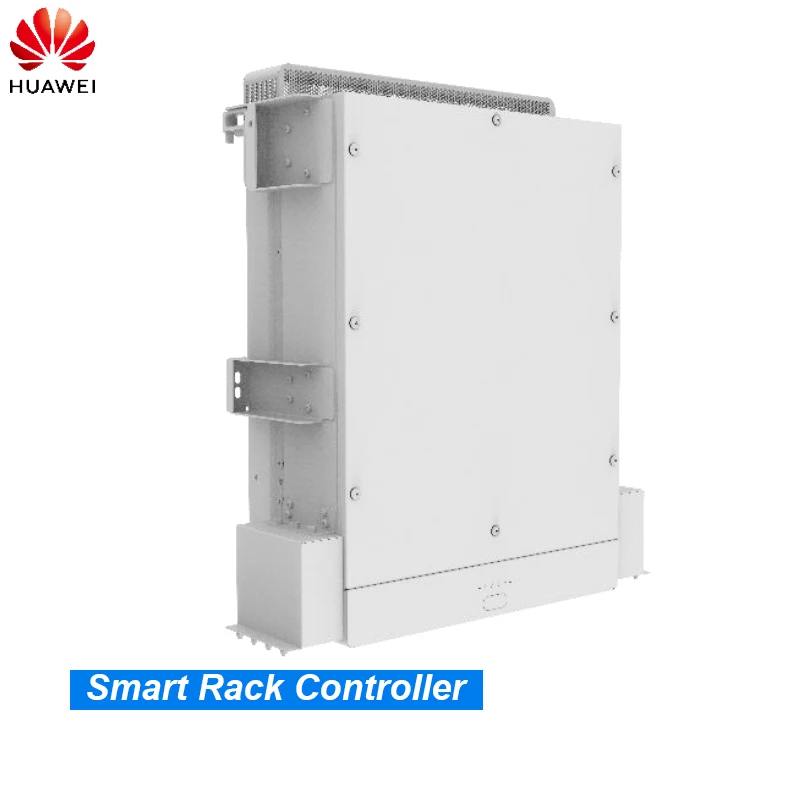

Dimensions (WxHxD), ncluding Smart Rack Controller and Smart PCS | 2570mmx2135mm x1200mm | |||||||||||

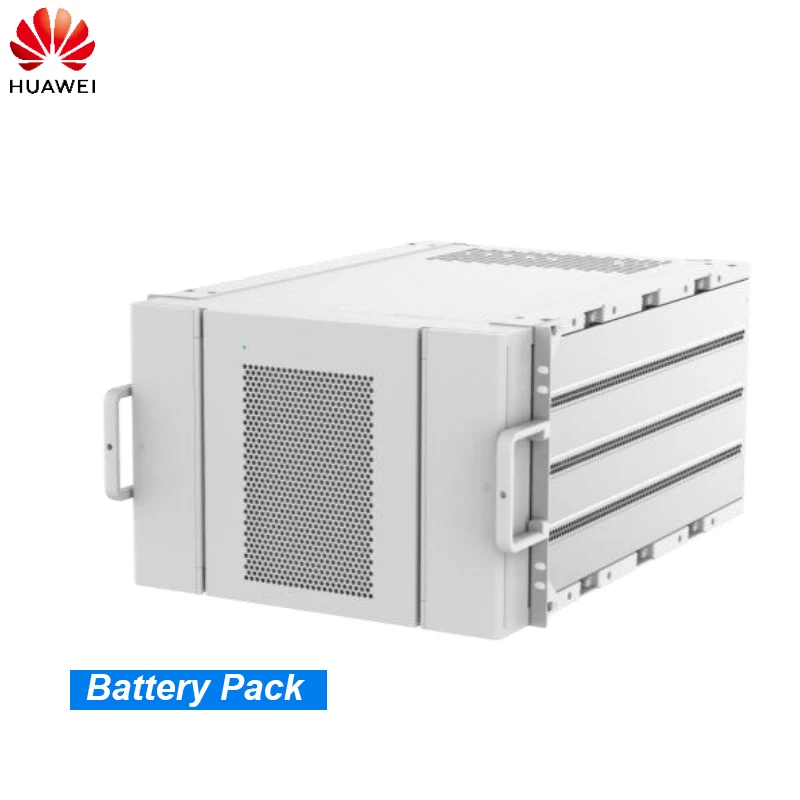

Weight (including the battery pack | ≤2950kg | ≤2690kg | ≤2430kg | ≤2170kg | ||||||||
Weight battery | (without pack) | the | ≤1070kg | ≤1070kg | ≤1090kg | ≤1130kg | ||||||
Operating temperature range | -30 ℃~55 ℃ | |||||||||||
Storage temperature range | -40 ℃~60 ℃ | |||||||||||
Operating humidity range | 0～100%(non-condensing) | |||||||||||
Maximum operating altitude | 4,000 m | |||||||||||
nstallation Environment Requirement | Outdoor installation | |||||||||||
Battery temperature control mode | Industrial-grade air conditioner | |||||||||||
Fire suppression of energy storage system | YES | |||||||||||
Auxiliary Power Supply | 220Vac,≤4.2kW | |||||||||||
Communication port | Ethernet /SFP | |||||||||||
Communication protocol | Modbus TCP | |||||||||||
Protection degree | IP55 | |||||||||||
EMC Protection Rating | ClassA | |||||||||||
DC Lightning Protection | Type l | |||||||||||
Standards | ||||||||||||
Enyironment | RoHS | |||||||||||
Certification Standards | GB/T 36276-2018;GB/T33582;UL9540A;UN38.3;ISO 9227:2017;IEC 60529; EC/EN 62477-1 IEC/EN 62040-1;IEC/EN 61000-6-2;IEC/EN 61000-6-4;EN 55011; | |||||||||||

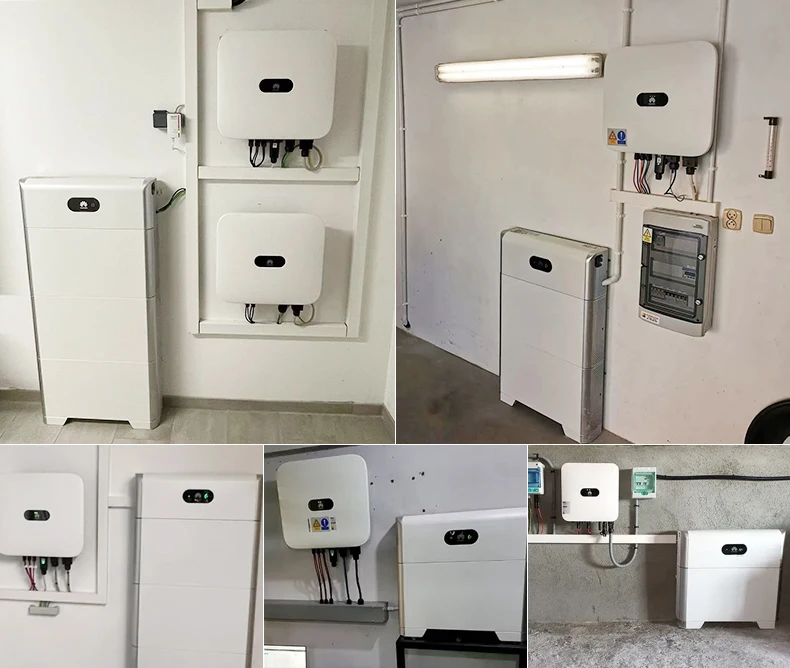

Our Project
