6YL 70T Vacuum Filtering Combined Automatic Screw Oil Press Machine With Single Phase

Product Overview

Description





Raw materials and oil for the combined screw oil press machine with oil filter:

Such as copra, cottonseeds, soybean, rapeseeds, peanut, sunflower seeds, tea seeds, olive,etc.





Application about the combined screw oil press machine with oil filter:

1.Advantage:  nice shape, highly structured, easy installation, fast warn-up,high oil output rate with pure scent and high degree of automation.

2.Design:it is a automatic combined oil press machine.

3.Main feature:with vacuum filtering equipment, pressing chamber automatically heating and controlling system.

4.Function: hot press and cold press are available.

5.Structure:6YL-T series integrated oil press machines are designed on the basis of the advantage of 6YL-series oil press

6.Suitable place:this kind of machine is situable for small-medium oil factory.



Main data about the combined screw oil press machine with oil filter:

Model	6YL-70T oil press
Capacity	50-60kg/h for oil seeds
Main Power	3kw-4p (220v/50hz/single phase)
Heating power	2kw
Vacuum pump power	0.75kw
Diameter of pressing screw	70mm
Rotating speed of pressing screw	41r/min
Residue oil in cake	7%-8%
Applicable scope	Hot press and cold press
Machine size	1350*1050*1100mm
Weight	350kg

 Other models

Model	Capacity(kg/h)	Power(kw)	Size(mm)	Weight(KG)
6YL-68T	30-50	5.5KW	1350X885X1300	250
6YL-80T	100-150	5.5KW	1190X680X1720	600
6YL-95A/100T	200-250	7.5KW	2200X825X1820	1000
6YL-120T	300-350	11KW-15KW	2330X810X1850	1200
6YL-130T	400-500	15KW-18.5	2440X955X1660 1940X730X890	1400
6YL-160T	600-700	18.5KW-22KW	2600X940X1920	1800

More pictures and details of 6YL-system screw oil perss machine:

Schematic diagram

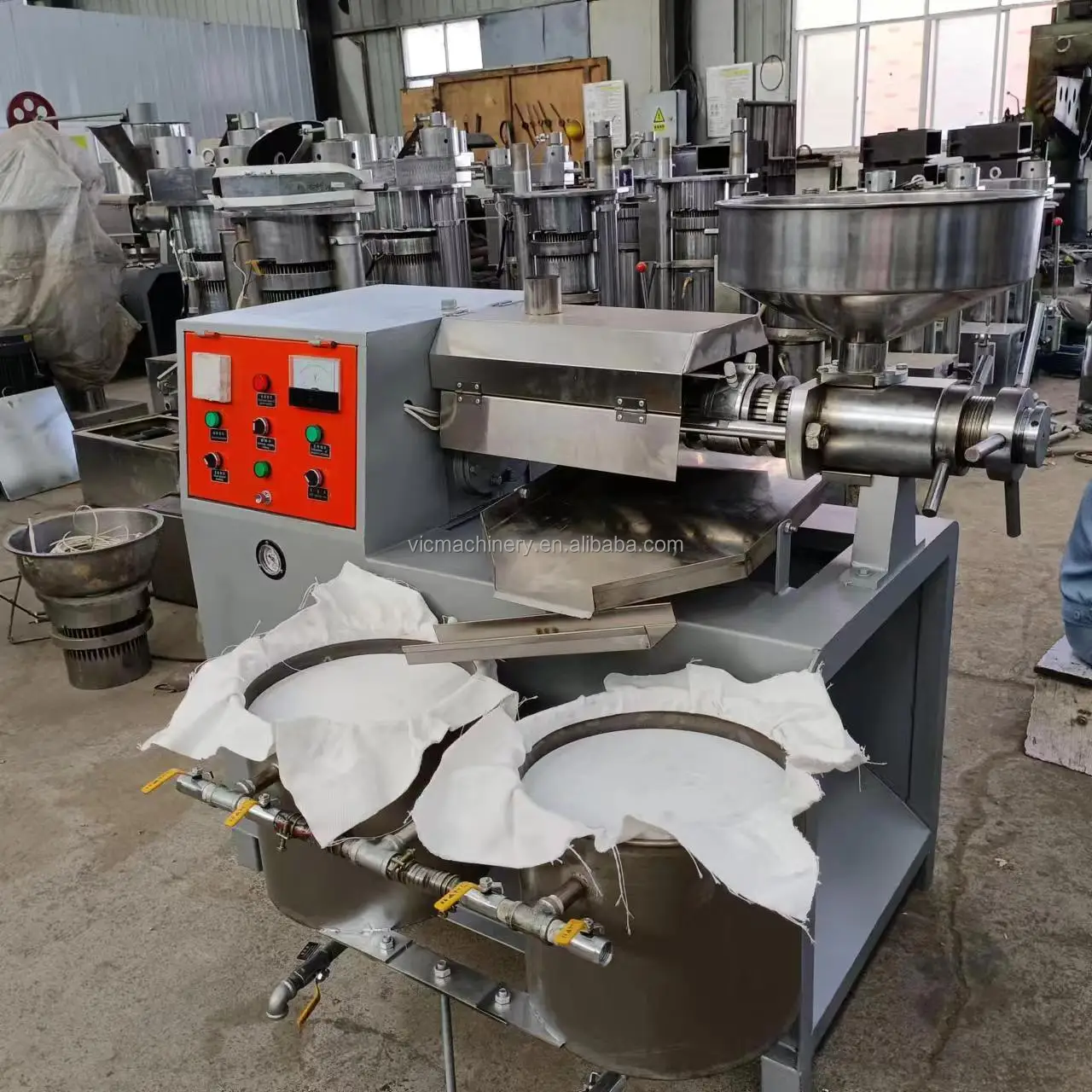

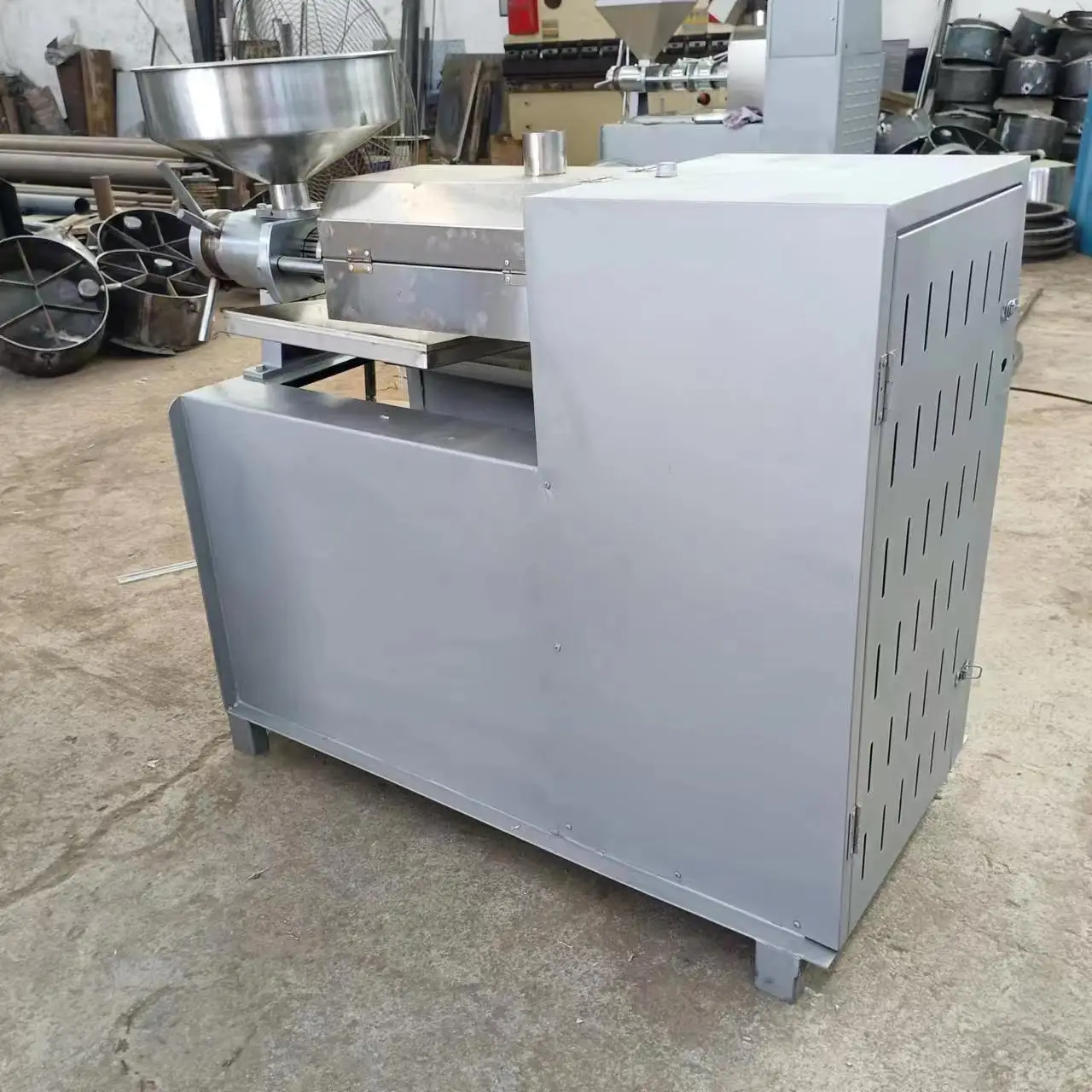

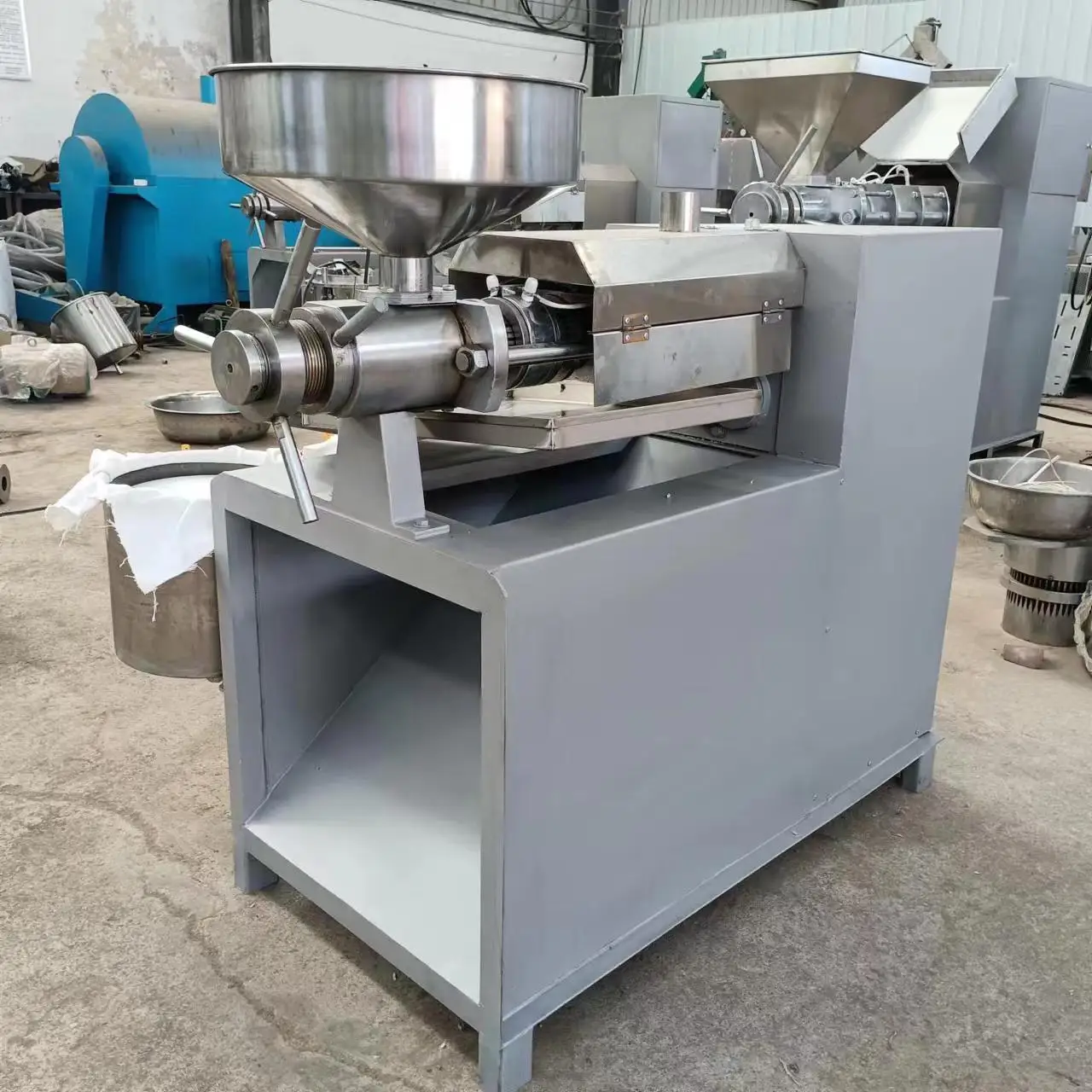

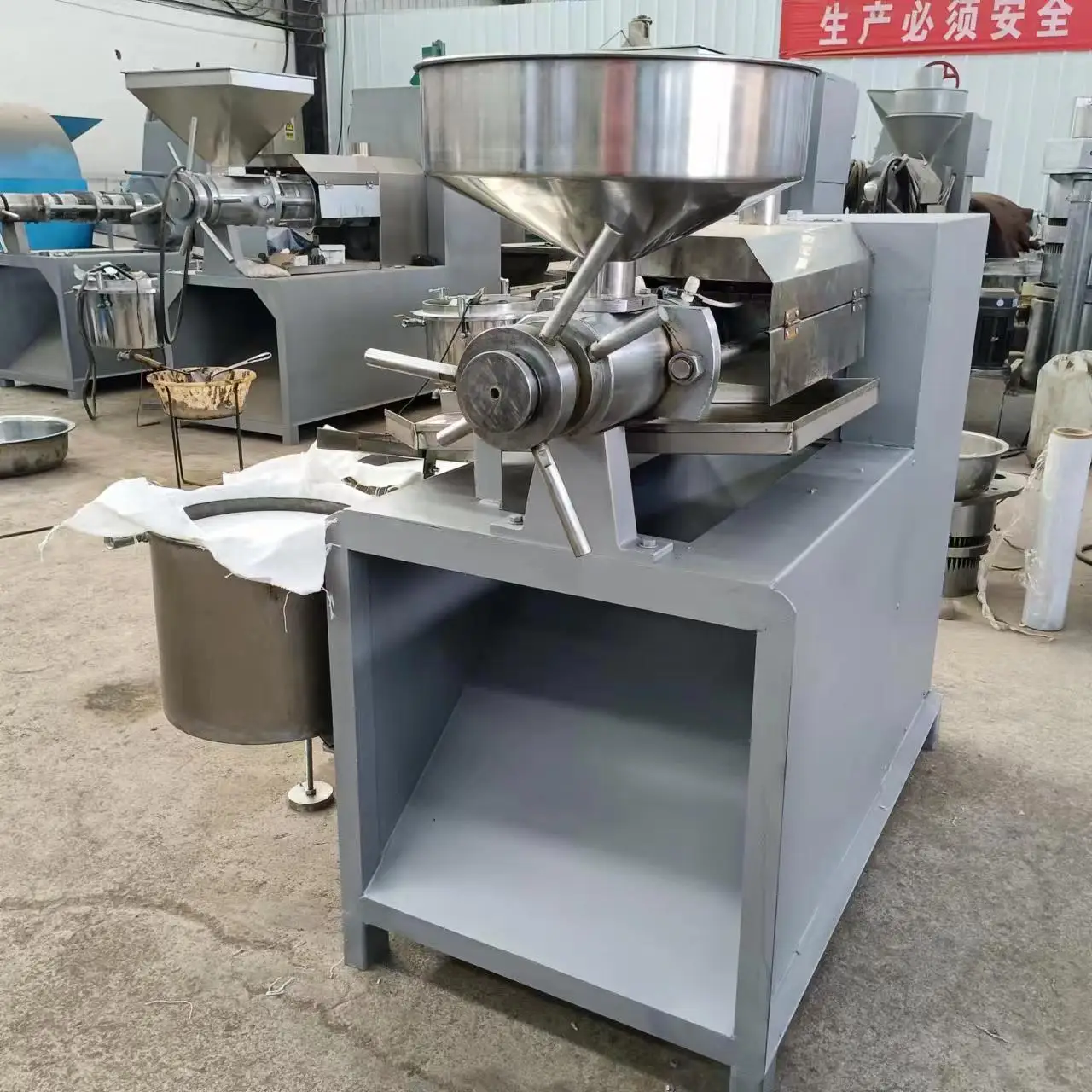

Main machine









Precisely assembled  barrel easily to press oil



 Extended stainless steel handle for easy pressure adjustment

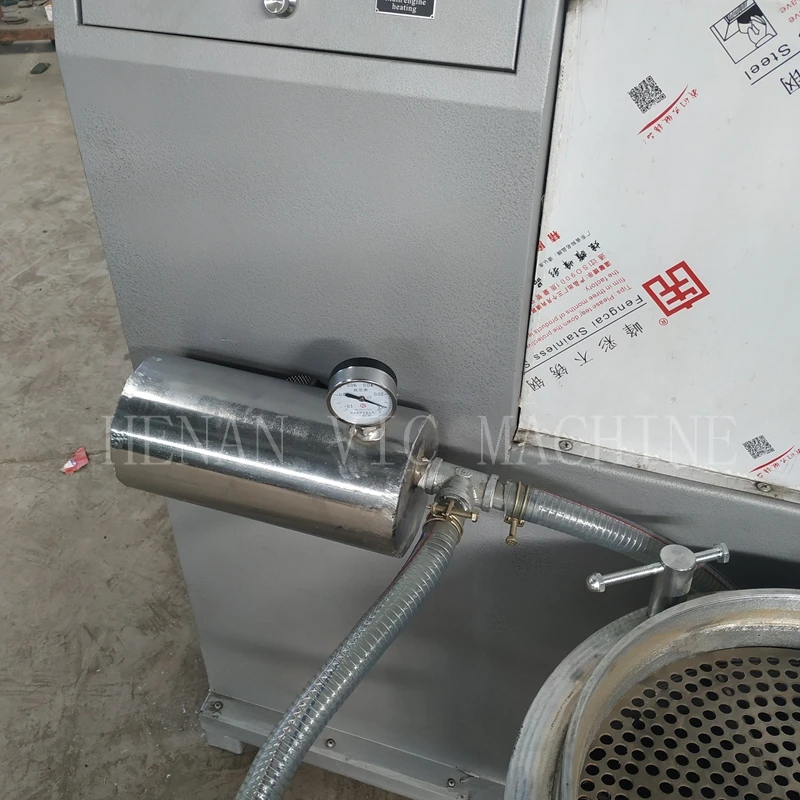

Vacuum pump and the pressure gauge

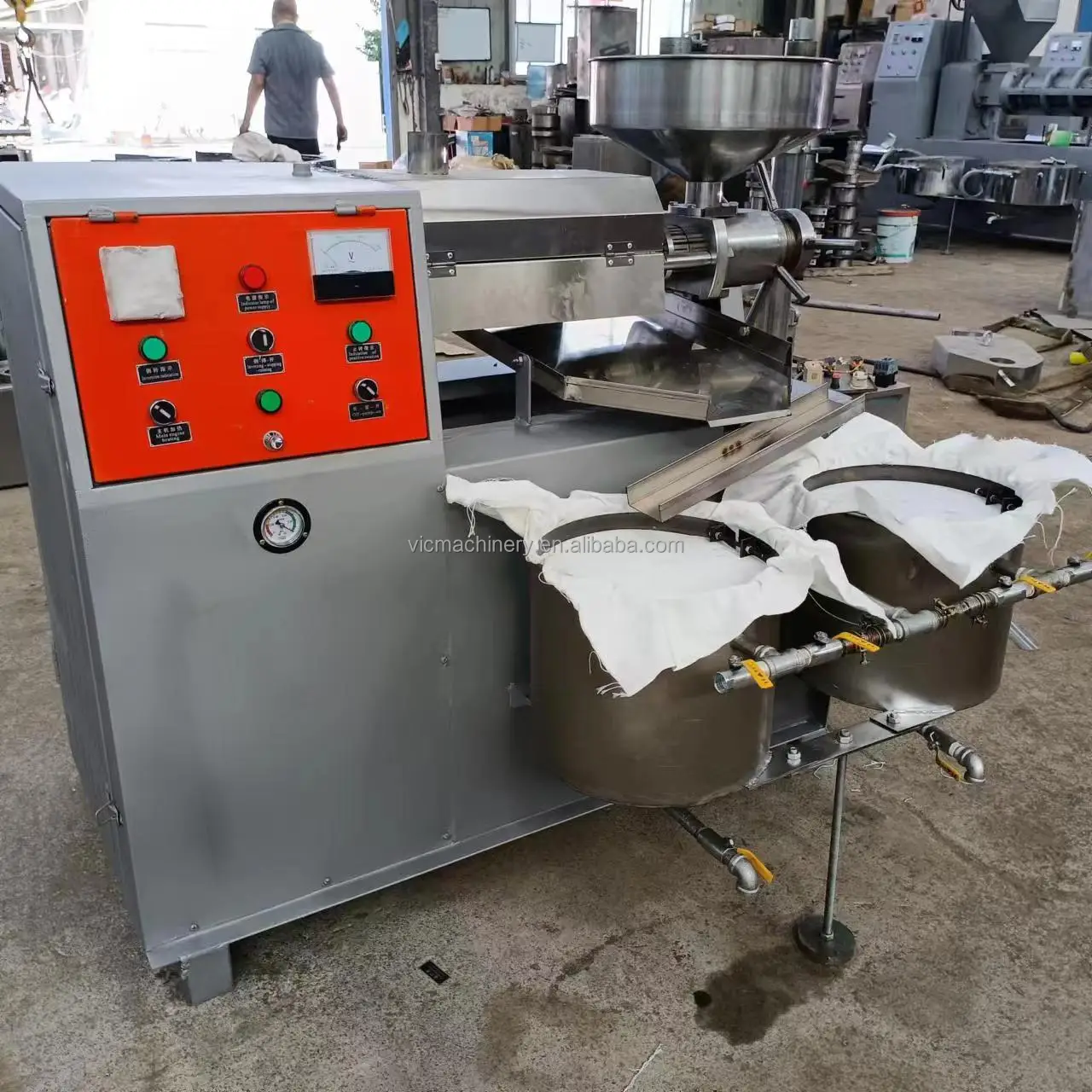

Control systems is simple and easy to operate

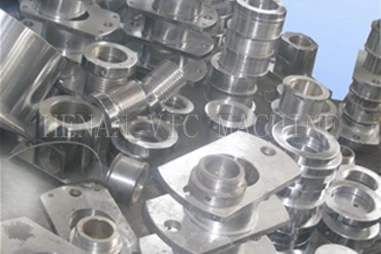

Main parts



Workshop corner





Packaging:in wooden box or wraping film in container









Shipping:

Delivery time: In 15 days after paid deposit.

Packing: wooden case package.

Partial shipment:not allowed

Transshipment:allowed



Picture of final oil









  For warranty parts and service:

**1 year warranty.
**Within warranty period, all exchanges due to defects are free (Buyer is responsible for shipping charges).
** Within warranty period, As to after-sales service, all the freight fare and accommodation will be paid by buyer
