Project Rechargeable Dog Training device integrated full color display dog trainer RF receiving module PCBA for Remote Dogs

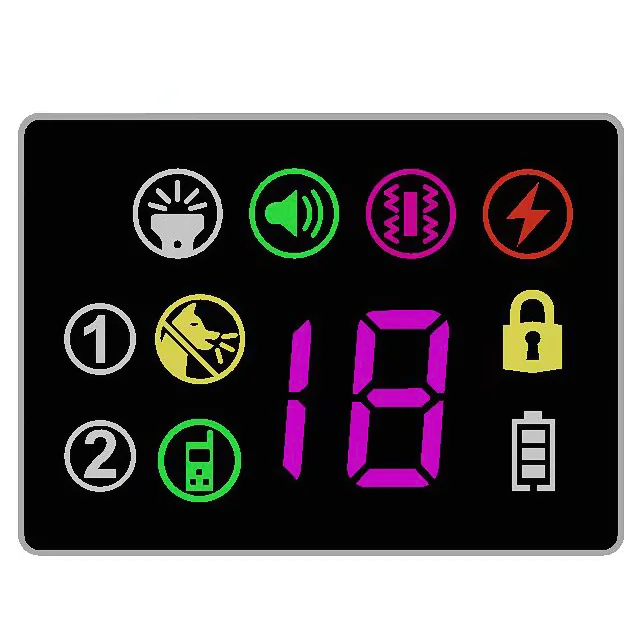

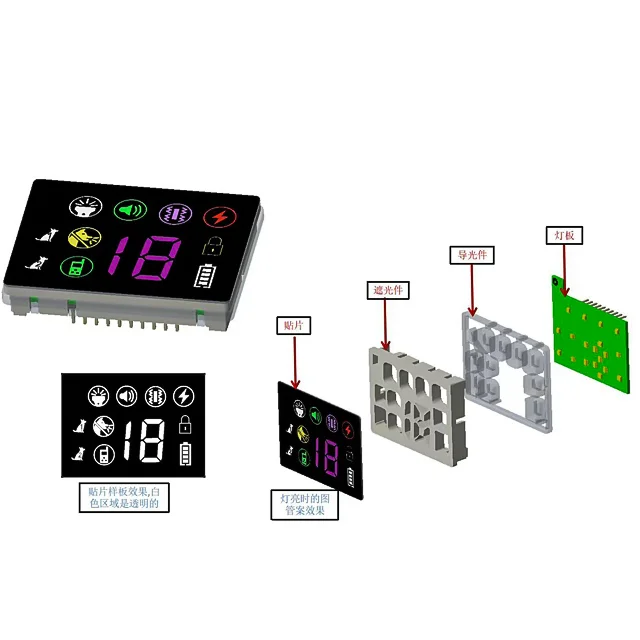

   XZ5_PinTxColorHC32 is a fully integrated dog trainer transmitter module, integrated display, charging, radio frequency and other key components. Support dog training & stop barking 2-in-1, dual vibration mode, encoder & button, full color display. Users can quickly design various forms of dog training remote control by matching appropriate peripheral devices. Greatly shorten the development cycle. UI can be easily replaced by changing the sticker on the surface.

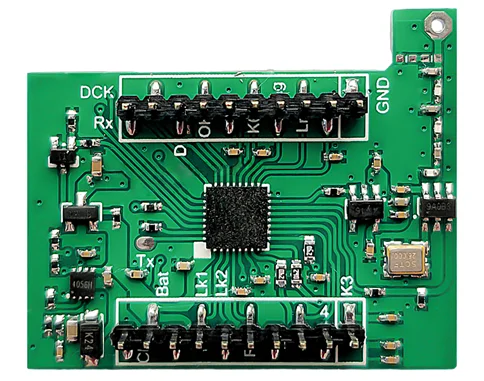

**Embedded 32-bit ARM Cortex M0+ core low-power processor for faster response and reliability. Its low power consumption enables the product to have a longer battery life.

**Support dog training & stop barking mode, through the remote control can set the mode of stop barking function, sensitivity. The barking stop function can also be turned off separately.

**Adjusting gear supports button +/- mode, or encoder mode.

**Support dual motor vibration mode, vibration + electric shock mode, to adapt to different national market needs.

**Support toggle switch Lock function, single key Lock function.

**Integrated charge management, supports up to 1A charge current. Support output overvoltage protection. Single RGB indicator indicating battery level.

**The method of punishment of the bark stopper includes: sound mode, sound + vibration, sound + vibration + shock.

**Normal standby working current 450uA, shutdown power consumption 1.0uA, recommended lithium battery 300mAH.

**Operating conditions -10 to 85 ° C

**On/Off: Press and hold the Dog button
