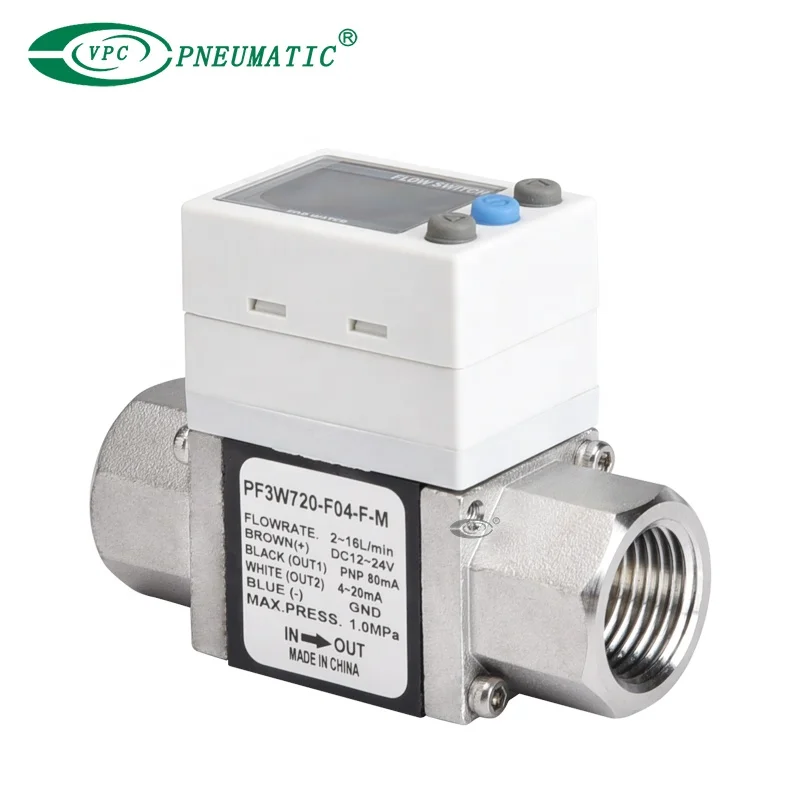

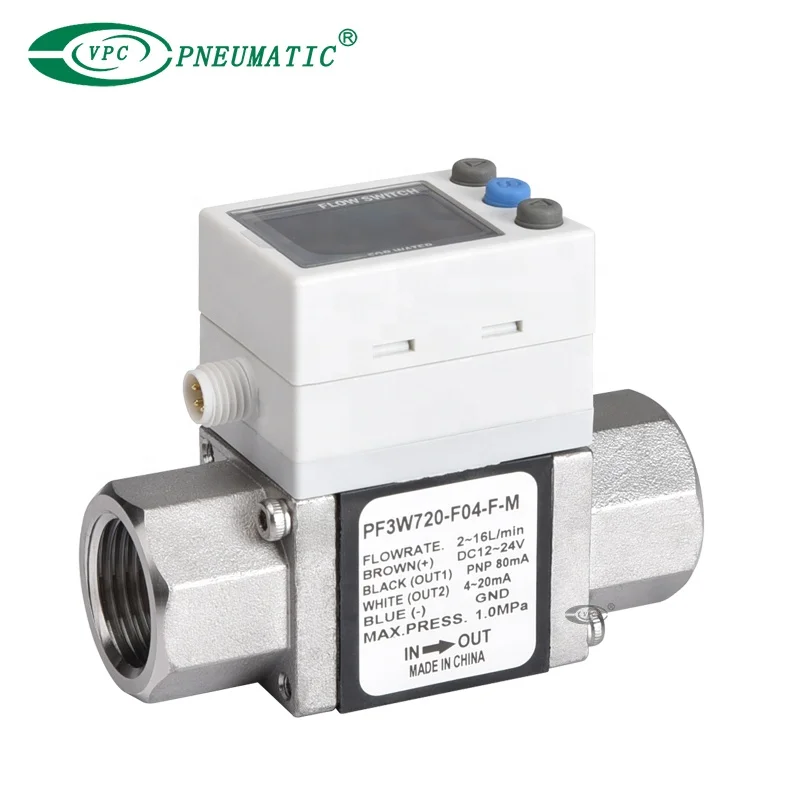

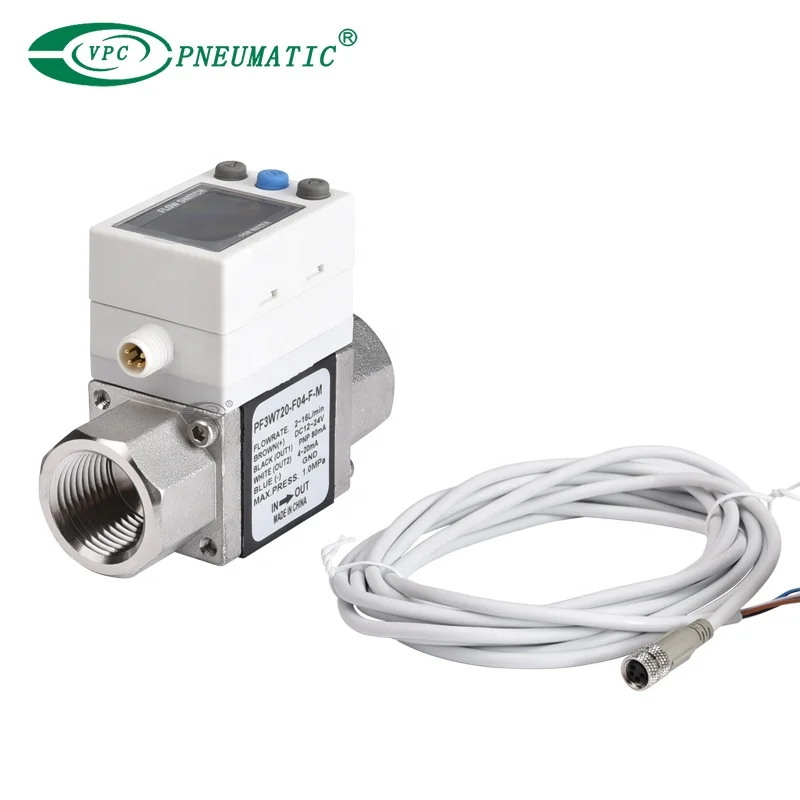

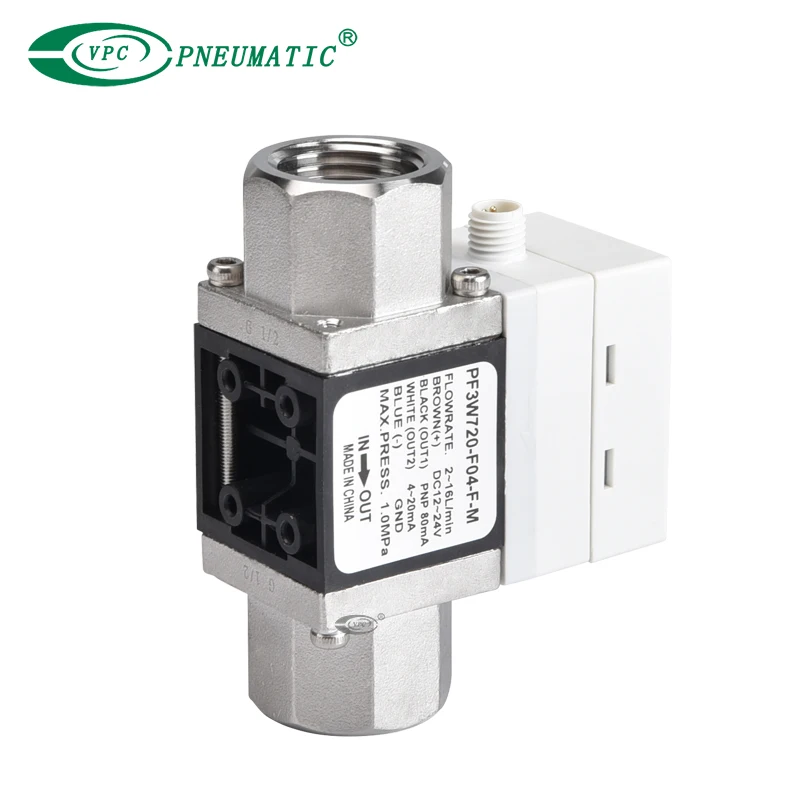

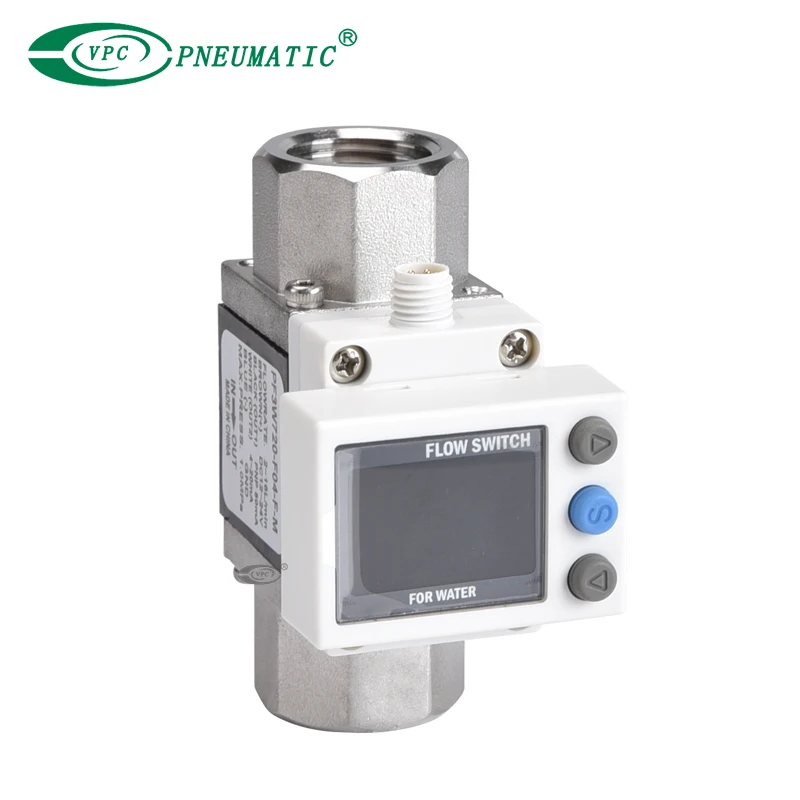

PF3W Series 3 Color Display Digital Flow Switch for Water
- Category: >>>
- Supplier: Ningbo Vpc Pneumatic Co. Ltd.
Share on (1601021175448):
Product Overview
Description
PF3W Series 3 Color Display Digital Flow Switch for Water
1. PF3W is a digital flow sensor that constantly monitors water or coolant flow.2. PF3W refreshes the design and operating performance of the legacy PF2W model. The body is up to 40% smaller in volume and requires shorter straight piping for improved installation flexibility. The upgraded 2-screen, 3-color numerical display rotates in both CW and CCW directions, offering improved visibility in a range of orientations.
3. Two outputs are available, including two switch signals, or a switch and analog signal.
4. Options include a mounting bracket, flow adjustment valve, and temperature sensor to monitor flow and temperature simultaneously.
5. PF3W is grease-free, IP65 rated, and C-UL-US, CE and RoHS compliant.
3. Two outputs are available, including two switch signals, or a switch and analog signal.
4. Options include a mounting bracket, flow adjustment valve, and temperature sensor to monitor flow and temperature simultaneously.
5. PF3W is grease-free, IP65 rated, and C-UL-US, CE and RoHS compliant.
Product Feature
1. 3-color/2-screen display.
2. Integrated display type, Separate monitor type, and PVC piping type.
3. Reduced required piping space.
4. Rotatable display: Counterclockwise 90°, Clockwise 225°. Display can be rotated in increments of 45° to suit the installation conditions.

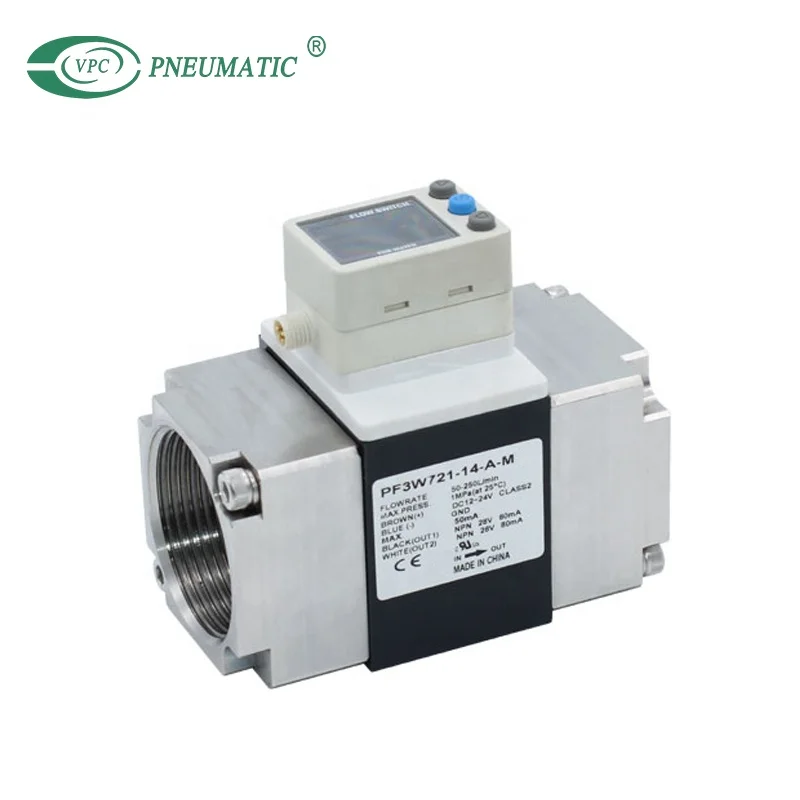

5. Easy operation, improved visibility. New model PF3W721-14- -M. (Flow rate set from 20-350L/min).
2. Integrated display type, Separate monitor type, and PVC piping type.
3. Reduced required piping space.
4. Rotatable display: Counterclockwise 90°, Clockwise 225°. Display can be rotated in increments of 45° to suit the installation conditions.
5. Easy operation, improved visibility. New model PF3W721-14- -M. (Flow rate set from 20-350L/min).
PRODUCT SPECIFICATION
Model | PF3W704 | PF3W720 | PF3W740 | PF3W711 | PF2A721 | ||||||
Working medium | Water and ethylene glycol aqueous solution (with viscosity of 3MPa·s [3 cP] or less) | ||||||||||
Detection type | Karman vortex | ||||||||||
Rated flow range | 0.5 to 4 L/min | 2 to 16 L/min | 5 to 40 L/min | 10 to 100 L/min | 50 to 250 L/min | ||||||
Display flow range*1) | 0.35 to 5.5 L/min | 1.7 to 22 L/min | 3.5 to 55 L/min | 7 to 140 L/min | 20 to 350 L/min | ||||||
Set flow range | 0.35 to 5.5 L/min | 1.7 to 22 L/min | 3.5 to 55 L/min | 7 to 140 L/min | 20 to 350 L/min | ||||||
Smallest settable increment | 0.01L/min | 0.1L/min | 1L/min | 2L/min | |||||||
Conversion of accumulated pulse (Pulse width: 50ms) | 0.05L/pulse | 0.1L/pulse | 0.05L/pulse | 1L/pulse | 2L/pulse | ||||||
Fluid temperature (No freezing or condensation) | 0 to 90°C | 0 to 70°C | |||||||||
Display unit | Instantaneous flow: L/min, Accumulated flow: L | ||||||||||
Accuracy | Display value: ±3% F.S. Analog output: ±3% F.S. | ||||||||||
Repeatability | ±2.0% F.S.*2) | ||||||||||
Temperature characteristics | ±5.0% F.S. (25℃ reference) | ||||||||||
Operating pressure | 0 to 1MPa | ||||||||||
Proof pressure | 1.5MPa | ||||||||||
Pressure loss | 20kPa (at maximum flow rate) | ||||||||||
Pressure loss (Without flow adjustment valve) | 45 kPa or less at the max. flow | 60 kPa or less at the max. flow | |||||||||
Accumulated flow range*3) | 0 to 9,999,999,999L | 999,999,999L | |||||||||
By 0.1L | By 0.5L | By 1L | |||||||||
Pressure characteristics | ±1.5% F.S. (0.1 to 1.5 MPa, 0.7 MPa reference) | ||||||||||
Switch output | Nil | NPN open collector output | |||||||||
Max. load current | 80mA | ||||||||||
Max. applied voltage | DC 28V | ||||||||||
Internal voltage drop | NPN: 1V or less, PNP: 1.5V or less (at load current of 80 mA) | ||||||||||
Response time*2,4) | 0.5s/1s/2s | ||||||||||
Output protection | Short-circuit protection | ||||||||||
Flow rate output mode | Select from Hysteresis, Window comparator, Accumulated output, or Accumulated pulse output modes | ||||||||||
Temperature output mode | Select from Hysteresis mode or Window comparator mode | ||||||||||
Analog output | Response time*5） | 0.5s/1s/2s (linked with the switch output) | |||||||||
Voltage output | Output voltage: 1 to 5V Output impedance: 1 kΩ | ||||||||||
Current output | Output current: 4 to 20 mA Max. load impedance: 300 Ω for DC 12V, 600 Ω for DC 24V | ||||||||||
Hysteresis | Variable | ||||||||||
External input | Voltage free input: 0.4V or less (Reed or Solid state), input for 30ms or longer | ||||||||||
Display method | 2-screen display (Main screen: 4-digit, 7-segment, 2-color, Red/Green Sub screen: 6-digit, 11-segment, White) | ||||||||||
Indicator light | Output 1, Output 2: Orange | ||||||||||
Power supply voltage | DC12 to 24 V ±10% | ||||||||||
Current consumption | 50 mA or less | ||||||||||
Environment | Enclosure | IP65 | |||||||||
Working temperature | 0 to 50℃ (with no freezing and condensation) | ||||||||||
Working humidity | Operation, Storage: 35 to 85% R.H. (No condensation) | ||||||||||
Withstand voltage*6) | AC 1000V for 1 minute between terminals and housing | ||||||||||
Insulation resistance | 50 MΩ or more (DC 500V measured via megohmmeter) between terminals and housing | ||||||||||
Standards and regulations | CE, RoHS | ||||||||||
Wetted parts material | PPS, FKM, SCS13, SUS304 | ||||||||||
Non-grease | |||||||||||
Piping port size*7） | 3/8 | 3/8, 1/2 | 1/2, 3/4 | 3/4, 1 | 1 1/4, 1 1/2 | ||||||
*1) When the actual flow rate is less than the minimum display flow range, the display will show "0.00", "0.0" or "0 ".
*2) If 0.5s is selected for the response time of the switch output, the repeatability will be ±3% F.S.
*3) Cleared when the power supply is turned off. The hold function can be selected. (Intervals of 2 or 5 minutes can be selected.) If the 5-minute interval is selected, the life of the memory element (electronic parts) is limited to 1 million times. (If energized for 24 hours, life is calculated as 5 minutes × 1 million = 5 million minutes = about 9.5 years.) Therefore, if using the hold function, calculate the memory life for your operating conditions, and use within this life.
*4) The response time when the set value is 90% in relation to the step input (The response time is 7s when it is output by the temperature sensor.)
*5) The response time until the set value reaches 90% in relation to the step input (The response time is 7s when it is analog output by the temperature sensor.)
*6) When the temperature sensor is used, it will be AC 250V.
*7) When the piping diameter or piping passage is restricted, the specififications may not be satisfified.
*8) Products with tiny scratches, marks, or display color or brightness variations which do not affect the performance of the product are verified as conforming products.
*2) If 0.5s is selected for the response time of the switch output, the repeatability will be ±3% F.S.
*3) Cleared when the power supply is turned off. The hold function can be selected. (Intervals of 2 or 5 minutes can be selected.) If the 5-minute interval is selected, the life of the memory element (electronic parts) is limited to 1 million times. (If energized for 24 hours, life is calculated as 5 minutes × 1 million = 5 million minutes = about 9.5 years.) Therefore, if using the hold function, calculate the memory life for your operating conditions, and use within this life.
*4) The response time when the set value is 90% in relation to the step input (The response time is 7s when it is output by the temperature sensor.)
*5) The response time until the set value reaches 90% in relation to the step input (The response time is 7s when it is analog output by the temperature sensor.)
*6) When the temperature sensor is used, it will be AC 250V.
*7) When the piping diameter or piping passage is restricted, the specififications may not be satisfified.
*8) Products with tiny scratches, marks, or display color or brightness variations which do not affect the performance of the product are verified as conforming products.
Flow Rate/Analog output
When only optional parts are required, order with the part numbers listed below.
Description | Part NO. | Qty. | Note | |||
Bracket* | ZS-40-K | 1 | For PF3W704/720 | With 4 tapping screws (3×8) | ||
ZS-40-L | 1 | For PF3W740 | With 4 tapping screws (3×8) | |||
ZS-40-M | 1 | For PF3W711 | With 4 tapping screws (4×10) | |||
Lead wire with M8 connector | ZS-40-A | Lead wire length: 3m | ||||
* For units with flflow adjustment valve, 2 brackets are required.

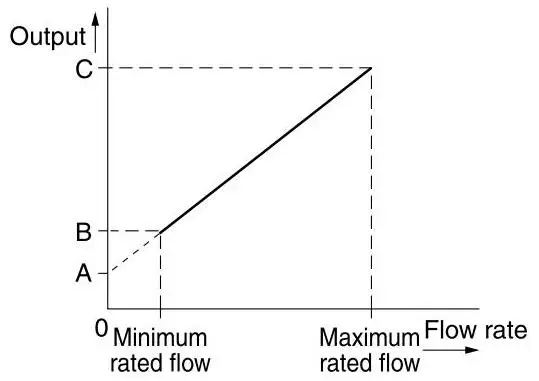

Flow Rate/Analog Output
(PF3W704/720/740)
Symbol | A | B | C |
Voltage output | 1V | 1.5V | 5V |
Current output | 4mA | 6mA | 20mA |
(PF3W711)
Symbol | A | B | C |
Voltage output | 1V | 1.4V | 5V |
Current output | 4mA | 5.6mA | 20mA |
(PF3W721)
Symbol | A | B | C |
Voltage output | 1V | 1.8V | 5V |
Current output | 4mA | 7.2mA | 20mA |
Model | Rated flow [L/min] | ||
Mini. | Max. | ||
PF3W704 | 0.5 | 4 | |
PF3W720 | 2 | 16 | |
PF3W740 | 5 | 40 | |
PF3W711 | 10 | 100 | |
PF3W721 | 30 | 250 | |
How to order
Ording Code PF3W Series 3-Color Display Digital Flow Switch for Water
PF3W7① 04② - □③ 03④ - AT⑤ □⑥ - M⑦ □⑧
①→ Type | 7: Integrated display | |||||||||||
②→ Flow rate range | ||||||||||||
Symbol | 4 | 20 | 40 | 11 | 21 | |||||||
Rated flow rate | 0.5 to 4 L/min | 2 to 16 L/min | 5 to 40 L/min | 10 to 100 L/min | 50 to 250L/min (With metal piping) | 50 to 250L/min (With PVC piping) | ||||||
③→ Thread type | ||||||||||||
Nil: Rc | N: NPT | F: G | ||||||||||
④→ Port size | ||||||||||||
Symbol | Port size | Rated flow rate | ||||||||||
4 | 20 | 40 | 11 | 21 | ||||||||
03 | 3/8 | ● | ● | — | — | — | ||||||
04 | 1/2 | — | ● | ● | — | — | ||||||
05 | 3/4 | — | — | ● | ● | — | ||||||
10 | 1/1 | — | — | — | ● | — | ||||||
12 | 1 1/4 | — | — | — | — | ● | ||||||
14 | 1 1/2 | — | — | — | — | ● | ||||||
25 | 25A | — | — | — | ● | — | ||||||
30 | 30A | — | — | — | — | ● | ||||||
⑤→ Output specifications/Temperature sensor | ||||||||||||
Symbol | OUT1 | OUT2 | Temperature sensor | |||||||||
Flow rate | Flow rate | Temperature | ||||||||||
A | NPN | NPN | — | None | ||||||||
B | PNP | PNP | — | |||||||||
C | NPN | Analog 1 to 5V | — | |||||||||
D | NPN | Analog 4 to 20mA | — | |||||||||
E | PNP | Analog 1 to 5V | — | |||||||||
F | PNP | Analog 4 to 20mA | — | |||||||||
AT | NPN | (NPN)⇄NPN | With temperature sensor | |||||||||
CT | NPN | (Analog 1 to 5V)⇄Analog 1 to 5V | ||||||||||
DT | NPN | (Analog 4 to 20mA)⇄Analog 4 to 20mA | ||||||||||
⑥→ Lead wire (Option) | ||||||||||||
Nil: With lead wire with M8 connector (3 m) | ||||||||||||
N: Without lead wire with M8 connector | ||||||||||||
⑦→ Unit | ||||||||||||
Symbol | Instantaneous flow | Accumulated flow | Temperature | |||||||||
M | L/min | L | ℃ | |||||||||
⑧→ Bracket | ||||||||||||
Symbol | Bracket type | Rated flow rate | ||||||||||
4 | 20 | 40 | 11 | 21 | ||||||||
Nil | None | ● | ● | ● | ● | ● | ||||||
R | With bracket | ● | ● | ● | ● | — | ||||||
Order Example
2 NPN switch outputs, port size Rc3/8, with temperature sensor.
Model: NPF3W704-03-AT-M
2 NPN switch outputs, port size Rc3/8, with temperature sensor.
Model: NPF3W704-03-AT-M

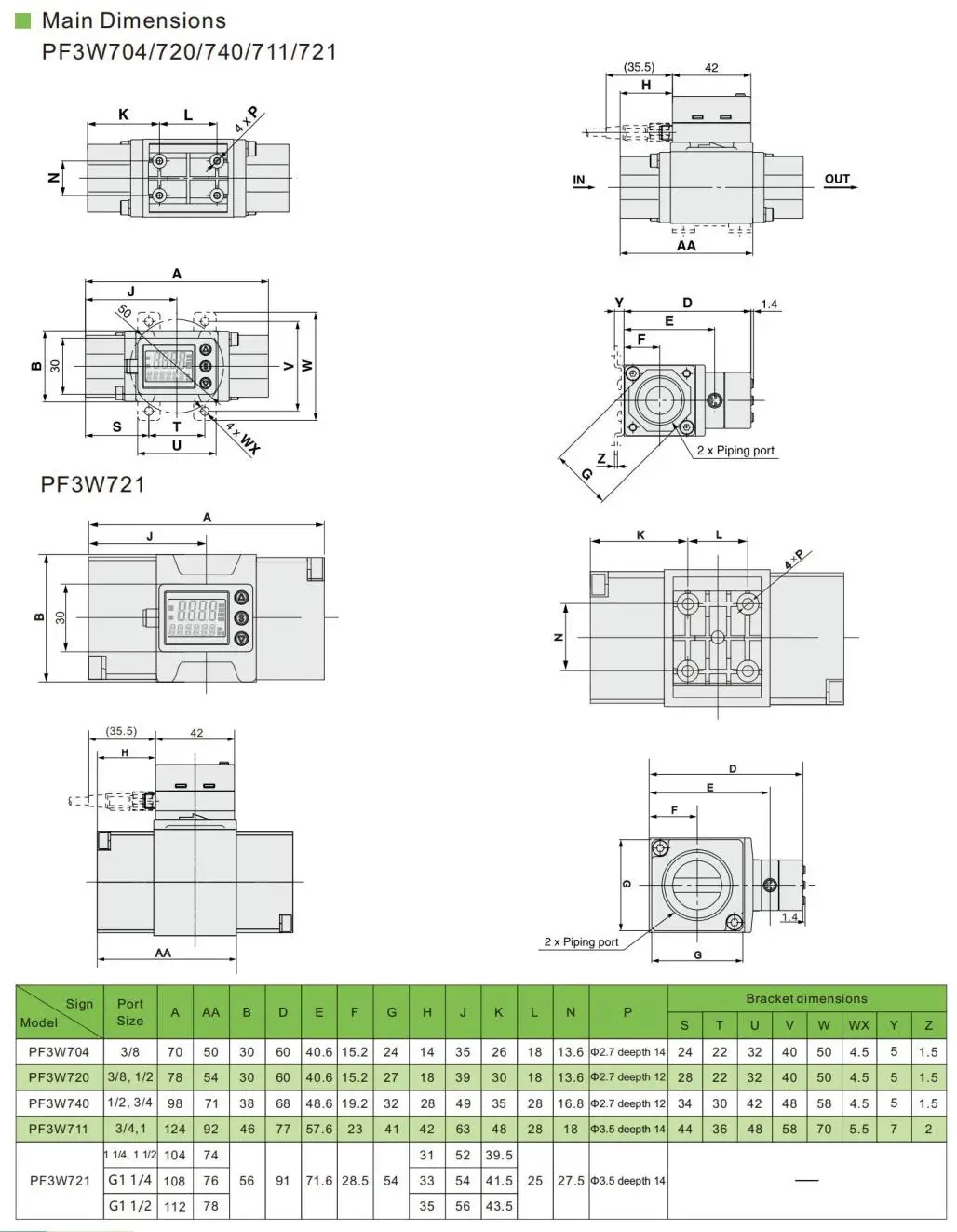

Main Dimensions
