CE Approval 500KVA Oil Voltage Stabilizer Three phase Oil Immersed type 100% Copper 400V / 20% With Input Switch

Product Overview

Description



                     CE Approval 600KVA Oil Voltage Stabilizer Three phase Oil Immersed type 100% Copper 400V+/-15% With Inpu Switch/Air breaker





All our products we got CE &RoHS & ISO 9001&SGS



Our  voltage regulators with 2 years warranty,during our warranty we bear all(include all replace parts and freight cost to your address).
we don't show that how good after-sales service we offer, we just only want to tell our customers how good quality we produce.2 year warranty easy,but bear all,Can you?

Welcome to inquiry us of our product all materials parts' brand.





Features of Servo control Voltage Stabilizer(why choose us)
1. High quality Isolation transformer,insulation level is H

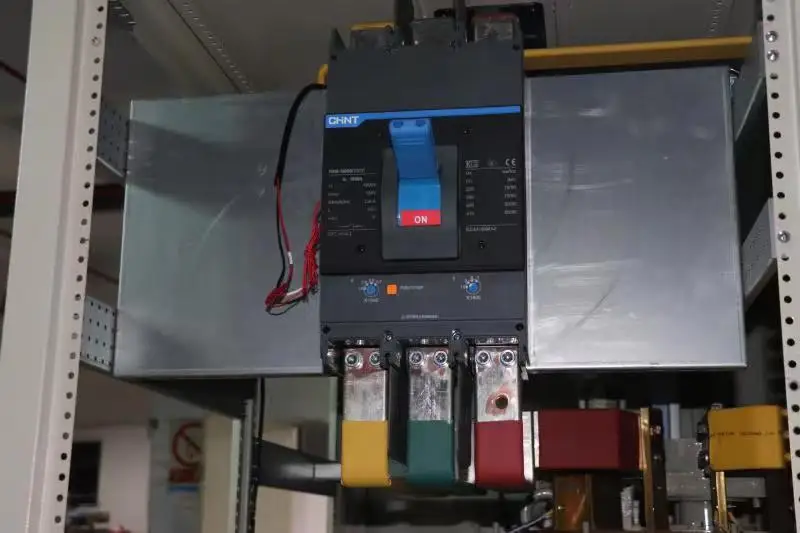

2. Input switch use N0.1 China brand -Chint brand,or Schneider (option)
3. Efficiency up to 99%
4. Independent or Dependent Three Phase Regulation subject to the order

5.Over load capacity is 200%-5s,150%-1min

6.Low loss
7. Rich protection functions
8. Manual bypass(use red copper materials)
9. With Surge protection, with over temperature protection,with time delay protection.
10. Remote control with RS232 or RS485 ( optional )
11. Indoor use IP23(Nema 2),Out door use IP54(Nema 3 R)or 65(option)

12.High customization ability



Specification:



Input
Input voltage	220V/380V,230V/400V,240V/415V etc or other voltage accepted
Phase	3P+N+G or 3P+G option
Input range	±20%(±15%~±60%) can be customized
Input frequency	47Hz-63Hz
Input switch	Chint Brand switch(ABB,Schneider option)
Output
Output voltage	220V/380V,230V/400V,240V/415V etc or other voltage accepted
Phase	3P+N+G or 3P+G option
Output accuracy	±1%-±5%(factory setting 2%)
Output Frequency	50Hz/60Hz (LCD display will be identify automatc 50 or 60Hz)
Power factor	0.8 or 0.9,1 option( general AVR 0.8)
Waveform distortion	No distortion(same as input waveform)
Efficiency	≥98%(on full load)
Overload capacity	150% for 5 minutes,200% for 1 minute
Response time	<10ms
THD	<3%(linear load)
General
Compensation transformer	Insulation H level,200 degree
Control method	Combined phase controlled servo type with digital control
Working principle	Full automatic ,servo motor/SCR/IGBT
IP level	IP21(indoor), IP54 or IP65(Outdoor)
Cooling	Oil Immersed,self-cooled
Environment
Woking temperature	-10° to +55°(if high teperature in your city,please inform us)
Ralative  humidity	<98%
Noise	45db@70% load,55db@100%load (within one meter)
Altitude	<1500m
Function
Normal functions	Malti-protect fuction,over voltage/under voltage protection,over current protection,over load protection,saty start protection,manual bypass protection,short circuit protection,lack of phase protection,wrong sequence  protection,indicate alarm,over temperature protection.

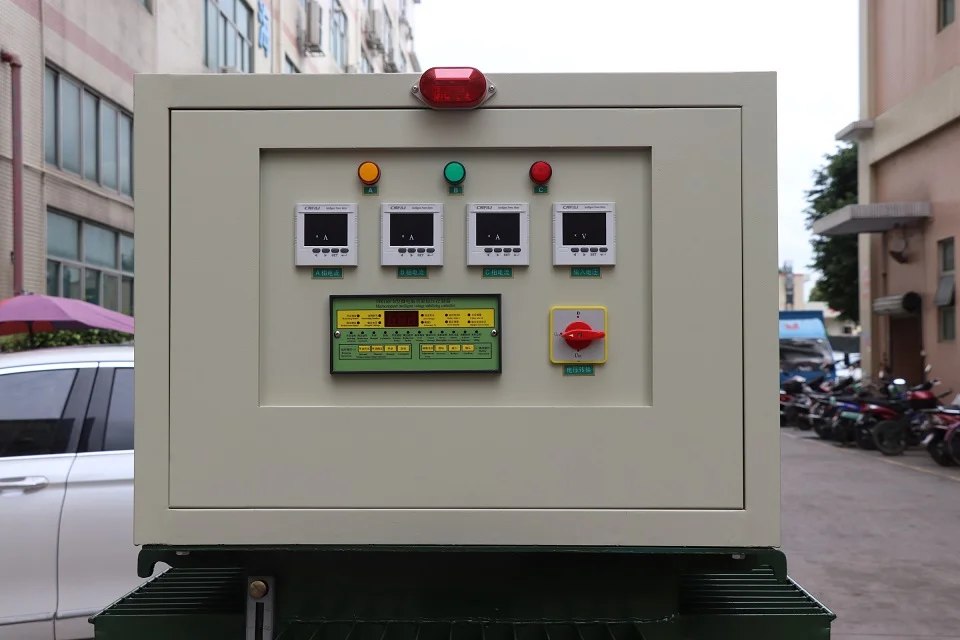

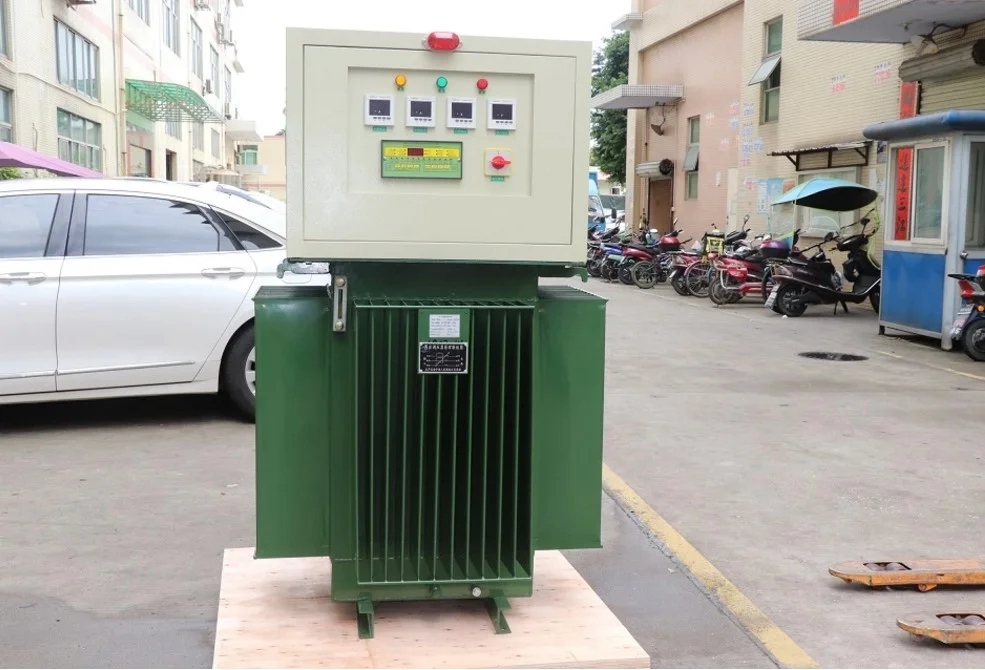

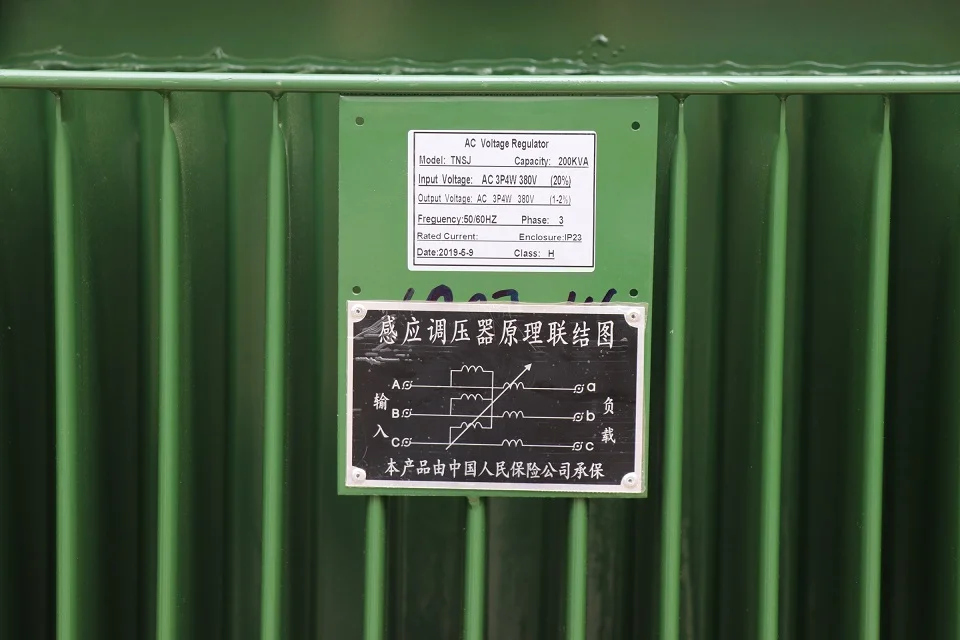

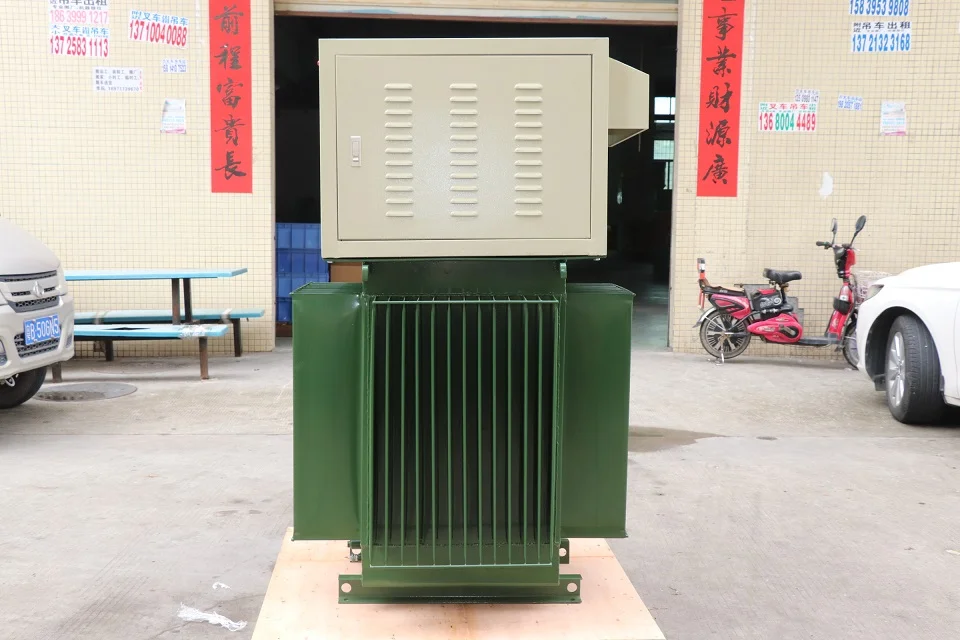

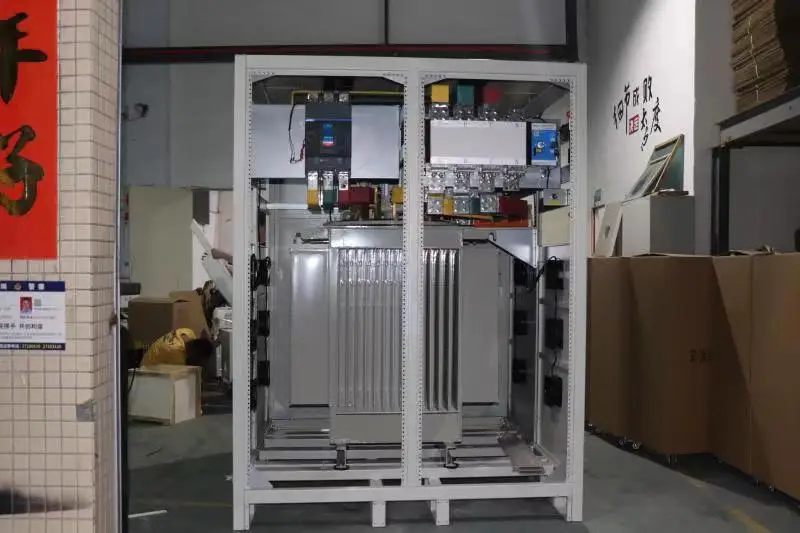

Oil Type voltage regulator pictures for reference:
