4 ch 1080p mdvr system camera car mobile dvr kit bus taxi training car 4ch 4g gps mdvr
- Category: >>>
- Supplier: Shenzhen Citops Systems Co. Ltd.
Share on (1601021222583):
Product Overview
Description
NOTE:
Order only include a 4ch one sd mdvr host with 4g+gps
It needs to be used with camera and other accessories.
Products Description

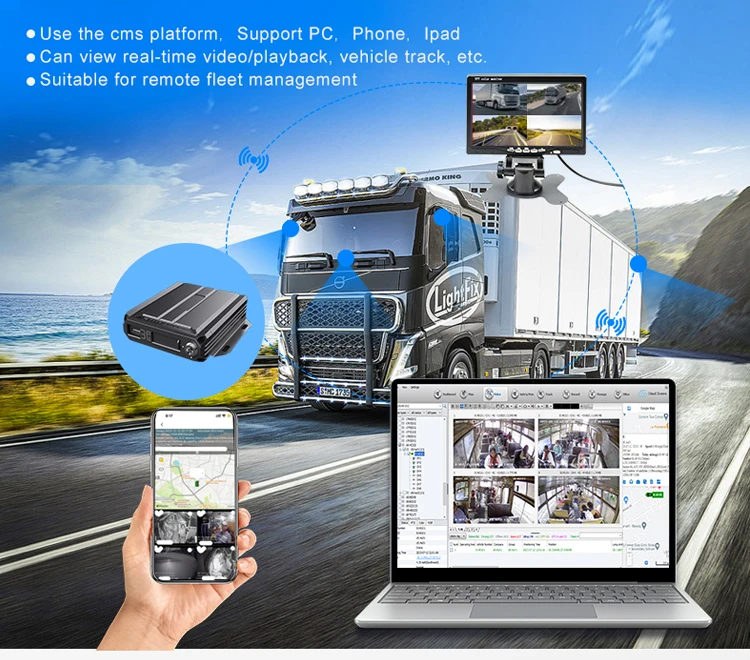

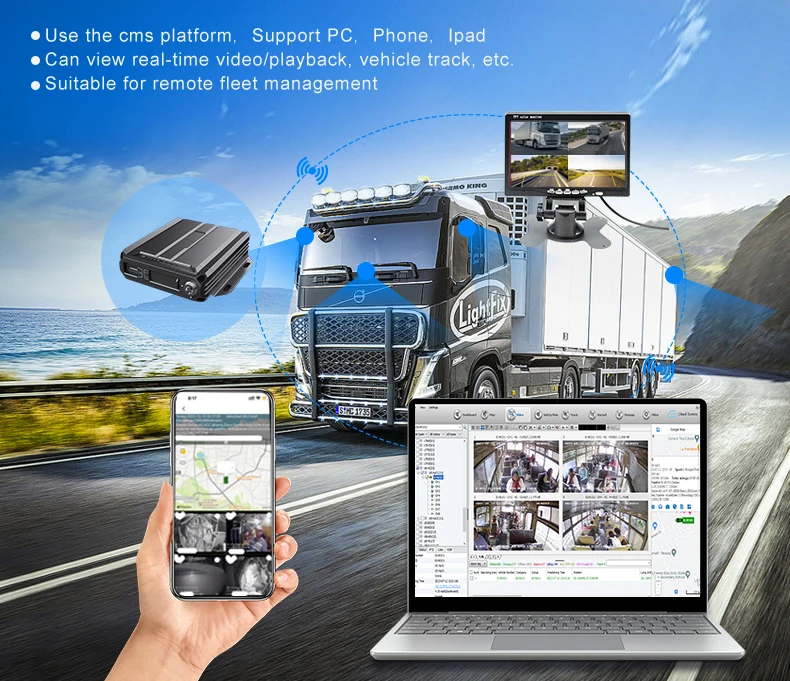

4 ch 1080p mdvr system camera car mobile dvr kit bus taxi training car 4ch 4g gps mdvr adopts H.264/H.265 compression technology and supports real-time remote monitoring, which makes fleet management more efficient. elegant appearance, and easy installation and use. It is a basic product for lightweight applications. It is suitable for public long distance passenger transportation, road inspection and other automotive mobile monitoring fields.
* The in-vehicle interface can operate reliably and stably in complex environments
* Video encoding H.265, H.264 optional
* Support 4G /5G,GPS function module
* Support one SD card
* Abundant peripheral interfaces
* Support external UPS battery life
* High scalability
* Video encoding H.265, H.264 optional
* Support 4G /5G,GPS function module
* Support one SD card
* Abundant peripheral interfaces
* Support external UPS battery life
* High scalability
Product Paramenters

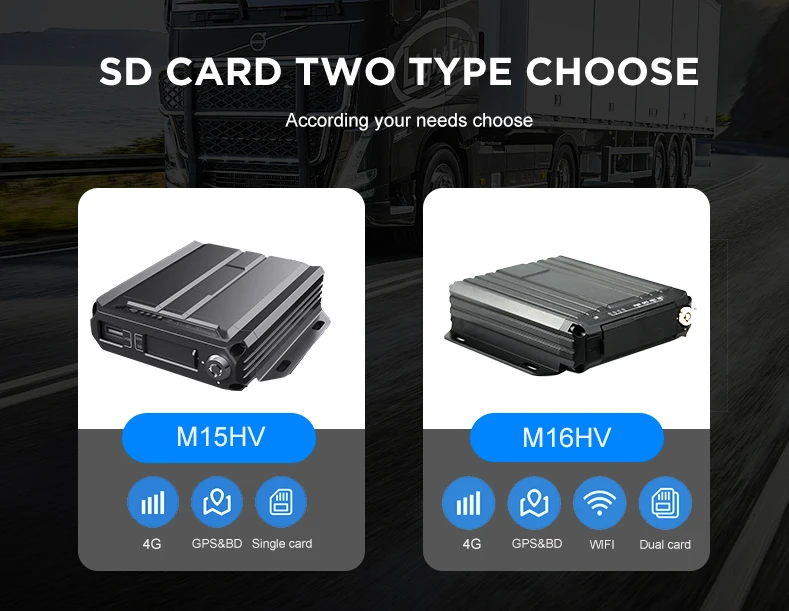

project | M15HV | M16HV | ||
Audio and video input | video input | AHD input: 4ch 1080P | AHD：4ch 1080 IPC：Scalable 1-4ch | |
audio input | 2 audio inputs | 3ch audio input，Mic input | ||
Audio and video output | video output | Default 1 CVBS output (VGA output optional) | Default 1ch CVBS output (VGA output optional) | |
audio output | 1 channel audio output | 1ch audio output | ||
Audio and video parameter coding | video encoding | H.264 Main Profile/H.265 | H.264 Main Profile/H.265 | |
Video resolution | 1080P/720P/D1 optional | 1080P/720P/D1 optional | ||
audio coding | Default G.726, G.711A optional | default G.726,G.711A optional | ||
storage | SD card | Support 1 SD card | support 2 SD card | |
wireless network | 4G wireless | Support 1 SIM card, optional: all mainstream communication modules in the world | support 1 SIM card，optional：All the major communication modules in the world | |
WIFI | Not support | 2.4G | ||
Targeting | Beidou/GPS | Support hybrid positioning, speed detection, time synchronization | 2.4/5.8Goptional | |

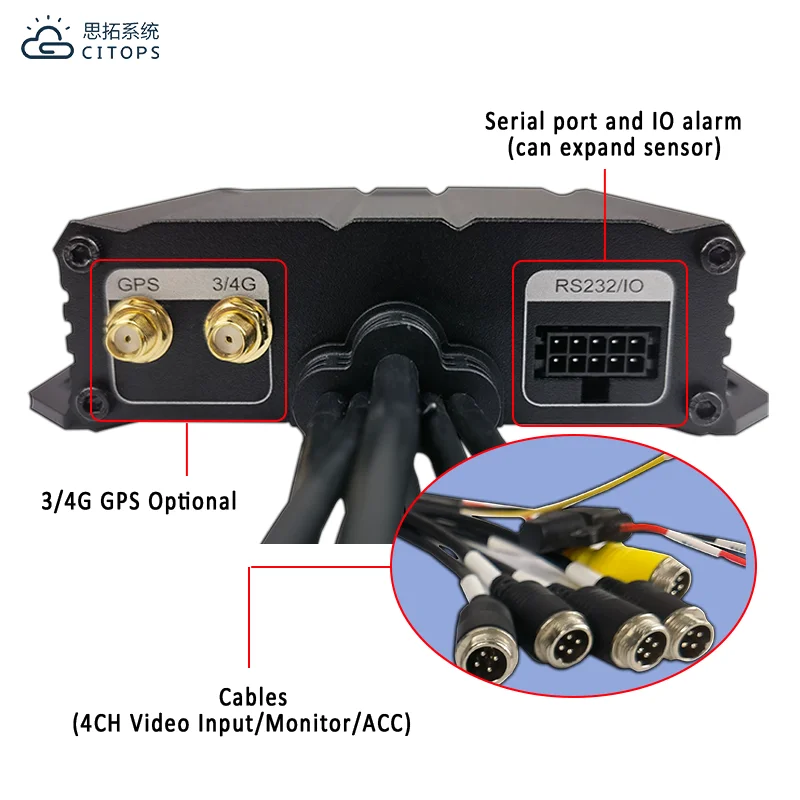

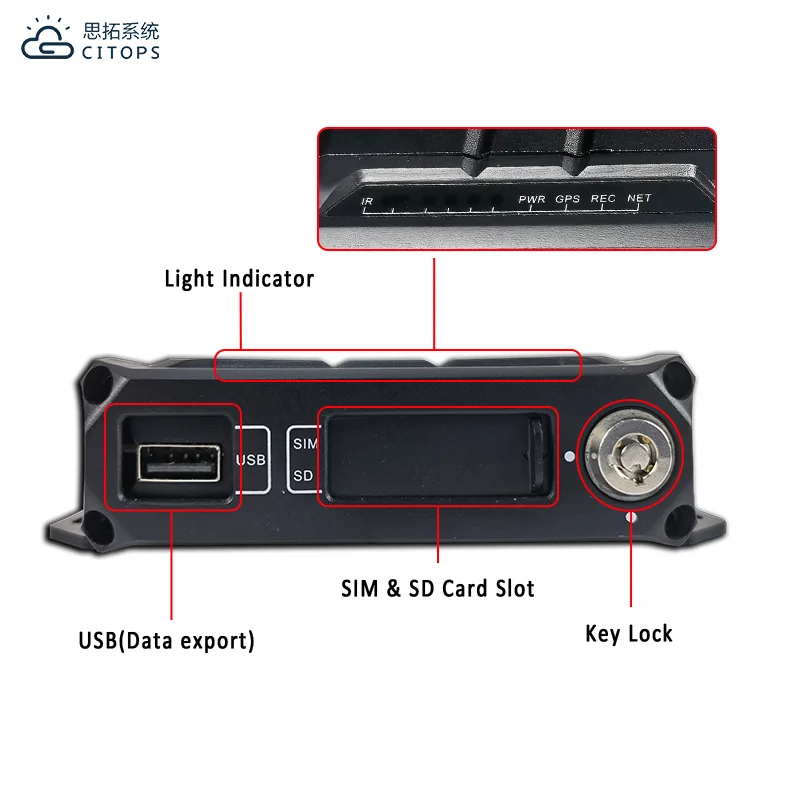

interface | USB | 1 USB interface, support exporting data | ||
serial port | Support 1 RS232, optional 1 RS485 , external sensor | Support 1 RS232, 1 RS485 can be external sensor | ||
I/O | 4 switch inputs, compatible with 1 analog input | Support 4 level input, 1 output,1 ADC | ||
network port | Not support | Optional | ||
Intercom | Not support | 1 special intercom hand mark interface | ||
Physical Specifications | size | 100 mm (L) * 1 20.8 mm (W) * 32 mm (H) (without tailcord) | 135.5mm（L）*137.7mm（W）*36.5mm（H） | |
weight | Bare metal: 0.6 kg FCL: 0.8kg ( M 15 Hv -SGNE1-L as standard) | NW：0.5kg GW：0.75 kg （M16Hv-DGNE- L as a standard） | ||
working environment | Operating temperature | -20～+70℃ | -20〜+70℃ | |
Working humidity | 8%~90% (non-condensing) | · 8%〜90%（No condensation） | ||
other | operating mode | Remote control, mobile APP, WEB | Remote control | |
Gravity Sensing | Not support | Built in G-Sensor | ||
Configurable AI algorithm | Not support | Driver identification, people counting, assisted driving, etc. | ||
Details Images
Are You Always Wondering...
How to get a perfect fleet management solution? How to quickly know whether the driver drives illegally? How to quickly provide
evidence for traffic accident, theft, racketeering, etc.? ......
How to get a perfect fleet management solution? How to quickly know whether the driver drives illegally? How to quickly provide
evidence for traffic accident, theft, racketeering, etc.? ......
