JSY-MK-333 Three Phase Embedded Power Metering Module




Products Description

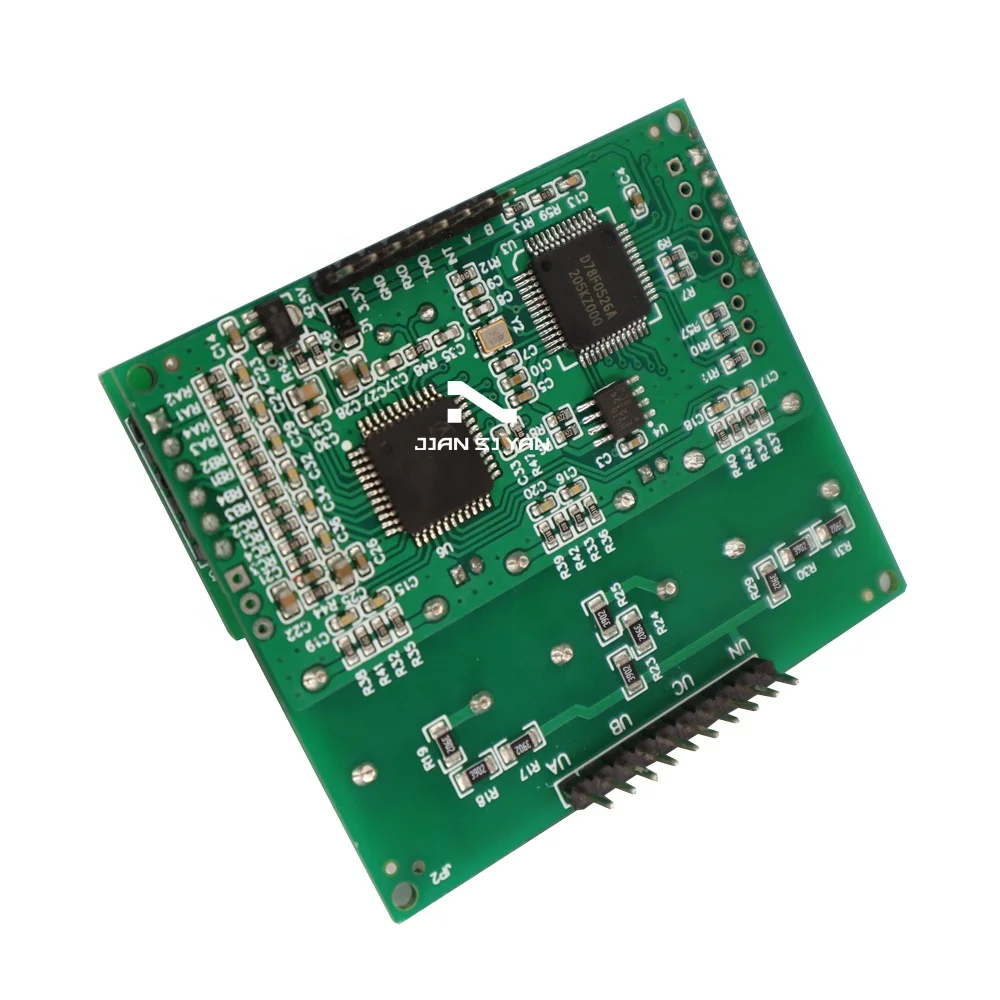

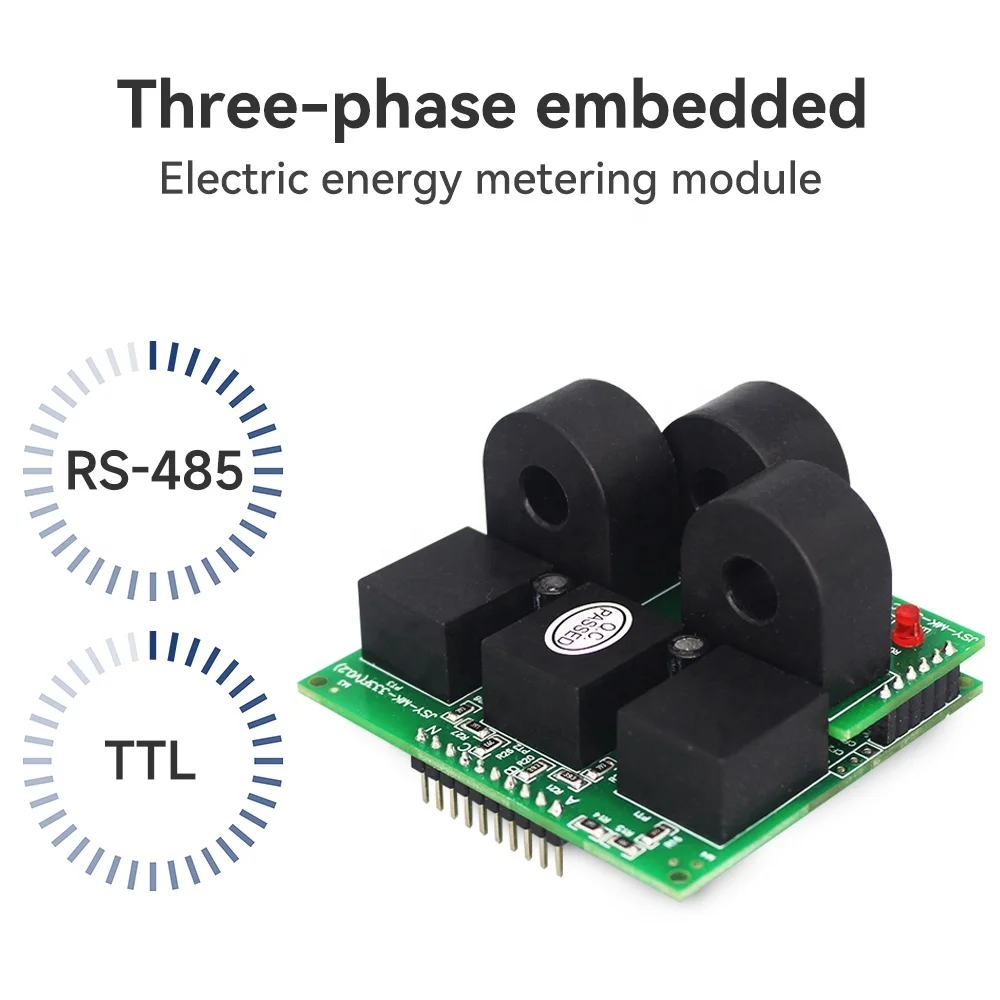

JSY-MK-333 power meter module introduce
JSY-MK-333 three-phase embedded power metering module that is developed by JSY Technology using microelectronics technology and specialized large-scale integrated circuits, applying advanced technologies such as digital sampling and processing technology and SMT process, and with completely independent intellectual property rights. The technical performance of this metering module meets the relevant technical requirements of Class 1.0 three-phase active energy meters in the IEC 62053-2 standard. It can directly and accurately measure the voltage, current, power, power factor, active and reactive energy and other electrical parameters in a three-phase AC power grid with a rated frequency of 50Hz or 60Hz. This module is equipped with 1 RS485 communication interface, 1 TTL interface, and sampling MODBUS-RTU communication protocol, making it easy to connect with various AMR systems. It has the characteristics of good reliability, small size, light weight, beautiful appearance, and easy installation.
JSY-MK-333 three-phase embedded metering module can be widely used in energy-saving transformation, EV AC charging station, power monitoring, communication, railway, transportation, environmental protection, petrochemical and steel to monitor the current and electricity consumption of AC equipment.


Specifications
Product Model
JSY-MK-333

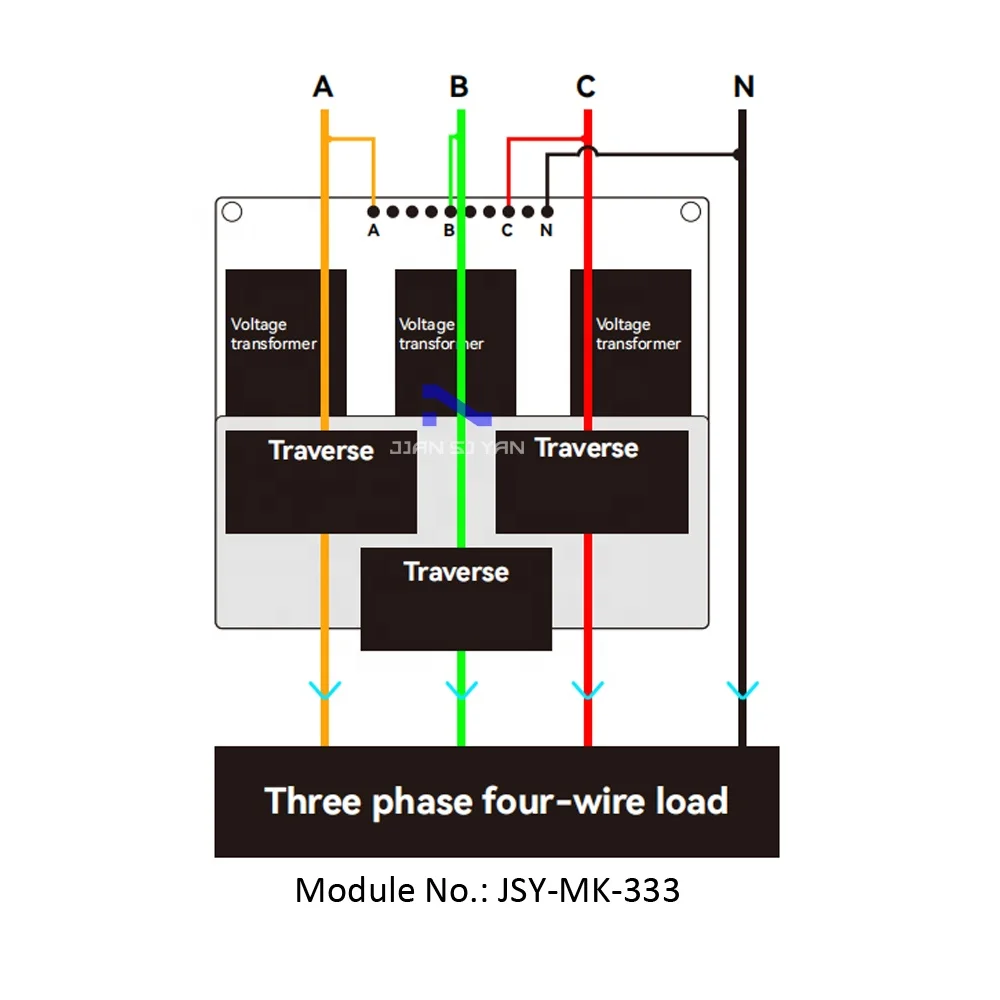

Three-phase AC Input
Voltage Measuring Range
Three phase four wire input, 3x220/380V
Current Measuring Range
50A, 100A, 250A etc. and external split-core current transformer optional.
Signal Processing
Adopting dedicated measuring chip with 24 bit AD sampling.
Overload Capacity
1.2 times measuring range is sustainable; Instantaneous(<200mS) current 5 times, voltage 2 times, measuring range will not be
damaged.
Input Impedance
Voltage channel>1KΩ/V
Communication Interface
Interface Type
1 RS-485 interface and 1 TTL interface (3.3V)
Communication Protocol
MODBUS-RTU protocol
Data Format
Can be set by software, "n, 8,1", "e, 8,1", "o, 8,1", "n, 8,2"
Communication Rate
The Baud of the two-way communication interface can be set to 4800, 9600, 19200, 38400Bps, and the default communication format is
"n, 8,1", 9600bps.
Communication Data
Multiple electrical parameters such as voltage, current, power and energy, as shown in the Mdobus Data Log list.
Measurement Accuracy
Voltage, current, power: ± 1.0%; Active power level 1
Power Supply
When powered by DC3.3V, the peak voltage shall not exceed 3.6V. Typical power consumption: ≤ 20mA
When powered by DC5~24V, the peak voltage shall not exceed 30V. Typical power consumption: ≤ 20mA
Isolation
Strong and weak electricity are isolated through transformers, isolation withstand voltage>2500V
Working Environment
Working Temperature
-20~60 ℃
Storage Temperature
-40~85 ℃
Relative Humidity
5-95%, no condensation (at 40 ℃)
Altitude
0-3000 meters
Environment
No explosions, corrosive gases or conductive dust, no significant shaking, vibration or impact.
Temperature Drift
≤ 100ppm/℃
Installation Method
2.54mm pin welding

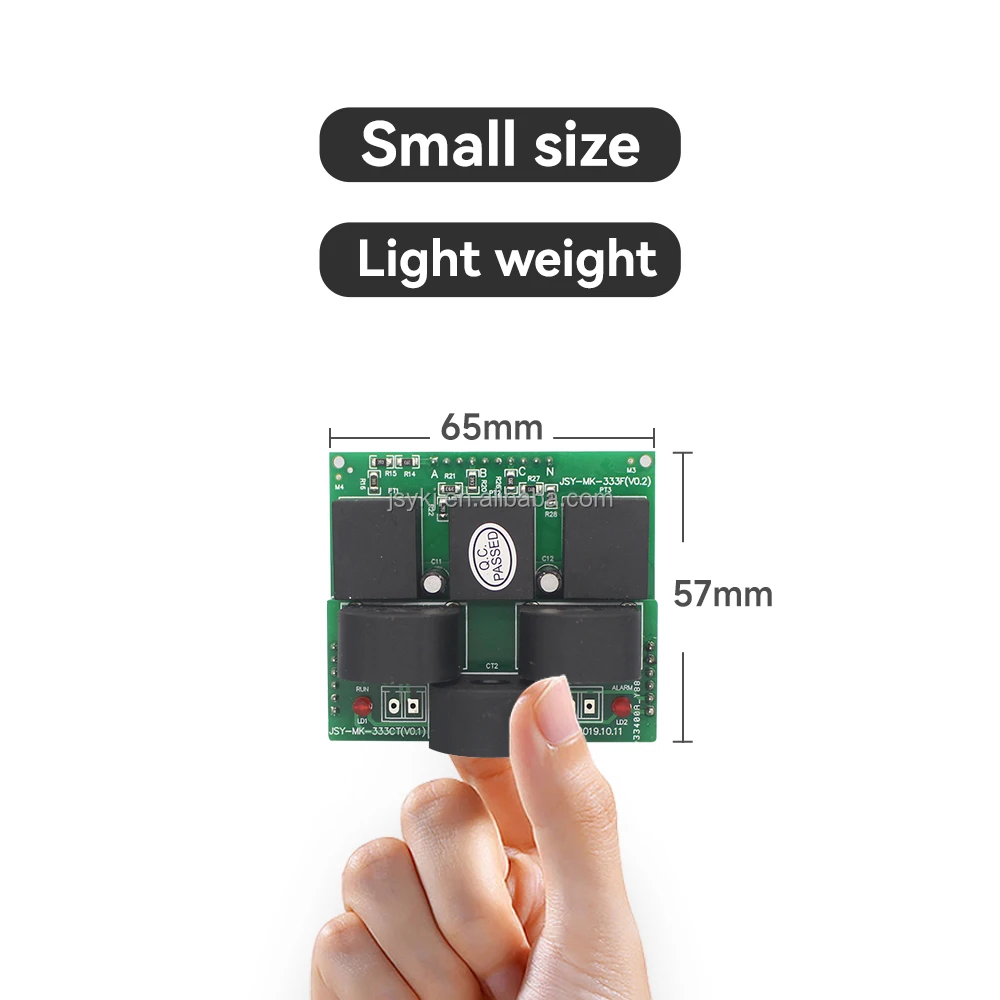

Module Size
65x57x41mm
