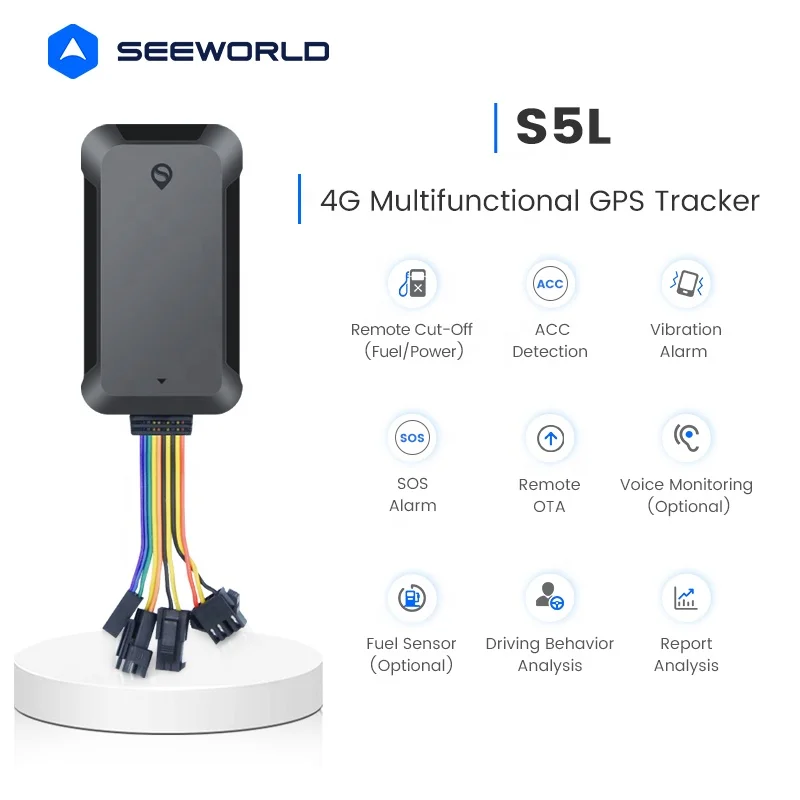

Support Remote Fuel Gauge Monitoring Engine Cut Off Car GPS Tracker 4G Vehicle Tracking Device with Open API

Share on (1601021246008):


Price:$22.90 - $28.90

Quantity:


Product Overview

Description


Distributor Wanted


-




Product Description

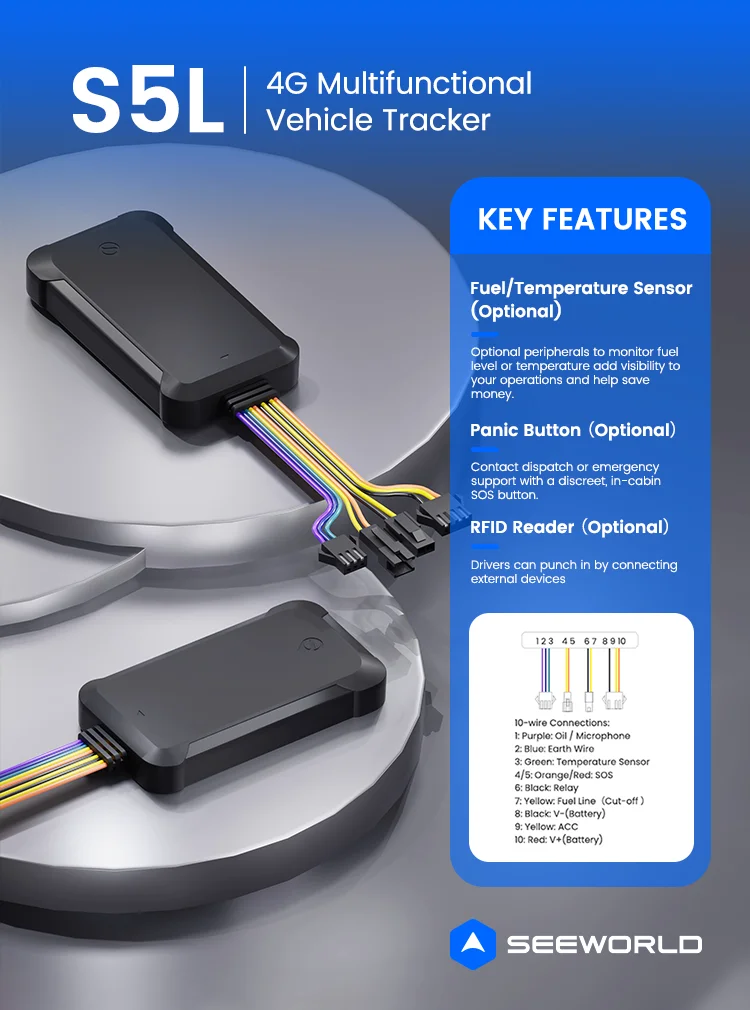

S5L_01


























































Product Parameters
S5L is a 4G vehicle tracker, supporting GPS/BDS/GLONASS tracking modes, built-in fuel and temperature sensor, temperature loss or oil leakage will be reported immediately, suitable for logistics, truck / fleet management, and so on.
ModelS5L
Battery150mAh

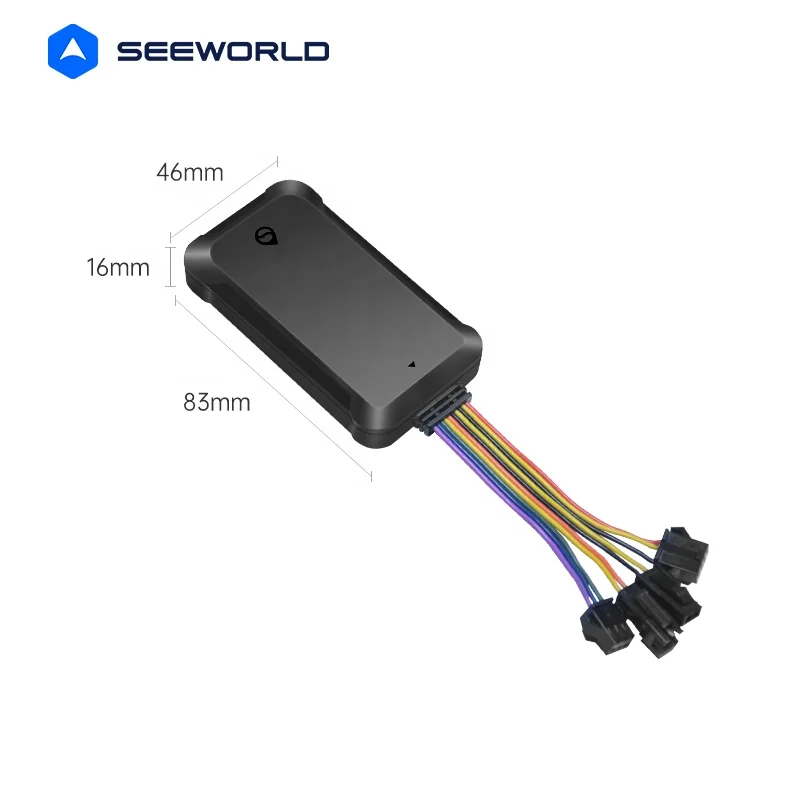

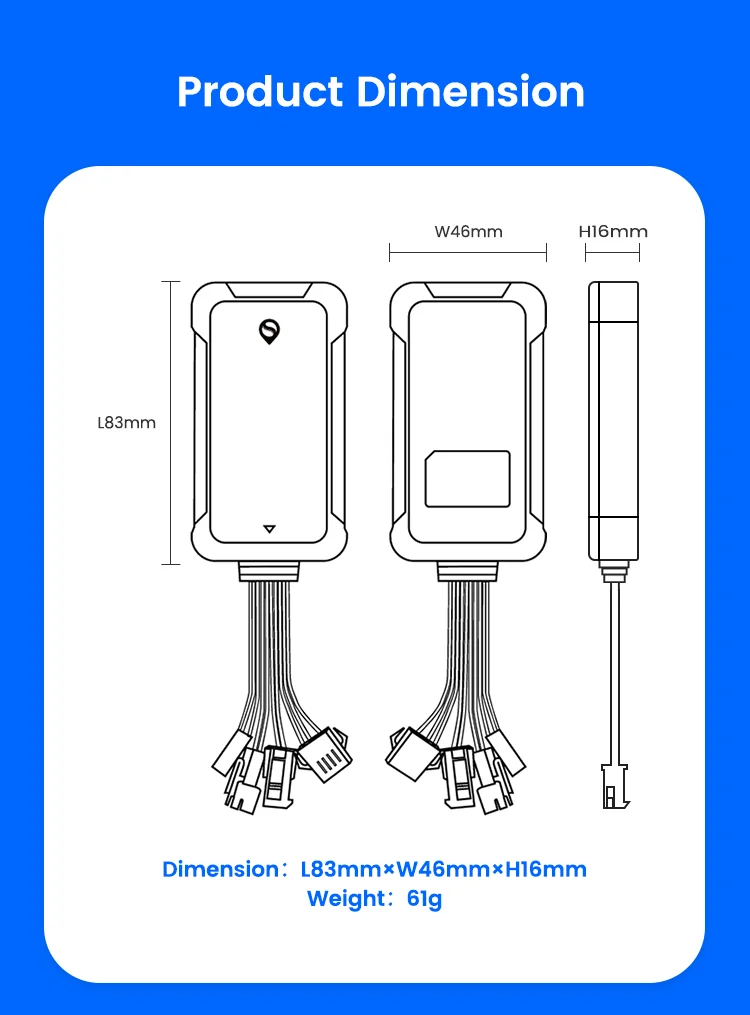

Dimensions83mm*46mm*16mm
GPS ChipsetAT6558R
Product ProtocolGT06
Positioning ModeGPS/BDS/GLONASS
Operating Voltage8-50V
Weight60g
WaterproofIP65

S5L-LA:


Suitable Areas: Australia / New Zealand / Taiwan / Latin America




LTE-FDD: B1/ B2/ B3/ B4/ B5/ B7/ B8/ B28/B66


LTE-TDD: B40/ B38/ B41
GSM: 850/900/1800/1900 MHz



S5L-EU:


Suitable Areas: Europe / Middle East / Africa / Korea / Thailand




LTE-FDD: B1/B3/B5/B7/B8/B20/B28


LTE-TDD: B38/B40/B41
GSM: 850/900/1800/1900 MHz



S5L-CN:


Suitable Areas: India / China / Vietnam




LTE-FDD: B1/B3/B5/B8


LTE-TDD: B34/B38/B39/B40/B41
GSM: 900/1800 MHz

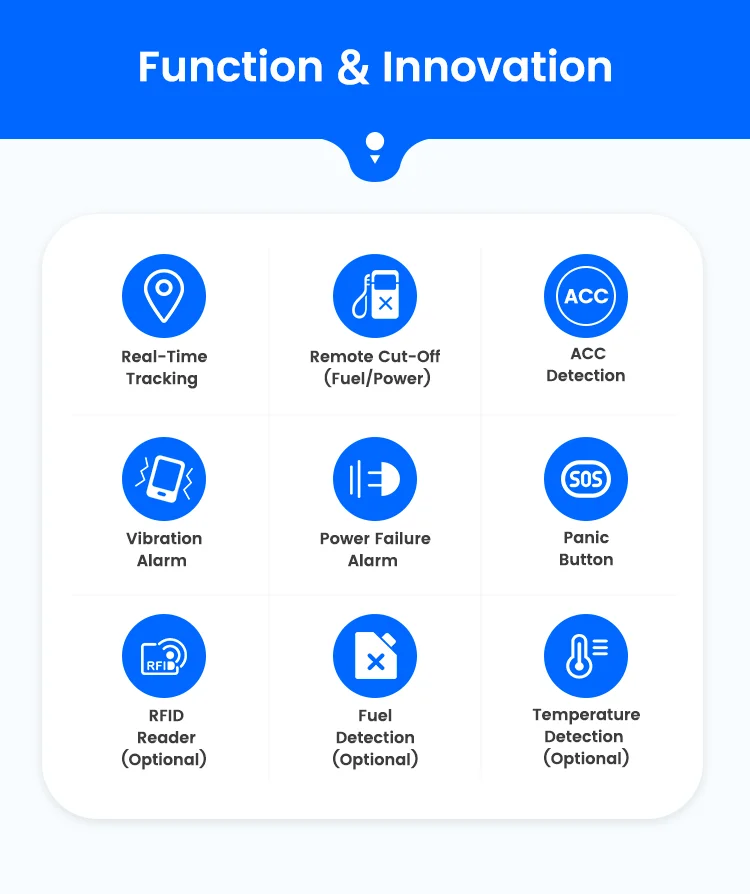

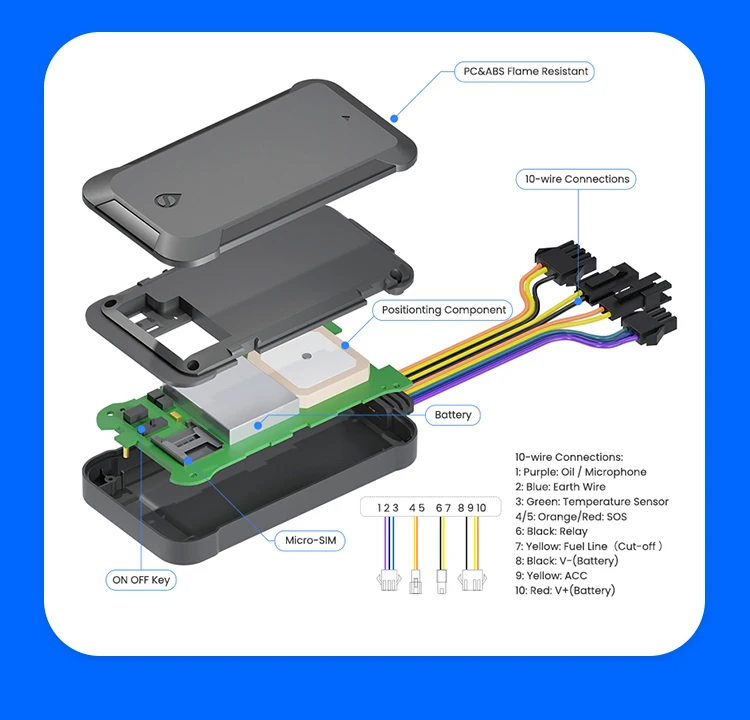

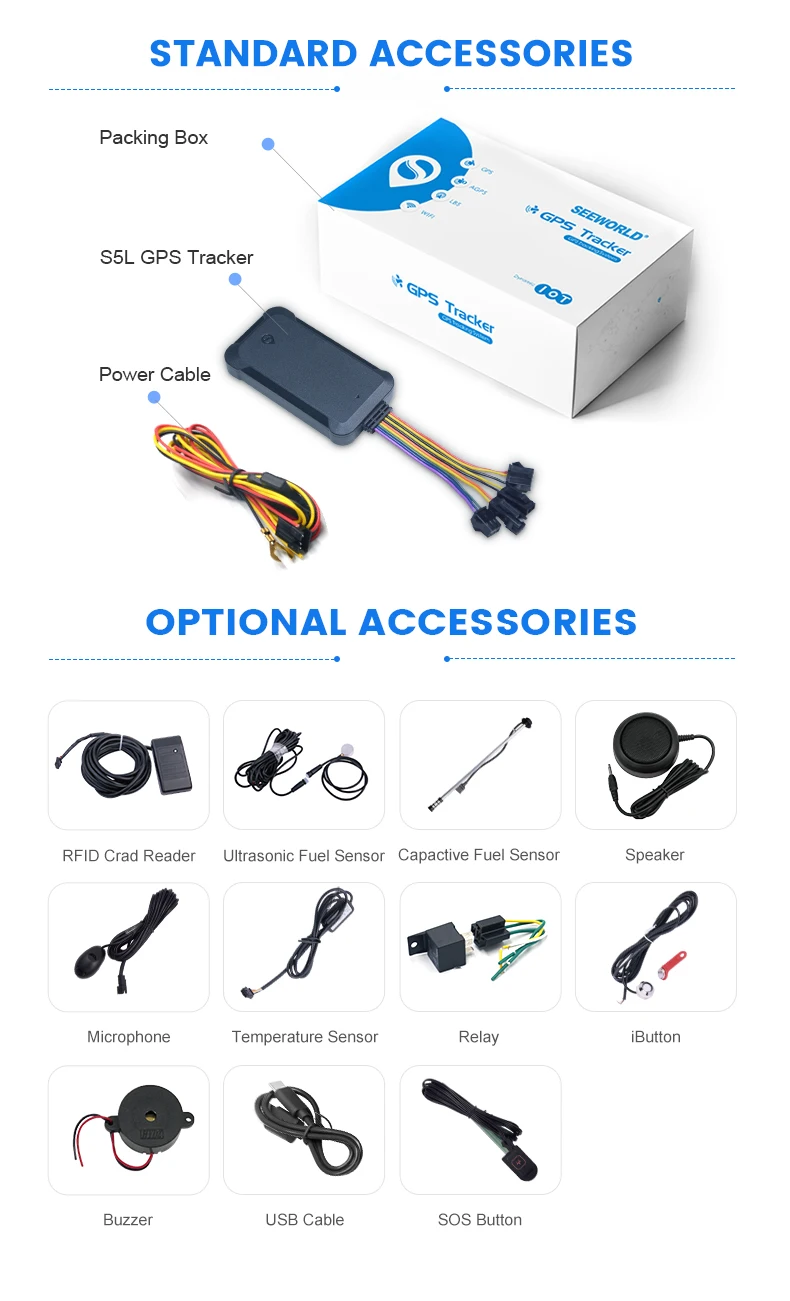

S5L_02S5L_04S5L_03S5L-


















 -9-90VACCSOS_10-OTAw18_06

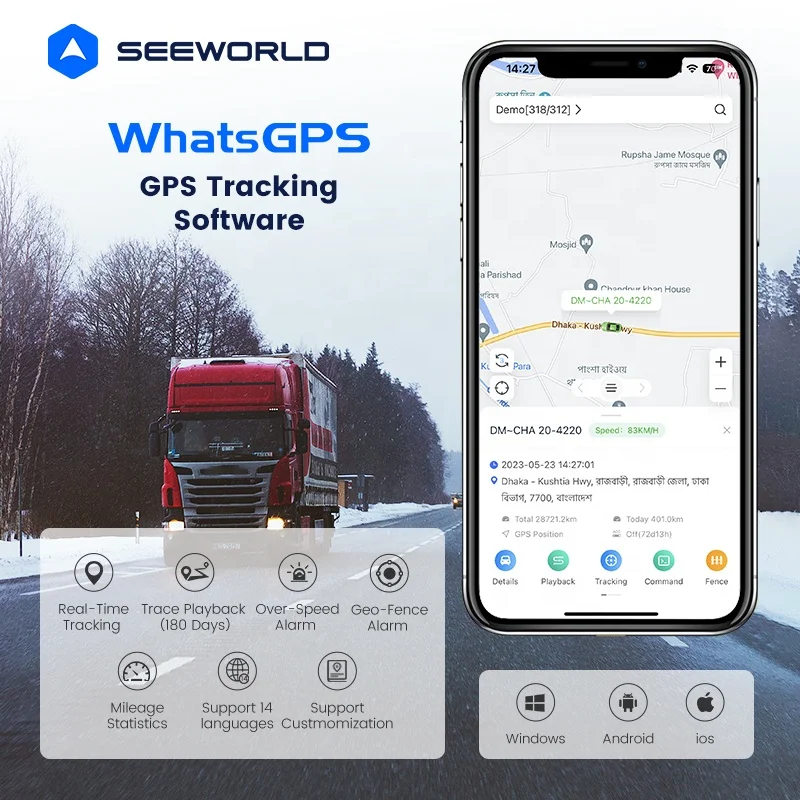

Platform Display


w18_07













Platform: www.whatsgps.com
App:WhatsGPS
Demo account: test01
Password:123456
Good,  Accuracy, Fast, StableWhatsGPS is a diversified service platform. Our R&D staff has been focused on providing the leading position service platform in the industry. WhatsGPS supports product diversification, it can realize human-vehicle interaction and help user to grasp vehicle location information at any time and anywhere, is the first choice platform of car positioning.
