Mechanical Jacks Lifting 25 Ton 30 Ton 50 Ton Hydraulic Tank Jack
$600.00-1,000.00
Worm Gear Screw Lift Jack System Swl Base Shoring Heavy Duty Landing Rod Trolley Hand Crank Geared Rack Screw LIFT Jack
- Category: >>>
- Supplier: SAIFU VIETNAM COMPANY LIMITEDSAIFU LIMITED
Share on (1601021254433):
Product Overview
Description
Products Description

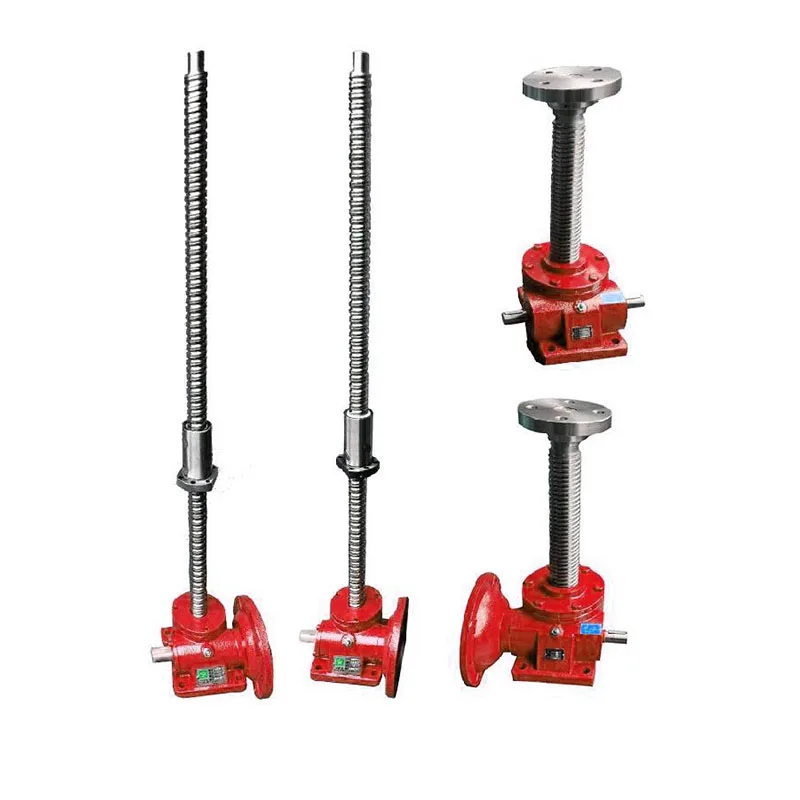

Worm Gear Screw Lift Jack System Swl Base Shoring Heavy Duty Landing Rod Trolley Hand Crank Geared Rack Screw Lift Jack
We hereby introduce our company as a leading manufacturer of mechanical jack, rack steel jack in China.
We have CE and GS certificate for our quality systemWe hereby introduce our company as a leading manufacturer of mechanical jack, rack steel jack in China.
We have CE and GS certificate for our quality system
rack and pinion mechanical jack is a safe, practical and convenient lifting, its greatest advantage is to overcome the hydraulic jack hydraulic leak Er Shi as top heavy drop from the shortcomings, it maintain a long stay in the support position, so particularly suitable for upgrading of the heavy long position after the occasion demands. Some frequently used in the following situations:
1. Mechanical assembly and repair of vehicles from the top of the machine when used, vehicles and equipment used to from the top of prefabricated construction, etc..
2. Railway sector maintenance when used in railway tracks from the top.
3. Mines, tunnels, bridges, concrete poured in the pit prop support.
Four. Loading and unloading will be prostrate, lifting a lower position of the items before the pre-top.
We have CE and GS certificate for our quality systemWe hereby introduce our company as a leading manufacturer of mechanical jack, rack steel jack in China.
We have CE and GS certificate for our quality system
Rack and Pinion Jacks illustration as follows:
Product Usage rack and pinion mechanical jack is a safe, practical and convenient lifting, its greatest advantage is to overcome the hydraulic jack hydraulic leak Er Shi as top heavy drop from the shortcomings, it maintain a long stay in the support position, so particularly suitable for upgrading of the heavy long position after the occasion demands. Some frequently used in the following situations:
1. Mechanical assembly and repair of vehicles from the top of the machine when used, vehicles and equipment used to from the top of prefabricated construction, etc..
2. Railway sector maintenance when used in railway tracks from the top.
3. Mines, tunnels, bridges, concrete poured in the pit prop support.
Four. Loading and unloading will be prostrate, lifting a lower position of the items before the pre-top.
QJC-B TYPE GEAR&RACK MECHANICAL JACK SPECIFICATIONS
Model | QJC-1.5B | QJC-3B | QJC-5B | QJC-10B | QJC-16B | QJC-20B | |||
Rated capacity | t | 1.5 | 3 | 5 | 10 | 16 | 20 | ||
Test load | kN | 18.4 | 36.8 | 61.3 | 122.5 | 196 | 245 | ||
Lifting height | mm | 350 | 350 | 300 | 300 | 300 | 400 | ||
Min.start jacking height | Over-bracket | mm | 725 | 725 | 725 | 800 | 800 | 950 | |
Under-bracket | mm | 70 | 75 | 75 | 85 | 95 | 110 | ||
Lifting height for the handle turn a ring | mm | 15 | 8.5 | 4.3 | 5.0 | 3.5 | 2.5 | ||
The handle pull to lift full load | N | 280 | 310 | 350 | 680 | 680 | 700 | ||
The number of operator | PCS | 1 | 1 | 1 | 2 | 2 | 2 | ||
The handle turning radius R | mm | 250 | 250 | 250 | 300 | 300 | 300 | ||
Dimensions mm | A | 125 | 185 | 192 | 242 | 285 | 376 | ||
B | 293 | 304 | 330 | 485 | 492 | 505 | |||
B1 | 193 | 204 | 232 | 254 | 282 | 295 | |||
H | 722 | 724 | 724 | 796 | 798 | 948 | |||
h | 68 | 72 | 74 | 82 | 93 | 108 | |||
L | 130 | 130 | 130 | 250 | 250 | 250 | |||
W | 130 | 130 | 150 | 150 | 160 | 200 | |||
P | 140 | 140 | 170 | 170 | 190 | 230 | |||
Net weight | kg | 14.5 | 21 | 30 | 49 | 68 | 93 | ||
Company Information
EVER-POWER GROUP SPECIALIST IN MAKING ALL KINDS OF MECHANICAL TRANSMISSION AND HYDRAULIC TRANSMISSION LIKE: PLANETARY GEARBOXES, WORM REDUCERS, IN-LINE HELICAL GEAR SPEED REDUCERS, ARALLEL SHAFT HELICAL GEAR REDUCERS, HELICAL BEVEL REDUCERS, HELICAL WORM GEAR REDUCERS, AGRICULTURAL GEARBOXES, TRACTOR GEARBOXES, AUTO GEARBOXES, PTO DRIVE SHAFTS, SPECIAL REDUCER & RELATED GEAR COMPONENTS AND OTHER RELATED PRODUCTS, SPROCKETS, HYDRAULIC SYSTEM, VACUUM PUMPS, FLUID COUPLING, GEAR RACKS, CHAINS, TIMING PULLEYS, UDL SPEED VARIATORS, V PULLEYS, HYDRAULIC CYLINDER, GEAR PUMPS, SCREW AIR COMPRESSORS, SHAFT COLLARS LOW BACKLASH WORM REDUCERS AND SO ON. FURTHERMORE, WE CAN PRODUCE CUSTOMIZED VARIATORS, GEARED MOTORS, ELECTRIC MOTORS AND OTHER HYDRAULIC PRODUCTS ACCORDING TO CUSTOMERS’ DRAWINGS.
Certifications
FAQ
Q: Are you trading company or manufacturer ?A: Our group consists in 3 factories and 2 abroad sales corporations.Q: Do you provide samples ? is it free or extra ?A: Yes, we could offer the sample for free charge but do not pay the cost of freight.Q: How long is your delivery time ? What is your terms of payment ?A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment.Q: What is the exact MOQ or price for your product ?A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.If you have another question, please feel free to contact us.
Product packaging
Why Choose Us
Also I would like to take this opportunity to give a brief introduction of our Ever-Power company:Our company is a famous manufacturer of agriculture gearbox,worm reduce gearbox, PTO shafts, Sprockets ,rollar chains, bevel gear, pulleys and racks in china.We have exported many products to our customers all over the world, we have long-time experience and strong technology support. Some of our customer :Italy: GB GEABOX, SATI, CHIARAVALLI, AMA, BreviniGermany: SILOKING ,GKN ,KTSFrance: Itfran, Sedies, KuhnBrazil: AEMCO ,STUUSA: John Deere , BLOUNT, Weasler, Agco, Omni Gear, WOODSCanada: JAY-LOR , CANIMEX ,RingBall......-> Our Company with over twelve year's history and 1000 workers and 20 sales.-> With over 100 Million USD sales in 2017-> With advance machinery equipments-> With large work capacity and high quality control, ISO certified.......you also can check our website to know for more details, if you need our products catalogue, please contact with us.
