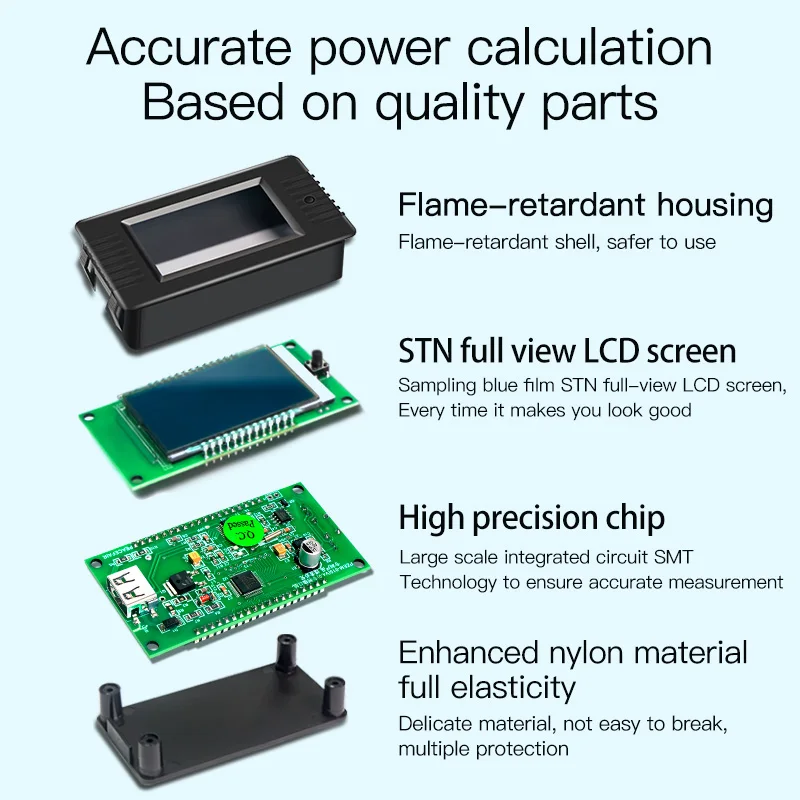

DC 0 200V 50A 1m USB Voltmeter Ammeter Car Battery Tester Capacity Electricity Voltage Monitor for 12v 24v 48v 96v
- Category: >>>
- Supplier: Ningbo Peacefair Electronic Technology Co. Ltd.
Share on (1601021291183):
Product Overview
Description
Product Description
DC 0-200V 50A 1m USB Voltmeter Ammeter Car Battery Tester Capacity Electricity Voltage Monitor for 12v 24v 48v 96v

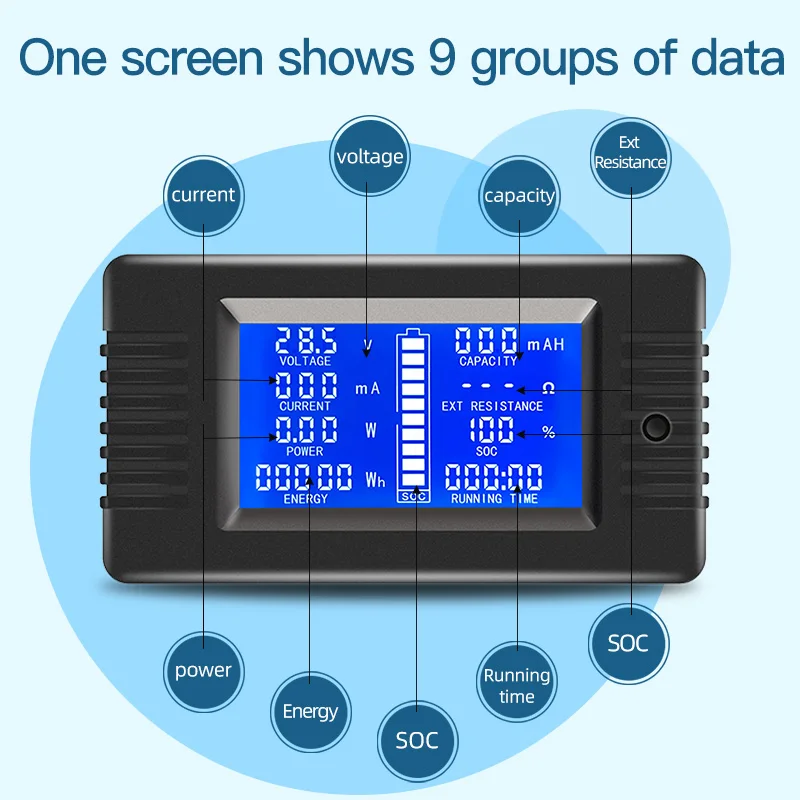

Parameter | Test Range | Resulation | Measurement accuracy | ||
Voltage | 0-200V. (when the test voltage is <8V, please use the independent power supply mode) | 0.01V | 1% | ||
Current | 50A | 1mA | 1% | ||
Power | 5000W | 0.01W | 1% | ||
Impedance | 0-1000Ω | 0.1Ω | 1% | ||
SOC | percentage | ||||
Capacity | 0-1000AH | 1mAH | 1% | ||
Dump energy | Dump energy is display via the battery symbol, totally 10 grids, every grid present 10% energy | ||||
Accumulate energy consumption | 0~9999kWh | 1Wh | 1% | ||
Running time | 0 ~ 999 hour(without load the time will not accumulate) | ||||
1. Power consumption
Normal working state: 0.03-1.2 W
Sleeping state: 0.5mW-0.5W
The power consumption is related to the test voltage value, the higher the voltage,the greater the power consumption.
2. Working temperature
-20’C ~ +60’C.
Normal working state: 0.03-1.2 W
Sleeping state: 0.5mW-0.5W
The power consumption is related to the test voltage value, the higher the voltage,the greater the power consumption.
2. Working temperature
-20’C ~ +60’C.
3. Working mode
This meter has two modes: normal display mode and dormant mode. In normal display mode, short press the button to enter the dormant mode, in order to reduce the whole machine power consumption, the backlight and LCD display will be turned off in dormant mode. In dormant mode, short press the button will switch to the normal display mode.
Note: The meter will stop all measurement functions in dormant mode, so please do not switch to dormant mode if normal measurement is performed.
This meter has two modes: normal display mode and dormant mode. In normal display mode, short press the button to enter the dormant mode, in order to reduce the whole machine power consumption, the backlight and LCD display will be turned off in dormant mode. In dormant mode, short press the button will switch to the normal display mode.
Note: The meter will stop all measurement functions in dormant mode, so please do not switch to dormant mode if normal measurement is performed.

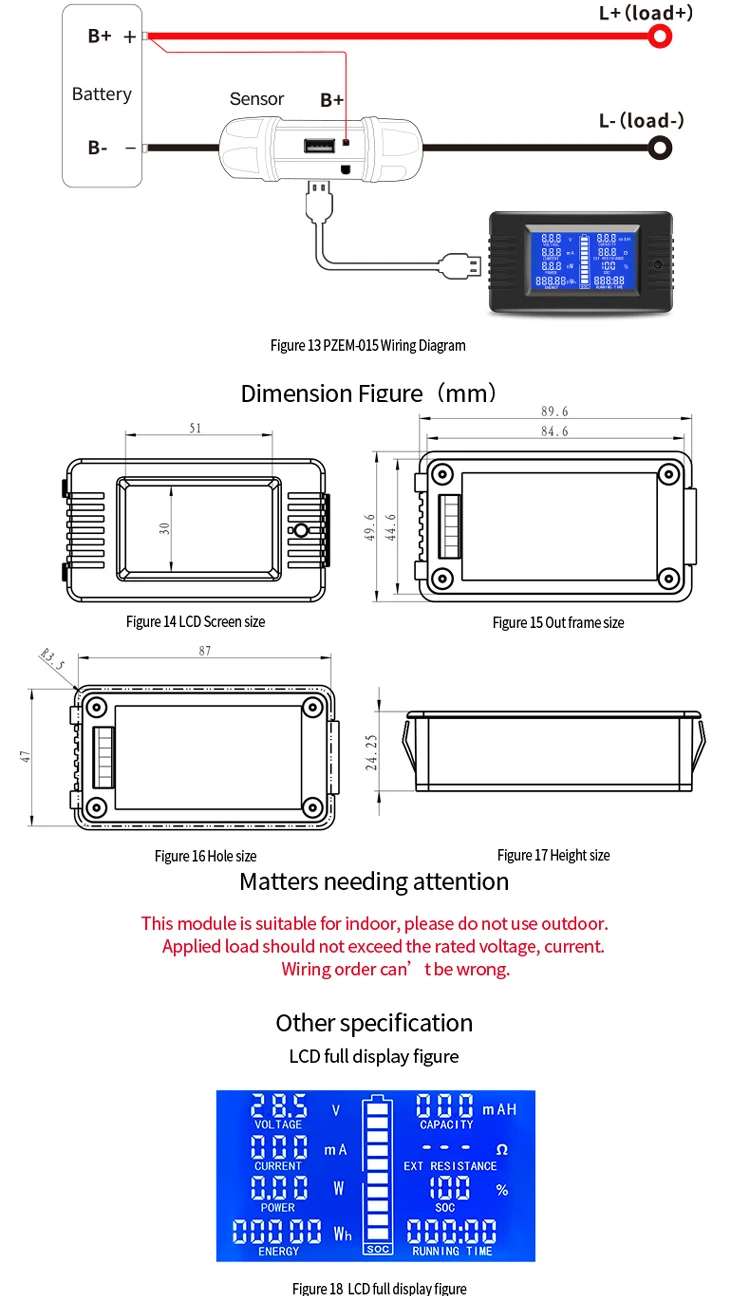

Size Information
Related Products
Company Introduction
Ningbo Peacefair Electronic Technology Co., Ltd. is founded in 2 0 1 4. The area of the factory is 1800square meters, has two assembly line. We are a professional manufacturer engaged in the research, development, production, sale and service of AC and DC Electric digital power meter, Voltage meter and Energy meter. Our products have the patent and C E, F C C certificates.
