808nm 12W Uncooled Multimode Laser Diode Module
- Category: >>>
- Supplier: Wuhan Cs Tec Co. Ltd.Wuhan Ltd.
Share on (1601021452783):
Product Overview
Description
Products Description

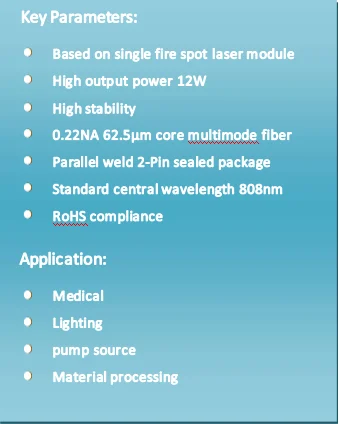

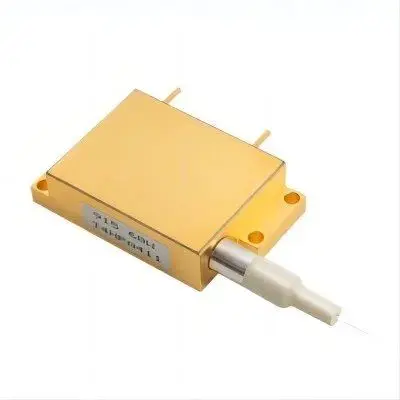

808nm 12W Uncooled Multimode Laser Diode Module
TY-808+/-03NM-12.0W-25C-62.5-0.22NA diode lasers employing professional coupling technology, that enjoy multiple advantages, e.g., compact design, stable output power, high power, high efficiency and convenient packaging. These laser diode modules can provide solutions for fiber laser applications and direct suppliers.
The performance and aging tests have been performed upon the production line to guarantee reliable, stable and long lifetime of products. To provide customers with high-quality, high cost performance products is the company’s goal.
The performance and aging tests have been performed upon the production line to guarantee reliable, stable and long lifetime of products. To provide customers with high-quality, high cost performance products is the company’s goal.
Product Paramenters

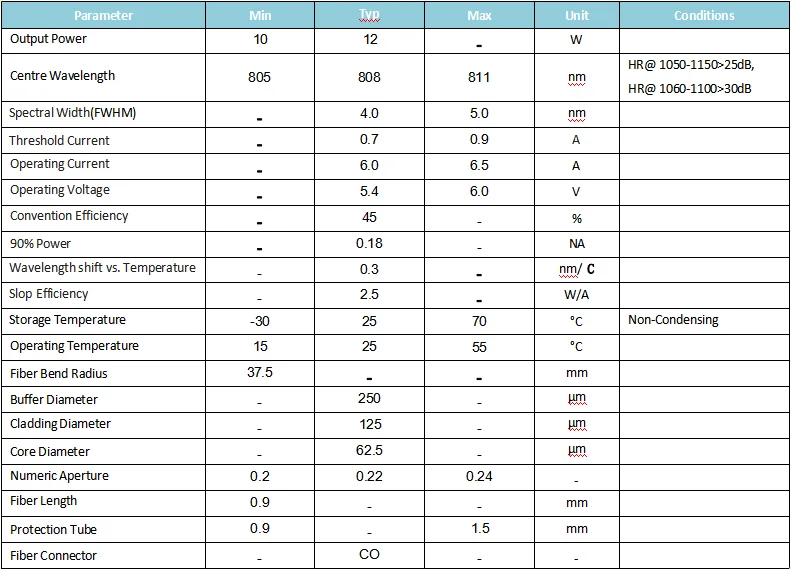

Specification：
Functional parameters are tested on condition that the heat sink temperature is 25 degree, contact resistance of the component and the heat sink is smaller than 1CM2 K/W.
Functional parameters are tested on condition that the heat sink temperature is 25 degree, contact resistance of the component and the heat sink is smaller than 1CM2 K/W.

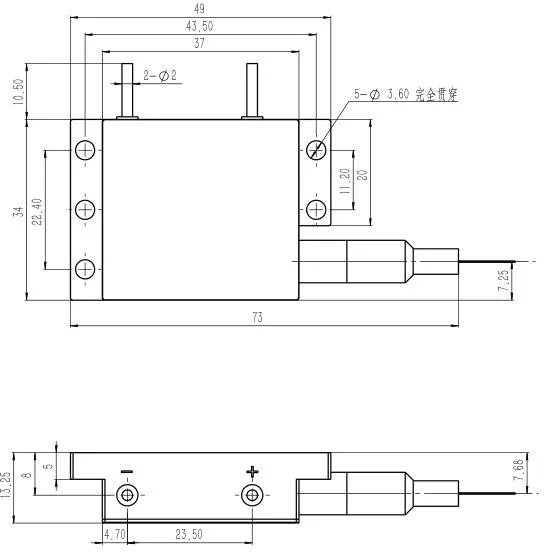

Dimension Diagram:
Unit:MM;
Unit:MM;
Instructions
Avoid eyes or skin exposure to direct or scattered radiation;
ESD protection is required for transportation, storage and operation; short-circuit protection between pins is required for transportation and storage.
Please connect pins by solder when operating current is over 6A; solder point should be close to the root of pins with a max soldering temperature at 260℃ and a duration less than 10 seconds ;
Drive constant current power supply by laser and avoid surge while working;
Operate under rated current and rated power;
Good heat dissipation is required;
Please test with coated fiber in order to avoid chip damage by reducing back reflection;
Operating temperature is 15℃~55℃;
Storage temperature is －30℃~＋70℃.
Avoid eyes or skin exposure to direct or scattered radiation;
ESD protection is required for transportation, storage and operation; short-circuit protection between pins is required for transportation and storage.
Please connect pins by solder when operating current is over 6A; solder point should be close to the root of pins with a max soldering temperature at 260℃ and a duration less than 10 seconds ;
Drive constant current power supply by laser and avoid surge while working;
Operate under rated current and rated power;
Good heat dissipation is required;
Please test with coated fiber in order to avoid chip damage by reducing back reflection;
Operating temperature is 15℃~55℃;
Storage temperature is －30℃~＋70℃.
