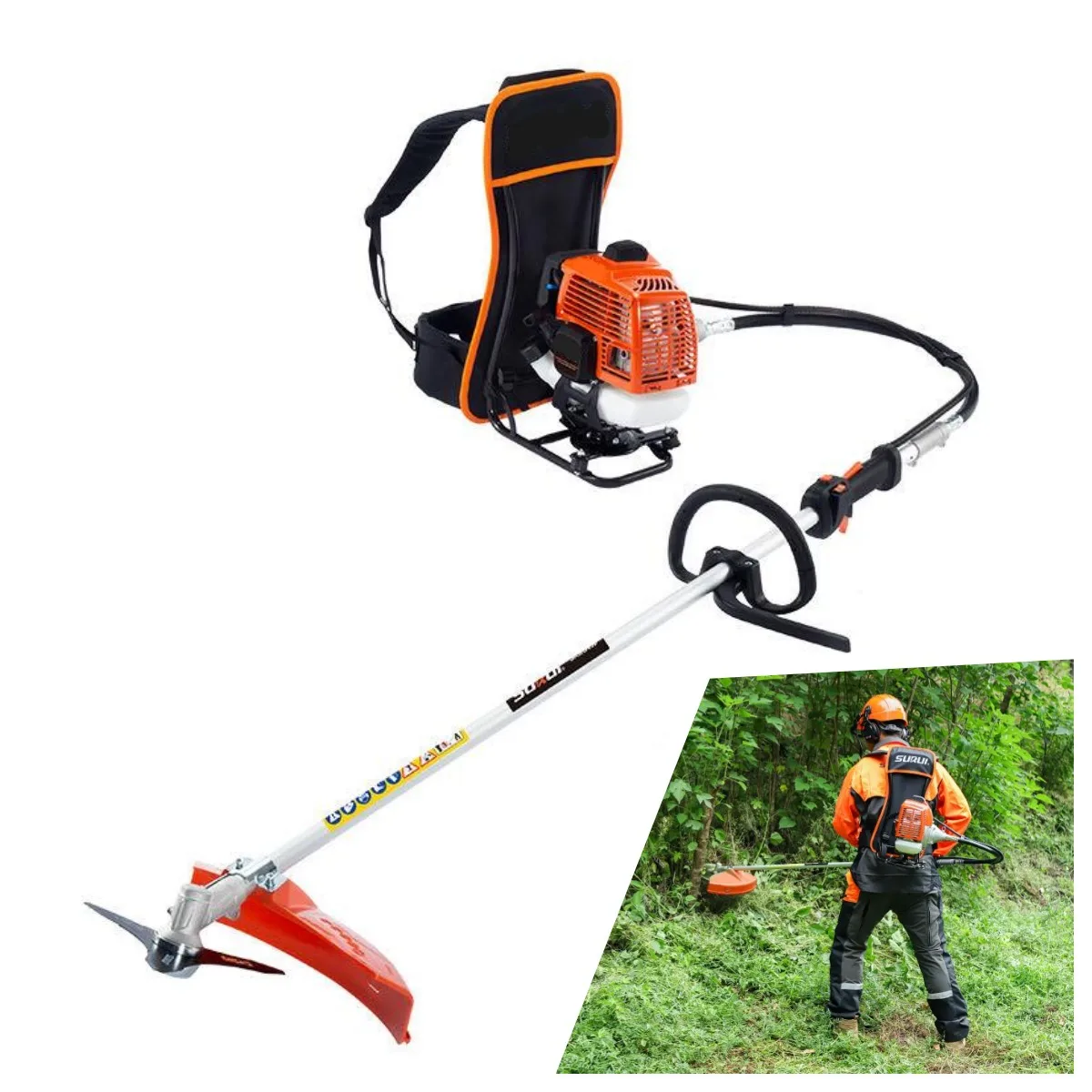

Gasoline Motor 52cc power string trimmer 2 stroke grass cutter brush cutter head backpack grass trimmer lawn mowers
- Category: >>>
- Supplier: Linyi Yuequn International Trading Co. Ltd.
Share on (1601021474600):
Product Overview
Description

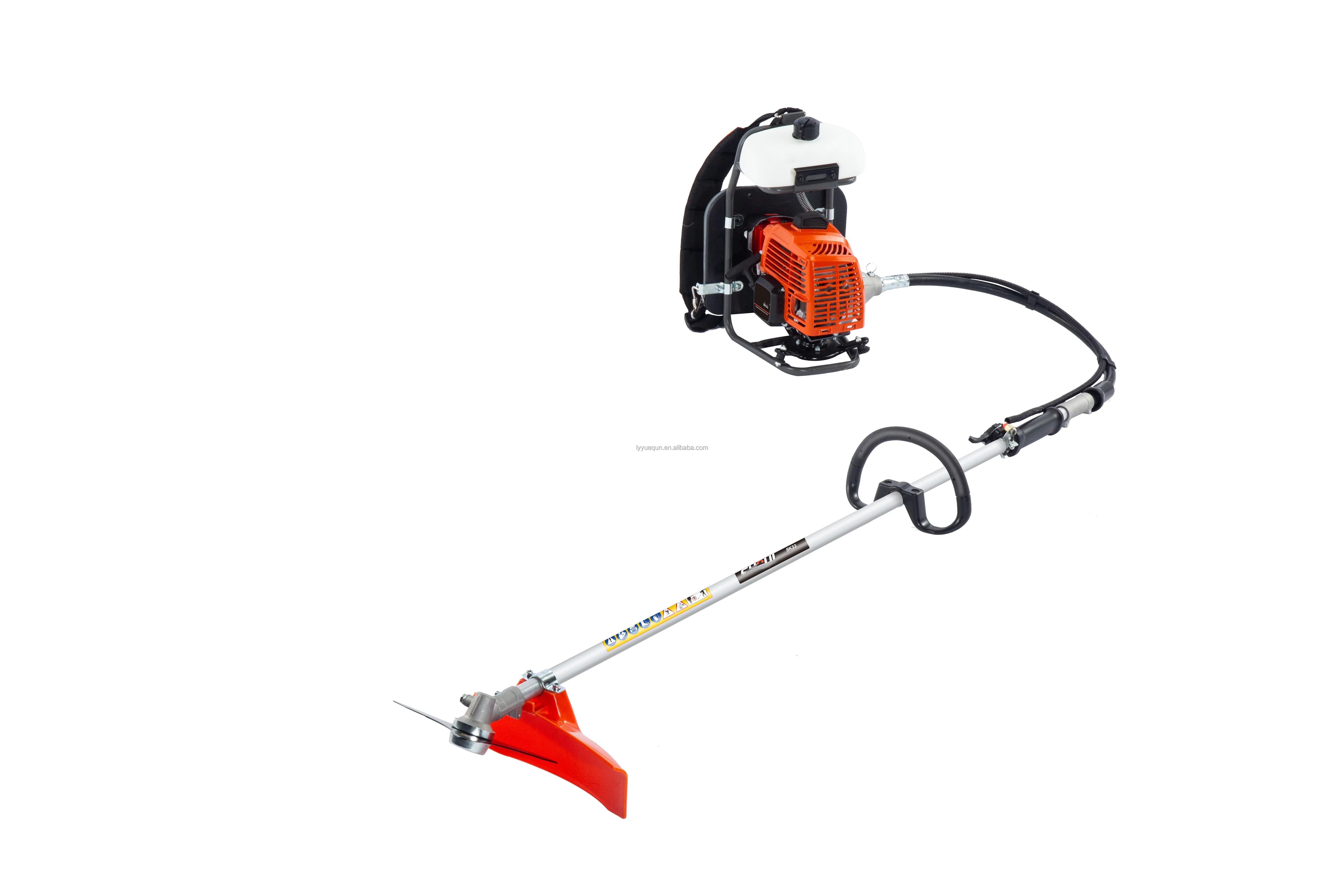

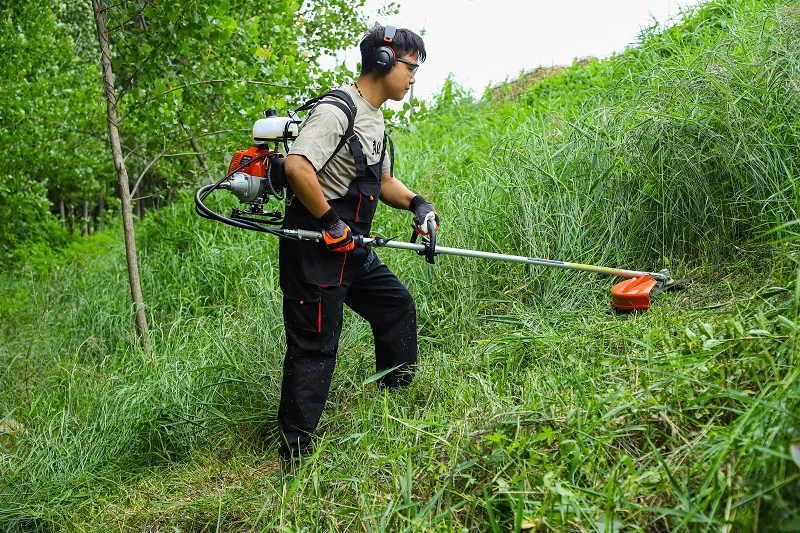

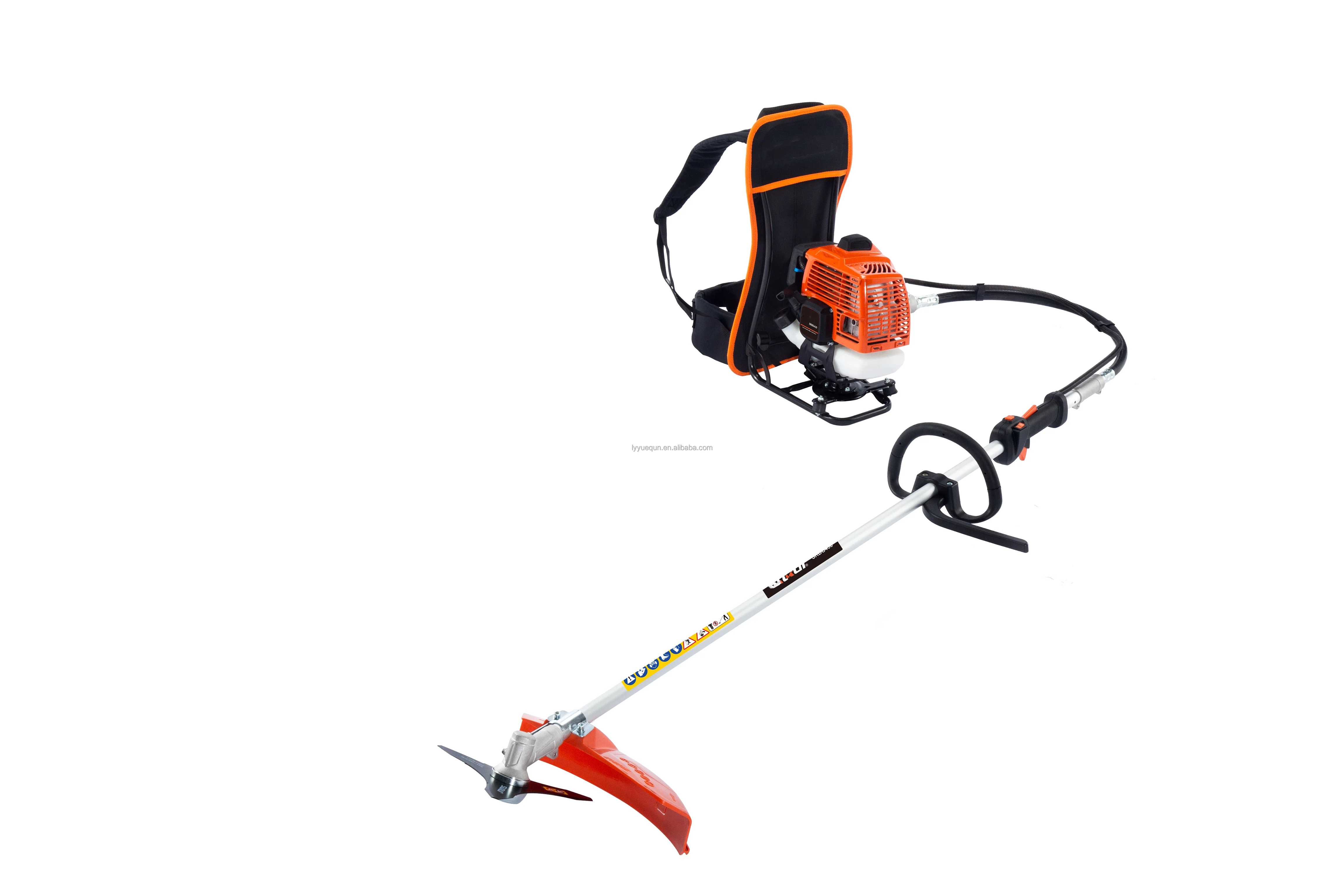

Backpack Brush Cutter
Diaphragm type carburetor BH Series
Float type carburetor BK Series
BH Series | BK Series | ||||||||||
Model | BH33 | BH43 | BH52 | BK33 | BK43 | BK52 | |||||
Displacement(cc) | 32.8 | 42.8 | 51.8 | 32.8 | 42.8 | 51.8 | |||||
Standards power(kw/hp) | 1.0/1.4 | 1.3/1.8 | 1.5/2.1 | 1.0/1.4 | 1.3/1.8 | 1.5/2.1 | |||||
Fuel consumption(g/kw.h) | 476 | 489 | 492 | 476 | 492 | 485 | |||||
N.W.(kg) | 9.5 | 10.2 | 10.4 | 9.7 | 10.3 | 10.5 | |||||
Fuel tank capacity(L) | 0.65 | 0.95 | 1.25 | ||||||||
Gear case speed reduction ratio | 15:19 | ||||||||||
Aluminum pipe diameter(mm) | 24/26 | ||||||||||
Nylon cutter head cutting range(mm) | 430 | ||||||||||
Blade cutting range(mm) | 255 | ||||||||||
Our Advantages
Manufacturing green environmental protective product is the society responsibility of every enterprise . Our new technology
“Target beam scavenging combustion “ which means precise orienting high speed combustion scavenging ” which has the independent patent intellectual property makes our products pass the strictly emission regulations such as Ⅲ,EURO V ,EPA.
“Target beam scavenging combustion “ which means precise orienting high speed combustion scavenging ” which has the independent patent intellectual property makes our products pass the strictly emission regulations such as Ⅲ,EURO V ,EPA.
With the help of the technology “combustion thermal imaging analysis” , we analyzed and compared the technical index of the current products through the measured data of the dynamometer and the emission equipment ,finally we got the exclusive technology “Target beam scavenging combustion ”and applied the patent for it , the patent number is ZL 2022 2 2720266.6
Taking the new technology “Target beam scavenging combustion ”as the core , using perfect scientific control method and rich production experience , we made a collective innovative improvement for the engine technical specifications and the outlook.
① All products use the overhead spark plug: The cooling area of the cylinder increases by about 30% and the cooling evenness becomes better. Therefore the engine can be always at a suitable temperature when running , Thus the power and the durability increases
① All products use the overhead spark plug: The cooling area of the cylinder increases by about 30% and the cooling evenness becomes better. Therefore the engine can be always at a suitable temperature when running , Thus the power and the durability increases
②We improve the heat dissipation channel which makes the cooling performance better .
③Benchmarking the leading companies , through countless tests ,we improved the displacement ,compression ratio ,exhaust phase , air inlet port and exhaust port sectional area , shape of the combustor etc. Thus our engines is approaching more perfect quality .

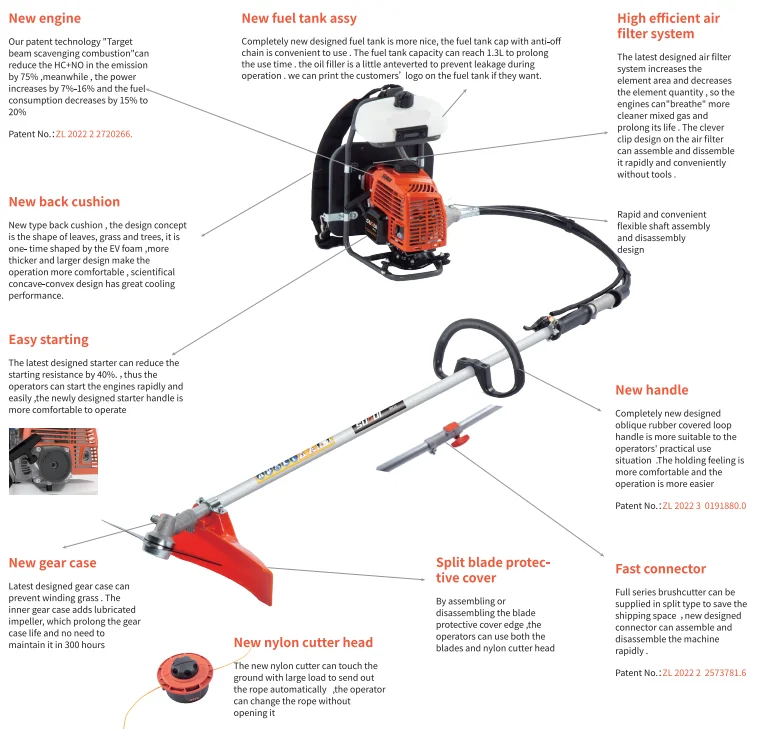

New engine

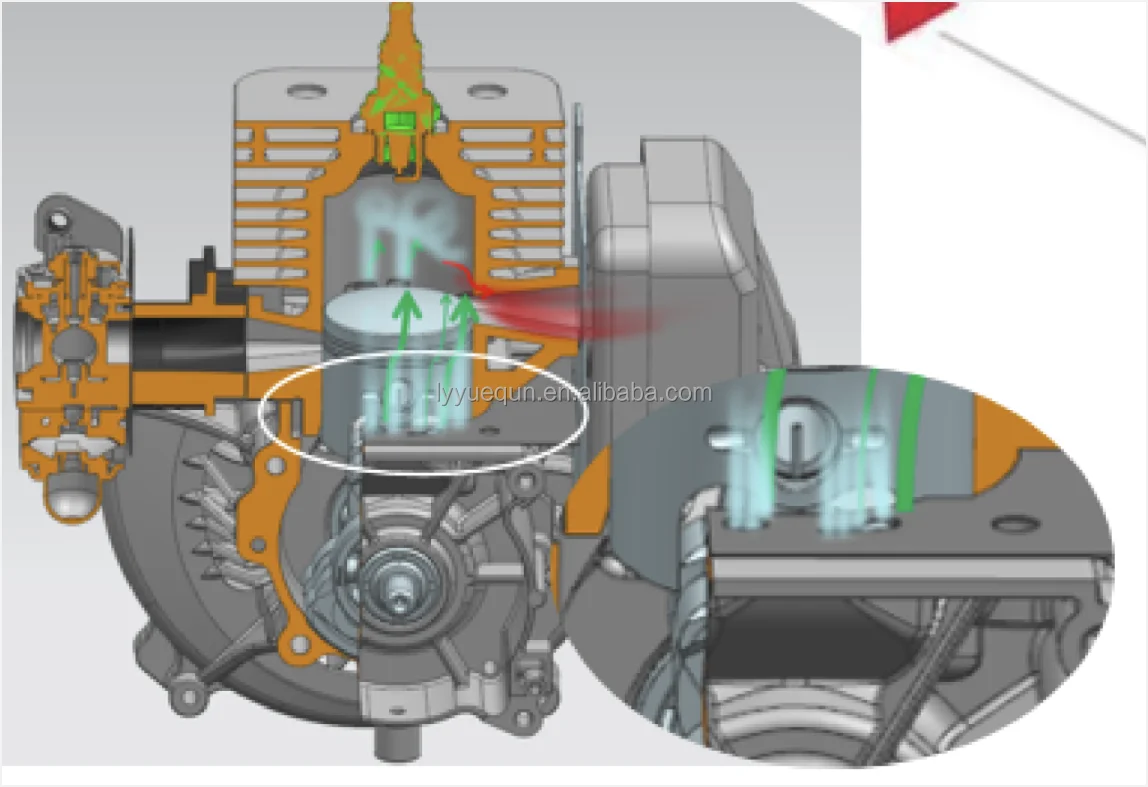

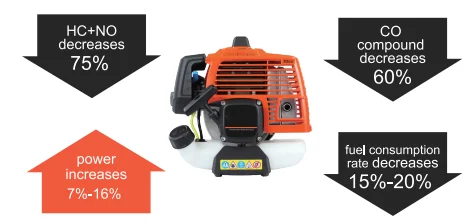

Our patent technology “Target beam scavenging combustion” can reduce the HC+NO in the emission by 75% ,meanwhile , the power increases 7%-16% and the fuel consumption decreases by 15% to 20%
Patent No.：ZL 2022 2 2720266.6
Patent No.：ZL 2022 2 2720266.6

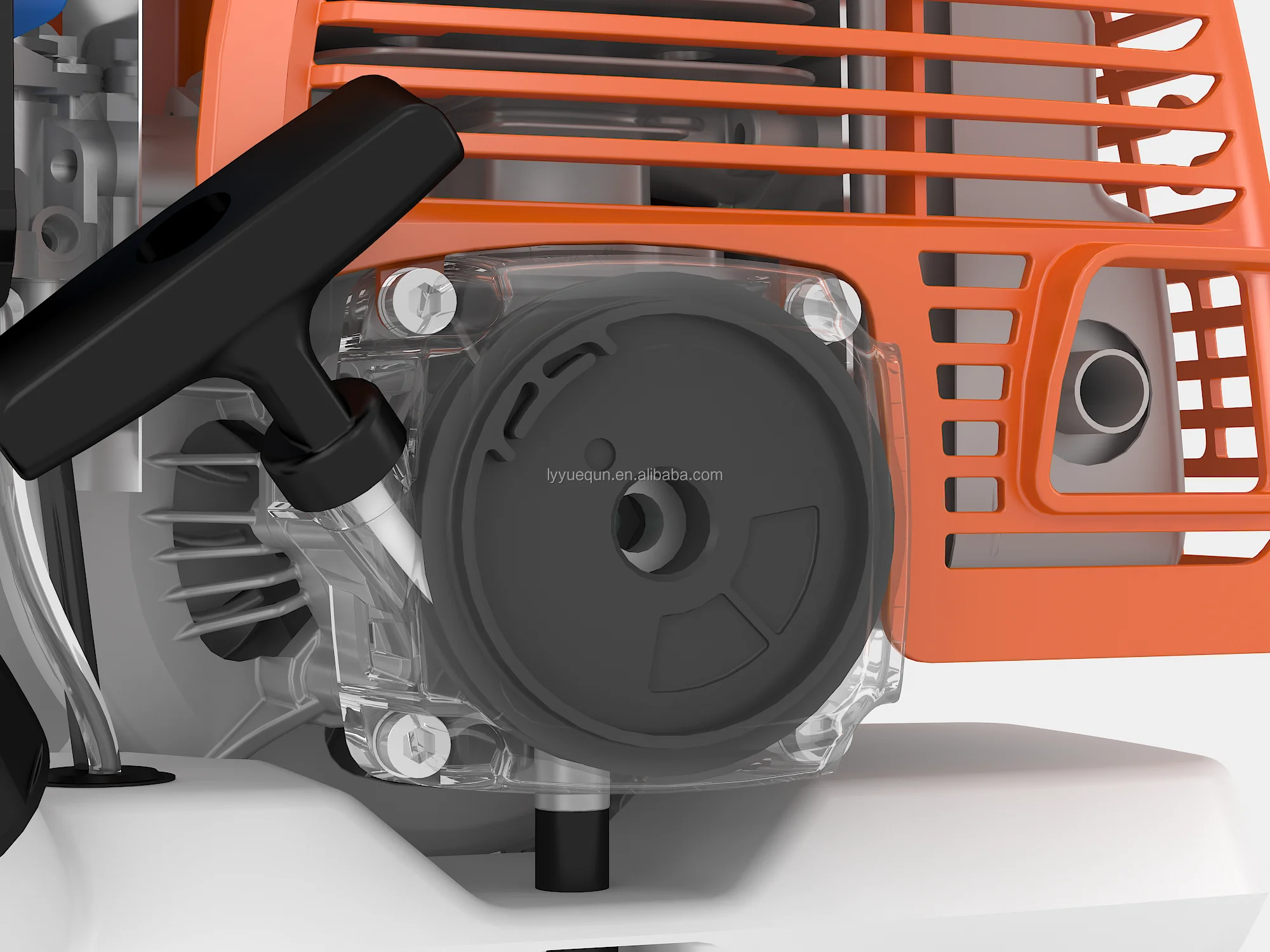

Easy starting
The latest designed starter can reduce the starting resistance by 40%. ，thus the operators can start the engines rapidly and easily ,the newly designed starter handle is more comfortable to operate.
Flexible shaft
Rapid and convenient flexible shaft assembly and disassembly design.

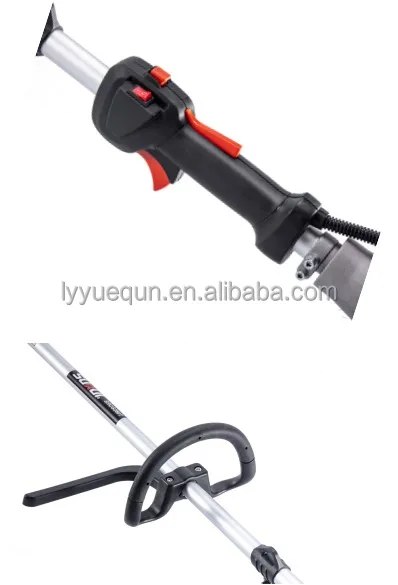

Completely new throttle handle
Completely new designed rubber covered throttle handle is more ergonomics, more comfortable holding feeling ,more rounded R angle trigger and the one-button normally opening switch ,the operators will not be tired even after long time work.
Completely new designed oblique rubber covered loop handle which is more suitable to the operators’ practical use situation .The holding feeling is more comfortable and the operation is more easier .
Patent No.：ZL 2022 3 0191880.0

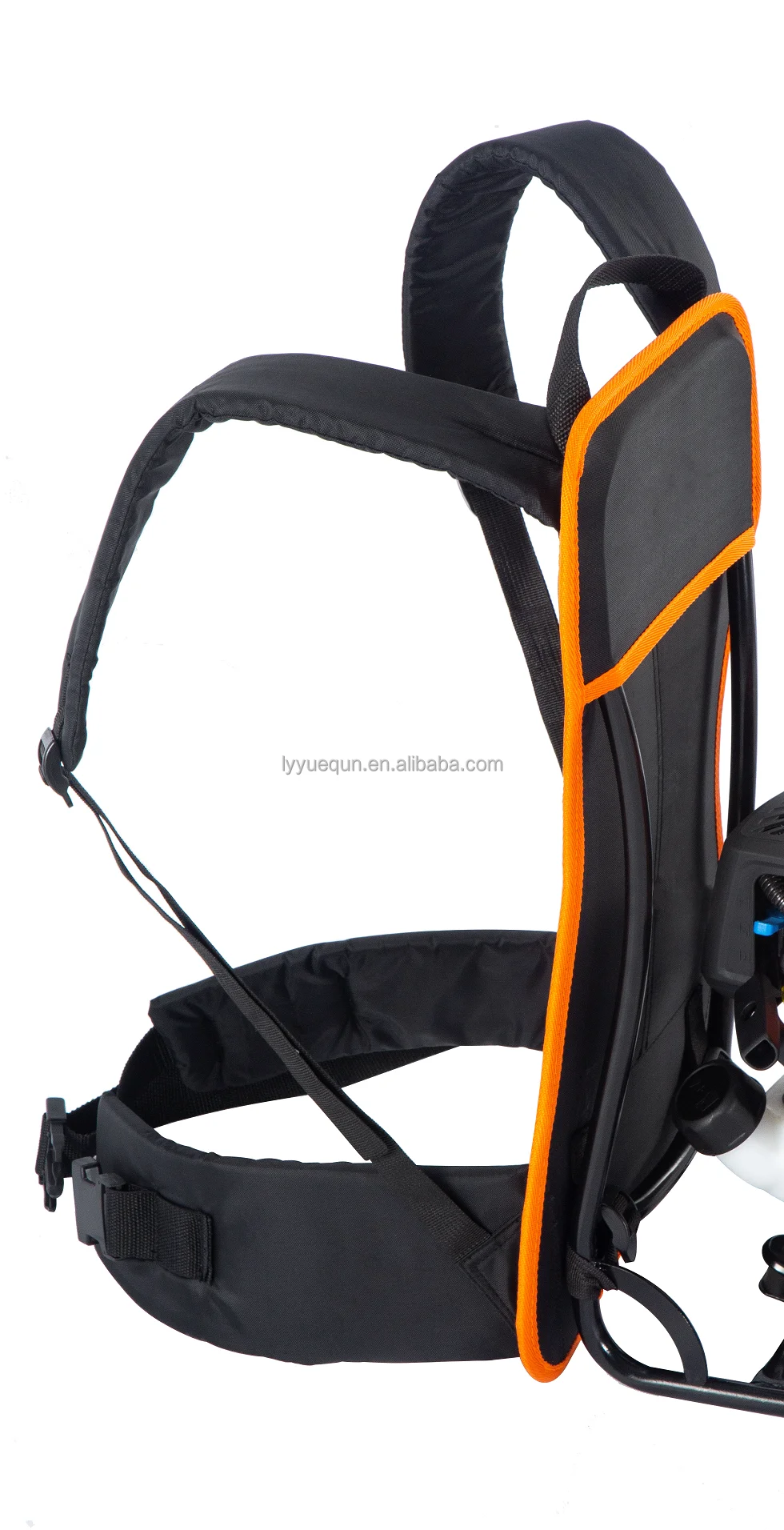

Completely new designed concise style back frame , with better materials and workmanship , copy -shape designed belt is more easier and comfortable to use. With larger and thicker back cushion ,the operators will not be tired after long time work.

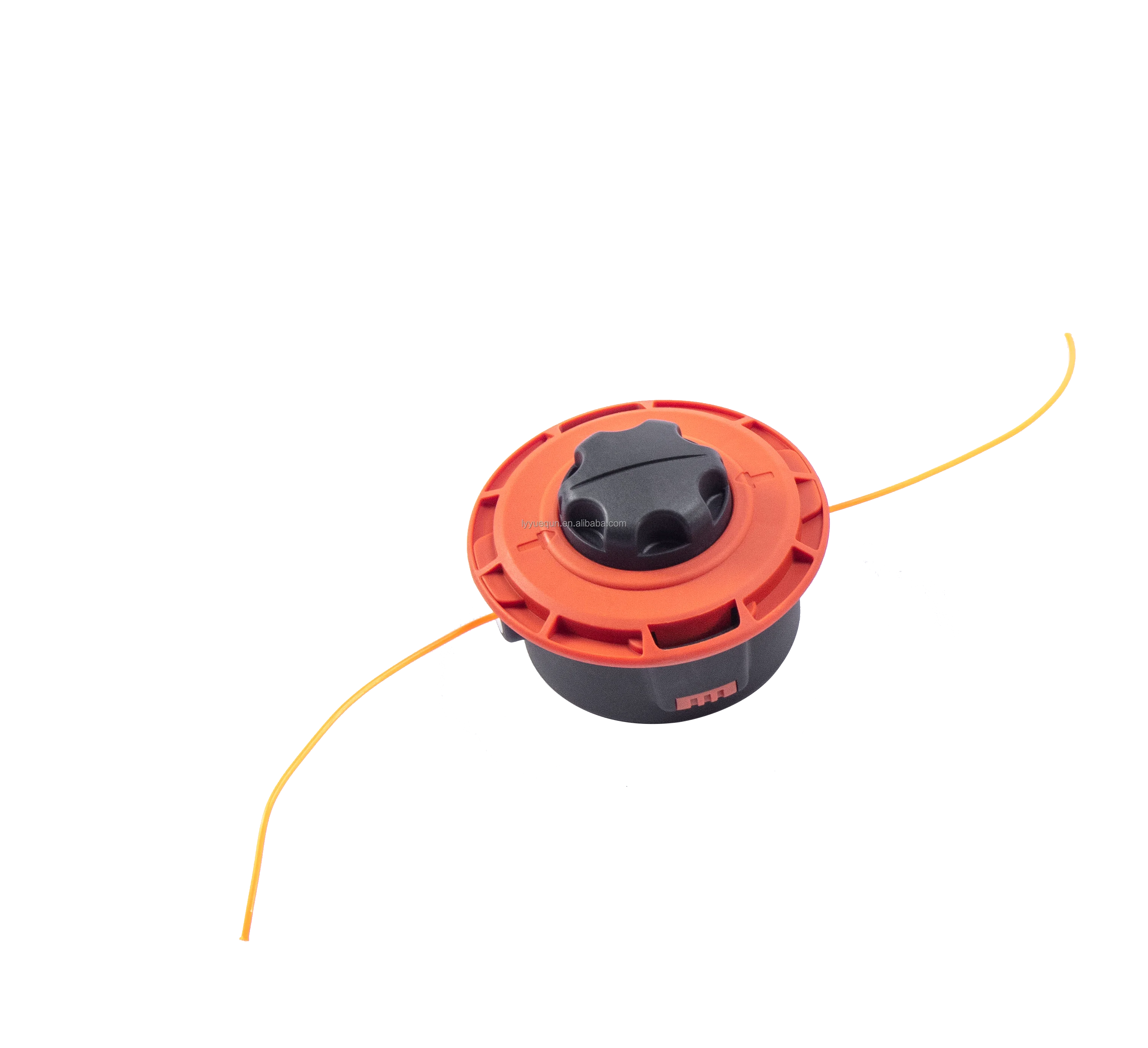

New nylon cutter head
The new nylon cutter can touch the ground with large load to send out the rope automatically ,the operator can change the rope without opening it.

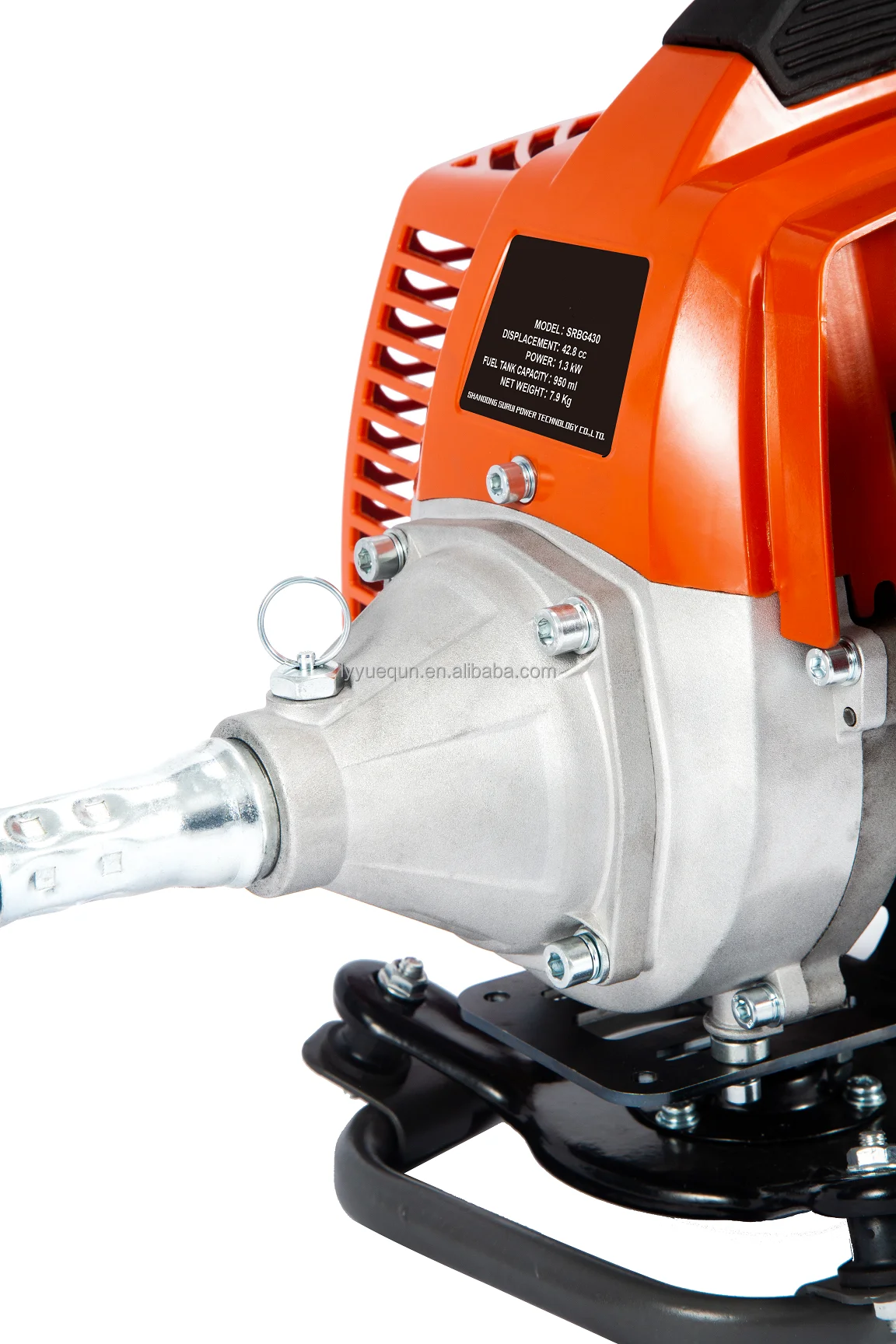

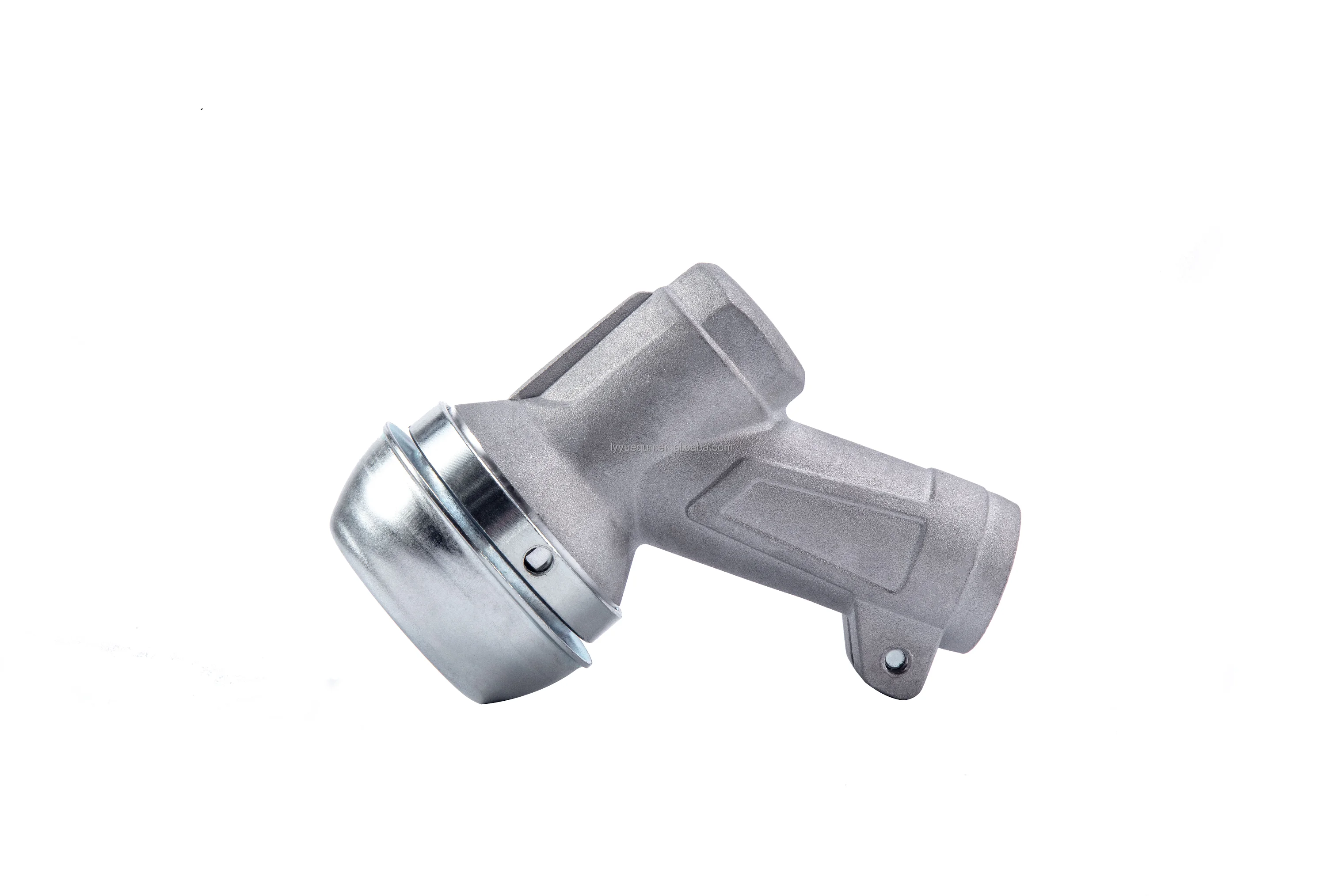

New gear case
Latest designed gear case can prevent winding grass . The inner gear case adds lubricated impeller, which prolong the gear case life and no need to maintain it in 300 hours.

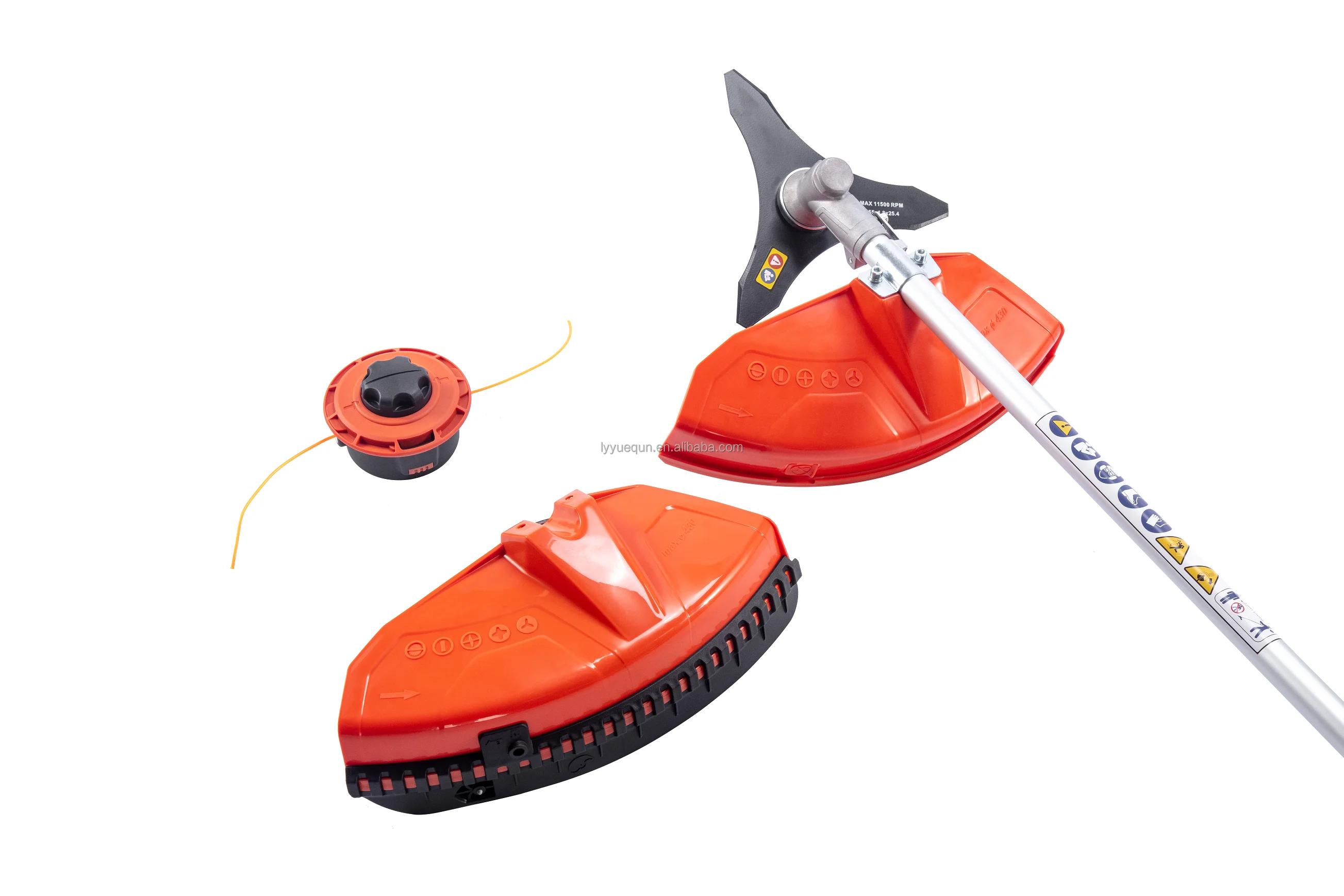

Split blade protective cover
By assembling or disassembling the blade protective cover edge ,the operators can use both the blades and nylon cutter head.
Float type BK Series Features:

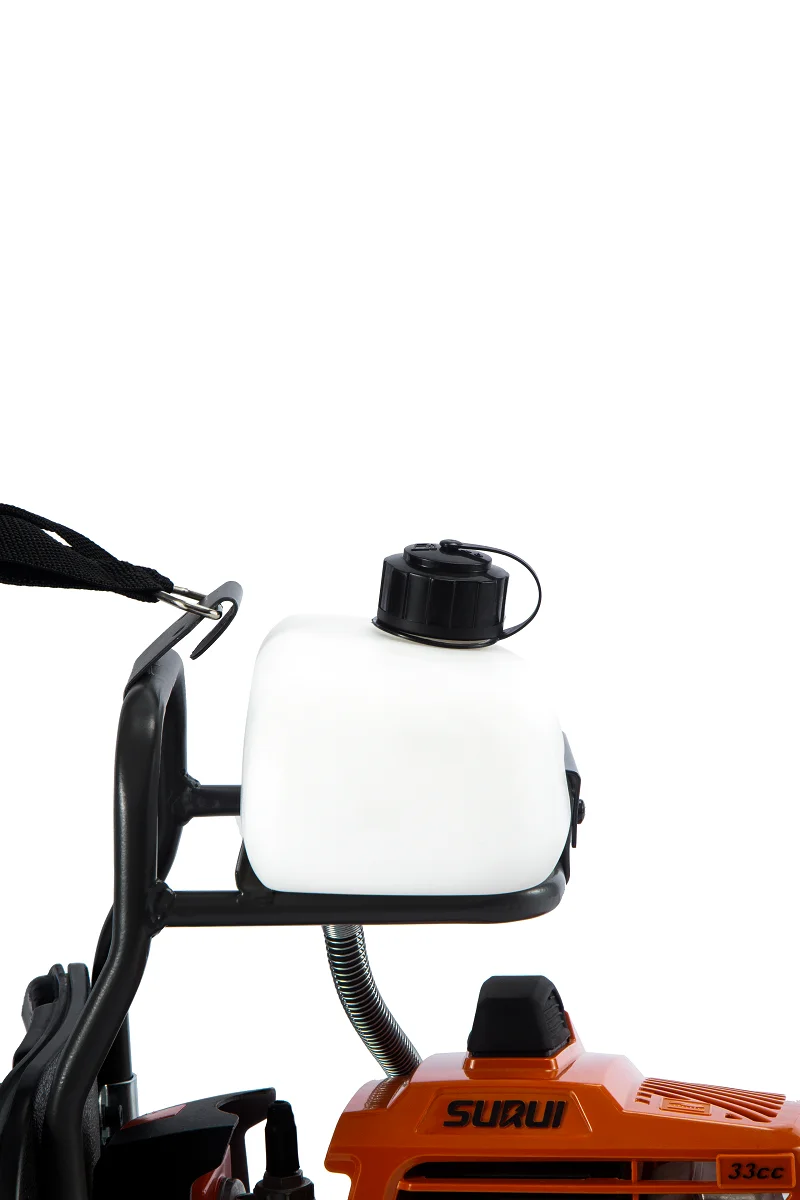

New fuel tank assy
New back cushion

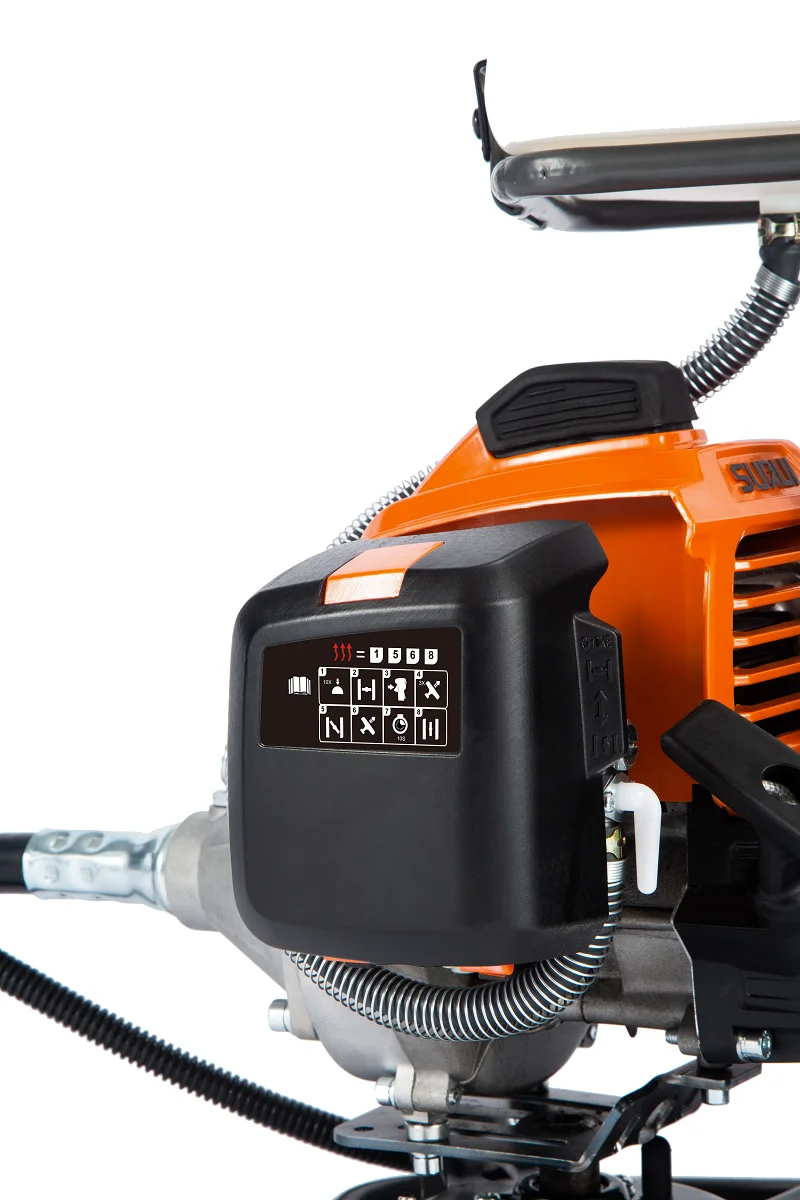

High efficient air filter system
The latest designed air filter system increases the element area and decreases the element quantity , so the engines can “breathe” more cleaner mixed gas and prolong the engine life . The clever clip design on the air filter can assemble and dissemble it rapidly and conveniently without tools .
Flexible shaft design
Rapid and convenient flexible shaft assembly and disassembly design.
Company Profile

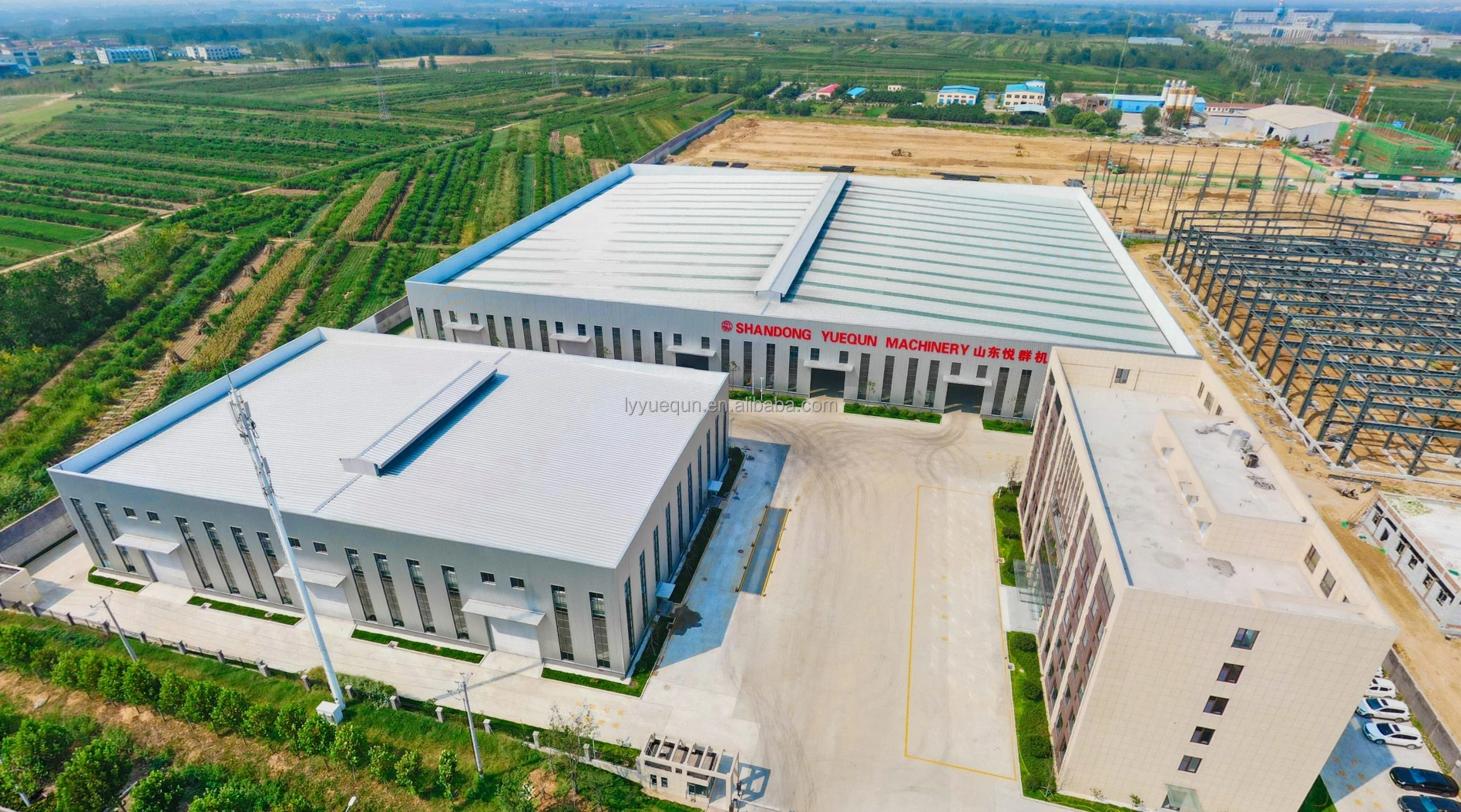

SHANDONG YUEQUN MACHINERY CO., LTD.
Shandong Yuequn Machinery Co., Ltd. is a professional business integrating product design, development, production, marketing and service into a whole. Yuequn covers an area of over 110,000 sq.m., has 150 million RMB of fixed assets and employs more than 100 employees, including 10 professional technicians and over 5 senior technicians.

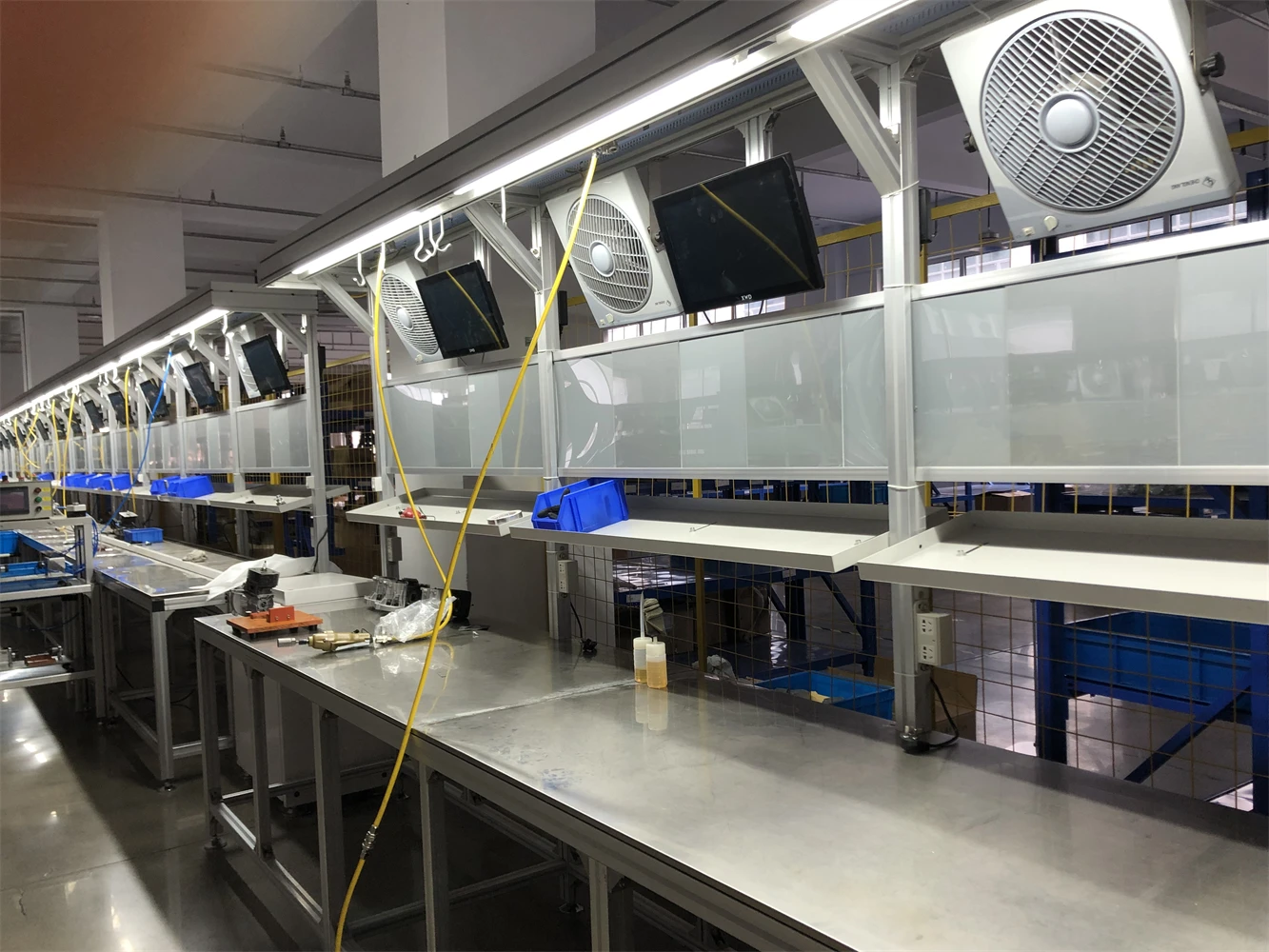

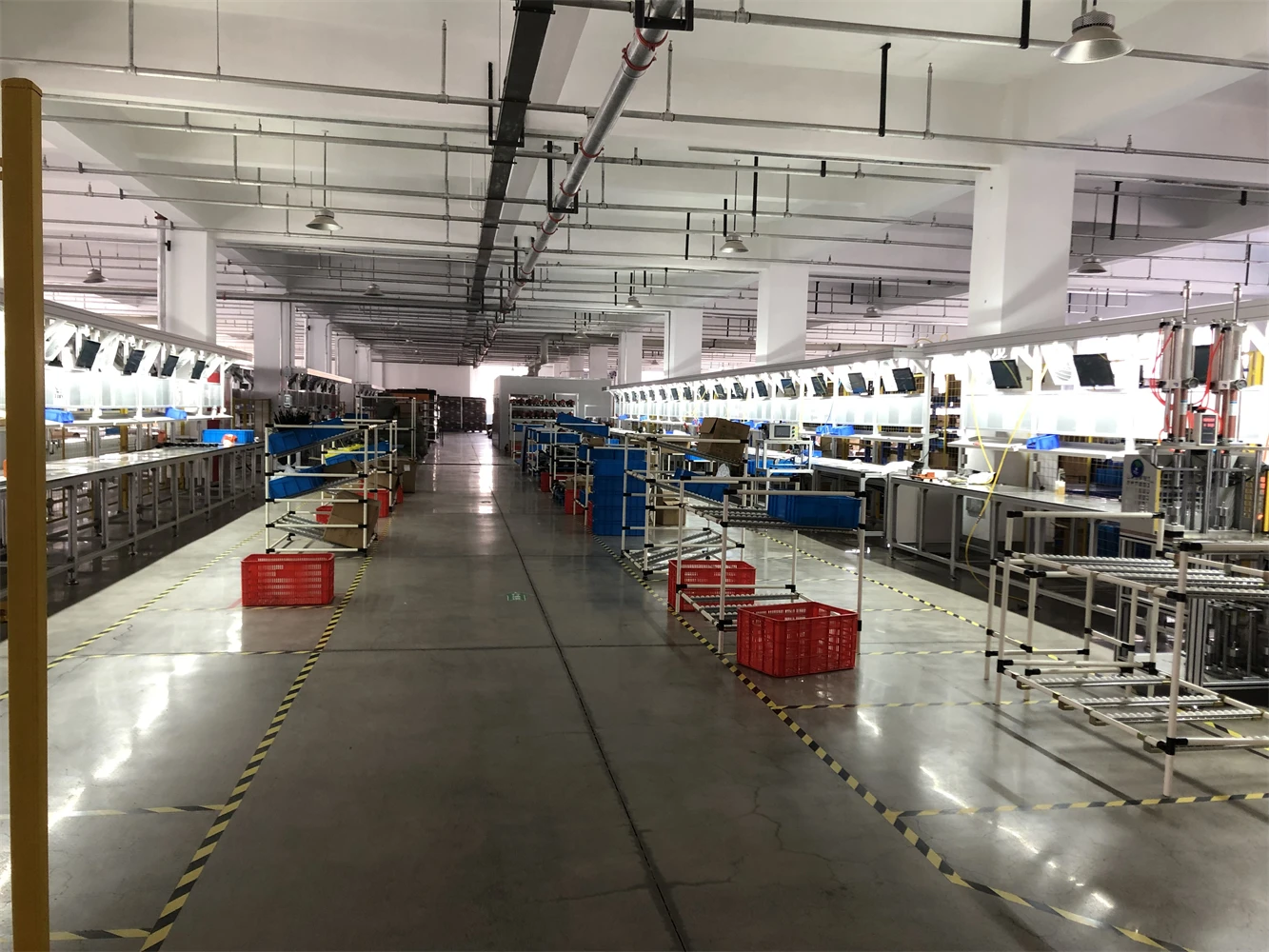

At present, Yuequn has 12 production lines and can produce general gasoline engines under 8.2kw, plant protection equipment, garden machine and irrigation machine, totaling over 100 varieties, with an annual production capacity reaching 1.5 million sets.

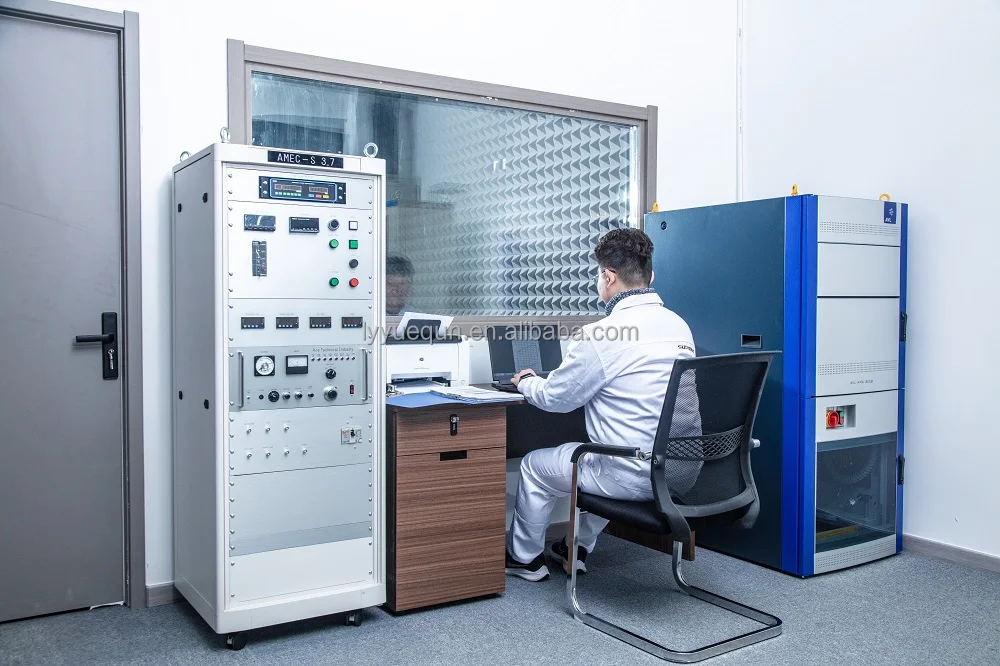

With 15 sets of world advanced test devices, Yuequn can conduct inspection and tests to all or part quality technical indicators of the products it produces. In recent years, modem design measures, such as CAD and CAM, adopted by its technical personnel has greatly improved the technical R&D capability of Yuequn. Our products have passed CE, GS, Euro V , EPA certification.
The new products developed by Yuequn boast superior technical performance leading to the domestic market.
At present, Yuequn has 12 production lines and can produce general gasoline engines under 8.2kw, plant protection equipment, garden machine and irrigation machine, totaling over 100 varieties, with an annual production capacity reaching 1.5 million sets.
With 15 sets of world advanced test devices, Yuequn can conduct inspection and tests to all or part quality technical indicators of the products it produces. In recent years, modem design measures, such as CAD and CAM, adopted by its technical personnel has greatly improved the technical R&D capability of Yuequn. Our products have passed CE, GS, Euro V , EPA certification.
The new products developed by Yuequn boast superior technical performance leading to the domestic market.
