SHSJ 45mm Single Screw 3D Printer Filament Production Line

Product Overview

Description

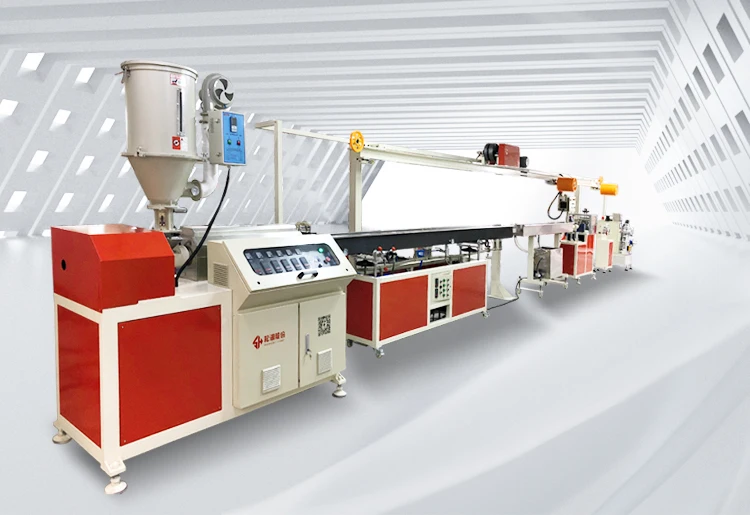

                                3D Printer Filament Extruder Production Line

Product Description

 3D Printer Filament Extruder Production Line can process different diameter filament. It can process ABS/PLA filament, PETG/ASA/PDS filament, etc with an additional screw design. This line adopts a PLC control system so that the tolerance is within 0.03mm even 0.02mm. It is an ideal equipment for processes of 1.75mm 2.85mm and 3mm ABS/PLA filament. The screw can be taken and cleaned easily so that you can change the colo

r easily. The water tank adopts two levels, one 4m hot water, and one 2m cool water so that the filament can be controlled quite round.



 Features:
1. Suitable material: ABS, PLA, PP, PE, ASA, PC, PA, PET, PETG, PEI, PVA, PEEK etc.
2. 3D filament diameter: 1.75mm, 2.85mm,3mm.
3. Accurate: ±0.03~0.05mm
4. Capacity: 20-25kg/h
5.L/W/H: 14.5x1.5x2.3 meters.

6. Installed power:40kw

7. Filament color: Can be different color with different color masterbatch
8. Machine voltage: 380V 50 HZ three-phase electricity

Specifications

NO.	Machine name	Quantity
1.	SHSJ-45 main extruder	1set
2.	Extrusion mould(1.75 mm,3mm)	2sets
3.	4M heating water tank,2m cooling water tank	1set
4.	Drying device	1set
5.	Laser Diameter  Gauge(XY/X)	1set
6.	Four wheels haul-off machine	1set
7.	Meter counter	1set
8.	8M Filament storage device	1set
9.	Winder	1set



Detailed images

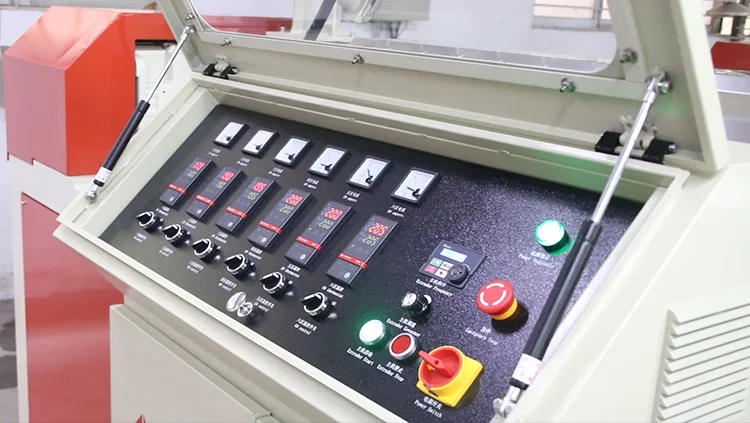

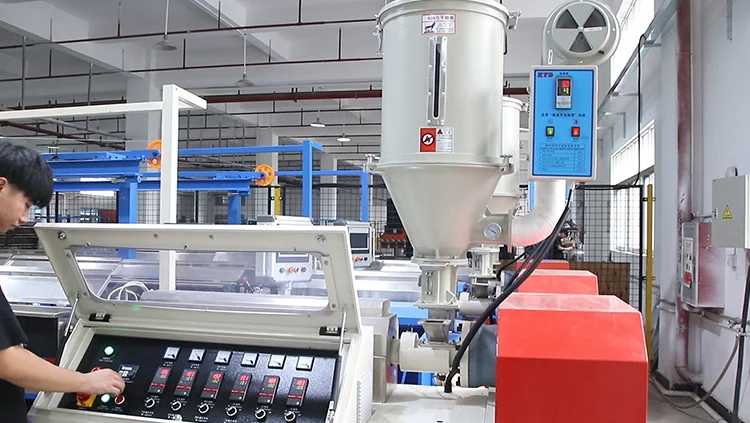

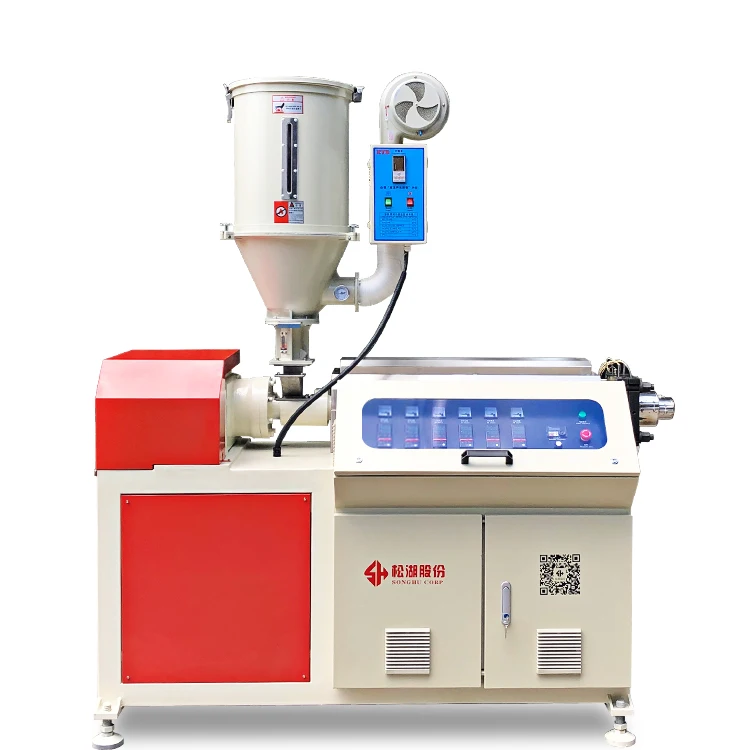

Production line(Main Extuder Part)

1.Screw Diameter: 45mm  2.L/D=28:1  3.Screw Material: 38CrMoALA  4.Barrel Material: 38CrMoALA

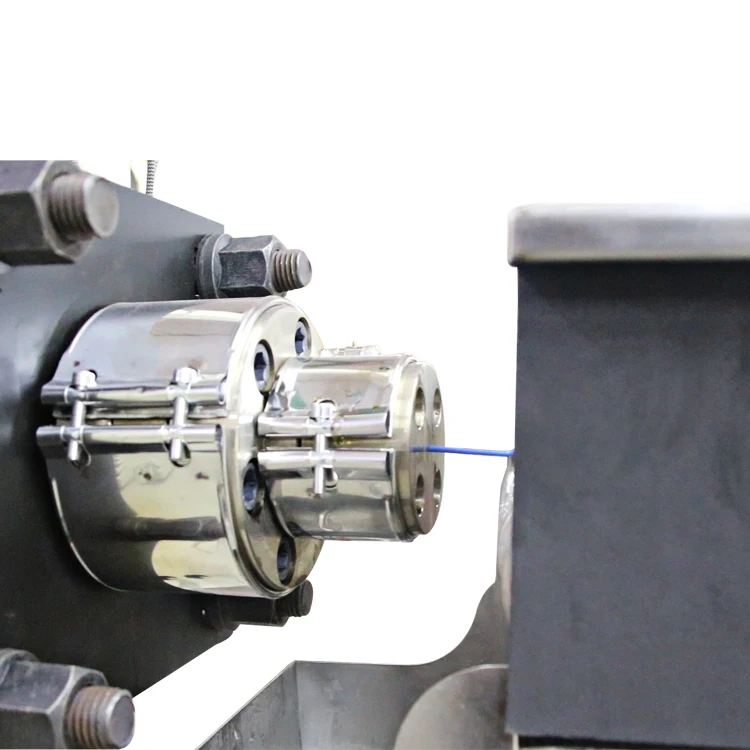

5.The inner surface of the barrel and the surface of the screw are nitrided.  6.Hardness: HV850~940 Diameter 1.75mm 3mm type mould

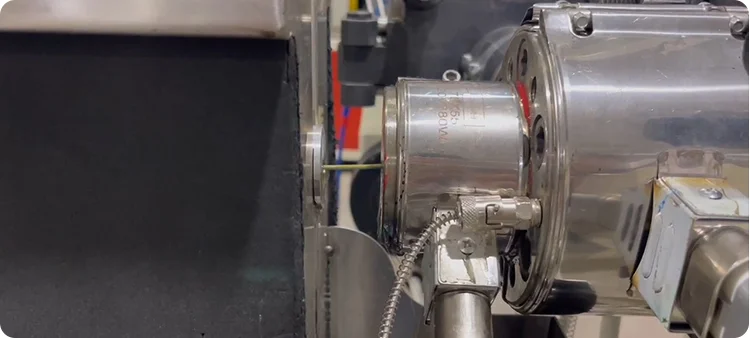

1.Material: S316 mold special steel

2.Diameter: 1.75MM, 3.0MM

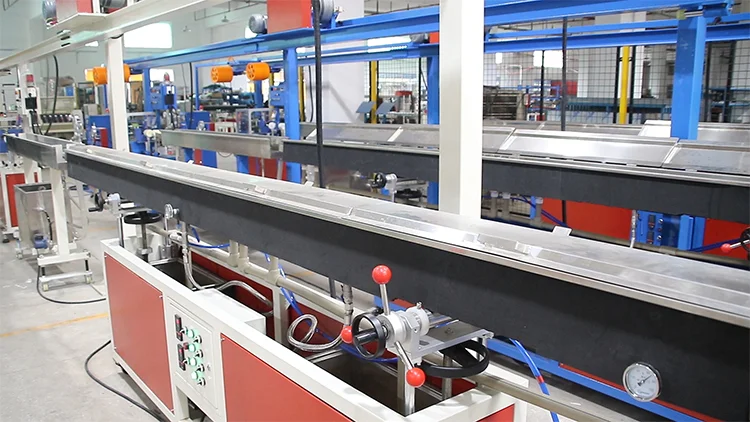

4M hot water tank,2m cold water tank

1. Circulation water tank:4m hot water tank,2m cold water tank

2. Material: SUS304 stainless steel

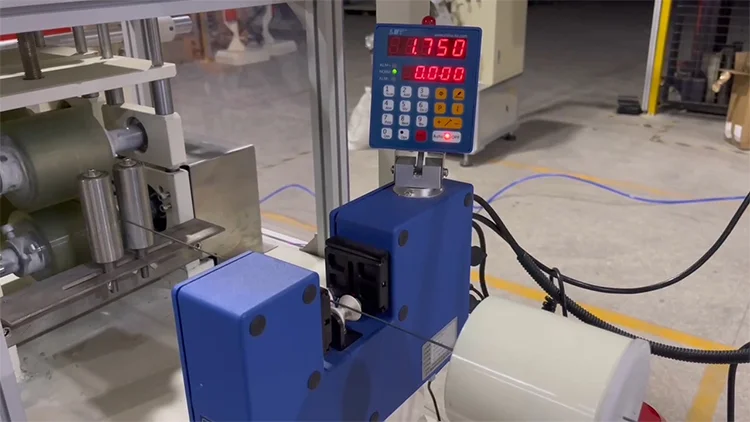

Laser Diameter Measuring instrument(XY/X)

1. Measure range:0.1-25mm

2. Tolerance: 0.05 mm

3. Automatic alarm when out of the tolerance above

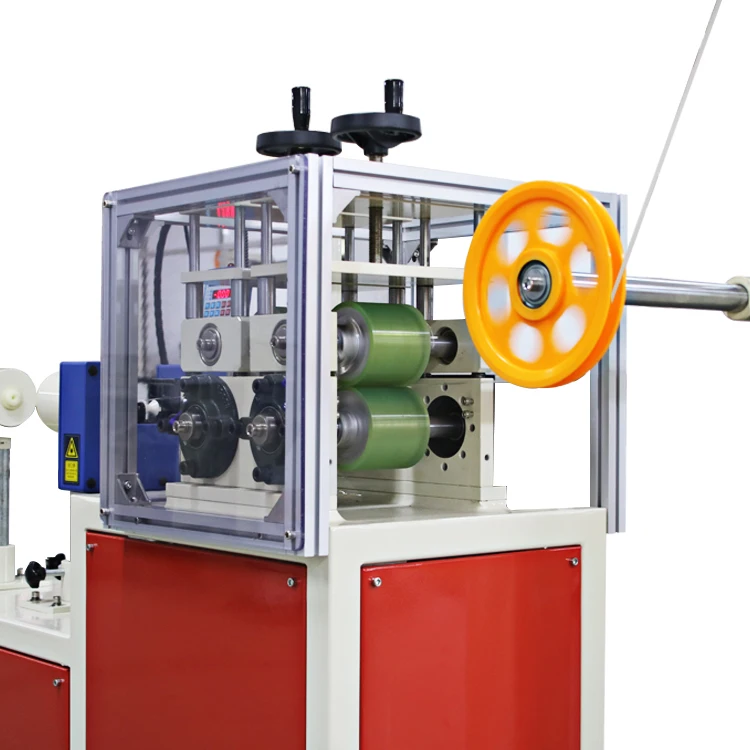

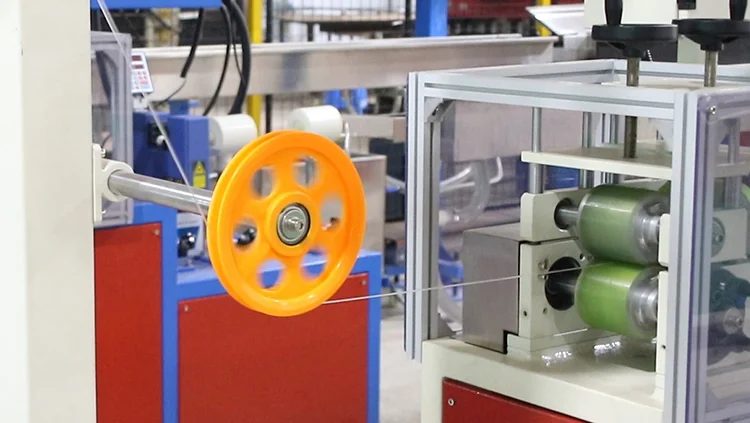

Four wheels tractor

1. Intelligent data detection, adjust filament diameter

2. Pull the filament at a controlled speed. It is synchronized with the extruder's speed to ensure a consistent and even pull.

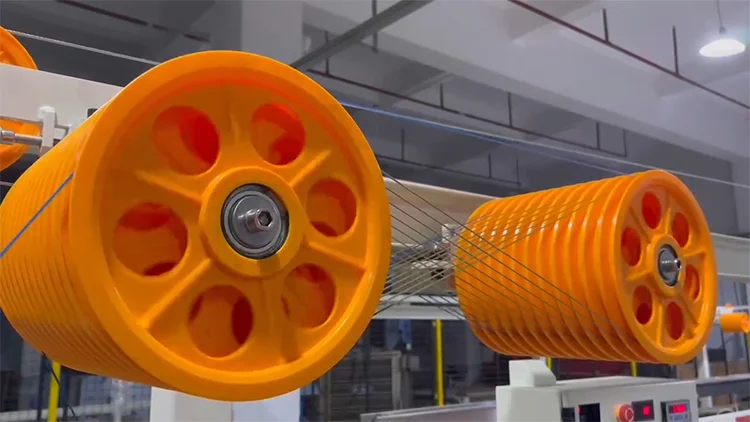

8M Filament storage device

1.It can store up to 100 meters filament. Its function is to avoid the pollution caused by the falling of filaments to the ground due to too fast production speed during the replacement of filament spool

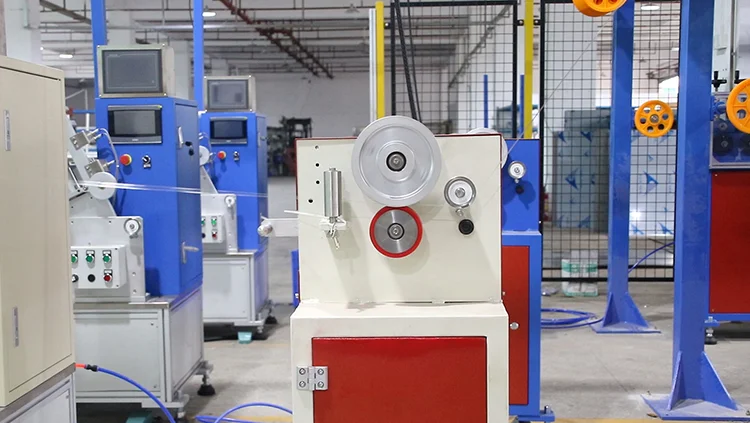

1.The meter counter provides continuous and real-time length measurement as the filament is extruded and pulled through the production line. This ensures that each spool contains the correct amount of filament.

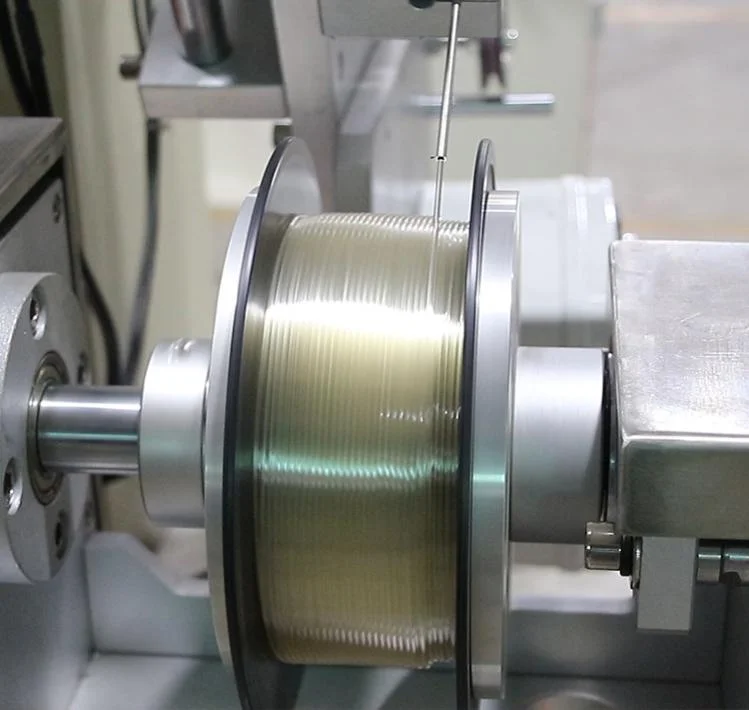

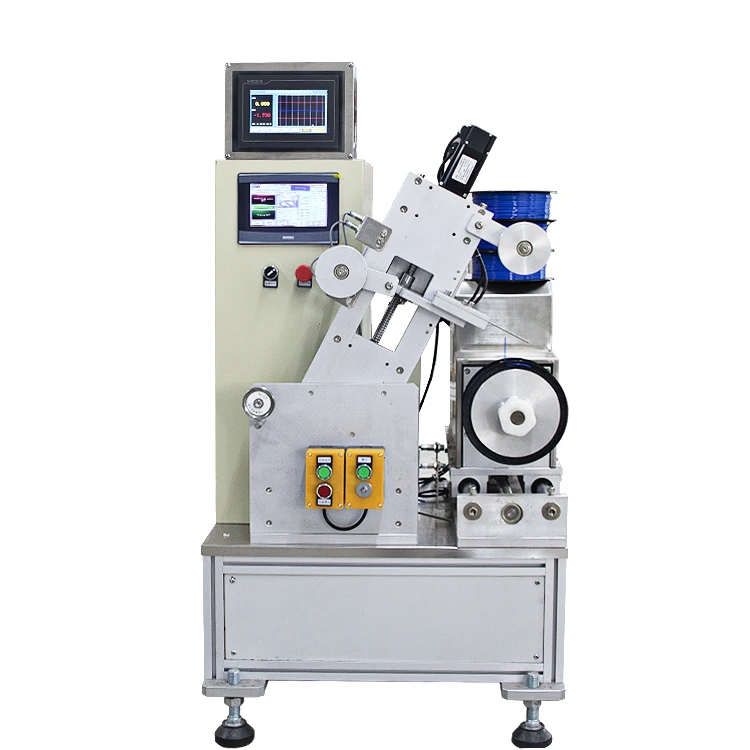

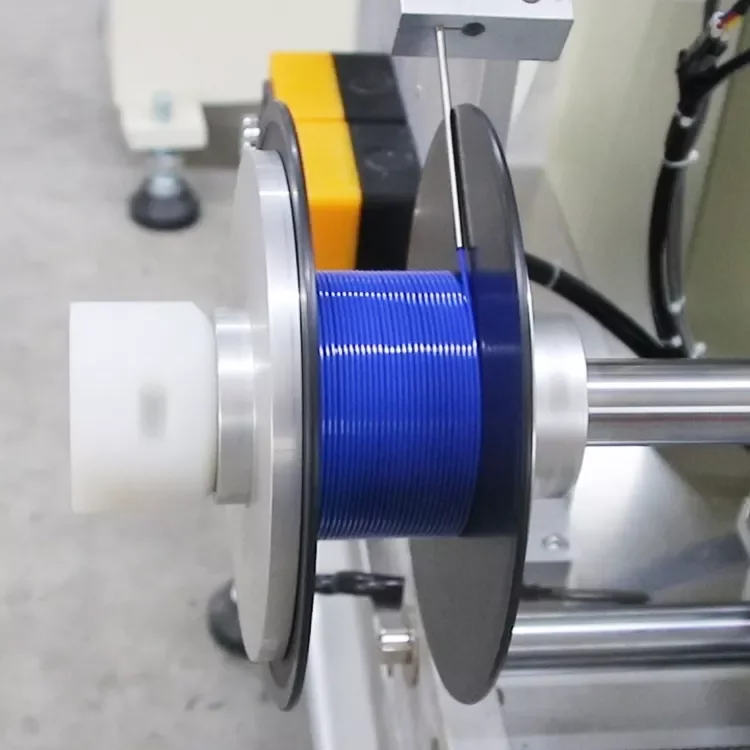

Automatic cable arranging and neat winding machine

1.Automated winding systems for neatly winding filament onto spools.

2.The winding speed is adjustable to accommodate different filament production speeds.

Final products of 3D printer filament

Customer feedback from various countries

FAQ

Q: Are you trading company or manufactory ?

A:We are a company integrating manufacturing and trading, so we can cooperate more flexibly

Q: Do you provide material testing service?

A: Yes, we will conduct a 10kg material production test during customer acceptance to ensure the performance and qualify of the product

Q: How am I suppose to trust you the machine I received matches your description?

A:We are certain that the product you receive matches the description.And we will issue a material certificate for the product information. If there is any difference, you can apply for after-sales service

Q: Do you provide samples for free?

A: Sorry, since our products are medium and large machinery, we cannot provide free samples. But you are always welcome to come to the factory for on-site inspection

Q: How can I make sure the machine running good in my plants?

A: After you receive the goods, our company will send engineers to your factory to conduct practical operations to ensure that the machine can produce normally.
