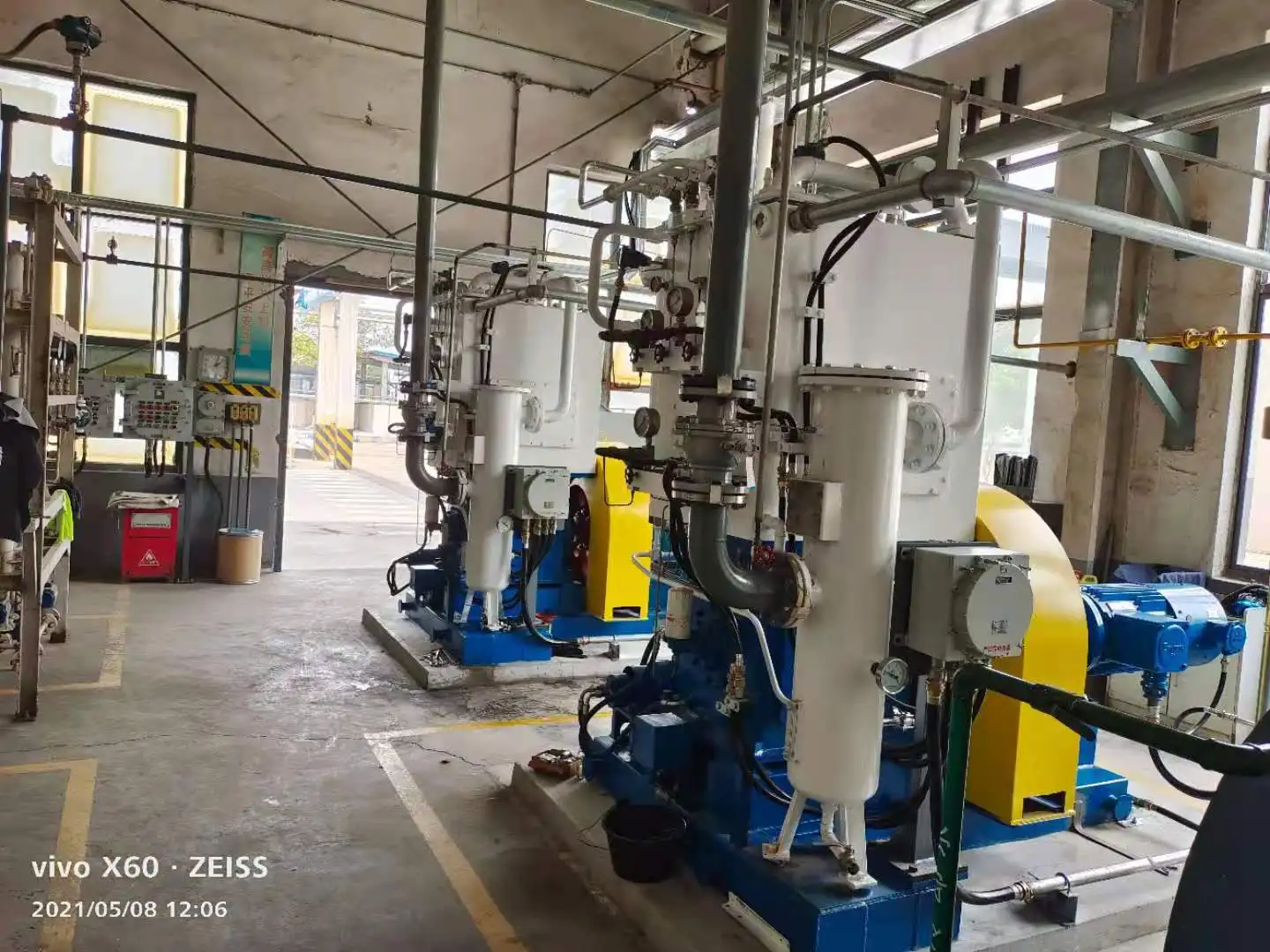

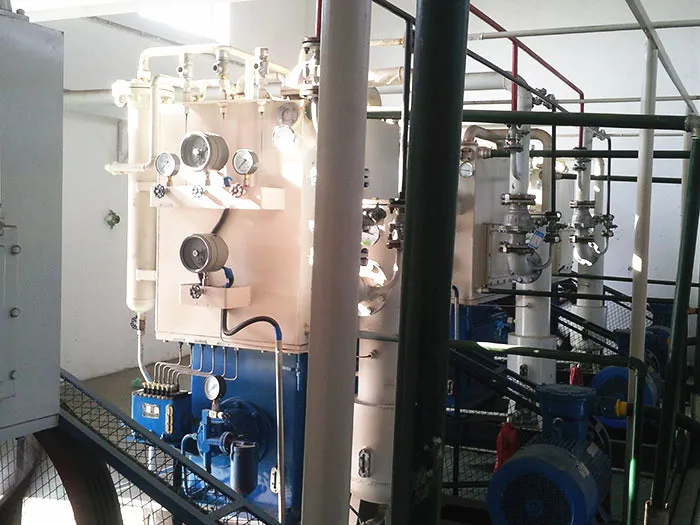

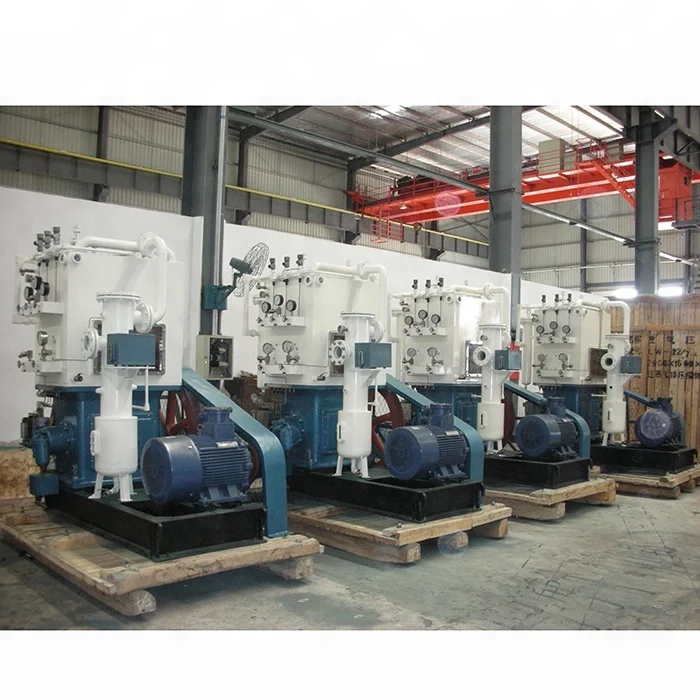

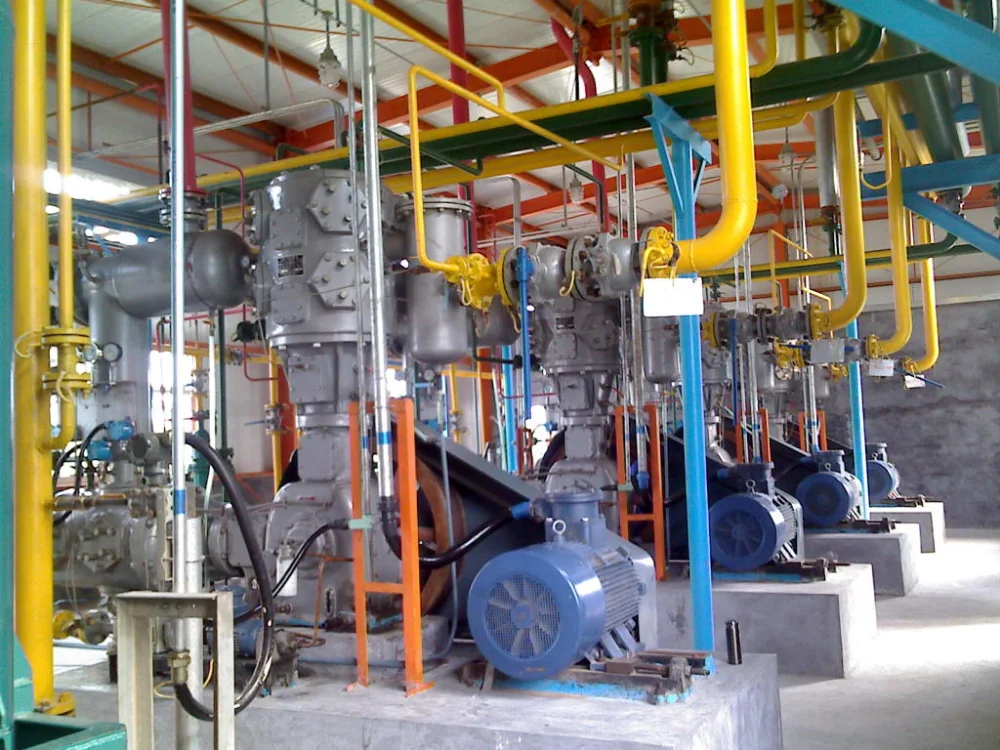

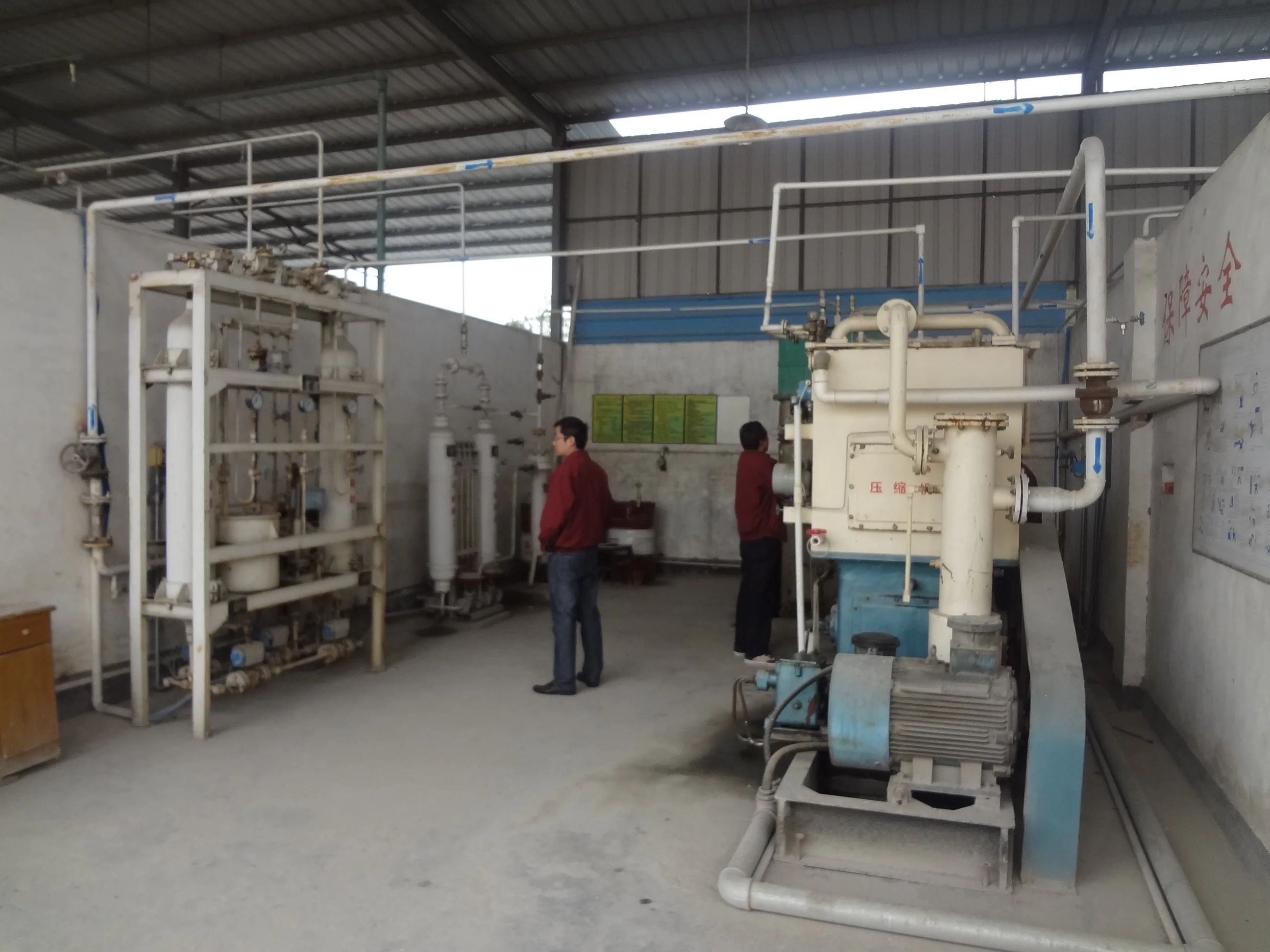

2Z 2/8(6) Industrial Acetylene/Ethyne piston gas compressor
- Category: >>>
- Supplier: Henan Yuanju Machinery Equipment Co. Ltd.
Share on (1601021522255):
Product Overview
Description
2Z-2/8(6) Industrial Acetylene/Ethyne piston gas compressor
Product Description
The acetylene series of products are manufactured in strict accordance with national standards such as JB / T9103.1-1999 "Technical Conditions for Reciprocating Piston Acetylene Gas Compressor", among which 2Z-1.5 / 25E frequency conversion acetylene gas compressor is a national utility model patent product. This series of compressors have advanced design, compact structure, smooth operation, complete protection, long service life of wearing parts, and extremely high reliability; all levels of cooler pipes are stainless steel pipes to ensure cooling and long-term use effect; Programming numerical control and frequency conversion control technology, users can use the frequency converter to manually adjust the gear within the range of 50 to 100% exhaust volume according to the actual output.
The single-machine displacement of this series of products: 0.34 ~ 60m3 / min, discharge pressure: 0.1 ~ 3.0MPa, power: 5.5 ~ 250KW, piston force: 1.5 ~ 8T. Different types which includes Z, L, D and other types, the compression stage is from single stage to three stages, mainly with oil lubrication.
Features of acetylene compressor: .Piston linear velocity <1m |
Our company's acetylene gas compressor series products mainly include:
1. Compressor and booster compressor with a unit displacement of 20 ~ 300m3 / h and a discharge pressure of 2.0 ~ 3.0MPa for the acetylene gas plant (station) filling acetylene gas cylinder device.
2. Compressors and booster compressors with a discharge pressure of 0.1 ~ 1.0 MPa supporting the production process of new products such as green and environmentally friendly refrigerants in the chemical industry ( chemical industry, fine chemical industry, fluorine chemical industry).
3. Other industrial sectors that require compressed acetylene gas compressors.
Technical parameter
High pressure acetylene compressor(application: For high-pressure bottle filling of dissolved acetylene plant, inlet pressure: micro-positive pressure, outlet pressure: 2.0~3.0Mpa , displacement:20-600Nm3/h) | ||||||||
Model | Structure | Displacement (Nm3/h) | Outlet pressure (Mpa) | Size (mm) | Weight (t) | Motor model | Power (kw) | Voltage |
2Z-0.34/25 | 2 columns 3 stages | 20 | 2.5 | 1865x900x2000 | 1.8 | YB160L-6 | 5.5 | 380 |
2Z-0.8/25E Frequency converter | 2 columns 3 stages | 30~60 | 2.5 | 2035x1240x2230 | 2.6 | YB225S-8 | 18.5 | 380 |

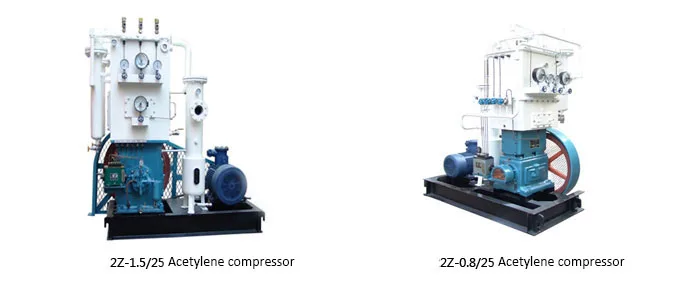

2Z-1.5/25 | 2 columns 3 stages | 90 | 2.5 | 2035x1240x2234 | 2.6 | YB225S-8 | 18.5 | 380 |
2Z-1.67/25 | 2 columns 3 stages | 100 | 2.5 | 2035x1240x2234 | 2.6 | YB225M-8 | 22 | 380 |
2Z-2/25 | 2 columns 3 stages | 120 | 2.5 | 2035x1240x2230 | 2.8 | YB225M-8 | 30 | 380 |
3Z-2.67/25 | 3 columns 3 stages | 160 | 2.5 | 1840x1660x2400 | 4.2 | YB280M-8 | 37 | 380 |
3Z-3/25 | 3 columns 3 stages | 180 | 2.5 | 1840x1660x2400 | 4.2 | YB280M-8 | 37 | 380 |
3Z-4.17/25 | 3 columns 3 stages | 250 | 2.5 | 1840x1660x2400 | 4.5 | YB315S-8 | 55 | 380 |
3Z-5/25 | 3 columns 3 stages | 300 | 2.5 | 1840x1660x2400 | 4.8 | YB315S-8 | 75 | 380 |
Medium and low pressure acetylene compressor(application: For medium and low pressure process flow in chemical industry, inlet pressure: micro-positive pressure, outlet pressure: 0.1~1.0Mpa , displacement:20-6000Nm3/h) | ||||||||
Model | Structure | Displacement (Nm3/h) | Outlet pressure (Mpa) | Size (mm) | Weight (t) | Motor model | Power (kw) | Voltage |
2Z-0.34/8(6) | 2 columns 2 stages | 20 | 0.8(0.6) | 1865x900x2000 | 1.65 | YB160L-6 | 3 | 380 |
2Z-1/8(6) | 2 columns 2 stages | 60 | 0.8(0.6) | 2035x1240x2234 | 2.4 | YB160L-6 | 7.5 | 380 |
2Z-1.5/8(6) | 2 columns 2 stages | 90 | 0.8(0.6) | 2035x1240x2234 | 2.4 | YB200L-8 | 13 | 380 |
2Z-2/8(6) | 2 columns 2 stages | 110 | 0.8(0.6) | 2035x1240x2230 | 2.6 | YB225M-8 | 22 | 380 |
2Z-3.34/8(6) | 3 columns 2 stages | 200 | 0.8(0.6) | 1840x1660x2400 | 4.3 | YB250M-8 | 30 | 380 |
2Z-4.5/8(6) | 3 columns 2 stages | 270 | 0.8(0.6) | 1840x1660x2400 | 4.5 | YB225M-8 | 37 | 380 |
2Z-5/8(6) | 3 columns 2 stages | 300 | 0.8(0.6) | 1840x1660x2400 | 3 | YB280M-8 | 45 | 380 |
L-6.67/8(6) | 2 columns 2 stages | 400 | 0.8(0.6) | 2700x1600x2300 | 4.5 | YB280M-8 | 45 | 380 |
L-10/8(6) | 2 columns 2 stages | 600 | 0.8(0.6) | 2400x1500x2600 | 6.5 | YB315M-8 | 90 | 380 |
DW-13/16.5 | 2 columns 4 stages | 750 | 1.65 | 6500x1200x2150 | 6.5 | YB400-18 | 132 | 380 |
DW-70/2 | 2 columns 1 stage | 4000 | 0.2 | 5400x3520x2700 | 17 | YB355L-8 | 220 | 380 |
* The series acetylene gas compressors Can be designed and manufactured with power of single compressor in the range of 11-400kw according to user requirements
