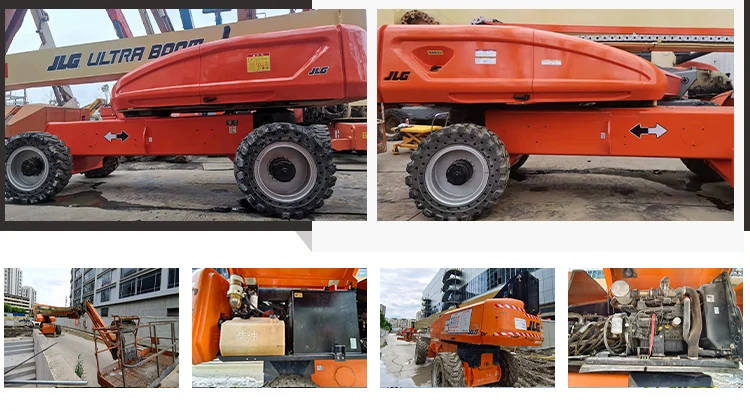

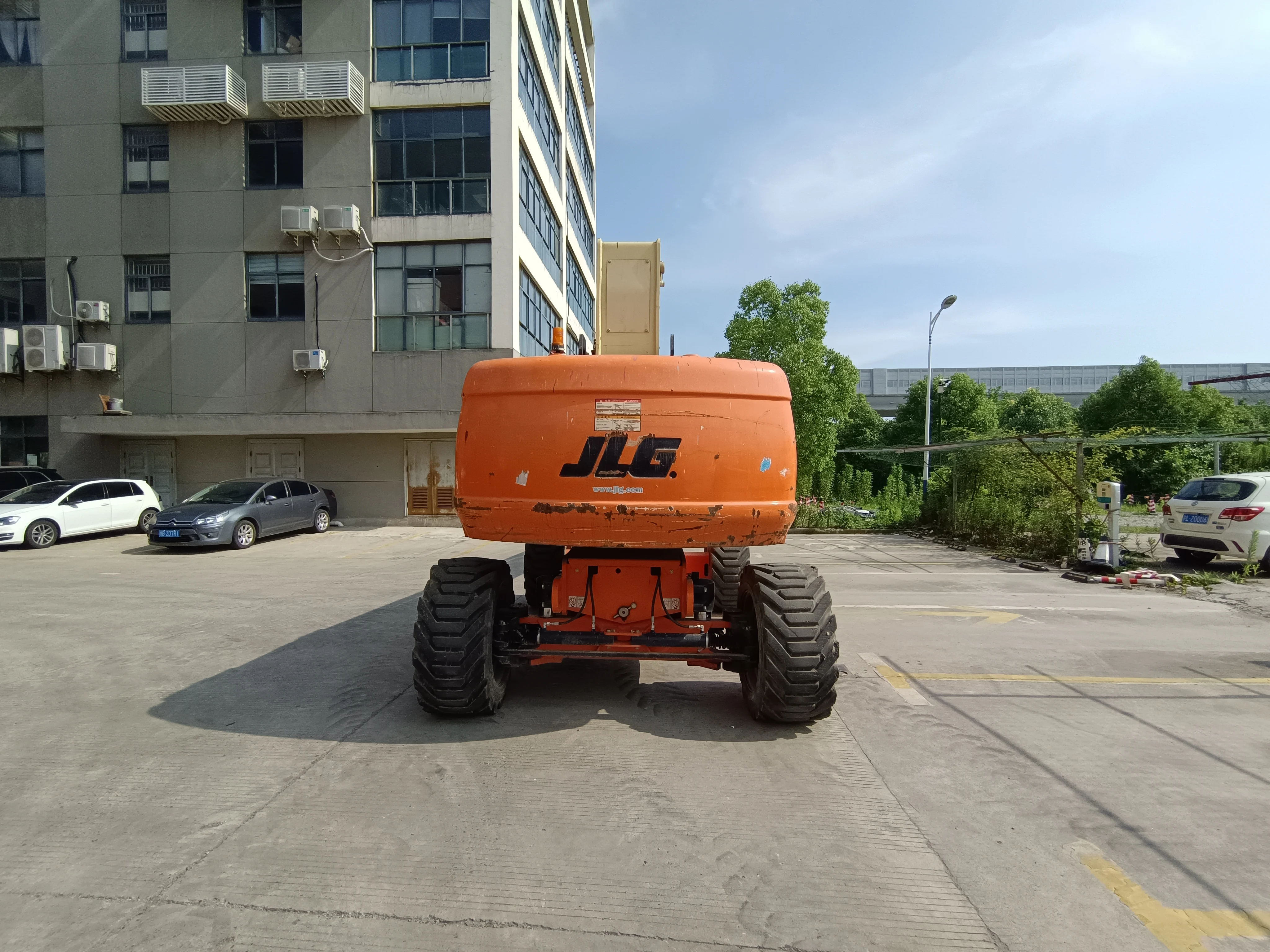

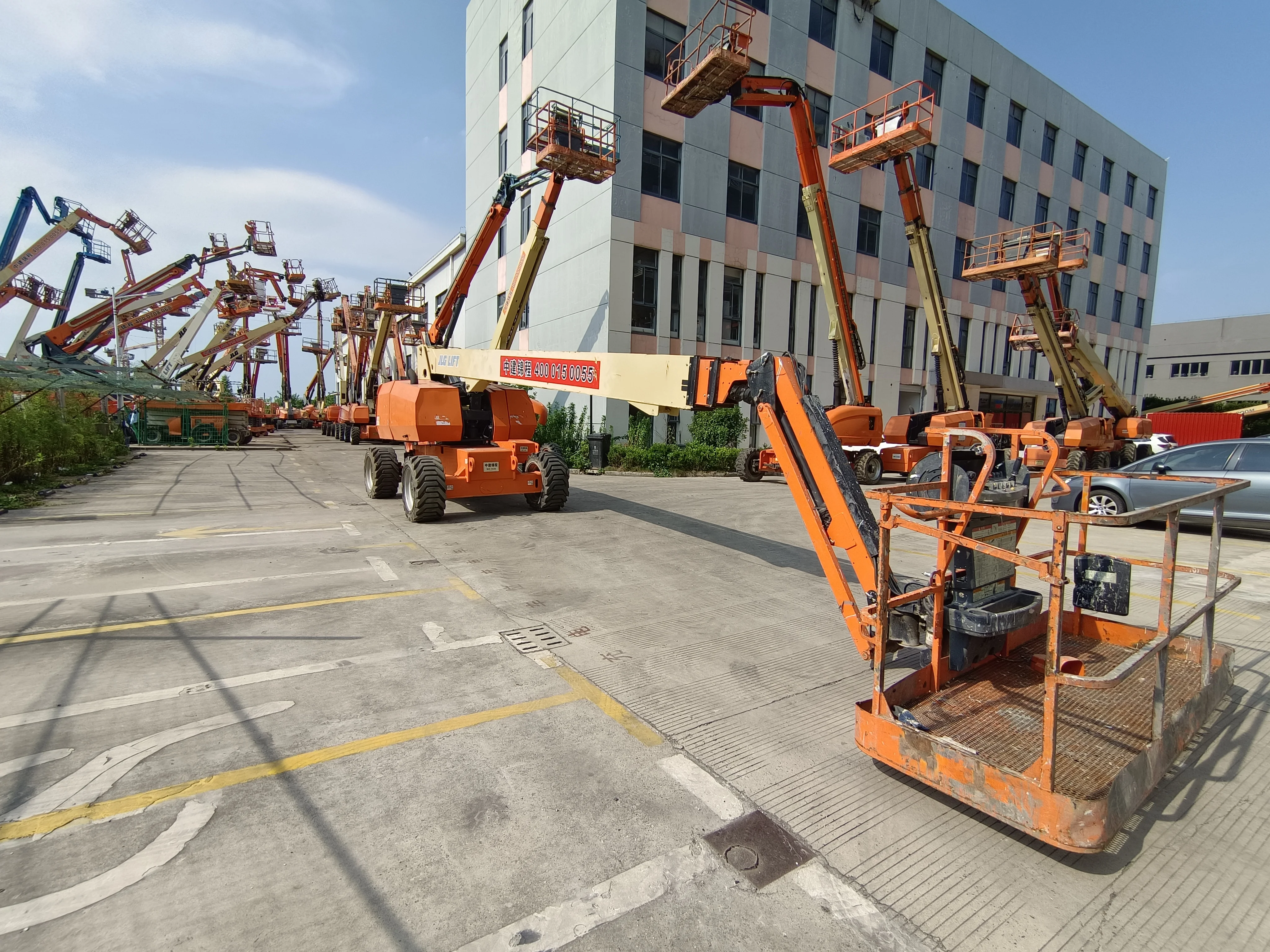

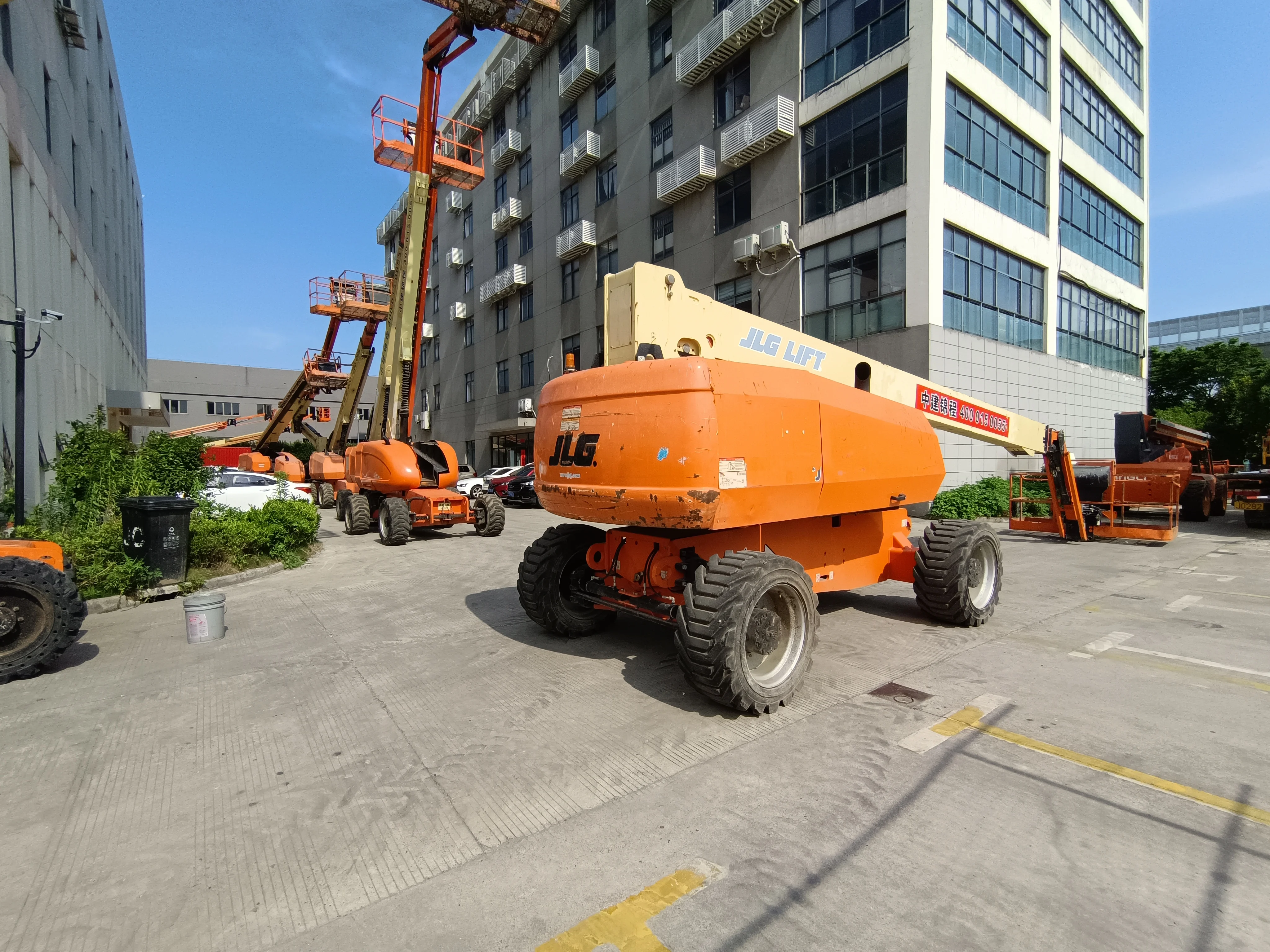

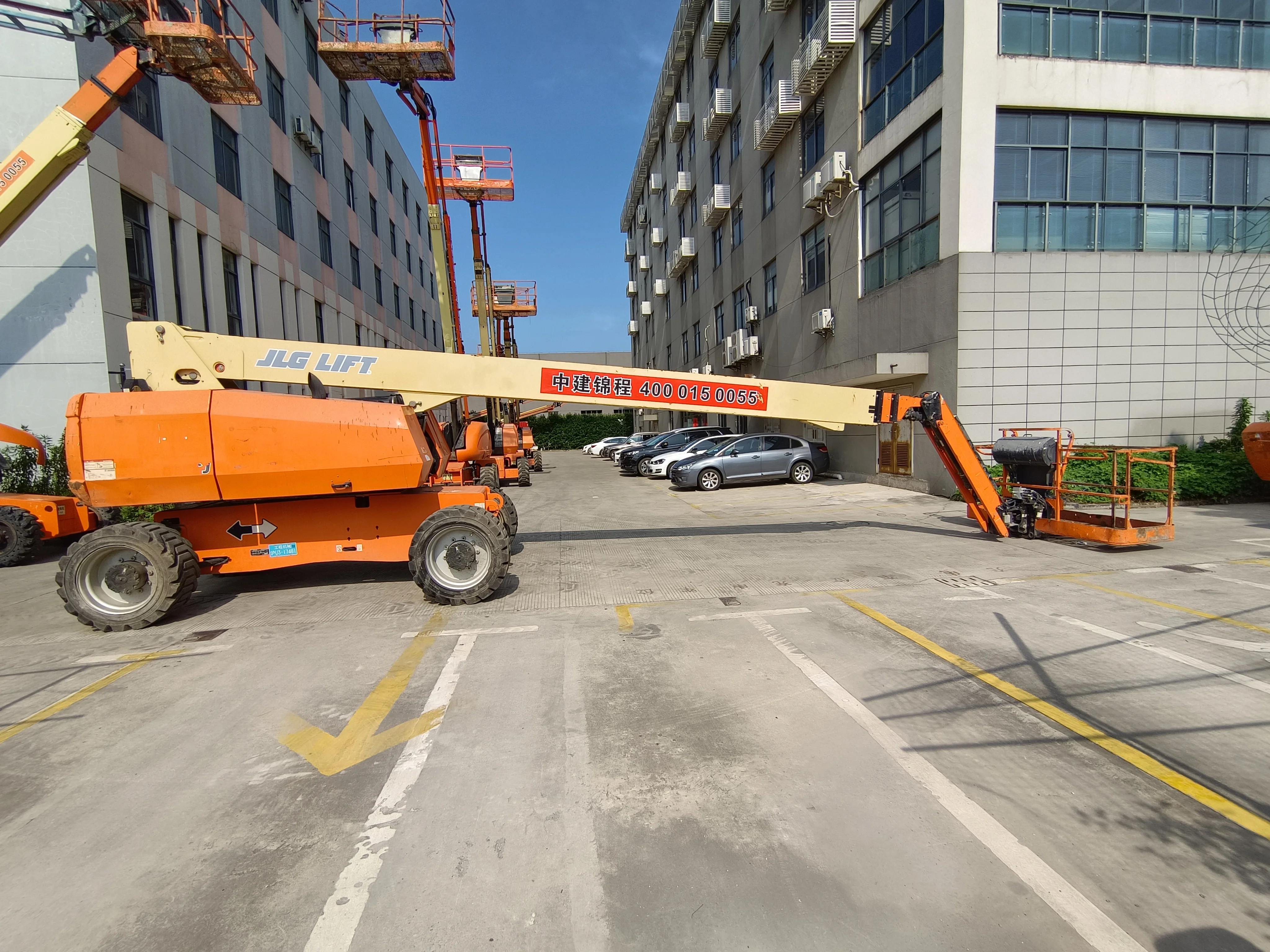

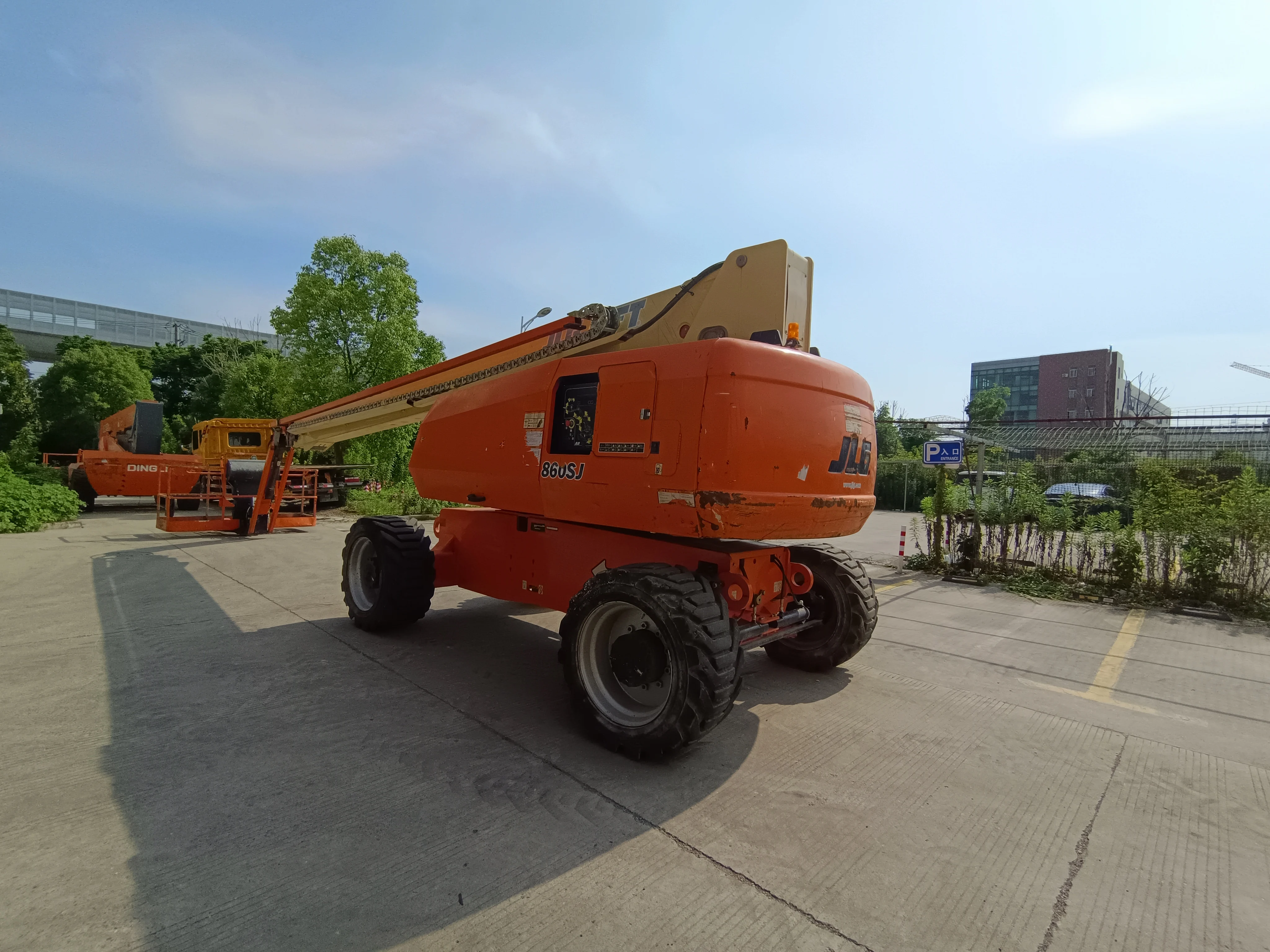

used JLG 20m 40m aerial work platform articulate lifting boom lift table operation platform for sale
- Category: >>>
- Supplier: Shanghai Shenhu Packaging Machinery Equipment Co. Ltd.
Share on (1601021529375):
Product Overview
Description
| Model Attribute | 1200SJP | 1350SJP | 1500SJ | 1850SJ |
| Platform height | 36.58m | 41.15m | 45.m | 56.56m |
| Horizontal elongation | 22.86m | 24.38m | 24.38m | 24.38 |
| Turntable rotation | 360°in succession | 360°in succession | 360°in succession | 360°in succession |
| Platform load - Limited load | 454kg | 454kg | 454kg | 454kg |
| Platform load - Unrestricted load | 227kg | 227kg | 227kg | 227kg |
| Platform turning | 180° | 180° | 180° | 180° |
| JibPLUS | ||||
| Length | 2.24m | 2.24m | 4.62-7.62m | 3.96-6.1m |
| Horizontal motion | 180° | 180° | Transport only | Transport only |
| Vertical movement | 130°(+75,-55) | 130°(+75,-55) | 120°(+75,-45) | 120°(+75,-45) |
| A. Platform size | 0.91*2.24m | 0.91*2.24m | 0.91*2.24m | 0.91*2.24m |
| B. Total width - axle shrinkage | 2.49m | 2.49m | 2.49m | 2.49m |
| Total width - axle stretch | 3.81m | 3.81m | 3.81m | 5.03m |
| C. Tail flick | 1.67m | 1.67m | 1.67m | 2.32m |
| D. Extension height | 3.05m | 3.05m | 3.05m | 3.05m |
| E. Extension length | 10.64m | 11.86m | 13.11m | 14.57m |
| F. Wheelbase | 3.81m | 3.81m | 3.81m | 5.36m |
| G. Ground spacing | ||||
| axle | 30cm | 30cm | 30cm | 34cm |
| Base plate | 65cm | 65cm | 65cm | 41cm |
| weight | 18650kg | 20300kg | 21772kg | 27352kg |
| Maximum ground bearing capacity | 7.0kg/cm² | 7.2kg/cm² | 7.94kg/cm² | 8.41kg/cm² |
| Travel speed | 5.2km/h | 5.2km/h | 48km/h | 45km/h |
| gradient | 45% | 45% | 40% | 40% |
| Turning radius (inside) | ||||
| Axial contraction | 4.39m | 4.39m | 4.39m | 7.12m |
| Shaft extension | 2.44m | 2.44m | 2.44m | 2.3m |
| Turning radius (outside) | ||||
| Axial contraction | 6.86m | 6.86m | 6.86m | 9.52m |
| Shaft extension | 5.89m | 5.89m | 5.89m | 6.6m |
| Crab type steering ratio | 1:01 | 1:01 | 1:01 | 1:01 |
| Balance swing axis | 30cm | 30cm | 30cm | 0cm |
