ELP 3.7mm Pinhole Security Protection Lens USB Webcam Camera 1080P Full HD H.264 Small Metal Case Mini AR0330 PC Monitor Web
- Category: >>>
- Supplier: Shenzhen Ailipu Technology Co. Ltd.
Share on (1601021583260):
Product Overview
Description
ELP Pinhole Security Lens USB Camera 1080P Full HD Webcam Mini Metal Case Aptina AR0330 Video Cam for PC Raspberry Pi
Key Features:
*2.0Megapixel High speed USB Camera Webcam
*with 3.7mm Pinhole Lens
*High quality 1/3 inches Aptina AR0330 Color CMOS Sensor
*H.264 Compression Format
*High quality 1/3 inches Aptina AR0330 Color CMOS Sensor
*H.264 Compression Format
*Support USB2.0 OTG Protocol - Can be external camera for mobile phone, Tablet and other device which support OTG
*UVC compliance for use in OS Windows,Linux, Android
*Operating system request : Win XP/Vista/Win7/Win8 ,Linux with UVC(above linux-2.6.26),MAC-OS X 10.4.8 or later ,Android 4.0 or above with UVC
*UVC compliance for use in OS Windows,Linux, Android
*Operating system request : Win XP/Vista/Win7/Win8 ,Linux with UVC(above linux-2.6.26),MAC-OS X 10.4.8 or later ,Android 4.0 or above with UVC
Specification
Model NO. | ELP-USBFHD04H-L37 (3.7MM Pinhole Lens) |
Optional | ELP-USBFHD04H-L21 (2.1MM Lens) ELP-USBFHD04H-L36 (3.6MM Lens) ELP-USBFHD04H-L60 (6MM Lens) ELP-USBFHD04H-L80 (8MM Lens) ELP-USBFHD04H-L12 (12MM Lens) ELP-USBFHD04H-L100 (100 degree No distortion Lens) ELP-USBFHD04H-H110 (110 degree Low Distortion Lens) ELP-USBFHD04H-H120 (120 degree Low Distortion Lens) ELP-USBFHD04H-L170(170 degree Fisheye Lens Lens) ELP-USBFHD04H-L180(180 degree Fisheye Lens Lens) |
Sensor | AR0330 |
Lens Size | 1/3 inches |
Pixel Size | 2.2um X2.2um |
Max. Resolution | 1920(H)X1080(V) |
Compression format | H.264 /MJPEG / YUV2(YUYV) |
Resolution & frame | H.264/MJPEG:320X180@ 30fps /320X240@ 30fps /640X360@ 30fps /640X480@ 30fps /1280X720@ 30fps/1920X1080@ 30fps YUV:320X180@ 30fps /320X240@ 30fps /640X360@ 30fps /640X480@ 30fps /1280X720@ 5fps/1920X1080@ 5fps |
S/N Ratio | 39dB |
Dynamic Range | 72.4dB |
Responsivity | 1.9 V/lux-sec |
Mini illumination | 0. 05lux |
Shutter Type | ERS and GRR |
Connecting Port type | USB2.0 High Speed |
Free Drive Protocol | USB Video Class(UVC) |
Support OTG Protocol | USB2.0 OTG |
AEC | Support |
AEB | Support |
AGC | Support |
Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,Gain, White balance, Backlight Contrast, Exposure |
Lens Parameter | 3.7mm Pinhole Lens |
Digital audio | High quality digital MIC, support single, dual channel |
IR CUT Connector | 2P-1.25mm socket |
LED board power connector | Support 2P-2.0mm socket |
Power supply | USB BUS POWER 4P-2.0mm socket |
Operating Voltage | DC5V |
Working current | 130mA~190mA |
Working temperature | -10~70℃ |
Cable | Standard 3m (1m/2m/5m/0.3m/0.5m... optional) |
Operating system request | WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc. Linux 2.6 or above Android 4.0 or above Mac OS |
Product Description

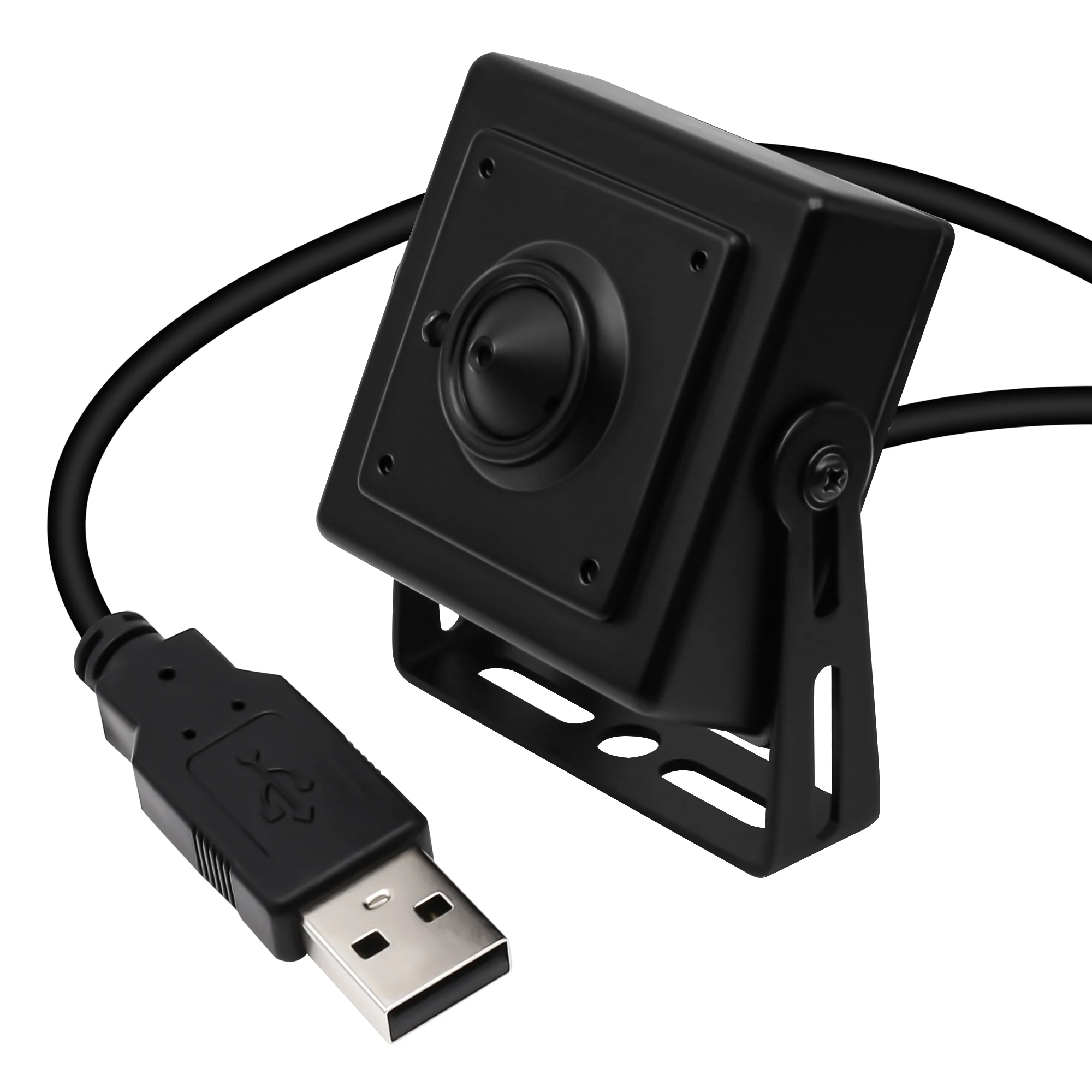

2MP Pinhole Lens Camera
-max resolution 1920x1080P Full HD
-with 3.7mm Pinhole Lens
H.264 Compression Format
-with 1/3” Aptina AR0330 Color CMOS sensor for high quality image
-H.264/MJPEG/YUY2 three video format optional

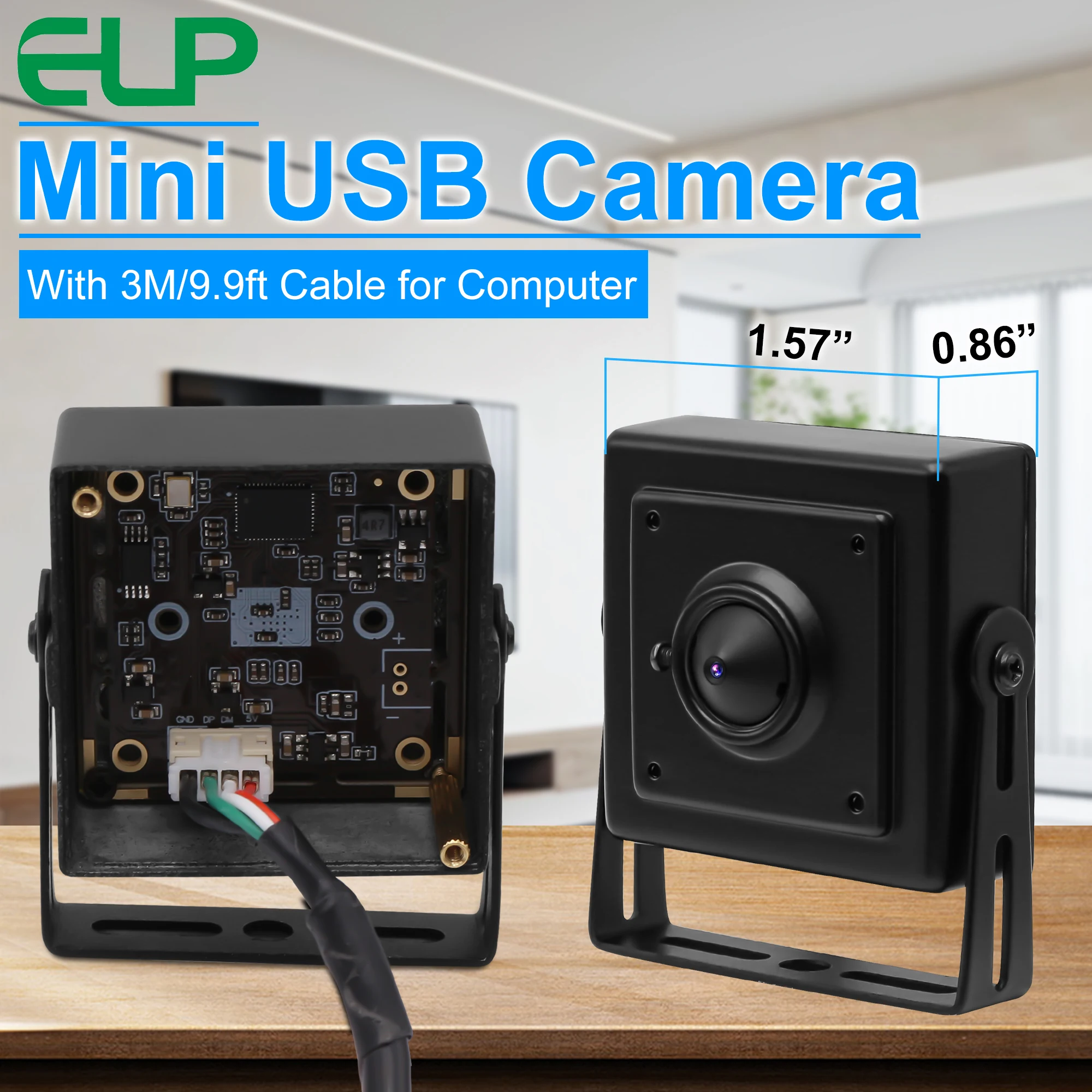

Mini Aluminum USB Webcam
-with 41x41x12mm small housing
USB2.0 OTG Interface, Free Driver, Plug and Play
-USB2.0 Interface
This usb camera is easy to use, only plug and camera into computer USB port and running the software can make video display and recording work. No drive installation is required.
This usb camera is easy to use, only plug and camera into computer USB port and running the software can make video display and recording work. No drive installation is required.
-Support OTG
It can be external camera for mobile phone, Tablet and other device which support OTG
1)ELP USB web camera supports most systems ,Windows, Linux, MAC, Android , Raspberry Pi, secondary development board , Jeston Nano,etc
2) Is versatile for CSkype, OBS, Zoom,
GoToMeeting, Facebook LIVE, and YouTube Livestreaming services
2) Is versatile for CSkype, OBS, Zoom,
GoToMeeting, Facebook LIVE, and YouTube Livestreaming services
Application
ATM Machine, Kiosk, automatic vending machine,Robot, Sanner, Virtual reality, Medical equipment,
machinery equipment, POS equipment, Smart TV BOX, advisement player, LED display, safety box,
notebook, video door phone, Tablet external, on-the-spot law enforcement, Recognition algorithm
attendance machine, simple security system, teaching system, Interactive system,credit card machine,
attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system,
Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope,
machinery equipment, POS equipment, Smart TV BOX, advisement player, LED display, safety box,
notebook, video door phone, Tablet external, on-the-spot law enforcement, Recognition algorithm
attendance machine, simple security system, teaching system, Interactive system,credit card machine,
attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system,
Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope,
Packing & Delivery
(1) 1PC 2MP Pinhole Lens USB Camera
(2) 1PC 3m usb cable
(2) 1PC 3m usb cable
Company Profile
Shenzhen Ailipu Technology Co.,Ltd, who have 16 years history, is a professional manufacturer of surveillance system . Ailipu has its own brand ELP, which already well know in security surveillance system.
With its own unique R&D team as the basic, oriented by dedicated sales team,Shenzhen Ailipu Technology Co., Ltd already developed into a prefessional video products company integrate with developing, production, sales and also service all together.
At present,Shenzhen Ailipu Technology Co., Ltd produce traditional analog CCTV camera, standalone DVR recorder for cctv camera,but also produce popular megapixel network IP cameras, NVR recorder for IP cameras too.Besides, Ailipu Technology Co., Ltd already developing its own special USB Cameras for industrial vision. Recently, Ailipu company present new USB cameras module range from 30W Pixel, 1megapixel, 2megapixe, 3megapixel, 5 megapixel to 5megapixel autofocus, which already used in all kinds of industrial system.
Shenzhen Ailipu manufacturer can also OEM or customize products specially by customers' requirements.
We always believe"Together everybody achives more!", and we are looking forward your choice and join, we fought together,open up a new future of video surveillance industry.
With its own unique R&D team as the basic, oriented by dedicated sales team,Shenzhen Ailipu Technology Co., Ltd already developed into a prefessional video products company integrate with developing, production, sales and also service all together.
At present,Shenzhen Ailipu Technology Co., Ltd produce traditional analog CCTV camera, standalone DVR recorder for cctv camera,but also produce popular megapixel network IP cameras, NVR recorder for IP cameras too.Besides, Ailipu Technology Co., Ltd already developing its own special USB Cameras for industrial vision. Recently, Ailipu company present new USB cameras module range from 30W Pixel, 1megapixel, 2megapixe, 3megapixel, 5 megapixel to 5megapixel autofocus, which already used in all kinds of industrial system.
Shenzhen Ailipu manufacturer can also OEM or customize products specially by customers' requirements.
We always believe"Together everybody achives more!", and we are looking forward your choice and join, we fought together,open up a new future of video surveillance industry.
FAQ
1. Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
2. Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
3. What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
4. Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module
5. What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
6. What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System
7. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
8. Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
9. Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
10.Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux,Camerafi,VLC Player
Yes, we can offer OEM camera modules according to customer's different requirement.
2. Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
3. What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
4. Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module
5. What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
6. What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System
7. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
8. Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
9. Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
10.Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux,Camerafi,VLC Player
