c6140zk manual lathe machine tool KAIDA
- Category: >>>
- Supplier: Zhejiang Kaida Machine Tool Co. Ltd.
Share on (1601021583286):
Product Overview
Description
FEATURES AT A GLANCE
Product Features
1. Precision ground and hardened bed ways.
2. The spindle is supported with precision roller bearings. The spindle system is high in rigidity and accuracy.
3. There is no need for change gears. The machine can turn about 150 kinds of metric, inch, module and D.P. threads.
4.An automatic stopping device is used to realized automatic stop for the machining of a work piece of a certain length.

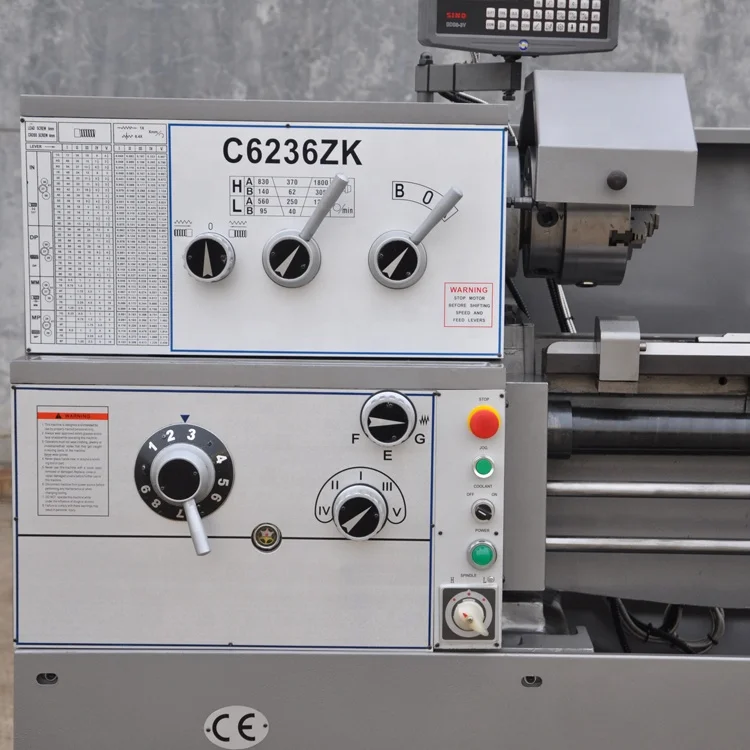

5. Easy operating speed change levers.
6. Removable gap is provided for larger diameter work.
Right elevation
Left elevation

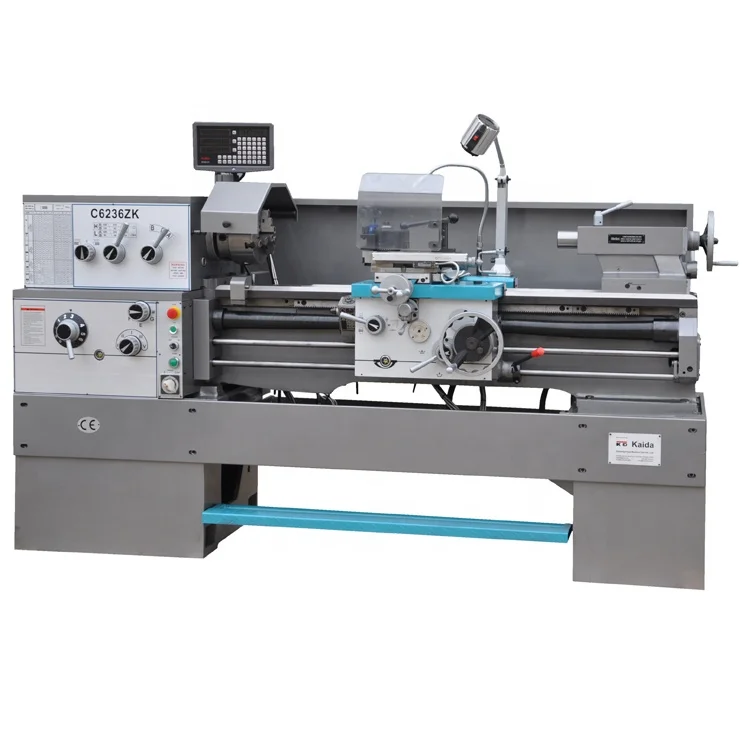

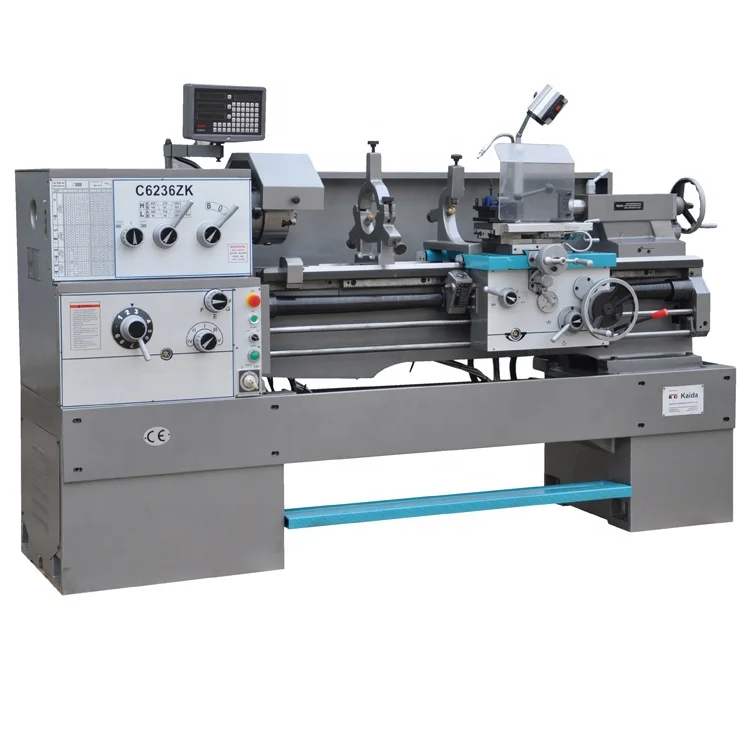

Front elevation
PRODUCT SPECIFICATIONS
MODELS | C6140ZK/C6240ZK | C6146ZK/C6246ZK | |
CAPACITY | |||
Max.swing over bed | Ф400 mm | Ф460 mm | |
Max.swing over carriage | Ф255 mm | Ф275 mm | |
*Max swing over gap (gap is optional) | Ф570 mm | Ф630 mm | |
Width of bed | 312mm | ||
Max.length of workpiece | 750/1000/1500 mm | ||
Max.length of workpiece | 670/920/1420 mm | ||
Effective gap length | 200 mm | ||
SPINDLE | |||
Spindle bore | Ф52 mm | ||
Spindle nose | D6 | ||
Taper bore of spindle | M.T.No.6 | ||
Steps of spindle speed | 12 | ||
Range of spindle speed | 40~1800 rpm | ||
THREAD RANGE/NUMBER | |||
Metric pitch threads | 0.5~20mm/ 24 | ||
Inch threads | 72~1-5/8 TPI/ 61 | ||
Module threads | 0.25~10M.P/ 20 | ||
D.P.Threads | 96~3-1/4 D/ 45 | ||
FEED | |||
Range of longitudinal feeds | 0.04~2.46 (0.0015″~0.0913″) mm | ||
Range of cross feeds | 0.03~1.23 (0.0006″~0.0365″) mm | ||
TAILSTOCK SLEEVE | |||
Taper bore | M.T.NO.4 | ||
Max.travel | 120 mm | ||
External diameter | Ф60 mm | ||
OTHERS | |||
Size of tool shank | 20×20 mm | ||
Max travel of cross slide | 240 mm | ||
Max.travel of compound rest | 130 mm | ||
Main motor power | 4/5.5 kW | ||
Overall dimensions(L×W×H) | 2140/2360/2860×1000×1200 mm | ||
Net weight | 1730/1810/1970 kg | 1780/1860/2020 kg | |
PRODUCT CONFIGURATION
Chuck cover, tool post cover and leadscrew cover are optional.
Standard 4-way tool post.
Left or right side handwheel.
European or American type quick change tool post.

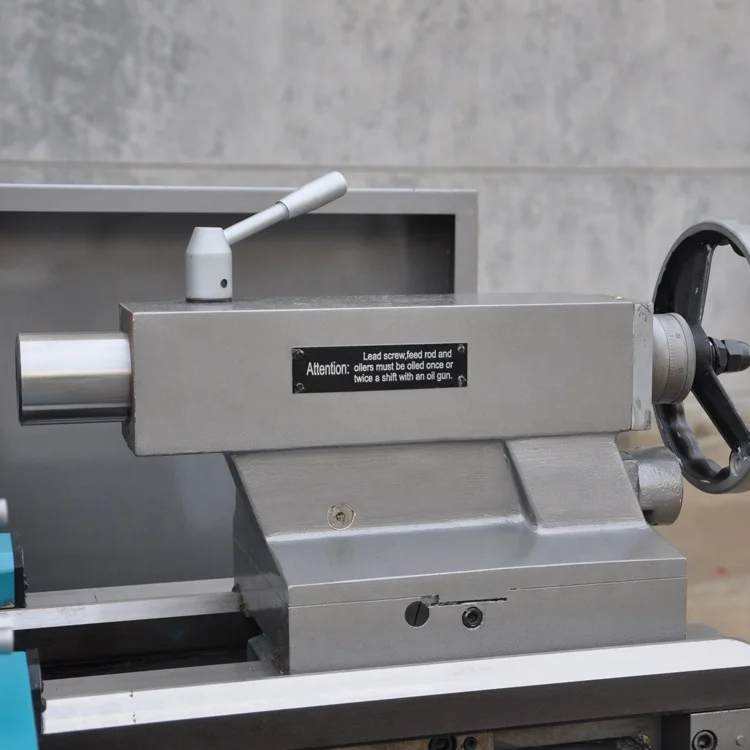

Manual tailstock
Tool box with accessoires.
