Hot sale Factory Direct Supply Solid Hollow Rivets System Brake Shoe Orbital Riveting Machine
- Category: >>>
- Supplier: Shandong Wellde CNC Machine Tool Co. Ltd
Share on (1601021629894):
Product Overview
Description
Products Description

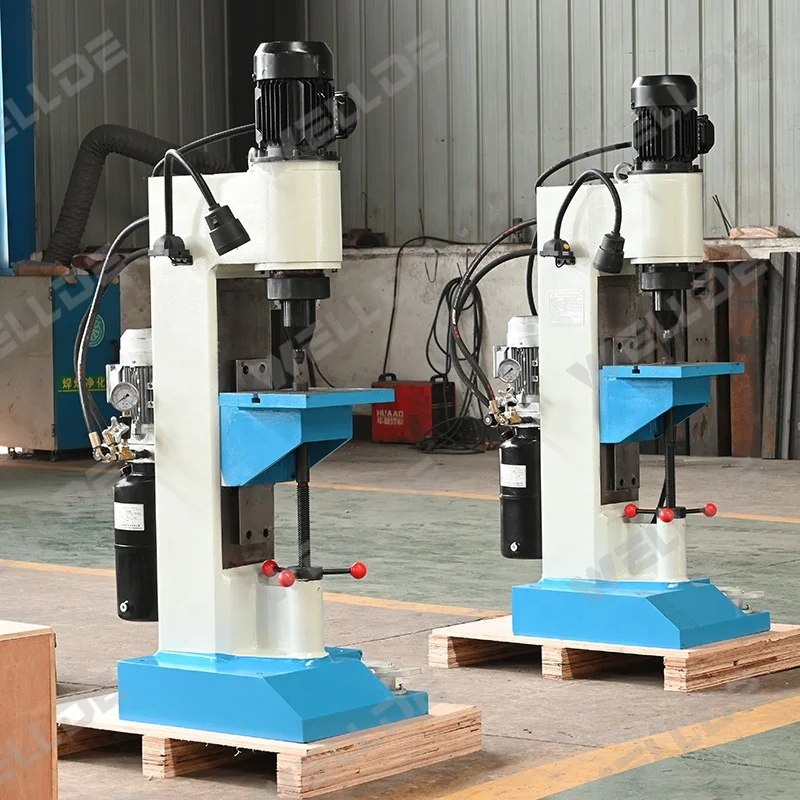

Hydraulic Spinning Riveting Machine For Rivet XM6 XM8 XM12 XM16 XM20
Specification
XM6 | XM8 | XM12 | XM16 | XM20 | |||
Pow | air | hydraulic | hydraulic | hydraulic | hydraulic | ||
Riveting range (mm) | Φ 1-6 | Φ 3-8 | Φ 3-12 | Φ 4-16 | Φ4-20 | ||
Max riveting pressure (KN) | 7 | 14 | 20 | 34 | 65 | ||
Max working travel (mm) | 30 | 30 | 30 | 30 | 30 | ||
Worktalbe travel (mm) | / | 220 | 240 | 240 | 265 | ||
Max distance between spindle to column (mm) | 150 | 160 | 160 | 185 | 225 | ||
Table size (mm) | 320*210 | 300*250 | 300*250 | 350*285 | 430*290 | ||
Main power | KW | 0.25 | 0.75 | 0.75 | 1.5 | 2.2 | |
rpm | 960 | 960 | 960 | 960 | 960 | ||
Pump | KW | / | 0.75 | 0.75 | 1.1 | 2.2 | |
rpm | / | 1400 | 1400 | 1400 | 1400 | ||
Overall size (mm) | 400*320*800 | 700*500*1470 | 700*500*1850 | 850*600*1700 | 1070*600*1930 | ||
Net Weight/Gross Weight(kg) | 85/110 | 280/320 | 300/350 | 470/520 | 850/9000 | ||
Details Images
Recommend Products
Company Profile
Shandong Wellde CNC Machine Tool Co.,Ltd
Is specialized in machine products export, production, sales and after-sales service .In many years of practice, we established a strict quality assurance system.
Our products range cover press machine, CNC lathe, CNC milling machine,automobile service equipment and precision hardware parts and so on.our products have passed CE,ISO,SGS,TUV certificates.
Our principle is product and service first!Our products win high praise for good quality and favorable price.
Our products range cover press machine, CNC lathe, CNC milling machine,automobile service equipment and precision hardware parts and so on.our products have passed CE,ISO,SGS,TUV certificates.
Our principle is product and service first!Our products win high praise for good quality and favorable price.
FAQ
1:How can I choose the most suitable machines ?
Please tell us your requirement of the machine, or you can also send us the
products drawing, our engineer can help to choose the best model for you.
products drawing, our engineer can help to choose the best model for you.
2. What's your main products of your company?
We specialized in all kinds of machines ,such as press machine, CNC lathe, CNC milling machine,automobile service equipment, machine tool accessories, steel wire woven hydraulic hose and rubber pipe and precision hardware parts.
3: What's the Payment Terms ?
A :T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
4.OEM Service?
We accept purchase orders with customers' brand or trade mark.
5: What's the MOQ?
1 set .(Only some low cost machines will be more than 1 set )
1 set .(Only some low cost machines will be more than 1 set )
