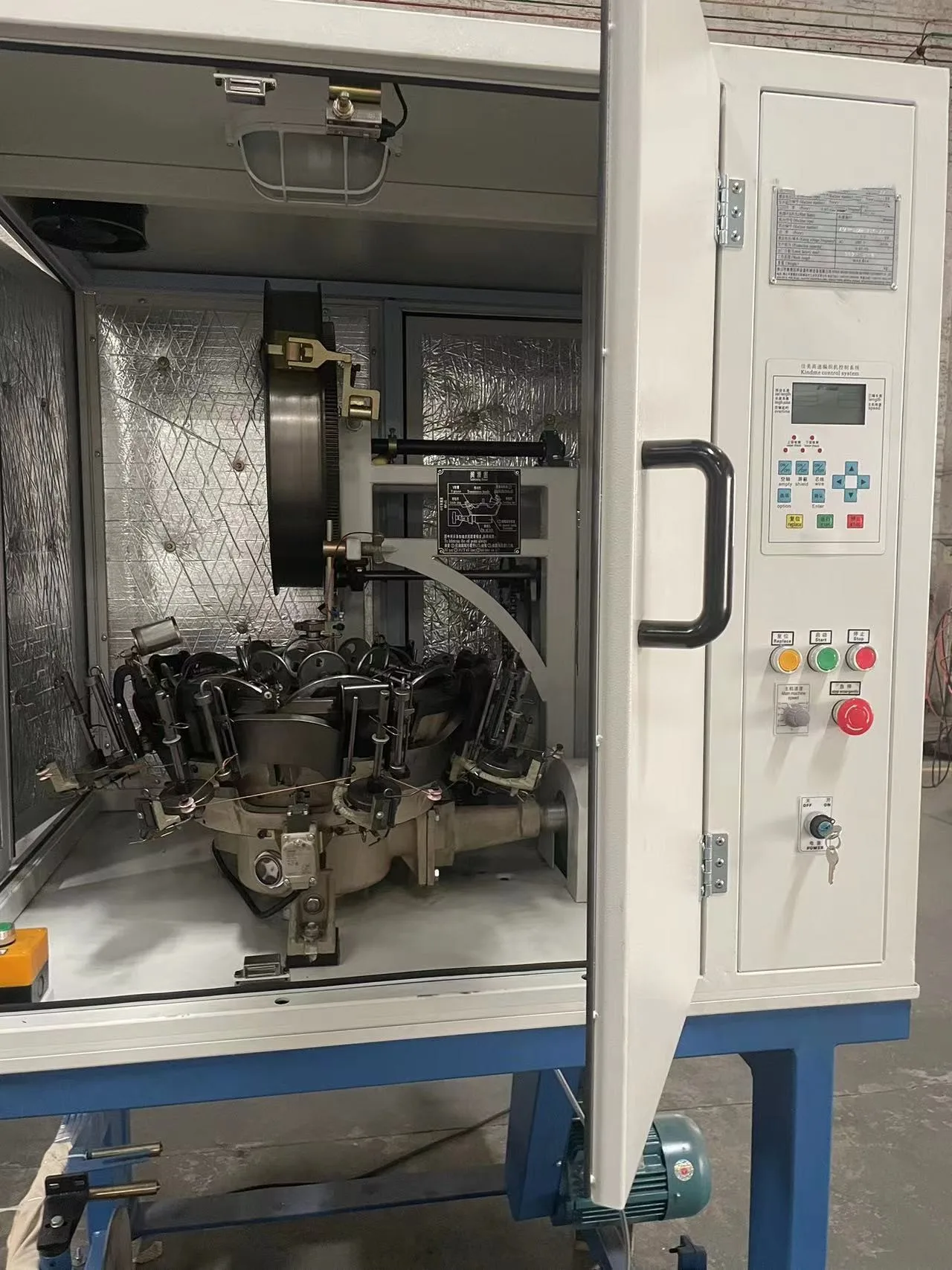

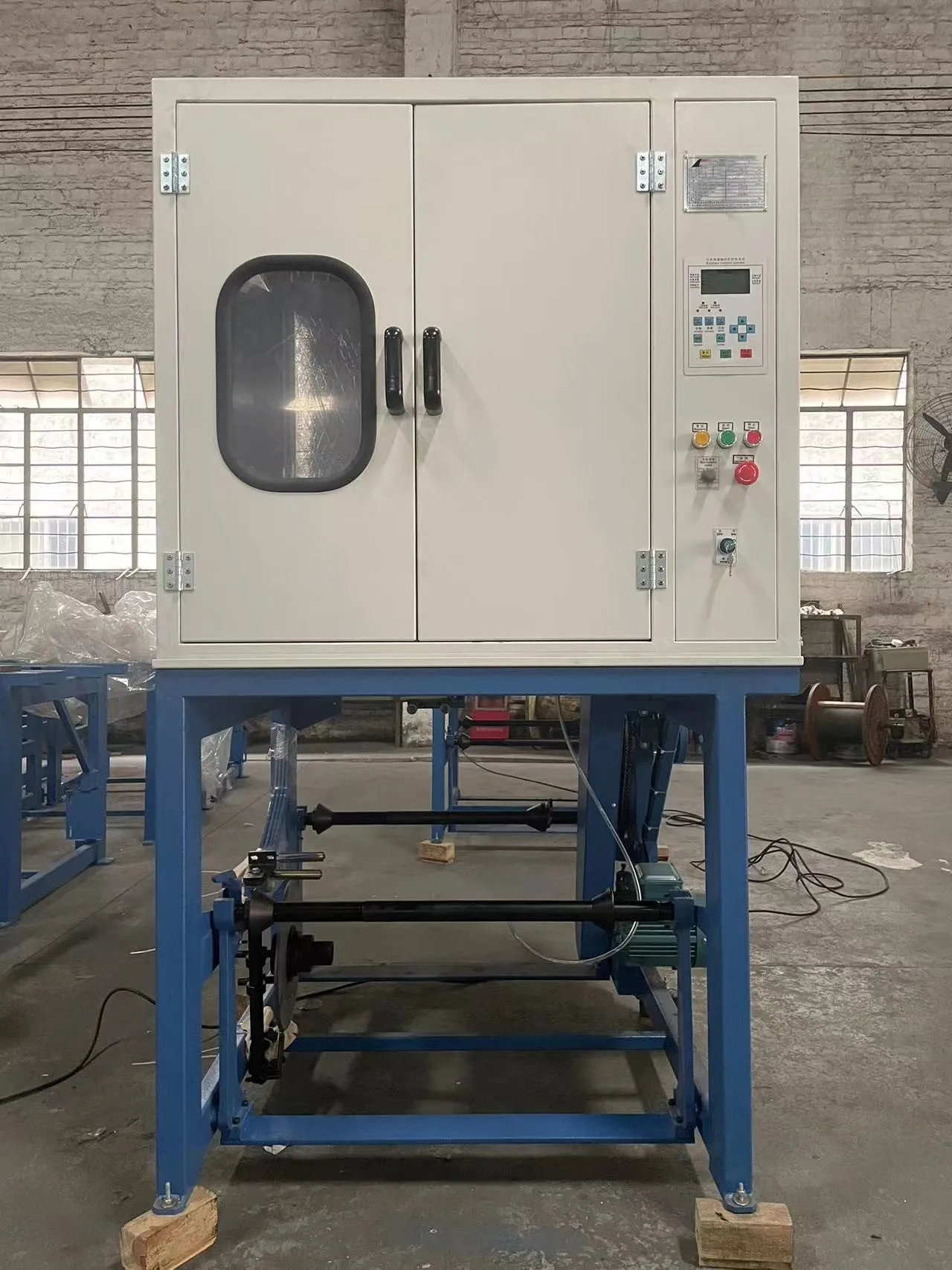

Braiding Machine Kbl 47 1 110 Machine Braid Coiffure
- Category: >>>
- Supplier: Greenland(Xiamen)Technology Co. Ltd.
Share on (1601021668170):
Product Overview
Description
Main Feature
1) Vertical type to save space
2).Easy to operate and maintain
3).Top-class parts and long technical support.
4).Low HP and low electricity cost.High speed.
5).Machine stops automatically in case of yarn breakage or exhausted
6).During the process of braiding,there is no spraying oil which is especially suitable for the transparent materials.
7).Density (picks/cm) of produced cord is adjustable by change gears
8).Continuous attendance of operator is not required
9).Vast application area(Include the function of hybrid braiding wire& chemical fiber)
10).The machine can be equipped with fully cover which can reduce the noise by 80%.
Product Description
* High degree of automation: automatic shutdown when broken wire, Wireless spool, without rubber hose
* The braiding traction adopts stepless speed regulation,the braiding angle (pitch) adjustment is convenient and correct.
* High production efficiency: the output per hour is more than three times of the current commonly used models. The maximum output is 98 meters/hour.
* Low noise: the transmission system uses suction, shock absorption and embedded devices to reduce noise.
* Convenient maintenance, flexible transmission, easy assembly and disassembly of structure.
* The spindle adopts elastic adjustable device, which ensures reliable positioning and convenient and flexible loading and
unloading of spool.
* The whole machine has small abrasion and long service life. The key parts are heat treated with high-quality materials and equipped with automatic lubrication device.
* The braiding traction adopts stepless speed regulation,the braiding angle (pitch) adjustment is convenient and correct.
* High production efficiency: the output per hour is more than three times of the current commonly used models. The maximum output is 98 meters/hour.
* Low noise: the transmission system uses suction, shock absorption and embedded devices to reduce noise.
* Convenient maintenance, flexible transmission, easy assembly and disassembly of structure.
* The spindle adopts elastic adjustable device, which ensures reliable positioning and convenient and flexible loading and
unloading of spool.
* The whole machine has small abrasion and long service life. The key parts are heat treated with high-quality materials and equipped with automatic lubrication device.
Specification
Model | 16 spindles high speed cable braider with Electronic meter recording device (16-180QHDE) Vertical type | 24 spindles high speed cable braider with Electronic meter recording device (24-120QME) Vertical type |
Braiding outer diameter(Maximum ) | Φ14mm | Φ22mm |
Numbers of braiding wires per spindle | Φ0.25mm(1-7) Φ0.15mm(1-13) Φ0.12mm(2-13) Φ0.08mm(3-13) Φ0.05mm(4-13) | Φ0.25mm(1-7) Φ0.15mm(1-13) Φ0.12mm(2-13) Φ0.08mm(3-13) |
Spindle speed | 180RPM (Maximum speed) 150RPM（Optimal speed） | 120RPM (Maximum speed) 100RPM（Optimal speed） |
Spindle numbers and size | 16 spindles size ￠66mm×82.5mm×￠35mm | 24 spindles size ￠66mm×82.5mm×￠35mm |
Braiding wires | soft copper wire, aluminum magnesium alloy wire, stainless steel wire, polyester wire, cotton wire, etc.￠0.06mm—0.25mm | soft copper wire, aluminum magnesium alloy wire, stainless steel wire, polyester wire, cotton wire, etc.￠￠0.08mm—0.25mm |
Maximum production speed | 604m/h | 723m/h |
Pitch adjustment range | 6.47mm—67.18mm | 11.61mm—120.55mm |
Host motor | 380V 1.1KW | 380V 2.2KW |
Wire reel specifications | Φ630mm*470mm | Φ800mm*600mm |
Cable reel shaft hole | Φ＞38mm≤80mm | Φ＞38mm≤80mm |
noise | ≤76db | ≤76db |
Skeleton specifications | Φ66mm*82.5mm | Φ66mm*82.5mm |
Machine weight and size | 450Kg,Width 1350× length 1650× height 2100mm | 700Kg Width1400× length 1700× height 2300mm |
production line

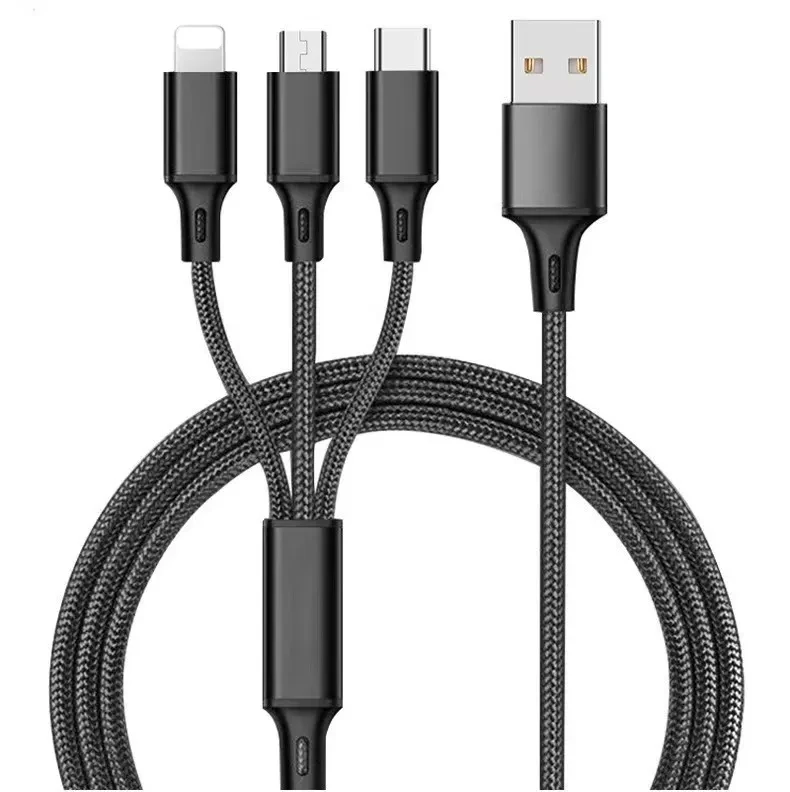

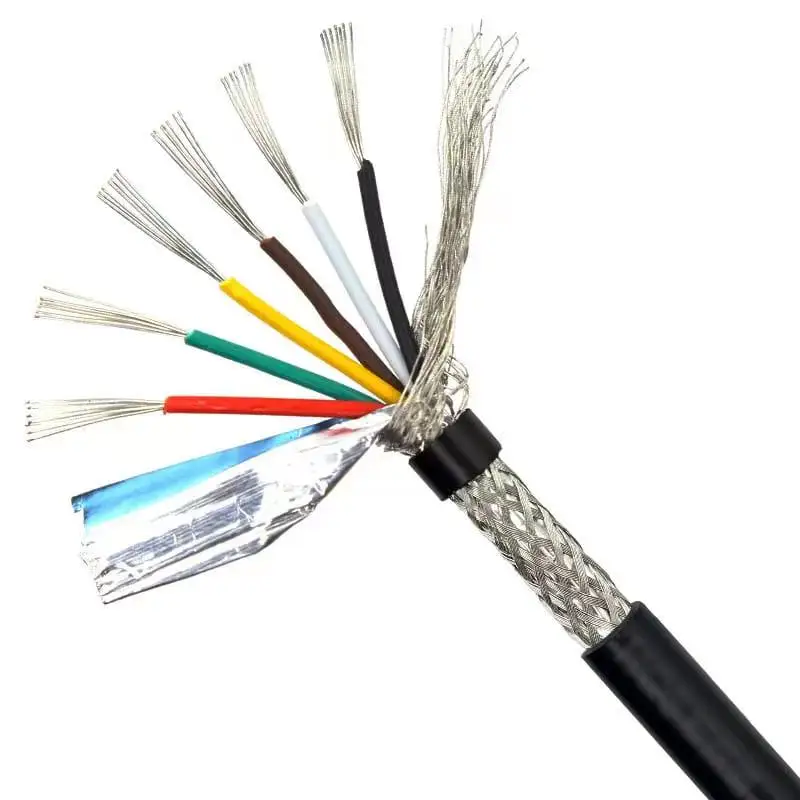

Hot sale products
Click for more information：

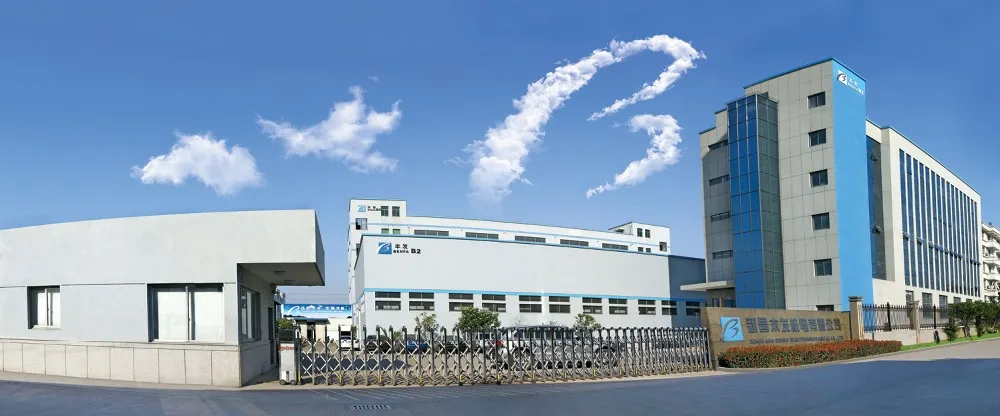

Company Profile
Greenland Technology provide one stop braiding solutions to our customer from Development, production, inspection and sales service.Our main products including combination double decks braiding machine, horizontal high speed double decks CNC braiding machine, flexible hose braiding machine, rope braiding machine, winding machine, crimp machine and flexible hose assemble machine.
