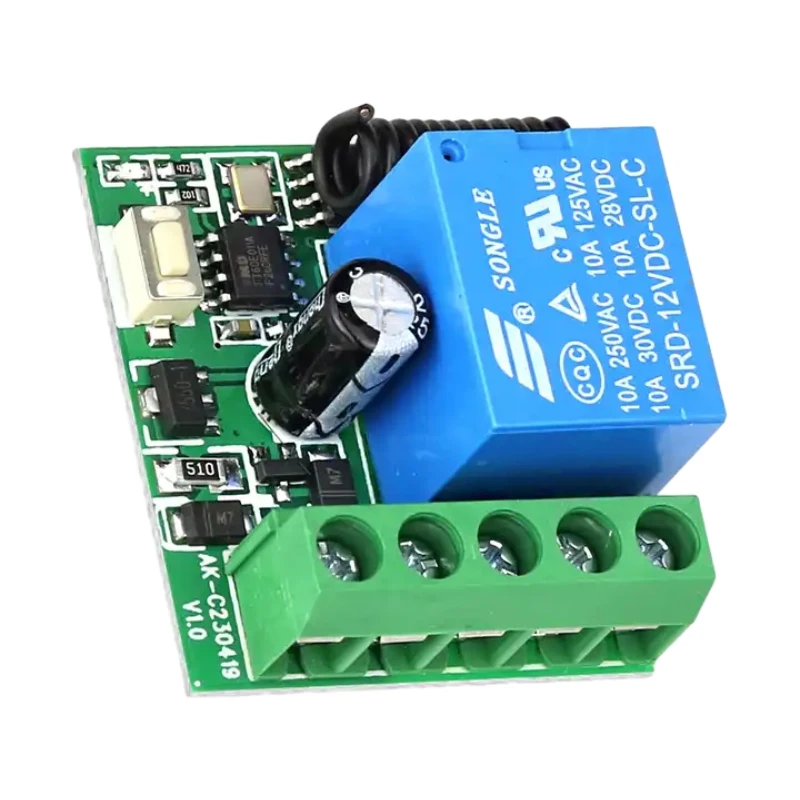

DC12V 1 CH Universal Garage Door 433MHz RF Transmitter and Receiver Set Wireless Switch Remote Control
- Category: >>>
- Supplier: Shenzhen Century Aoke Electronics Co. Ltd.
Share on (1601021721871):
Product Overview
Description
Specification

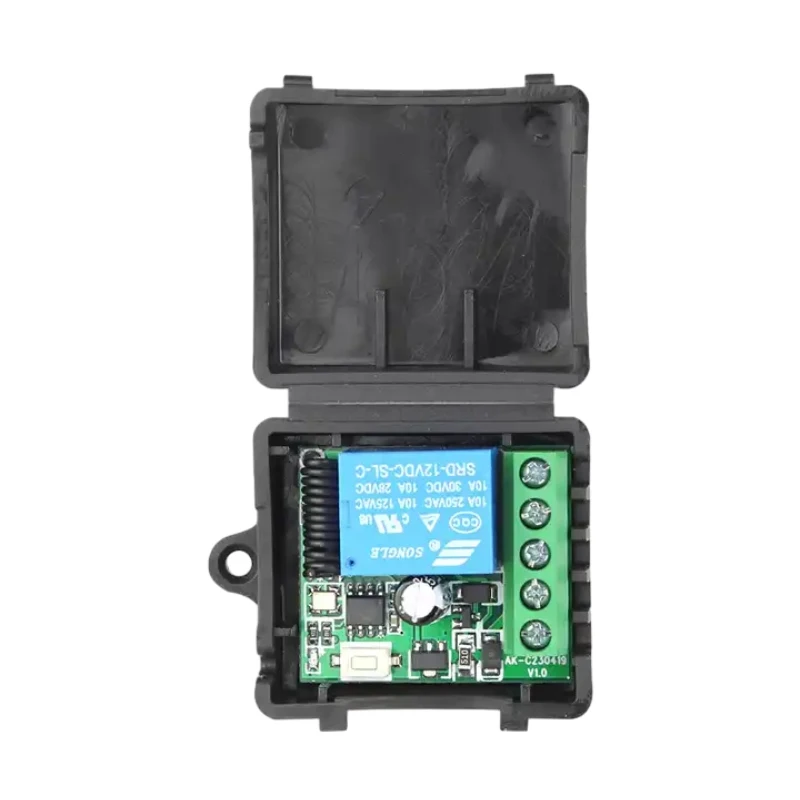

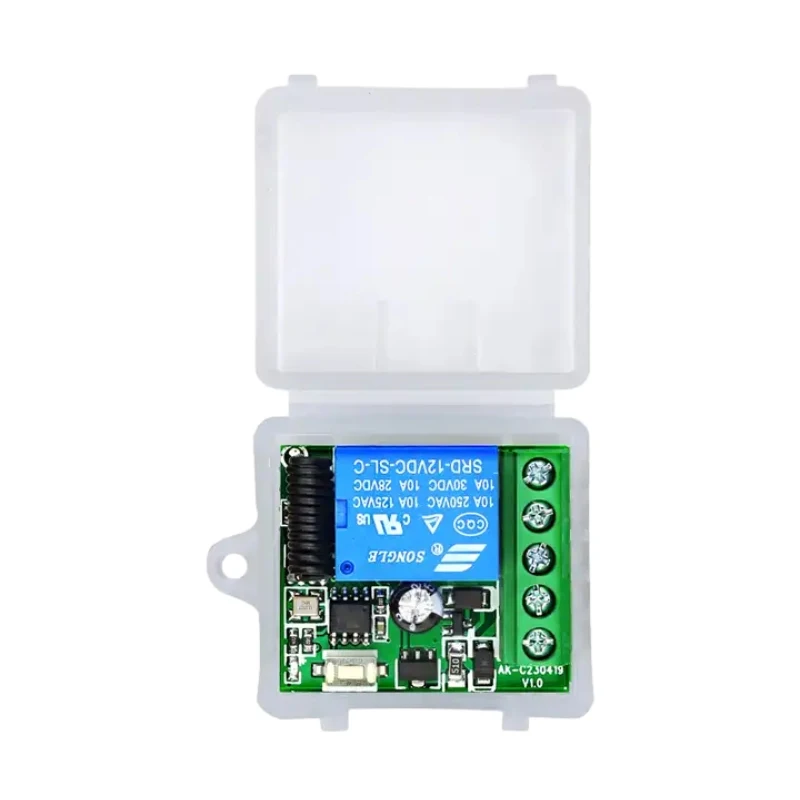

Receiver | Value | |
Model Number | AK-C230419 | |
Max. Voltage | DC12V | |
Working Frequency | 315MHZ/433MHZ | |
Working Mode | Momentary/Toggle/Latched/Delay | |
Operating Temperature | -20~70℃ | |
Code Type | Learning code | |
Static Current | <10mA | |
Receiving Sensitivity | >-105dB | |
Output Mode | Contact output(AC and DC) | |
Weight | 15g | |
PCB Size | 34.5*29.5*17.1mm | |

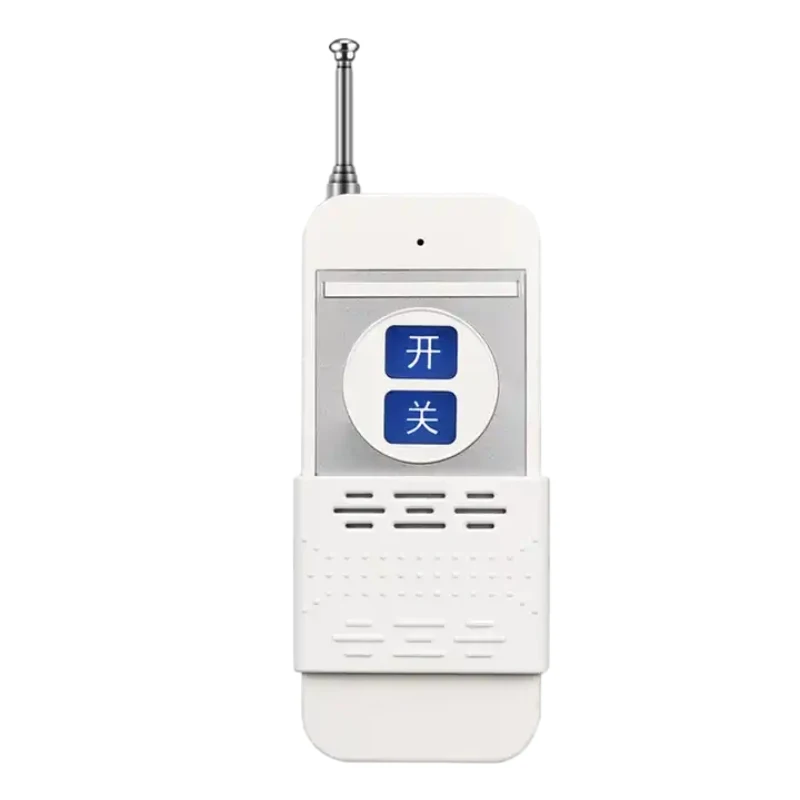

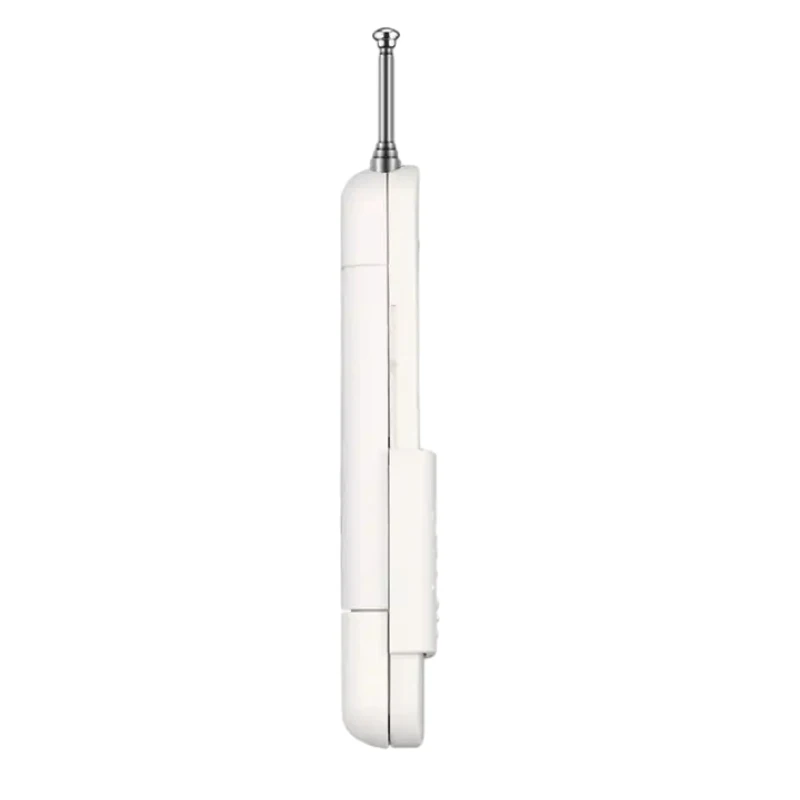

Remote Control(Transmitter) | Value | |
Model Number | AK7002 V3.0 | |
Max. Voltage | DC12V (23A battery) | |
Working Frequency | 315MHZ/433MHZ | |
IC | EV1527 | |
Operating Temperature | -20~70℃ | |
Code Type | Learning code | |
Modulation | ASK | |
Remote Distance | 100m | |
Weight | 36.34g | |
Size | 108*42.5*16.5mm | |

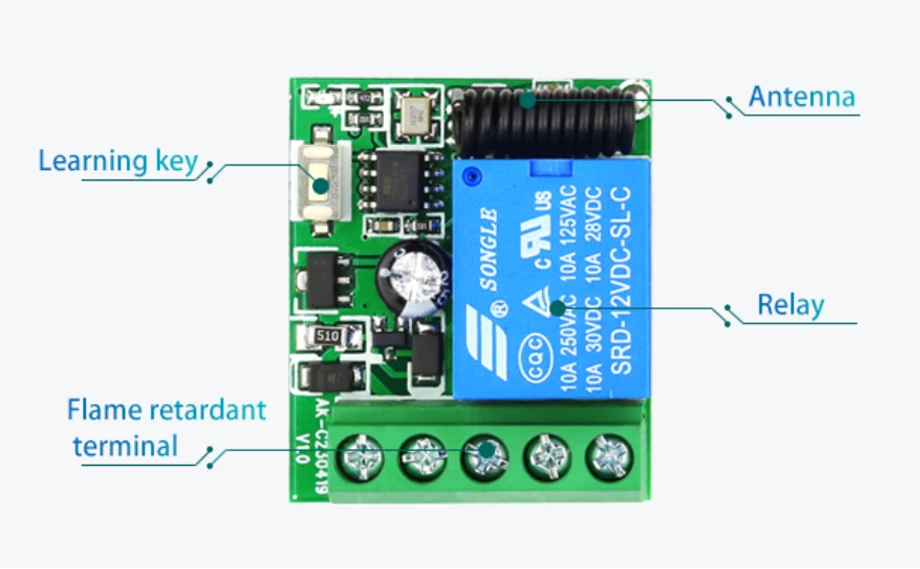

Details Images

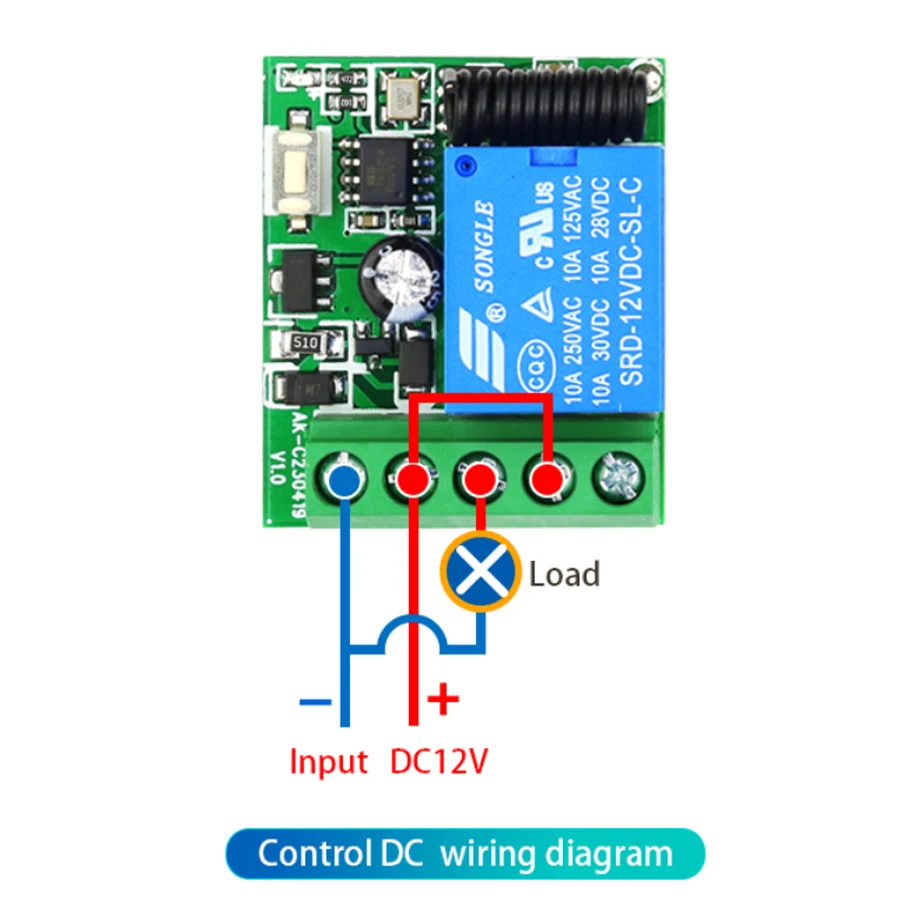

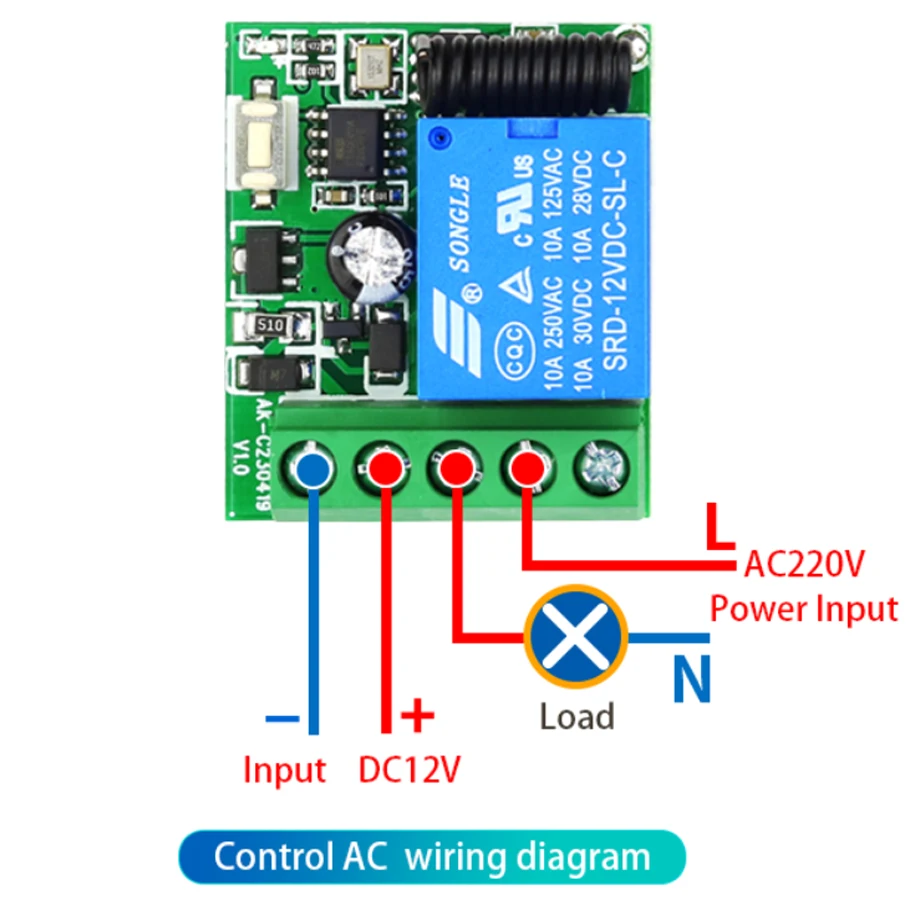

Working Mode and Wiring
Instruction

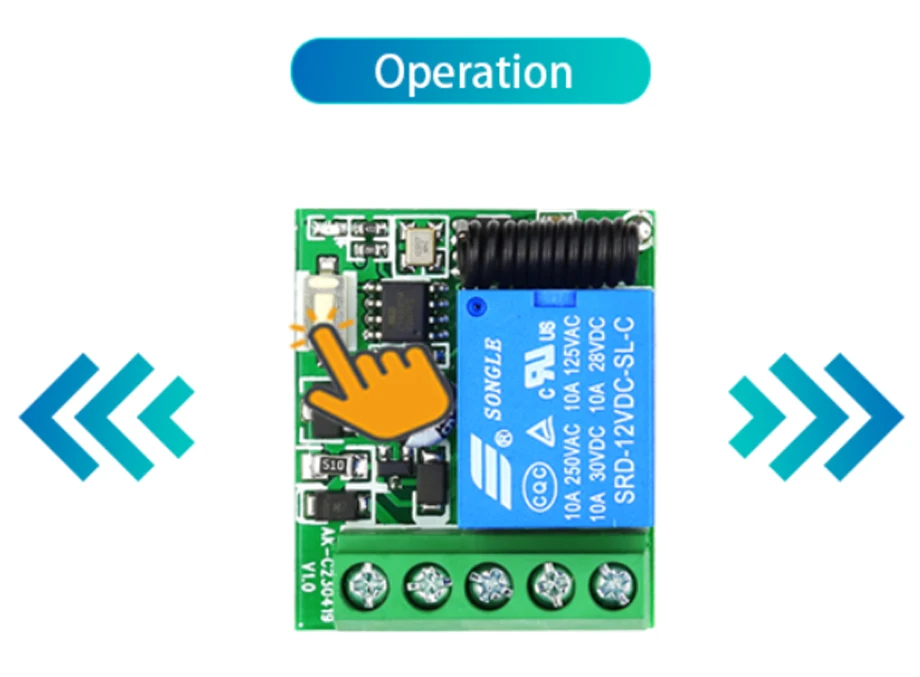

Momentary learning method: Press the learning key of the receiver once, and the LED indicator will flash once. When the indicator light up, press the button you need to learning on the remote control, the indicator light of the receiver will flash for 3 times, indicating that the learning is successful.
Toggle learning method: Press the learning key of the receiver twice, and the LED indicator will flash twice. When the indicator light up, press the button you need to learning on the remote control, the indicator light of the receiver will flash for 3 times, indicating that the learning is successful.
Latched learning method: Press the learning key of the receiver 3 times, and the LED indicator will flash 3 times. When the indicator light up, press the button you need to learning on the remote control, the indicator light of the receiver will flash for 3 times, indicating that the
learning is successful.
learning is successful.
5S delay learning method: Press the learning key of the receiver 4 times, and the LED indicator will flash 4 times. When the indicator light up, press the button you need to learning on the remote control, the indicator light of the receiver will flash for 3 times, indicating that the learning is successful.
10S delay learning method: Press the learning key of the receiver 5 times, and the LED indicator will flash 5 times. When the indicator light up, press the button you need to learning on the remote control, the indicator light of the receiver will flash for 3 times, indicating that the learning is successful.
15S delay learning method: Press the learning key of the receiver 6 times, and the LED indicator will flash 6 times. When the indicator light up, press the button you need to learning on the remote control, the indicator light of the receiver will flash for 3 times, indicating that the learning is successful.
20S delay learning method: Press the learning key of the receiver 7 times, and the LED indicator will flash 6 times. When the indicator light up, press the button you need to learning on the remote control, the indicator light of the receiver will flash for 3 times, indicating that the learning is successful.

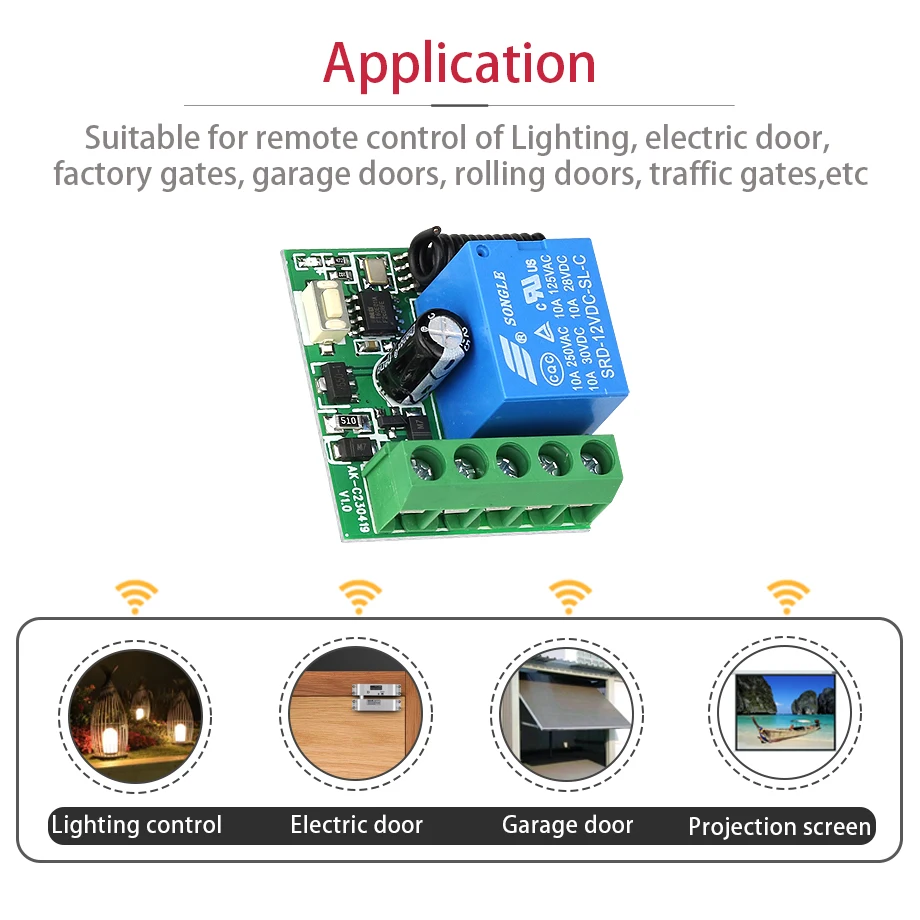

Application
