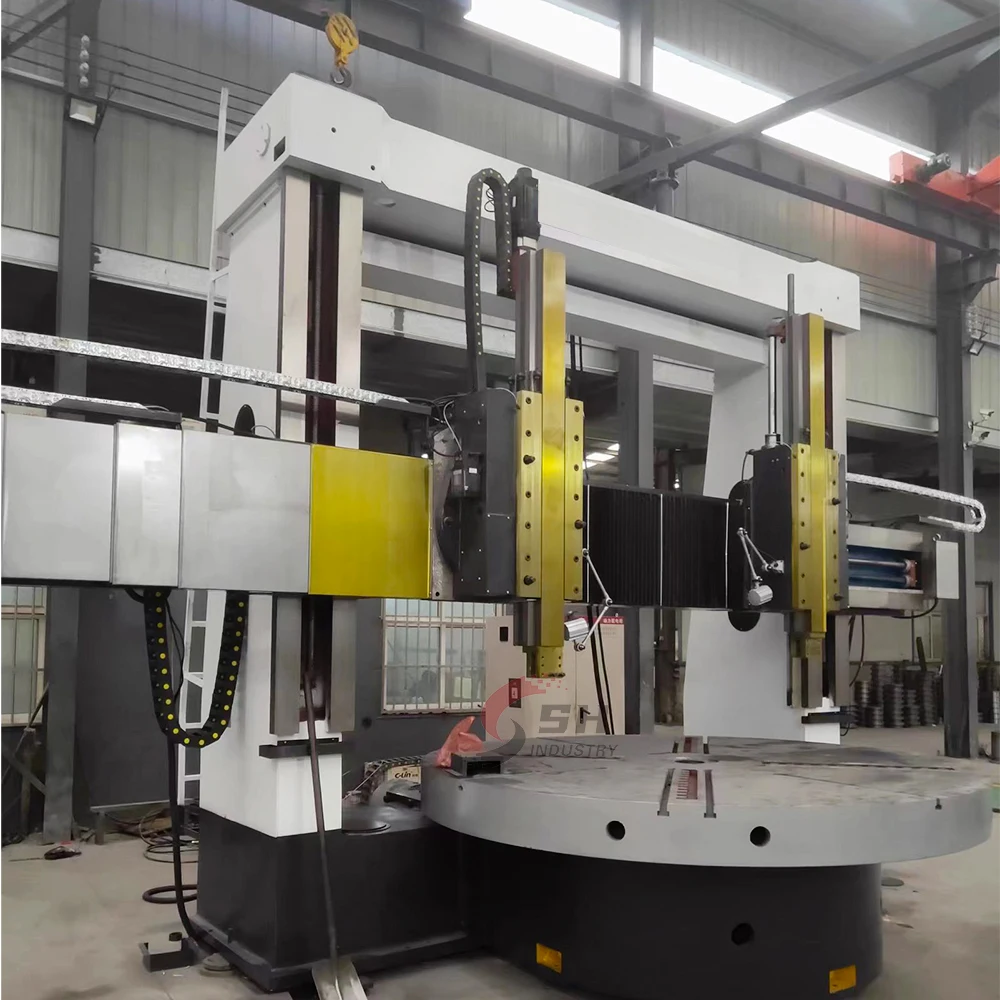

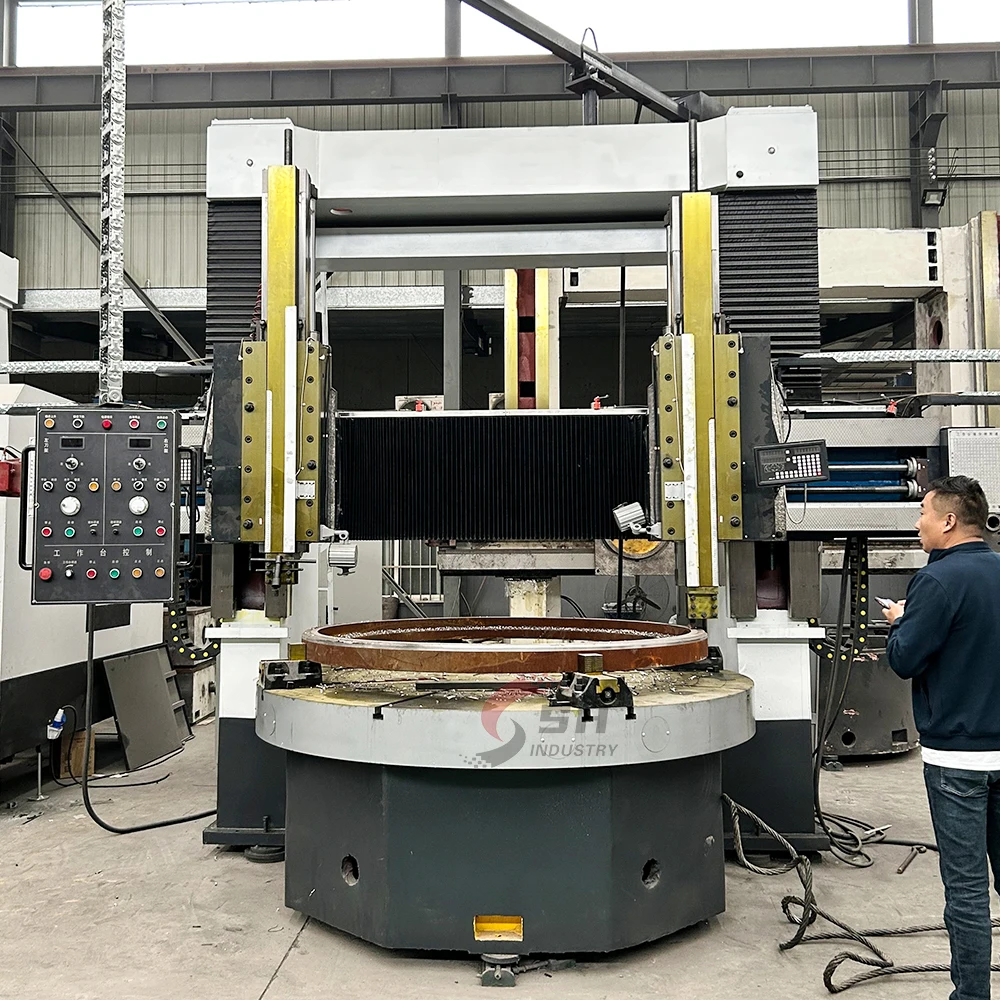

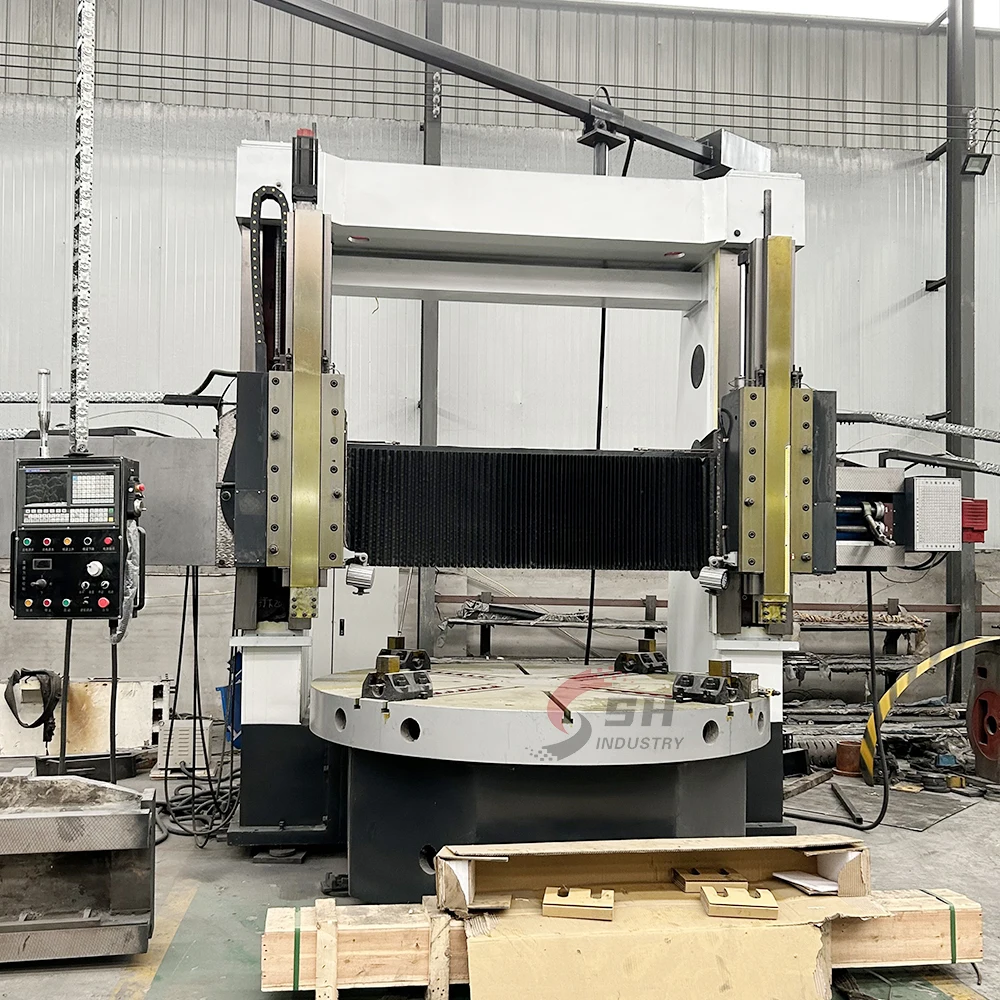

C5220 c5225 Precision vertical manual center lathe turning revolving centre lathe machines
- Category: >>>
- Supplier: Zaozhuang Shenghuan Cnc Machine Tool Co. Ltd.
Share on (1601021735224):
Product Overview
Description
Feature：
Vertical lathe is suitable for the industries of mechanical processing, can be used for inside and outside the cylinder, conesurface and face, cutting, cutting, etc. Of coarse and fine turning processing. Workbench using hydrostatic guideway, main shaft adopt high precision NN30 type (D) double row cylindrical roller bearing, thus workbench large carrying capacity, high rotary precision. Machine tool electric using domestic brand-name products, high reliability. Machine is made of high qualified epc process, high quality, the annealing aging treatment, appearance beautiful, durable, good agreeableness, convenient operation and maintenance. High cost performance; hanging button station, electric cabinet and bed integrated design; quenched beam, quenched T-shaped ram (five-hole turret); beam closed protection, automatic lubrication of all lubrication parts. With constant line speed turning and threading.
technical parameters：
MODEL | C5220/CK5220 | CQ5225/CK5225 |
Maximum cutting workpiece diameter | 2000mm | 2500mm |
Maximum tuming workpiece diameter | 2000mm | 2500mm |
The workbench diameter | 1800mm | 2250mm |
The artifact maximum height | 1600mm | 1600mm/2000mm |
Maximum weight of the workpiece | 7000kg | 7000kg |
Rest maximum cutting force head right | 3000kg/nm | 3000kg/nm |
Rest maximum cutting force left head | 2000kg/nm | 2000kg/nm |
The maximum cutting force | 5000kg/nm | 5000kg/nm |
The workbench maximum torque | 5000kg/nm | 5000kg/nm |
Two speed infiniteThe workbench variable series | Two speed infinite | |
Table speed range | 50-90rpm/min | |

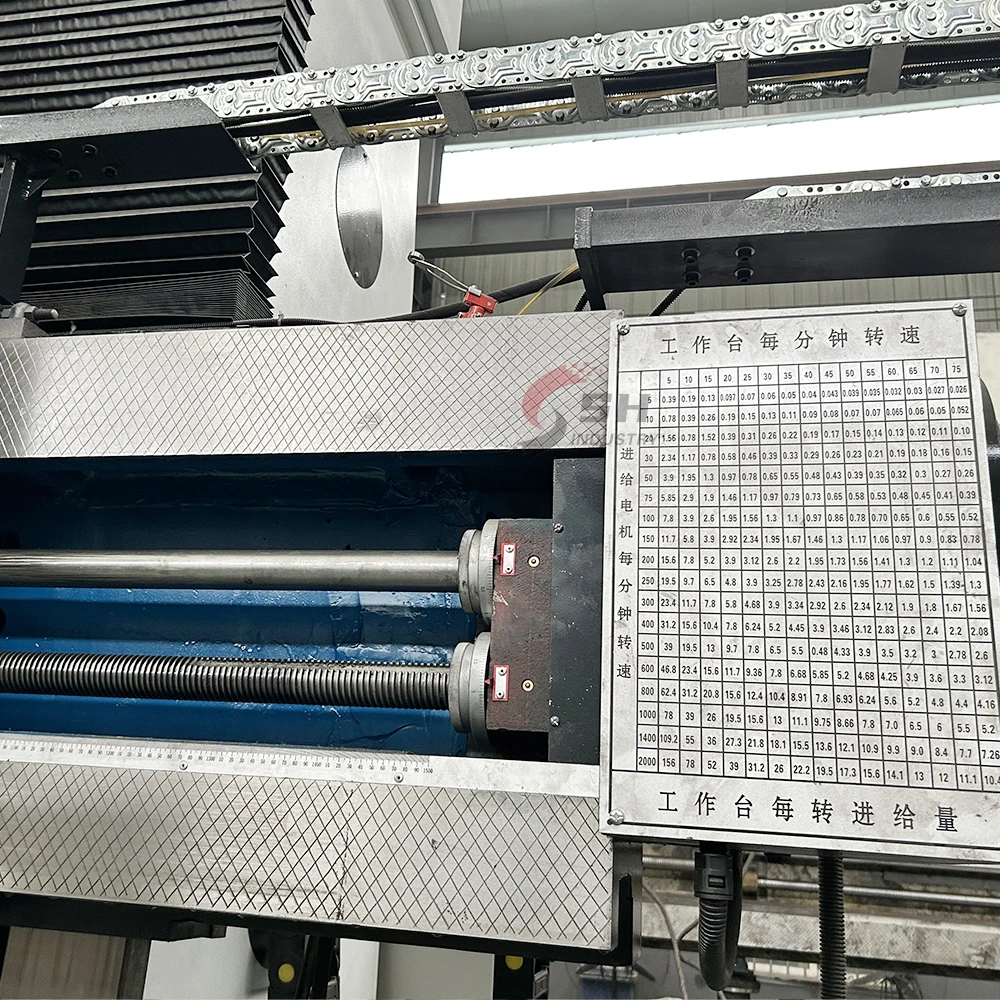

Feed range | 0.25-90mm/min | |
Beam trip | 1250mm | 1650mm |
Tool post stroke level | 1200mm | 1400mm |
Tool post stroke vertical | 750mm | 750mm |
Beam movement speed | 350mm/min | 350mm/min |
Rest fast moving speed | 1560mm/min | 1560mm/min |
Rest the maximum tuning Angle | ±30° | ±30° |
Knile party size(width x height) | 30x40mm | 30x40mm |
Main motor power | 30/6kw | 30/6kw |
Machine tool appearance size(LxWxH) | 3500x5500x3950mm | 3500x5500x3950mm |
