Automatic plastic container parts extrusion blow molding machine manufacturer
- Category: >>>
- Supplier: Zhangjiagang Longsn Machine Co. Ltd.
Share on (1601021799239):
Product Overview
Description
Product Overview

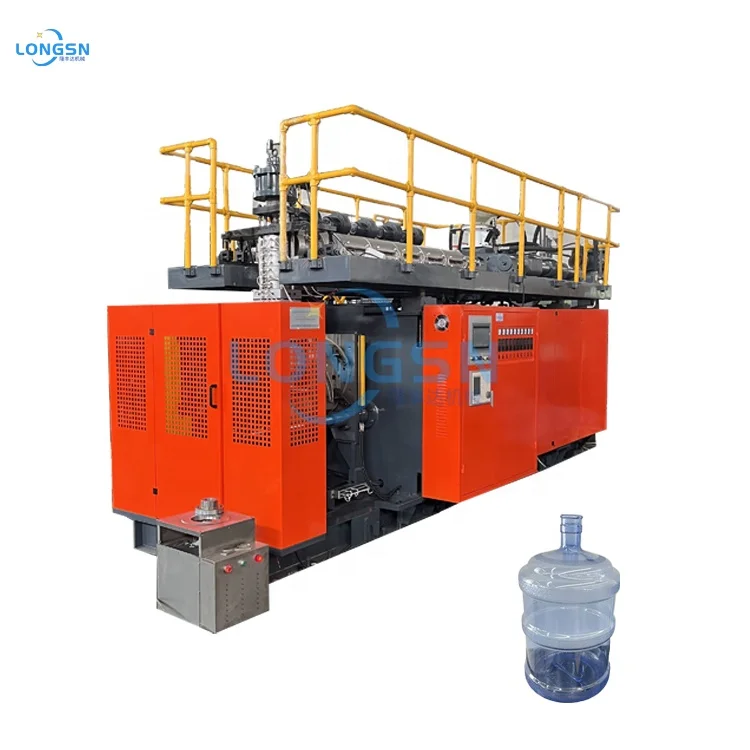

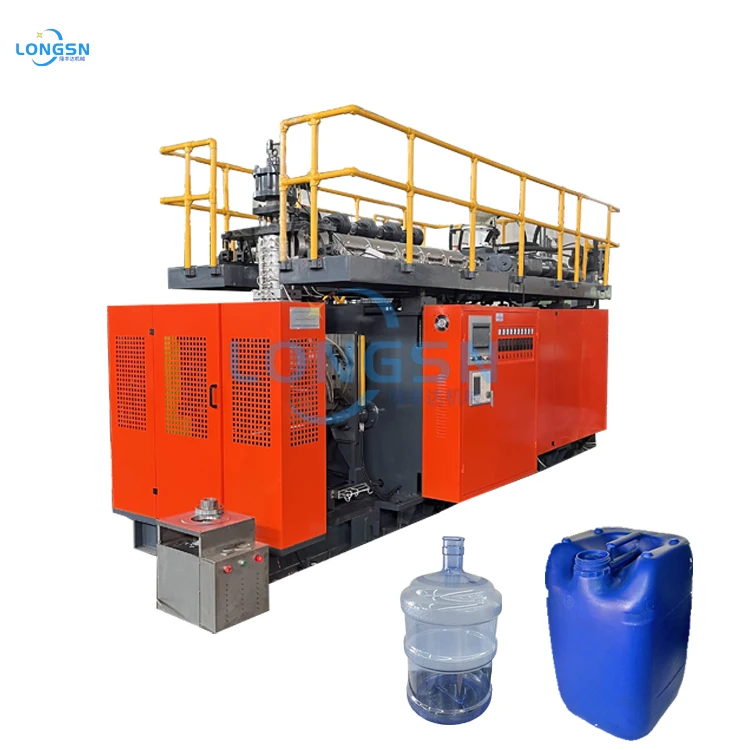

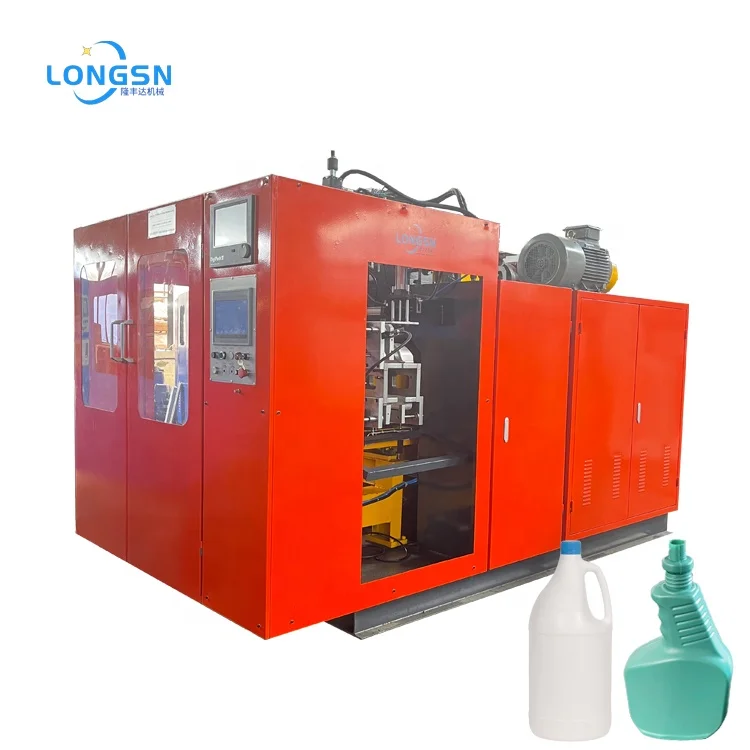

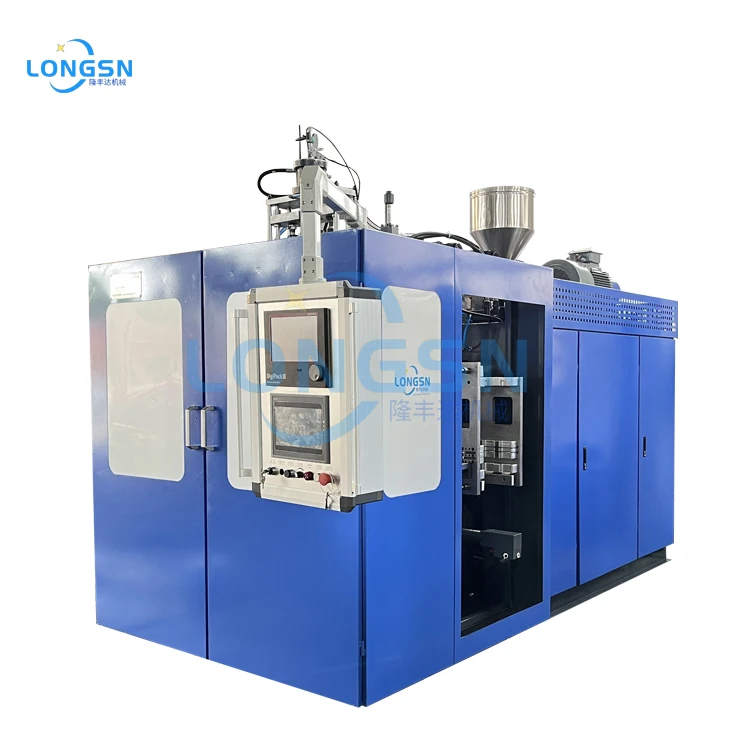

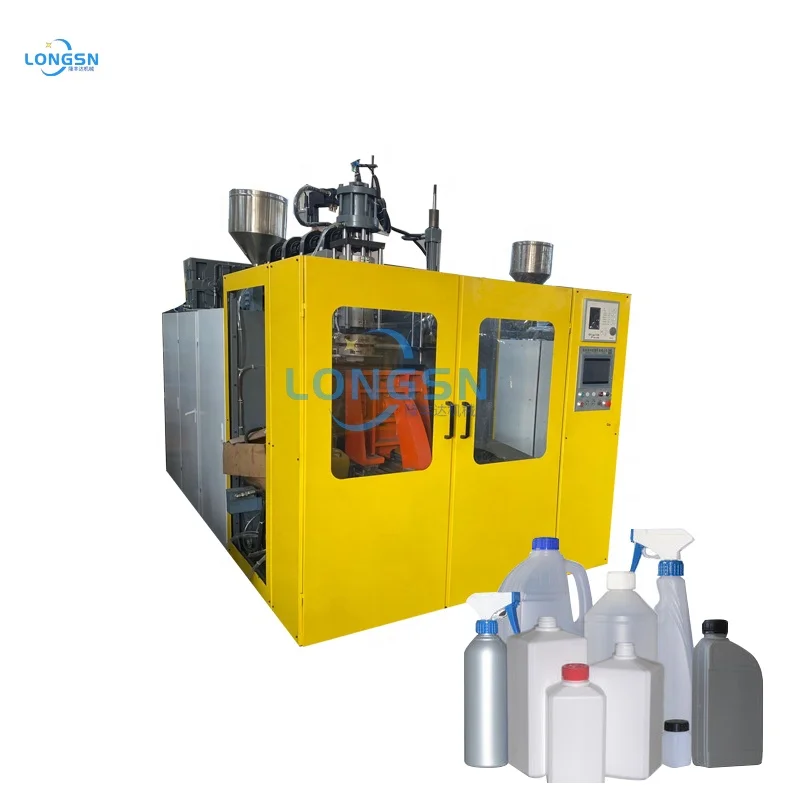

Automatic plastic container parts extrusion blow molding machine manufacturer

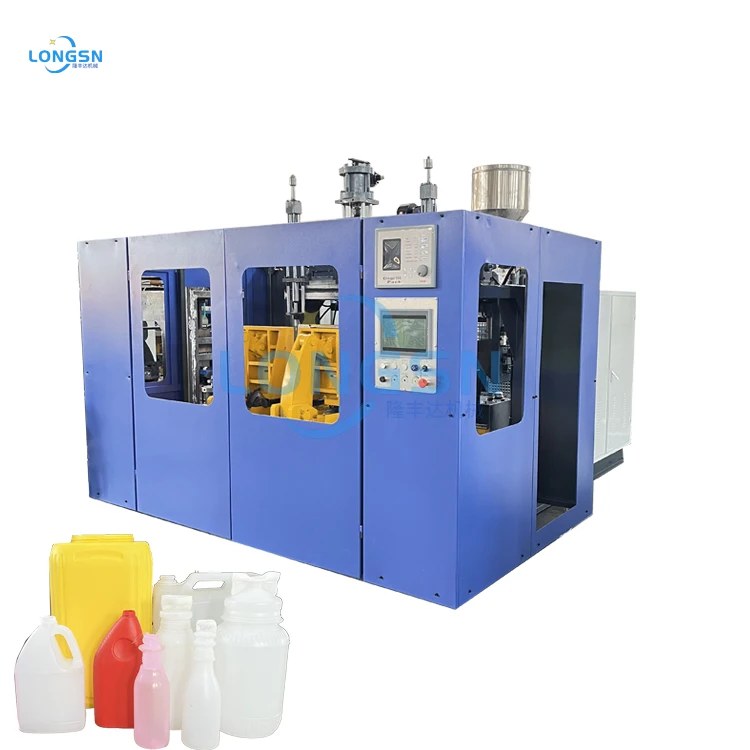

The LSN energy saving series extrusion blow molding/moulding machine is used to produce all kinds of the hollow plastic containers for foods, toys, beverages, medicines, chemical products, pesticides, detergents, etc with material of PE,PP,PVC from 5ml to 60L,such as water bottles,milk bottles,medical bottles,oil bottles,plastic balls,cosmetic bottles,lubricant bottles,plastic containers. The machines are low investment, high efficiency, quick and safe operation, easy for trouble shooting, maintenance and other benefit.
Features:
1.PLC+touch screen: making the operation easy.2.Automatic malfunction alarm: with self-diagnosis, making the malfunction clear at a glance.
3. Center input die head: eliminating the knit line completely and making it easy to change the material and color.
4.Double linear guide rail: Unique “liner guide” to the clamping structure to ensure mold-lock uniform, knit line smoother, stable and quite working.
5. Mould locking system: adopts Crank arm-Center lock design to provide the strong clamping force.
PRODUCT SPECIFICATIONS
Parameters | Units | LSN80 | LSN90 |
Material | PE,PP,PV,PVC,PA | PE,PP,PV,PVC,PA | |
Number of die head | set | 1,2,3,4 | 1,2,3,4 |
Max Container capacity | 30L | 60L | |
Screw diameter | mm | 80 | 90 |
Screw L/D ratio | - | 24 | 24 |
(50HZ)Screw rpm(50hz) | r/min | 10-60 | 10-60 |
(PE)Extrusion capacity per hour | kg/h | 110 | 140 |
Number of heaters | - | 4 | 4 |
Platen size | mm | 750*800 | 900*950 |
Clamping force | KN | 230 | 360 |
Dry cycle time | s | 12 | 13 |
Air pressure | Mpa | 0.8 | 0.8 |
Compressed air comsumption | m3/min | 0.8 | 1.0 |
Machine dimension(L*W*H) | mm | 5000*2900*3950 | 5200*4700*4000 |
Machine net weight | T | 12 | 16 |
Extruder heating power | kw | 16 | 22 |
Hydraulic motor | kw | 15 | 18.5 |
Total power | kw | 81 | 100 |
Details Images
DIE HEAD
Head mode: the continuous extrusion head is designed with material center coming-in type and removing the plastic melting line on the product surface, easily for material or color change, saving the time & material cost with speedy operation.
EXTRUSION SYSTEM
High hardness bimetalic screw for longer lifespan. Good screw and teeth design for better plasticizing effect. Reialble performance of gear box, motor and inverter. Belt wheel speed rate is calculated according to target output Pre-heating with intelligent protection for screw and motor. Screen filter is optional for small or light weight bottles. Reasonable head runner design for color change quickly. Die & core individualized according to your product width. Each cylinder at each side for head lifting smoothly.
HYDRAULIC SYSTEM
Composed of motor, pump, pressure regulating valve block, reversing valve blocks, cylinders and oil chillers. Control platens open and close, carriage up and down, blow pin up and down, special action technics for mould. Optimized hydraulic design to adopt pressure, flow and time 3 factors to control action precision and smoothness. Platen moving cylinders with mechanical shuttle valve to reduce impact force at end position. High stationarity and reliability, accurate operation, long longevity and quick response.
ELECTRICAL CONTROL
True color man machine control interface. Simple but humanized pages easy for operation. 100 point parison thickness controller & profile eddition. Production technics and parameter saving for 20 moulds. Professional engineer setting pages for problem diagnosis. Short-cut key board & emergency stop for safety production. Aluminum cantilever operation box and easy adjustment. Remote technical support & program updating.
Recommend Products
Certifications

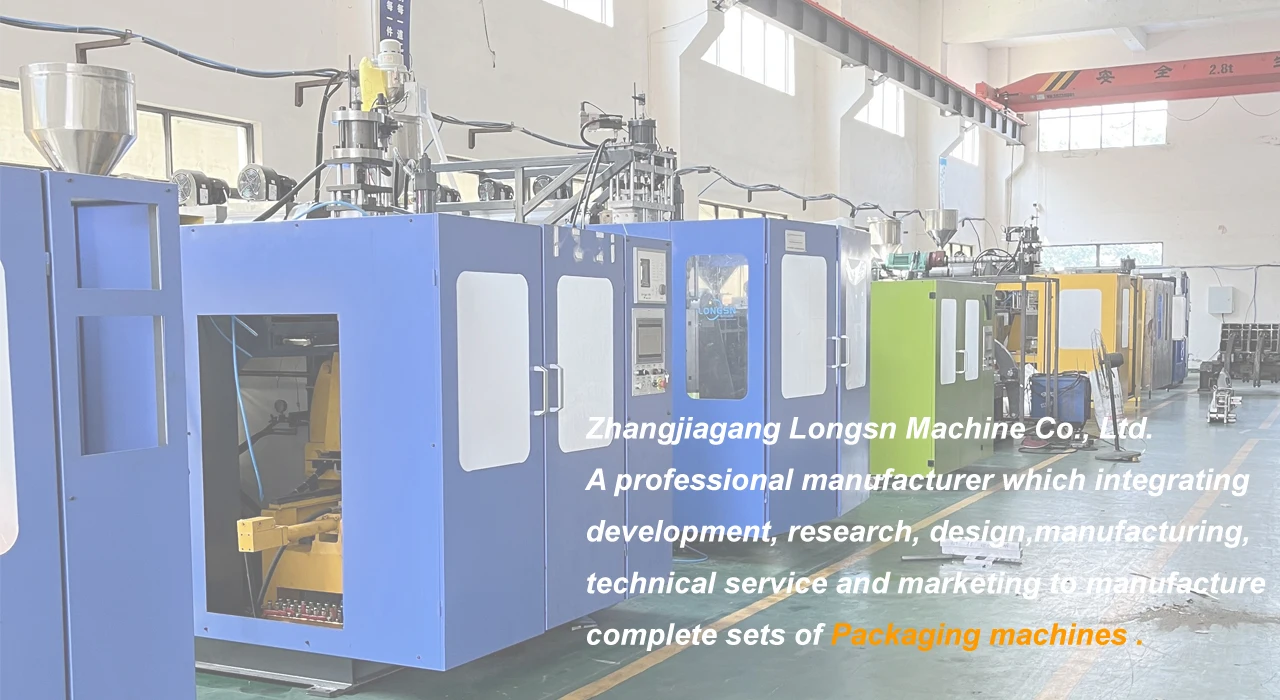

Company Profile
FAQ
Q1:Are you a trading company or a manufacturer ?
A1:We are the manufacturer ,we produce machines ourselves,we can assure the quality.
Q2:What is your advantage?
A2:Competitive price , Excellent technical support ,24h online service
Q3:When can I get my machines after I paid?
A3:We will arrange delivery on time,act according to the contract.
Q4:What's your guarantee or the warranty of the quality if we buy your machines?
A4:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years
Q5:How can I install my machine when it arrives?
A5:We will provide 24 hours online service,if needed we will send our engineer to your side as soon as you get all your machines ready,for testing and teaching your technicians how to run the machines.
A1:We are the manufacturer ,we produce machines ourselves,we can assure the quality.
Q2:What is your advantage?
A2:Competitive price , Excellent technical support ,24h online service
Q3:When can I get my machines after I paid?
A3:We will arrange delivery on time,act according to the contract.
Q4:What's your guarantee or the warranty of the quality if we buy your machines?
A4:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years
Q5:How can I install my machine when it arrives?
A5:We will provide 24 hours online service,if needed we will send our engineer to your side as soon as you get all your machines ready,for testing and teaching your technicians how to run the machines.
