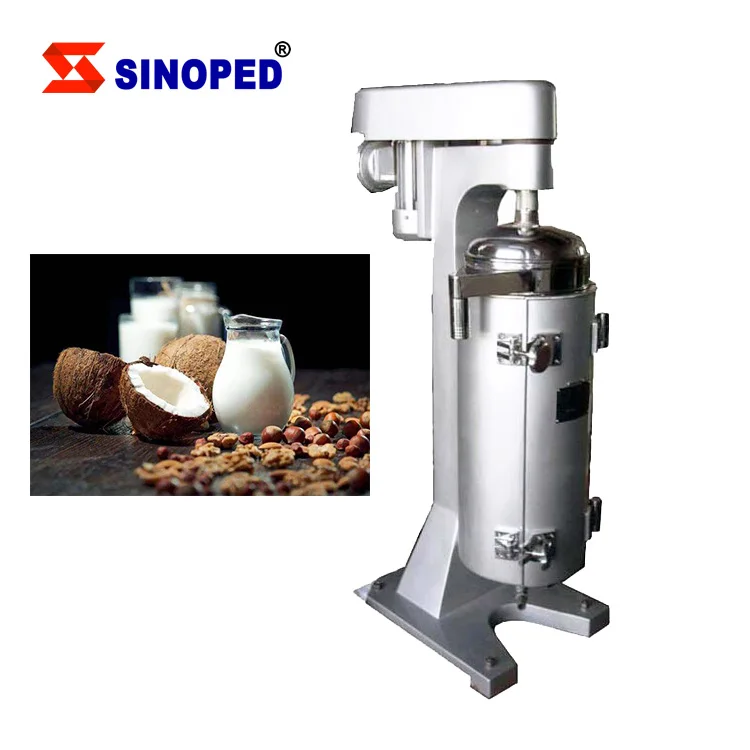

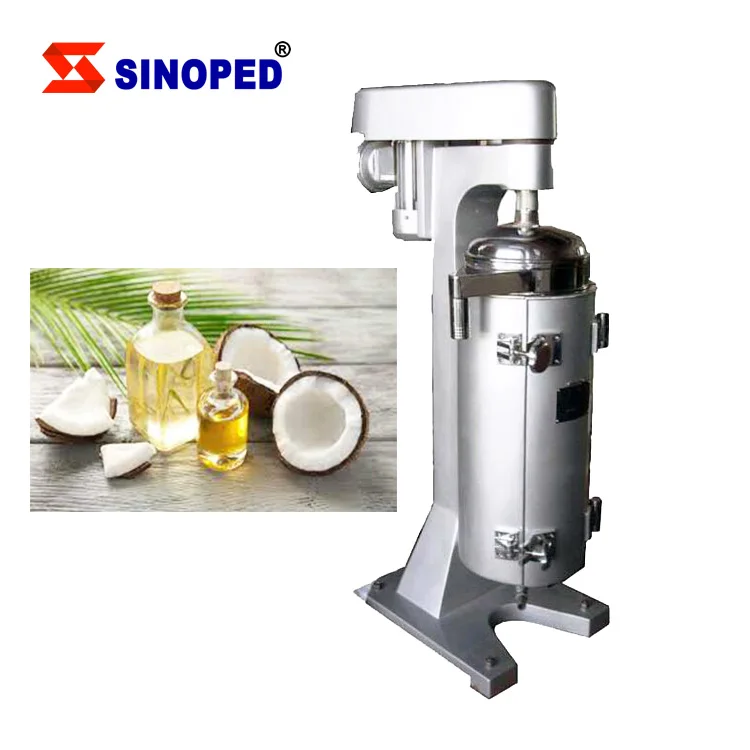

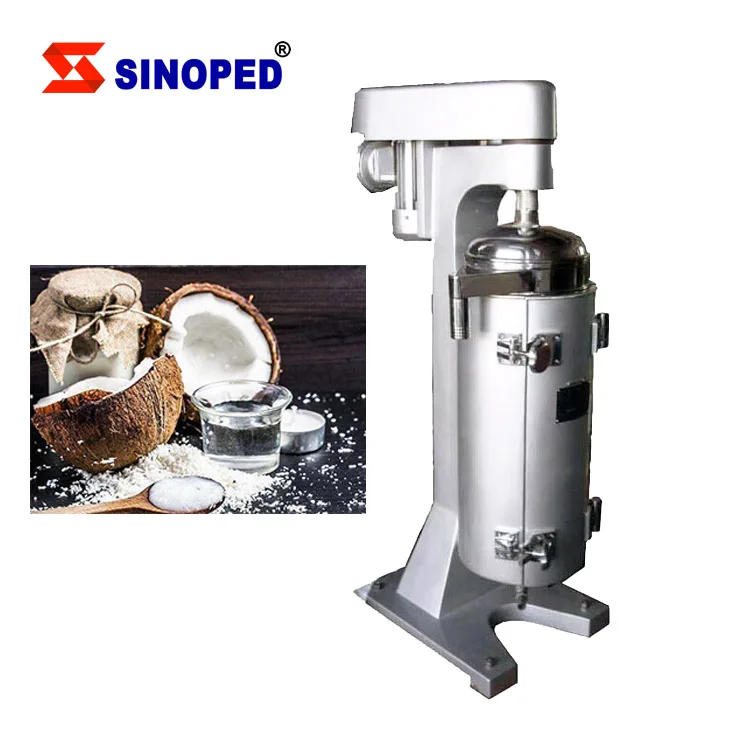

Liquid Solid Centrifugal Filters Oil Water Separation Tubular Centrifuge
- Category: >>>
- Supplier: Sino Pharmaceutical Equipment Development (Liaoyang) Co. Ltd.
Share on (1601021822050):
Product Overview
Description
Product Description
GF/GQ Series Tubular Type Centrifuge

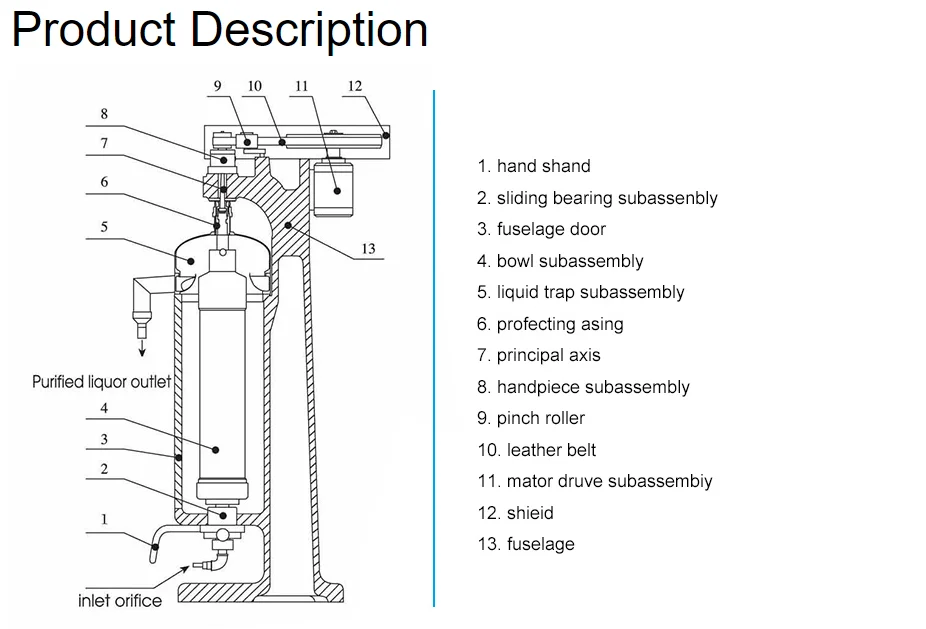

Centrifuge machine is composed of machine body, transmission, drum, liquid tray, liquid enter bearing.On the top of drum is flexible main axis, bottom is damp drift bearing, main axis connected with links base buffer and passive wheel, motor through conveyor belt, fasten wheel provide the power for passive wheel, so as to drum rotate around itself axis, forming strong centrifuge force filed. Materials launched from the inlet bottom, centrifuge force makes the material liquid rotates along the drum inner flow upward, and separate layer because of materials liquid different density.

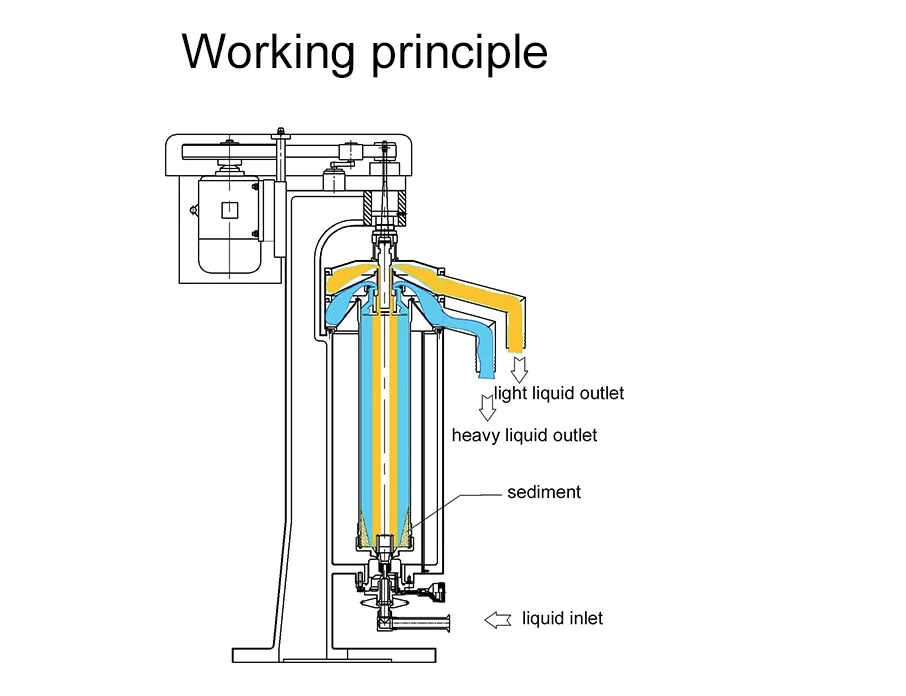

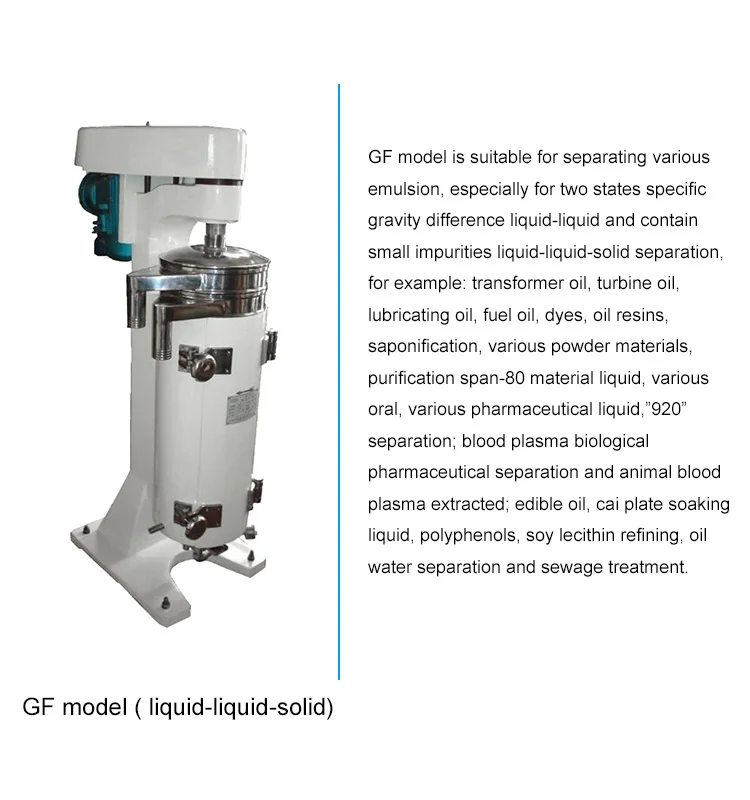

GF model(liquid-liquid-solid)
GF model, big density liquids form outer liquid circle, small density liquids form inner circle, and flow to drum upper parts outlet accordingly, micro solid deposited on the drum wall, and manual unloaded materials after machine stop.

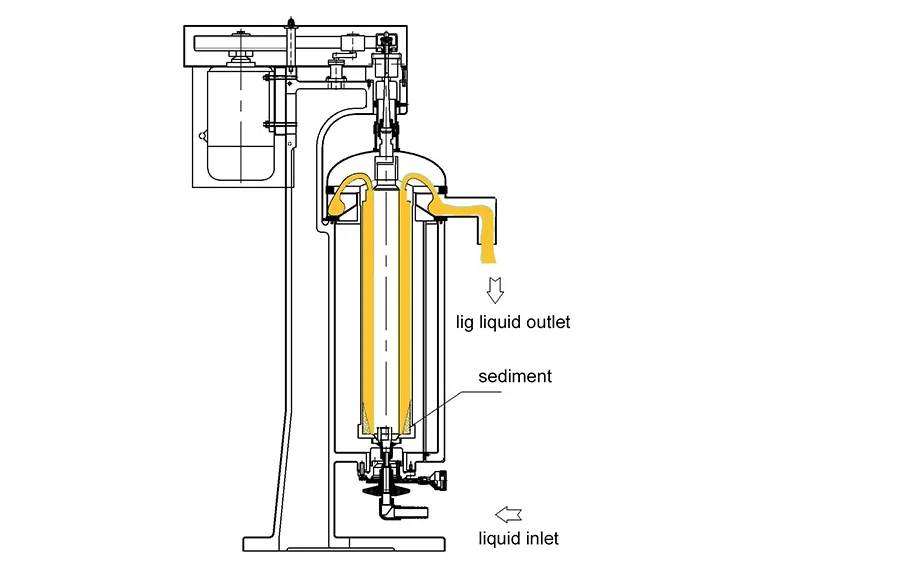

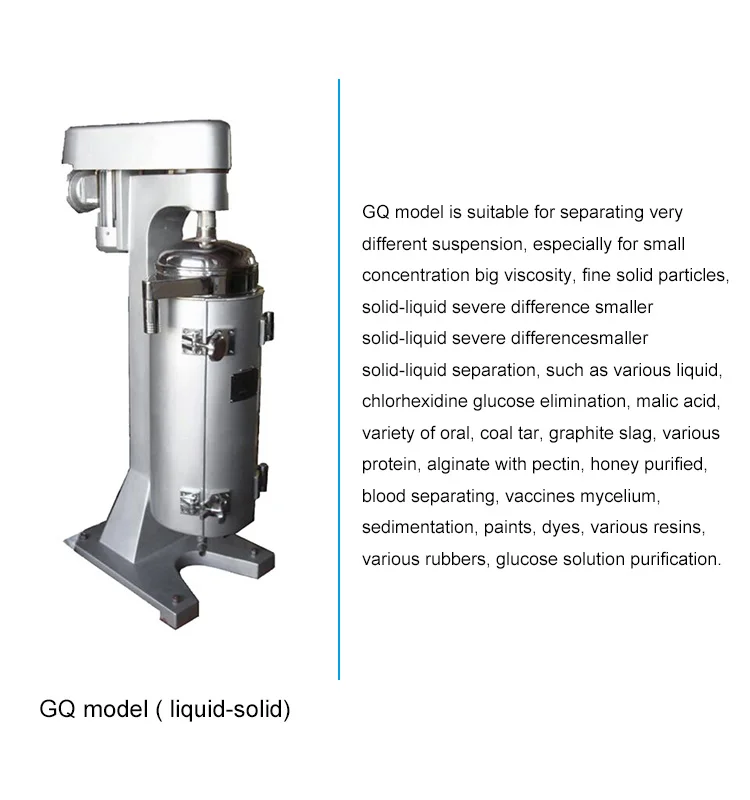

GQ model(liquid-solid)
GQ model, big density solid particles gradually deposited and formed sedoment layer in drum wall, after stop machine, manual unloaded materials, clweified liquid flow through the upper drum of the outlet.
Item | GQ/GF L45 | GF/GQ L75 | GF/GQ L105 | GF/GQ L125 | ||
Bowl | Inner diameter/mm | 45 | 75 | 105 | 124 | |
Effective height/mm | 280 | 430 | 730 | 735 | ||
Lsediment capacity/L | 0.45 | 2 | 5.5 | 7.4 | ||
Rotating speed r/min | 28000 | 20000 | 16000 | 15000 | ||
Max. Separatingfactor | 19800 | 16770 | 15025 | 15500 | ||
Material inle pressure Mpa | >0.05 | >0.05 | >0.05 | >0.05 | ||
Production capacity/Kg/h | ~100 | ~500 | ~1000 | ~2000 | ||
Motor | Item | Universal motor | Y90S-2 | Y90L-2 | Y(B)112M-2-B5 | |
Power/Kw | 0.6 | 1.5 | 2.2 | 4.0 | ||
Rotating speed r/min | 4500 | 2840 | 2880 | 2890 | ||
Dimension(L*W*H)/mm | 580*650*750 | 950*1230*1600 | 800*1200*1600 | 1010*510*1715 | ||
Weight/Kg | 120 | 300 | 400 | 565 | ||
Cooling tube | Heat dissipation area/m2 | 0.5 | 0.5 | 1.3 | ||
Pressure/Mpa | 1 | 1 | 1 | |||

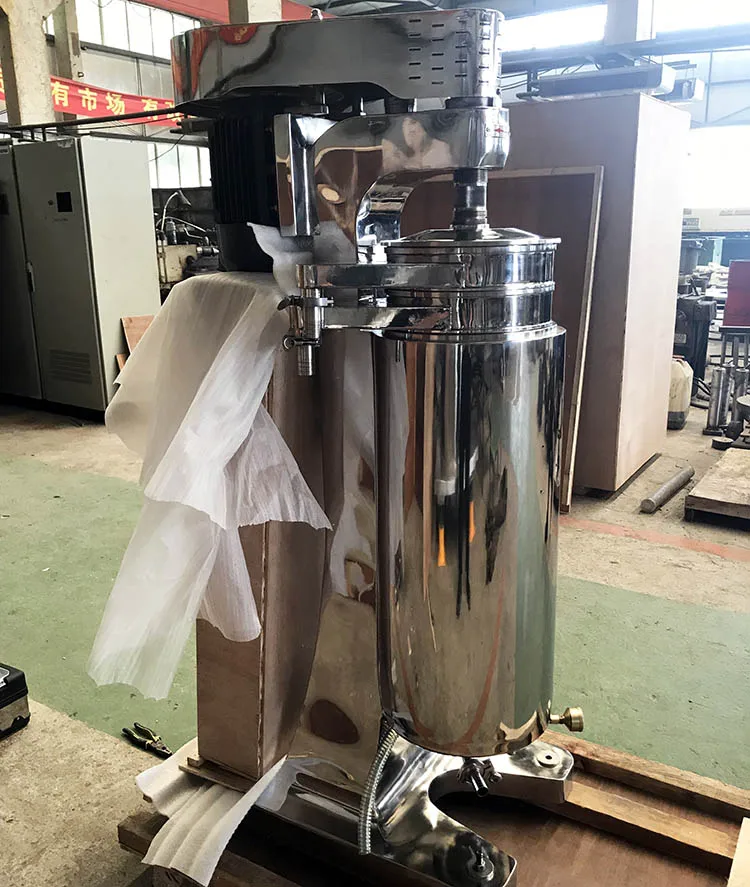

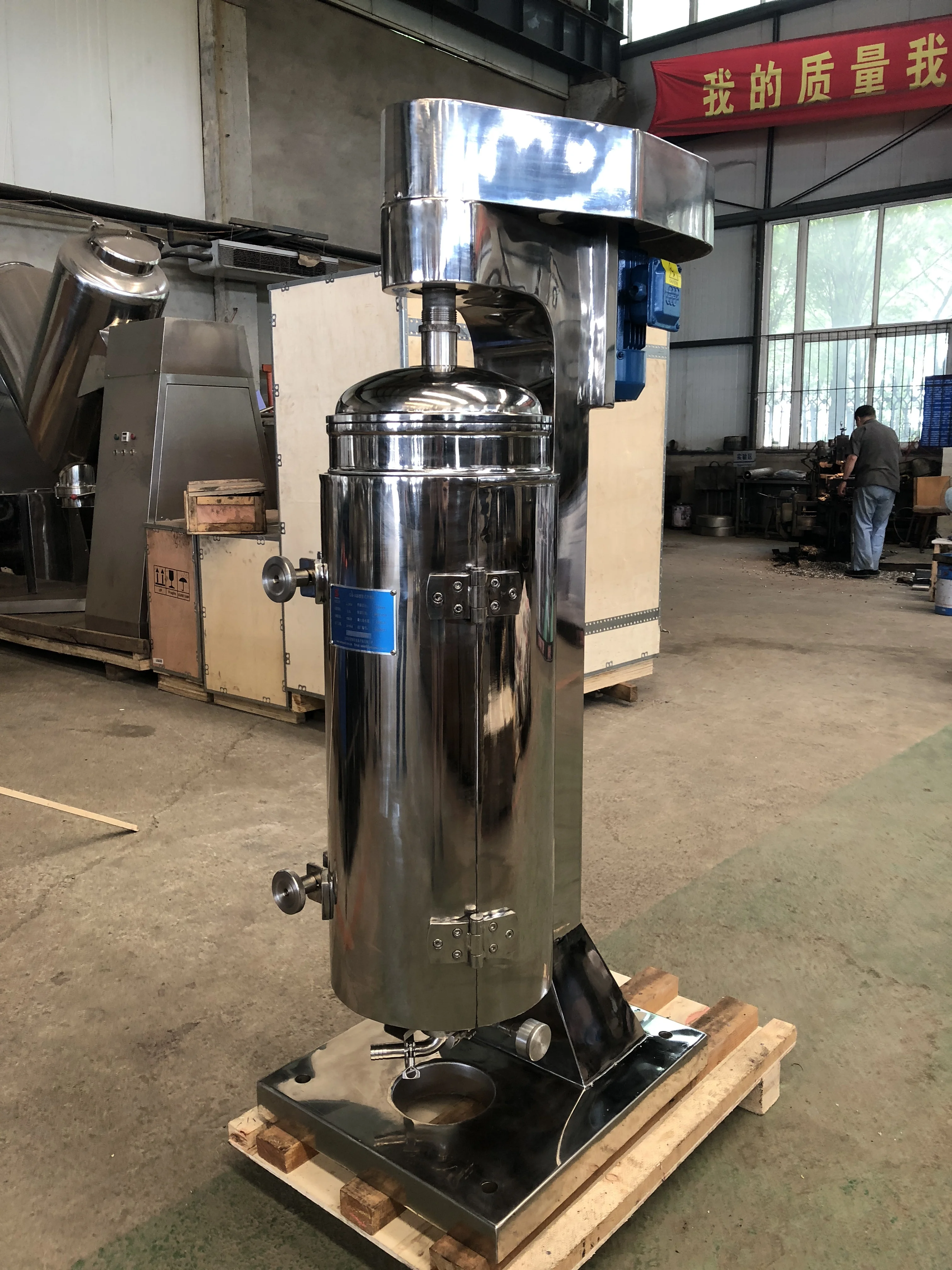

Detailed Images

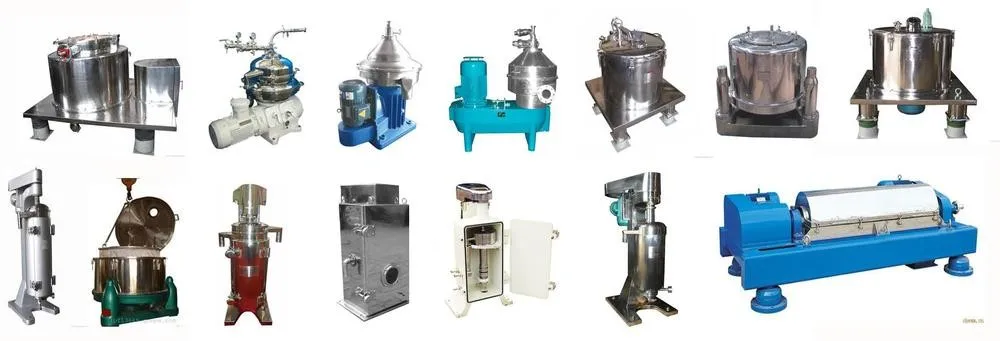

Other Model
Q1. Are you really a manufacturer? Where is your factory? How can I visit your factory?
Yes, we are a source manufacturer with headquarter located in Liaoning province China. We dates from 1947. We Warmly Welcome You to Visit Our Factory if You Have a Travel Plan.
Q2. Why choose your company?
With more than 70 years of precipitation, Sinoped has experienced technology, production, quality inspection, sales and
after-sales departments. Every client has his own service team in our company and according to the different needs of clients, we develop different programs to provide customers with the best quality equipment. Moreover, we have exhibition halls and distributors in many overseas countries, which can ensure our service quality.
Q3. How can I trust you for the first-time business?
Please note our business license and certificates above. if you still worry about our company, we suggest using Alibaba trade assurance service for all transactions to protect your money and ensure our service for you.
Q4. How about the after-sale service and guarantee period?
1. 18-month warranty period for whole machine except for human factors etc. and 18 months’ after-sale service starts from the date when you receive machine or 18 months when installation finished.
2. Consultation services for whole machine life, and 24 hours technical support by email or video on line
3. English software, user manual and the installation & debugging by our experienced technicians.
Q5. If we have very special request on the production line, could you help me to do the design?
Customized design is provided.
Q6. How does the machine fit our voltage? How can I know your machine is designed for my product?
1. For each equipment, our sales team will confirm the voltage with the customer.If you need standard machines and samples, we can buy samples for your product testing in China, provided we have prototype machines.
2. If you need non-standard machine and special sample, please communicate with our team, then pay the deposit first, we will customize the machine according to the sample, after the production, we will provide you with detailed operation video and equipment photos.
Q7. How can you ensure the machine's quality after we put the order?
Before delivery, we will produce the equipment according to the agreed requirements, and after production, we will provide
detailed installation videos, operation videos, operating instructions, testing documents, certification documents, etc.
Alternatively, we can arrange a third-party inspector to perform FAT, and we also support SAT.
