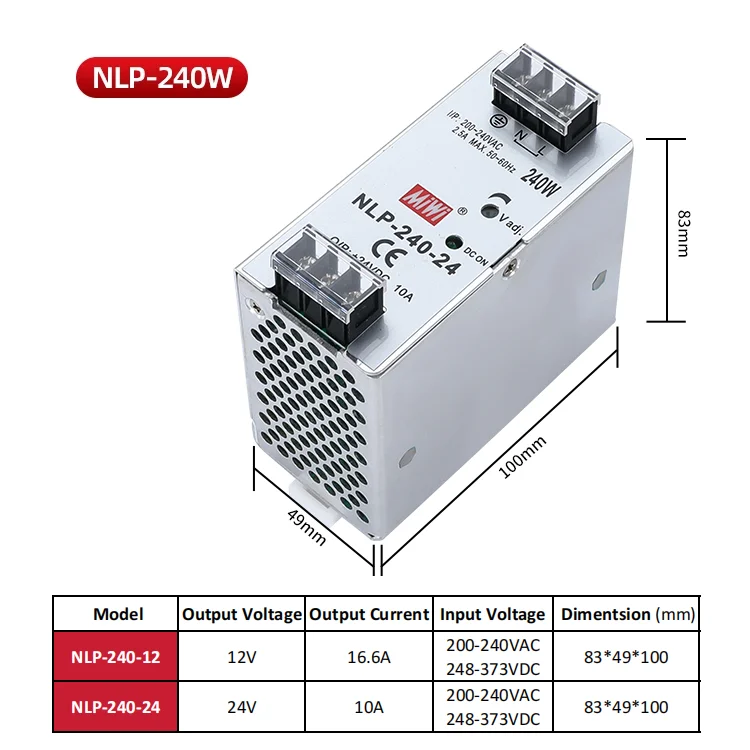

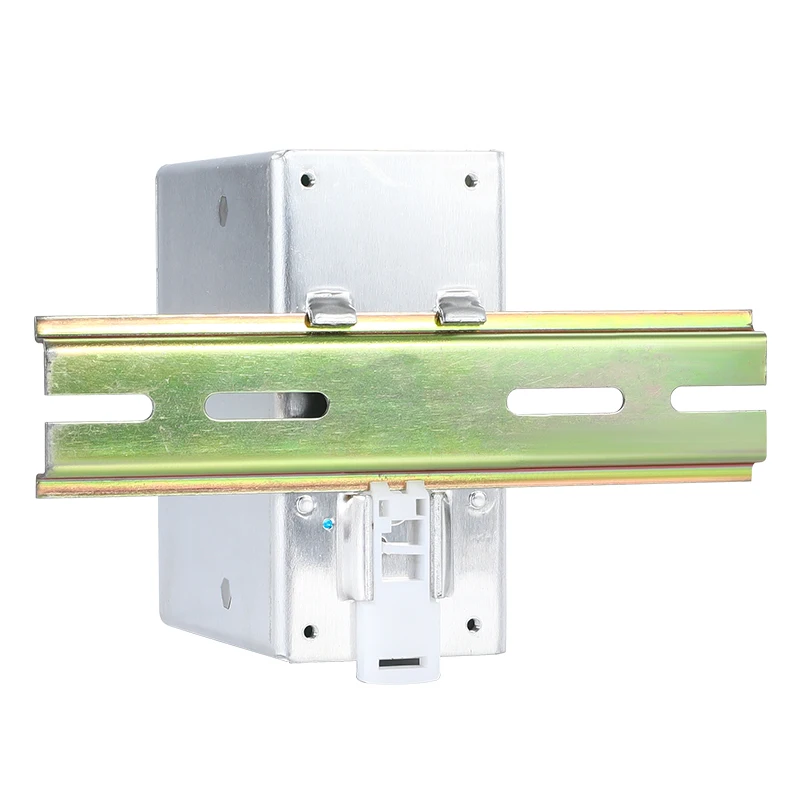

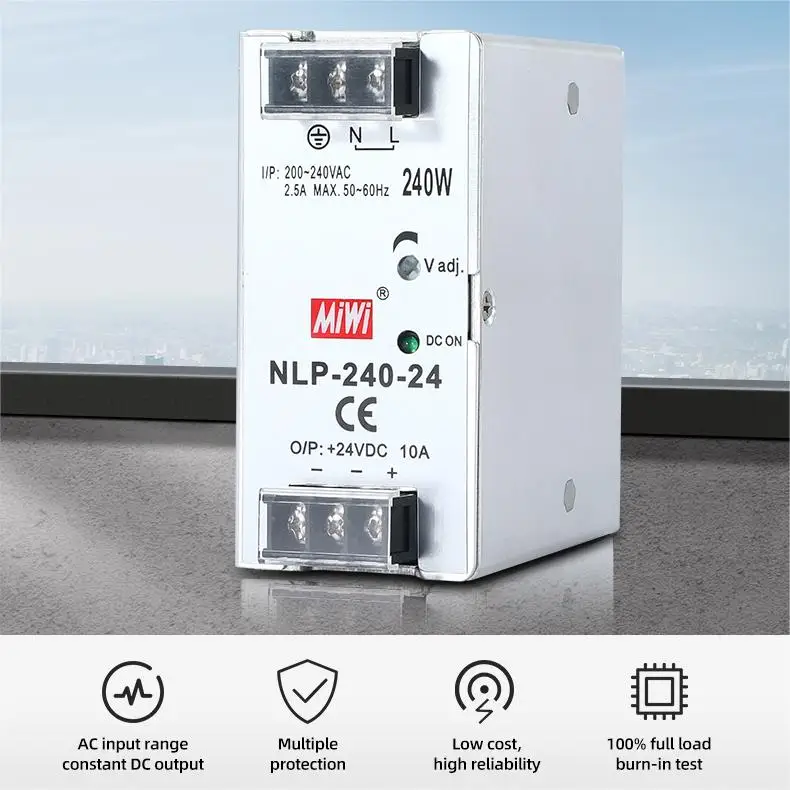

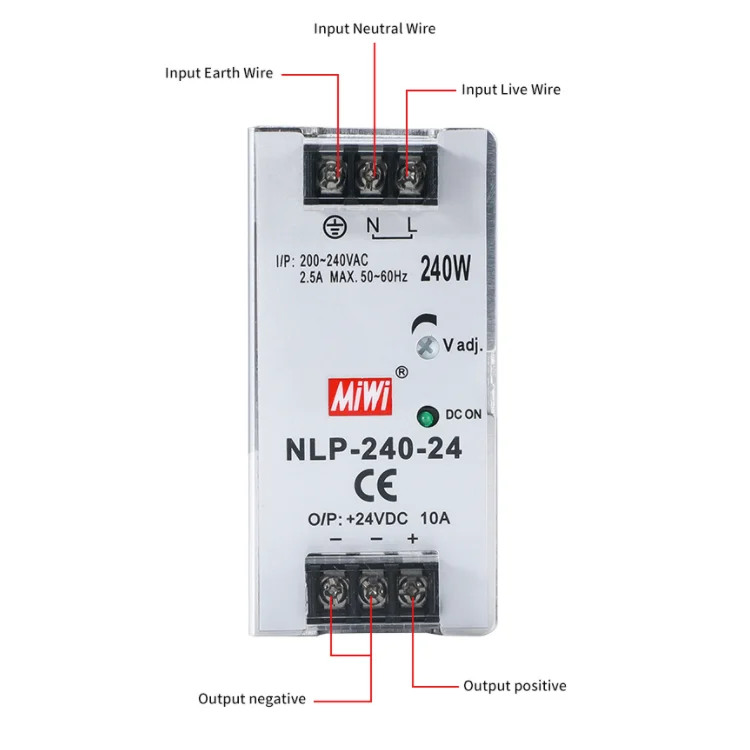

MiWi NLP 240 24 Din rail fixed industrial power supply 24VDC 10A LED Switching Power Supply 240W

Model   /   Specification

NLP-200-12

NLP-200-24

NLP-240-12

NLP-240-24

Output

DC Output Voltage

12V

24V

12V

24V

Output Voltage tolerance

± 1%

Rated Output Current

15A

8.3A

16.6A

10A

Output Current Range

0-15A

0-8.3A

0-16.6A

0-10A

DC Output Power

180W

200W

200W

240W

Tripple and Noise

120mVp-p

240mVp-p

120mVp-p

240mVp-p

Adjustable Range for DC Voltage

11.4-13.2V

20.5-26.5V

11.4-13.2V

20.5-26.5V

Input

AC Input Voltage Range

180-264VAC  248-373VDC 47~63Hz;

AC input current

0.9A/230VAC

Efficiency

87%

87%

87%

89%

AC Inrush Current

20A/230V

Leakage Current

<3.5mA/240VAC

Protection

Overload Protection

110%-150%

Protection mode: cut off output and restart

Over Voltage Protection

13.8-16.2V

27-30V

13.8-16.2V

27-30V

Protection mode: cut off output and reset automatically

Environment

Work Temperature Humidity

-10℃~+50℃ , 20%~90%RH

Storage Temperature Humidity

`-20℃~+85℃, 10%~95%RH

Shock resistance

10~500Hz, 2G 10min,/1cycle,duration:60min each shaft

Safety

Voltage withstand capacity

Input-output:2KVAC  Input-earth:1.5KVAC   Output-earth:0.5KVAC

Insulation resistance

Input-output, Input-earth ,Output-earth:100M Ohms/500VDC

Executive Stantand

Safety Standards

CE

EMC Standards

...

Others

Weight

0.42KGS

Package

30pcs/ctn 37*30*24.5

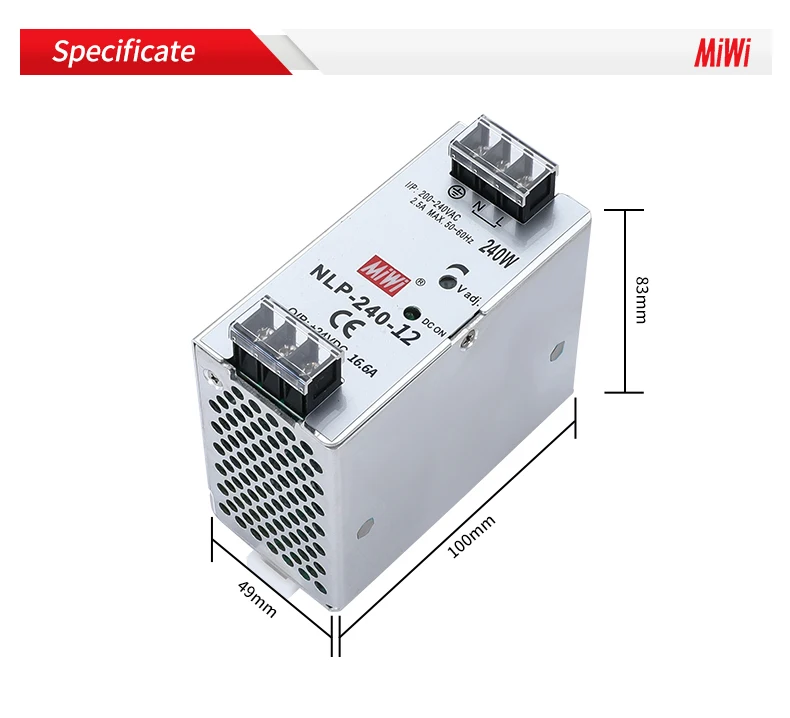

size

83*49*100(L*W*H)

Notes

1. All parameters except special situtation, are meaured under 230VAC voltage input and rated load at 25℃.

2. The ripple and noise voltage are measured in condition capacitance of 0.1μ and 47μ are applied to ends of 12inch twisted-pair of 20MHZ bandwidth oscilloscope.

3.The tolerance is the sum of setting voltage error , voltage and current regulation factor.
