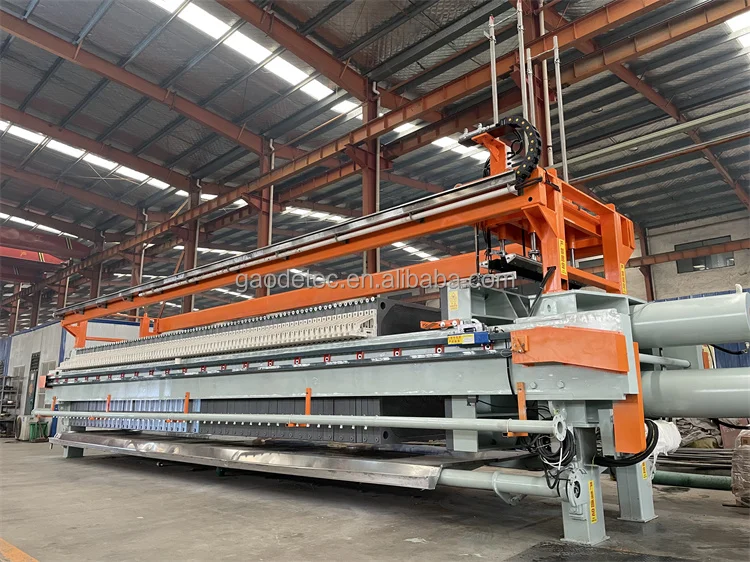

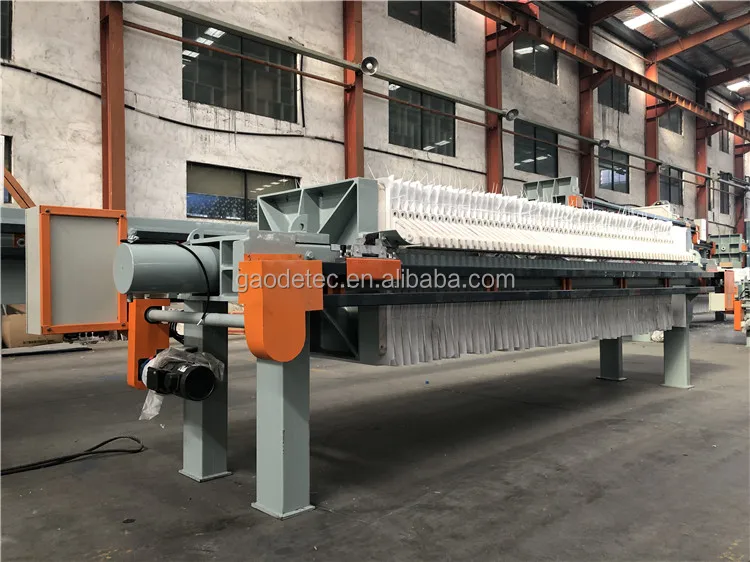

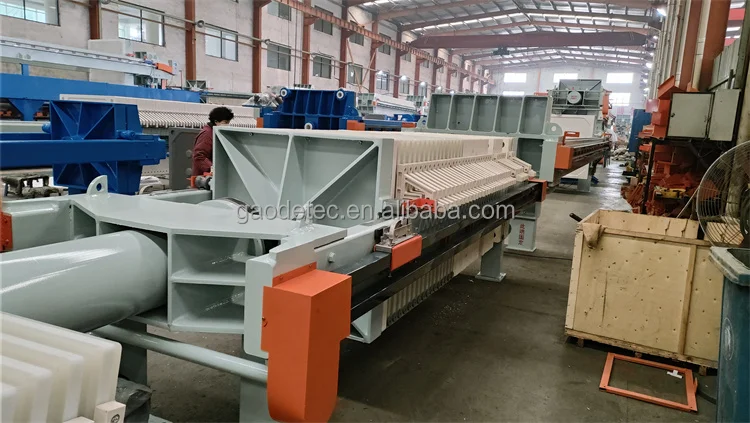

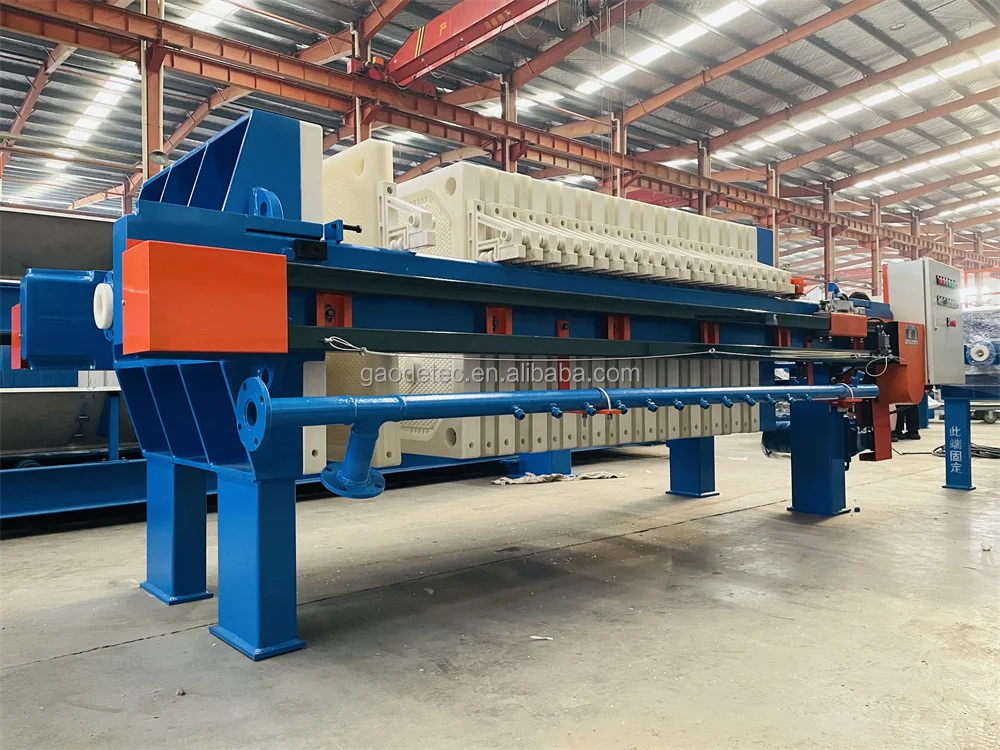

Automatic Filter Press Sludge Dewatering For Concentrate Filtration
- Category: >>>
- Supplier: Gaode Equipment Co. Ltd.
Share on (1601021915968):
Product Overview
Description
Product Overview
Separation of liquid and solid filter press membrane press filter in UK
A filter press is a batch operation, fixed volume machine that separates liquids and solids using pressure filtration. A slurry is pumped into the filter press and dewatered under pressure. It is used for water and wastewater treatment in a variety of different applications ranging from industrial to municipal.

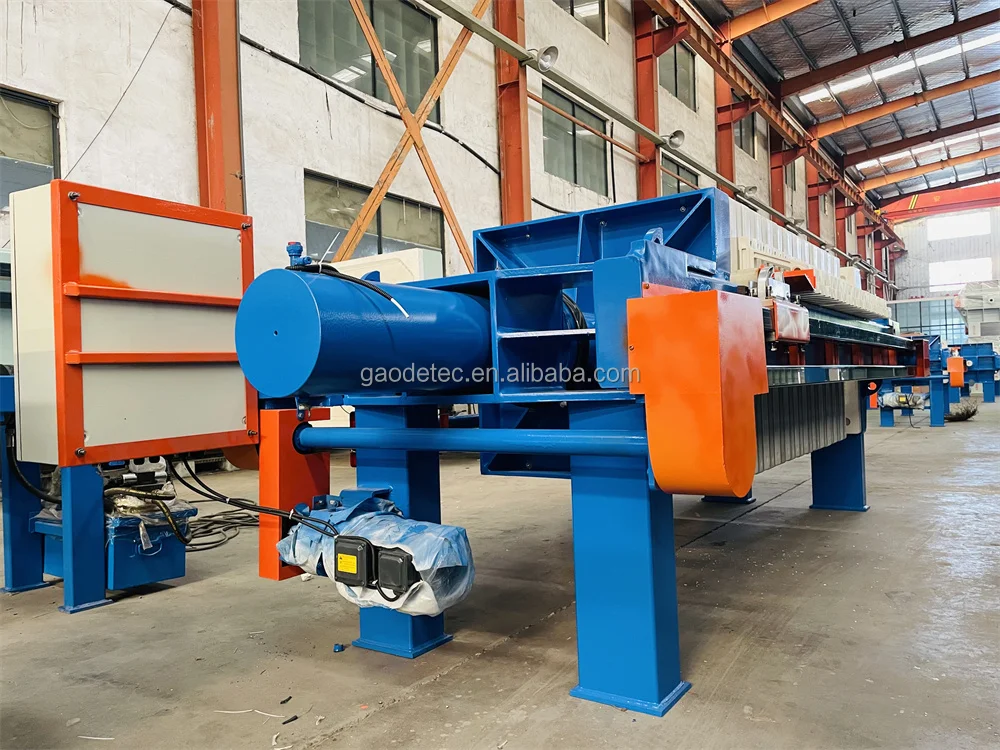

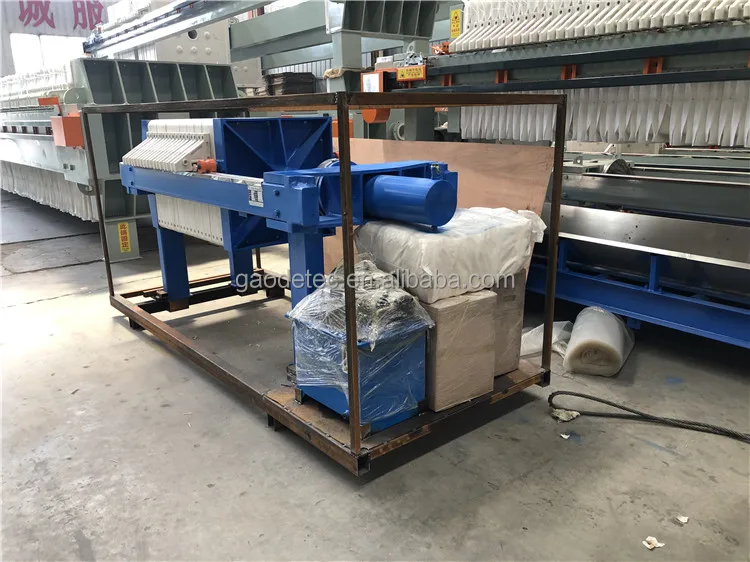

Skid mounted filter press is special design, the filter press machine supporting equipments are placed in an overall frame, which is convenient to move in the field, and can be directly placed on the ground or used on the pallet, can help reduce many cost and time.
Features
1. The use of low pressure filtration and high pressure can greatly shorten the entire filtration cycle.
2. The feeding pressure can reach 1.6MPa, and the pressing pressure can reach 2.0MPa.
3. The moisture content is greatly reduced, saving subsequent costs.
4. Squeeze can choose air, inert gas, water, oil and other fluid media to meet the needs of different industries.
5. Strong corrosion resistance, basically suitable for all solid-liquid separation operations.
6. Membrane filter plate has the characteristics of anti-fatigue, anti-aging and good sealing performance.
2. The feeding pressure can reach 1.6MPa, and the pressing pressure can reach 2.0MPa.
3. The moisture content is greatly reduced, saving subsequent costs.
4. Squeeze can choose air, inert gas, water, oil and other fluid media to meet the needs of different industries.
5. Strong corrosion resistance, basically suitable for all solid-liquid separation operations.
6. Membrane filter plate has the characteristics of anti-fatigue, anti-aging and good sealing performance.
PRODUCT SPECIFICATIONS
Model | XMZ30/870 | XMZ80/1000 |
Filter area(m2) | 30 | 80 |
Plate size(mm) | 870*870 | 1000*1000 |
Cake thickness(mm) | 30 | 30 |
Chamber volume(L) | 427 | 1093 |
Plate No.(pc) | 23 | 45 |
Filtration pressure(MPa) | 0.6 | 0.6 |
Motor Power(KW) | 4 | 4 |
Product Details
Plate shifter
Vibrate plate shifter
PP handles

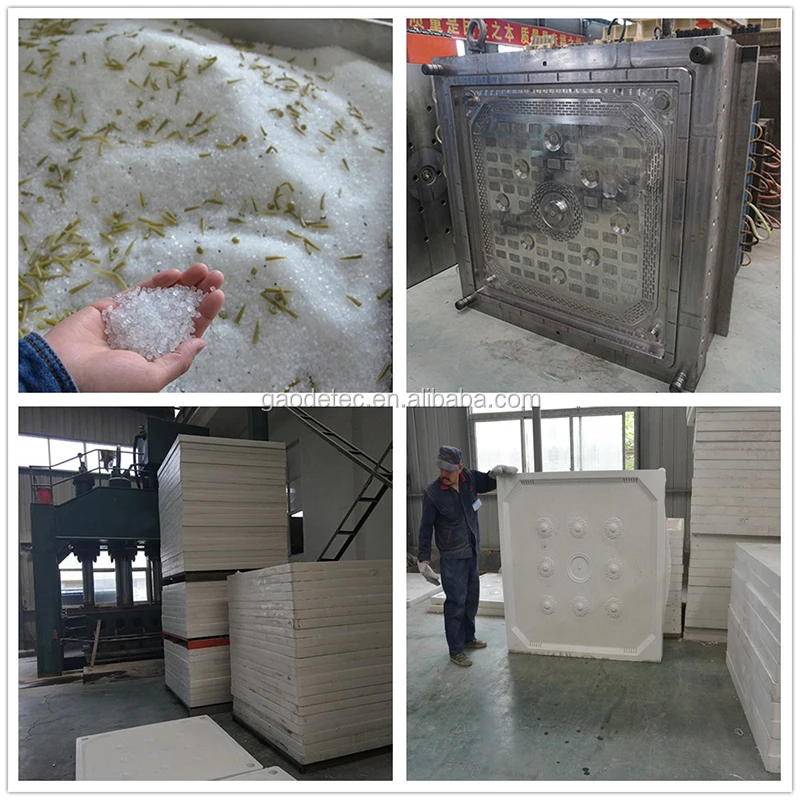

1. The filter plate is made of food grade pure PP material, so that the filter plate has excellent corrosion resistance, wear resistance and high temperature resistance.
2. The filter plates are processed under CNC presses with pressures of 1000 tons, 2000 tons, 2500 tons, 3000 tons, and 3800 tons respectively, so as to obtain good pressure resistance and not easy to deform.
3. The filter plate is polished by a machine to ensure a smooth surface, so that when the filter plate is pressed tightly, there is no gap in the middle

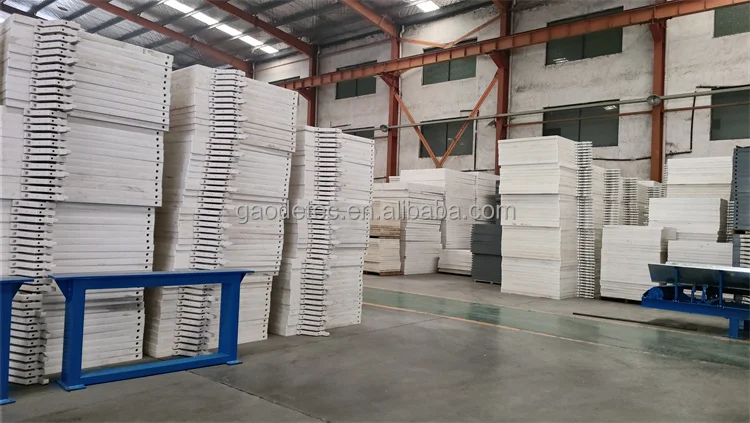

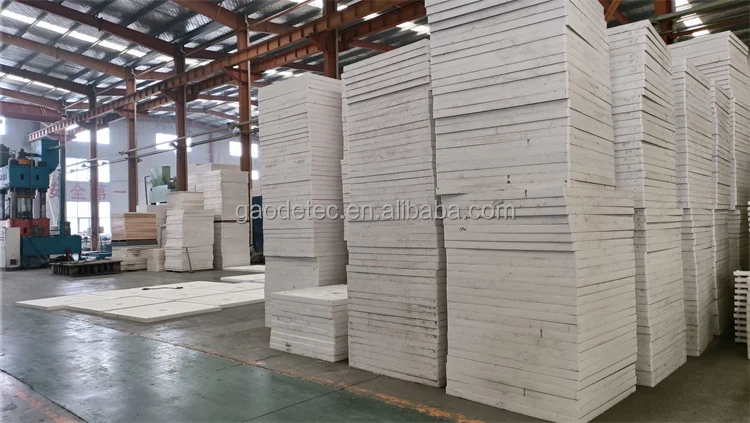

4. The filter plates are stacked to prevent deformation
4. The filter plates are stacked to prevent deformation
Successful Project
Municipal sewage
Oil sludge
Wastewater treatment
Sesame paste
Coal washing
Bio Coconut Oil
Diesel
Desulfurization wastewater
Re-granulation of waste plastics
Related Product

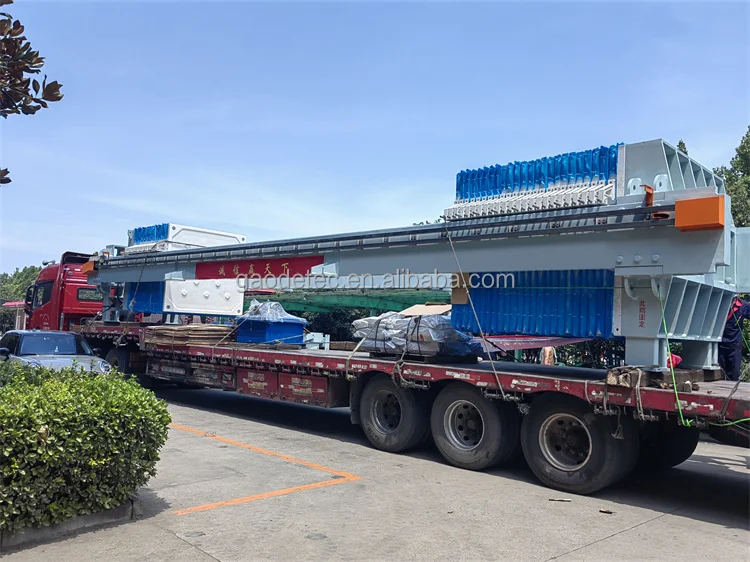

Packaging&Shipping

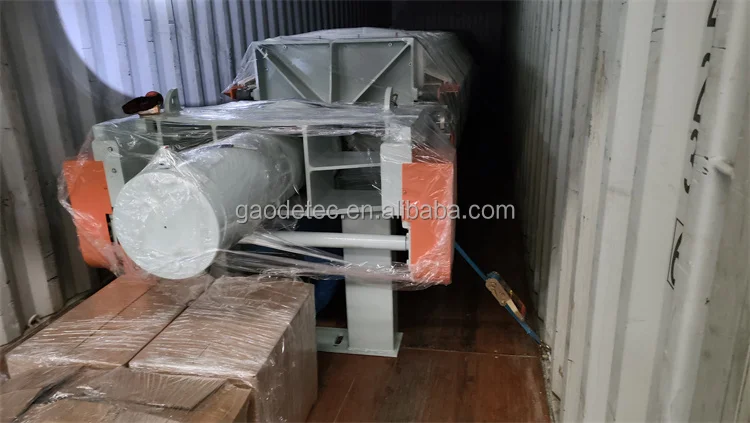

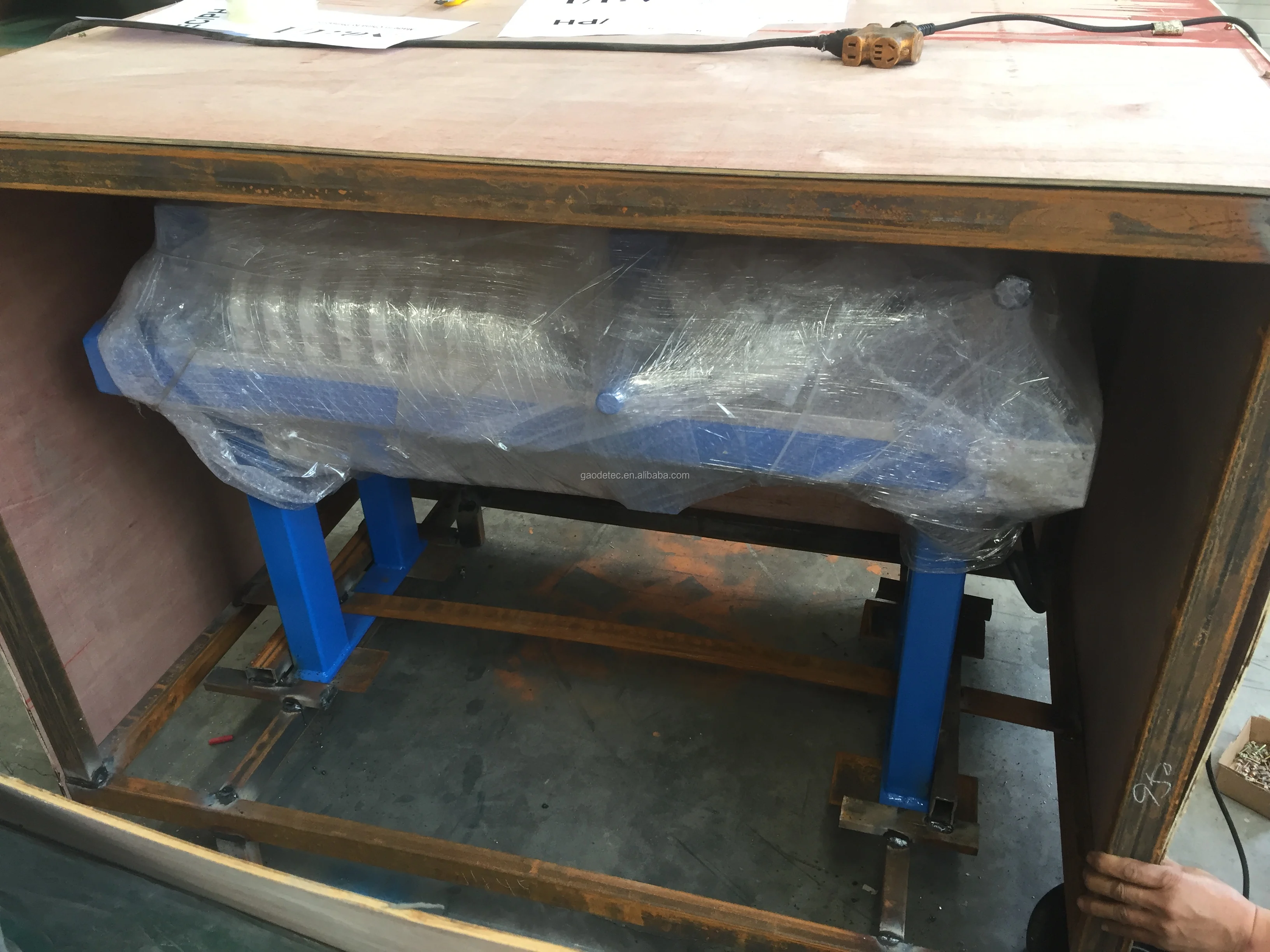

In order to protect our filter press and avoid damage during transportation, our filter press is first wrapped with bubble film,
then wrapped with plastic wrap, then fixed with steel bars, and finally shipped in plywood boxes. If your filter press is too big to package, we will use container to package it.
then wrapped with plastic wrap, then fixed with steel bars, and finally shipped in plywood boxes. If your filter press is too big to package, we will use container to package it.

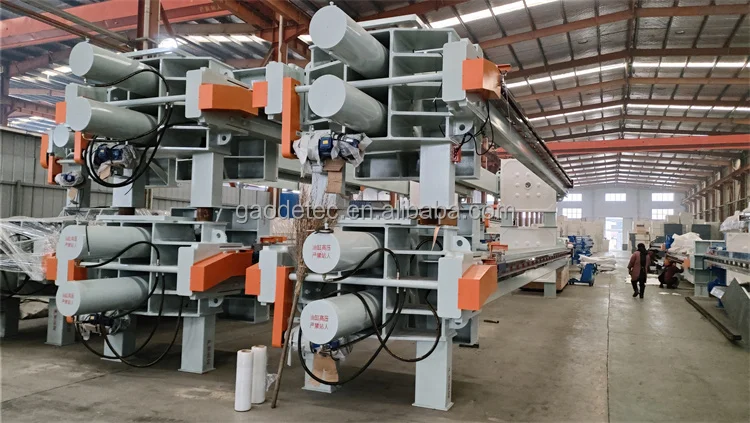

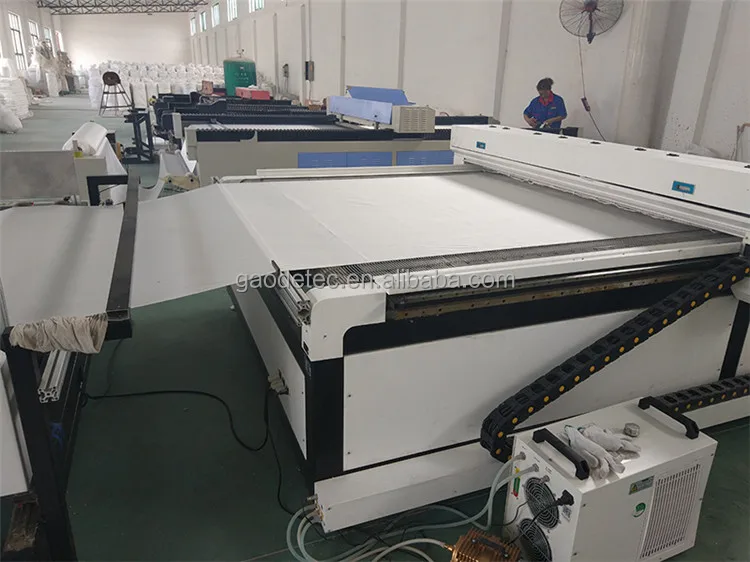

Factory
Our company has focused on manufacturing and selling filter press for over 14 years, we have many types filter press, filter plate and cloth for your option.
In order to confirm which type filter press suitable for your project, could you please help us to confirm the following information:
1. What material will you filter? temperature?
2. What output do you want?（per hour or per day）
3. What's your solid content? (how many solids in 1L liquid)
2. What output do you want?（per hour or per day）
3. What's your solid content? (how many solids in 1L liquid)
