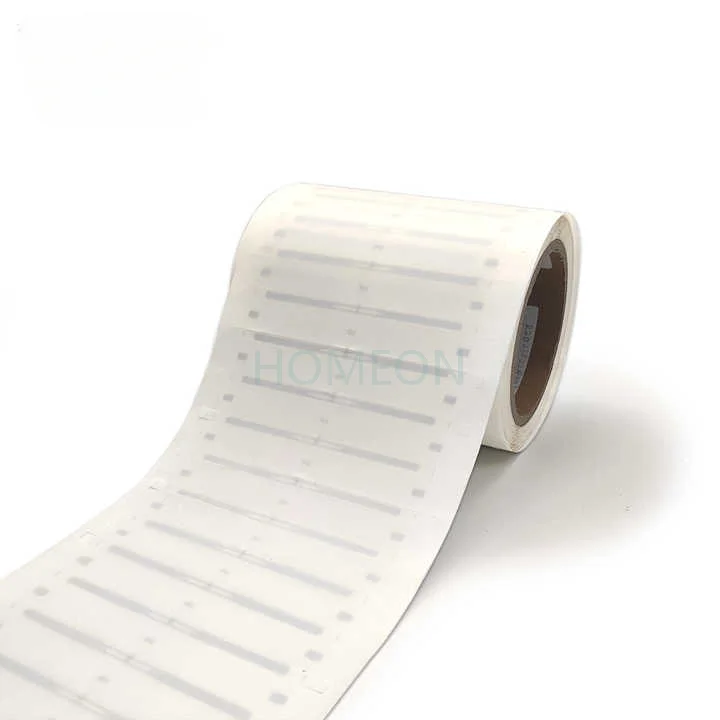

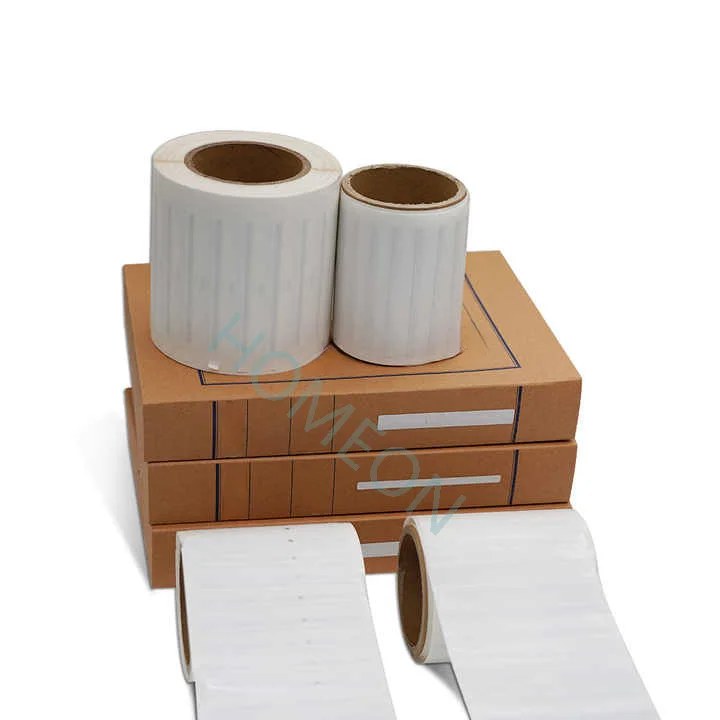

Printable Long Range Passive RFID UHF Tag RFID Smart dry/wet Inlay/Label/Tag for Files Management
- Category: >>>
- Supplier: SHENZHEN HOMEON FREIGHT LIMITED
Share on (1601021944452):
Product Overview
Description
RFID (Radio Frequency Identification) technology provides simplicity for Logistics, Identification, Assets Tracking, Inventory Management, even in e-Payment, E-ticket etc., with a low cost paper label tag. With the advance of UHF technology , it is become more prosperity in applications in Aviation, healthcare, retail apparel, supply Chain, even in emerging technologies.
Model | Long Range Passive rfid uhf tag RFID UHF Smart dry/wet Inlay/Label/Tag for Files Management |
Chip | FM13UF0051E |
Memory | • 160-bit of EPC memory • 32-bit of User memory• 32-bit kill password to permanently disable the tag • Wide operating temperature range: -40 °C up to +85 °C • Minimum 100k write cycle endurance |

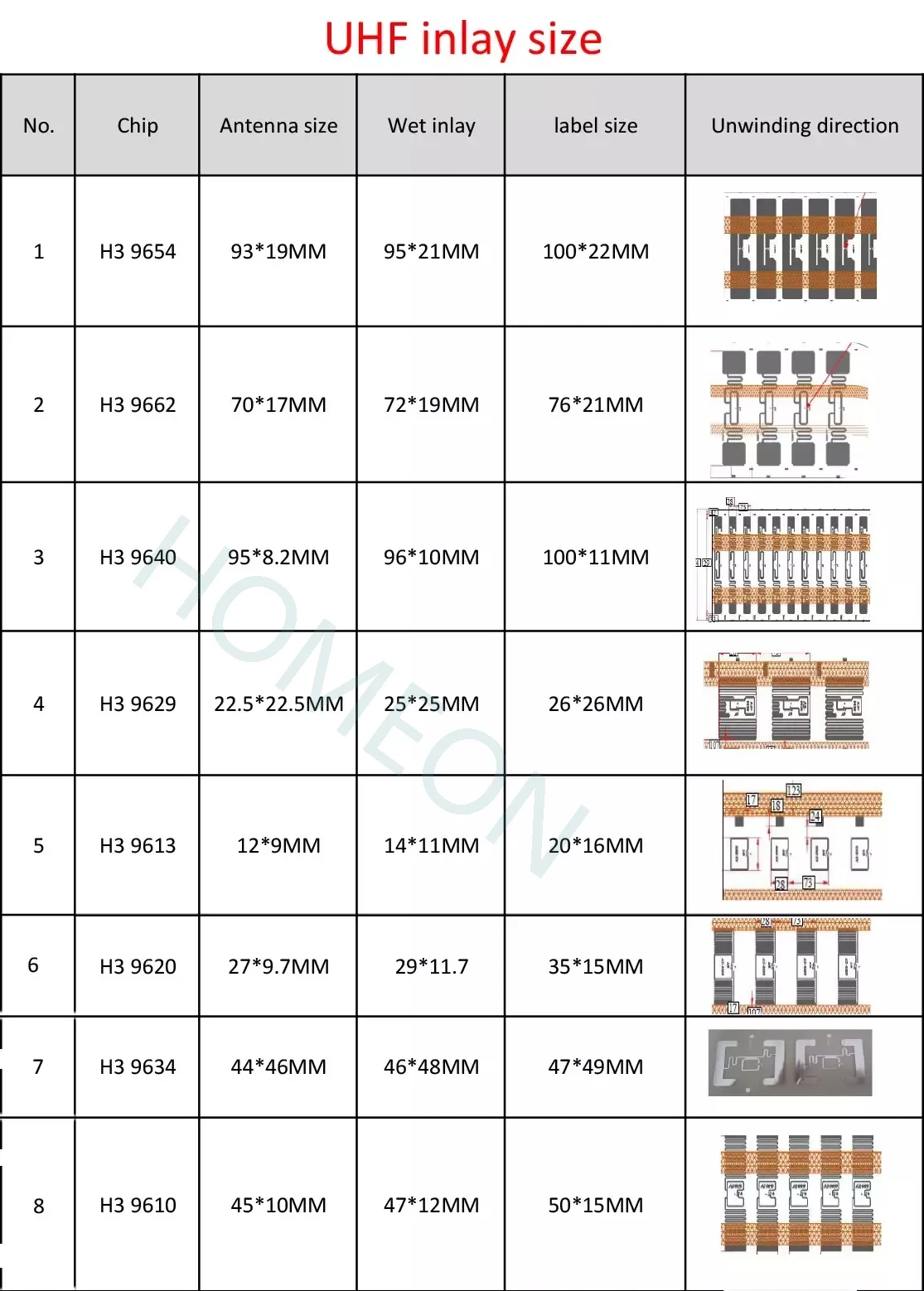

Size | Antenna size:95*3 mm Wet inlay size: 124*5mm/Customized Label size: 124*5mm/Customized |
Reading Range | 1-8m depend on reader and tag size |
Substrate | PET |
Surface Material | PET / Paper / PVC / PP |
Antenna Process | Aluminum ETCH(AL10um) |
Protocol | ISO/IEC 18000-6C, EPC Class1 Gen2 |
Operating Frequency | 860~960MHz |
Working Mode | Passive |
Write Cycles | 100000 |
Operating temperature / humidity. | -40~70℃/20%~90% RH |
Storage temperature / humidity | -20~50℃ / 20%~90% RH(Without condensation). |

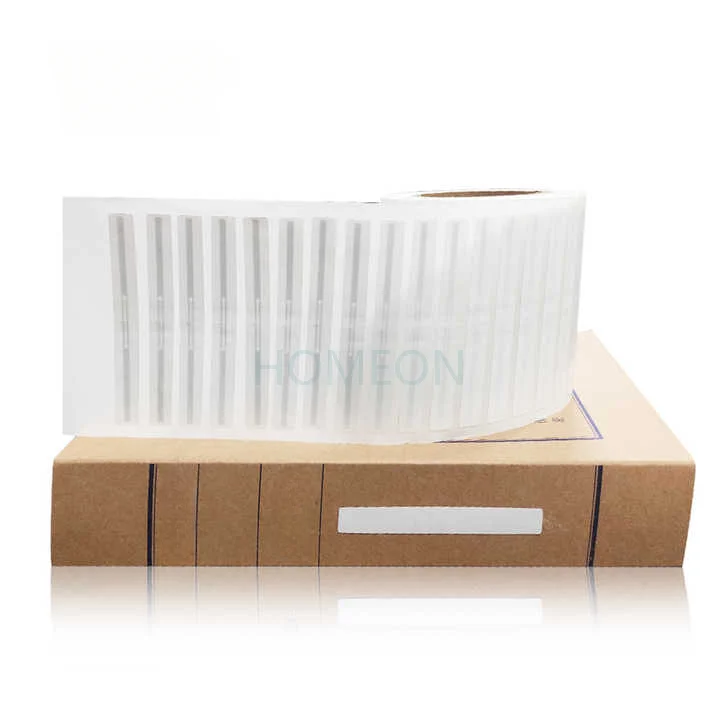

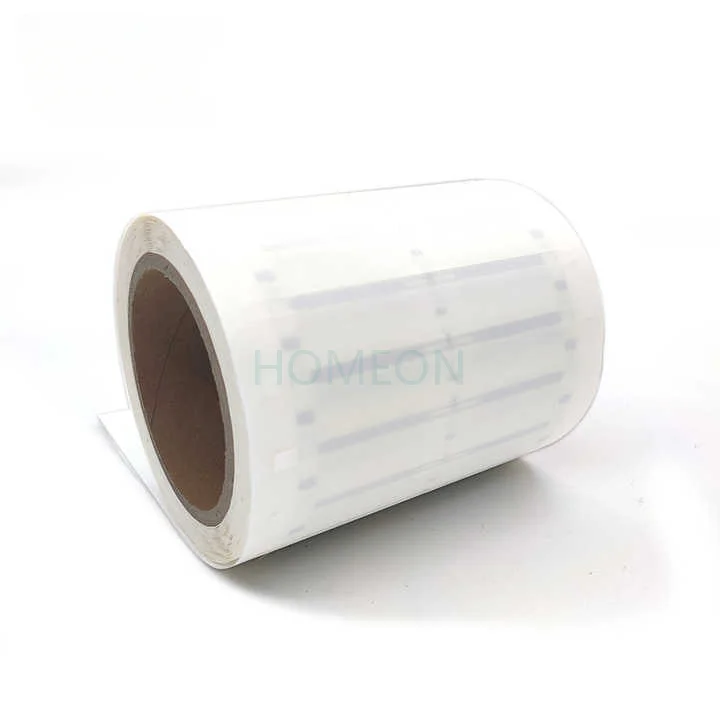

Inlay Format | in roll |
Delivery Format | 1000-5000pcs/roll, 4 rolls /carton |
Some common uses for RFID applications include | * jewleries management * inventory management*file management * asset tracking and equipment tracking |

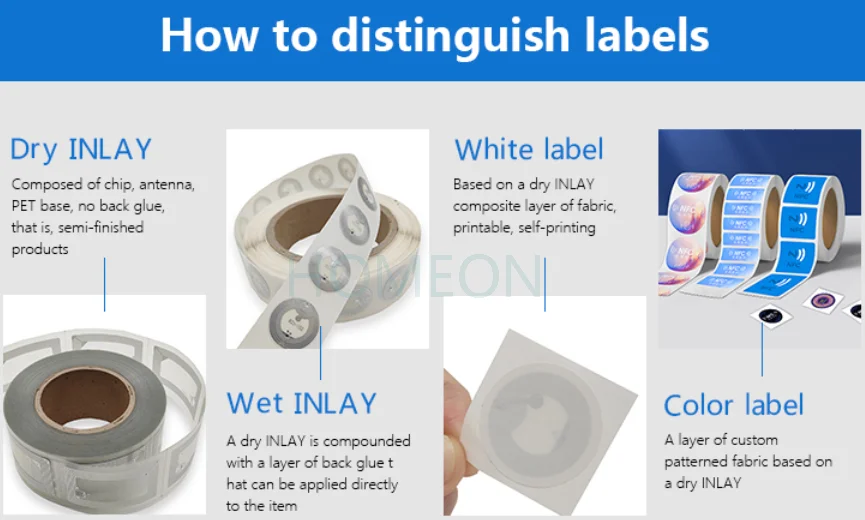

RFID Dry Inlay
Inlay is a special term for RFID industry, which refers to a pre laminated product composed of multi-layer PVC or other materials containing chips and coils. After different forms of packaging, different kinds of RFID tags can be made. Inlay can be understood as semi-finished products without encapsulation of RFID tags.
Inlay is a special term for RFID industry, which refers to a pre laminated product composed of multi-layer PVC or other materials containing chips and coils. After different forms of packaging, different kinds of RFID tags can be made. Inlay can be understood as semi-finished products without encapsulation of RFID tags.
RFID Dry inlay does not contain back glue, and its structure is antenna + chip + chip package; Frequency requirements: 860-960MHz-uhf / 13.56MHz-iso14443 / 13.56MHz-iso15693. RZX has technicians and offer antenna design service to meet various customer requirements.

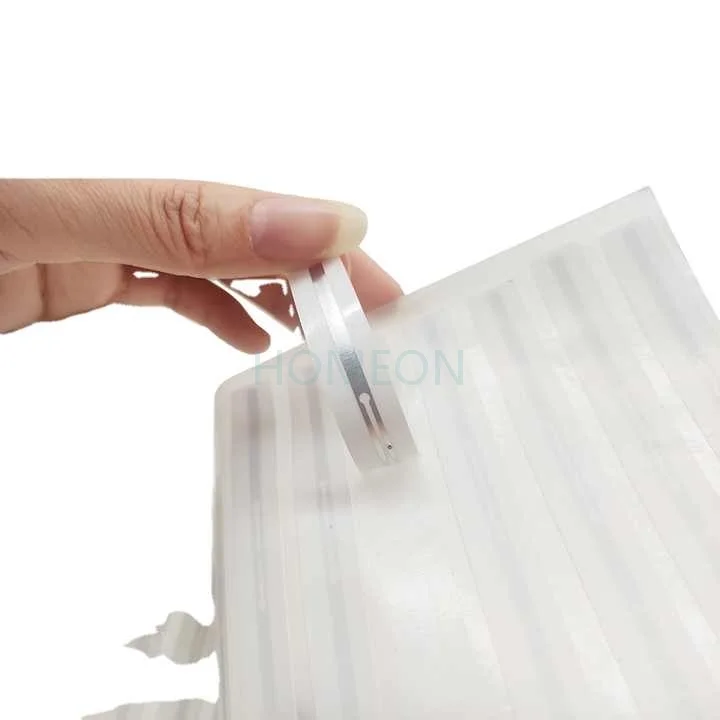

RFID Wet Inlay
RFID Wet Inlay
RFID Wet inlay contains back glue, which can be directly attached to objects. The structure is antenna + chip + chip
package + glue + release paper, if no logo print, customer can use the rfid wet inlay directly without make it as white/ printed label for cost saving. Frequency requirements: 860-960MHz-uhf / 13.56MHz-iso14443 / 13.56MHz-iso15693.
RZX has technicians and offer antenna design service to meet various customer requirements.
RFID Label
RFID white label, RFID sticker contains both back glue and top coated paper or PET, the structure is Coated paper/PET+antenna + chip + chip package + glue + release paper. RFID label packaging can be divided into fold, roll and single product. Products can be divided into thermal printing and heat transfer printing; materials can be paper, waterproof materials and PVC or PET for choice, size diversity for customers to choose, encryption processing, personalized and coding services, thermal printing full package; frequency requirements: 860-960MHz-uhf / 13.56MHz-iso14443 / 13.56MHz-iso15693.
package + glue + release paper, if no logo print, customer can use the rfid wet inlay directly without make it as white/ printed label for cost saving. Frequency requirements: 860-960MHz-uhf / 13.56MHz-iso14443 / 13.56MHz-iso15693.
RZX has technicians and offer antenna design service to meet various customer requirements.
RFID Label
RFID white label, RFID sticker contains both back glue and top coated paper or PET, the structure is Coated paper/PET+antenna + chip + chip package + glue + release paper. RFID label packaging can be divided into fold, roll and single product. Products can be divided into thermal printing and heat transfer printing; materials can be paper, waterproof materials and PVC or PET for choice, size diversity for customers to choose, encryption processing, personalized and coding services, thermal printing full package; frequency requirements: 860-960MHz-uhf / 13.56MHz-iso14443 / 13.56MHz-iso15693.
Product Usage
FAQ
1. CAN YOU OFFER US FEW SAMPLES ?
After we know clearly what products you need, then we can offer similar existing sample for your reference.
Sample free with shipping cost you paid.
If you need customized tag sample based on your design and requirement,there is reasonable sample cost charged accordingly.
2. WE ARE NOT AN EXPERT BUYER IN YOUR TECHNOLOGY, WHAT INFORMATION DOYOU NEED FROM US TO QUOTE ?
Dear friend, please inform us clearly the tag's application, what goal do you want to achieve,
we would propose you the suitable product in good price
3. WE HAVE A CONCERN THAT WE PAID, BUT YOU DON'T SEND US THE GOODS .
We are a leading company doing honest business in the internat market for years.
We always get positive feedback from our worldwide customers.
Furthermore, our company support Trade Assurance on Alibaba,
you can place order through Alibaba that guarantees your money safe and order go smoothly.
4. CAN WE VISIT YOUR FACTORY ?
Yes, warmly welcome your factory tour. And it's honored to be your guide in your China trip.
After we know clearly what products you need, then we can offer similar existing sample for your reference.
Sample free with shipping cost you paid.
If you need customized tag sample based on your design and requirement,there is reasonable sample cost charged accordingly.
2. WE ARE NOT AN EXPERT BUYER IN YOUR TECHNOLOGY, WHAT INFORMATION DOYOU NEED FROM US TO QUOTE ?
Dear friend, please inform us clearly the tag's application, what goal do you want to achieve,
we would propose you the suitable product in good price
3. WE HAVE A CONCERN THAT WE PAID, BUT YOU DON'T SEND US THE GOODS .
We are a leading company doing honest business in the internat market for years.
We always get positive feedback from our worldwide customers.
Furthermore, our company support Trade Assurance on Alibaba,
you can place order through Alibaba that guarantees your money safe and order go smoothly.
4. CAN WE VISIT YOUR FACTORY ?
Yes, warmly welcome your factory tour. And it's honored to be your guide in your China trip.
