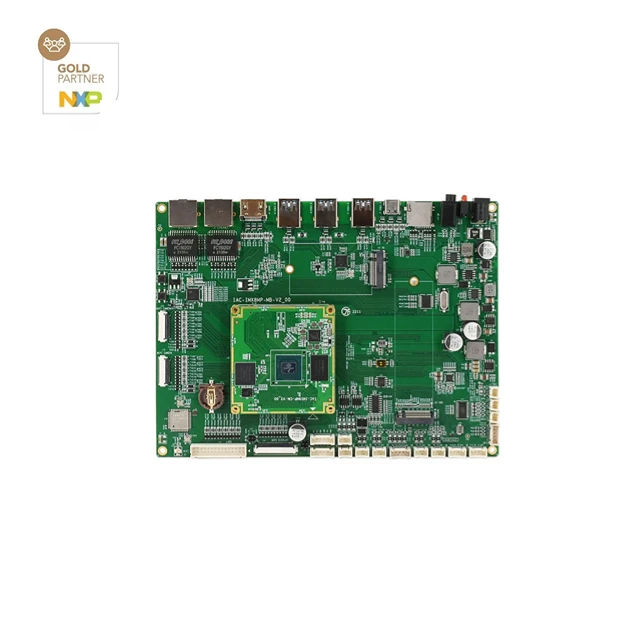

Low Cost IMX8M Plus Cortex A53/M7 Evk Linux Development Board Kit With 2GB LPDDR4 32GB eMMC Dual Ethernet CAN FD
- Category: >>>
- Supplier: Zhejiang Qiyang Intelligent Technology Co. Ltd.
Share on (1601021946314):
Product Overview
Description
Product Description
Accessories
Product Paramenters

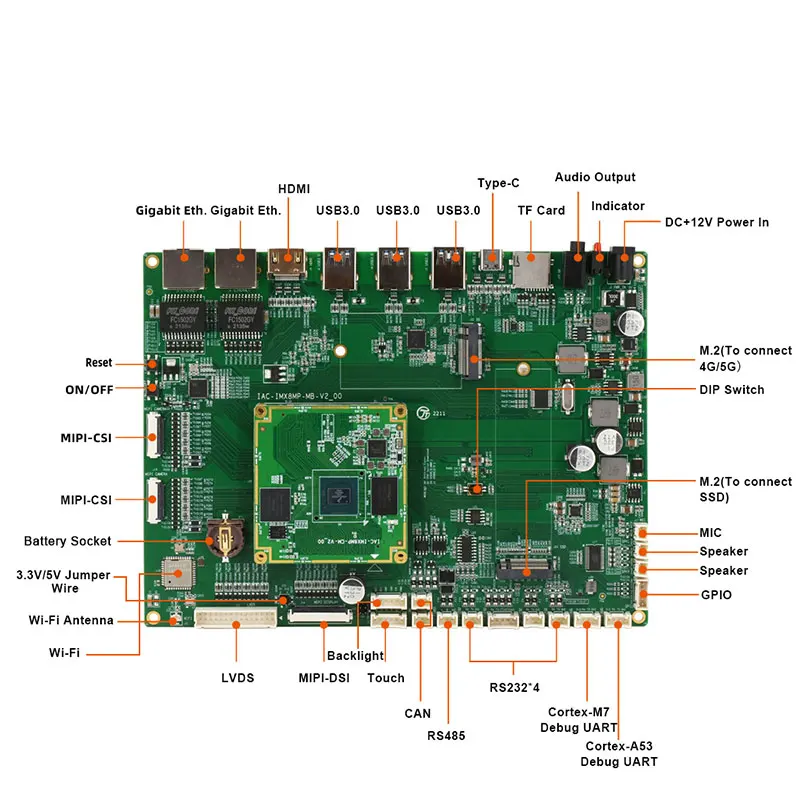

CPU | NXP i.MX8M Plus ，Quad ARM® Cortex™-A53 + Cortex-M7 |
Frequency | Cortex-A53@1.6 GHz, Cortex-M7@800MHz |
NPU | 2.3Tops |
GPU | GC7000UL with OpenCL and Vulkan support 16 GFLOPS OpenGL ES 3.0/3.1、 Vulkan、 Open CL 1.2FP、 OpenVG1.1 |
VPU | Support 1080p60, H.265/4, VP8, VP9 video decoding; support 1080P60, H.265/4 video codes |
ISP | Dual Camera ISP (12MP) |
RAM | 2GB LPDDR4 |
Flash | 8GB eMMC,16GB/32GB eMMC Opt.,（QSPI Flash Selectable) |

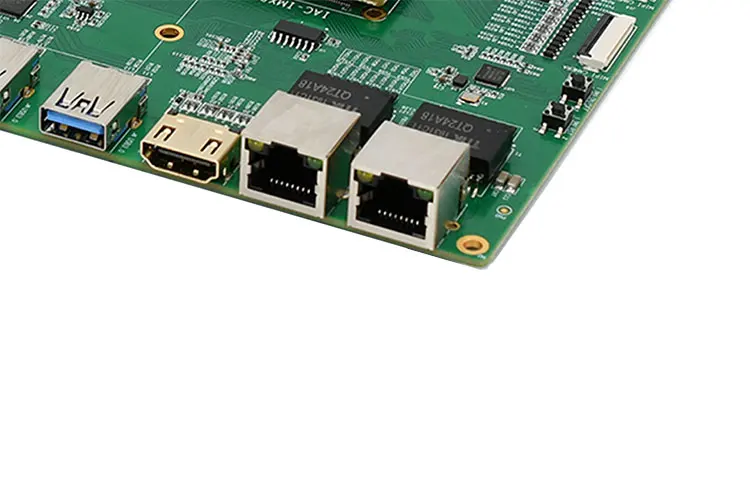

Ethernet | 2 * Gbit/s Ethernet (1x TSN) |
UART | 1 * Cortex-A53 Debug UART; 1 * Cortex-M7 Debug UART;4 x RS232(3 * 3-wire RS232、 1 * 5-wire RS232);1 * RS485 |
CAN | 2 * CAN-FD |
WiFi | On board WIFI Module, support 2.4GHz/5GHz Dual -frequency wifi, 802.11a/b/g/b/ac protocol |
Display Interface | 1*MIPI-DSI(4-Lane),with resolution of 1920x1080@60; 1*LVDS(Dual-Channel)， with resolution of 1920x1080@60; 1*HDMI(eARC)，with resolution of 1920x1080@60 |
Audio | 2*Speaker amplifier output; dual -channel audio output (Earphone socket); MIC audio input |

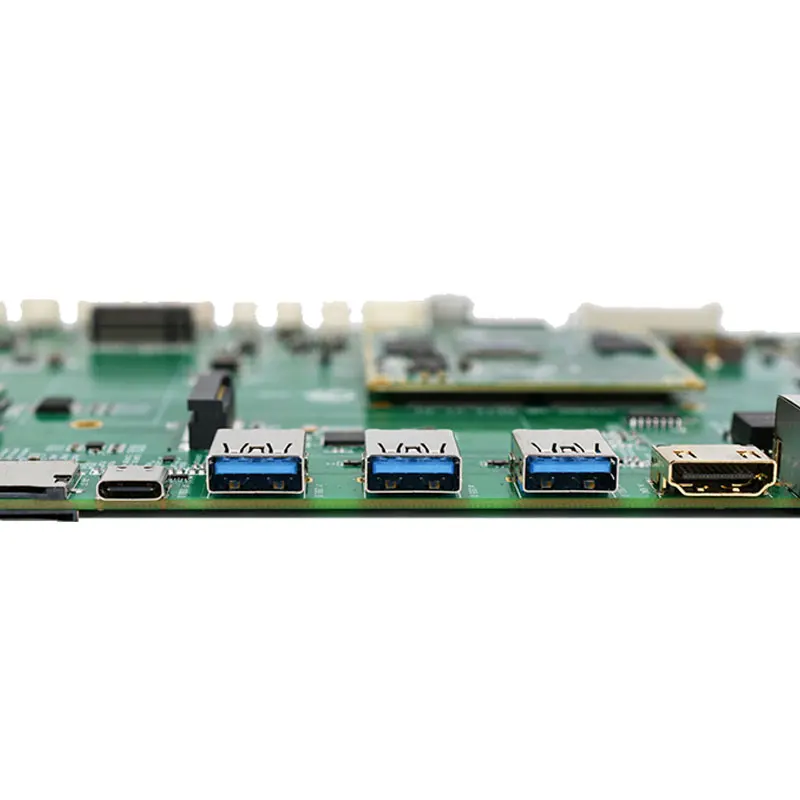

USB | 3*USB3.0 HOST; 1*USB Type-C |
Camera | 2*MIPI-CSI(4-Lane)，support two cameras simultaneous input |
Input Interface | I2C |
Extension Interface | M.2 M-KEY（To connect SSD）; M.2 B-KEY(To connect 5G module); SIM Card; 3*GPIO(1.8V) |
Storage interface | 1*TF Card |
Other | Reserved circuit, Watchdog, Real time clock |
Storage interface | 1*TF Card |
Other | Reserved circuit, Watchdog, Real time clock |
Power Supply | +12V |

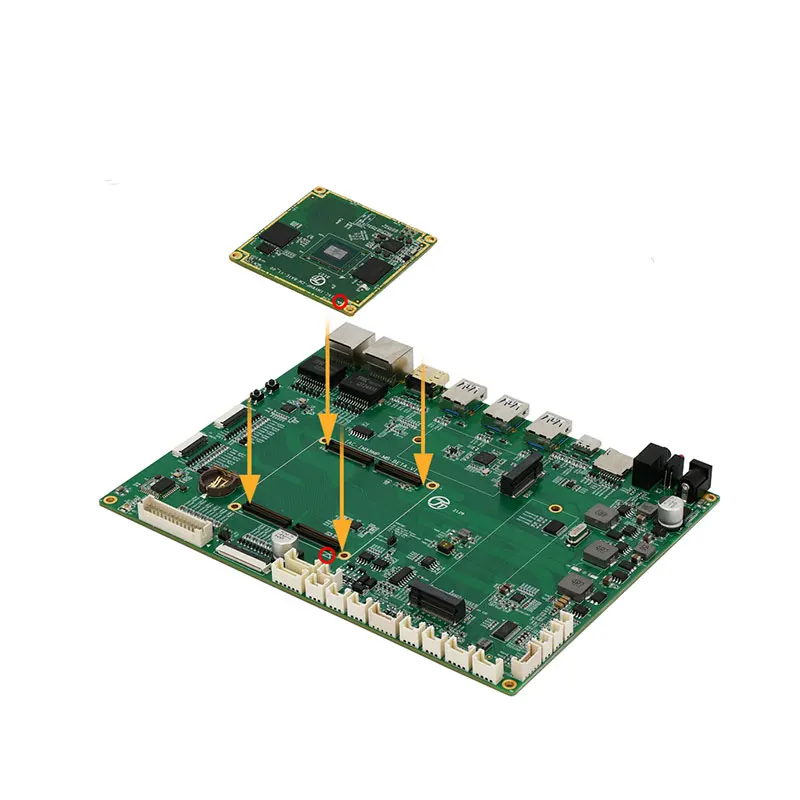

Size | Core board:60mm*63mm(8-Layer PCB); Carrier board:200mm*150mm(4-Layer PCB) |
Power Consumption | 5W |
Operating Temperature | -40℃ ~ +85℃ |
Working Humidity | 5% ~ 95%, non-condensing |
Operating System | Linux5.10.35，Android (Unreleased） |
