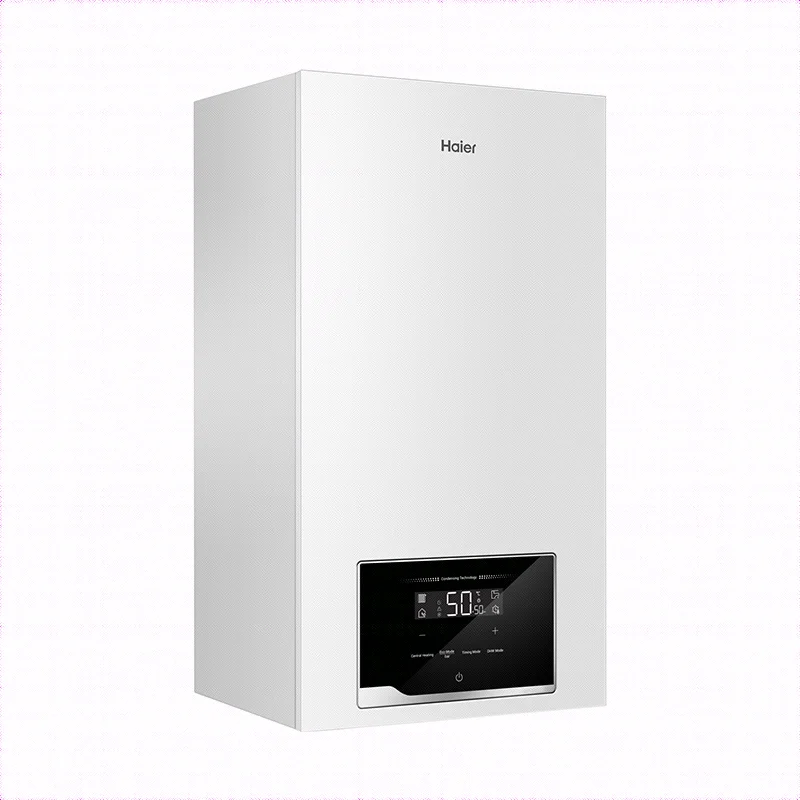

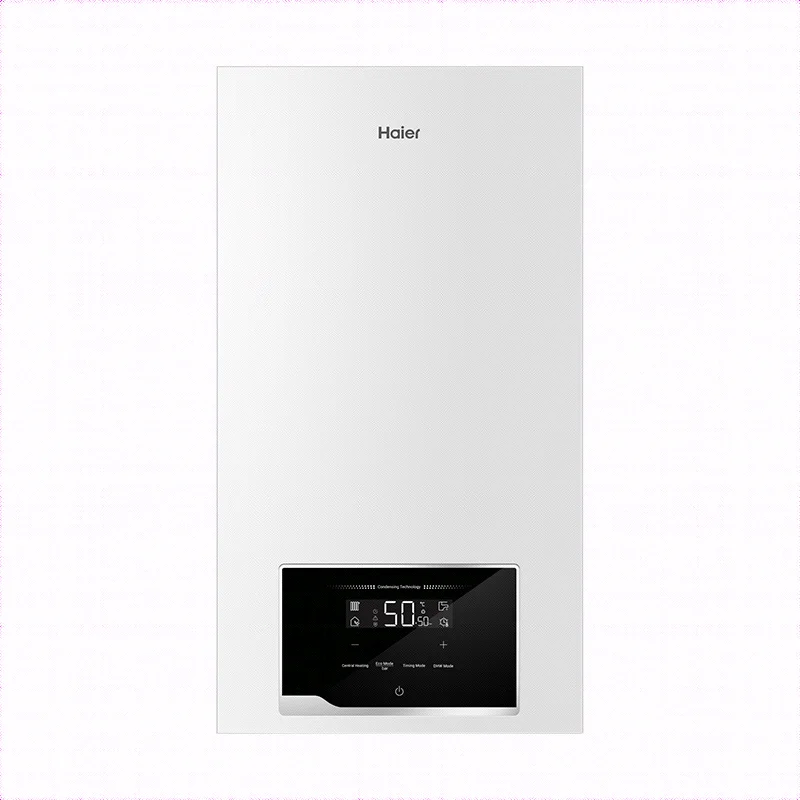

Haier Best Price Smart Wifi Condensate Neutralizer Room Central Heating Fuel Gas Pressure Hot Water For Gas Boiler
Haier Best Price Smart Wifi Condensate Neutralizer Room Central Heating Fuel Gas Pressure Hot Water For Gas Boiler
Haier Best Price Smart Wifi Condensate Neutralizer Room Central Heating Fuel Gas Pressure Hot Water For Gas Boiler
Haier Best Price Smart Wifi Condensate Neutralizer Room Central Heating Fuel Gas Pressure Hot Water For Gas Boiler
Haier Best Price Smart Wifi Condensate Neutralizer Room Central Heating Fuel Gas Pressure Hot Water For Gas Boiler
Haier Best Price Smart Wifi Condensate Neutralizer Room Central Heating Fuel Gas Pressure Hot Water For Gas Boiler
Haier Best Price Smart Wifi Condensate Neutralizer Room Central Heating Fuel Gas Pressure Hot Water For Gas Boiler

Haier Best Price Smart Wifi Condensate Neutralizer Room Central Heating Fuel Gas Pressure Hot Water For Gas Boiler

Share on (1601022036198):


Price:$280.00 - $350.00

Quantity:


Product Overview

Description











Products Description




Model
GreenLine 1.20 Ti
GreenLine 1.26Ti
GreenLine 1.30 Ti
GreenLine 1.35 Ti
Combustion chamber type
Closed: removal of combustion products due to forced draft created by the fan
Type of gas
Mechanical
Nominal pressure of natural gas(mbar)
20
50
80
100
Connecting pressure of natural gas(mbar)
5-25



Burner heat output range (min.-max.)(kW)
7.5-20.0
9.8-26.0
12.5-30.0
8.0-35.0
Heat output
range in heating mode(min.-max.)(kW)
7.0-19.2
9.1-24.6
11.8-28.5
7.6-34.6
Thermal power range in DHW mode (min.-max.)(kW)
7.7-20.4
10.0-26.5
12.7-30.3
8.4-36.5
Max natural gas consumption(m³/h)
2.1
2.75
3.18
3.7
Efficiency of rated heat load at 80℃/60℃ for water supply and return(%)
96



Efficiency of rated heat load at 50℃/30℃ for water supply and return(%)
102
102
102
100
Partial heat load
efficiency(%)
105



Heating system
Temperature control range(℃)
35-85



Maximum cooling temperature(℃)
90



Maximum cooling temperature(bar)
3



Expansion tank volume(L)
6
6
6
10
Expansion tank volume




Operating voltage / frequency(V/Hz)
230±10%/50
Power consumption(W)
105
115
120
125
Overall and connecting dimensions
Height(mm)
725
725
725
760
Width(mm)
400
400
400
488
Width(mm)
325
325
325
330
Net weight(kg)
35
36
37
45
Heating supply(inch)
3/4
Heating return(inch)
3/4
Cold water inlet(inch)
1/2
Hot water outlet(inch)
3/4
Gas connection(inch)
3/4
Smoke/air duct system
60/100


Usage Scenarios




Energy saving



Condensing technology


After burning,the flue exhaust to outside directly ,flue temp usually above 120°C,a big wastage of heat.Condensing Technology can
use the recycled flue heat to improve the efficiency.
The heating rate is up to 105 and thermal efficiency increase 15% comparing with traditional gas boilers.
*Water inlet and outlet path


Smart heating
ECO mode can adjust heating power to 70% when user is going outside, and Timing mode can delay central heating from 1-99 hours to save energy for users.


Easy to operate Comfortable and assured


Connectable spiral tank
Built-in three-way valve is connectable to spiral tank to supply bigger water volume for whole family use, suitable for 200 sqm villa or big house.

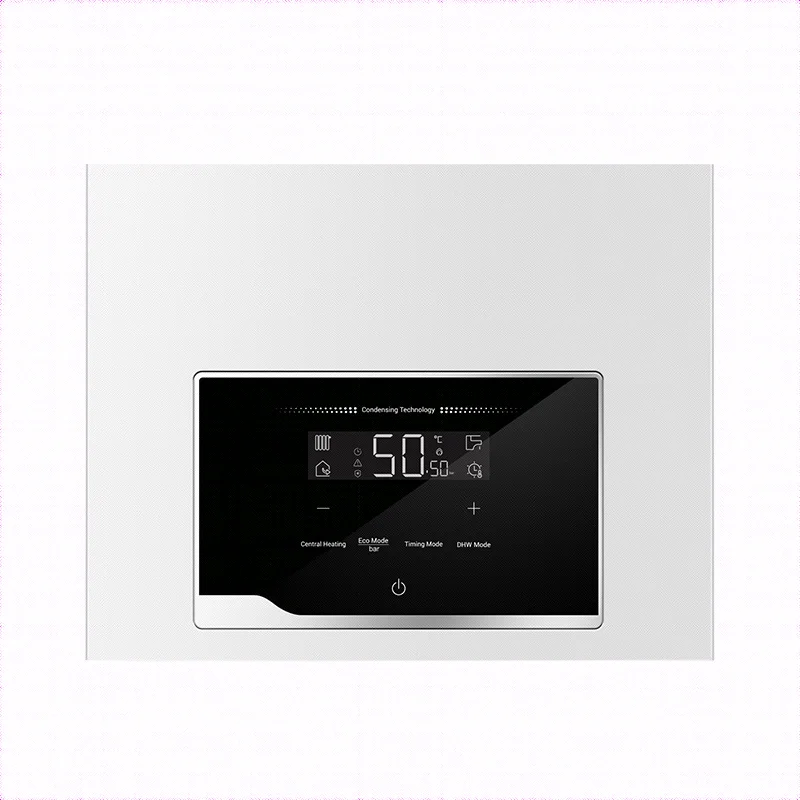

Digital water pressure display
The users can supervise the gas boiler working condition very easily.


QUALITY


DC Fun
DC platform can adjust fan speed automatically, safe operation under force 9 strong wind weather.
Suitable for different working conditions
The gas boiler can be working under low-pressure conditions of electricity and air; (voltage 110V and air pressure 0.2MPa).

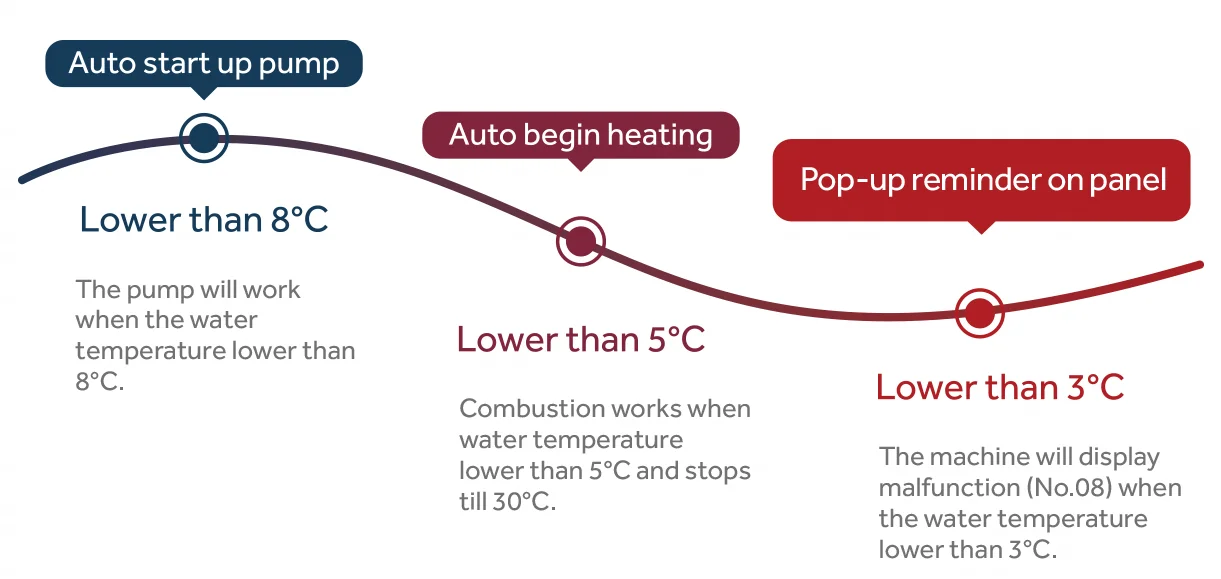

3 Level Anti-freezing
Strong wind resistance and 3-level anti-freezing technology, it is still working safely under extreme weather.

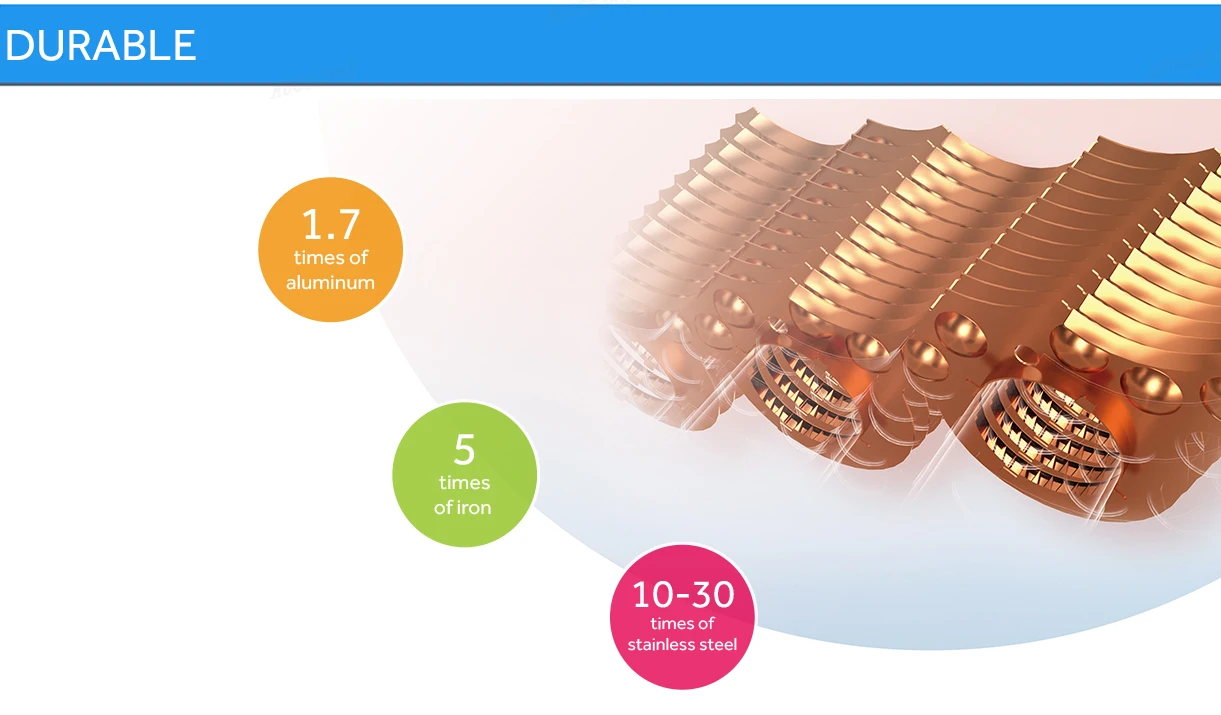

Oxygen-free heat exchanger
Higher thermal efficiency and more durable also can inhibit bacteria in the water.


Higher thermal efficiency
Upgraded heating slice, the contact area of flue increases by 26%*

New designed ventilation and water channel to maximize absorb the flue heat
Inhibit bacteria
The sterilization rate is 99.99% and it can effectively filtrate the impurity ≥0.3mm in the water to safeguard users' health








Company Profile




FAQ


Q1. Who are we?
A: Established in 1984, Haier is the world's NO.1 major appliance brand. Qingdao Haier New Energy Electric Appliance Co, Ltd, established in June 2013, is a professional engaged in the research, development, sale and service of electric water heater, overseas heat pump, commercial heat pump and GEA water heater etc.

Q2. How can we guarantee quality?
A: Always a pre-production sample before mass production; Always final Inspection before shipment.

Q3. What can you buy from us?
A: Heat pump water heater, air source heat pump, inverter heat pump, EVI heat pump, instant electric water heater, storage electric water heater, solar water heater, gas water heater, etc.

Q4. Why should you buy from us not from other suppliers?
A: Haier is a listed company with the biggest and most advanced heat pump production factories all over China. We have a very strong and professional R&D team with more than 40 employees. 4 global R&D centers, superior engineers are in research for 24*7, 11 global production base

Q5. What services can we provide?
A: Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP, DDU;
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF;
Accepted Payment Type: T/T,L/C,D/P D/A, MoneyGram, Credit Card, Western Union, Cash, Escrow;
Language Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, French, Arabic, Russian, Korean, Italian
