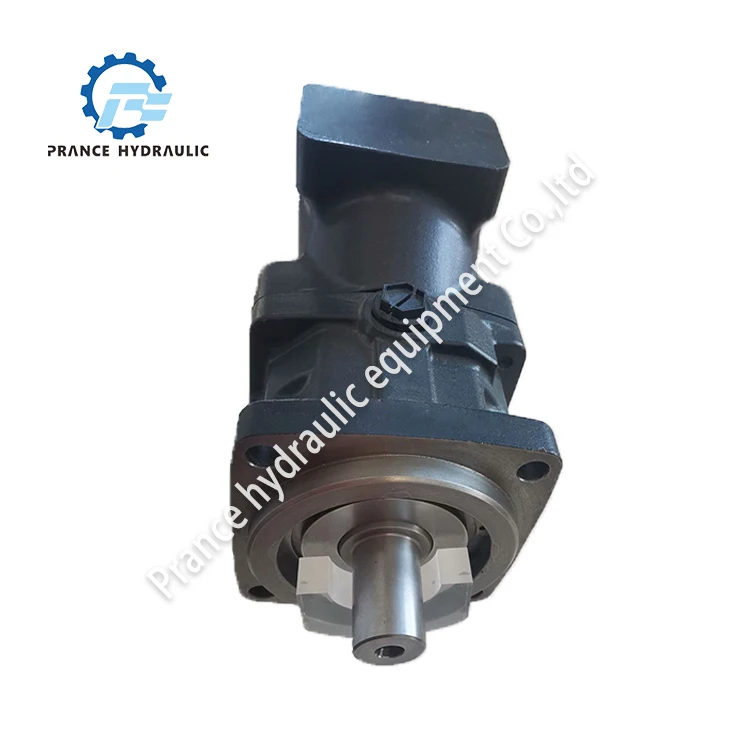

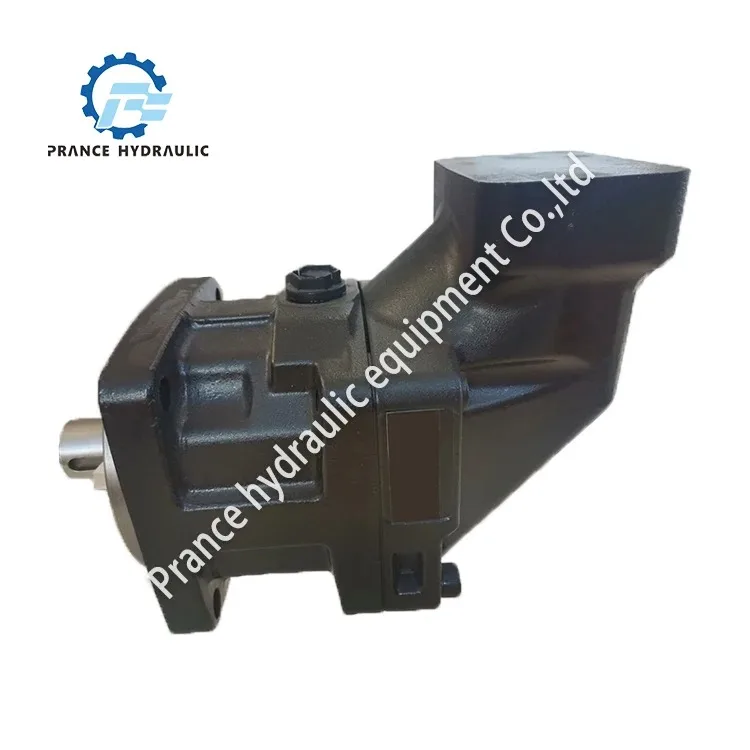

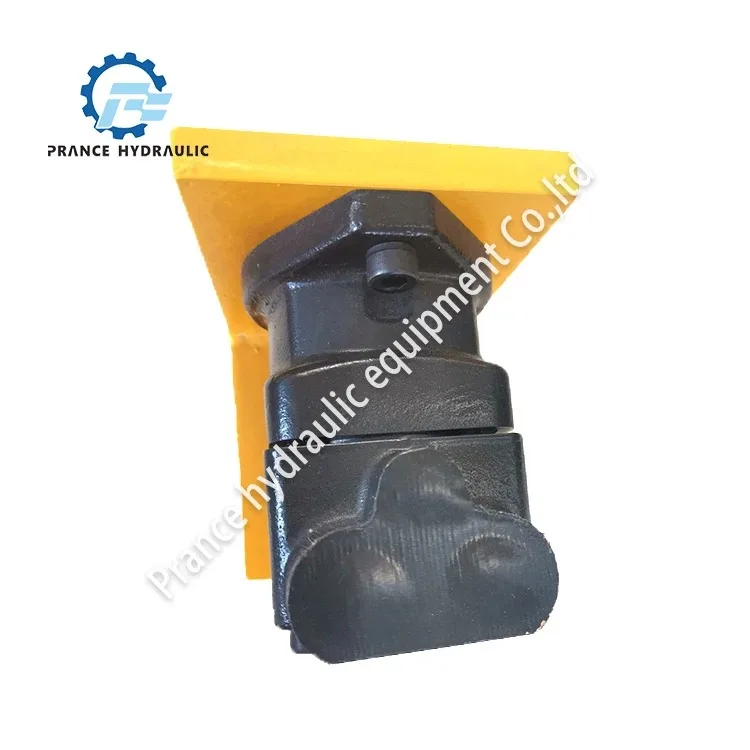

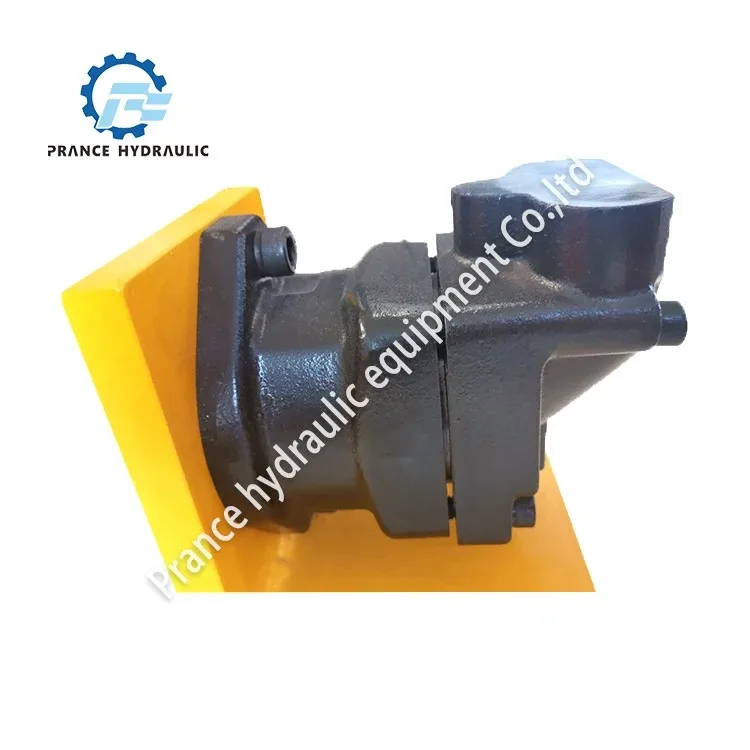

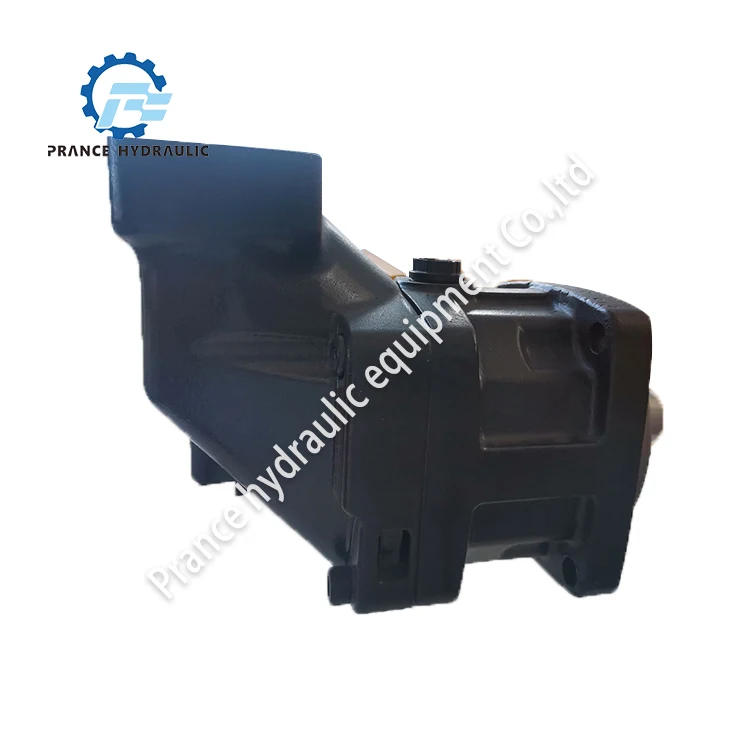

F11 Hydraulic High Speed Oil Piston Pump Motor

1).Max intermittent pressure up to 480 bar (6960 psi) and continuous operating pressure up to 420 bar (6090 psi)
2).The 7 or 9 piston design provides high start-up torque and smooth motor operation
3). ISO, CETOP, Cartridge and SAE versions
4).The laminated piston ring offers important advantages such as unbeatable efficiency and
thermal shock resistance
5).High allowable speeds and operating pressures means high output power
6).The unique piston locking, timing gear and bearing set-up as well as the limited number of parts add up to a very robust design
with long service life and, above all, proven reliability.
7).The 40° angle between shaft and cylinder barrel allows for a very compact, lightweight motor/pump
8).Small envelop size and a high power-to-weight ratio
9).The motor version has highly engineered valve plates for high speed and low noise
10).The pump version has highly engineered valve plates for increased self priming speed and low noise, available with left and
right hand rotation
11).The F11's and F12's have a simple and straight-forward design with very few moving parts,making them very reliable
motors/pumps
12).Our unique timing gear design synchronizes shaft and cylinder barrel, making the F11/F12 very tolerant to high 'G' forces and
torsional vibrations
13).Heavy duty roller bearings permit substantial external axial and radial shaft loads
