DPO7502C 2CH 500MHz Digital oscilloscope with spectrum analyzer signal source logic analysis frequency meter
- Category: >>>
- Supplier: Shenzhen Wanbo Hi-Tech Co. Ltd.
Share on (1601022171167):
Product Overview
Description
DPO7502C 2CH 500MHz Digital oscilloscope with spectrum analyzer signal source logic analysis frequency meter
oscilloscopes,digital oscilloscope,automotive oscilloscope,hantek oscilloscope,oscilloscope 4 channel, 500Mhz oscilloscope
This page link is for DPO7502C 2CH 500MHz 2GSa/s
10.1 inch multi-touch capacitive screen, 256 level waveform gray scale and color temperature display, 500MHz bandwidth, 2GSa/s sampling rate, 2G memory depth, 500.000wfms/s waveform capture rate; With a 25MHz waveform generator, supporting arbitrary wave output; 51 kinds of automatic measurement, providing full memory hardware measurement function; Rich serial protocol triggering and decoding functions; Multiple data analysis and processing functions; Integrate the functions of 7 instruments, significantly simplify the measurement system and speed up the measurement; Rich configuration interfaces are provided for more convenient use; It is a reliable oscilloscope that can provide you with professional measurement.
- Set 7 independent instruments in one, including: oscilloscope / 16-channel logic analyzer/spectrum analyzer/arbitrary wave generator/digital voltmeter / 6-bit frequency meter and accumulator/protocol analyzer;
- Real-time sampling rate up to 2GSa/s, 2G memory depth, hardware real-time waveform recording and playback up to 2 million frames;

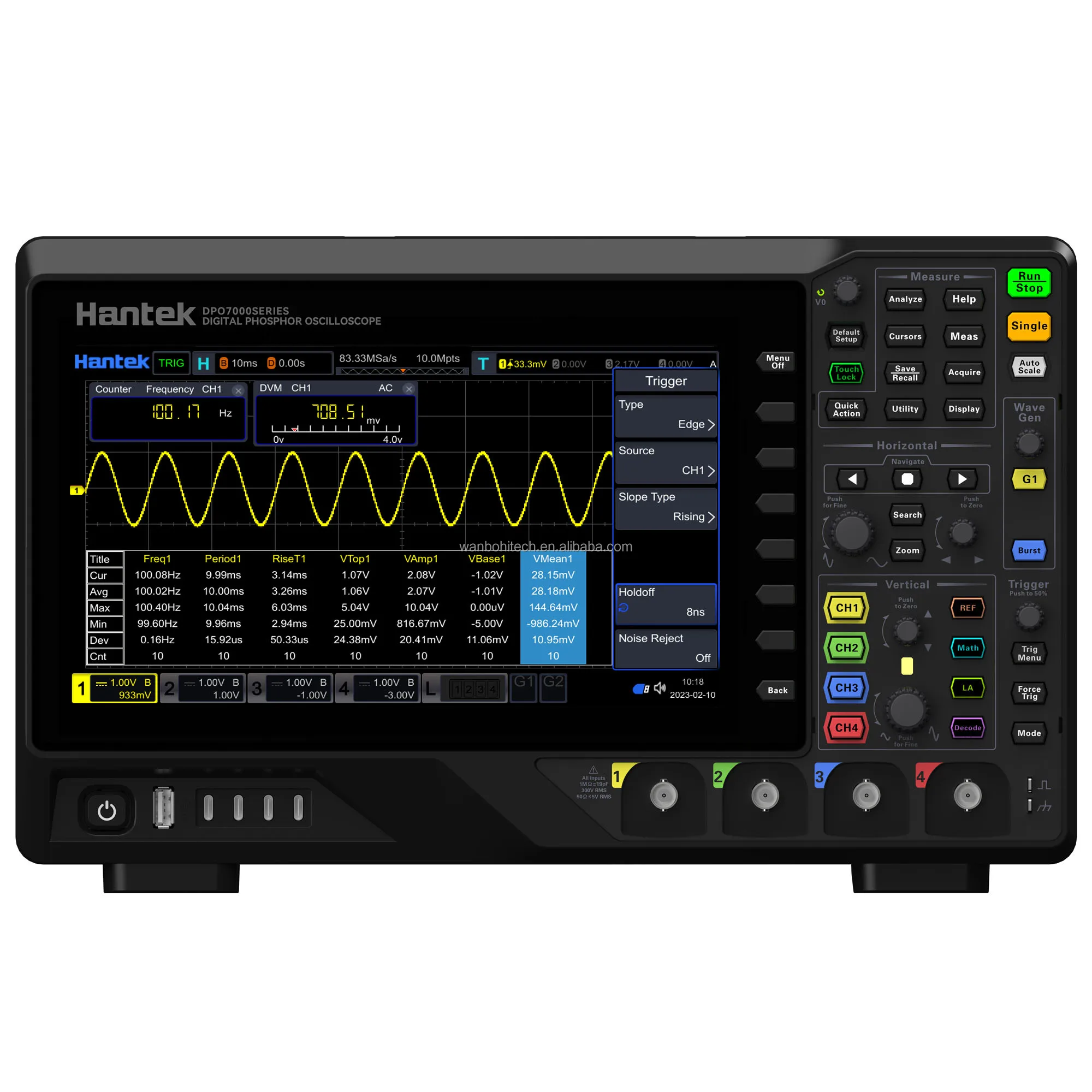

- 10.1 inch multi-touch capacitive screen, 256 level waveform gray scale and color temperature display;
- Rich serial protocol triggering and decoding functions;
- Waveform capture rate is higher than 500,000 waveforms per second;
- Up to 51 kinds of waveform parameters are automatically measured, and full memory hardware measurement function is also provided;
- Multiple data analysis and processing functions: independent search, navigation keys and event list, histogram, baud chart, power analysis, counter.

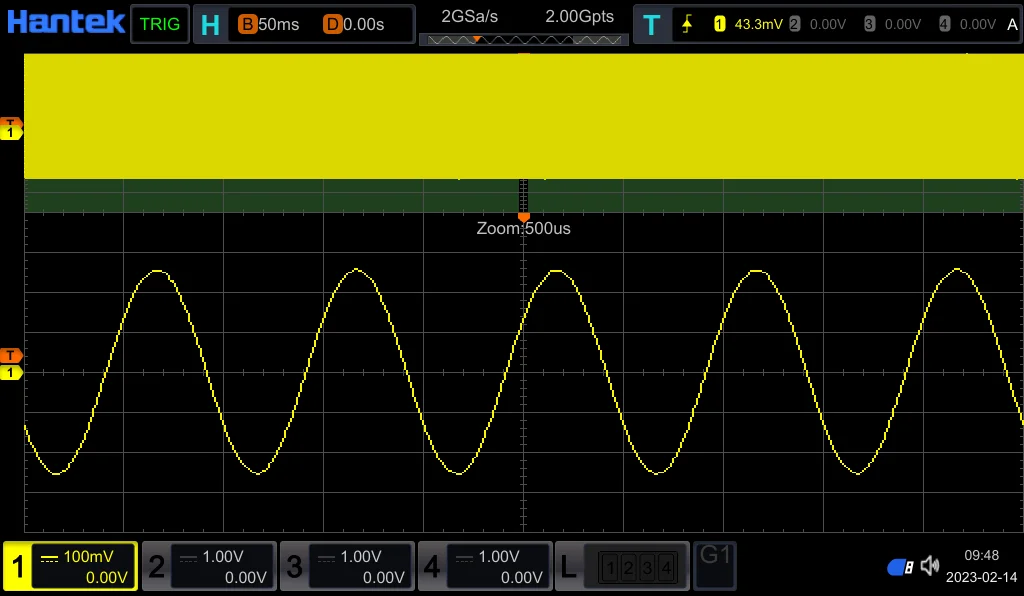

2G memory depth
Ultra-long memory depth of 2G. Fully understand waveform overall and details, will not lose any accidental events and waveform changes.

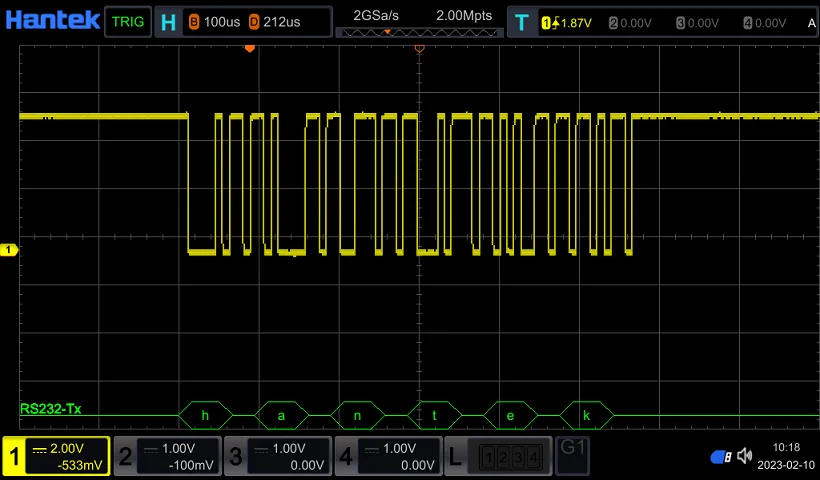

Serial bus triggering and decoding
Provides bus triggering and decoding functions, supports multiple protocols RS232, I2C, SPI, LIN, CAN and can decode and display bus protocol information quickly and intuitively.

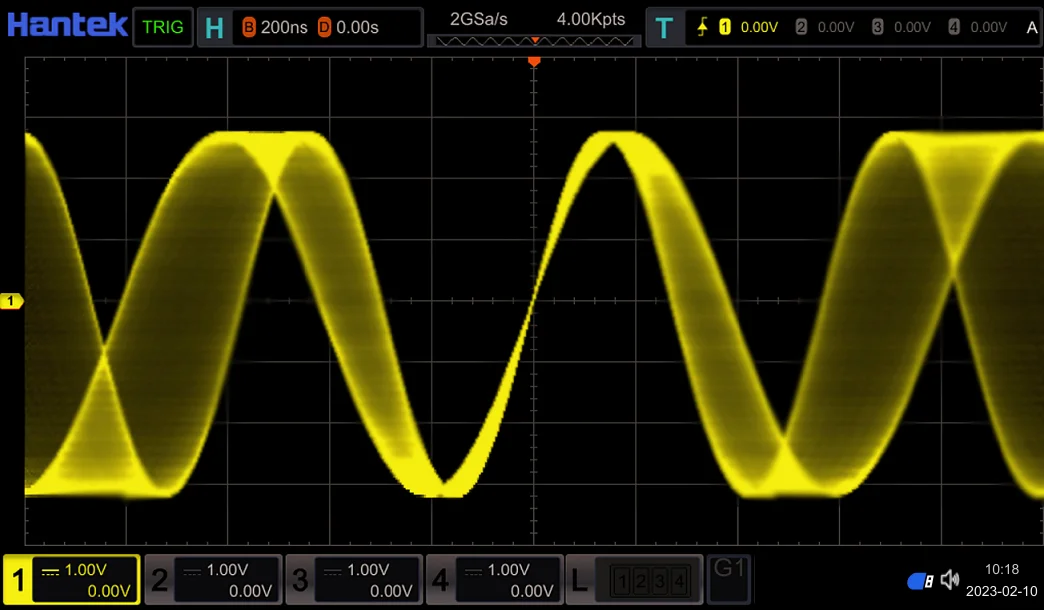

Waveform digital fluorescent display
Provide digital fluorescence multi-level waveform grayscale display effect, which can help users quickly find potential anomalies in the signal.

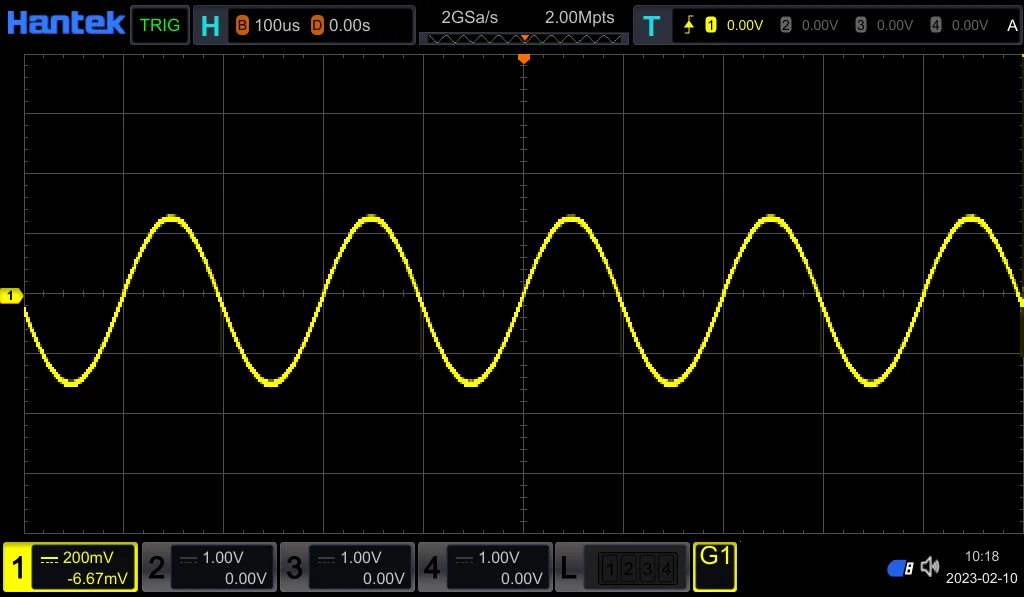

25MHz function/arbitrary waveform generator
Waveform generator, integrated with a variety of commonly used built-in waveforms, supports customized arbitrary waveform, arbitrary wave burst output, and modulated waveform output.

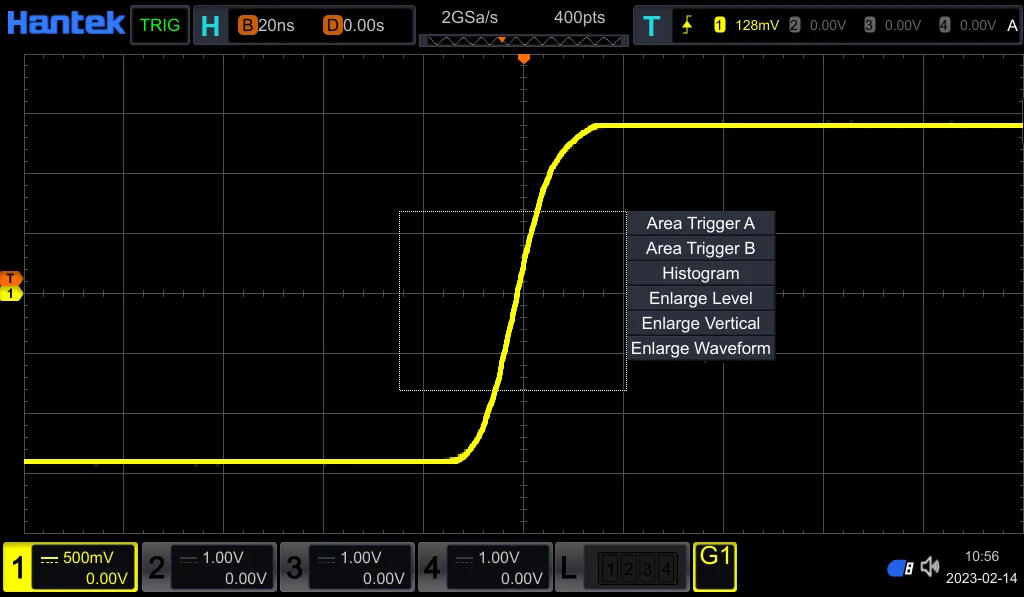

Area trigger function
By drawing the region, you can set the region trigger. The region trigger can simplify the operation of advanced trigger and quickly isolate the waveform of interest.

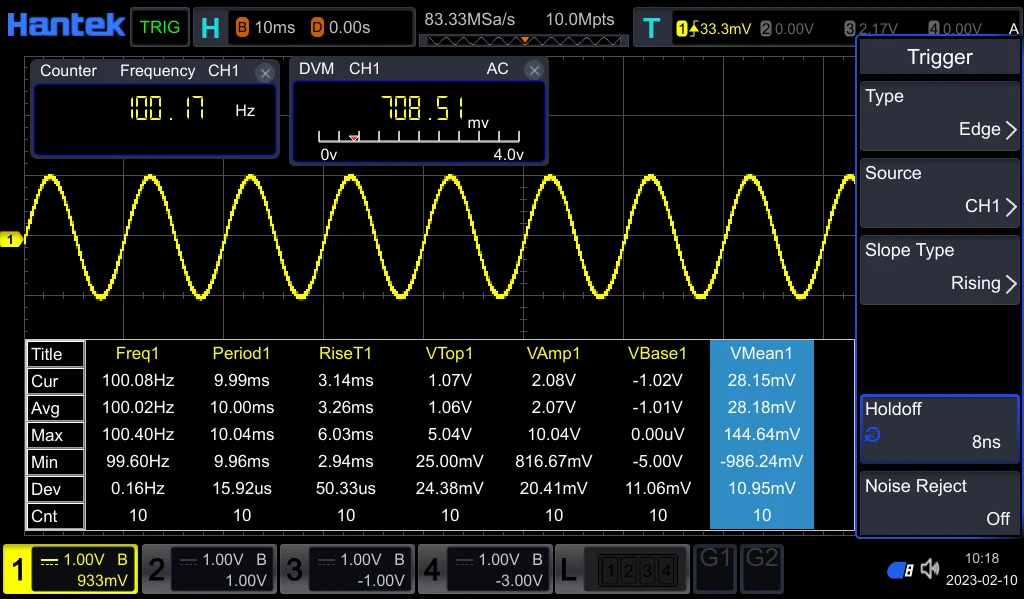

Test parameter function
5-digit digital voltmeter and 6-digit hardware frequency meter function; Real-time statistics of minimum, maximum, average, standard deviation and other information enable you to execute tests more efficiently.
Waveform recording and playback
The waveform recording function option is provided to record the waveform changes in real time without interruption, and mark the time on the signal, so as to play back the waveform conveniently and find out the fault.

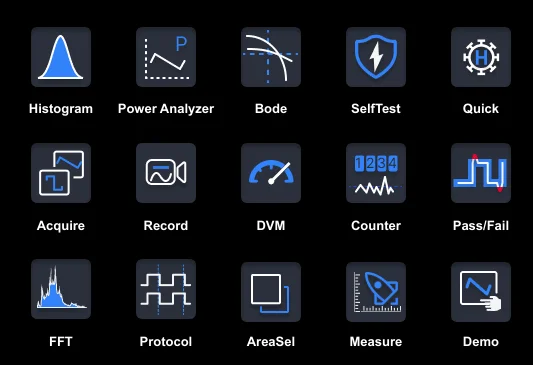

Quick operation function
The shortcut operation panel including 15 common functions can be opened with one button without searching. Make the operation faster and the measurement more efficient.
| Model | Channel | Bandwidth | Highest real-time Sampling rate | Maximun memory depth | Maximum waveform capture rate | Logical analyzer | Waveform generator |
| DPO7102C | 2CH | 100MHz | 2GSa/s | 2Gpts | 500,000 wfms/s | -- | -- |
| DPO7202C | 2CH | 200MHz | 2GSa/s | 2Gpts | 500,000 wfms/s | -- | -- |
| DPO7352C | 2CH | 350MHz | 2GSa/s | 2Gpts | 500,000 wfms/s | -- | -- |
| DPO7502C | 2CH | 500MHz | 2GSa/s | 2Gpts | 500,000 wfms/s | -- | -- |
| DPO7104C | 4CH | 100MHz | 2GSa/s | 2Gpts | 500,000 wfms/s | -- | -- |
| DPO7204C | 4CH | 200MHz | 2GSa/s | 2Gpts | 500,000 wfms/s | -- | -- |
| DPO7354C | 4CH | 350MHz | 2GSa/s | 2Gpts | 500,000 wfms/s | -- | -- |
| DPO7504C | 4CH | 500MHz | 2GSa/s | 2Gpts | 500,000 wfms/s | -- | -- |
| Model | Channel | Bandwidth | Highest real-time Sampling rate | Maximun memory depth | Maximun memory depth | Logical analyzer | Waveform generator |
| DPO7102E | 2CH | 100MHz | 2GSa/s | 2Gpts | 500,000 wfms/s | 16CH | 25MHz,1CH |
| DPO7202E | 2CH | 200MHz | 2GSa/s | 2Gpts | 500,000 wfms/s | 16CH | 25MHz,1CH |
| DPO7352E | 2CH | 350MHz | 2GSa/s | 2Gpts | 500,000 wfms/s | 16CH | 25MHz,1CH |
| DPO7502E | 2CH | 500MHz | 2GSa/s | 2Gpts | 500,000 wfms/s | 16CH | 25MHz,1CH |
| DPO7104E | 4CH | 100MHz | 2GSa/s | 2Gpts | 500,000 wfms/s | 16CH | 25MHz,1CH |
| DPO7204E | 4CH | 200MHz | 2GSa/s | 2Gpts | 500,000 wfms/s | 16CH | 25MHz,1CH |
| DPO7354E | 4CH | 350MHz | 2GSa/s | 2Gpts | 500,000 wfms/s | 16CH | 25MHz,1CH |
| DPO7504E | 4CH | 500MHz | 2GSa/s | 2Gpts | 500,000 wfms/s | 16CH | 25MHz,1CH |
Model | DPO7504E | DPO7354E | DPO7204E | DPO7104E |
Channel | 4 Channel Oscilloscope+1 Channel Waveform Generator +16 Channel Logic Analyzer | |||
Bandwidth | 500MHz | 350MHz | 200MHz | 100MHz |
Real-time Sampling Rate | 2GSa/s single channel, 1GSa/s half channel, 1GSa/s all channel | |||
Memory Depth | 2Gpts (single channel), 1Gpts (dual channel), 500Mpts (three-four channels), 250Mpts (full channel) | |||
Waveform Capture Rate | 500,000 wfms/s [25ns dot display single channel automatic memory depth] | |||
Vertical Resolution | 8 bit | |||
Vertical Sensitivity | 1 MΩ: 500μV/div ~ 10 V/div; 50 Ω: 500μV/div ~ 1 V/div | |||
Time Base Range | 500ps/div~1ks/div | 1ns/div~1ks/div | 2ns/div~1ks/div | 5ns/div~1ks/div |
Time Base Accuracy | ±1 ppm ± 1 ppm/year | |||
Bandwidth limitation | 20 MHz, 100MHz, 200MHz, 350MHz;Independent optional for each channel | |||
Trigger Type | Edge, Pulse, Video, Slope, Overtime, Window, Runt, Superamp, Pattern, Delay, Setup/Hold, RS232, LIN, CAN, SPI, I2C | |||
Bus and Decoding | RS232, I2C, SPI, LIN, CAN | |||
Mathematical Operation | A+B, A-B, A*B, A/B, FFT, A&&B, A||B, A^B, !A, Intg, Diff, Sqrt, Lg, Ln, Exp, Abs, LowPass, HighPass, BandPass, BandStop, AX+B, Expression | |||
Automatic Measurement | 41 kinds of parameter measurement, supporting statistics and analysis | |||
Analysis Function | Frequency meter, digital voltmeter, power analysis, histogram, search, navigation, history, baud chart | |||
Hardware Recording and Playback | More than 2 million frames (single channel) | |||
Input Coupling | DC, AC or GND | |||
Input Impedance and Capacitance | 1 MΩ ± 1%,50 Ω ± 1% ;21 pF ± 3 pF | |||
Arbitrary Waveform Generator | Sampling rate 200 MSa/s, vertical resolution 12 bit, maximum output frequency 25 MHz, sine, square wave, pulse, triangle wave, noise, DC, Sinc, exponential, half-distortion, Lorentz, DTMF, Gaussian, ECG and other 13 standard waveforms | |||
Digital Channel | 16CH, 1GSa/s sampling rate | |||

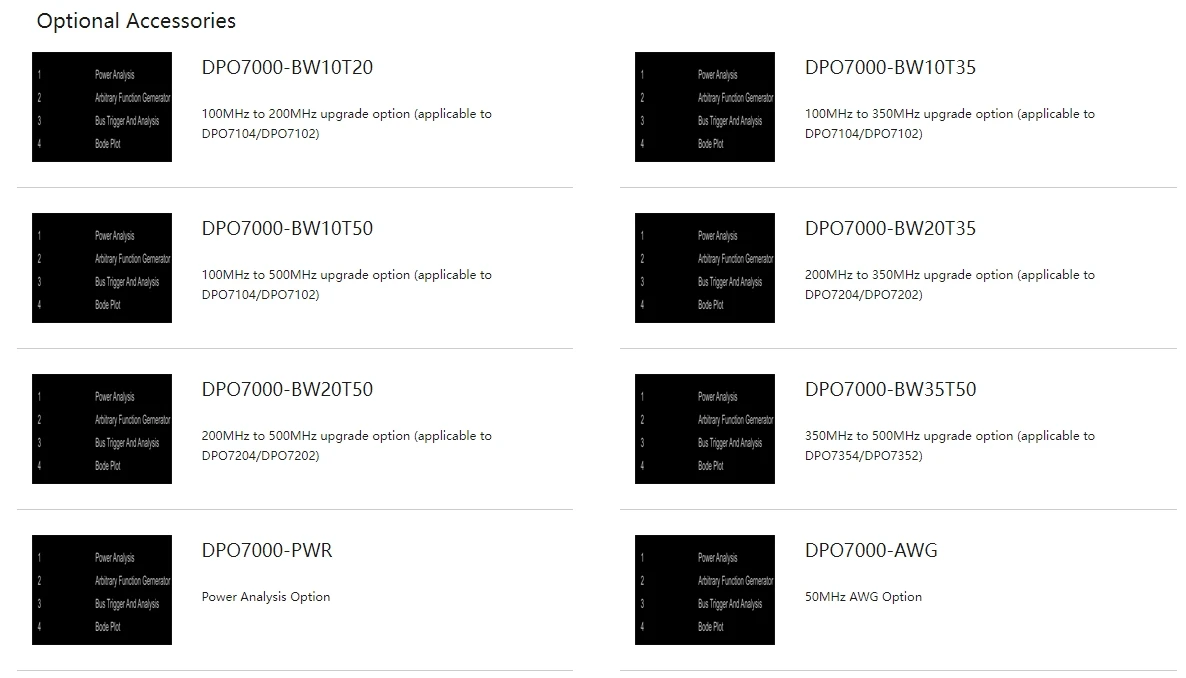

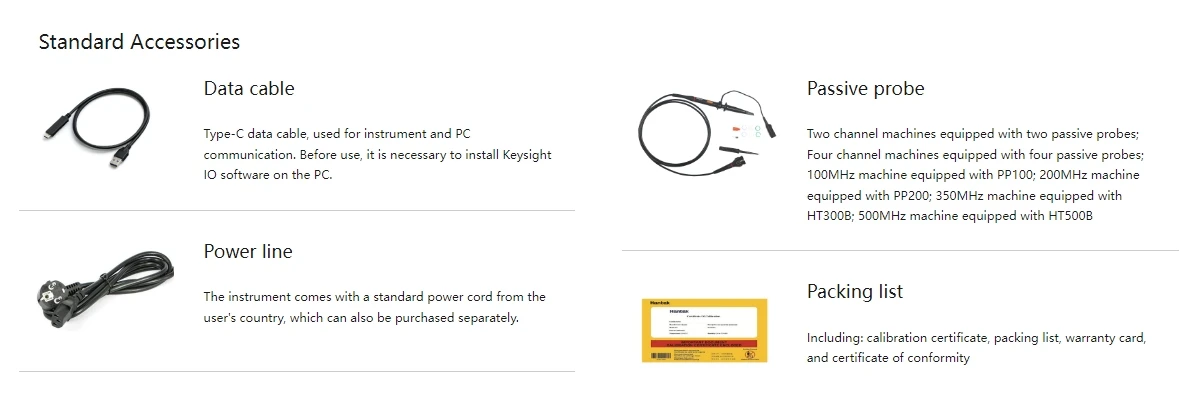

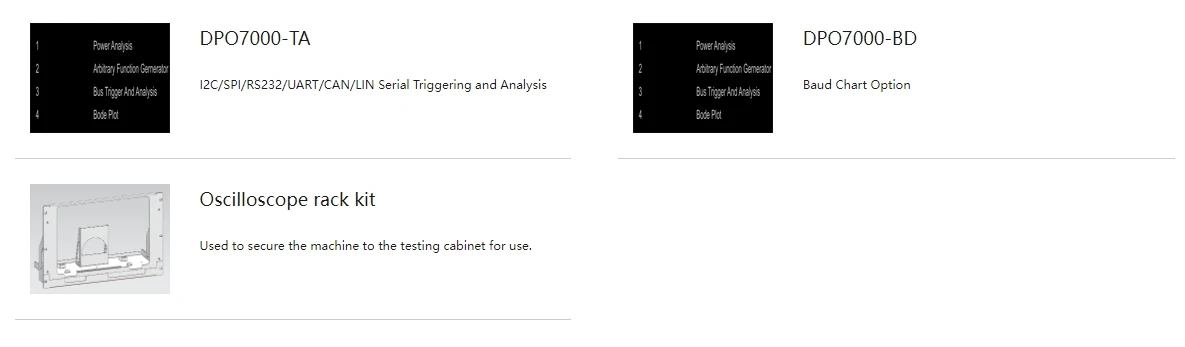

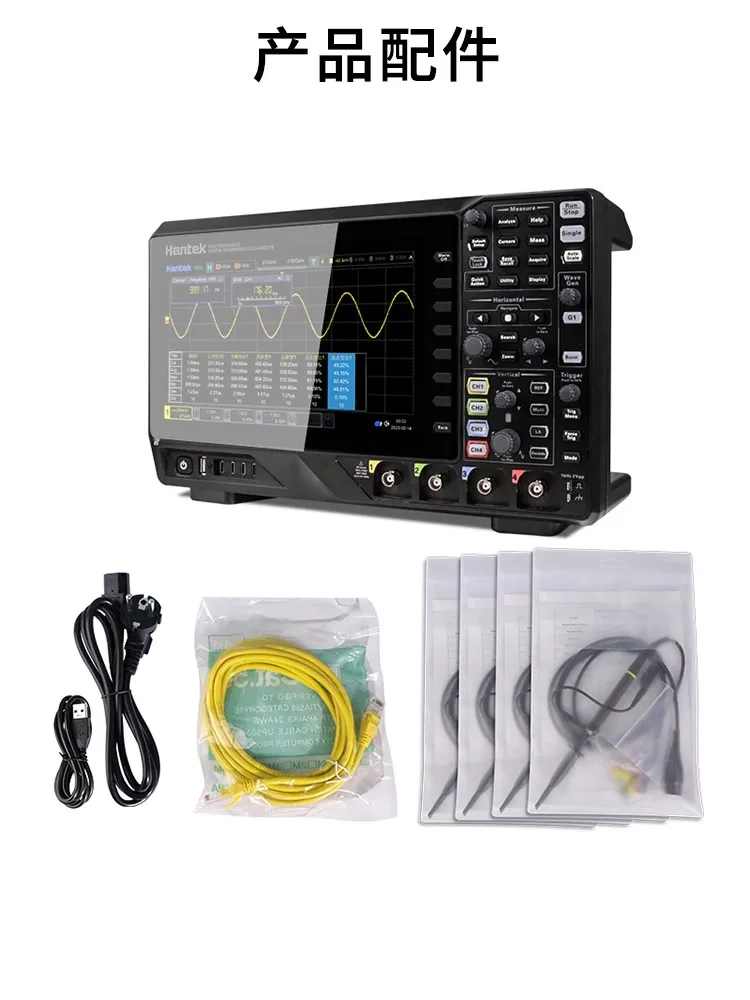

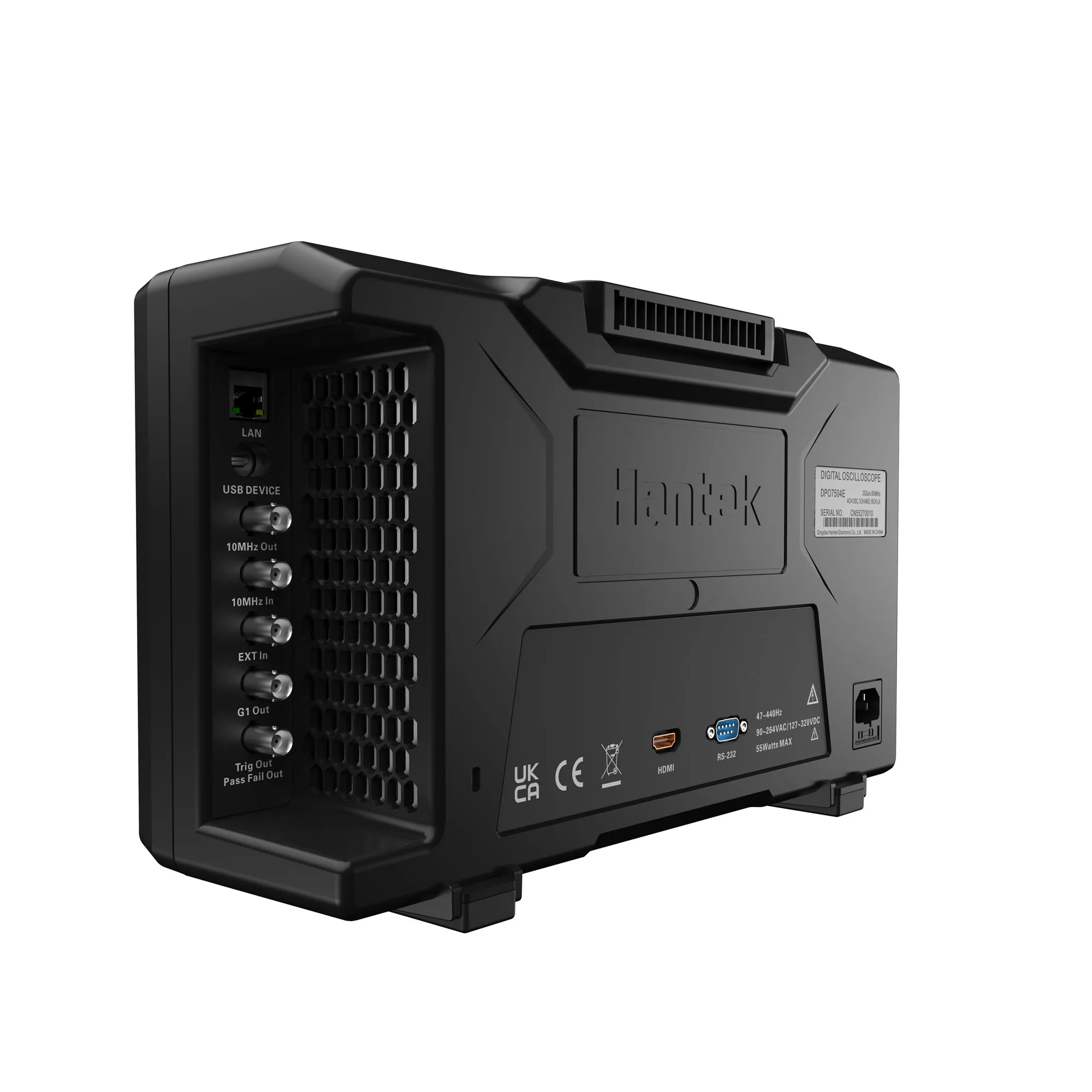

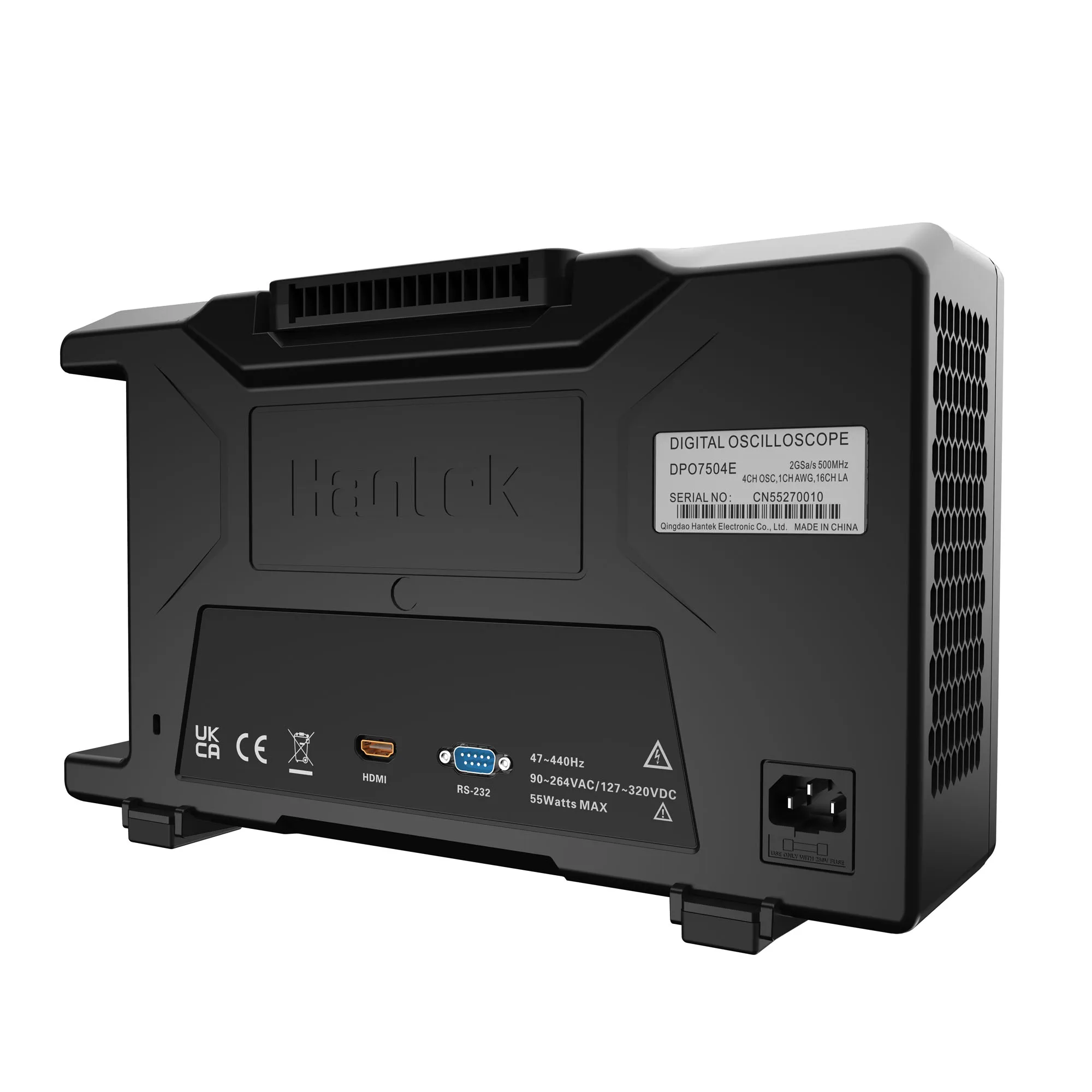

Interface | USB HOST, USB DEVICE, LAN; option: HDMI, serial port | |||
Screen | 10.1 inch multi-touch capacitive screen, 256 level waveform grayscale display, with color afterglow | |||
