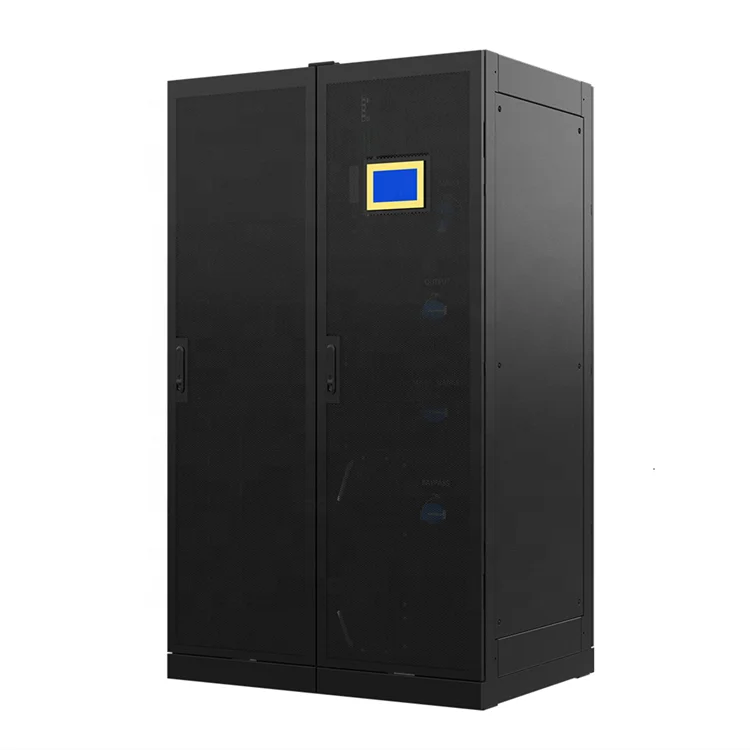

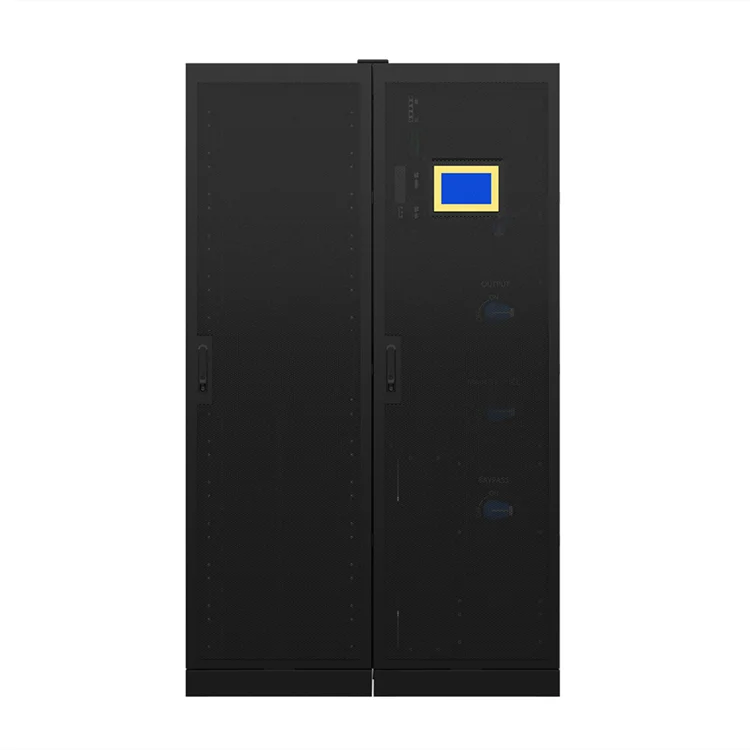

Modular UPS 50KVA 100KVA 200KVA 300KVA 600K PF 0.9 3 phase UPS Backup Power System
- Category: >>>
- Supplier: Shenzhen Iteaq Power Co. Ltd.
Share on (1601022171771):
Product Overview
Description
UPS Manufacturer Supply 3phase UPS 10-800KVA
Introduction:
ECOplus 50-600kVA is a new generation three-in-three-out modular UPS launched by our company. The products adopt digital control, modular design, and N+X parallel redundancy technology, which integrates the most advanced technical achievements in the field of power electronics and automatic control. It is the benchmarking product in the modular UPS field. The capacity covers all power sections between 50kVA and 600kVA, which is convenient for users to configure flexibly and gradually invest. It can be 4 parallel to 2400kVA.
Scenarios:
Large and medium data centers, server rooms.
Financial centers, government, enterprise IT rooms, medical
Education and other mission-critical applications.
Features:
1.Centralized bypass, centralized control, modular design
2.Online double conversion and three level technology
3.DSP digital control technology
4.Wide input voltage range
5.Output power factor 1
6.High power density with size 440mm*620mm*3U
7.Cold start (battery start up)
8.ECO mode operation
9.Intelligent battery management
10.N+X redundancy
11.Communications: RS485/Relay card/USB/SNMP option
12.Optional emergency power off (EPO) function
13.Compatible with lithium battery applications
Benefits:
1.Modular design, improves maintainability and reliability
2.ECO mode operation for energy saving
3.Cold start for easy operation
4.Communications for network management and remote monitoring
5.N+X redundancy, expanding as required, saves initial investment
ECOplus 50-600kVA is a new generation three-in-three-out modular UPS launched by our company. The products adopt digital control, modular design, and N+X parallel redundancy technology, which integrates the most advanced technical achievements in the field of power electronics and automatic control. It is the benchmarking product in the modular UPS field. The capacity covers all power sections between 50kVA and 600kVA, which is convenient for users to configure flexibly and gradually invest. It can be 4 parallel to 2400kVA.
Scenarios:
Large and medium data centers, server rooms.
Financial centers, government, enterprise IT rooms, medical
Education and other mission-critical applications.
Features:
1.Centralized bypass, centralized control, modular design
2.Online double conversion and three level technology
3.DSP digital control technology
4.Wide input voltage range
5.Output power factor 1
6.High power density with size 440mm*620mm*3U
7.Cold start (battery start up)
8.ECO mode operation
9.Intelligent battery management
10.N+X redundancy
11.Communications: RS485/Relay card/USB/SNMP option
12.Optional emergency power off (EPO) function
13.Compatible with lithium battery applications
Benefits:
1.Modular design, improves maintainability and reliability
2.ECO mode operation for energy saving
3.Cold start for easy operation
4.Communications for network management and remote monitoring
5.N+X redundancy, expanding as required, saves initial investment
Specification
Model | ECOplus200-50 | ECOplus300-50 | ECOplus400-50 | ECOplus500-50 | ECOplus200-50 | ||||||
Capacity | Cabinet | 50~200KW | 50~300KW | 50~400KW | 50~500KW | 50~600KW | |||||
Module | 50KW | ||||||||||
Max.Module Number | 4 | 6 | 8 | 10 | 12 | ||||||
Input | Phase | 3 Phase 4 wires and ground | |||||||||
Rated Range | 380/400/415Vac | ||||||||||
Voltage Range | 138~485Vac | ||||||||||
Frequency Range | 40~70Hz | ||||||||||
Power Factor | ≥0.99 | ||||||||||
Current THDi | ≤3%（100% linear load） | ||||||||||
Bypass Voltage Range | Mac.voltage:220+25%(OPTIONAL +10*,+15%+20%);230V+20%(OPTIONAL +10%,+15%);240V:+15%(OPTIONAL +10%) | ||||||||||
Min.voltage:-45%(optional-10%,-20%,-30%) | |||||||||||
Frequency protection range:±10% | |||||||||||
Power Walking in | Yes | ||||||||||
Bypass back irrigation | Yes | ||||||||||
Generator access | Yes | ||||||||||
Phase | 3 Phase 4 wires and ground | ||||||||||
Rated Voltage | 380/400/415Vac | ||||||||||
Power Factor | 1.0 | ||||||||||
Voltage Regulation | ±1% | ||||||||||
Frequency | Utility Mode | ±1%/±2/±4%±5%/±10%/ of the rated frequency (optional) | |||||||||
Battery Mode | (50/60±0.1%)Hz | ||||||||||
Crest Factor | 3:1 | ||||||||||
THD | ≤2% with linear load，≤4% with non-linear load | ||||||||||
Effieiency | 96% | ||||||||||
Overload | ≤ 110%, to bypass after 60 min; ≤ 125%, to bypass after 10 min; ≤ 150%, to bypass after 1 min | ||||||||||
Voltage | ±180V/192V/±204V/±216V/±228V/±240/±252/±264/±276/±288/±300Vdc (30/32/34/36/38/40/42/44/46/48/50pcs optional) | ||||||||||
Module charge current | Max 15A | ||||||||||
Transfer Time | Transfer Time | Utility to Battery : 0ms; Utility to bypass: 0ms | |||||||||
Protection | Alarm | overload, utility abnormal, UPS fault, battery low, etc | |||||||||
Protection | short circuit, overload,over temperature, battery low,fan fault low,etc | ||||||||||
Communication Interface | CAN,RS485,FE/LBS/Parallel card, Relay card, SNMP card(optional) | ||||||||||
Environment | Operating Temperature | 0℃~40℃ | |||||||||
Storage Temperature | -25℃~55℃ | ||||||||||
Humidity | 0~95% non condensing | ||||||||||
Altitude | ＜1500m | ||||||||||
Noise level | ＜65dB | ＜68dB | ＜70dB | ||||||||
Cabinet Dimension(D*W*H) mm | 850*600*2000 | 850*1200*2000 | |||||||||
Modular Dimension(D*W*H)mm | 620*440*131 | ||||||||||
Cabinet Weight(kg) | 203 | 235 | 407 | 443 | 513 | ||||||
Module Weight(kg) | 33 | ||||||||||
Standard | EN62040-1, EN62040-2 | ||||||||||

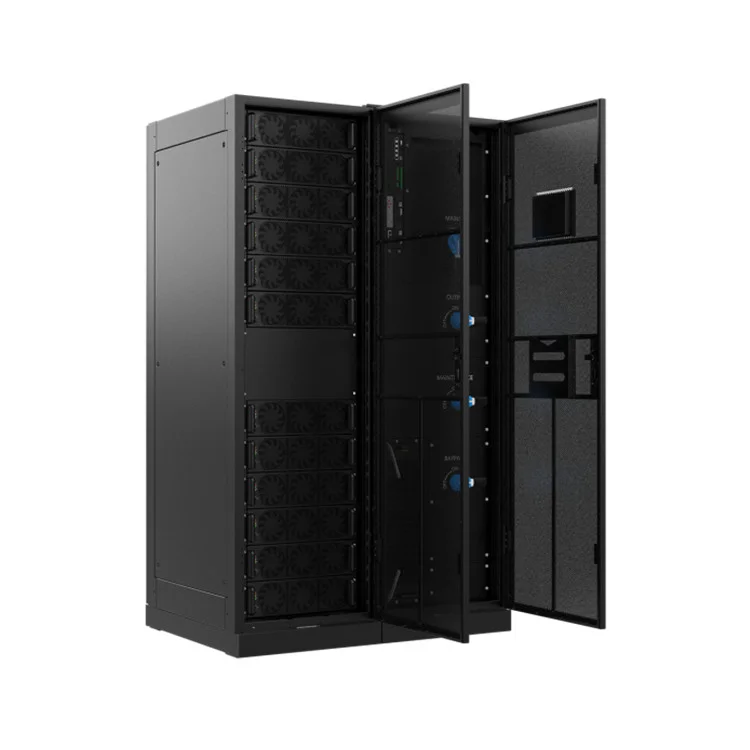

Detail Images
Applications

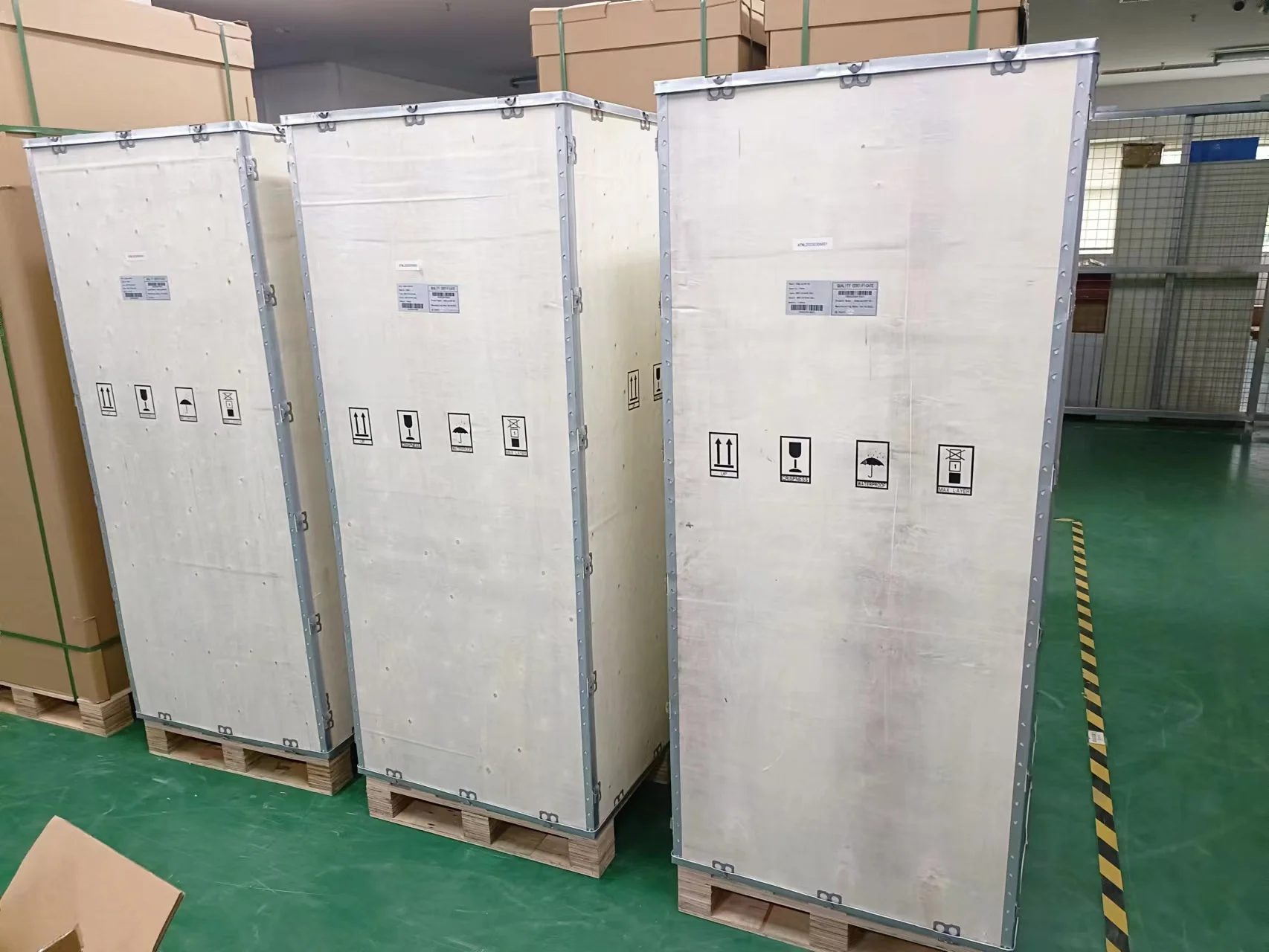

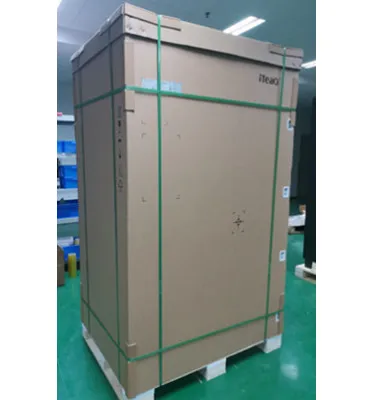

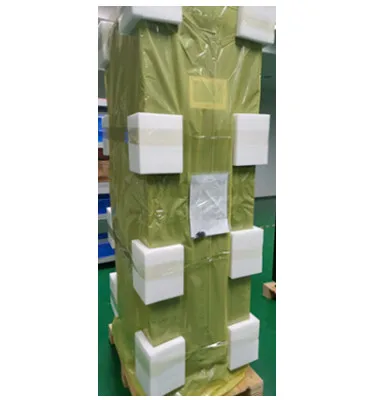

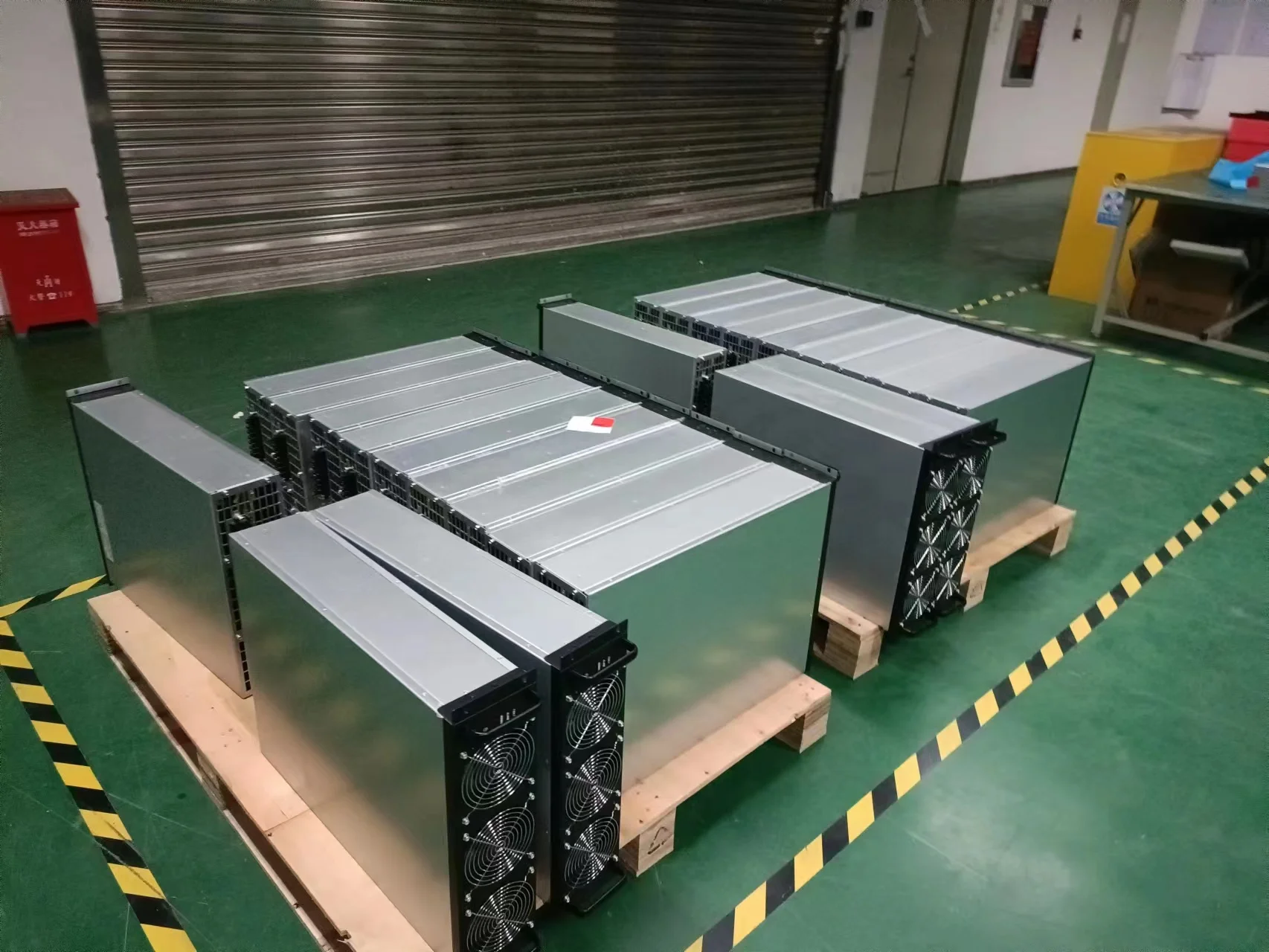

Packing & Delivery
Model | UPS Cabinet Dimension | UPS Module Dimension | Cabinet GW | Module weight GW |
ECOplus200-50 | 970*720*2170MM | 620*440*131MM | 853KG | 35KG |
ECOplus300-50 | 970*720*2170MM | 620*440*131MM | 448KG | 35KG |
ECOplus400-50 | 1300*960*2190MM | 620*440*131MM | 470KG | 35KG |
ECOplus500-50 | 1300*960*2190MM | 620*440*131MM | 506.5KG | 35KG |
ECOplus600-50 | 1300*960*2190MM | 620*440*131MM | 578KG | 35KG |
1pcs into master carton on pallet
Company Profile
Company
Shenzhen iTeaQ Power Co., Ltd. is the leading manufacturer of modular UPS and network power, located at Guangming High-tech Zone, Shenzhen, China. With 20 years’ experience in power electronics field, we are constantly cooperating with global partners, enabling customers to protect their critical applications and ensuring business continuity. iTeaQ Power is a most growing UPS and network power provider.
R&D
The company dedicates 10% of turnover to R&D, such as cooperation with China top-ranking universities and institutes, advanced research, patent development, etc. It can achieve status of always technology ahead. Benefited from the electronic industry base of Shenzhen, China, all our design engineers have master or above degree in power electronic, and at least 10 years UPS and power practice.
Quality
The company implements total quality management, ranging from selecting right person for appropriate post, components selecting, incoming inspection, producing, testing, and packing to delivery. At present, it has passed ISO9001, ISO14001, OHSAS18001, and has obtained a number of certifications, such as CE (LVD/EMC), TLC certification, energy saving certification, etc.
Shenzhen iTeaQ Power Co., Ltd. is the leading manufacturer of modular UPS and network power, located at Guangming High-tech Zone, Shenzhen, China. With 20 years’ experience in power electronics field, we are constantly cooperating with global partners, enabling customers to protect their critical applications and ensuring business continuity. iTeaQ Power is a most growing UPS and network power provider.
R&D
The company dedicates 10% of turnover to R&D, such as cooperation with China top-ranking universities and institutes, advanced research, patent development, etc. It can achieve status of always technology ahead. Benefited from the electronic industry base of Shenzhen, China, all our design engineers have master or above degree in power electronic, and at least 10 years UPS and power practice.
Quality
The company implements total quality management, ranging from selecting right person for appropriate post, components selecting, incoming inspection, producing, testing, and packing to delivery. At present, it has passed ISO9001, ISO14001, OHSAS18001, and has obtained a number of certifications, such as CE (LVD/EMC), TLC certification, energy saving certification, etc.
Receiption
View of industrial Park
HF 3 phases production line
Modular UPS production line
100KW Test station 1
100KW Test Station 2
800KVA Test station 1
800KW Test Station 2
2000KW Load Test room
PCBA soldering
PCBA soldering machine
PCBA production line
Advanced Material management
Certifications
Exhibition
2OCT 2019 SINGAPORE DATA CENTER WORLD
2020 DATA CENTER SOLUTION EXHIBITION
2021 IT SOLUTION NATIONAL TOUR EXHIBITION
2021 IT SOLUTION NATIONAL TOUR EXHIBITION

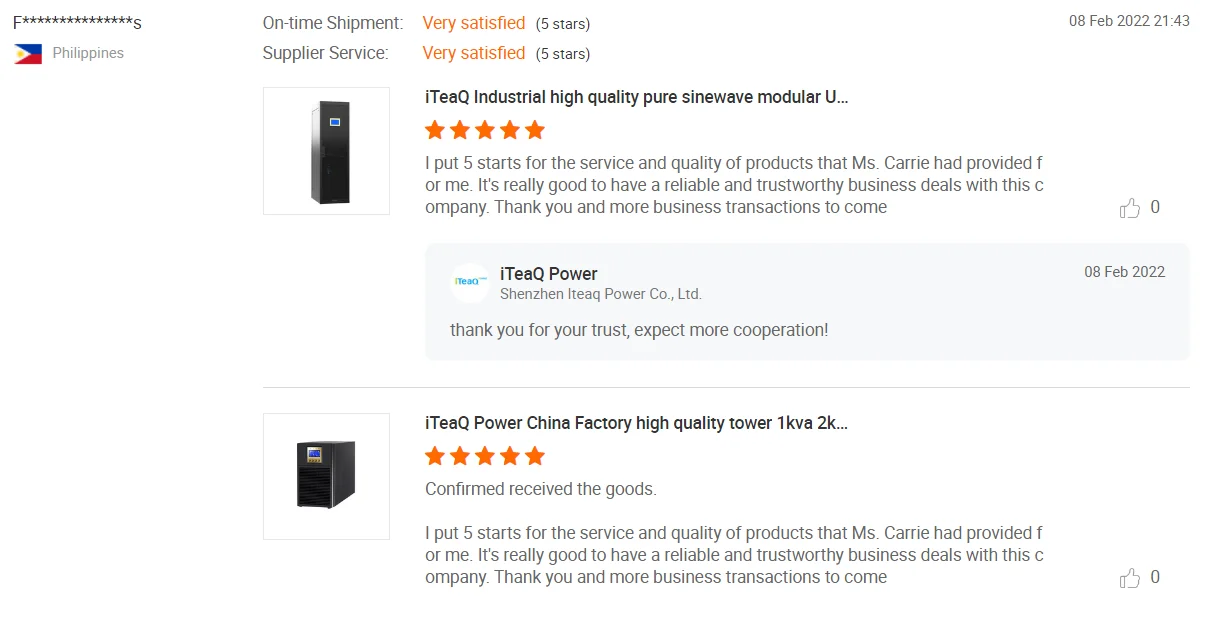

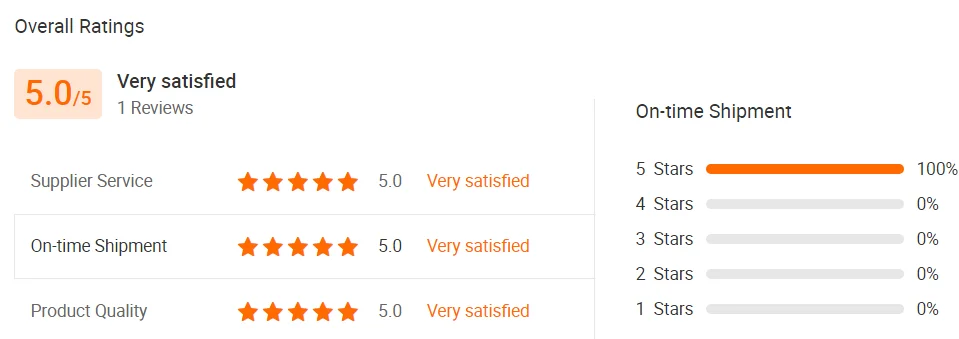

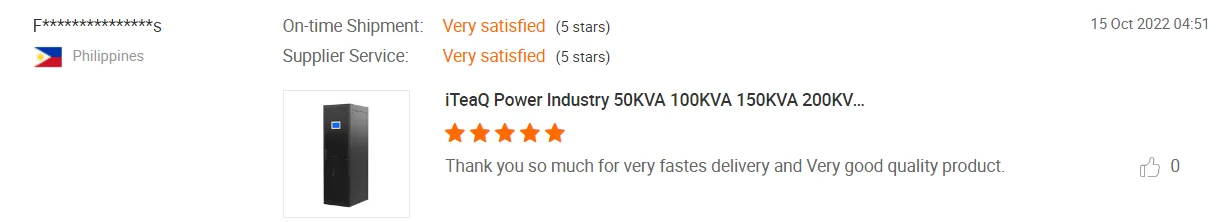

Customer's Feedback
FAQ
Q1: Are you a factory or trading company?
A1: Yes, We are leading modular UPS products factory with 20 years experiences
Q2: How about the Shipping Method?
A2:Mainly deliver by sea as the products’ weight and size , if customer require, also can deliver by air.
Q2: How about the delivery date?
A2: In General, the delivery date will be 15-30 working days for normal buy quantity. But if bigger order, please check us
further.
Q3: How about the label and the logo?
A3: Customize label and logo is workable.
Q4: How about the MOQ ?
A4: Neatral products Moq 1pcs , OEM products Moq:10pcs
A1: Yes, We are leading modular UPS products factory with 20 years experiences
Q2: How about the Shipping Method?
A2:Mainly deliver by sea as the products’ weight and size , if customer require, also can deliver by air.
Q2: How about the delivery date?
A2: In General, the delivery date will be 15-30 working days for normal buy quantity. But if bigger order, please check us
further.
Q3: How about the label and the logo?
A3: Customize label and logo is workable.
Q4: How about the MOQ ?
A4: Neatral products Moq 1pcs , OEM products Moq:10pcs
Any other questions , welcome click here to contact the factory customer service by click view more in folowing
