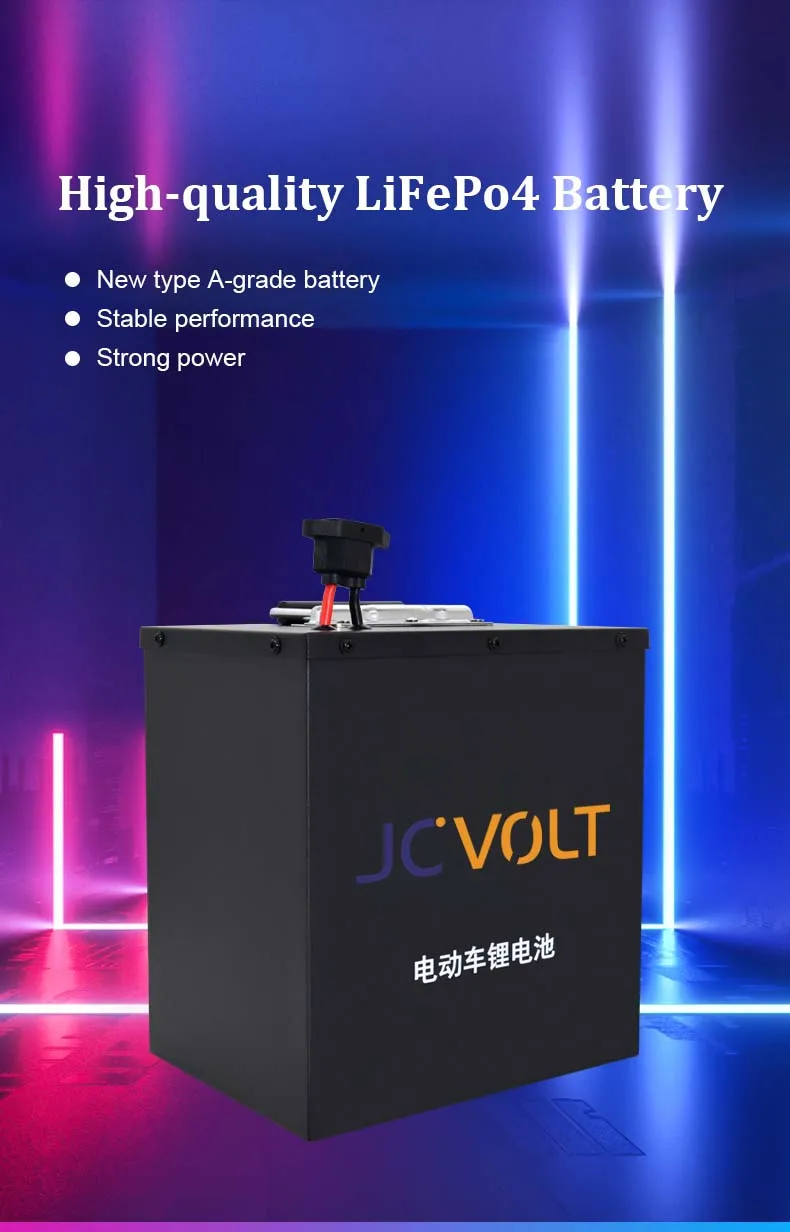

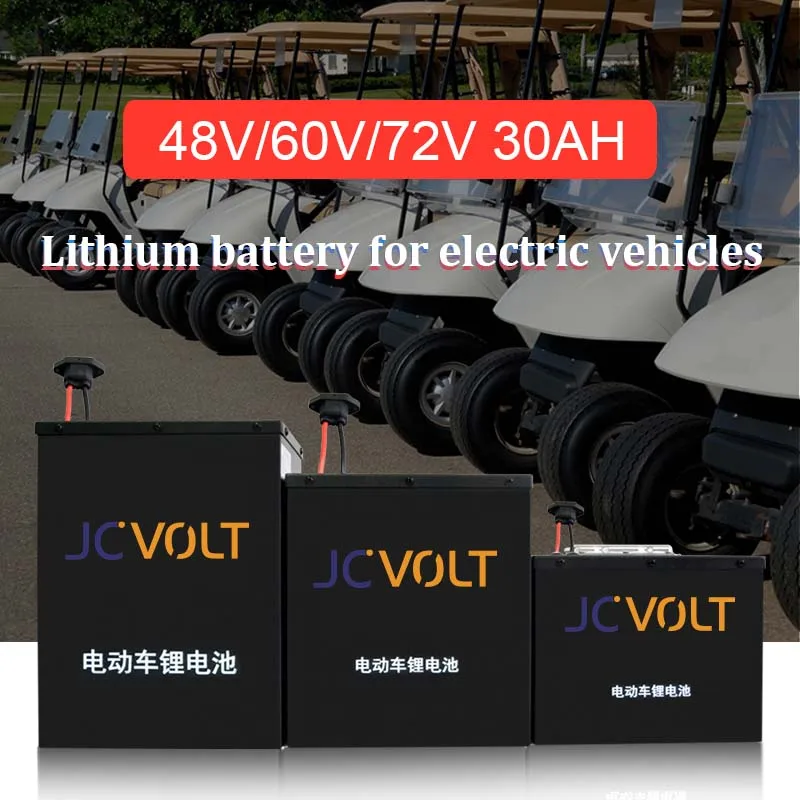

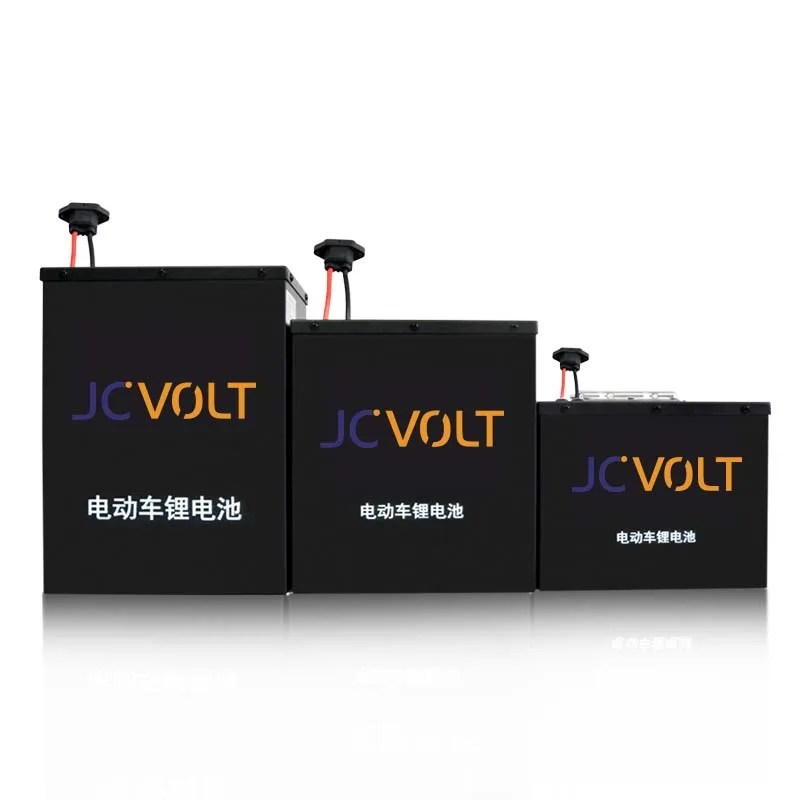

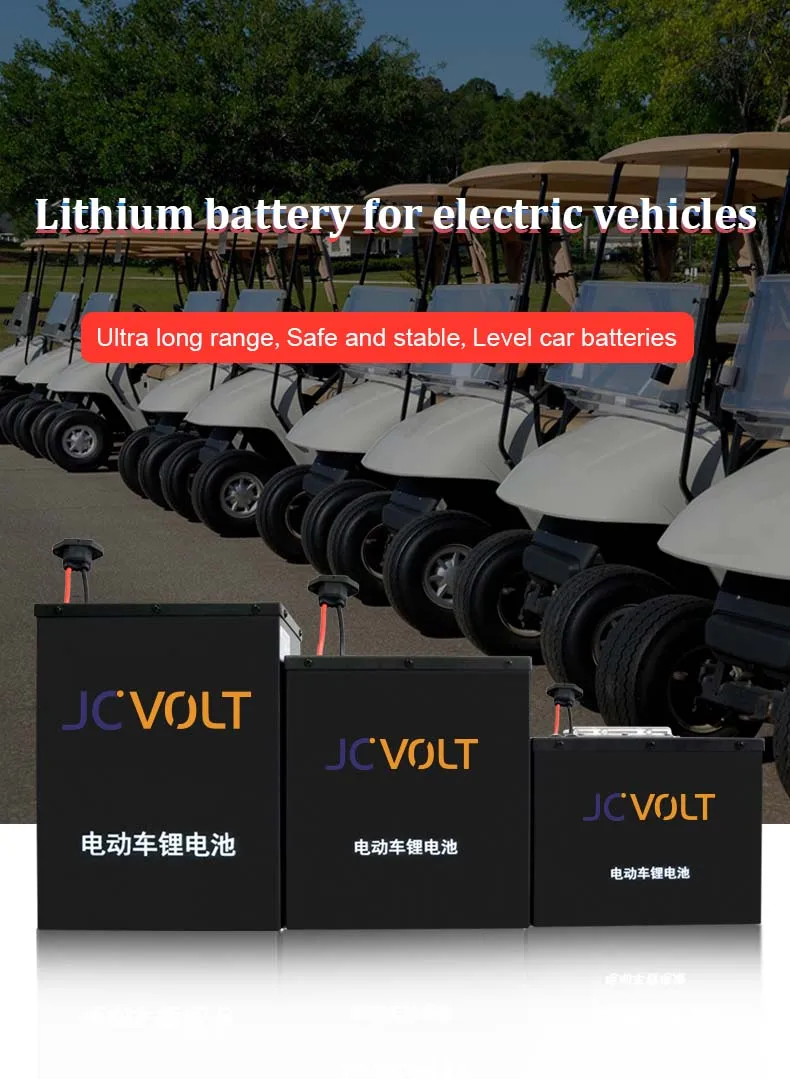

48V 60V 72v 30ah 40ah 50ah lithium ion batteries auto batteries for Golf Carts Electric Bicycles/Scooters electric vehicles
- Category: >>>
- Supplier: Hefei Jingchi New Energy Co. Ltd.
Share on (1601022221865):
Product Overview
Description
Products Description
PRODUCT CHARACTERISTICS

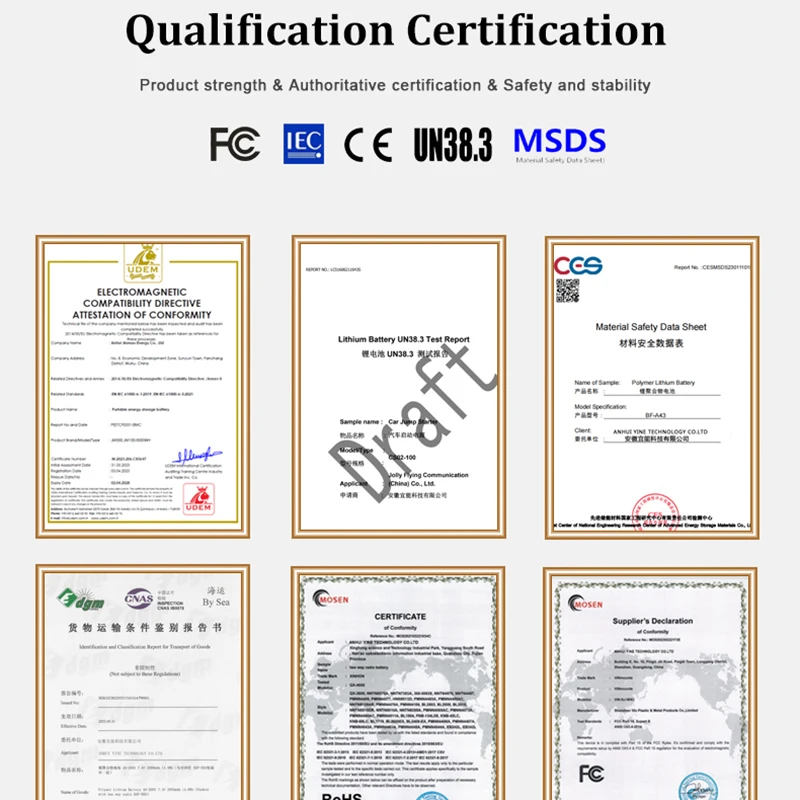

1. CE ROHS MSDS UN38.3 Certificated
2. Grade A+ Prismatic Power Cells
3.>3000cycles Reliable Performance
4.Applied to electric vehicles, tricycles, four-wheeled vehicles, golf carts, etc
5.Vehicle grade battery cells;Safe and stable;Long cycle life;High-capacity;High temperature resistance;Light weight
6.Compatible with 99% of electric vehicles on the market

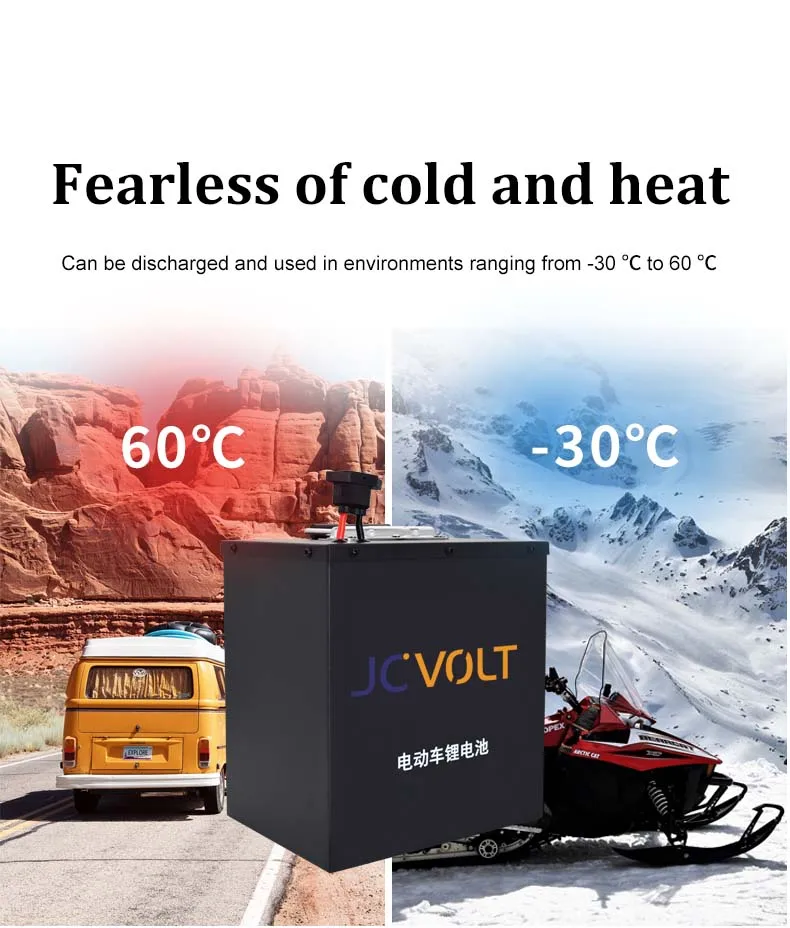

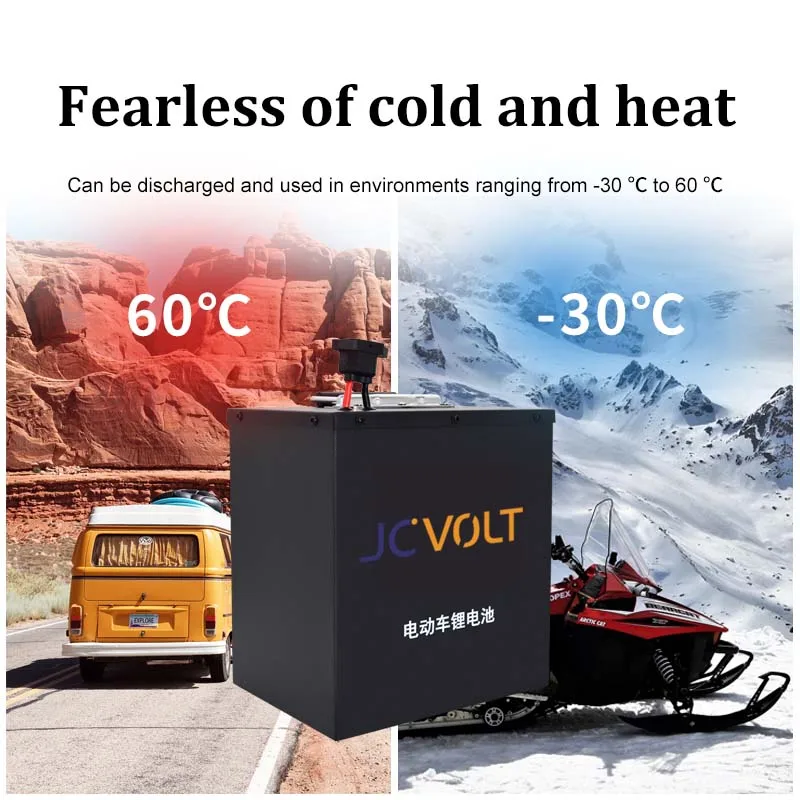

7.Can be discharged and used in environments ranging from -30 ℃ to 60 ℃
2. Grade A+ Prismatic Power Cells
3.>3000cycles Reliable Performance
4.Applied to electric vehicles, tricycles, four-wheeled vehicles, golf carts, etc
5.Vehicle grade battery cells;Safe and stable;Long cycle life;High-capacity;High temperature resistance;Light weight
6.Compatible with 99% of electric vehicles on the market
7.Can be discharged and used in environments ranging from -30 ℃ to 60 ℃
Product Details
Item | 48-30 | 60-30 | 72-30 | Remarks | |||
Unit | Cell type | LFP20100140-30Ah | |||||
Size | 20mm*100mm*140mm | ||||||
Nominal voltage | 3.2V | ||||||
AC Resistance | 0.6-1.5（m） | ||||||
Rate capacity | 30Ah | ||||||
System | Platform voltage | 51.2V | 64V | 76.8V | |||
Size | 175mm×205mm×165mm | 150mm×205mm×235mm | 150mm×210mm×280mm | L*W*H（withouthandle） | |||
Charge port | UK plug standard | ||||||
Discharge port | 50A Anderson | ||||||
MODBUS | / | ||||||
Series parallel mode | 16s1p | 20s1p | 24s1p | ||||
BMS | 48V16S40A (Passive equilibrium) | 60V20S40A (Passive equilibrium） | 72V24S40A (Passive equilibrium) | ||||
Weight | 12kg | 15.8kg | 19kg | ||||
Max.continuousdischarge current | 30A | ||||||
Instantaneous discharge current | 40A | It could cause irreversible damage when over 40A | |||||
Limited charge voltage | 58.4V | 73V | 87.6V | ||||
Charging platform voltage | 51.2V | 64V | 76.8V | ||||
Discharge cut down voltage | 40V | 50V | 60V | ||||
Optimal operating temperature range | 10－35℃ | ||||||
Discharge temperature range | -30－＋60℃ | If the battery surface temperature exceeds this range,stop discharging | |||||
Charge temperature range | -10－＋55℃ | If the battery surface temperature exceeds this range,stop charging | |||||
Storage temperature range | -10℃－＋30℃ | The recommended ambient temperature for long-term storage is 25℃±2℃ | |||||
Cycle life | ≥3000cycles | 100% depth charge and discharge at 0.33C rate | |||||
Hull | Sheet metal spraying | Sheetmetal spraying(white) | Sheet metal spraying | ||||

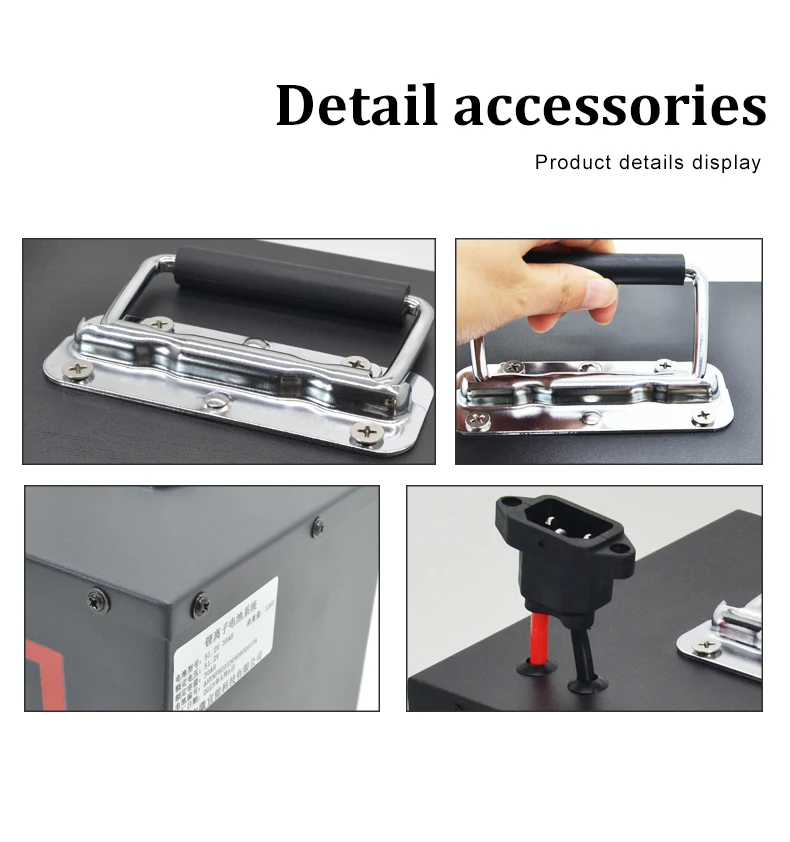

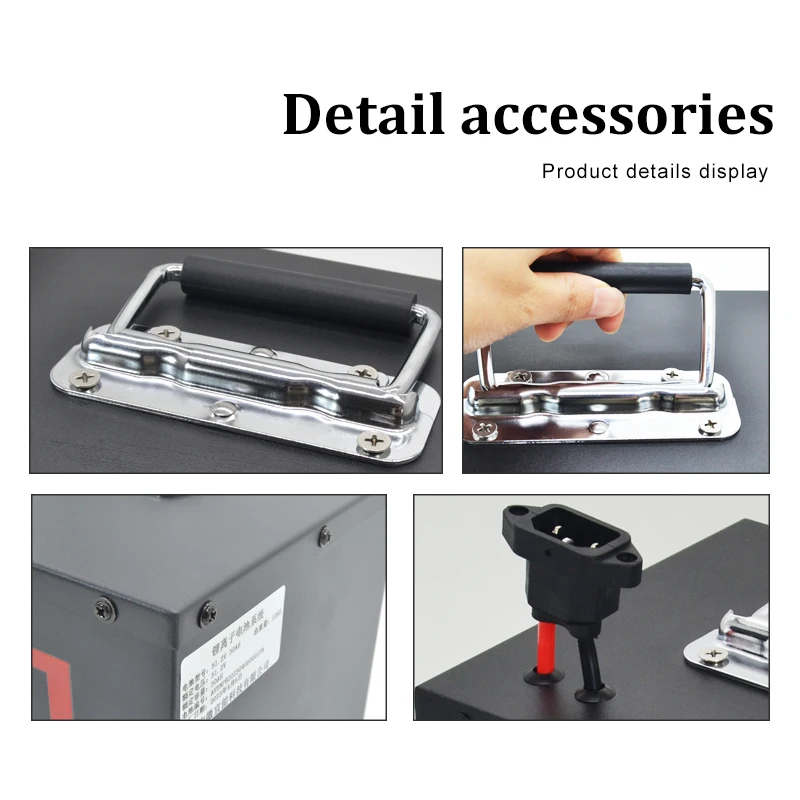

Accessory | GPS | 304 Stainless Steel handle | |||||
Charger | / | ||||||
Details Images
Product packaging
Why Choose Us
Hefei Jingchi New Energy Co., Ltd.
JC Power is an international high-tech growth enterprise, specializing in the R & D and sales of solar panels, solar
inverters,controllers and pv solar power generation and battery storage systems.
JC Power team provides professional system solutions, stable and reliable products, and satisfactory after-sales service. It is
willing to work with partners to build an ecological environment and win-win cooperation.
• 12 YEARS PROFESSIONAL MANUFACTURER
• STRICT QUALITY INSPECTION AND MANUFACTURING PROCESS CONTROL
• ONE-STOP SOLUTIONS FOR PV PRODUCTS
inverters,controllers and pv solar power generation and battery storage systems.
JC Power team provides professional system solutions, stable and reliable products, and satisfactory after-sales service. It is
willing to work with partners to build an ecological environment and win-win cooperation.
• 12 YEARS PROFESSIONAL MANUFACTURER
• STRICT QUALITY INSPECTION AND MANUFACTURING PROCESS CONTROL
• ONE-STOP SOLUTIONS FOR PV PRODUCTS
FAQ
Q: Do you produce all the products yourselves?
---A: Yes, we have our own Solar Panel Factory, Plastic & Injection Factory, PCB Factory, Cable Plant, Lithium Battery Factory and
Assembling Lines, all the products we are selling are designed and manufactured by ourselves.
Q:How is your Quality Control?
---A: We specialized in solar lighting products for 10 years, the quality of the products are pass strict inspection, and we have
one year warranty!
Q: How is your Products Control?
---A: Test and quality assurance. Our defective rate is 0.2% .Customer could purchase our products with safety.
Customer Service
Q. How is the after sales service?
---A. Huge team which is in charge of after-sales service, also a service hotline dealing with the complains and feedback s from
buyers.China working hours 9:00-18:00 Monday-Friday online service to help buyers solving problem..
Q. How can you guarantee the exclusive sale for OEM & ODM service?
---A. Product mould contract, non-disclosure agreement, exclusive sale agreement will be signed before starting the OEM & ODM
project.
Q. How to apply refund?
---A. Once the PI has been confirmed and ordered goods are ready, a refund will not available for a canceled order. But a refund
would back to you in time the case that we could not offer the products required in stock due to the shortage or unavailability.
---A: Yes, we have our own Solar Panel Factory, Plastic & Injection Factory, PCB Factory, Cable Plant, Lithium Battery Factory and
Assembling Lines, all the products we are selling are designed and manufactured by ourselves.
Q:How is your Quality Control?
---A: We specialized in solar lighting products for 10 years, the quality of the products are pass strict inspection, and we have
one year warranty!
Q: How is your Products Control?
---A: Test and quality assurance. Our defective rate is 0.2% .Customer could purchase our products with safety.
Customer Service
Q. How is the after sales service?
---A. Huge team which is in charge of after-sales service, also a service hotline dealing with the complains and feedback s from
buyers.China working hours 9:00-18:00 Monday-Friday online service to help buyers solving problem..
Q. How can you guarantee the exclusive sale for OEM & ODM service?
---A. Product mould contract, non-disclosure agreement, exclusive sale agreement will be signed before starting the OEM & ODM
project.
Q. How to apply refund?
---A. Once the PI has been confirmed and ordered goods are ready, a refund will not available for a canceled order. But a refund
would back to you in time the case that we could not offer the products required in stock due to the shortage or unavailability.
