mining industry roll crusher 2pg 250*400 quartz stone double smooth roller crusher machine


Product Description



Roll crusher is also known as tooth roll crusher. widely used in mining, metallurgy, building materials, refractory materials, chemical, coal, building materials and other industries brittle granular material medium and fine crushing. especially widely used in coal and other industries to reduce investment and production costs.





Components: roller, roller support bearing, pressure regulating device, driving device.
Working principle: the driving mechanism of roller crusher is composed of two motors, which are transferred to the groove wheel through the triangle belt to drive the roller and rotate in the relative direction, so that the material is squeezed and broken.

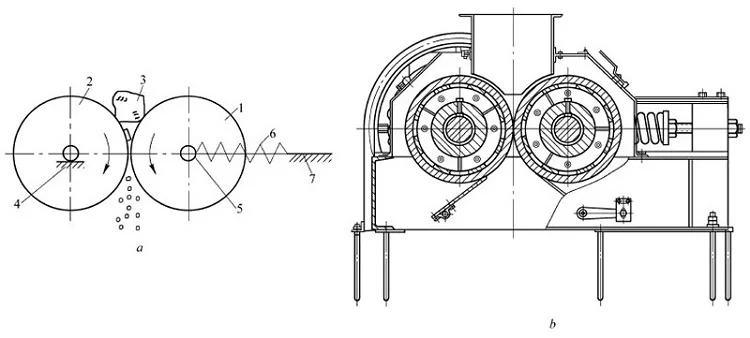

Structure diagram of double roll crusher：
a. Working principle; b. structure
1.2: Roller 3: Material 4. Fixed bearing 5. Movable bearing 6. Spring 7. Mecha


Applicable materials: fly ash, peat, coal, bentonite, wind fossil, rare earth, iron filings, yellow sand, mineral sand, etc.

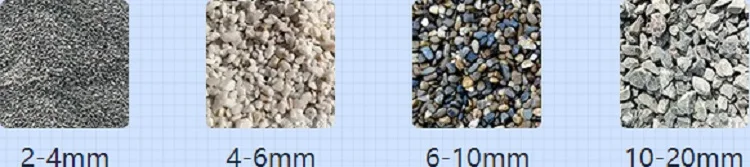

Finished product specification：

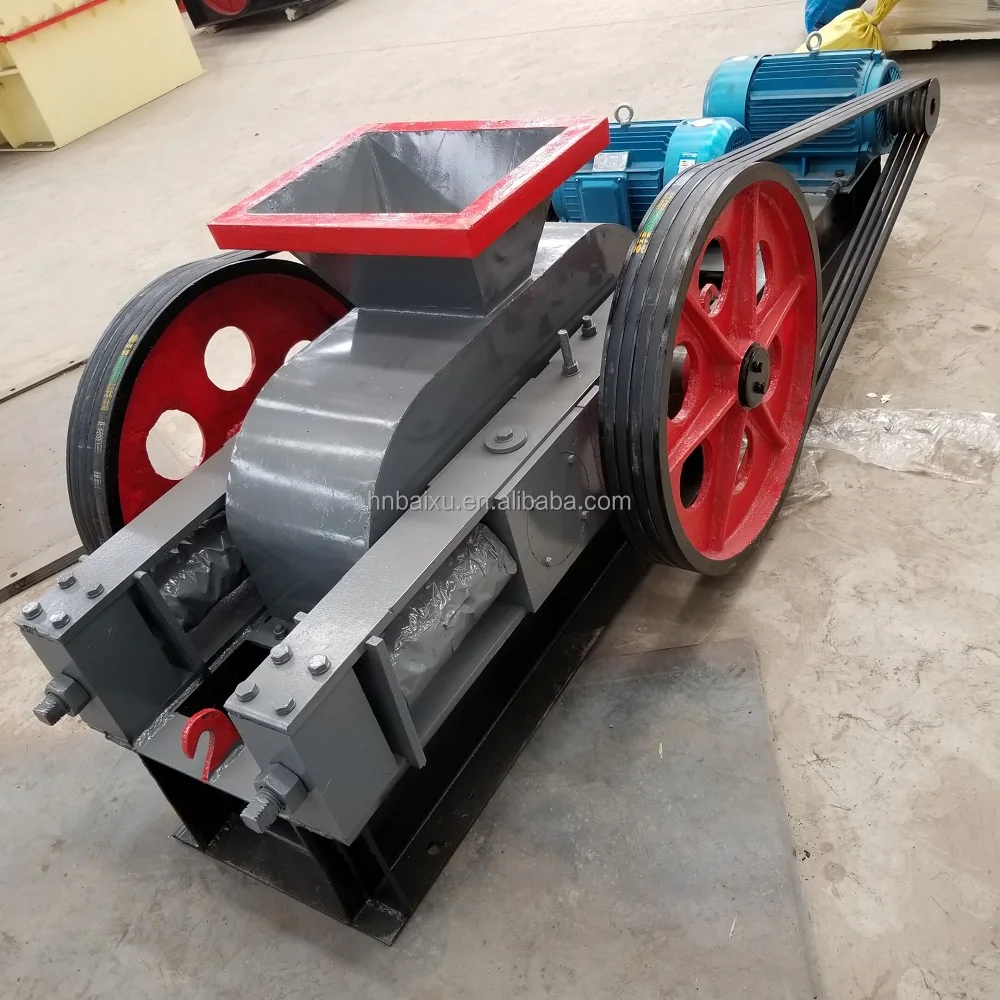

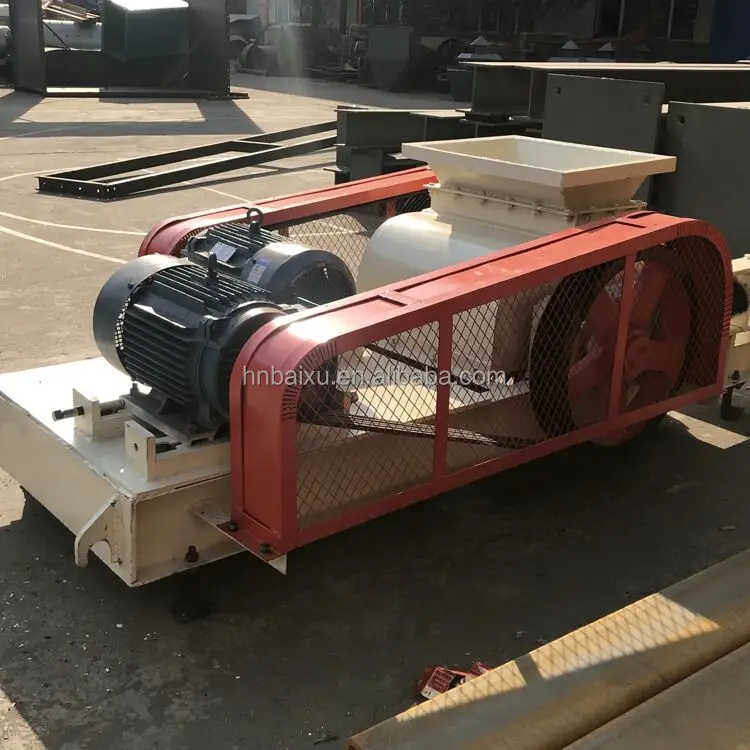

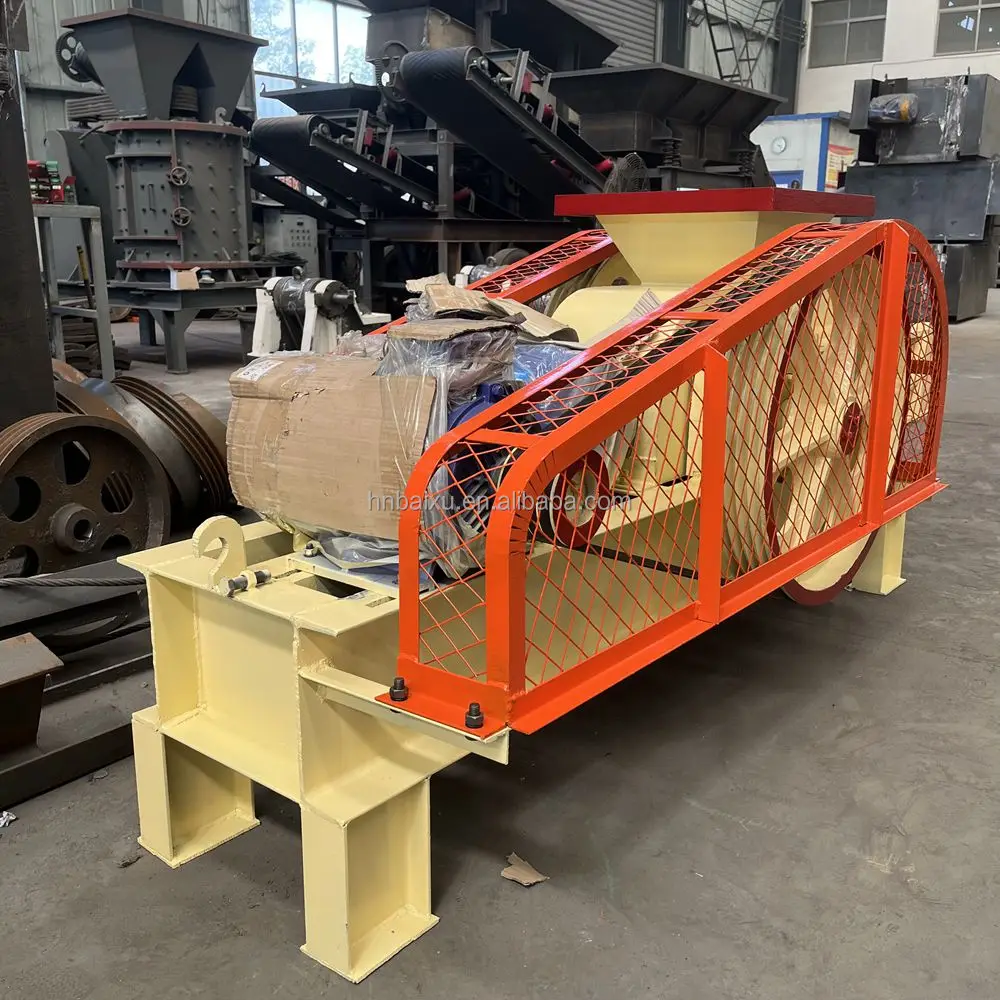

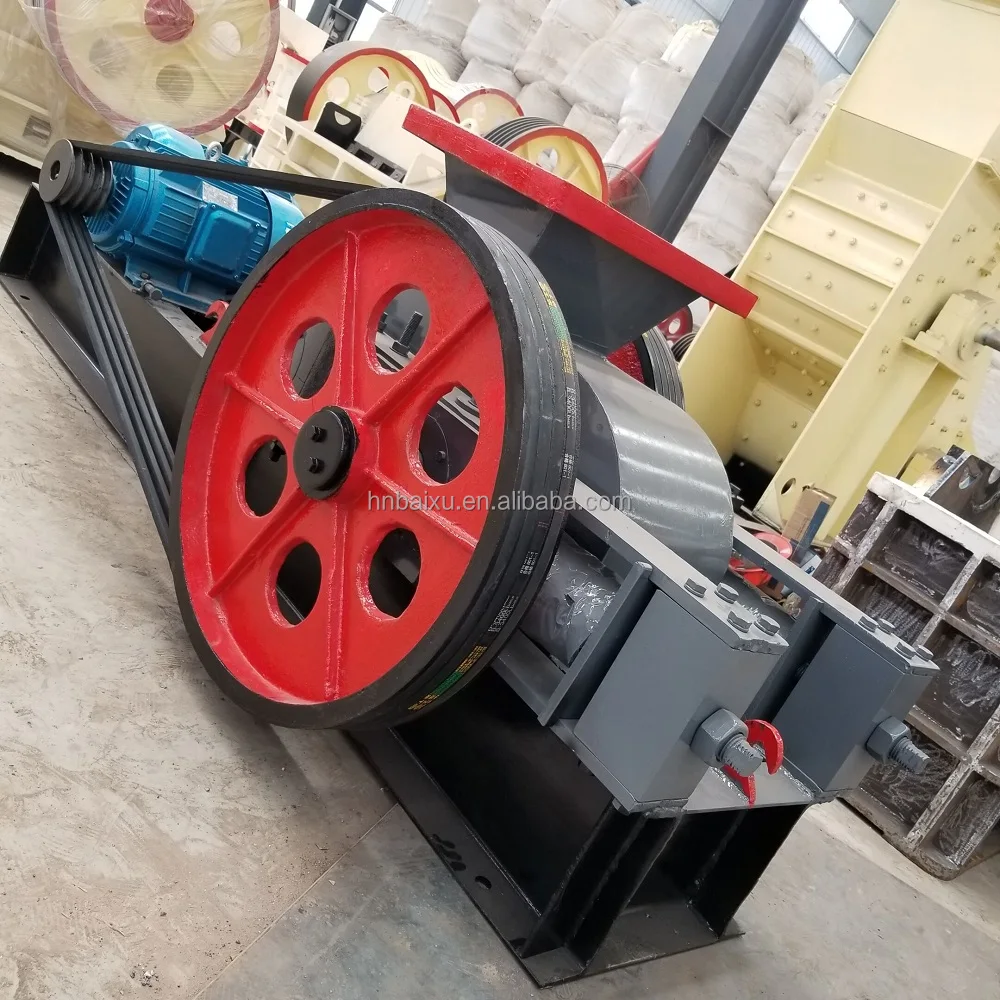

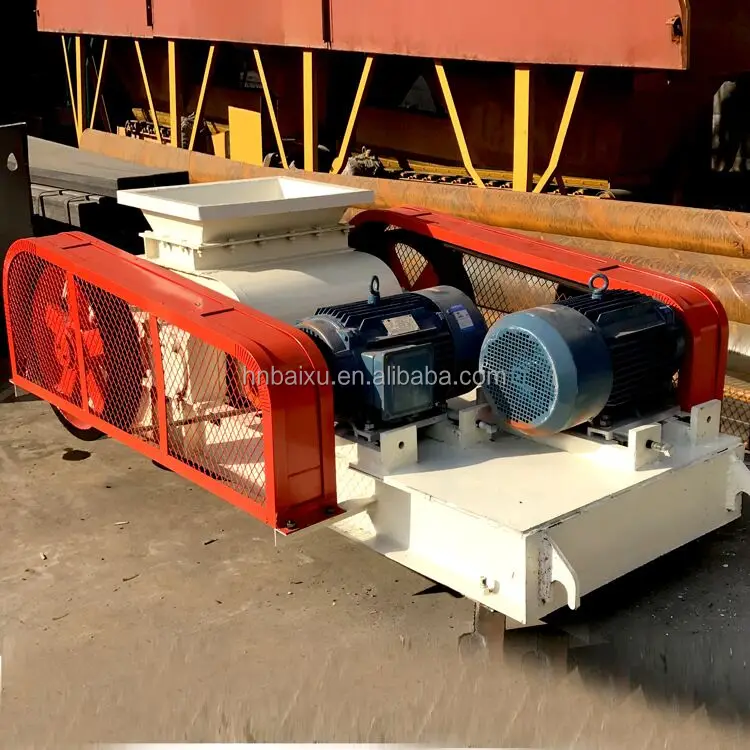

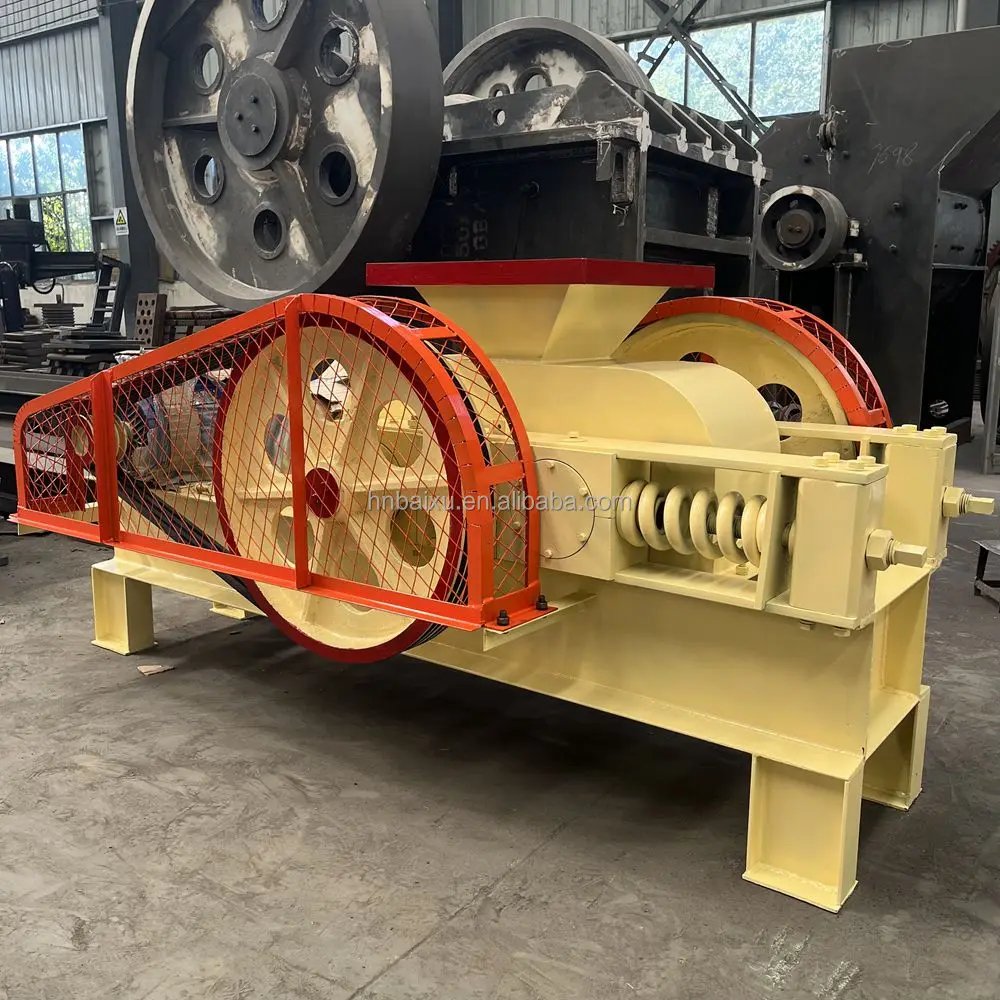

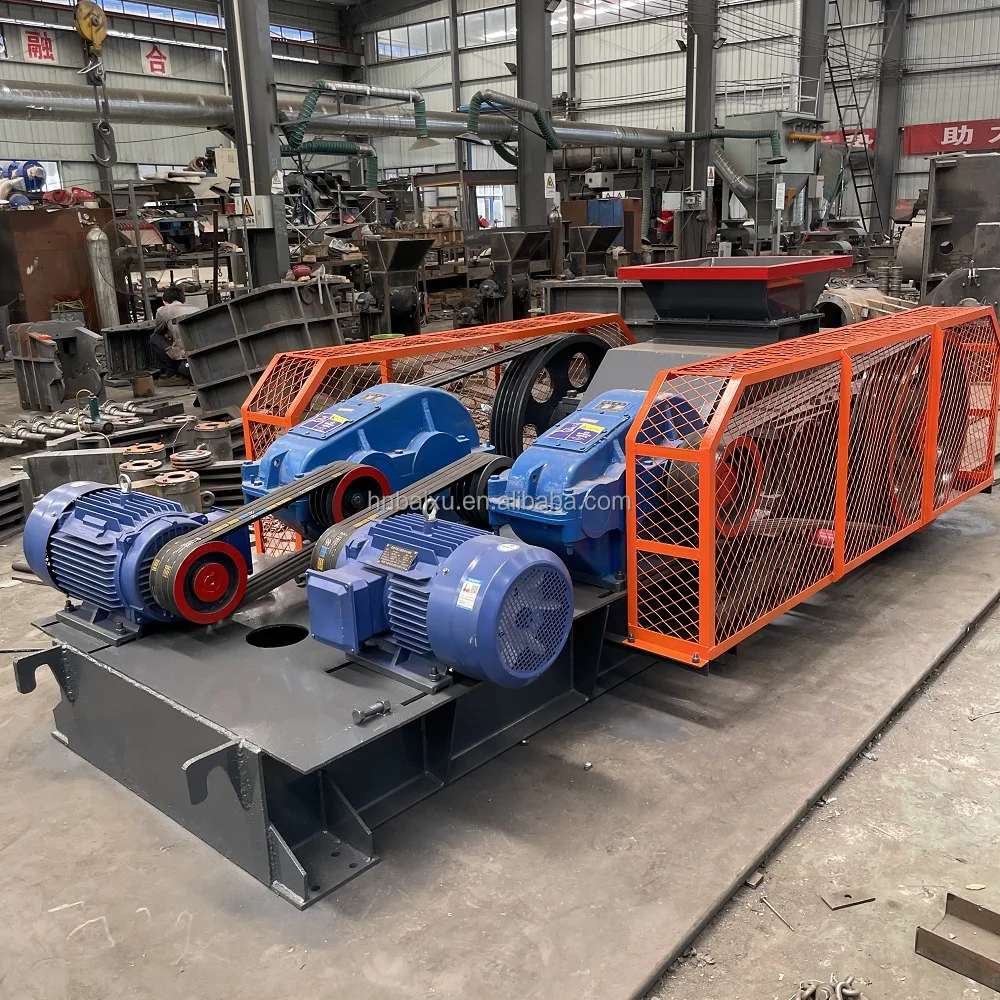

Real picture of large, small, medium roll crusher:

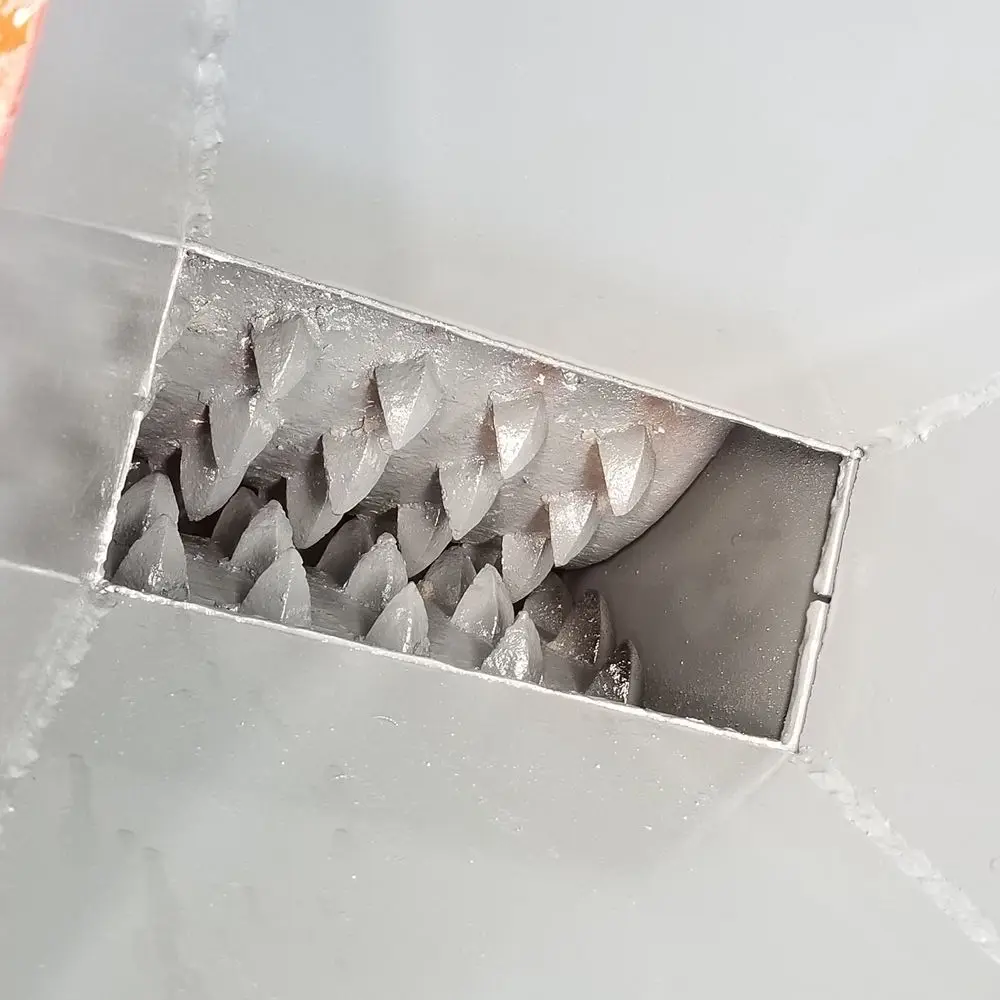

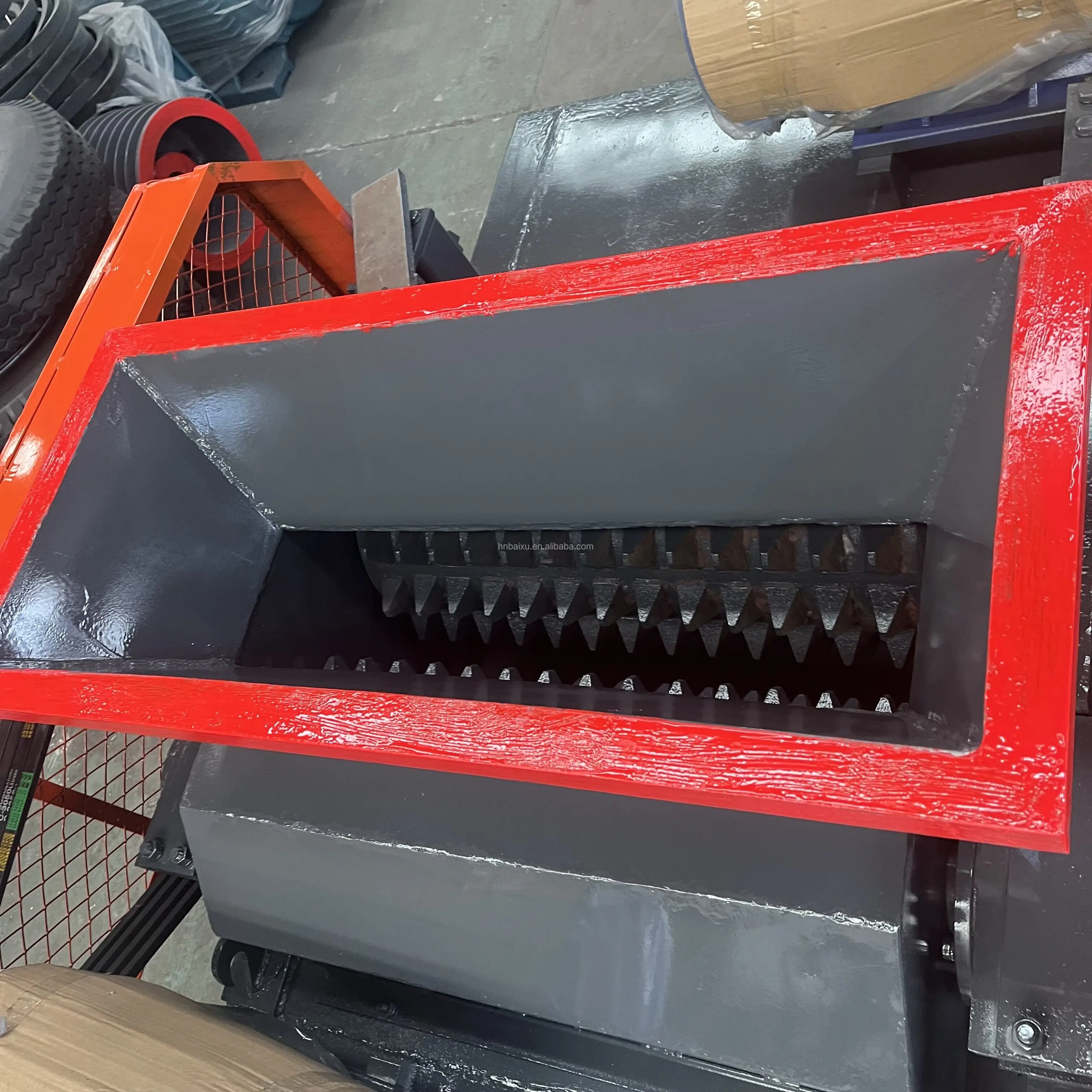

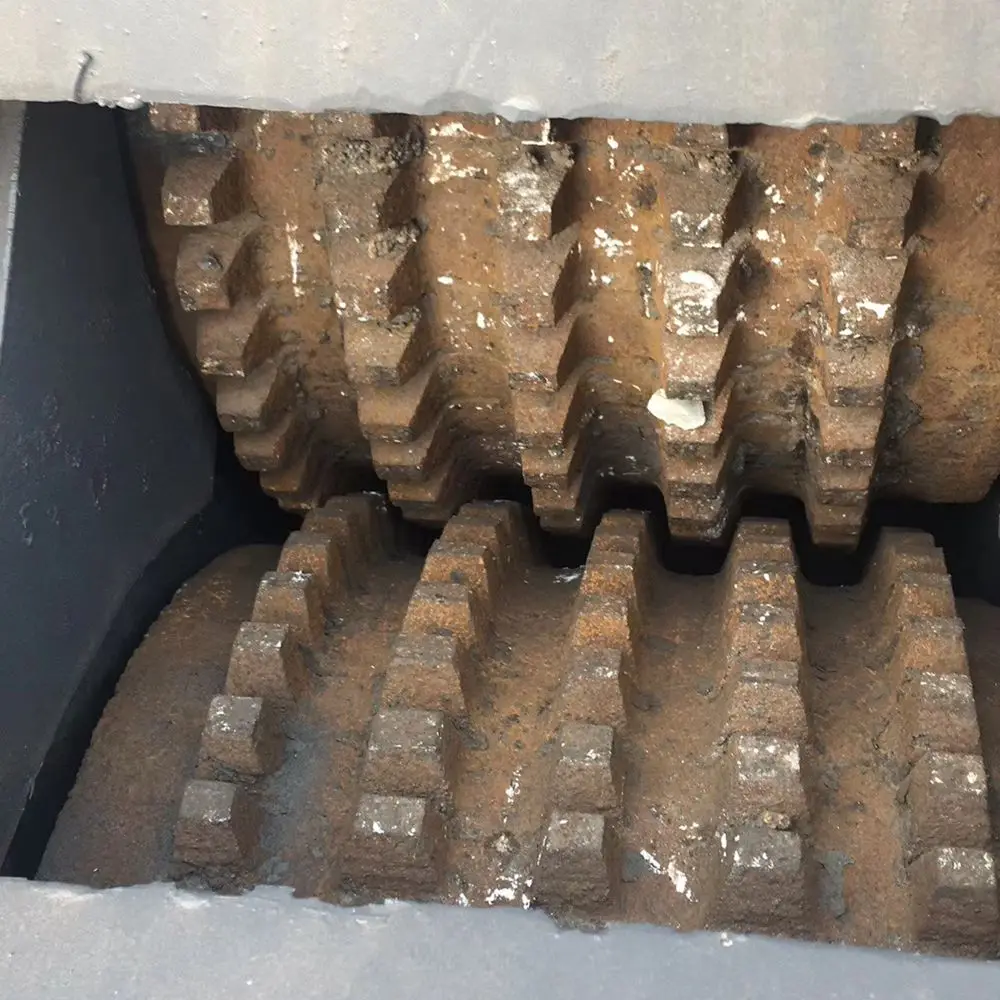

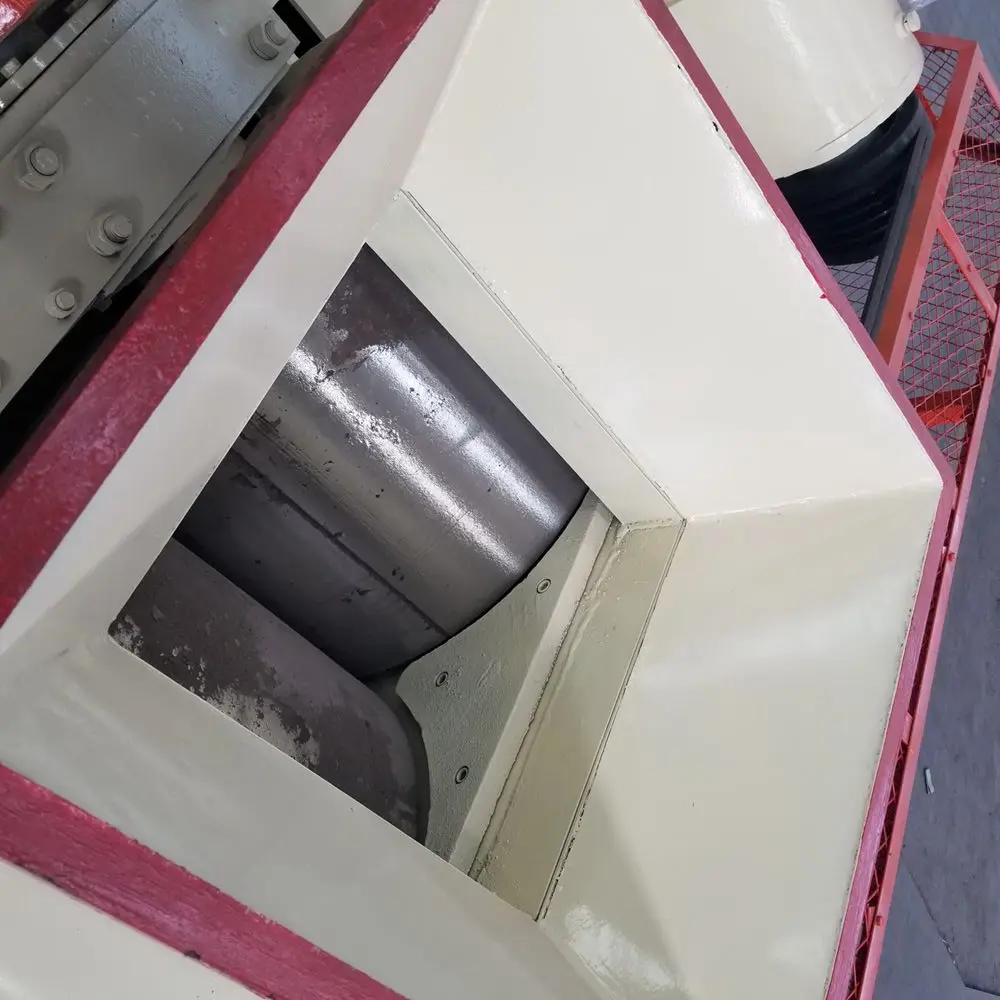

Feed roller specification: smooth roller, tooth roller
Support customization; Design crushing plan for customers






Technical parameter


Model number
Roll diameter(mm)
Roll width(mm)
Maximum feed size (mm)
Discharge port adjustment range (mm)（adjustable）
yield（t/h)
Motor power (kw)
2PG250*400
400
250
≤25
2-8
3-5
5.5*2
2PG400*400
400
400
≤25
2-8
5-10
7.5*2
2PG400*600
600
400
≤30
2-8
10-15
15*2
2PG500*750
750
500
≤35
2-8
15-25
30*2




Company introduction


Henan Baixu Machinery Equipment Co., LTD., located in Gongyi City, Henan Province, the pearl of Central Plains, Songshan Mountain, the bank of the Yellow River, mainly produces jaw crusher, hammer crusher, impact crusher, vibrating screen, engineering and building materials machinery and other products. In its stone crushing, construction sand, mineral processing technology equipment business fields are at a very high level. Business and service agencies throughout the country, and exported to Eastern Europe, Central Asia and other countries.


Workshop, exhibition hall, well equipped：




Perfect production equipment system：




Packing and transportation




FAQ


Q: What materials can be broken by roller crusher?
A: Fly ash, peat, coal, bentonite, wind fossil, rare earth, iron filings, yellow sand, mineral sand, etc.
Q: How can I see the crushing effect I want?
A: You can tell me the material you want shredded. I'll find it and shoot you a trial video at the factory
Q: How to adjust the discharge gap of roll crusher?
A: A wedge-shaped or gasket adjusting device is installed between two rollers, and the top of the wedge-shaped device is equipped with adjusting bolts, which can adjust the size of the discharge particle size
Q: Are the wearing parts of crushing equipment durable?
A: First of all, the wearing parts are made of manganese and chrome, which are wear-resistant and durable. Wear parts need to be replaced within a certain period of time. I can get you to sell the wearing parts at factory price
Q: Is it convenient to replace the wearing parts of crushing equipment?
A: Yes, we can provide you with a video guide if you want
Q: How do you help customers install equipment?
A: They are usually assembled and ready to use when they are delivered. Video instruction will be provided if required
