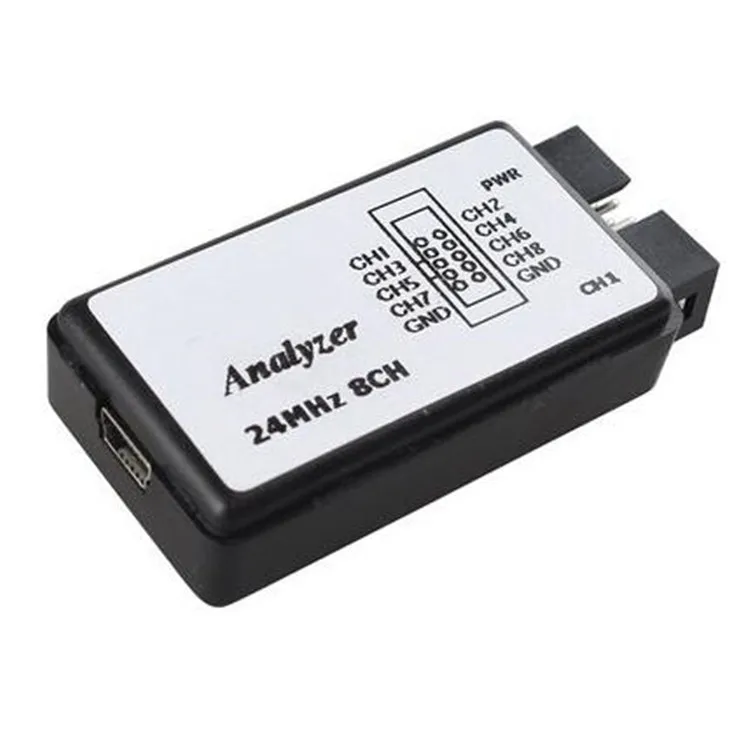

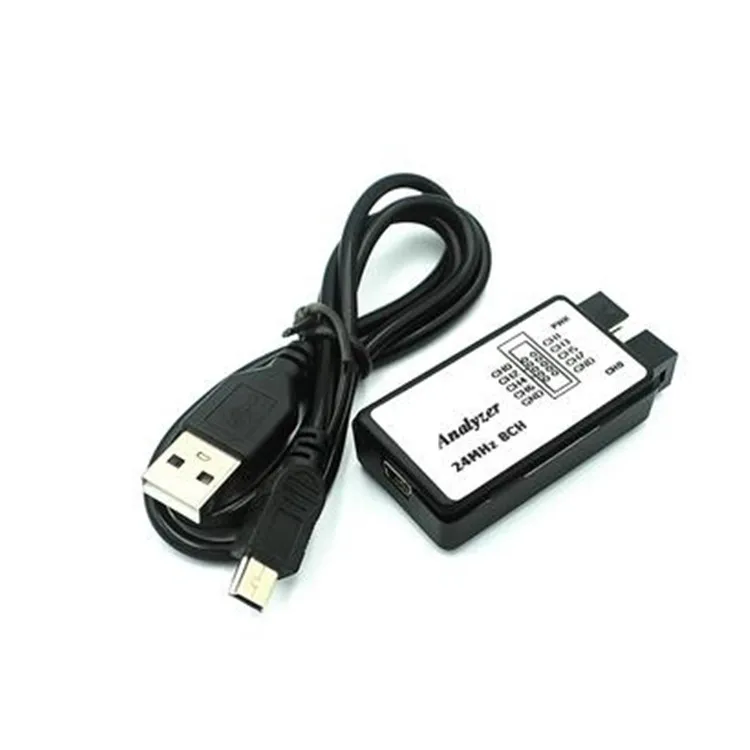

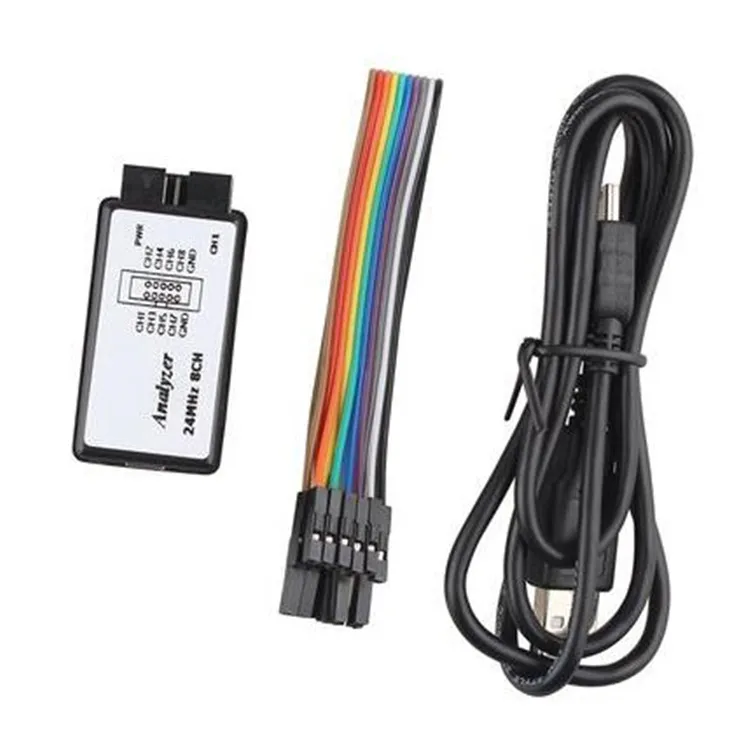

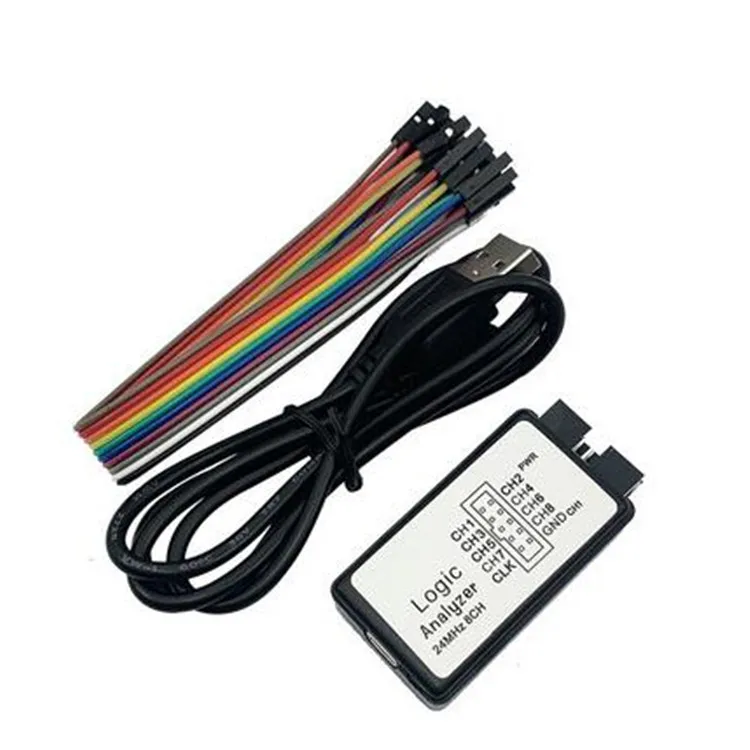

24M sampling 8 channels with DuPont ARM FPGA debugging tool USB logic analyzer

 24MHZ 8CH Microcontroller ARM FPGA Debug Tool USB Logic Analyzer

Product Description:

Sampling rate up to 24MHz, up to 24MHz. 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz;

The logical sampling rate of each channel is 24M/s. The general application is about 10M, enough to deal with a variety of problems;

8 channel;

Voltage range:

Input voltage range: -0.5V to 5.25V

Input low voltage: -0.5V to 0.8V

Input high voltage: 2.0V to 5.25V

Suitable for 5V, 3.3V, 2.5V, 2.0V systems. 1.8V can be used but is not recommended.

Input impedance: 1Mohm 10pF (typical, approximate)

Crystal: +/- 20ppm, 24MHz

Error/accuracy: Pulse width measurement: +/-42ns (24MHz)

Note:New parts and in original factory package!

Sincerely looking forward to our cooperation!
Any feedback from you would be highly appreicately!

Selling Units:

Single item

Lead Time :

Quantity(Piece)	1 - 2000	>2000
Est. Time(days)	2	To be negotiated
