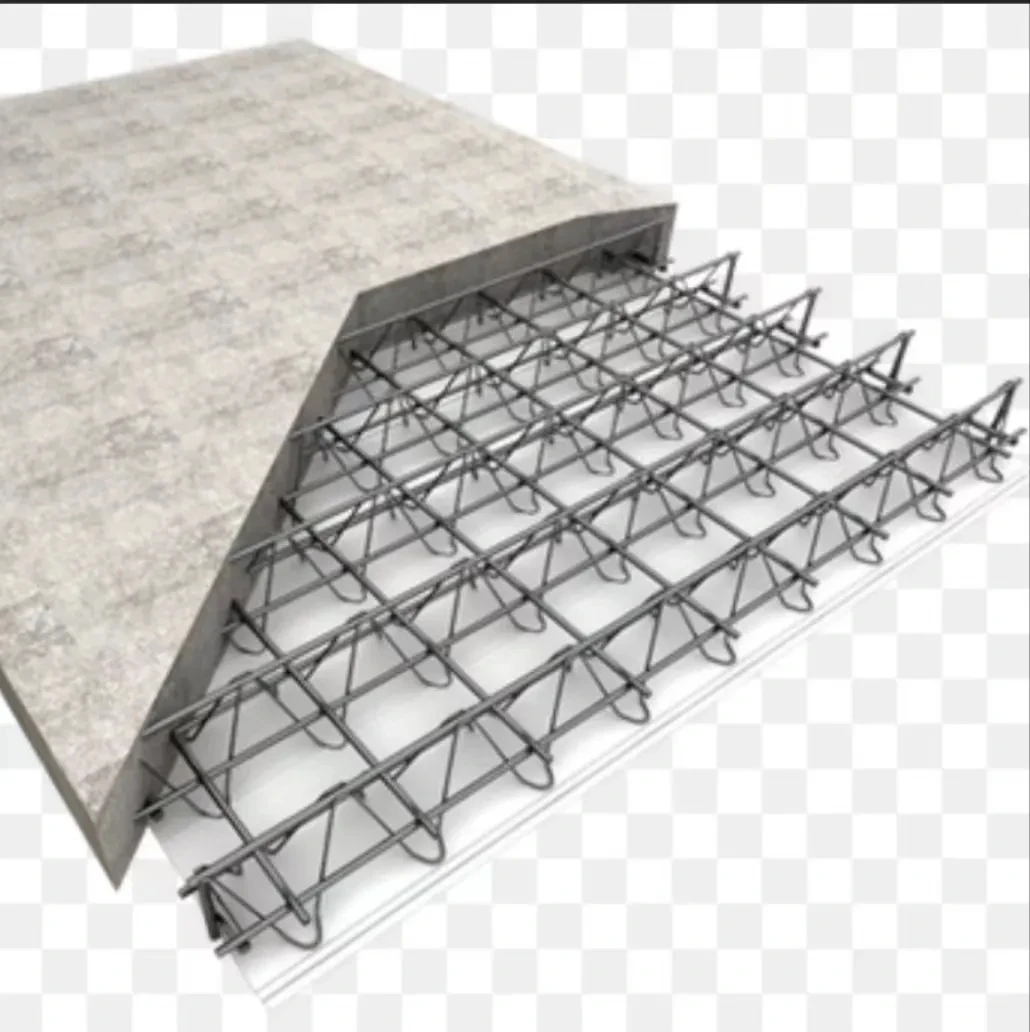

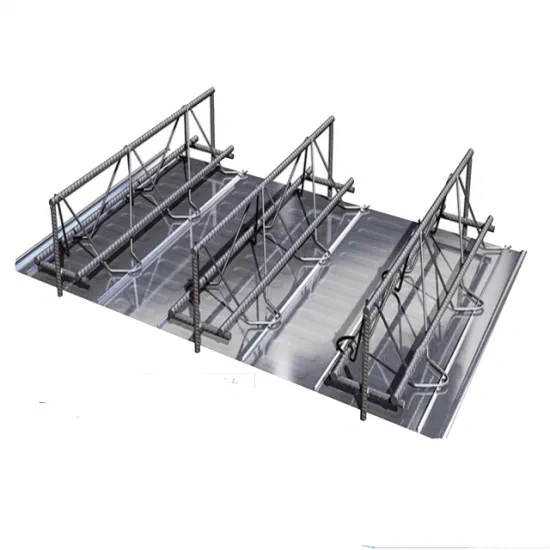

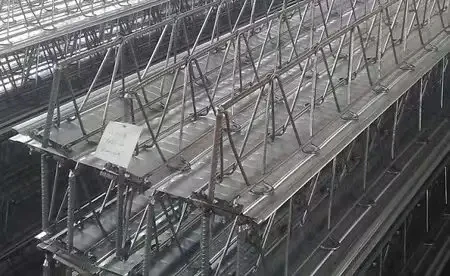

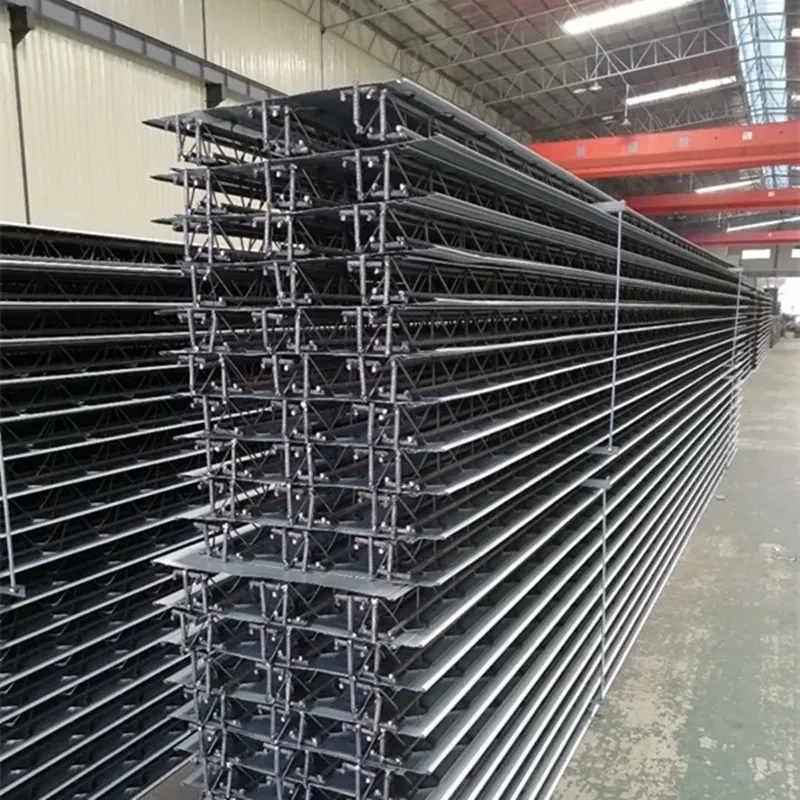

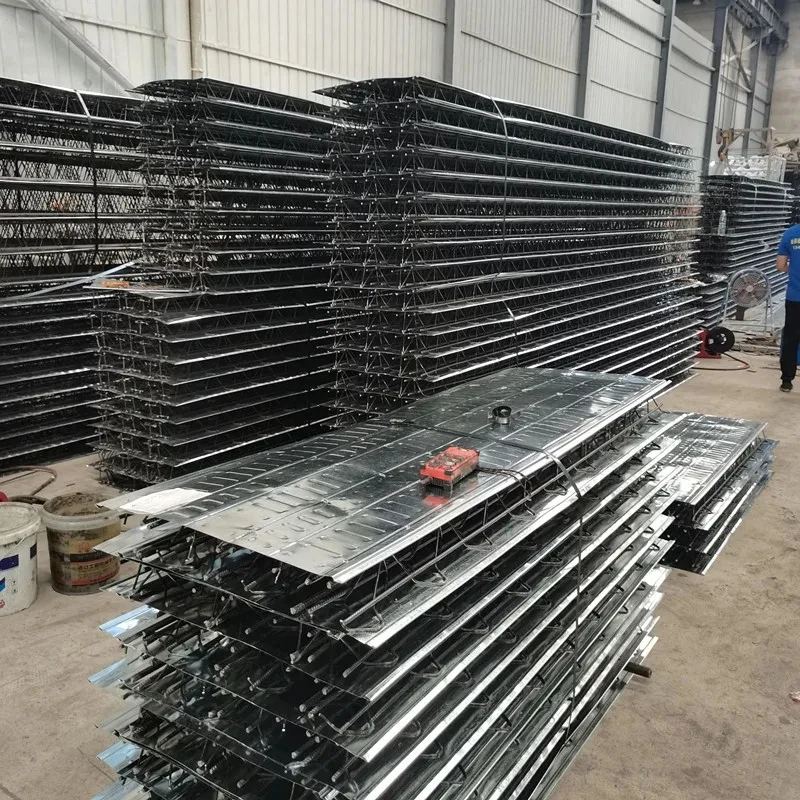

Galvanized Durable metal materials for building steel bar truss deck for reinforcing roof steel re bar lattice truss floor deck

Deck truss VS. Corrugated steel deck

Comparing to profiled steel deck,steel truss deck can reudce 60-70% steel bars banding quantities,and reduce construction period
for each floor.

1,Steel truss deck is produced by computer numerical control equipment,steel bar distance is evenly arranged and even by force;
2,Concrete protection layers thickness and floor slab thickness can be effectively guaranteed;
3,Base mould is not involved in the use phase,so it doesn't need to consider fireproof and anticorrosive problem.

1,The base mold and steel rebars of deck truss are integrated in factory,which make it easy construction;
2,Deck truss can reduce the bundling of steel rebars.It not only saves labor costs, but also reduces the safety hazards of
reinforcing steel bars on site;
3,The two-way stiffness of the floor slab is close, which is good for building earthquake resistance.

1,The force mode of steel truss deck is reasonable, the material selection is economical, and the comprehensive cost advantage is
obvious;
2,The height of the truss and the size of the steel bars of deck truss can be adjusted to accommodate large-span slabs;
3,Steel truss deck can be designed as a two-way board;
4,The bottom mold of truss deck is flat and beautiful, which increases the floor usage by 20%.

1,Steel truss deck can reduce the labor consumption;
2,Deck truss can reduce the cost of rented construction machines and construction management cost;
3,Deck truss can shorten the installation time,thereby speeding up the capital turnover, which reduces the cost.

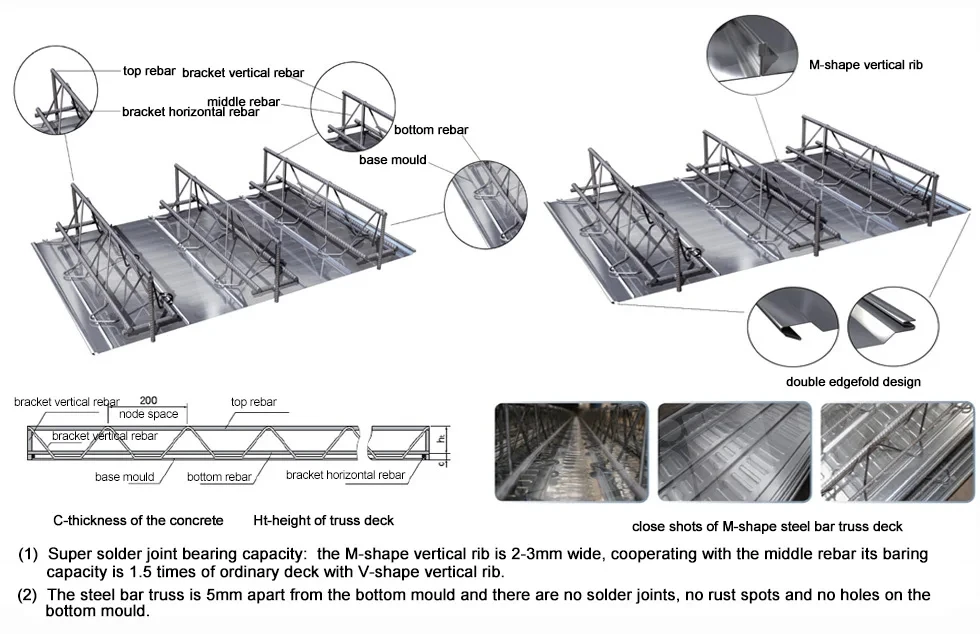

The diameter of upper & lower rebar

6-14mm

The diameter of web rebar

4-7mm

The height of the truss

70-270mm

The diameter of the Horizontal support rebar

10mm(h≤100MM），12（H＞100MM）

The diameter of the Vertical support rebar

12mm(h≤100MM），14（H＞100MM）

The thickness of the deck

15mm

The  width of the deck

600mm

The thickness of protective concrete

15mm，20mm，25mm，30mm

The length of the steel truss deck

1.0-12m
