Product Overview
Description
DESCRIPTION
What is a service entrance switchboard
Switchboards are used to safely distribute electricity throughout commercial and industrial facilities. A switchboard is a component of an electrical distribution system which divides an electrical power feed into branch circuits while providing a protective circuit breaker or fuse for each circuit in a common enclosure. Switchboards typically have a maximum voltage rating of 600 Vac/Vdc and a maximum bus rating of 6000 A and are designed to meet UL891 and NEMA Standard PB2.
What is the difference between switchboards and panelboards
Switchboards and panelboards provide similar functionality in a power distribution system. Panelboards are typically limited to a maximum of 1200 A incoming current (main),either flush mounted within a wall or surface mounted to a wall. Switchboards are freestanding units that can be front connected and which would require only front access, similar to panelboards.
However, switchboards can allow for both frontand rear access if desired. Switchboards can accommodate up to 6000 A bussing and overcurrent protective devices up to 5000 A.While panelboards are designed to UL 67, switchboards are governed by UL 891.

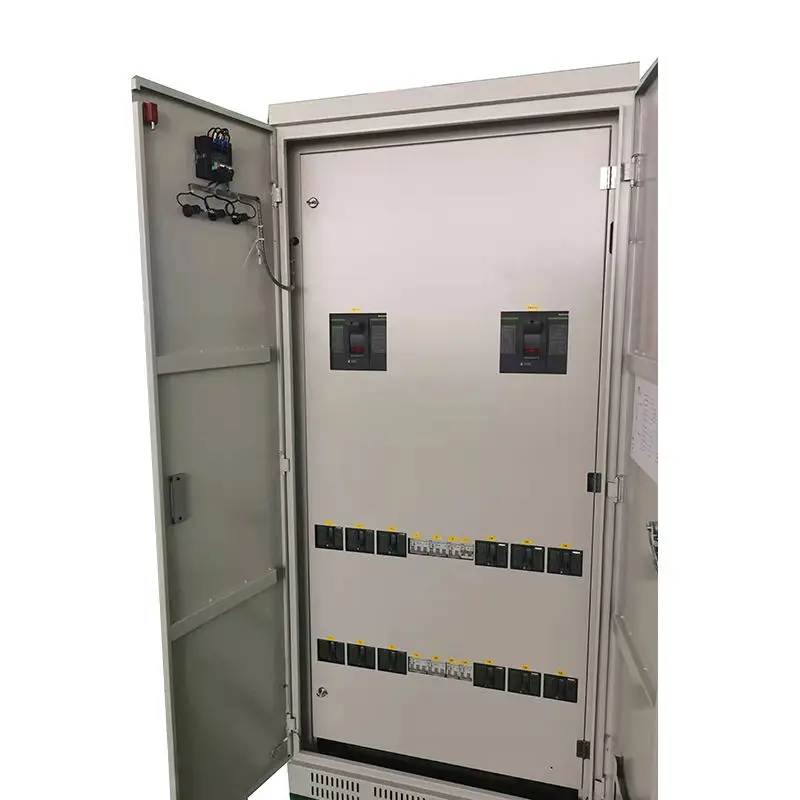

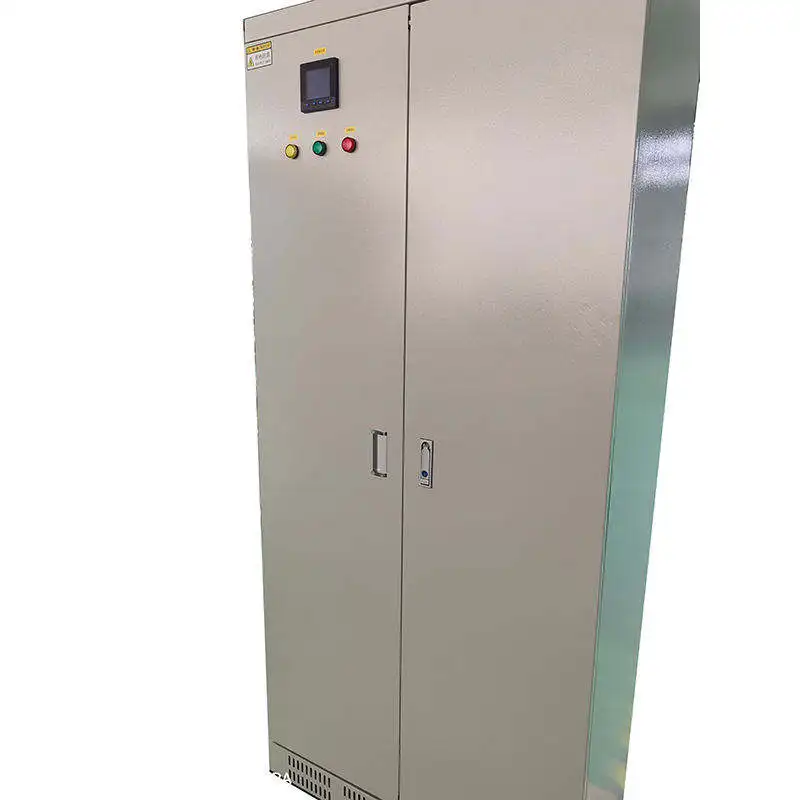

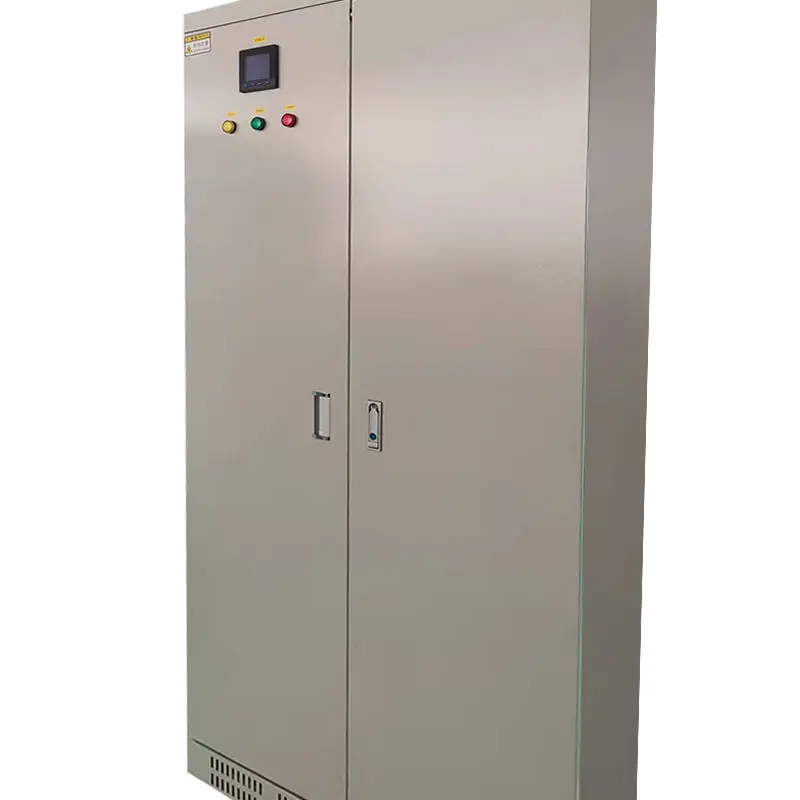

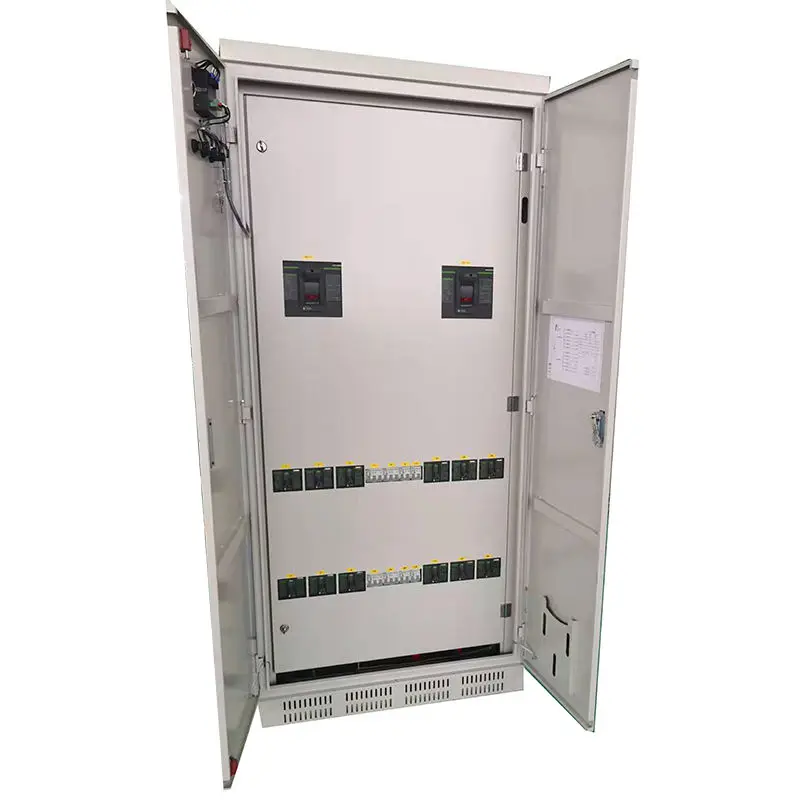

Product Name | Switchboard |
Product model | KLS-PSD960A |
Rated voltage | 600V |
Rated current | 960A |
Peak current | 1200A |
SCCR (Icu) | 35kA |
breaker(MCCB) | 1200A/3P / 80A/3P /25A/3P |
Box material | Metal case |
Executive standard | UL891 /CSA C22.2 No.244 |
Special instructions | Customize different products according to technical requirements |
Product Description
Company Profile
Custom Process
Our Advantages
Packaging & Transportation
FAQ
1 . Q : Whether to provide customization ?
A : Yes , we have a professional R & D team to customize theproducts you need.
2 . Q : What service can you supply ?
A : We have our brands products and OEM / ODM service
3 . Q : What is your delivery time ?
A : Follow your order quantity todetermine the delivery date.
A : Yes , we have a professional R & D team to customize theproducts you need.
2 . Q : What service can you supply ?
A : We have our brands products and OEM / ODM service
3 . Q : What is your delivery time ?
A : Follow your order quantity todetermine the delivery date.
