CCTV 27 Ports Gigabit Switch 24CH POE Switch IEEE802.3af/at 300W POE Power Supply for 48V IP Cameras SFP optical 30W Output
- Category: >>>
- Supplier: Shenzhen Qianpei Technology Co. Ltd.
Share on (1601022367372):
Product Overview
Description
Product Description
Product Description

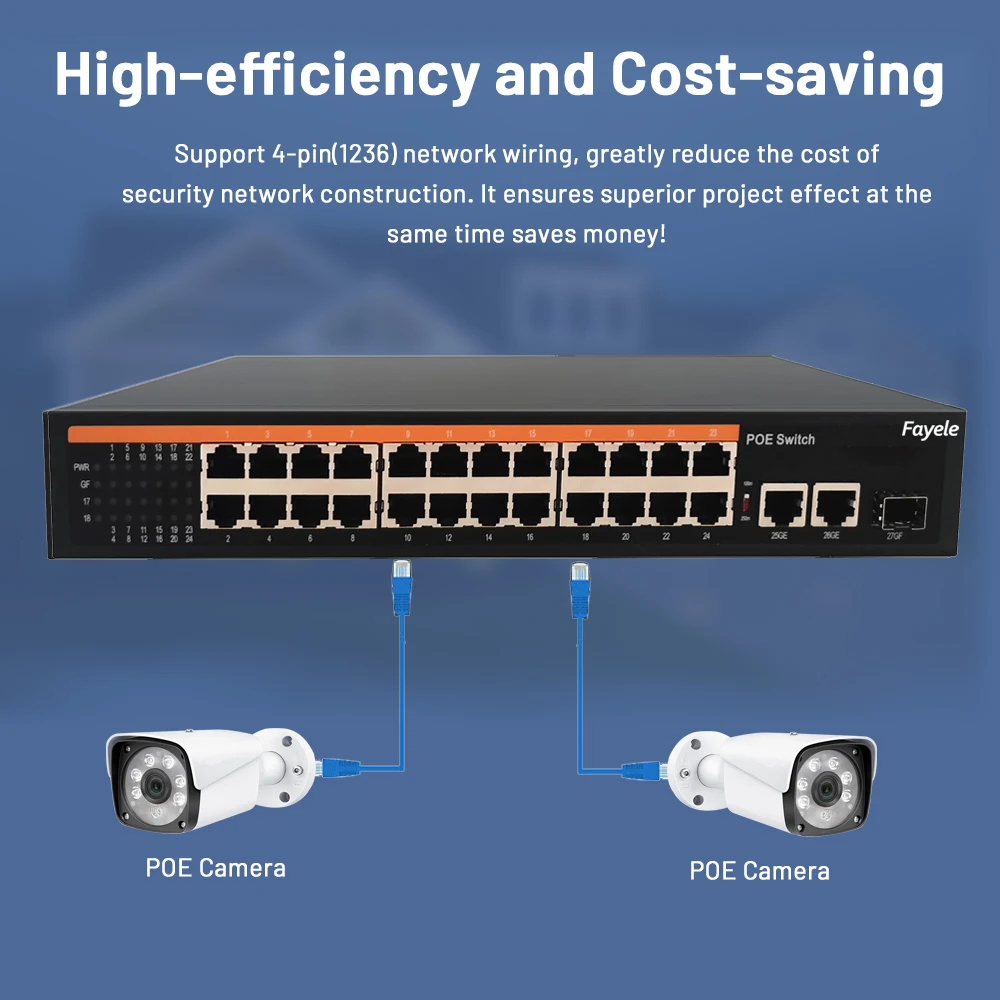

The POE Powered Switch supports the IEEE802.3af/at power over Ethernet standard with a power distance of 100 meters and only powers 802.3af/at terminal devices, so there is no need to worry about compromising proprietary standards for POE or non-POE devices. In addition, the POE device stops supplying power when it is not connected. These devices, which are far from the power outlet, are suitable for hanging on the wall or on the ceiling, and the POE eliminates the need to connect the power outlets for these devices, making the connection to equipment that is difficult to connect to AC power more flexible and with minimal installation costs. This series POE Powered switches are ideal selection for small business networks that want to use the economic deployment of wireless access points (AP) and IP-based network surveillance cameras
Power supply mode
Poe power supply: refers to a kind of professional technical application of IP camera and related equipment to be powered through network cable, that is, bidirectional transmission of data and power supply function in a network cable: the transmission voltage meets the different site requirements of international standard AF / at: 15.4v/25.5v. Advantages of use: simple construction, flexible and convenient, wire saving, reduced operation and maintenance costs; can ensure the safety of existing structured cabling while ensuring the normal operation of existing network data; in order to have a longer working life, it is recommended to use a quality guaranteed network cable and transmission distance within 80 meters;
Product Features
1. Meet IEEE802.3 10Base-T and ie802.3u 100Base-T Ethernet standards
2. Flow control mode: IEEE 802.3x standard is adopted for full duplex and back pressure standard is adopted for half duplex;
3. Port supports 10 / 100M adaptive and auto flip (automdi / mdix)
4. Ethernet port two-level lightning protection technology ensures product stability
5. Support fixed port VLAN (ieee802.1q1 VLAN)
6. The exchange mechanism of store and forward
7. All ports support line speed switching. Line speed can be achieved within 1536k frame length. Line speed switching is
supported,
8. Imported chip, automatic cooling
9. With MAC address automatic learning, automatic update function;
10. 1-2 uplink 10 / 100 / 1000Mbps adaptive ports are used for cascade or external network access platform;
11. The 16-port Poe Ethernet switch has 16 downlink 10 / 100Mbps adaptive Poe intelligent power supply ports, supports
ieee802.3af/at power supply international standard, 12 + / 36 -, 15.4/25.5w power supply output by end bridging method;

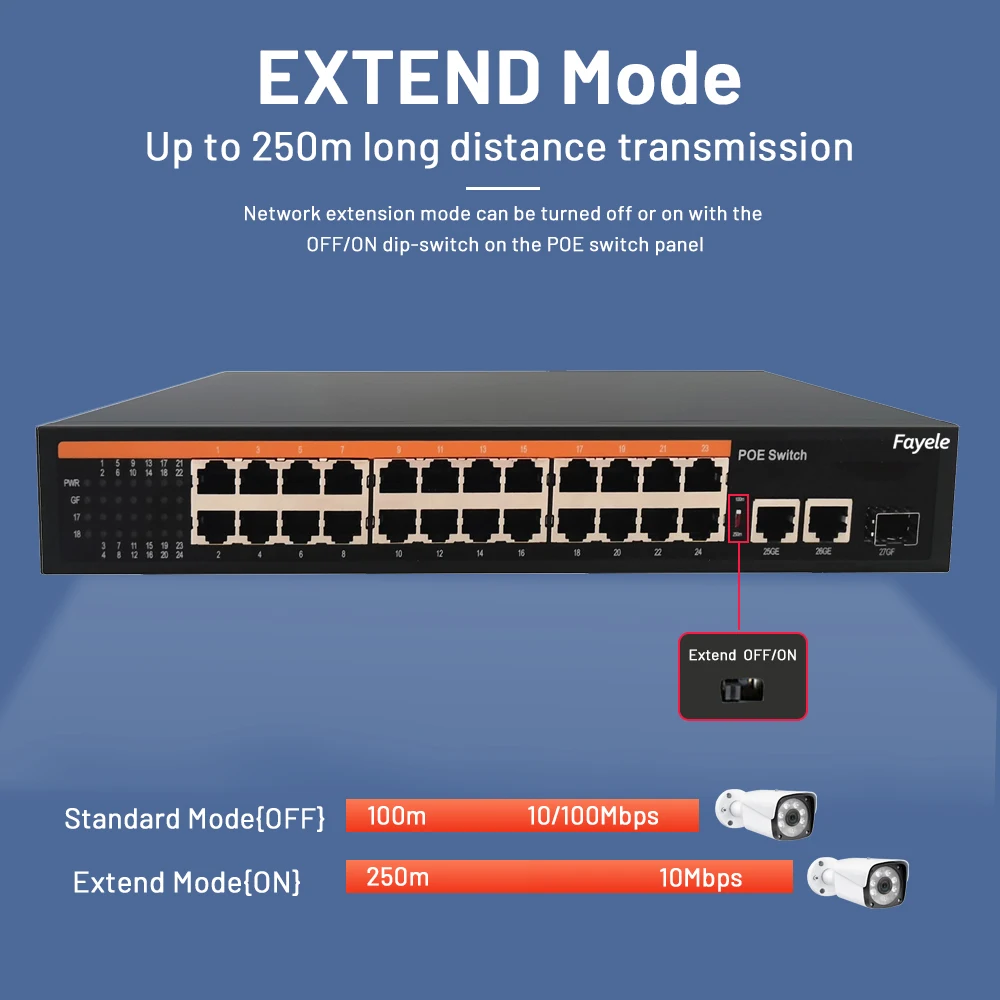

12. Poe transmission with extended network extended signal mode, the network power switch can transmit up to 250m by itself
13. Support auto MDI / mdix;
2. Flow control mode: IEEE 802.3x standard is adopted for full duplex and back pressure standard is adopted for half duplex;
3. Port supports 10 / 100M adaptive and auto flip (automdi / mdix)
4. Ethernet port two-level lightning protection technology ensures product stability
5. Support fixed port VLAN (ieee802.1q1 VLAN)
6. The exchange mechanism of store and forward
7. All ports support line speed switching. Line speed can be achieved within 1536k frame length. Line speed switching is
supported,
8. Imported chip, automatic cooling
9. With MAC address automatic learning, automatic update function;
10. 1-2 uplink 10 / 100 / 1000Mbps adaptive ports are used for cascade or external network access platform;
11. The 16-port Poe Ethernet switch has 16 downlink 10 / 100Mbps adaptive Poe intelligent power supply ports, supports
ieee802.3af/at power supply international standard, 12 + / 36 -, 15.4/25.5w power supply output by end bridging method;
12. Poe transmission with extended network extended signal mode, the network power switch can transmit up to 250m by itself
13. Support auto MDI / mdix;
Specification
Item | Description | ||
Power | Power Supply | Internal Power Supply | |
Voltage range | AC100-240V | ||

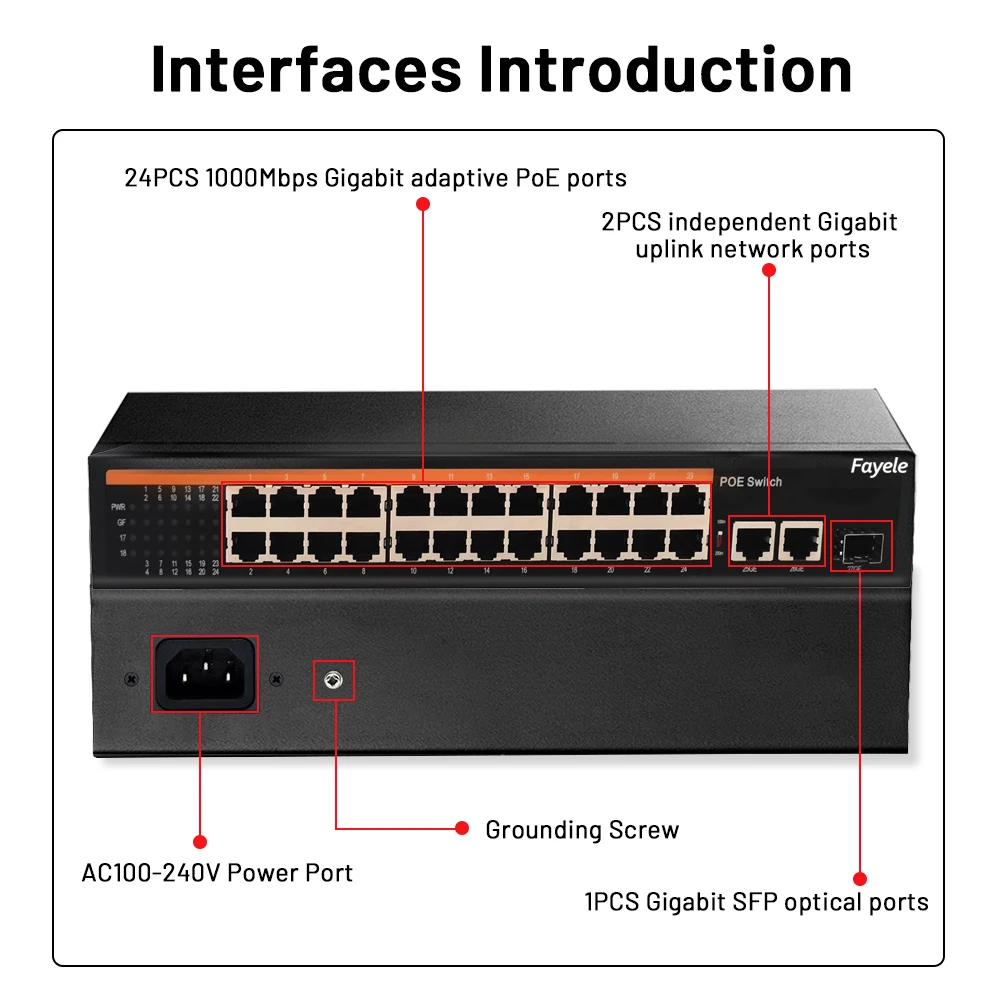

Network Information | Network Ports | 1-24 Downlink：10/100Mbps | |
2*UPLINK Optical port：10/100/1000Mbps | |||
Transmission distance | 1-24 Downlink：0-100m | ||
2*UPLINK ：Depends on the Optical Module | |||
Transmission medium | Cat5 and above Unshielded twisted pair | ||
Network Standard | IEEE 802.1Q,IEEE802.1s,IEEE802.1x, IEEE 802.3ad, IEEE 802.3az | ||
Switching Capacity | 56Gbps | ||
Packet Forwarding Rate | 9.52Mpps | ||
MAC Table | 8K | ||
POE Information | POE Standard | IEEE802.3af/at | |
POE Type | End-Span（1/2+，3/6-） | ||
POE port Features | 15.4 output power, 250W total power | ||
LED Status Indicator | Power | Red light indicates that power normal work; | |
Network indicator | Green light indicates that Link/act is working normally; | ||
POE indicator | Flashes Yellow indicates that POE is working normally; | ||
Operating Environment | Operating Temperature | 0℃～55℃ | |
Storage temperature | -20℃~70℃ | ||
Humidity | 20~95% (non-condensing) | ||
Mechanical | Dimension (L×W×H) | 432*207*44mm | |
Material | Sheet metal | ||
Color | Black | ||
Weight | 3645g | ||

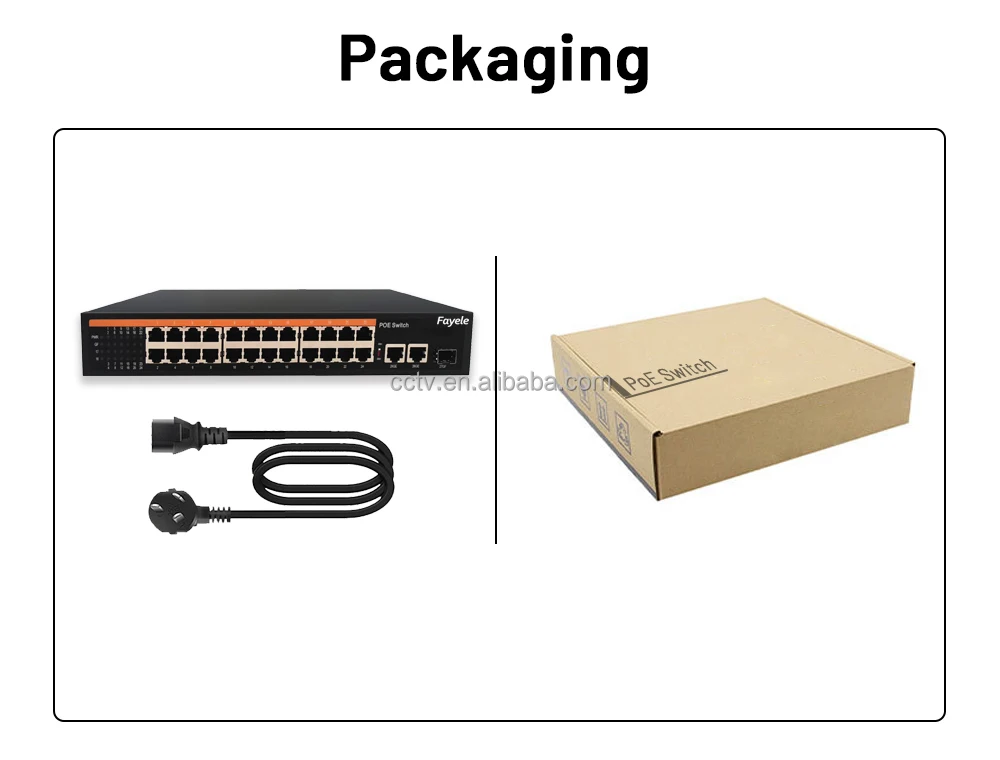

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile

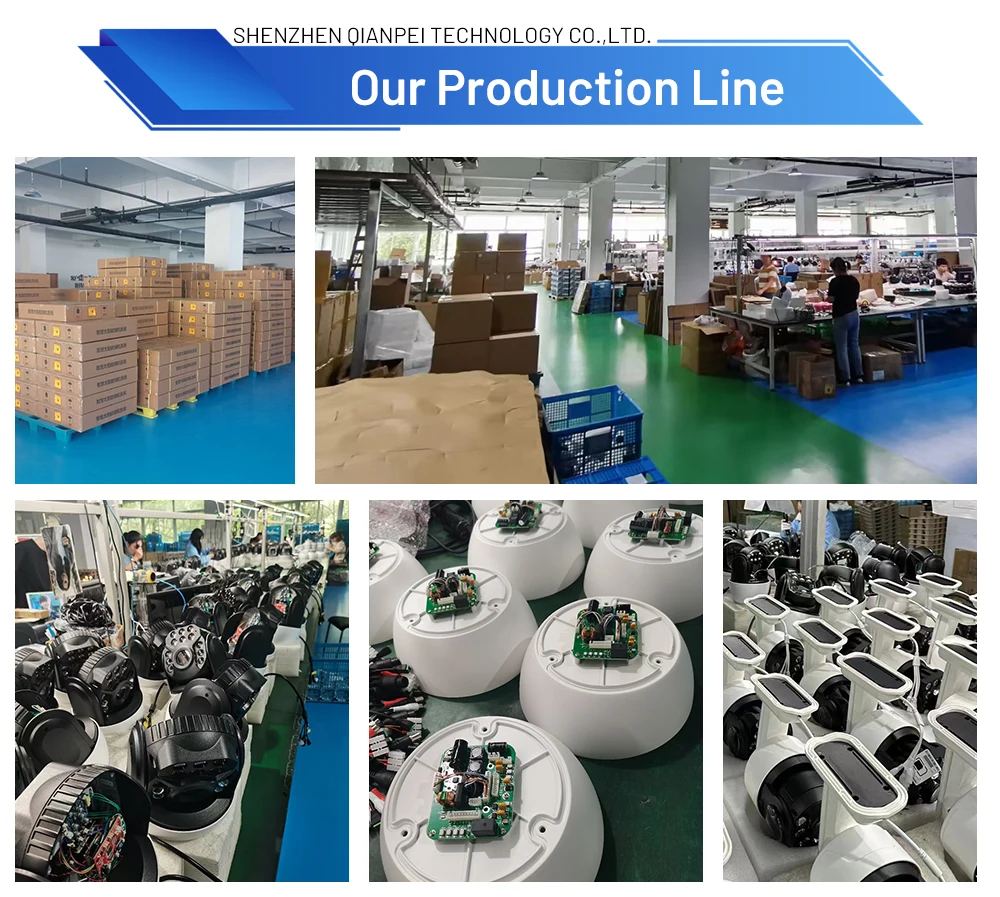

Shenzhen Qianpei Technology Co., Ltd. is located in Shenzhen China, a city known as "Security Base". We're Specialized in manufacturing, developing and selling video surveillance products. Our products include: Network HD NVR, IP Camera, PTZ Camera, Video Conference Camera, Intelligent Analysis IPC/NVR, Face Capture/Comparison/Recognition IVR, Face Attendance device etc., which are a series of applications in intelligent high-definition solutions.
