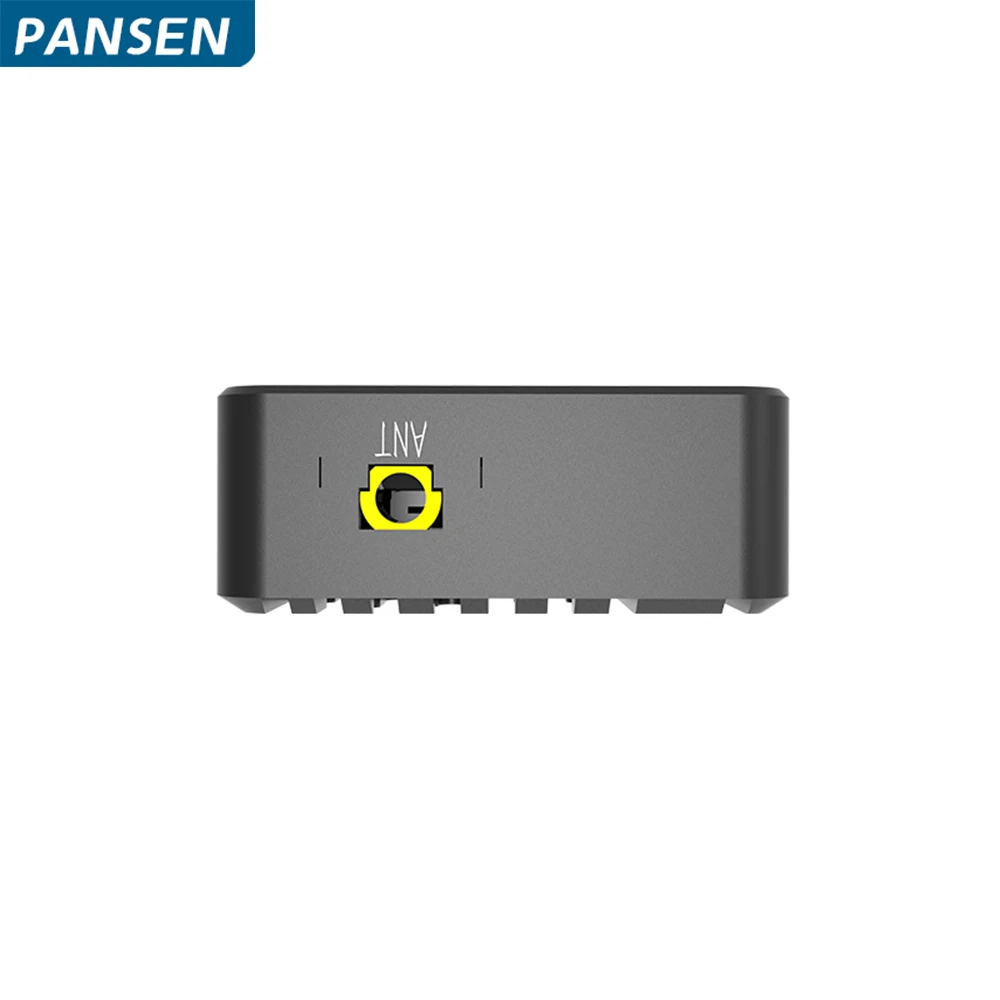

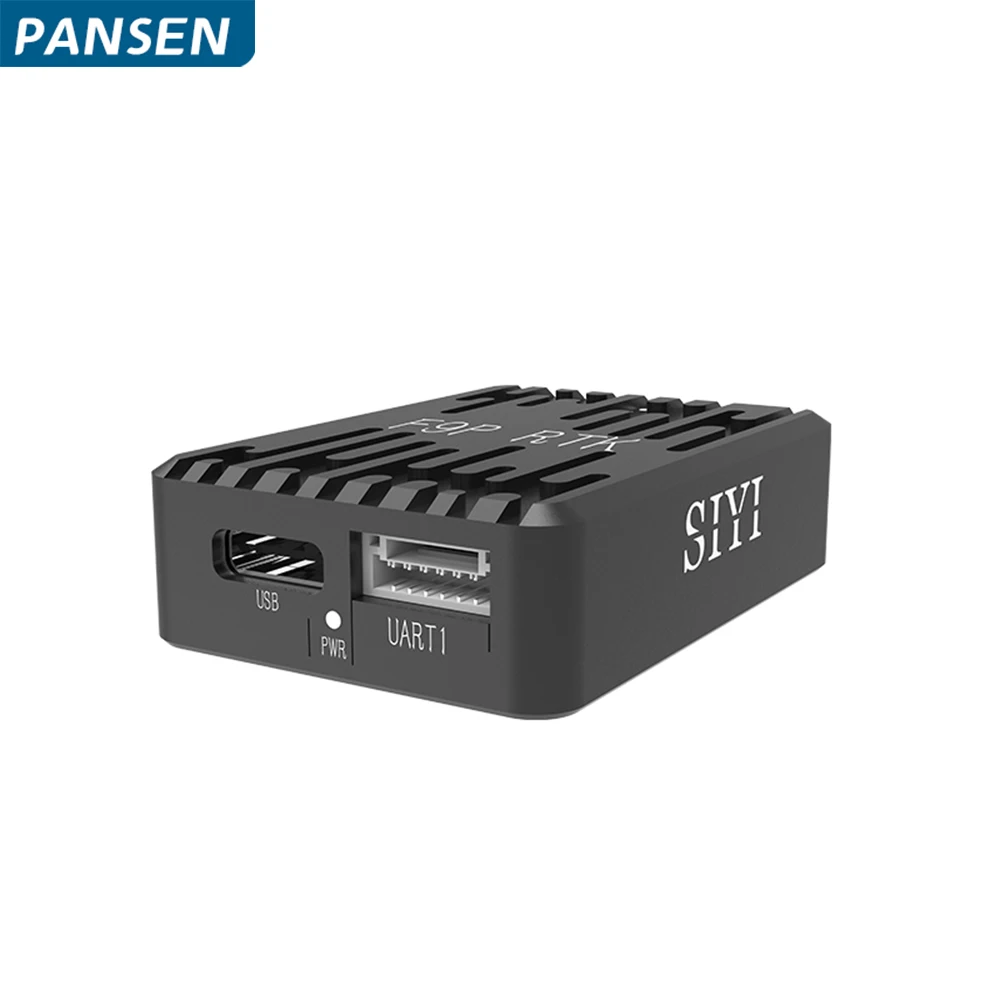

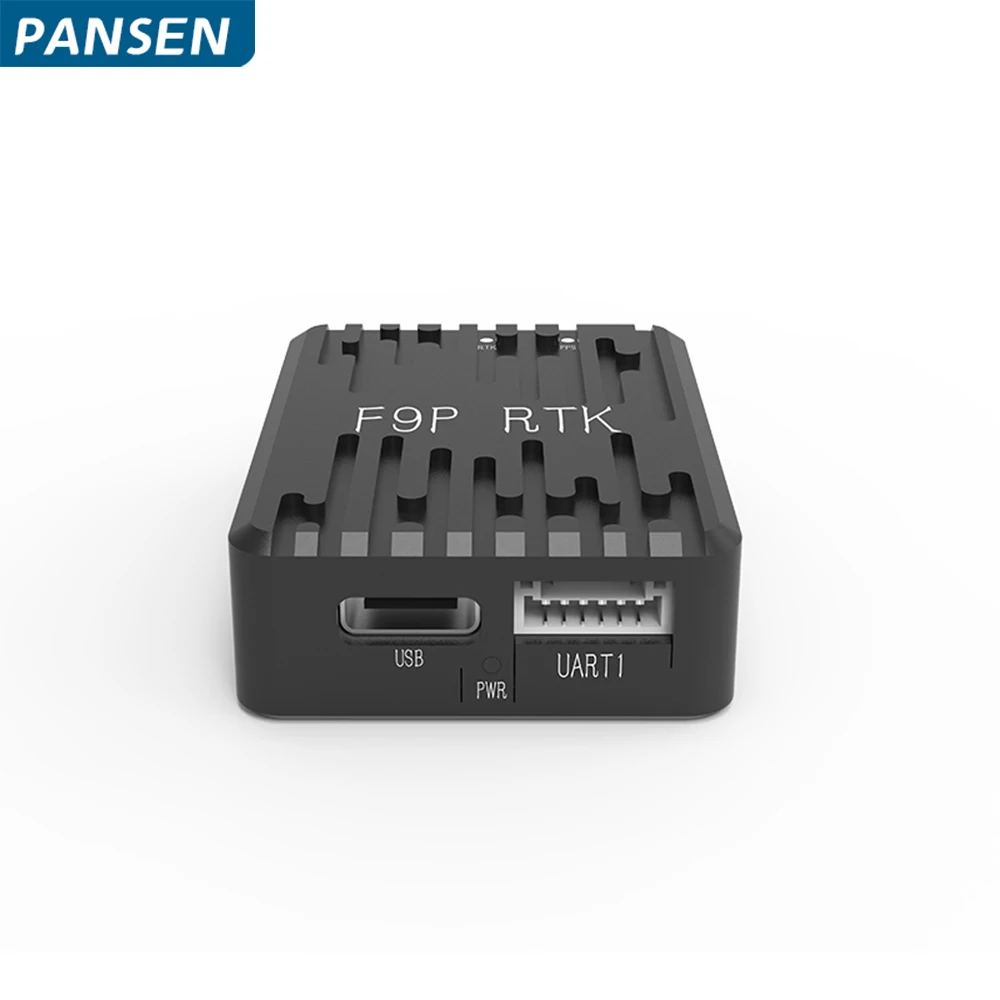

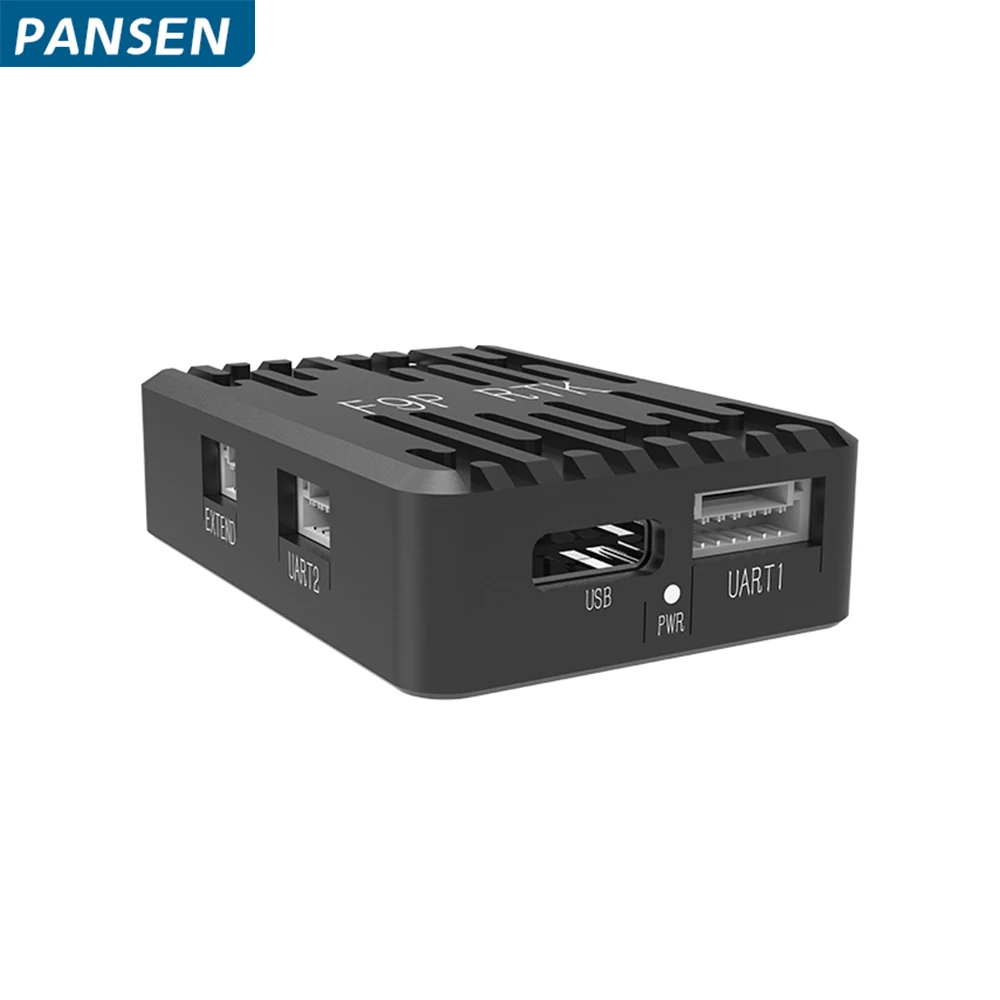

SIYI F9P RTK Module Centimeter Level Four Satellite Mutil Frequency Navigation and Positioning System

Product Overview

Description

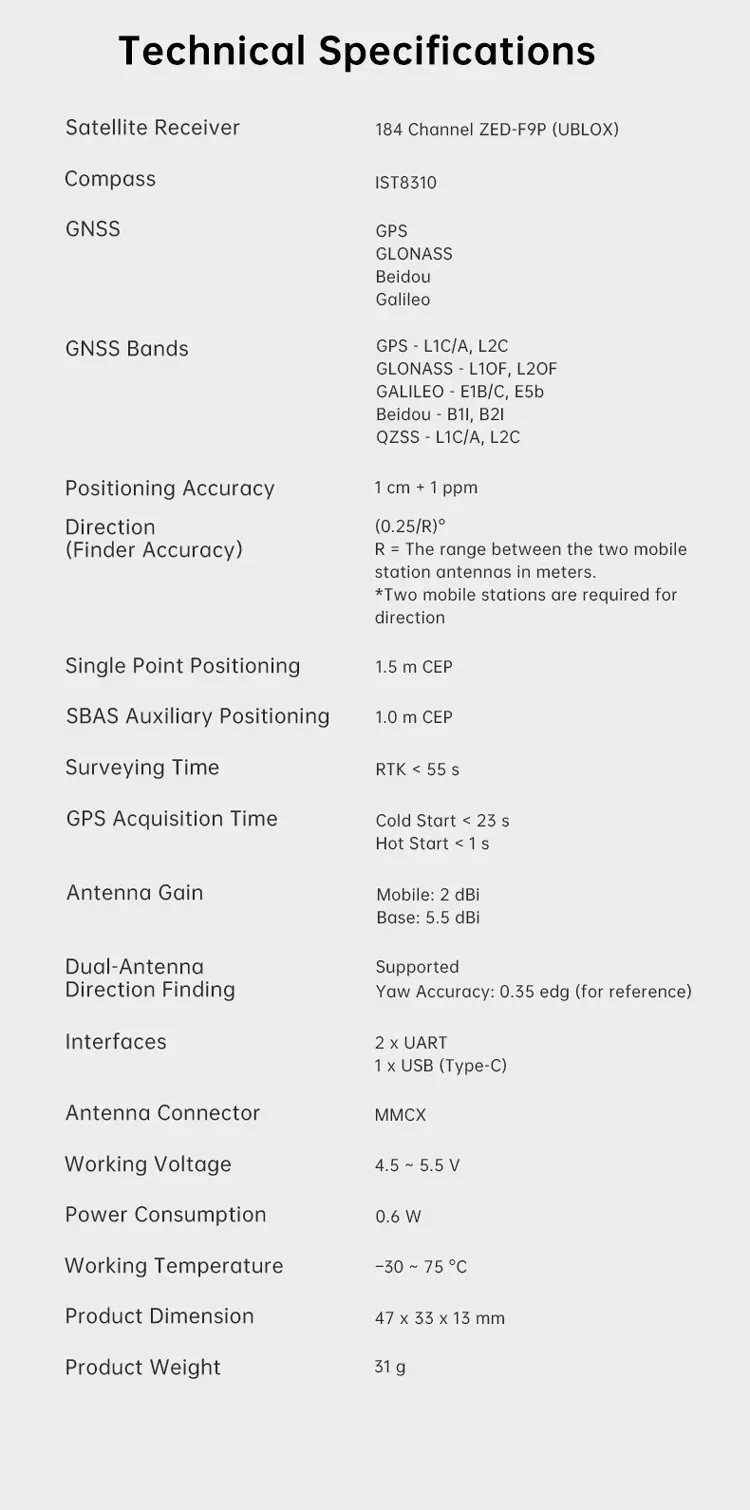

Technical parameter

satellite receiver : 184 channel ZED-F9P (ublox)

Electronic compass : IST8310

satellite navigation system : GPS, GLONASS, Beidou, Galileo Satellite frequency band:GPS-L1C/A, L2C, GLONASS-L1, L2GALILEO-E1b/c, E5b, Beidou-B11, B21QZSS-L1C/A, L2C

positioning accuracy : 1 cm+1 ppm

Directional accuracy : (0.25/R) °

R is the distance between two antennas at the sky end, in meters(Two positioning modules required)

Single point positioning :1.5M CEP

SBAS assisted positioning :1.0M CEP

Convergence time :RTK<55s

Positioning speed : Cold start<23s Hot start<1s

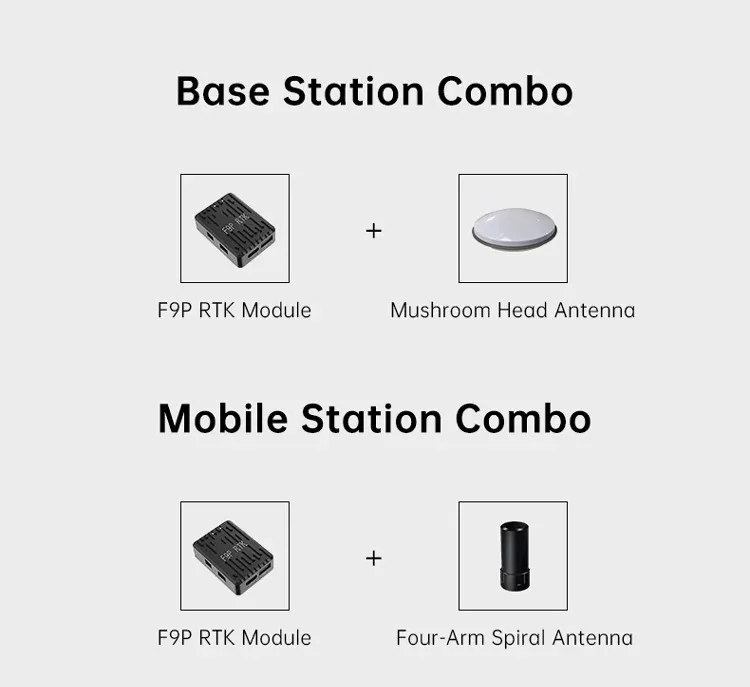

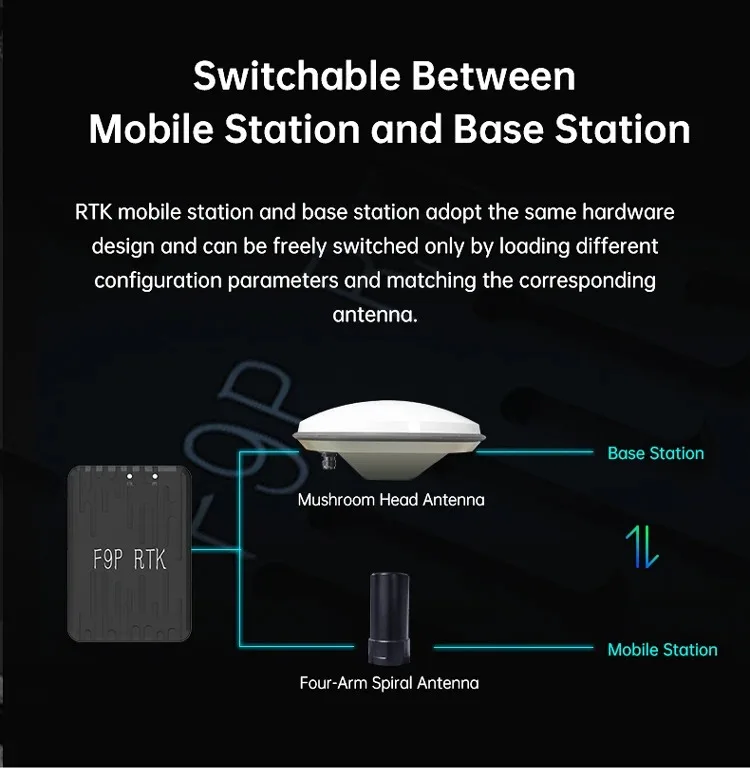

Antenna gain : Mobile end: 2dBi, base station end: 5.5dBi

Dual antenna direction detect : Support heading accuracy: 0.35edg (reference value)

Data Protocol : NMEA, UBX binary, RTCM 3. x

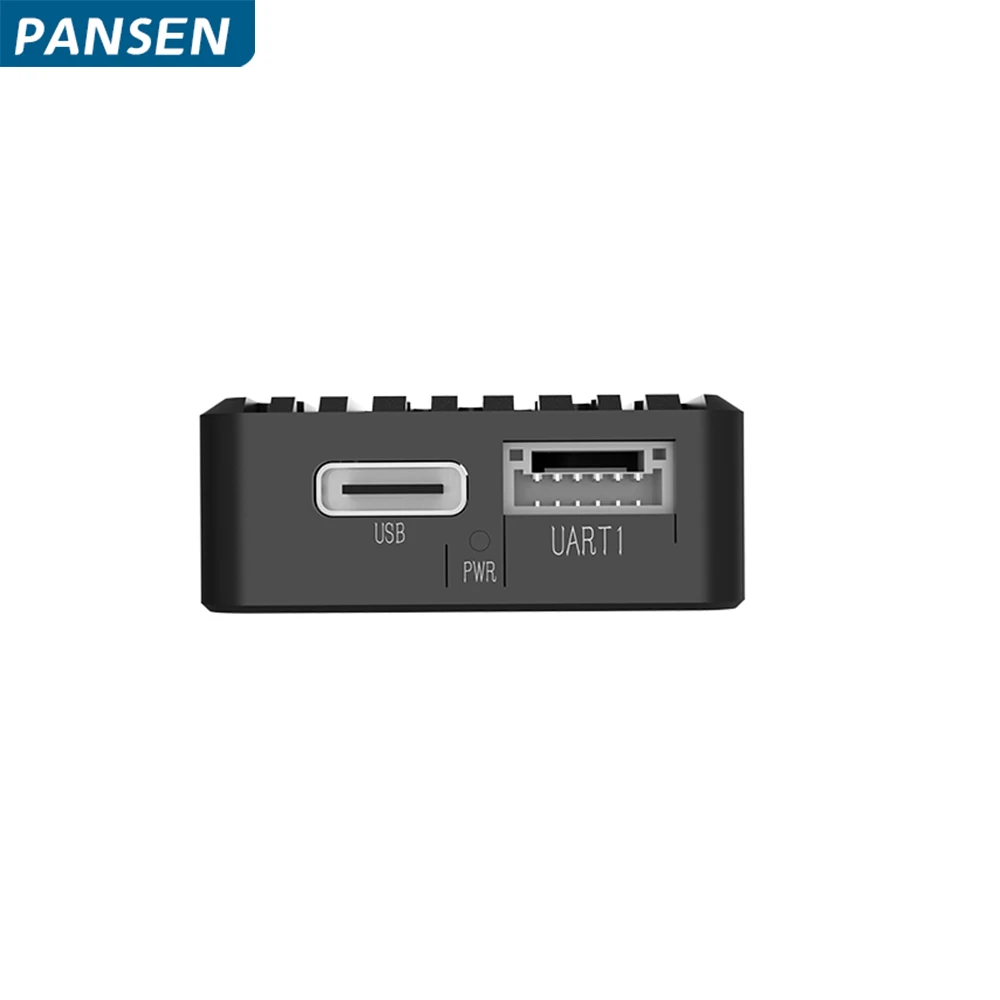

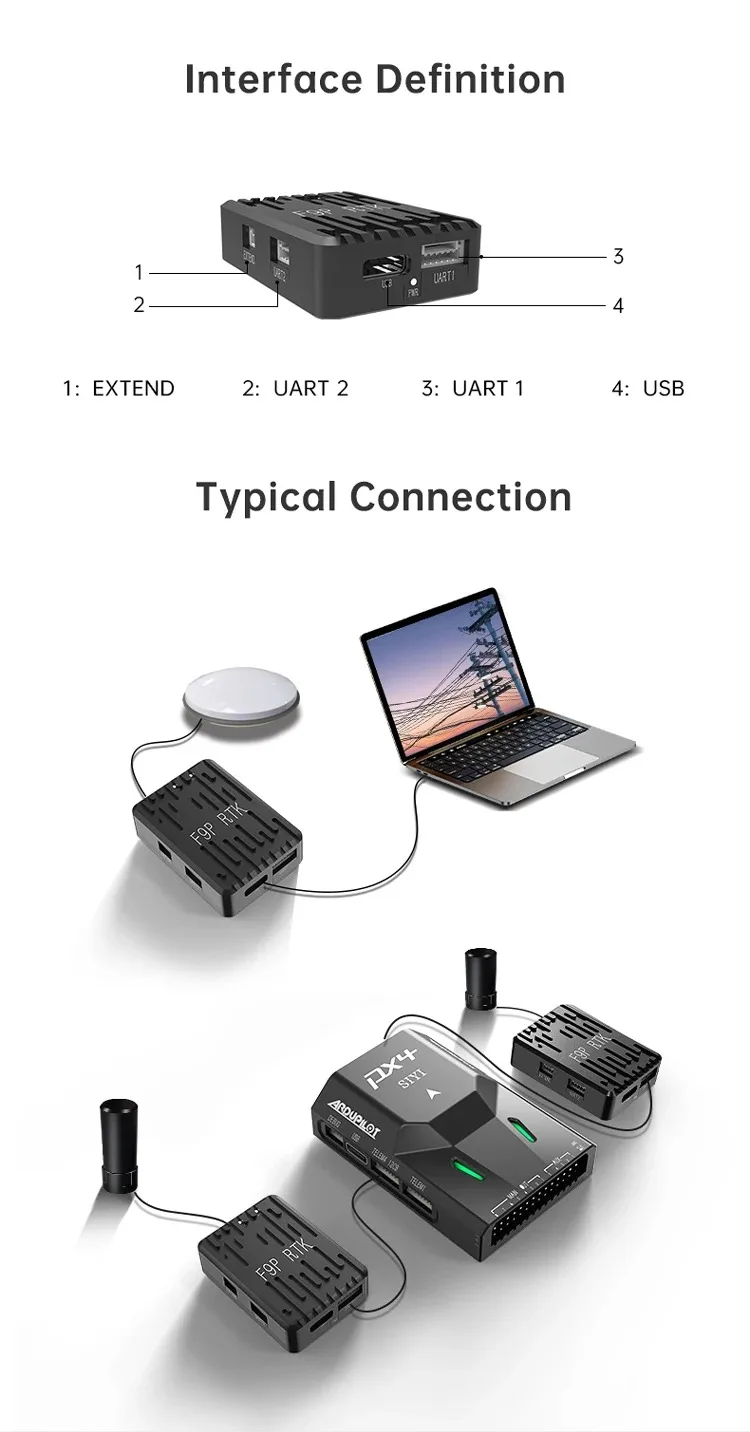

Interface type : 2 UARTs, USB Antenna interface : MMCX

working voltage : 4.5-5.5 V

power dissipation : 0.6W

working temperature : -30~75 ° C

size : 47x33x13 (mm)
