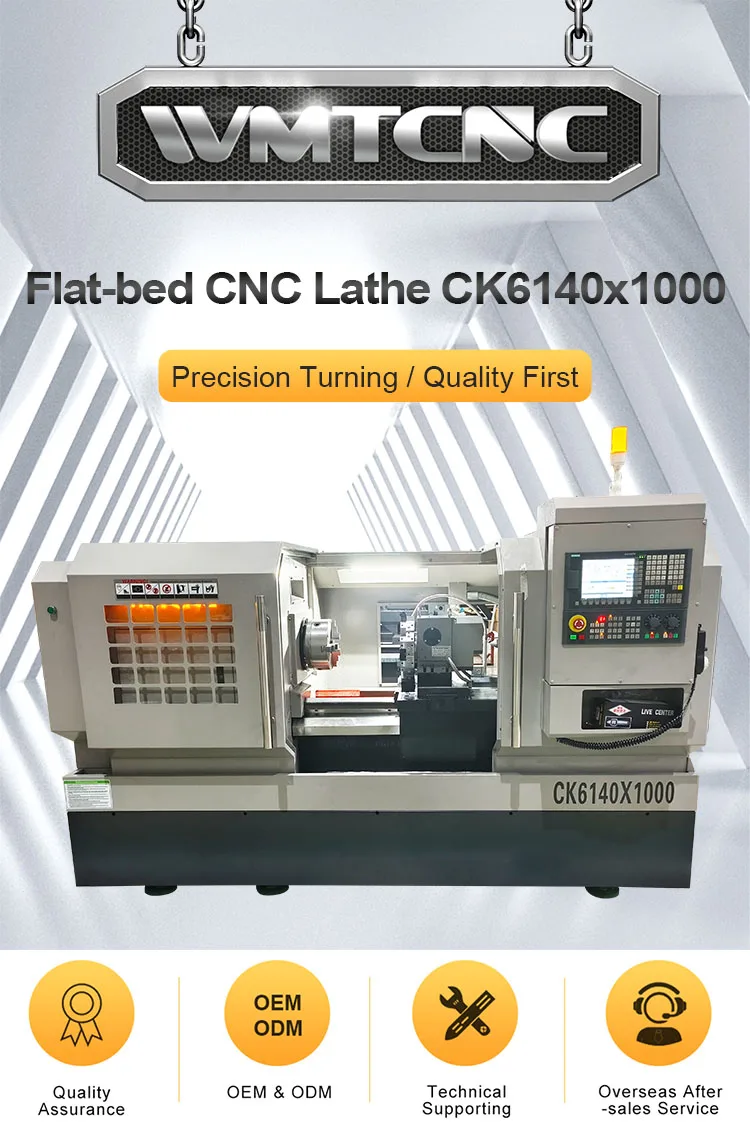

Heavy duty CK6140x1000 cnc lathe cutting tools cnc bench lathe with cnc lathe tool holder
- Category: >>>
- Supplier: WMT CNC Industrial Co. Ltd.
Share on (1601022397543):
Product Overview
Description
Product Description
Main Features:
1. High precision CNC flat bed lathe with hard rail.
2. The bed ways are induction hardened, with hardness around HRC50.
3. Spindle withhigh precision bearings ensure the rigidity and precision.
4. Good quality grinding grade ball screw ensure positioning accuracy is more stable.
5. Monoblock cast iron base ensure high rigidity of the whole machine.
1. High precision CNC flat bed lathe with hard rail.
2. The bed ways are induction hardened, with hardness around HRC50.
3. Spindle withhigh precision bearings ensure the rigidity and precision.
4. Good quality grinding grade ball screw ensure positioning accuracy is more stable.
5. Monoblock cast iron base ensure high rigidity of the whole machine.
Specification | CK6140 |
Capacity | |

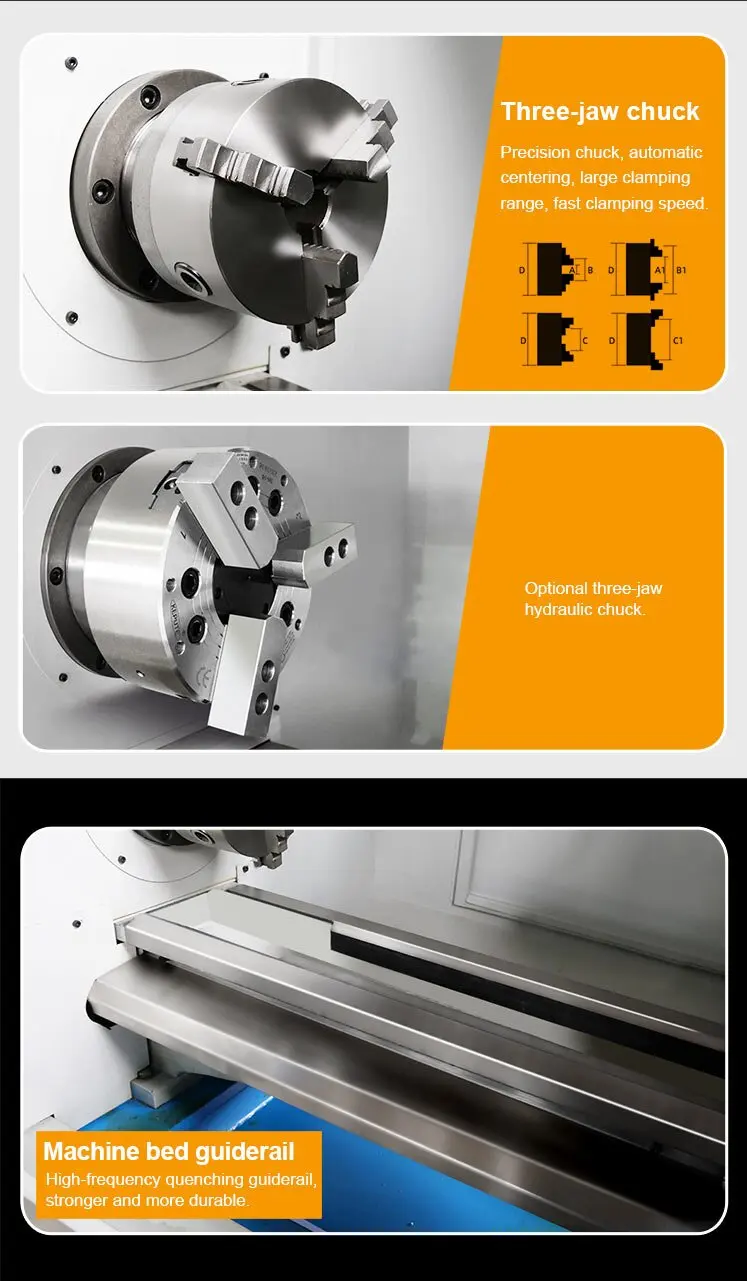

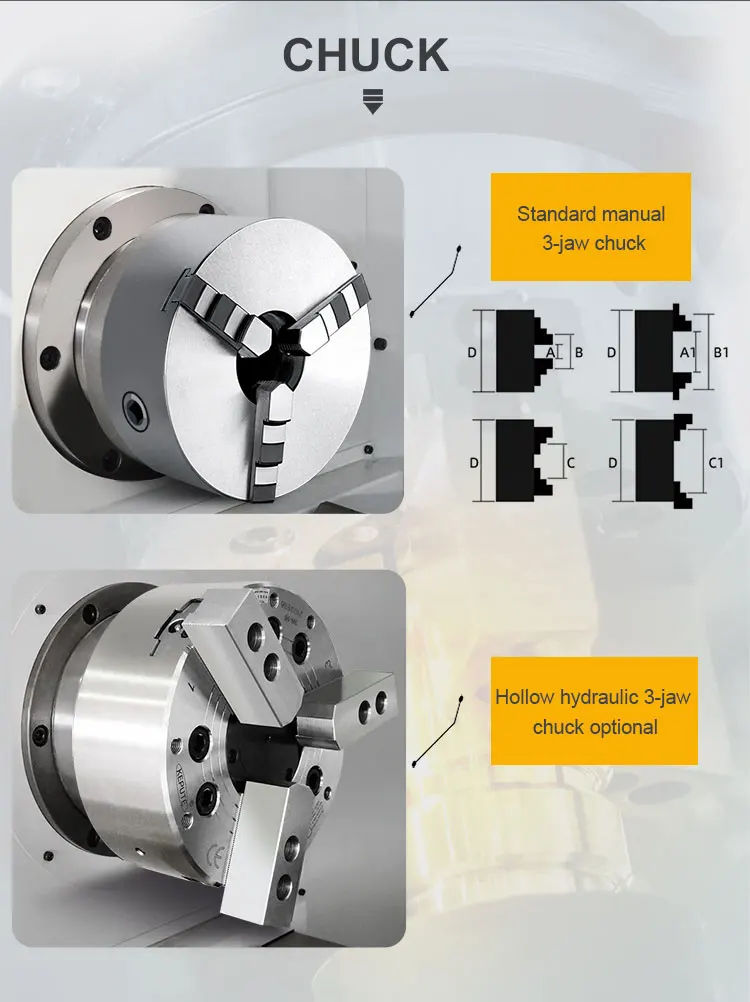

Chuck size | 10'' |
Max. swing dia. over bed | 400mm |
Max. swing dia. over slide | Φ240mm(Φ220mm) |
Distance between center | 500/750/1000/1500mm |
Width of bed | 330mm |
Spindle | |
Spindle speed range | 150-2200rpm |
Spindle bore | Φ60mm |
Max. dia. of through-hole | Φ50mm |
Spindle nose | A2-6 |
Spindle taper | MT6 |
Axis | |
X axis travel | 250mm |
Z axis travel | 500/750/1000/1500mm |
X/Z axis rapid traverse | 6/8m/min |

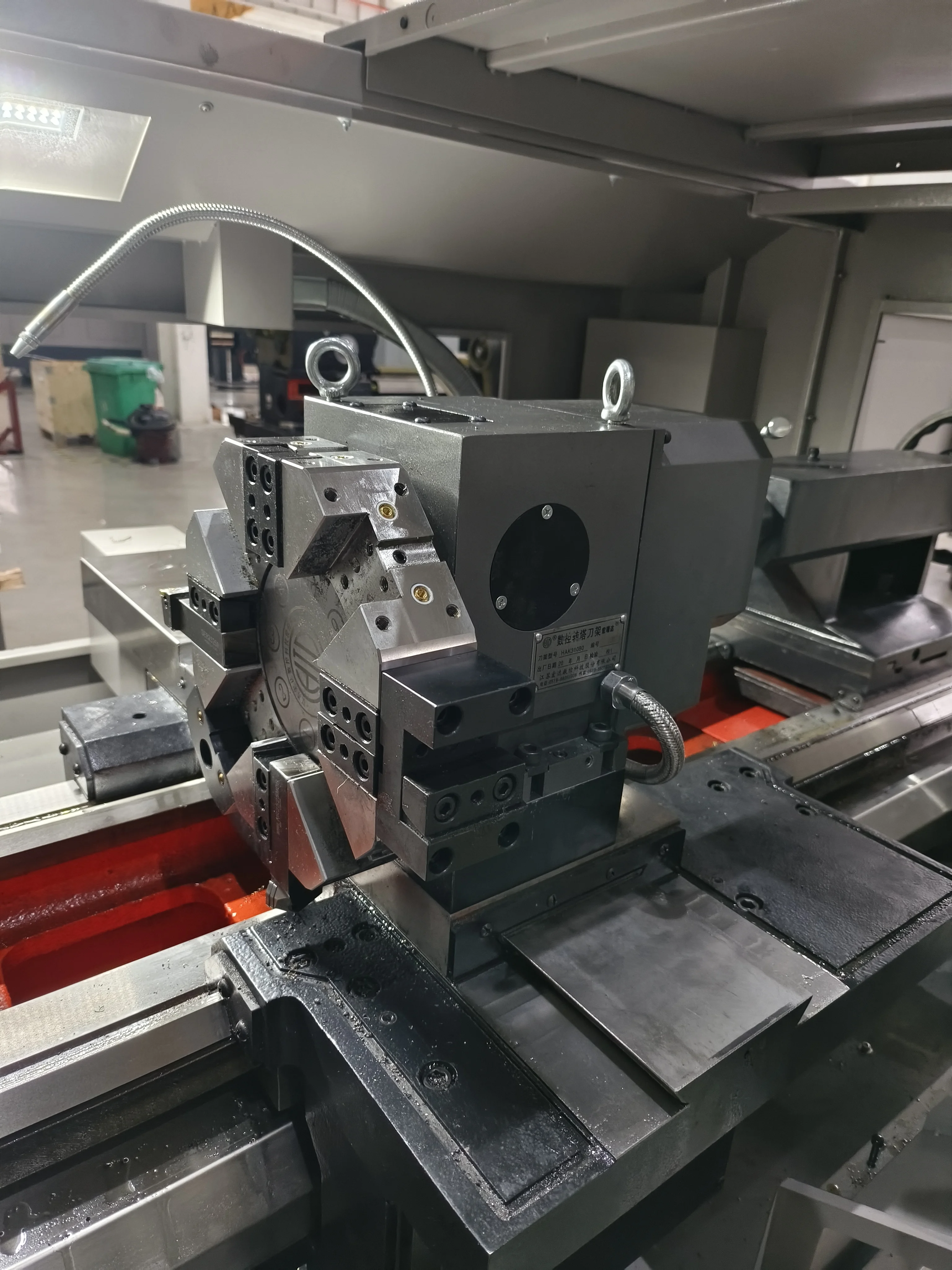

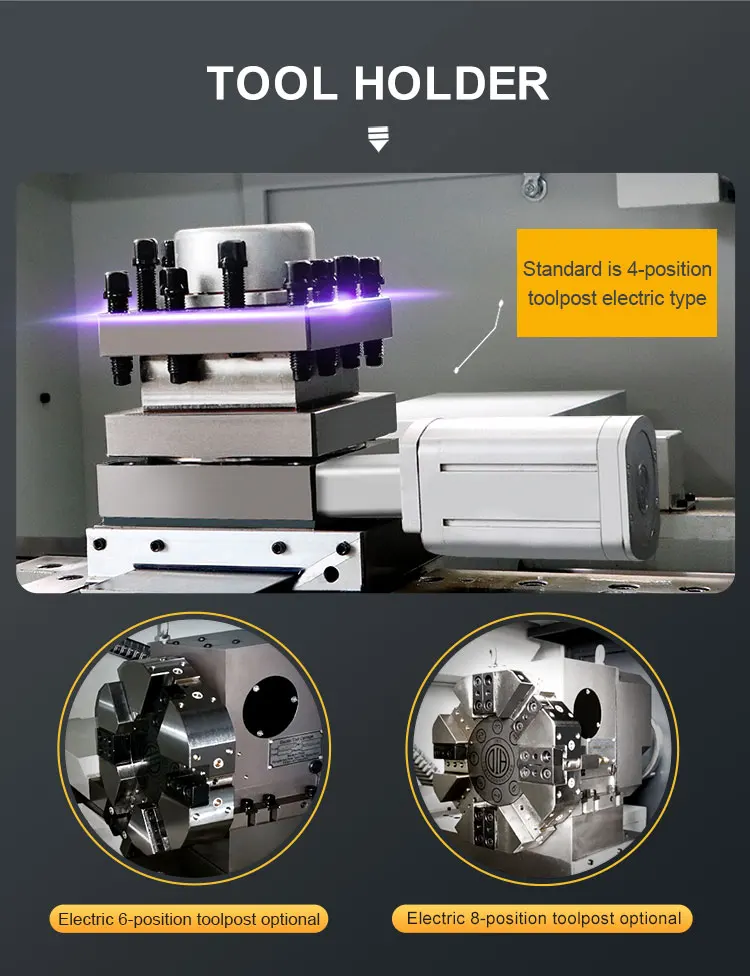

Turret | |
Type | Electrical type |
No. of tool stations | 4,*6,*8 position |
Max. section of tool | 25x25mm |

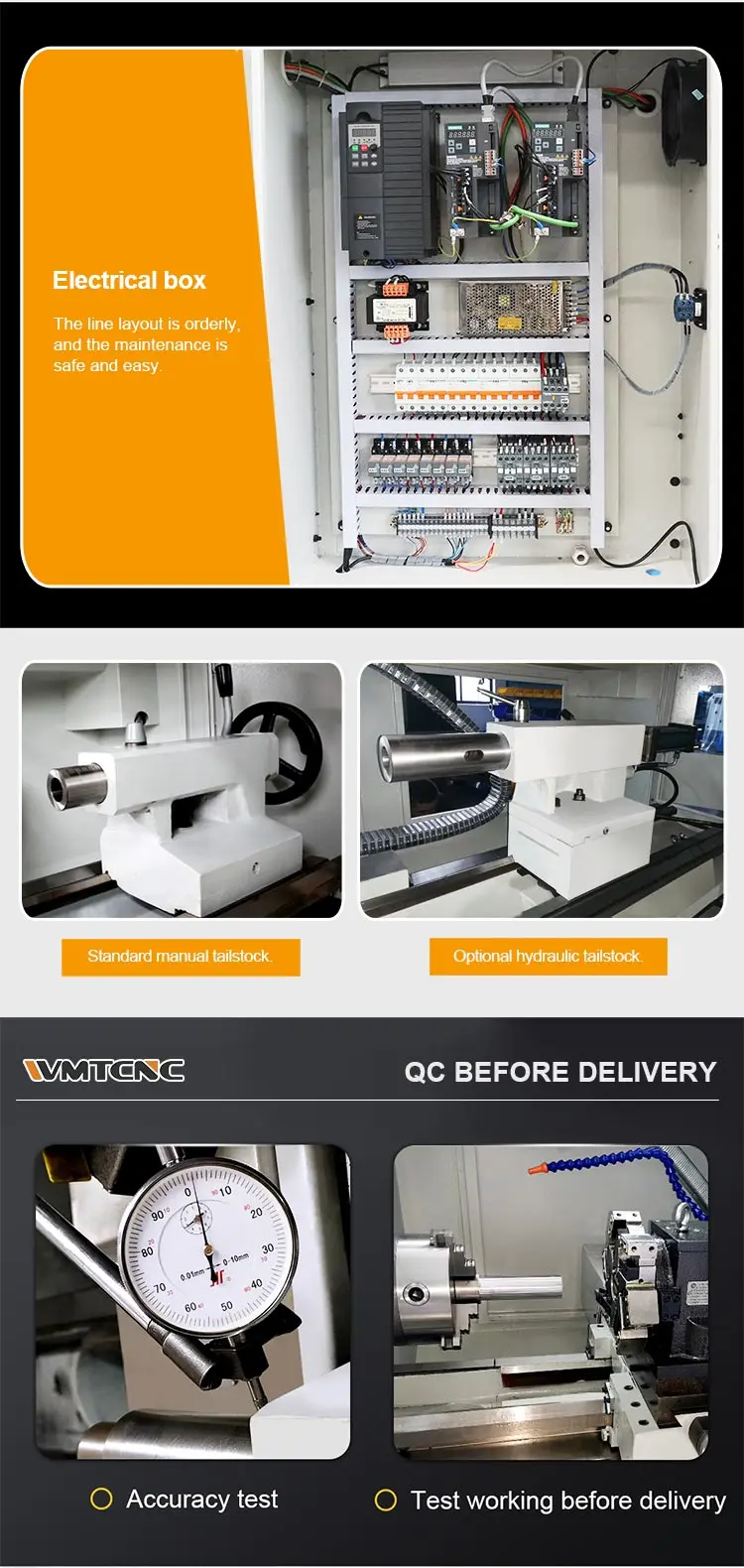

Tailstock | |
External diameter | Φ55mm |
Travel of tailstock quill | 120mm |
Taper of tailstock quill | MT4 |
Motor | |
Spindle motor power | 5.5kw,*7.5kw |
Coolant pump power | 120w |
Machine Dimensions | |
Overal dimension (L×W×H) | 1700/2050/2520/3050x1400x1680mm |
Packing size(L×W×H) | 1850/2250/2640/3200x1530x2020mm |
N.w | 1400/1600/1800/2200kg |
G.w | 1600/1800/2000/2400kg |

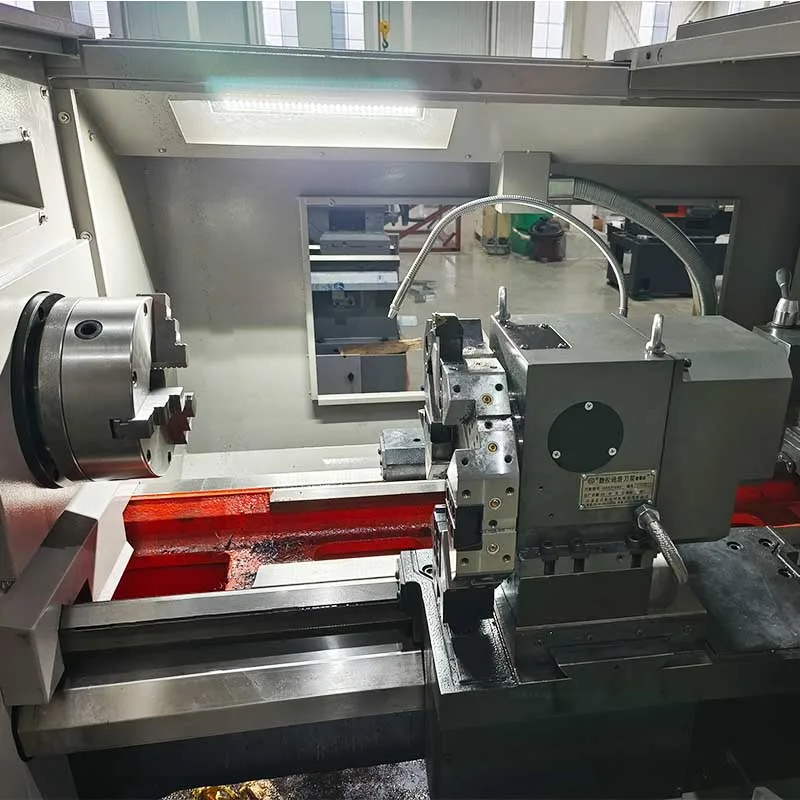

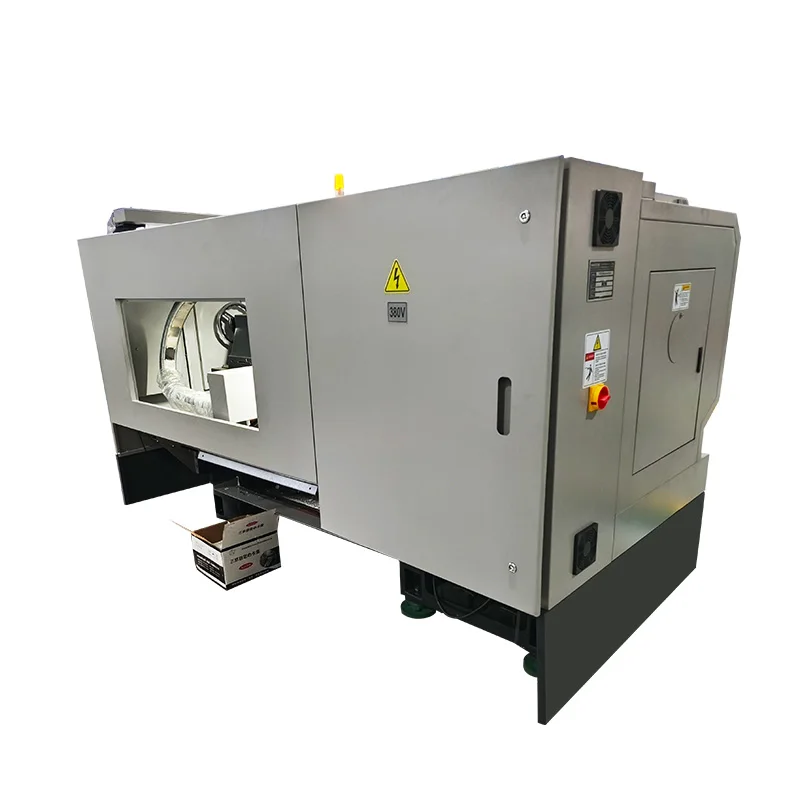

Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
