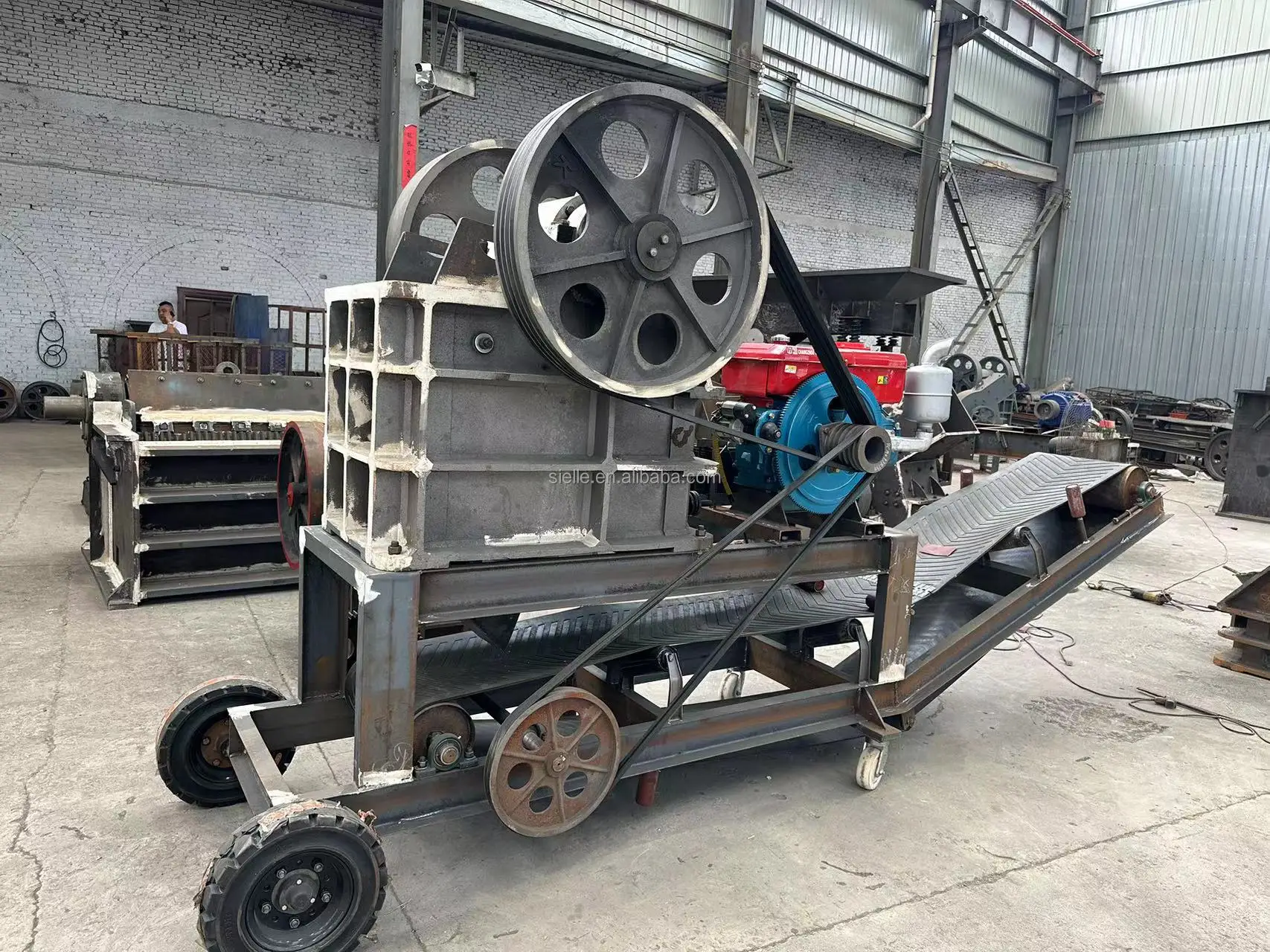

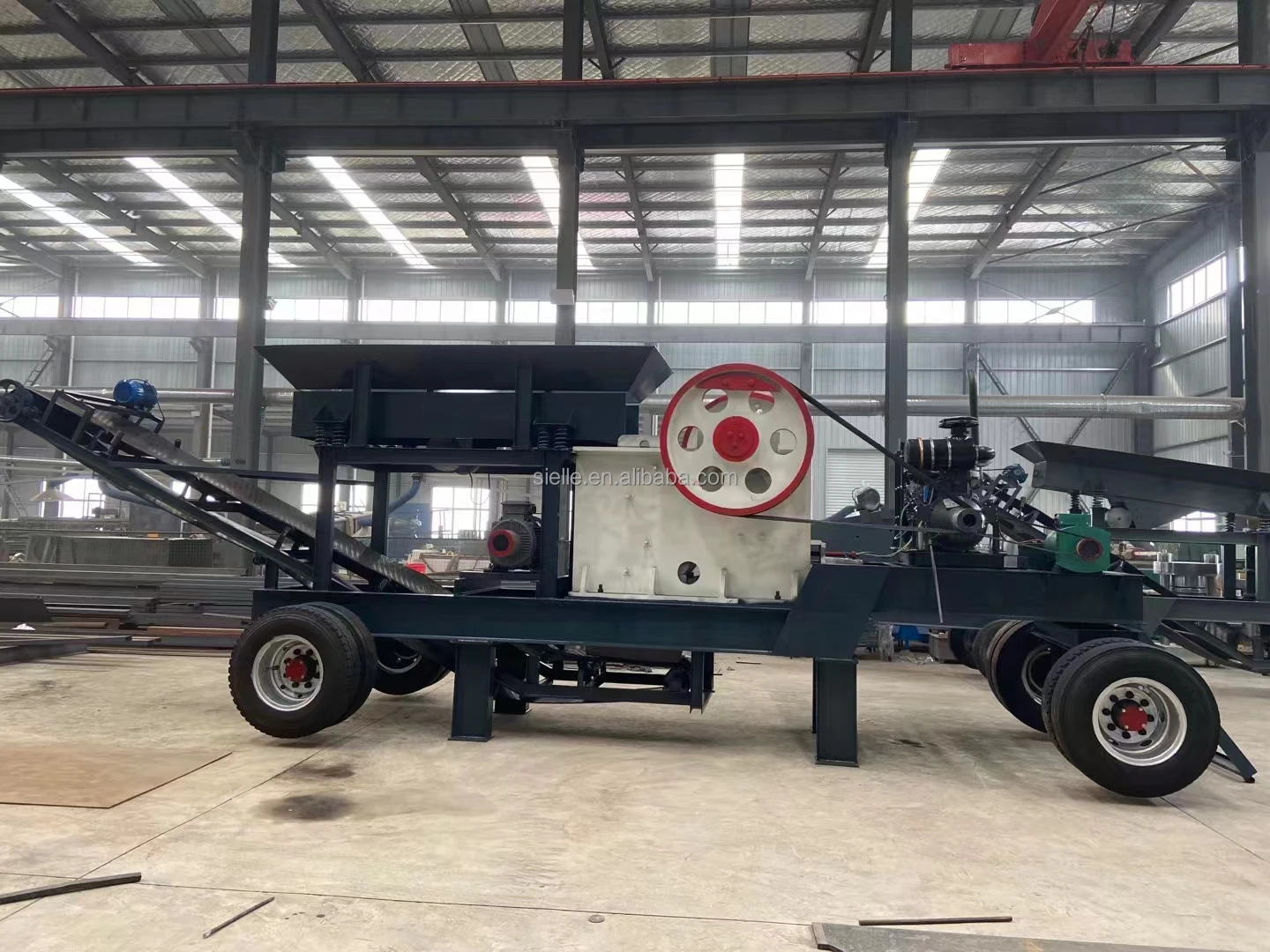

Mobile Jaw Crusher Stone Crasher Machine Mini Stone Crusher
- Category: >>>
- Supplier: Zhengzhou Sielle Machinery Equipment Co. Ltd.
Share on (1601022463215):
Product Overview
Description
Product Description

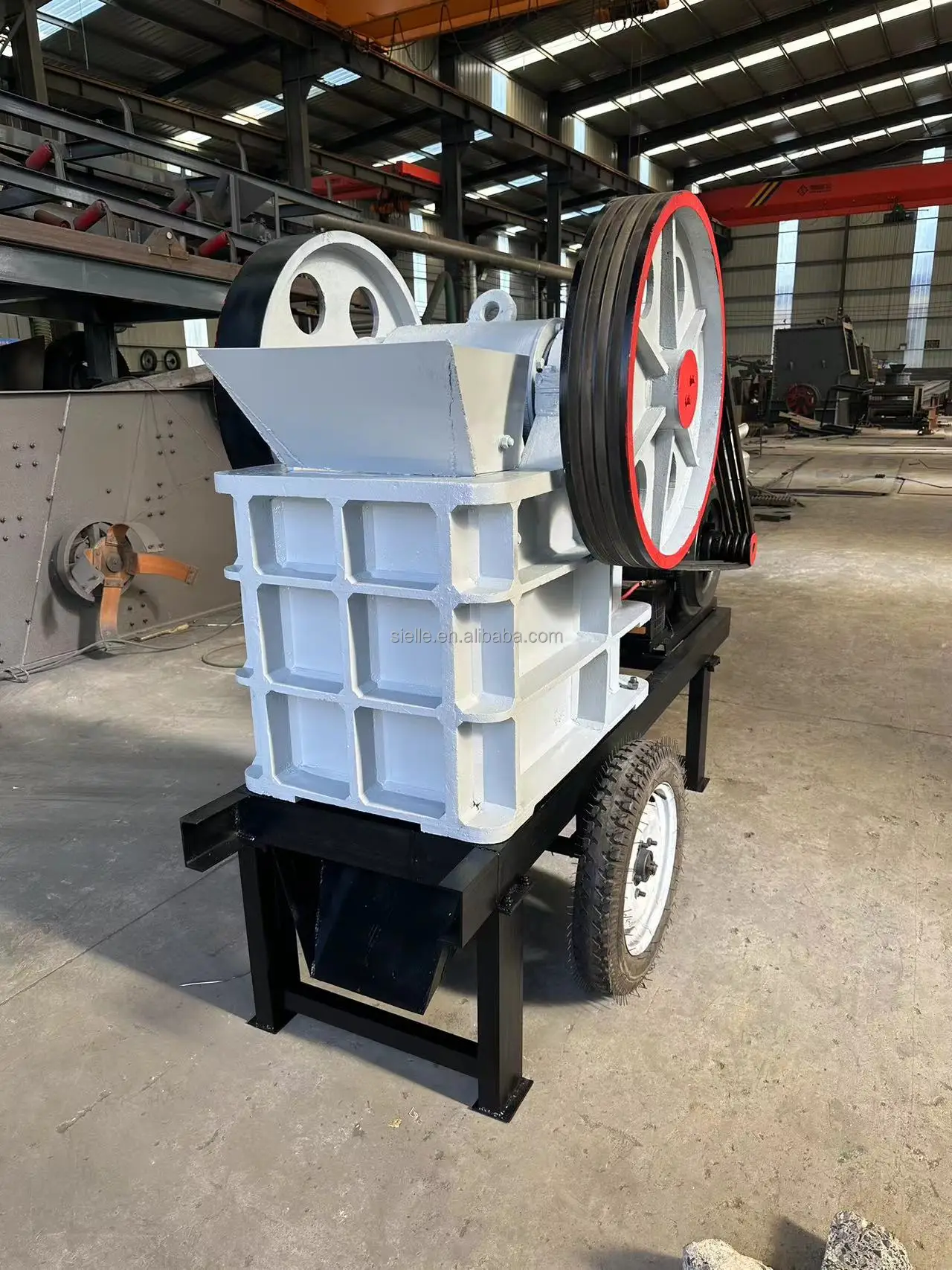

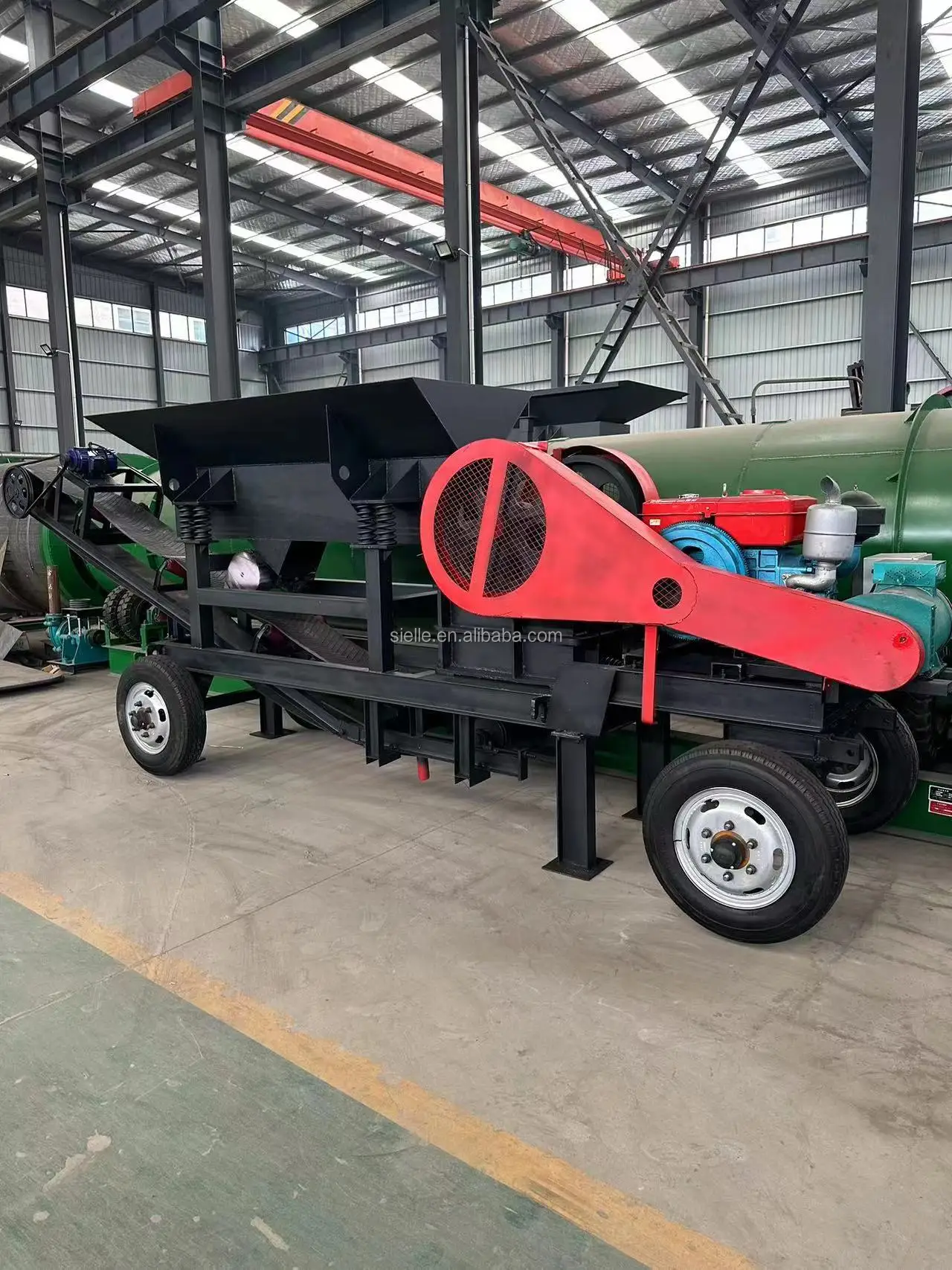

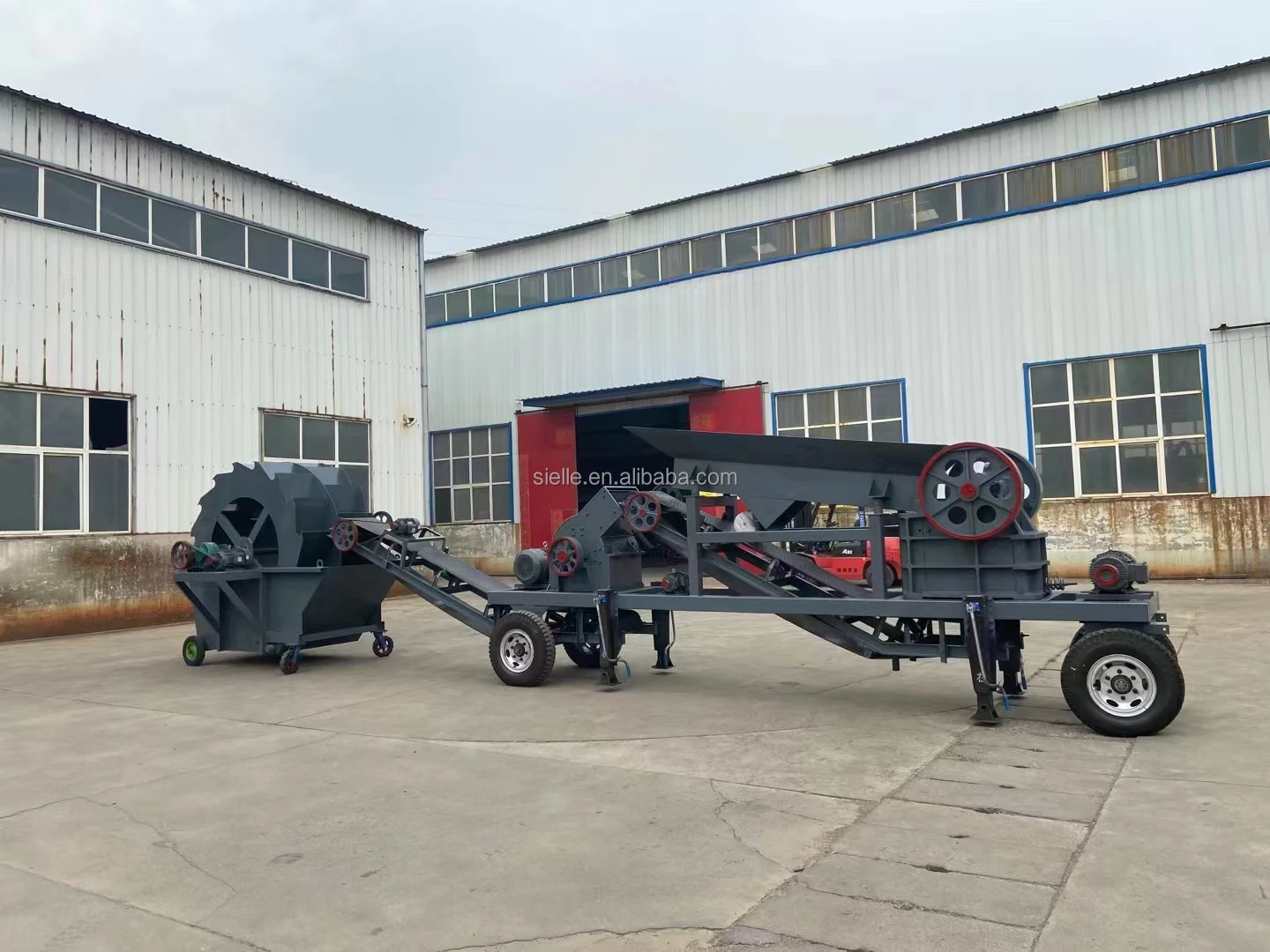

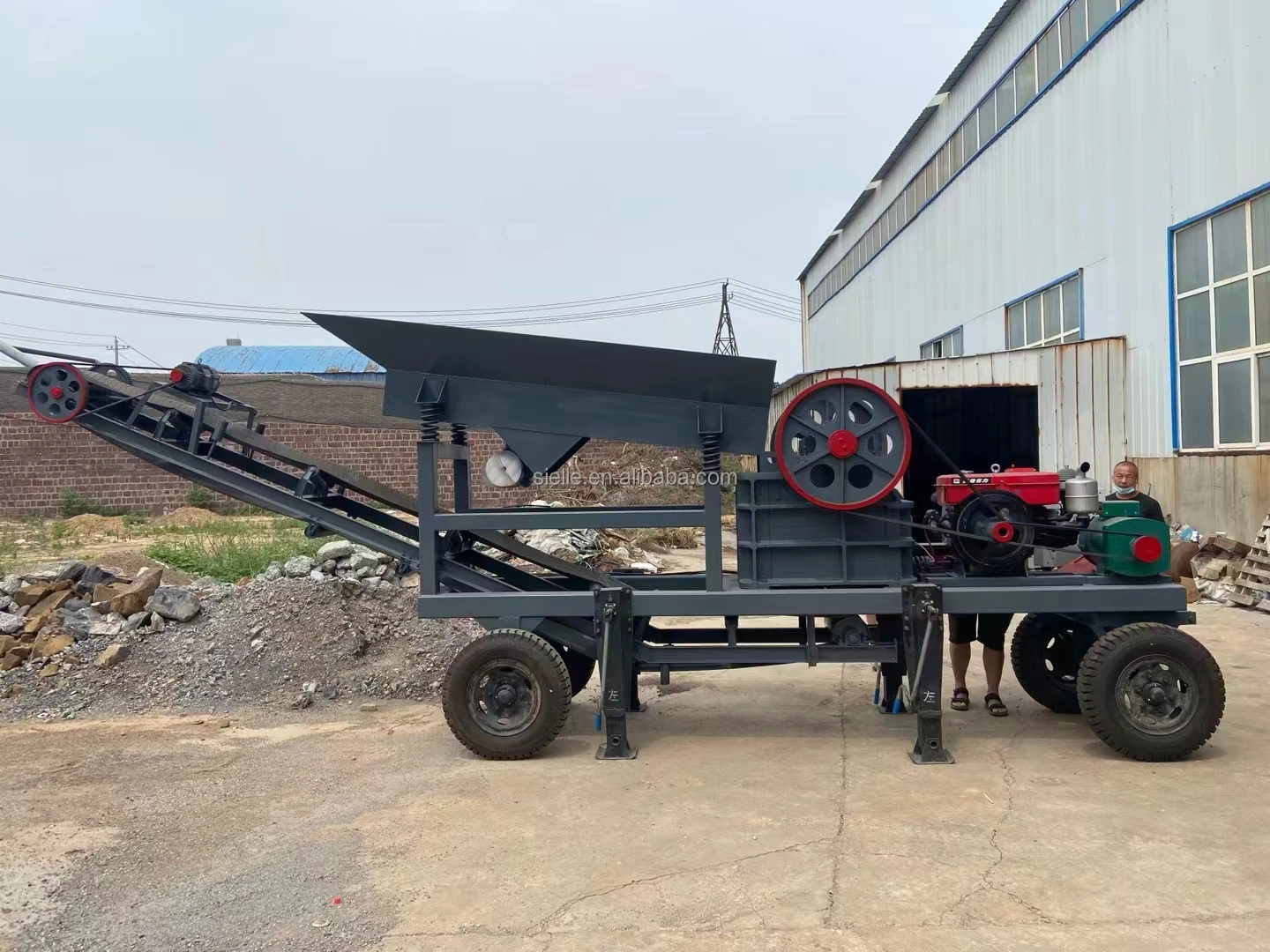

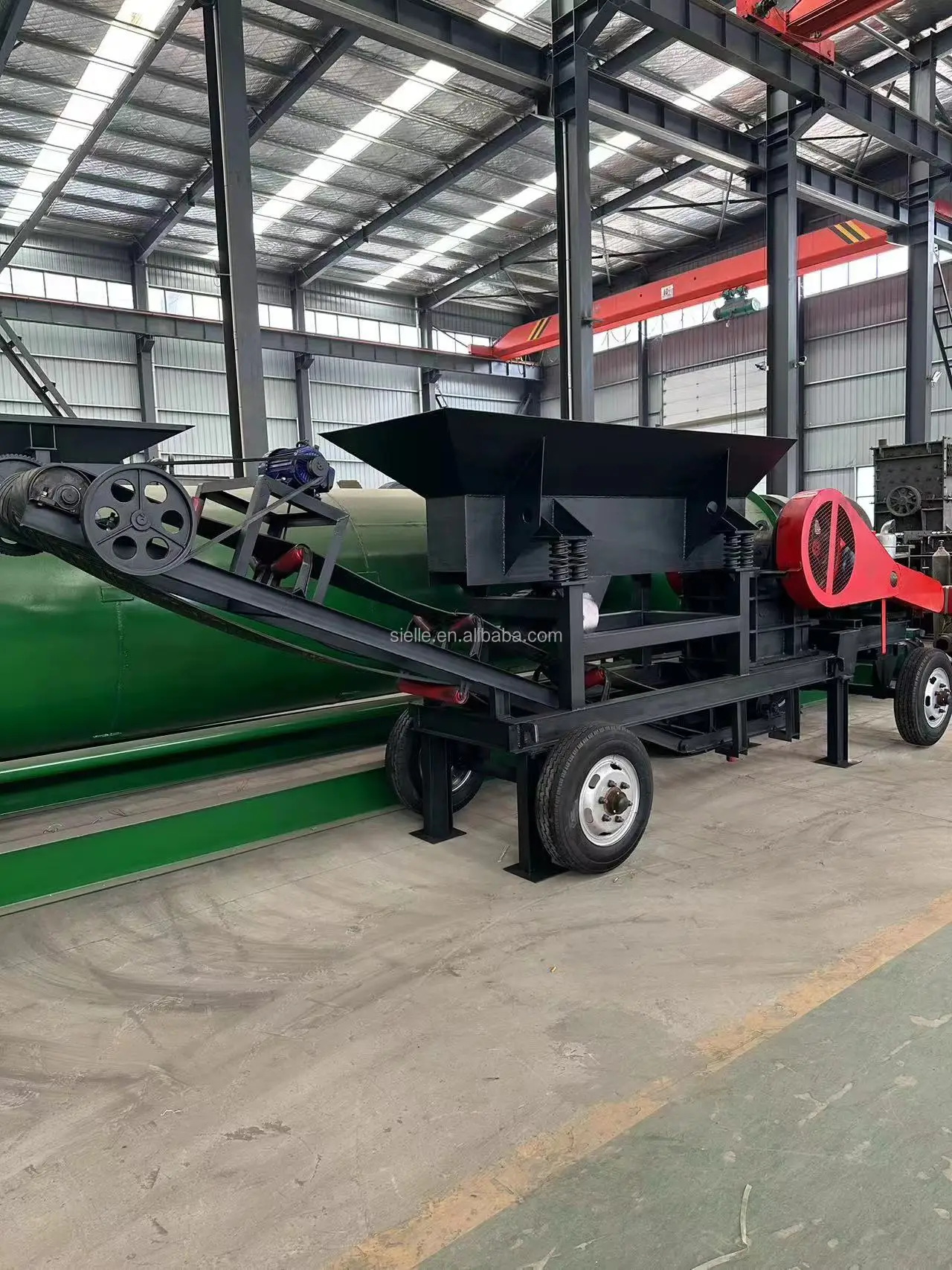

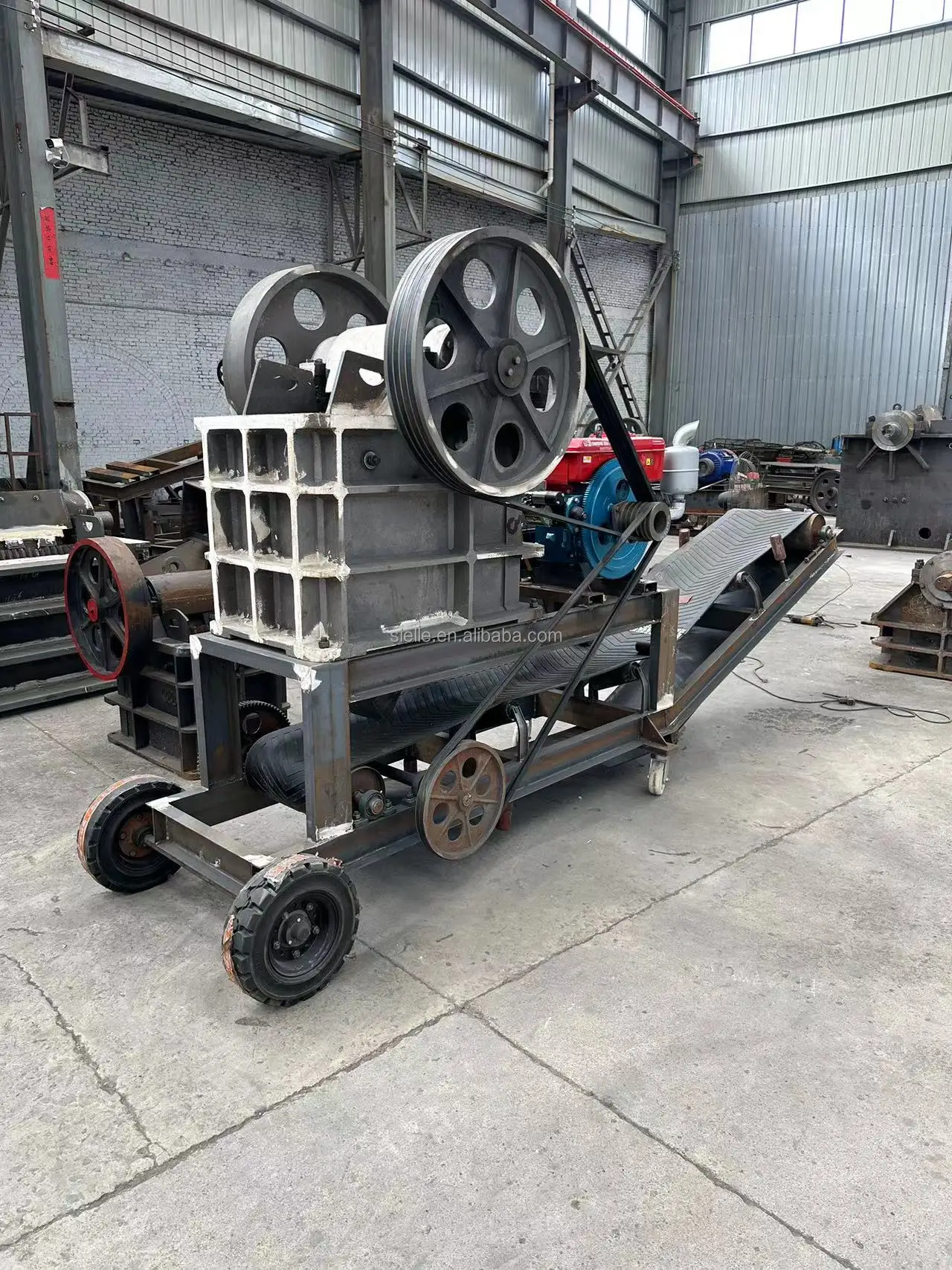

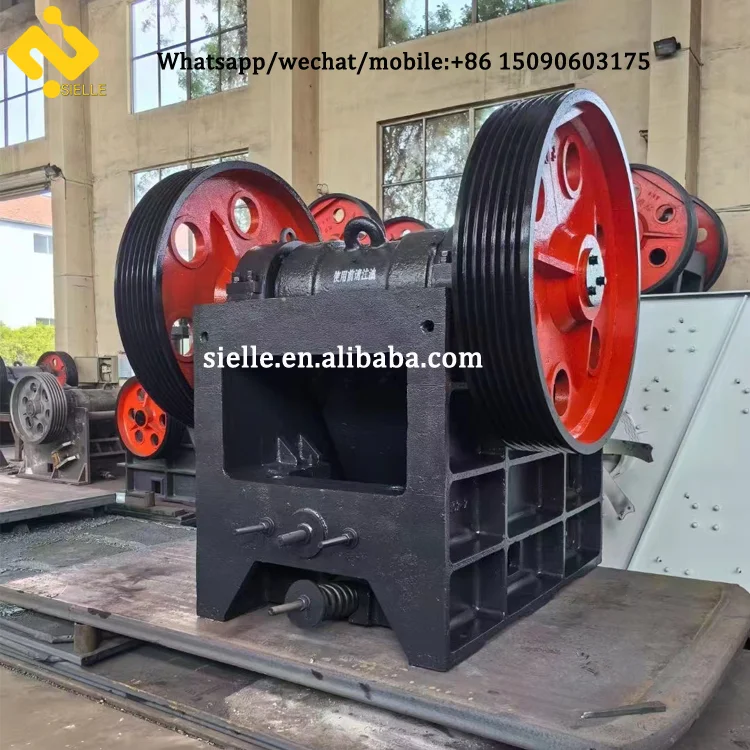

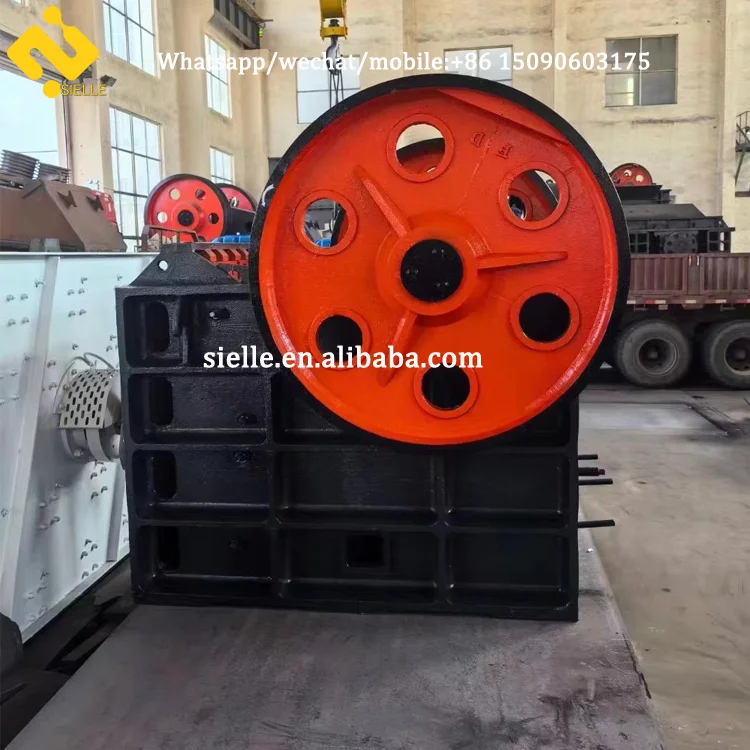

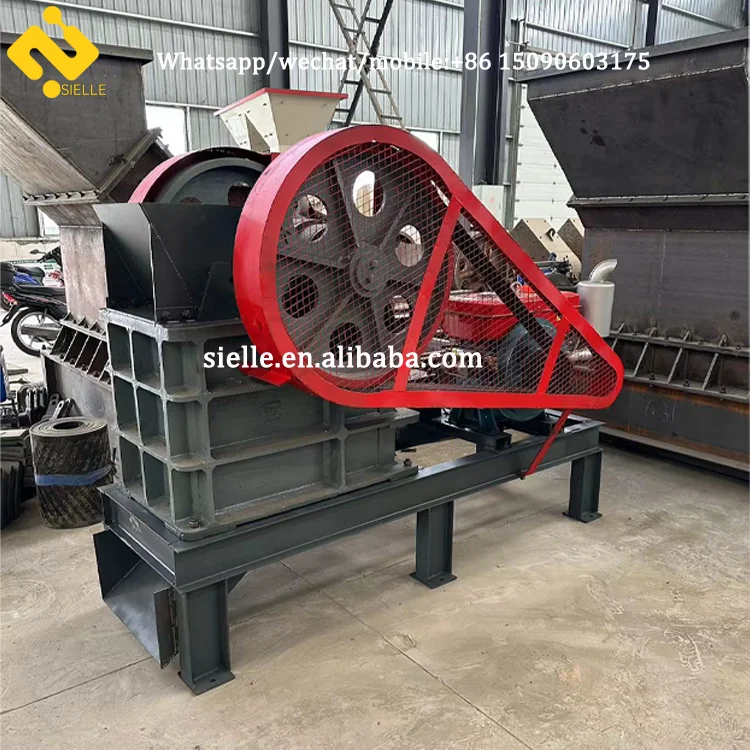

Mobile Jaw Crusher Stone Crasher Machine Mini Stone Crusher
Jaw crusher commonly known as jaw break, also known as tiger mouth. The crusher is composed of two jaw plates, the moving jaw and the static jaw, which simulates the two jaw movements of animals and completes the material crushing operation. Widely used in mining smelting, building materials, road, railway, water conservancy and chemical industry of all kinds of ore and bulk material crushing. The higher compressive strength of the crushed material is 320Mpa.
Jaw crusher is mainly used as coarse crusher and medium crusher in mining, building materials, infrastructure and other departments. According to the width of the feed port, it is divided into three types: large, medium and small. The feed port width is greater than 600MM for large machines, the feed port width is 300-600MM for medium-sized machines, and the feed port width is less than 300MM for minicomputers. The jaw crusher has the advantages of simple structure, easy manufacture and reliable operation.
Model | Feed size | Capacity | Discharge particle size | Power | Size(mm) | Weight |
150*250 | 150*250mm | 2-7t/h | 2cm | 5.5kw | 900*770*950 | 480kg |
200*300 | 200*300mm | 3-9t/h | 2cm | 7.5kw | 1030*880*1140 | 800kg |
220*350 | 220*350mm | 4-11t/h | 2cm | 11kw | 1120*960*1250 | 1100kg |
250*400 | 250*400mm | 5-22t/h | 2cm | 15kw | 1400*1110*1400 | 2000kg |
300*500 | 300*500mm | 12-50t/h | 3cm | 22kw | 1600*1400*1600 | 3500kg |
400*600 | 400*600mm | 17-115t/h | 4cm | 30kw | 1750*1730*1780 | 6000kg |

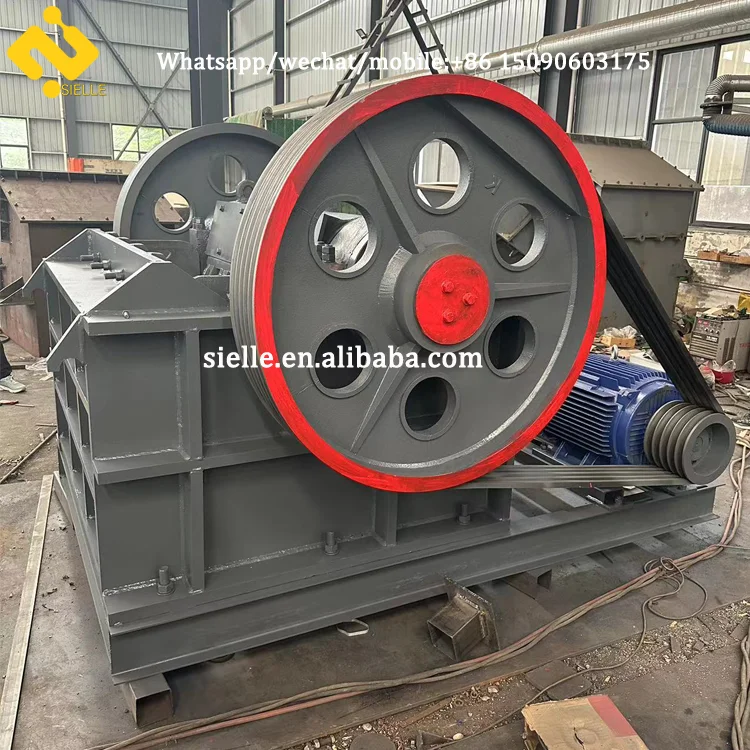

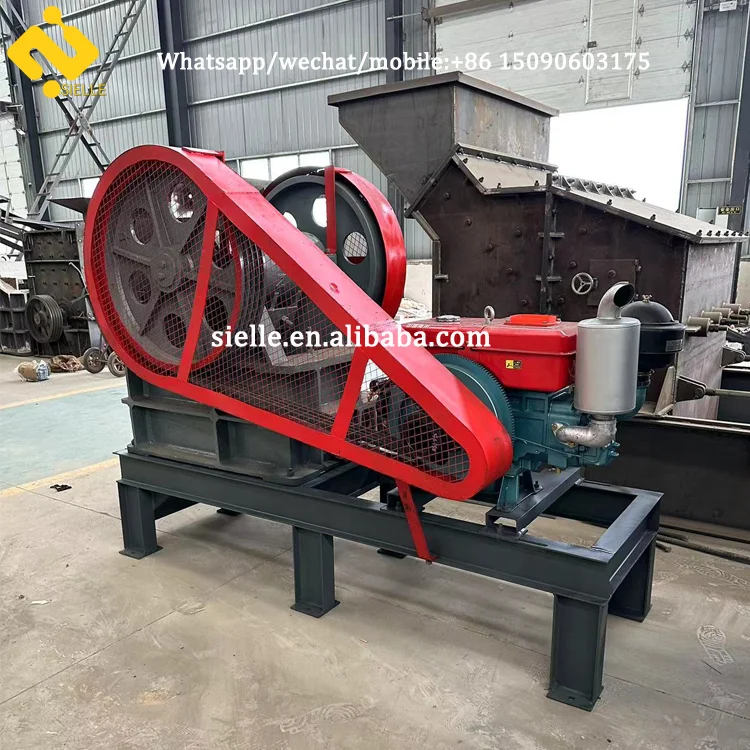

Mobile Jaw Crusher Stone Crasher Machine Mini Stone Crusher
Product Application Mobile Jaw Crusher Stone Crasher Machine Mini Stone Crusher

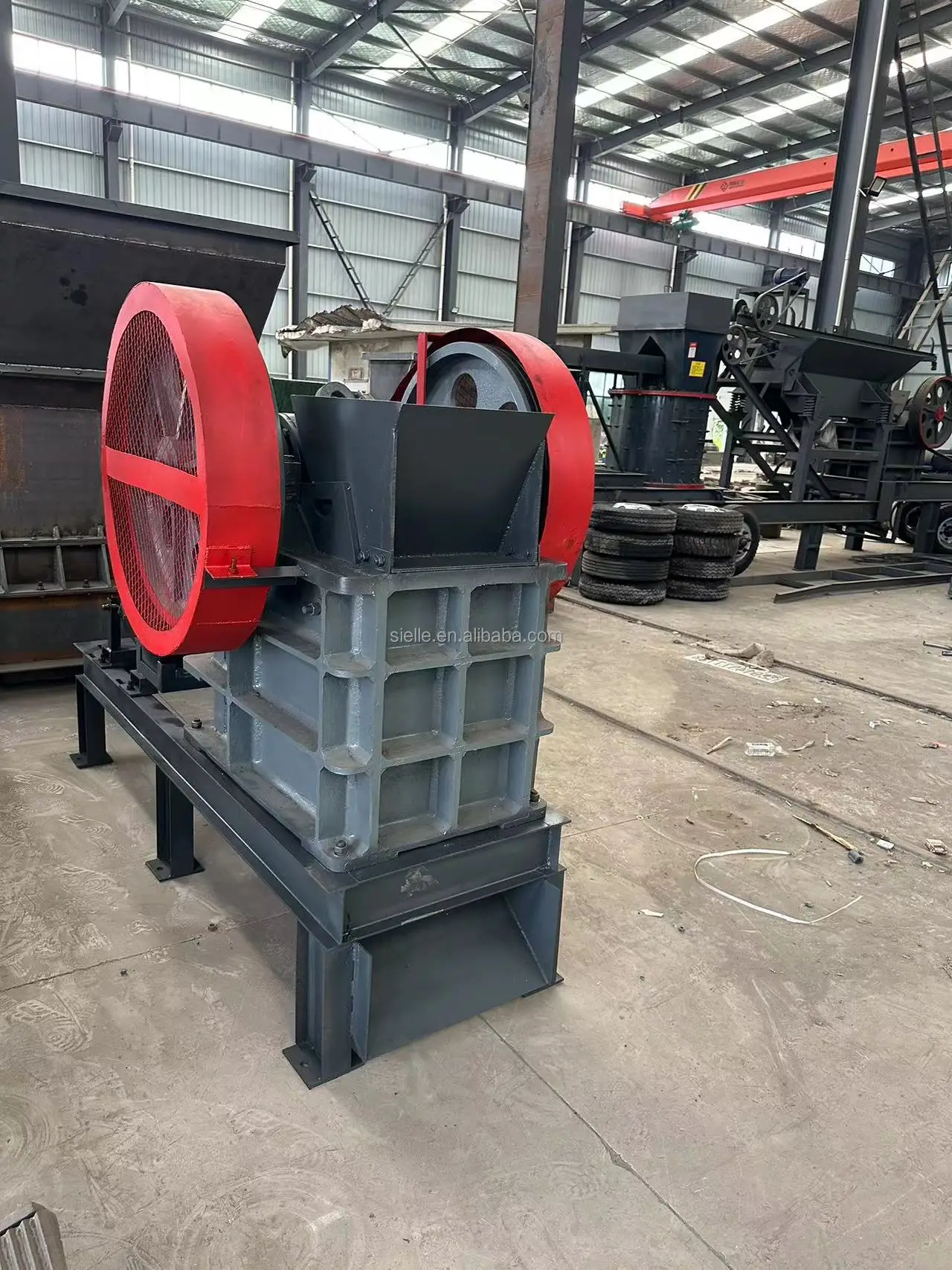

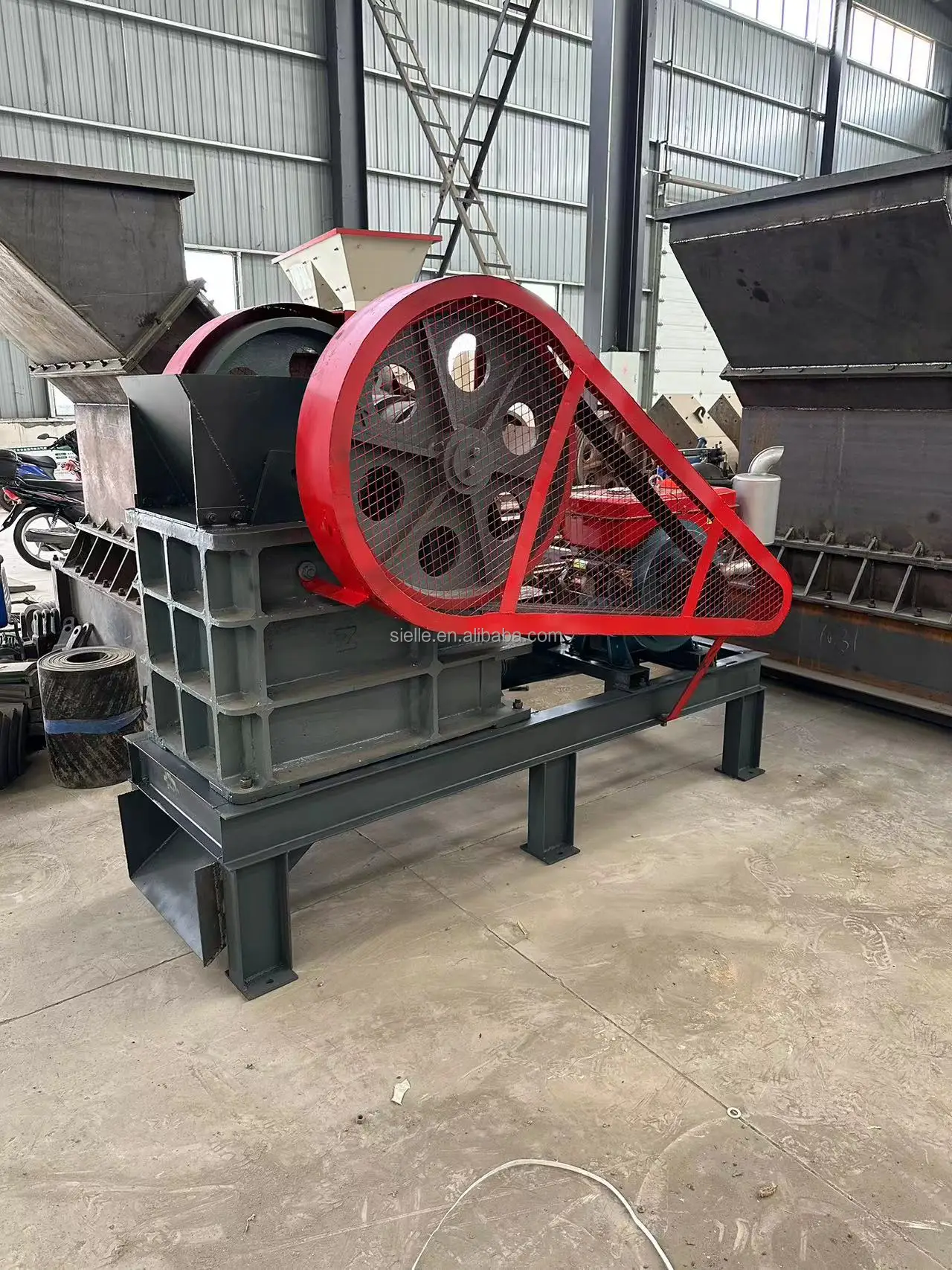

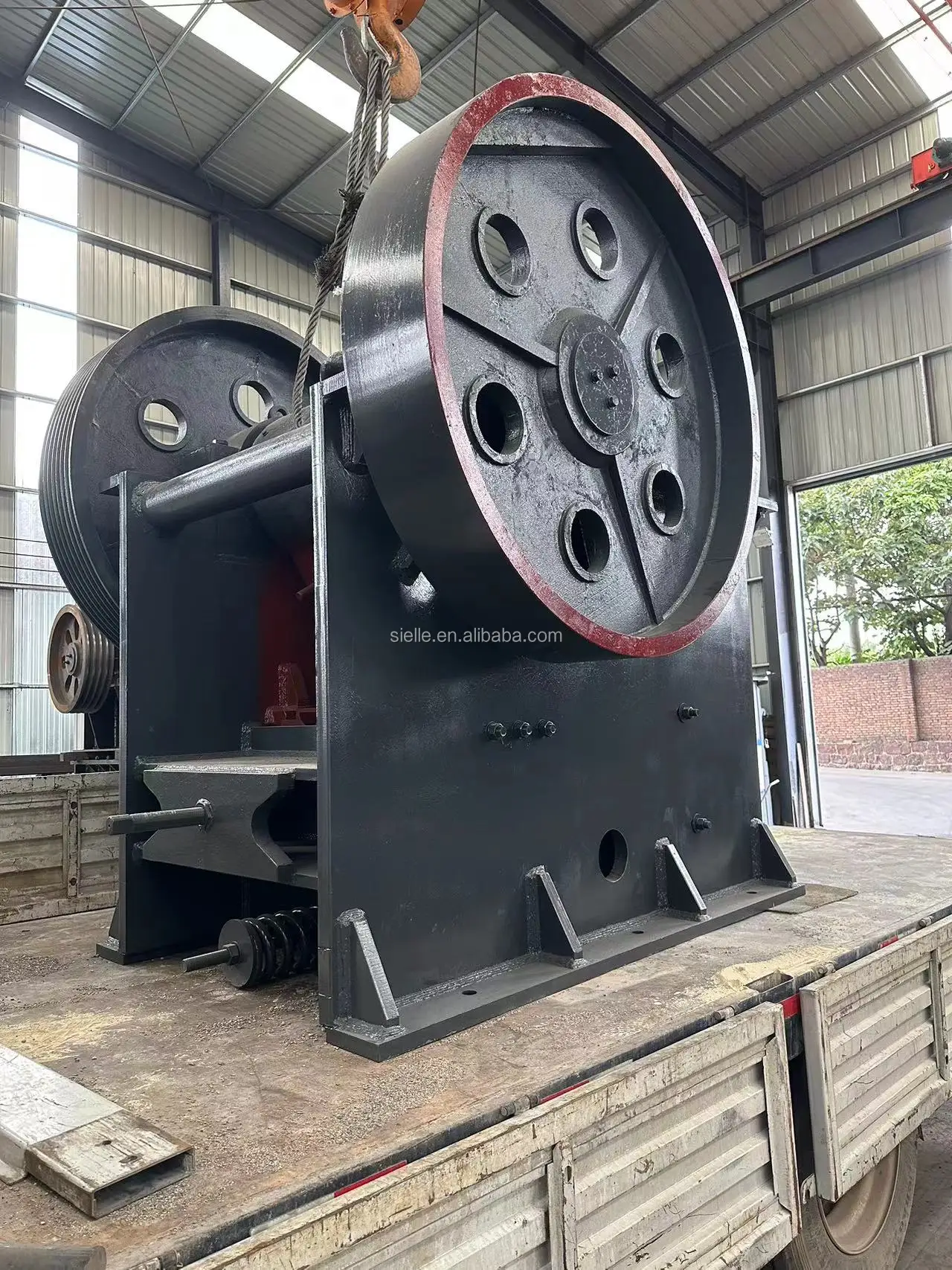

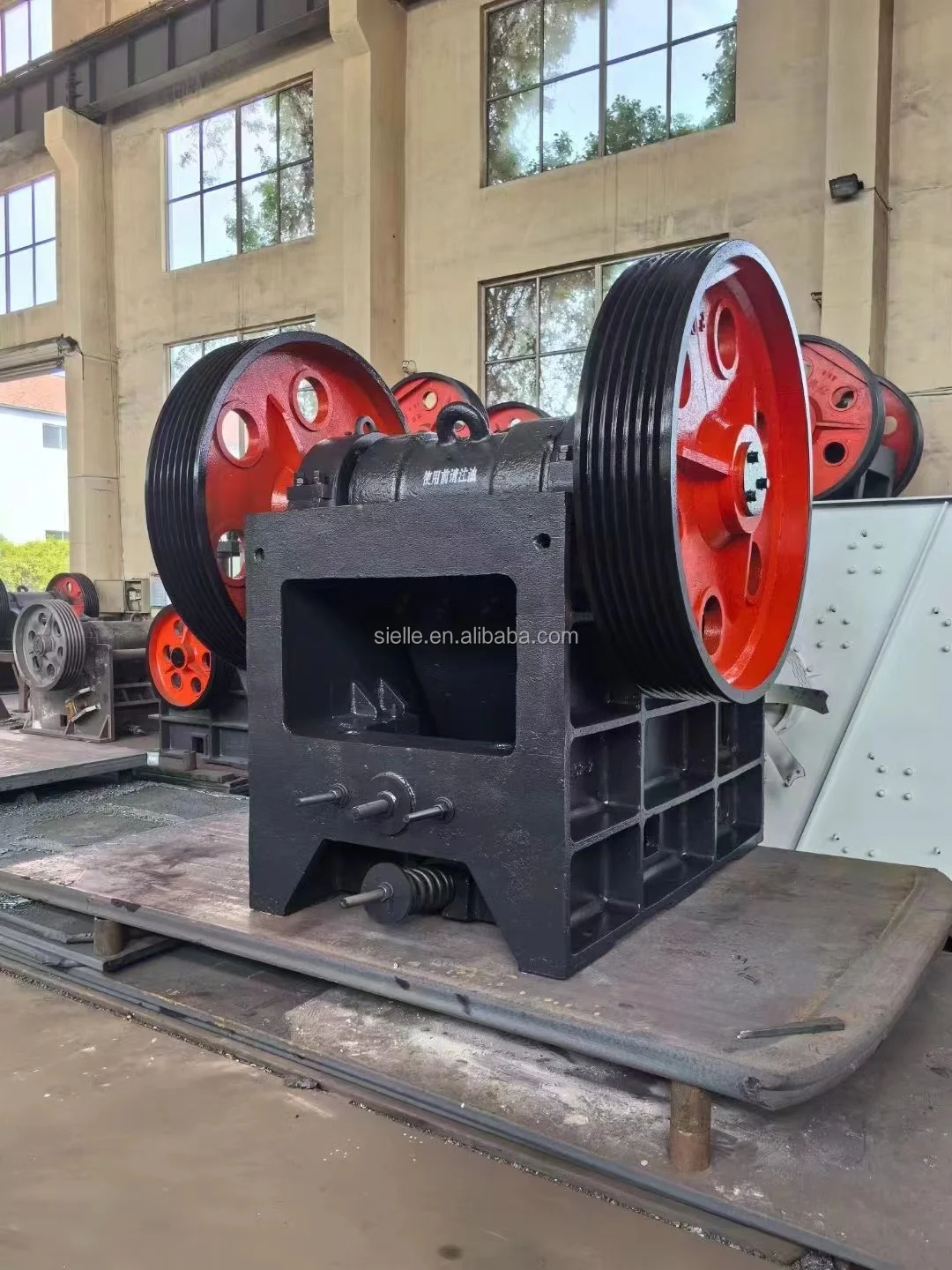

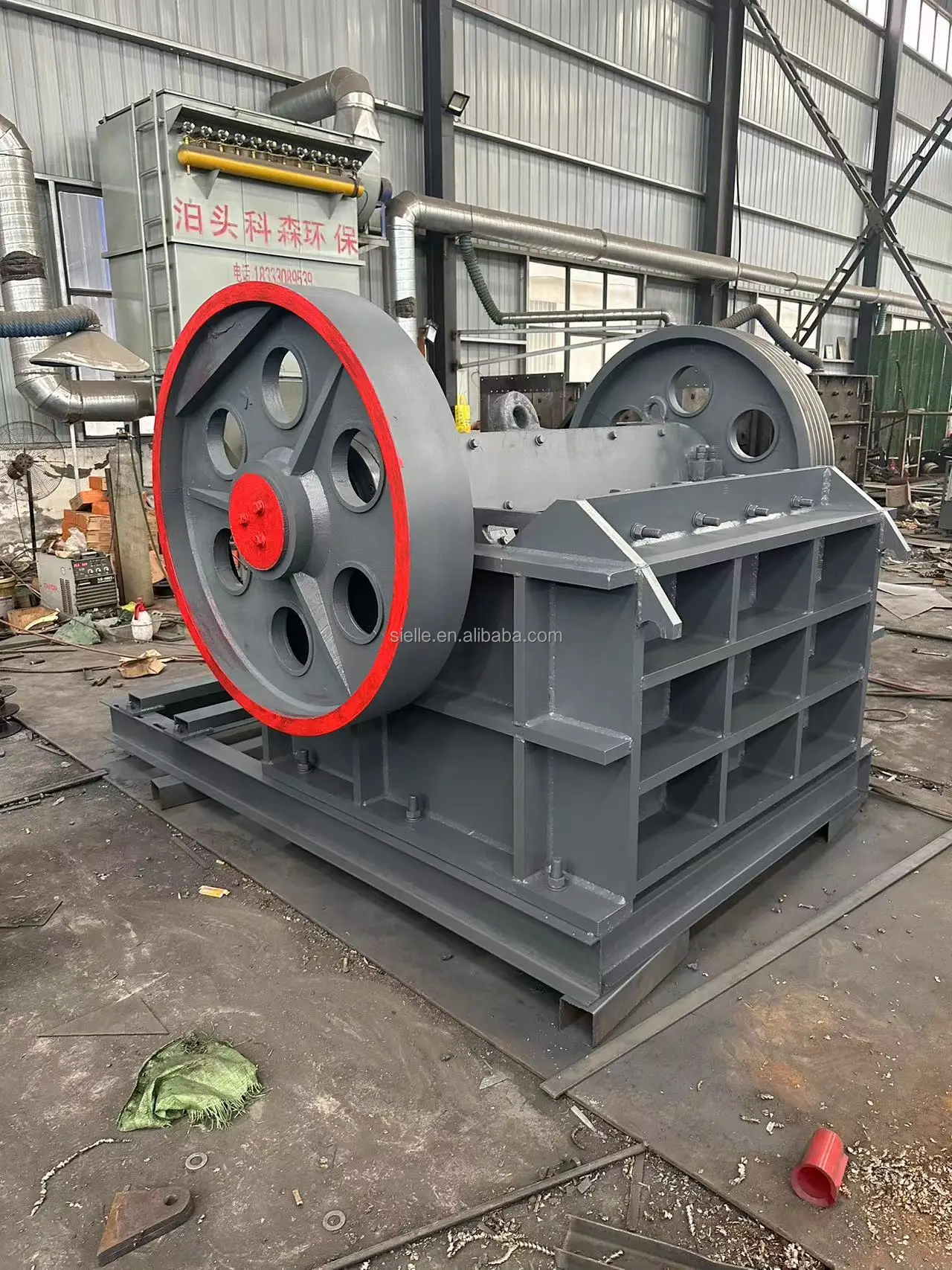

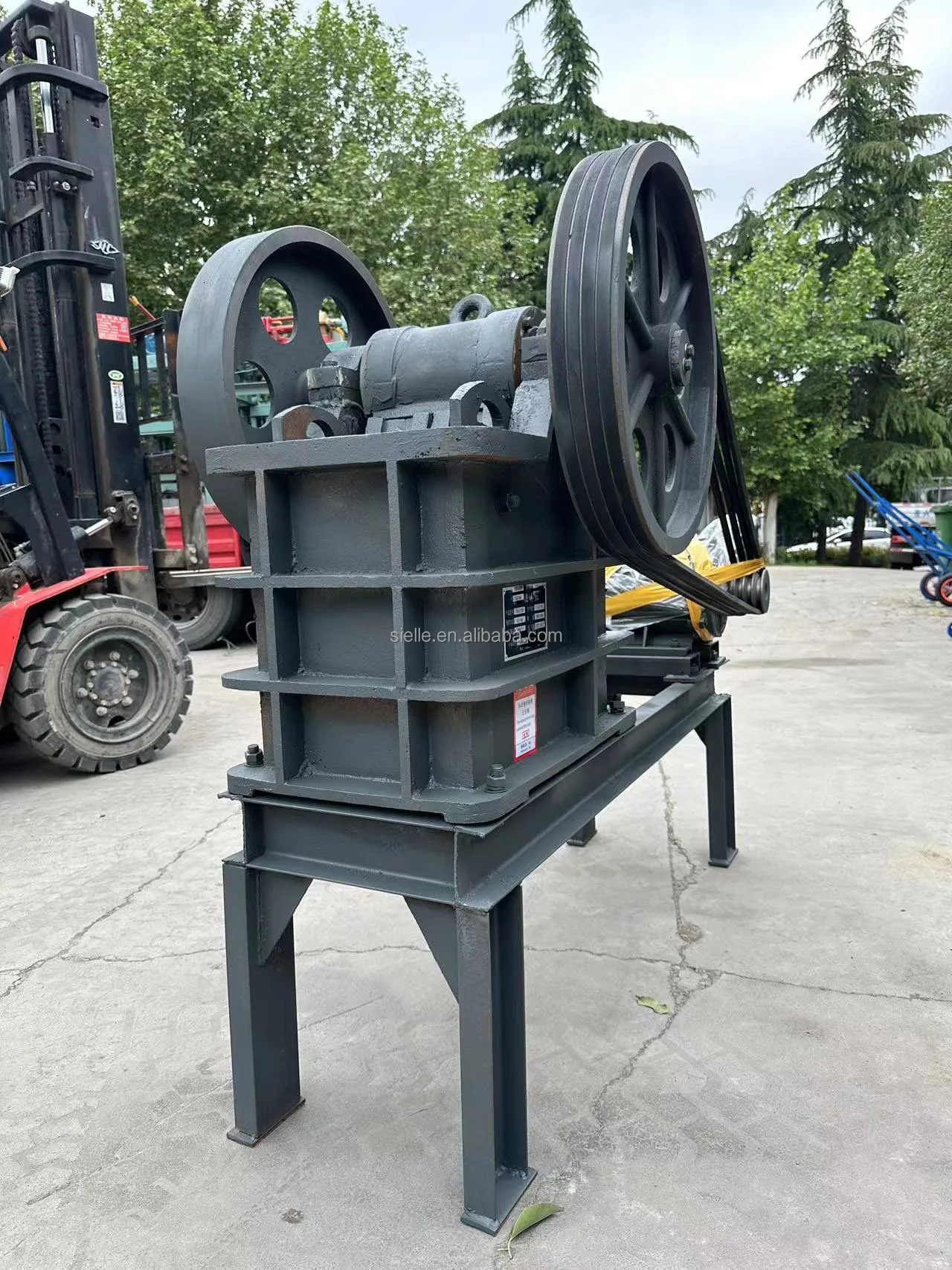

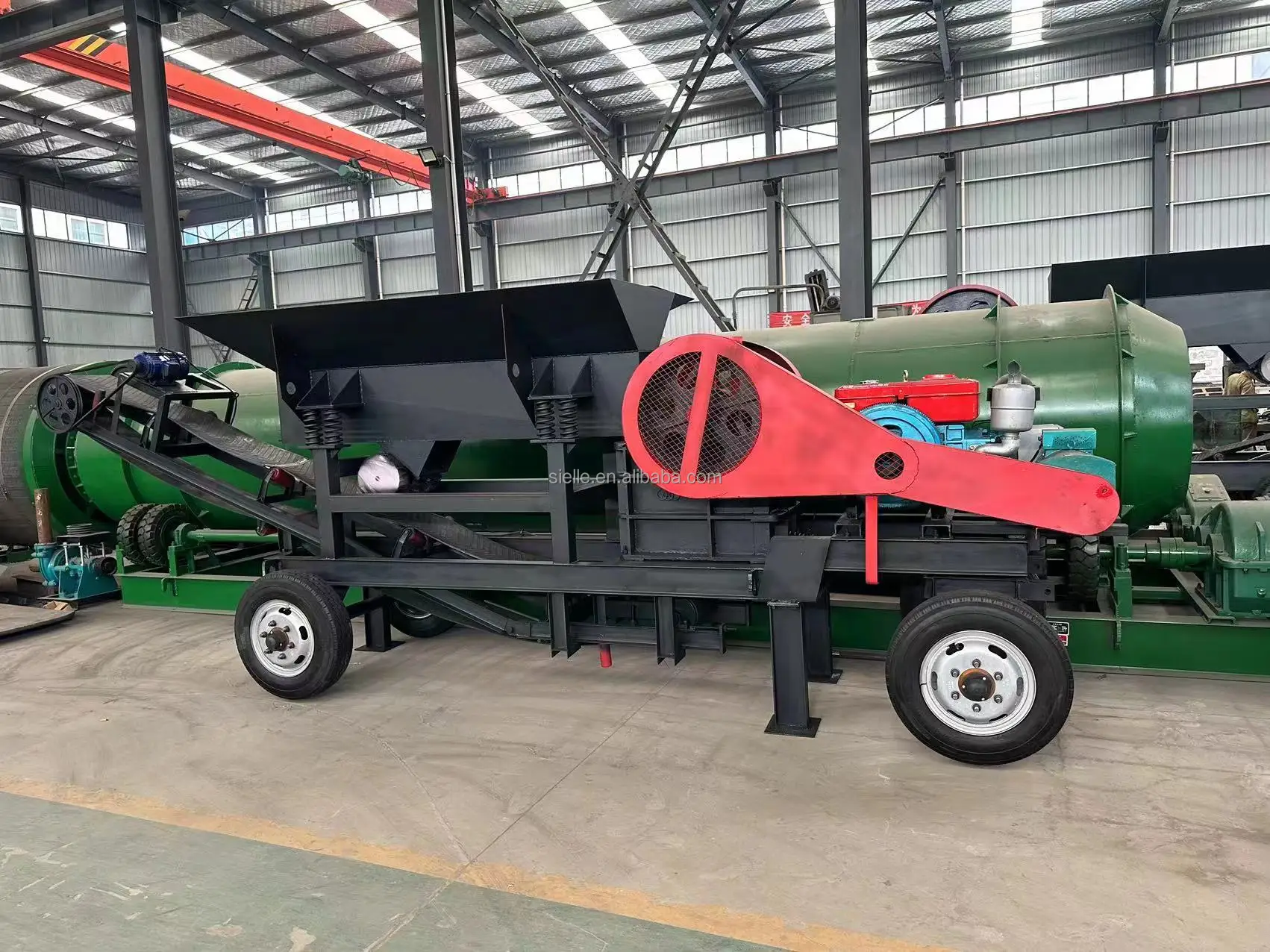

Details Images
When the jaw crusher is working, the movable jaw plate makes periodic reciprocating movement to the fixed jaw plate, sometimes close to and sometimes away. When approached, the material is crushed by extrusion, splitting and impact between the two jaw plates; When leaving, the material that has been broken is discharged from the discharge port by gravity.Mobile Jaw Crusher Stone Crasher Machine Mini Stone Crusher
In the process of breaking large stones into small stones, one crusher is usually the "main" crusher. The older and more robust crusher is the jaw crusher. When feeding the jaw crusher, the material is poured into the crushing chamber containing the jaw teeth from the top entrance, the jaw teeth push the material towards the wall of the chamber with great force, breaking it into smaller stones. Supporting the movement of the jaw teeth is an eccentric shaft that runs through the fuselage frame. Eccentric motion is usually produced by a flywheel fixed to both ends of the shaft. Flywheels and eccentric support bearings often use spherical roller bearings, bearings must withstand huge impact loads, abrasive sewage and high temperatures.
In the process of breaking large stones into small stones, one crusher is usually the "main" crusher. The older and more robust crusher is the jaw crusher. When feeding the jaw crusher, the material is poured into the crushing chamber containing the jaw teeth from the top entrance, the jaw teeth push the material towards the wall of the chamber with great force, breaking it into smaller stones. Supporting the movement of the jaw teeth is an eccentric shaft that runs through the fuselage frame. Eccentric motion is usually produced by a flywheel fixed to both ends of the shaft. Flywheels and eccentric support bearings often use spherical roller bearings, bearings must withstand huge impact loads, abrasive sewage and high temperatures.

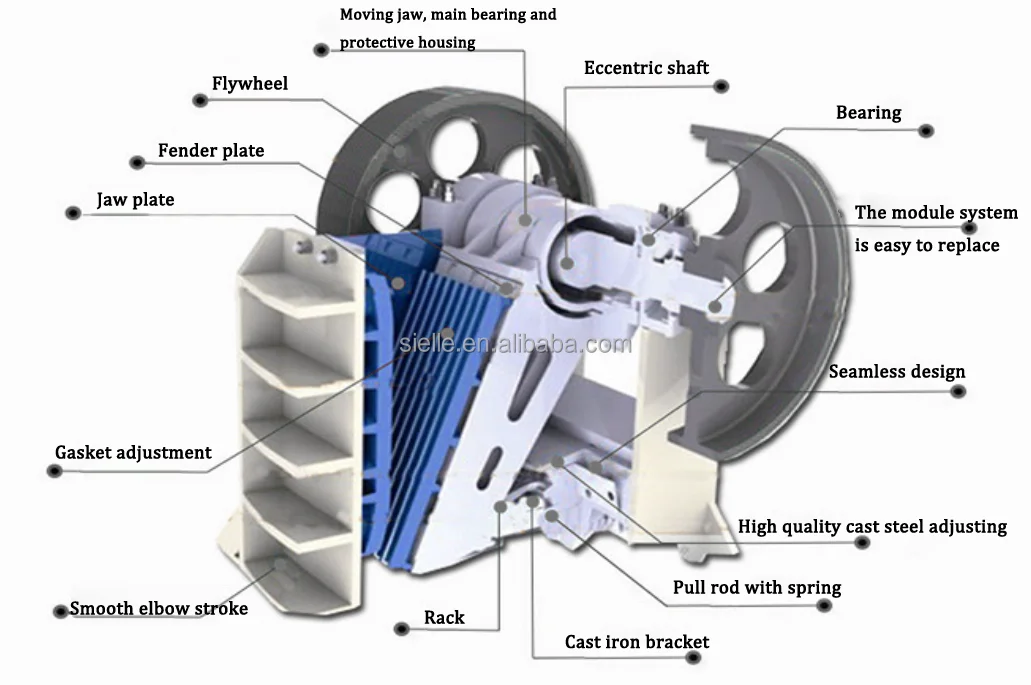

The working part of the jaw crusher is two jaw plates, one is a fixed jaw plate (fixed jaw), vertical (or slightly tilted upper end) fixed on the front wall of the body, the other is an active jaw plate (moving jaw), the position is inclined, and the fixed jaw plate forms a small crushing chamber (working chamber). The movable jaw plate makes periodic reciprocating motion against the fixed jaw plate, sometimes separating and sometimes approaching. When separated, the material enters the crushing chamber, and the finished product is discharged from the lower part; When approached, the material installed between the two jaw plates is crushed by extrusion, bending and splitting.
About Us
In the product design and service, we are constantly improving and innovating. The company has been awarded the honorary titles of "National Model Unit of Emphasizing quality and keeping credit" and "AAAAA brand Enterprise of Quality and integrity", and products has passed ISO9001 International Quality Management System Certification and is exported to America, Canada, Chile, Bolivia, Indonesia, Malaysia, Australia, Egypt, Turkey, Romania, Sweden, Finland, Italy, Germany, etc. about more than 100 countries and area. We have won good reputation depends on our best qualified products and after-sales.

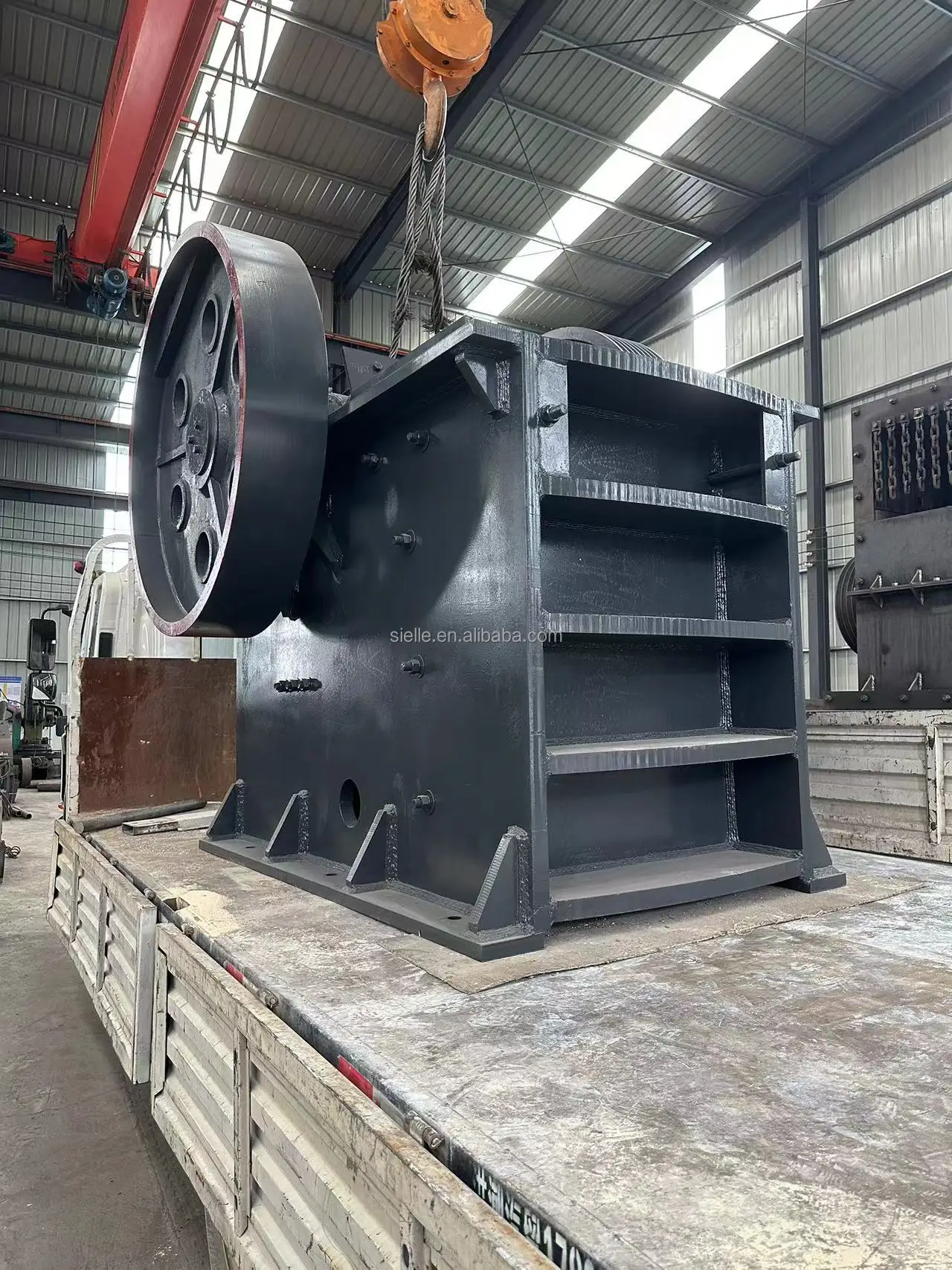

Product packaging
Because of long distance transportation and handling, Jaw crusher machine will be packed in standard export wooden case to ensure the safety in the process of transportation. So that you can receive a perfect machine!
FAQ
1,The payment
Our company accepts T T, L/C, D/P, D/A, Western Union for clients.
2,The delivery time
Generally it is 5-7 days if the Products are in stock. Or it is 7-15 days if the products are not in stock, it is according to quantity.
3,About quality
Welcome to our factory and check the quality of products. Besides, we will send you the video and pictures before shipment after your order.
4, Equipment warranty
Equipment with 12 months warranty, which can be extended to 15-18 months as request.
Our company accepts T T, L/C, D/P, D/A, Western Union for clients.
2,The delivery time
Generally it is 5-7 days if the Products are in stock. Or it is 7-15 days if the products are not in stock, it is according to quantity.
3,About quality
Welcome to our factory and check the quality of products. Besides, we will send you the video and pictures before shipment after your order.
4, Equipment warranty
Equipment with 12 months warranty, which can be extended to 15-18 months as request.
5, How to install and run the machine?
Our technicians have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. It's very easy to install them.
Our technicians have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. It's very easy to install them.
6, Don't know which type you need?
Please send us your requirement or contact us directly! We will choose the right model for you.
Please send us your requirement or contact us directly! We will choose the right model for you.
