Custom American Style Window Sliding Off Road Truck Campers Camp Off Road Camping Van 4X4 With Li battery
- Category: >>>
- Supplier: Wuhan Falave Automotive Technology Co. Ltd.
Share on (1601022470485):
Product Overview
Description
Products Description
CHALLENGE FARAWAY ACCOMPANY ALONG THE WAY
Unleash your wanderlust with our customizable off-road trailer, the ultimate adventure companion.
Explore rugged terrain withease, while enjoying clever space utilization.
Get ready to elevate your camping experience.
Start your outdoor adventure trip, we've got you all covered!
FALAVE's T6 series is a new travel trailer with new design, new materials, new technology, new techniques and new functions, it is a new product, new fashion!
Features of the new caravans：
High-loading off-road chassis for caravans
Intelligent synchronised brakes
Double wishbone independent suspension（with air suspension）
Integral load-bearing body with aluminium alloy frame
Aluminium honeycomb reinforced 5 layers composite panel
Electric Intelligent Technology Features
Methanol-hydrogen battery/Combined heat and power systems
Integrated cooling, heating and hot water systems
Driving safety monitoring system
Fashionable modelling & Integral fusion design
Various internal layout options
Various types of expansion equipments
Product Paramenters
FALAVE off-road travel trailers
Standard Configuration List | ||
Chassis | Special high-strength off-road RV chassis；Chassis electrical protection IP67 | |
Suspension | Double wishbone independent suspension with air bag | |
Shock Absorber | 9-section adjustable damping shock absorber * 4 | |
Brake | Adaptive synchronized hydraulic brakes；2 EPB motors | |
Protection | Brake protector & 2 stainless steel anti detachment chains | |
Hitch | Self correcting electric traction connection for 50mm Tow Ball | |
Jockey wheel | Electrically controlled adjustable and foldable | |
Trailer Jack | Towing jack stand stabilizer legs * 4 | |
Parking radar | Parking radar probe * 4 & LCD screen | |
Anti-collision beam | 2 chassis anti-collision beams & 5 rear anti-collision beams | |
Step | 1 electric step | |
Body frame | Integral high-strength aluminum alloy body frame | |
Carriage board | Aluminum alloy, aluminum honeycomb, fiberglass, XPS composite plate | |
Roof | High load-bearing integrated roof,Load capacity≥100KG/㎡，with 1 Trap-door 500*500mm | |
Door | H 1750*W 600 mm ,with screen door | |
Window | 1 front，2 side；Acrylic sliding window with screen and sunshade | |
Awning | 1 electric awning L2500*W2000；Rain proof expansion tent R2000 mm | |
Spare tire | 1 Full size spare tire | |
Aircon | Built-in fresh air automatic air conditioning system with PM2.5 dust proof filter element | |
Heater & Hot Water | Electric and gas fired heater with hot water function | |
Car PCs | 10 inch LCD Touch Screen，control Aircon ，display water 、 battery volume and temperature | |
Fridge | 95L，Refrigeration and freezing | |
Washing machine | 3kg automatic washing machine | |
TV | 32 inch LCD TV | |
HiFi bluetooth audio | 9 channels，HiFi，Bluetooth | |
Water Tanks | Clean 200L & Grey 150L | |
Water injection | 9mm water inlet with pre filter | |
Water pump | Booster diaphragm pump，7.6L/min，24V | |
Battery | 25.6V 300AH lithium iron phosphate battery | |
Solar power | 24V 900W Flexible solar power | |
Inverter | 5Kw sine wave inverter & charging machine | |
Electrical system | 300A mechanical type main power switch；10 circuit leakage and overload protectors | |
Charge port | 220-250V，10A | |
Power socket | 5 sockets with USB,220-250V，10A, | |
Optional and customized
In addition to standard configurations, we also offer many options for everyone to choose according to their usage habits.According to your needs and budget, we will matchthe most suitable configuration for you.
We can also redesign your travel trailer according to your ideas and completely customize it for you.
Optional Configuration List | ||
Interior Style | Can choose between "Warm Autumn" or "Nordic" | |
Monitor system | 4 cameras for reverse imaging, parking monitoring, and driving records | |
Vehicle automatic leveling system | One click leveling of vehicle within ±75mm | |
Double Awning | 2 electric awnings L2500*W2000 | |
Water tank antifreeze | Water tank heating，Heat preservation of piping | |
Water injection pump | Submersible pump | |
Battery | Increase to 25.6V 470AH lithium iron phosphate battery | |
Rims & Tyres | R17 Aluminum alloy wheels 265/70R17 AT | |
Rear expansion rack | Rear expansion spare tire rack, motorcycle frame | |
Indoor oven | Built-in 20L steam oven | |
Camping equipment | 1 table , 4 chairs，1 Aluminum alloy ladder，1 barbecue bonfire platform，all be folded | |
Details Images

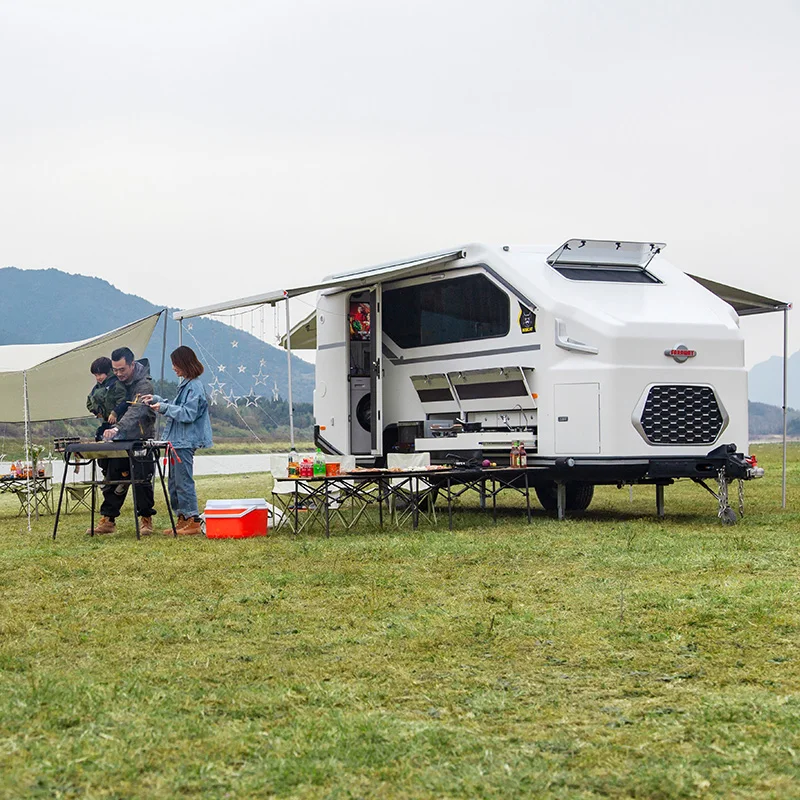

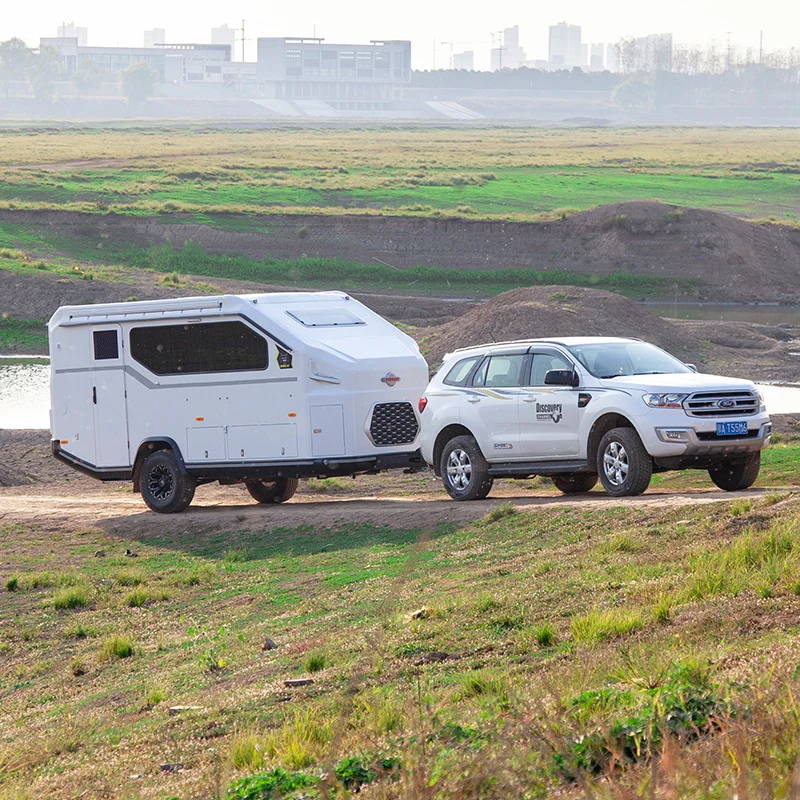

T6 off-road trailer
Simple and fashionable appearance, and the whole car function fusion design, to meet the 2 + 2 family in the long-distance travel configuration, travel flexible, economical and practical.
External extractor hob
Equipped with highland infrared wind and rain-proof fierce fire stove, adapted to high altitude; two stainless steel sinks, water purification, hot and cold water taps;

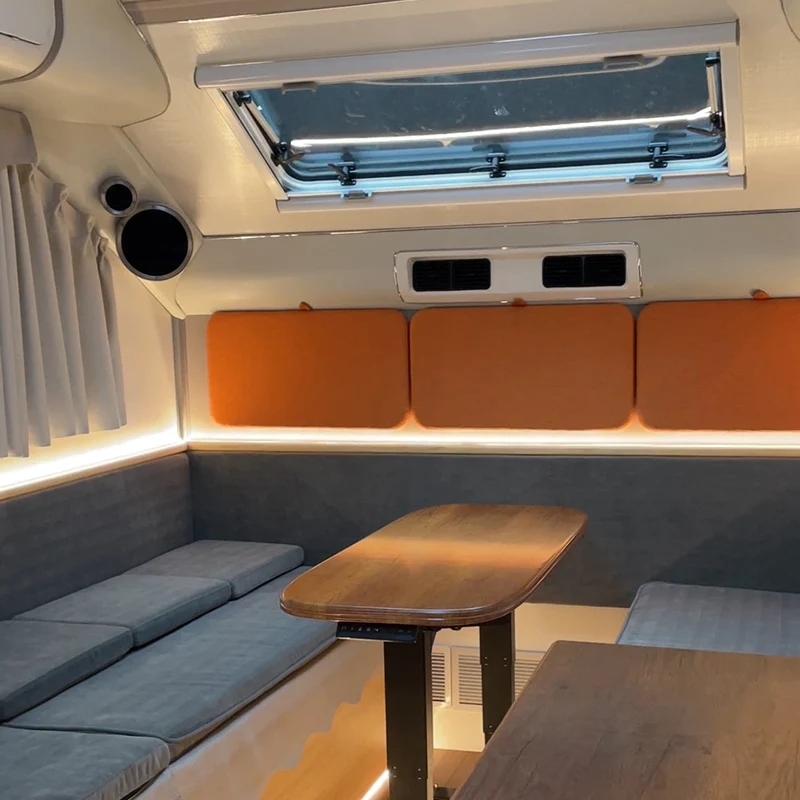

Electric lift table
The interior is extremely space-efficient, well-equipped, spacious and comfortable.
Variable living space
Variety of living space, free to switch.

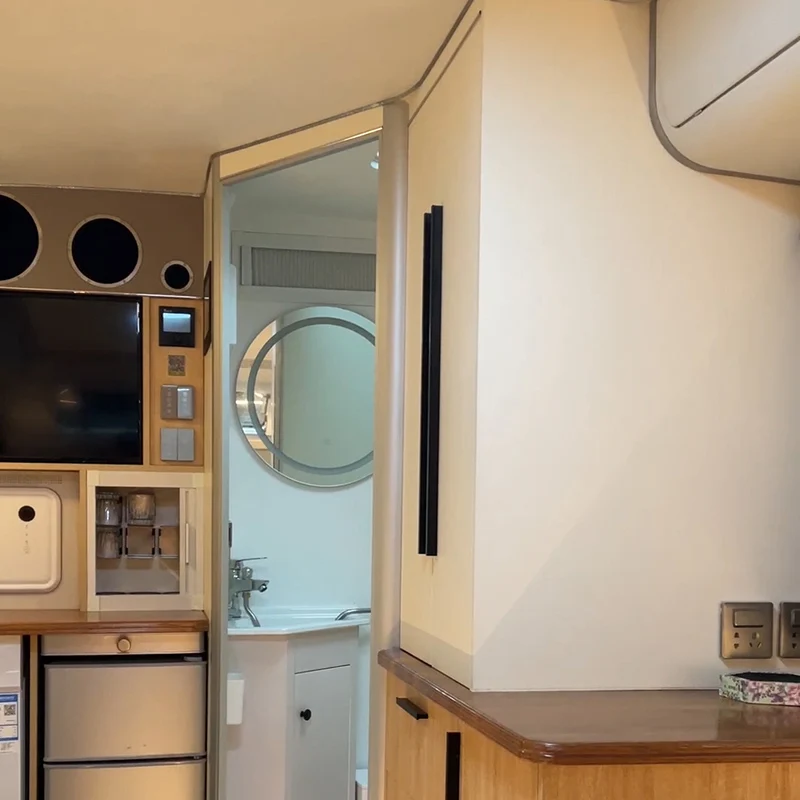

Spacious and comfortable
6-stage purification instant hot water dispenser; 3kg silent automatic drum washing machine and 95L refrigerator and freezer.
In-vehicle multimedia
In-car multimedia features a 32-inch HD Bluetooth TV
nine-channel surround sound system
For professional audio-visual enjoyment
Spacious storage wardrobe
Families travelling long distances, the warmth of home
control button
Richly configured and easy to operate
Centralised LCD control system
Integration of vehicle parameters, constant monitoring of energy consumption and ambient temperature and humidity, and easy adjustment of the air conditioning system.
Company Profile
About us
Wuhan Faraway Automotive Tech Co., Ltd. was set up in 2020. We focus on RV R&D, manufacturing and sales, serving global customers with RV ODM, trailer and parts manufacturing.
Our RV design, pre-production, testing and production workshops are of the highest standard. We've got two production lines for RVs that assemble modularly, with an annual production and sales volume of over 500 types of RVs and parts.
Our RV design, pre-production, testing and production workshops are of the highest standard. We've got two production lines for RVs that assemble modularly, with an annual production and sales volume of over 500 types of RVs and parts.
Recommend Products
FAQ
1、Are you trading company or manufacturer？
We are a professional manufacturer of caravans, mainly producing off-road trailers. We provide OEM/ODM caravan and caravan parts manufacturing services for global customers.
2、What is your terms of payment?
T/T 60% as deposit, 40% balance before delivery. We'll show you the photos of the products and packages before you pay the balance.
3、What is your terms of packing?
Generally, we use metal base and plastic film to pack the goods. We can also customise the packaging logo according to your requirements.
4、Can the products be customised?
Our caravans can be customised to include: colour, appearance, logo, size, layout, configuration. We can even re-design and re-build a caravan according to your requirements and ideas, which of course requires a certain MOQ.
5、How about your delivery time?
Generally, it takes 15-20 days for delivery after receipt of prepayment. The exact delivery time depends on the items and quantities you order. If it is customised to your requirements, it may take longer!
6、What are the features of your caravans?
Our T6 series is a new product, new fashion! Fashionable and exquisite appearance, strong off-road ability, convenient and applicable configuration, durable and good quality.
7、 How do you guarantee the quality of your products?
We have established a perfect quality management system in accordance with ISO9001 standards, in each vehicle parts into the warehouse, the production process, the factory before the QC inspection and recorded in the file.we have 100% test before delivery
8、 Are they come with Australiastandard or other standard?
Our travel trailers are designed and manufactured in accordance with Chinese, Australian and European standards.It can also be modified to suit American standards or those of other countries.
9、 What services can I get from you?
We are always here for your needs.
You can get catalogue, pictures, vedios about us;You can visit our factory and view our technology and manufacturing processes;You can get quote from us anytime you need; Customizing services, OEM/ODM services, etc.
You can get catalogue, pictures, vedios about us;You can visit our factory and view our technology and manufacturing processes;You can get quote from us anytime you need; Customizing services, OEM/ODM services, etc.
