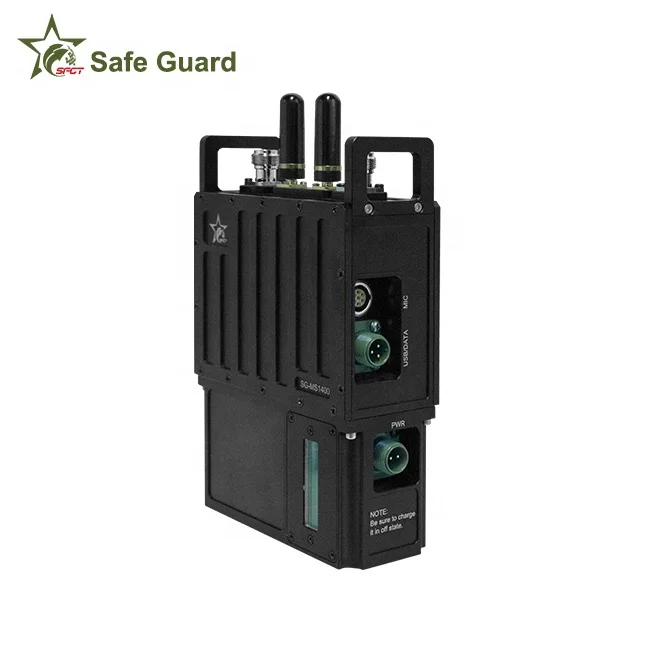

Up to 32 mesh nodes cofdm module wireless communication system 2 ways mesh radio ip av receiver hd video
- Category: >>>
- Supplier: Shenzhen Safe Guard Co. Ltd.
Share on (1601022510653):
Product Overview
Description
SFGT-MS0202MP 1
Security High Power Radio 3km to 5km Mini Camera 5w to 8w UAV Video Networking IP Mesh
Safe Guard SG-MS1400 MESH Network communication system combines with COFDM modulation, high efficiency channel coded and MESH networking protocol that realized network integration of video, data, audio, and GPS data with seamless transmission.

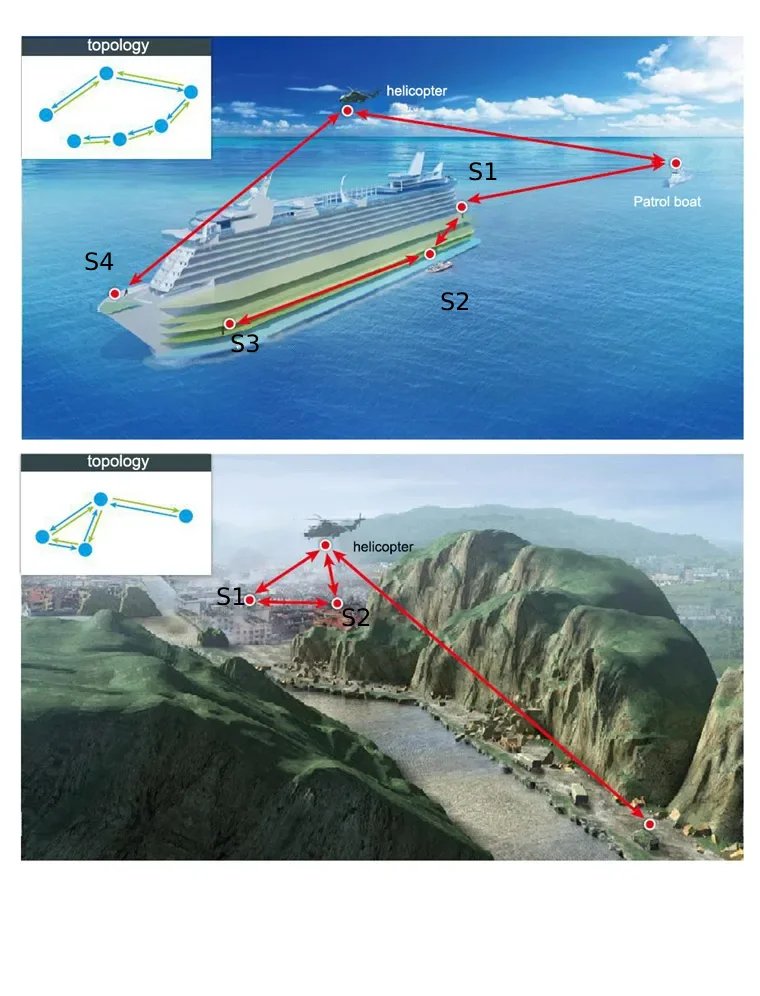

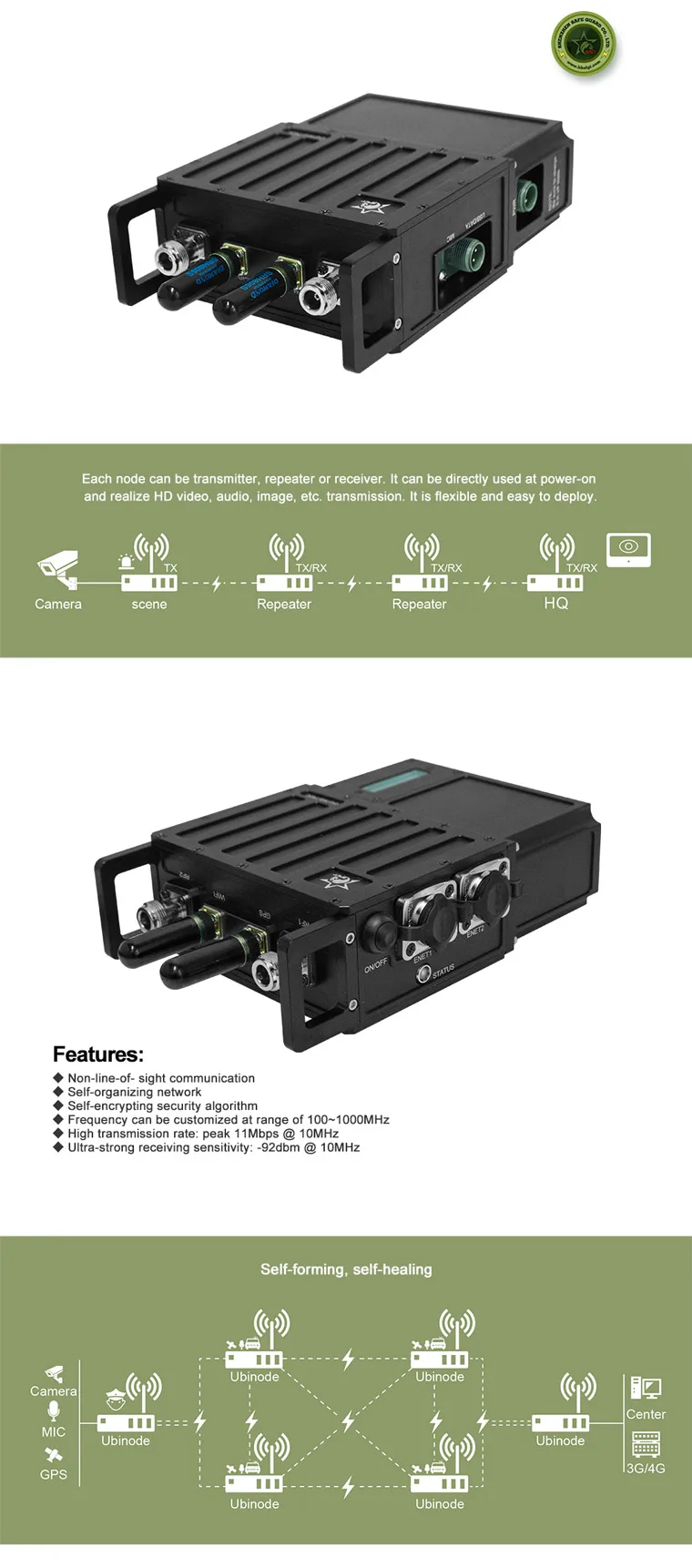

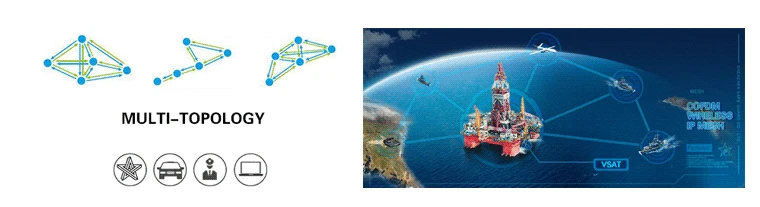

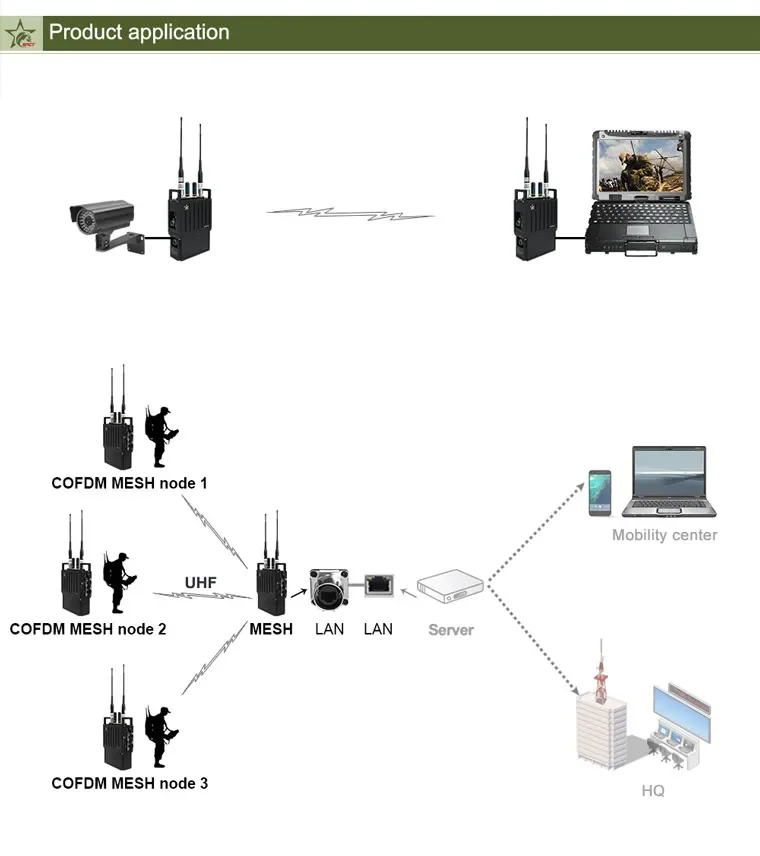

SG-MS1400 wireless mesh is a fully connected "Self- managing" and "Self-healing" network where all units are connected to each other and could act as a relay to other units in the network. The self-forming, self healing nodes can be deployed quickly, simple to install and highly flexible. Any Non-line of sight coverage can be extended by using nodes as repeaters.
Specifications
Security High Power FM Radio Battery Operated 3km to 5km Mini Camera 5w to 8w UAV Video Porte Networking IP Mesh
Transmission characteristics | GPS | Optional external GPS module | |
Frequency | 1100MHz-1400MHz | 3G/4G module | support |
RF bandwidth | 5/10MHz (optional) | WIFI module | support |
RF output power | 1~3Watt (optional) | Encryption | AES user-defined password |
Shoulder ratio | 30dBm>-45dbc | Electrical characteristics | |
Modulation | COFDM | Working voltage | DC12V |
Modulation constellation | BPSK/QPSK/16QAM/64QAM | Working current | ≤2A |
FEC | 1/2,2/3,3/4,5/6 | Power consumption | ≤20W |
sensitivity | -92dbm@10MHz | The built-in filter characteristics | |
Transfer rate | Peak 11Mbps@10MHz | Center frequency | 340MHz/580MHz |
Cover distance | customized | bandwidth | 10MHz |
Networking capability | up to 32 nodes | F0±10%≥44db | |
Data characteristics | F0±20%≥75db | ||
Video input format | Videoinput:CVBS,1Vp-p@75Ω,PAL 720*576(D1) | Far-end≥80db | |
IP video input:1080P IP Camera | Physical characteristics | ||
Audio input format | MIC | Protection grade | IP65 |
Audio output format | headphone | Working temperature | -20℃~+50℃ |
Video compress format | H.264 | Storage temperature | -40℃~+80℃ |
Video bit rate | 3Mbps Max | Dimension | 200×130×50mm |
RS232 data serial port | 150bps~38.4kbps | Weight | 1.4Kg |
Company Information
Safe Guard was founded in 1999, which is a leading global technologymanufacturer specializing in wireless microwave video and data communication system for government,UAV/UGV and broadcast markets, etc.
We have strong production and R&D groups.Ourbackbone in researching and production is from the previous state-run 806 plants and 54 Institute. Over the 20years, Safe Guardhas been devoting itself to designing and developing digital video audio wireless systems in mobile.
Nowadays, Safe Guard has built up a mature COFDM product line, mainly including standard COFDM wireless transmitter&receiver,TDD-COFDM full duplex ethernet transceiver,COFDM IP MESH and the latest technology FDD-COFDM wireless Dual frequencies network transceiver.Moreover, we offer customized solutions and services for clients to any kinds of wireless transmission they need-simplex, duplex, or mesh network.
Nowadays, Safe Guard has built up a mature COFDM product line, mainly including standard COFDM wireless transmitter&receiver,TDD-COFDM full duplex ethernet transceiver,COFDM IP MESH and the latest technology FDD-COFDM wireless Dual frequencies network transceiver.Moreover, we offer customized solutions and services for clients to any kinds of wireless transmission they need-simplex, duplex, or mesh network.
