Submersible Solar Water Pump Swimming Pool Pump Self Priming Centrifugal Submersible Sewage Pump With Cutter
Submersible Solar Water Pump Swimming Pool Pump Self Priming Centrifugal Submersible Sewage Pump With Cutter
Submersible Solar Water Pump Swimming Pool Pump Self Priming Centrifugal Submersible Sewage Pump With Cutter
Submersible Solar Water Pump Swimming Pool Pump Self Priming Centrifugal Submersible Sewage Pump With Cutter
Submersible Solar Water Pump Swimming Pool Pump Self Priming Centrifugal Submersible Sewage Pump With Cutter
Submersible Solar Water Pump Swimming Pool Pump Self Priming Centrifugal Submersible Sewage Pump With Cutter
Submersible Solar Water Pump Swimming Pool Pump Self Priming Centrifugal Submersible Sewage Pump With Cutter

Submersible Solar Water Pump Swimming Pool Pump Self Priming Centrifugal Submersible Sewage Pump With Cutter

Share on (1601022519908):


Price:$197.00 - $259.00

Quantity:


Product Overview

Description



Product Show






Model
Flow(m³/h)
Head(m)
 Piping diameter
Voltage(v)
50WQK7-15-1.1
7
15
2
220V/380V
50WQK15-15-1.5
15
15
2
220V/380V
50WQK9-22-2.2
9
22
2
380V
65VQK25-18-2.2
25
18
2.5
380V
80WQK40-10-2.2
40
10
3
380V
50VQK15-26-3
15
26
2
380V
65WQK25-20-3
25
20
2.5
380V
80VQK40-15-3
40
15
3
380V
100WQK50-10-3
50
10
4
380V
50WQK15-30-4
15
30
2
380V
65WQK20-25-4
20
25
2.5
380V
80WQK30-22-4
30
22
3
380V
100WQK50-15-4
50
15
4
380V
80VQK65-15-5.5
65
15
3
380V
100WQK80-13-5.5
80
13
4
380V
80VQK70-18-7.5
70
18
3
380V
100WQK90-15-7.5
90
15
4
380V
150VQK120-12-7.5
120
12
6
380V
80WQK40-40-11
40
40
3
380V
100VQK60-30-11
60
30
4
380V
150WQK100-20-11
100
20
6
380V
80WQK45-52-15
45
52
3
380V
100WQK60-40-15
60
40
4
380V
150VQK100-30-15
100
30
6
380V

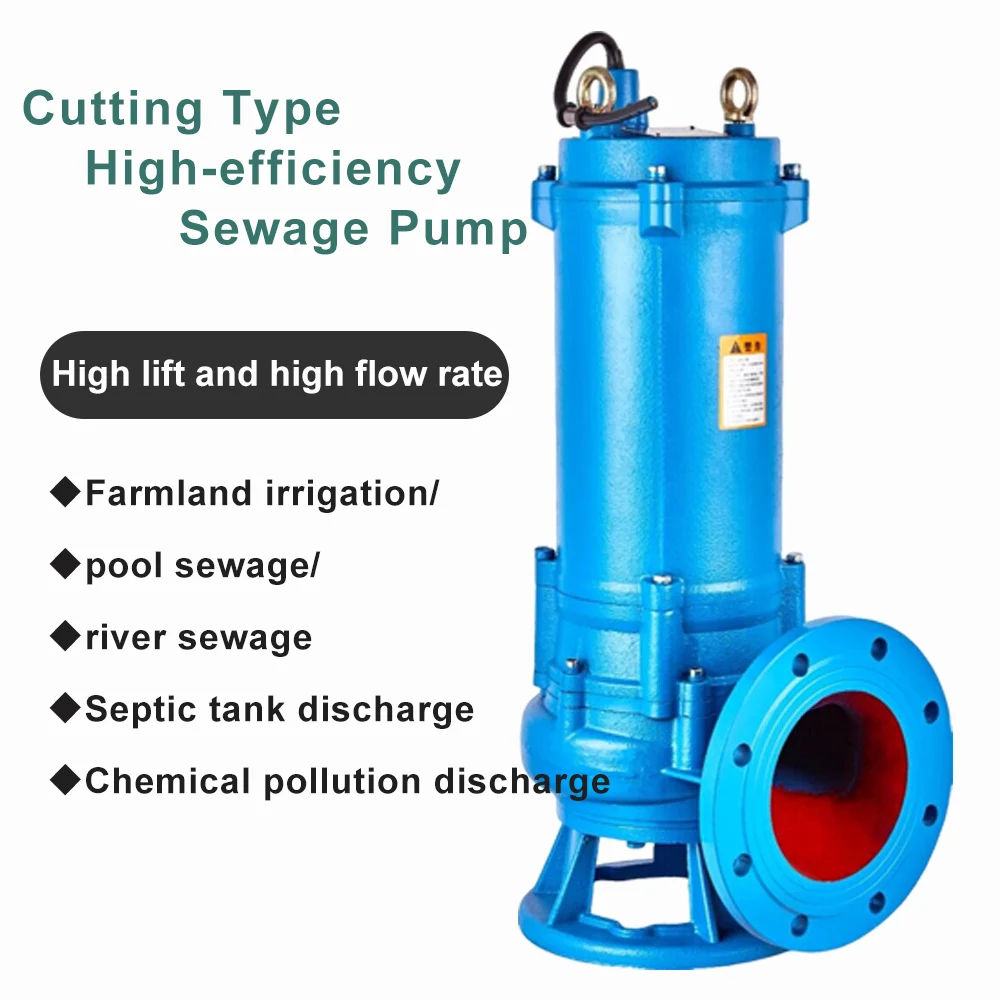

Application of WQK cutting submersible sewage pump

The WQK/QG sewage pump with cutting device is mainly used for engineering sewage and domestic sewage.

(1) Used for construction sites, engineering foundation construction, municipal facilities, and water plants.

(2) Sewage discharge from the basement of various high-rise buildings, civil air defense pits, subways, and other underground floors.

(3) Wastewater treatment and circulating water transportation for small and medium-sized enterprises.

(4) Slurry pumping for factories and mining enterprises such as food, papermaking, brewing, steel and non-ferrous metals, leather making, textiles, pharmaceuticals, cement plants, etc.

(5) Chicken farms, pig farms, various animal husbandry industries, fish ponds are used for pumping water, cleaning ponds, increasing oxygen, septic tanks, and other occasions to transport human and animal manure and urine.

Note: The main performance and data of wqk are the same as those of wqk/qg type, except for the absence of a cutting device.




Products Description


Stainless Steel Sewage Pump
The wqx series submersible sewage pump is mainly used for discharging domestic wastewater, sewage, human feces and urine, as well as solid suspended solids and non corrosive media containing short fiber paper scraps, wood scraps, starch, sediment, ore particles, etc. The temperature of the pumped liquid does not exceed 40 ℃, the density does not exceed 1200kg/m3, and the pH value is~9. The electric pump adopts a double end mechanical seal and a rotating impeller. The impeller is made of stainless steel, wear-resistant, non clogging, non winding, and has the advantages of small volume, compact structure, and easy portability.



[Parameters]
WQK cutting pump septic tank sewage pumping specialized pump with hinged submersible pump for wastewater tank cutting sewage pump
Material
Pump body: Stainless Steel
Impeller: Brass/P.P.O/Stainless Steel
Mechanical seal: Carbon/Ceramic/Stainless Steel
Rated power (kw)
1.1KW-15KW
Rated flow rate (m³/ H)
7m³/ H-120m³/ H
Rated head (m)
10-52m
Import size
50-150
Maximum water depth (m)
10m-32m
Voltage (V)
380V
Outlet pressure (Mpa)
0.1mpa


Company Profile




FAQ


1. Q: Are you a manufacturer or trading company?
A: We are a manufacturer that specialized in Submersible pump and other kinds of pumps, our products            have passed the test.
2. Q:What's your products MOQ?
A: Different model has different MOQ, pls check with salesman.
3. Q: How can I get some samples?
A: Usually we can’t offer free sample, pls pay the sample and express fee, the sample costing could be refund in your first large order.
4 Q: What's your delivery time?
A: 1.The samples can be sent to you within 3-7 days.
2.The batch order can be shipped to you within 5-15 days after order confirmation
5 : Q:What's your warranty & after service policy?
A: 12 Months for all products, and some products warranty is 24 months.
6 Q: How many qty so I can get your OEM service with myself brand name?
A: Different Models have different MOQ requirement, pls consult our salesman.
7 Q: What's the payment can you accept?
A:Usually we accept T/T ,Western Union, PayPal and Alipay, also RMB transfer in China.
