Half Ball Piezo Ceramic Spherical Hemispherical Piezoelectric Ceramic For Transducer
- Category: >>>
- Supplier: Beijing Quanxin Ultrasonic Co. Ltd.
Share on (1601022548984):
Product Overview
Description
Products Description
Piezoelectric Ceramics (PZT) materials are categorized as functional ceramics. In sensors they make it possible toconvert forces, pressures and accelerations into electrical signals, and in sonic and ultrasonic transducers and actuators they convert electric voltages into vibrations or deformations. Piezoelectric Ceramics materials are classified according to their chemical composition on the one hand, and by the specific application conditions on the other.
In addition to piezoelectricity, piezoelectric ceramics also have dielectric properties, elasticity, etc., and have been widely used in medical imaging, Acoustic sensors, acoustic transducers, ultrasonic motors, etc.
Piezoelectric Materials of Ring Piezoelectric Ceramics
PZT4,PZT5,PZT8 or other required Piezoelectric Materials.
Some Application of Piezo Ceramic:1. ultrasonic cleaning trasnducer 2. ultrasonic welding tansducer 3. ultrasonic beauty transducer 4. ultrasonic underwater transducer 5. ultrasonic immersible transucer 6. ultrasonic screening transducer 7. ultrasonic cutting transducer 8. ultrasonic atomization transducer 9. ultrasonic emulsifier
Application of Ball and Half Ball Ceramic Ball

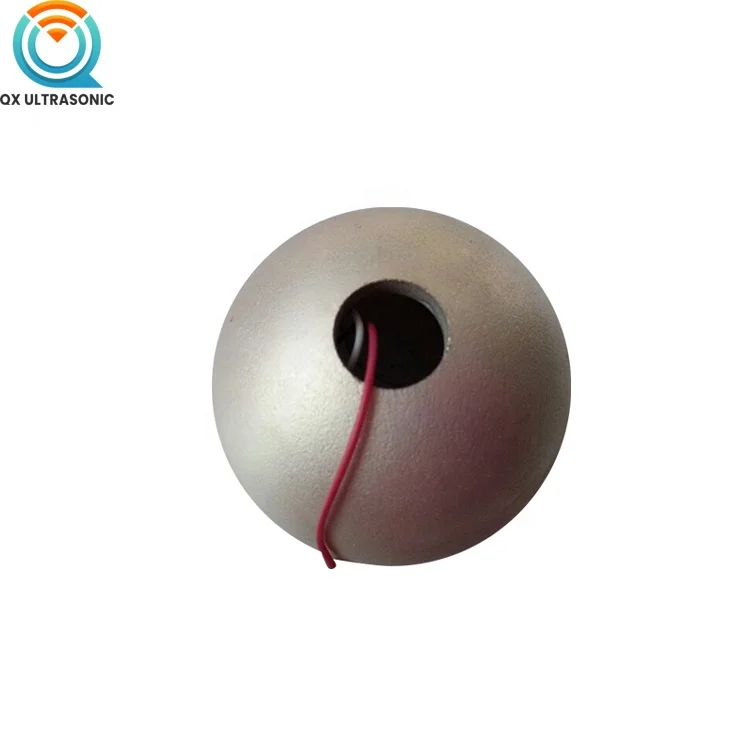

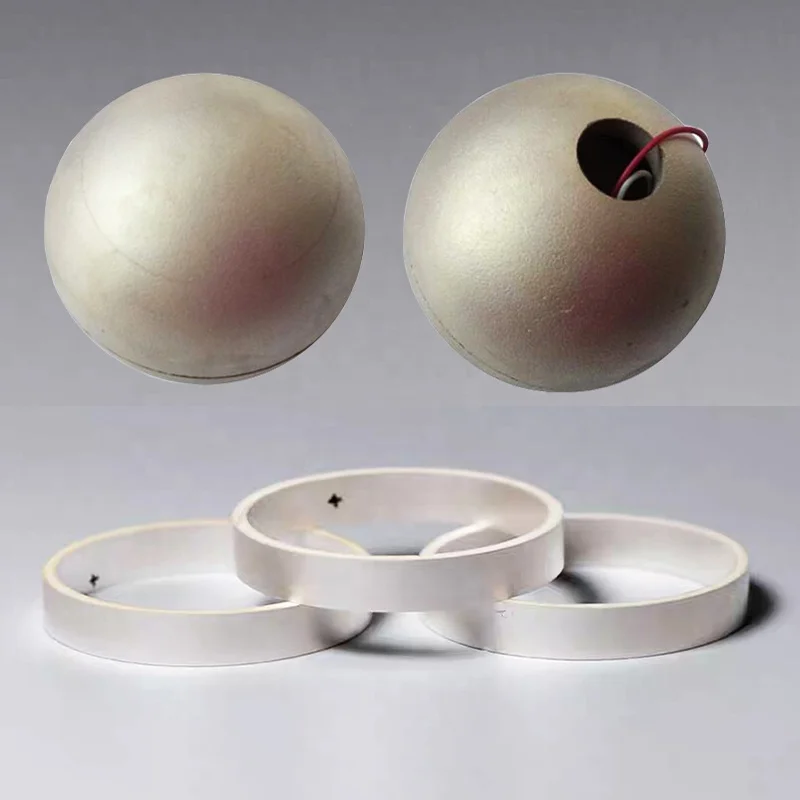

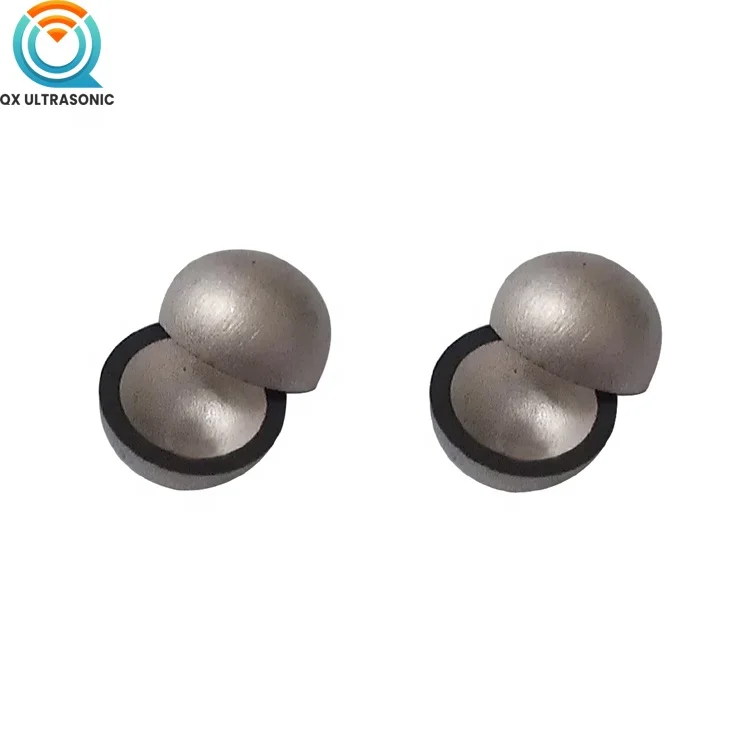

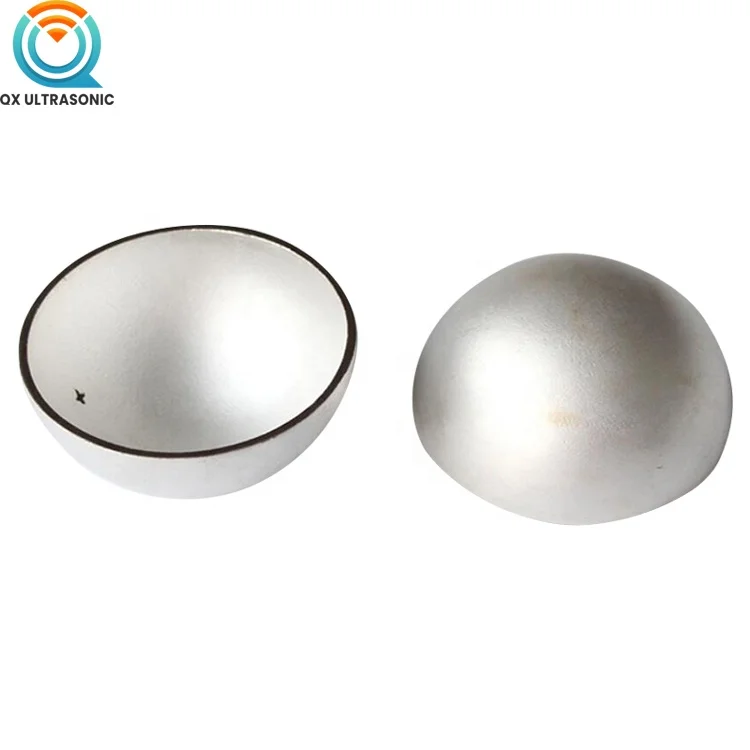

Half Ball and Ball Piezo Ceramics
* Spherical and Hemispherical Piezoelectric ceramic used in the field of Comprehensive acoustic,sonar transducer,high sensitivity detection ultrasound and so on.
* Spherical and Hemispherical Piezoelectric ceramic used in the field of Comprehensive acoustic,sonar transducer,high sensitivity detection ultrasound and so on.
Features of Ball and Half Ball Ceramic Ball
Factory Direct Sale transducer PZT ring Piezoelectric Piezo Ceramics
Based on our technical innovation, high quality and excellent services, we have won a good reputation among customers around the world. We welcome all interested companies to cooperate with us!

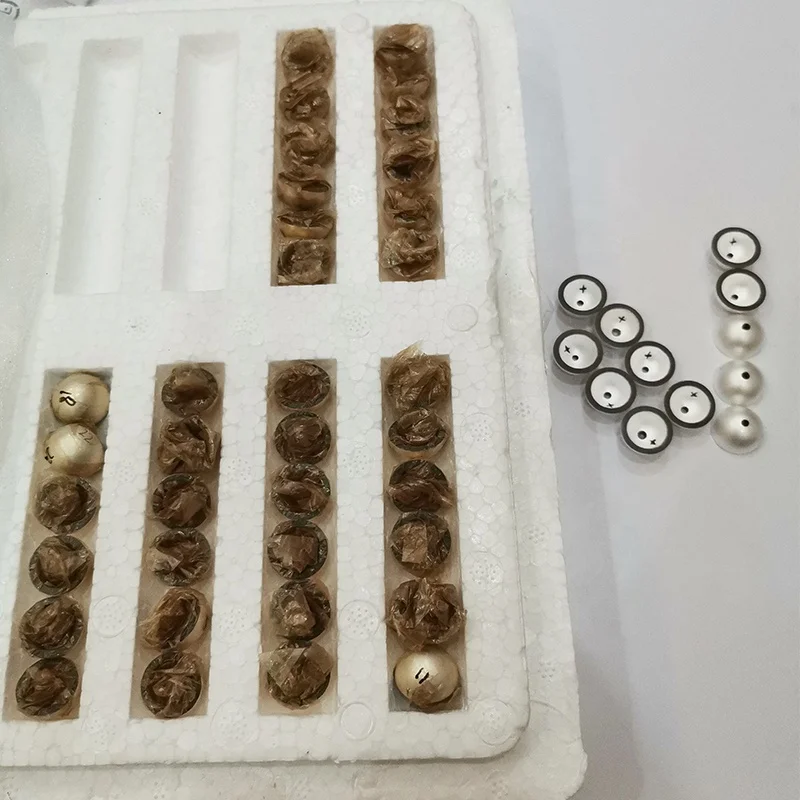

Product Picture
Product Paramenters
Some standard Size of Ring Piezoelectric Ceramics (Size=OD*ID*Thickness) (Qm=Mechanical quality factor) (tanδ(%)=Dielectric dissipation factor ) |
