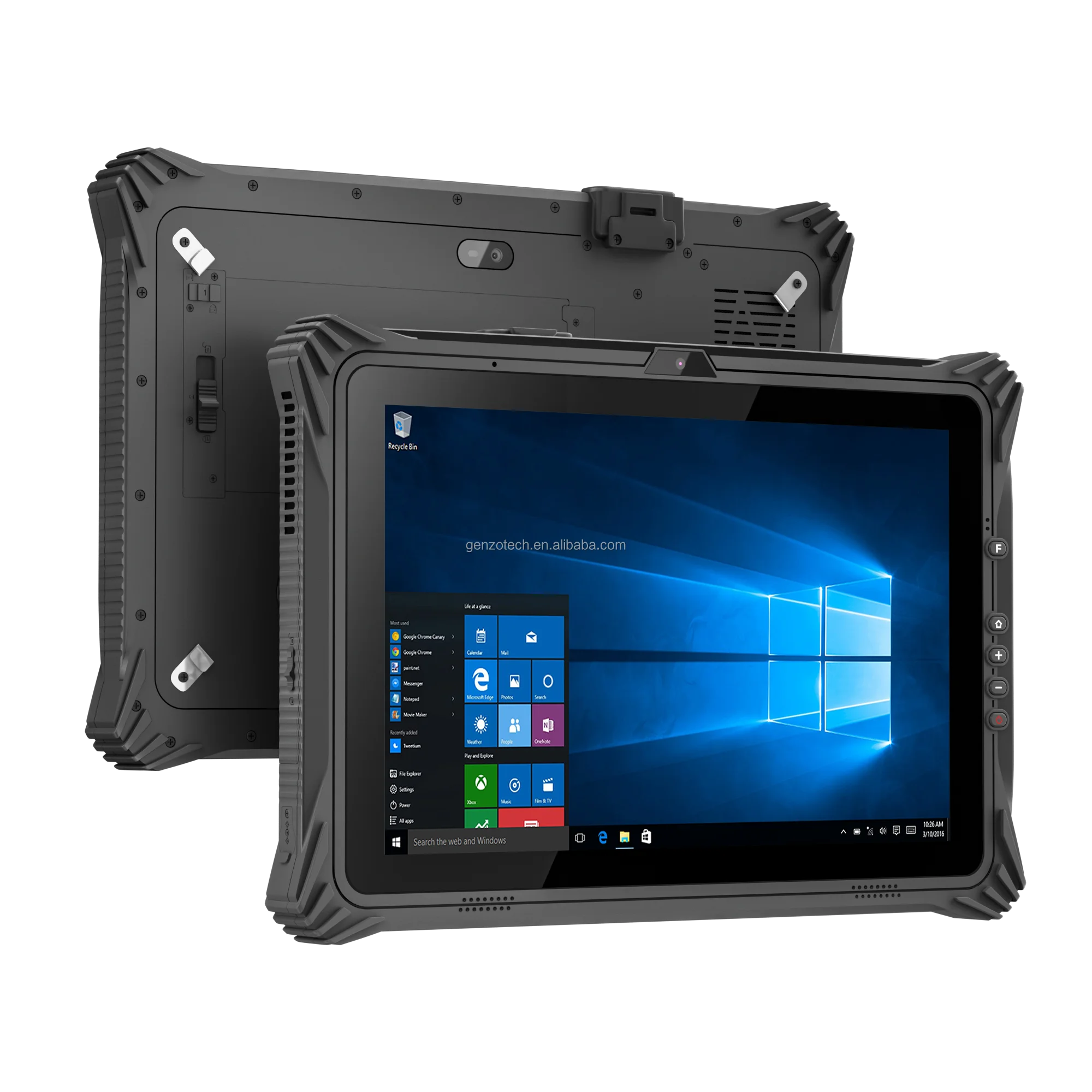

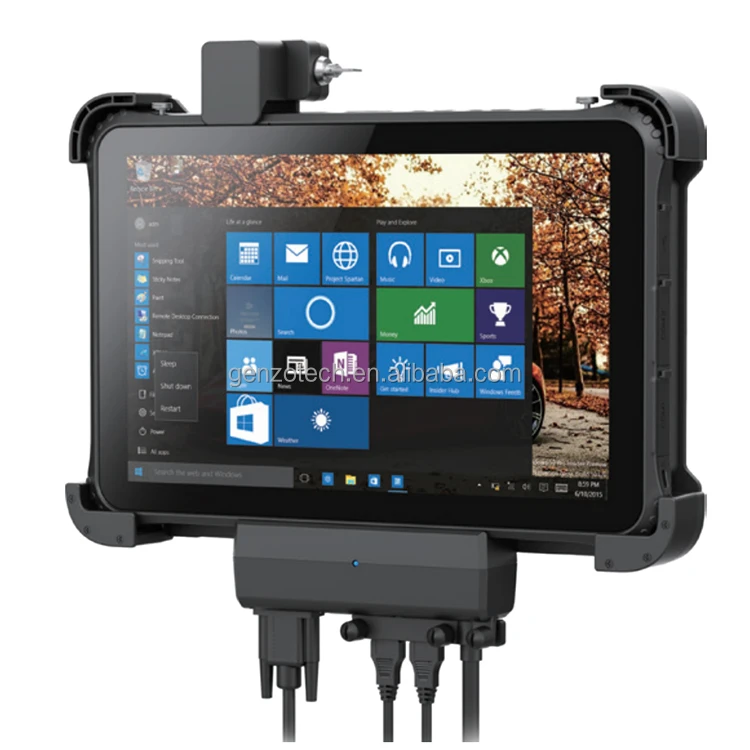

GENZO Rugged Tablet 12 inch with vehicle mount tablet windows intel 12 pulgadas fingerprint rugged tablet windows 12 inch
- Category: >>>
- Supplier: Shenzhen Genzo Technology Co. Ltd
Share on (1601022588280):
Product Overview
Description
10 Years Old Store Upgraded & Reopened
Product Description
Hardware | ||
CPU | Intel JASPER LAKE N5105，4M Cache, 2.9GHz | |
GPU | Intel® UHD Graphics 620 | |
RAM/ROM | 8GB DDR4L / 128GB NGFF SSD Removeable, Optional 16GB DDR4L | |
External Memory | Support TF*1,MAX 128GB | |
LCD Display | 12.2 inch 16:10, 1200×1920P, 650 cd/m2 | |
Touch Panel | 10 points Capacitive，G+G，Rigidity: above 7H-Anti-scratch, Support 930 active pen | |
Camera | Front:5.0MP, Rear: 8.0MP With flashlight | |

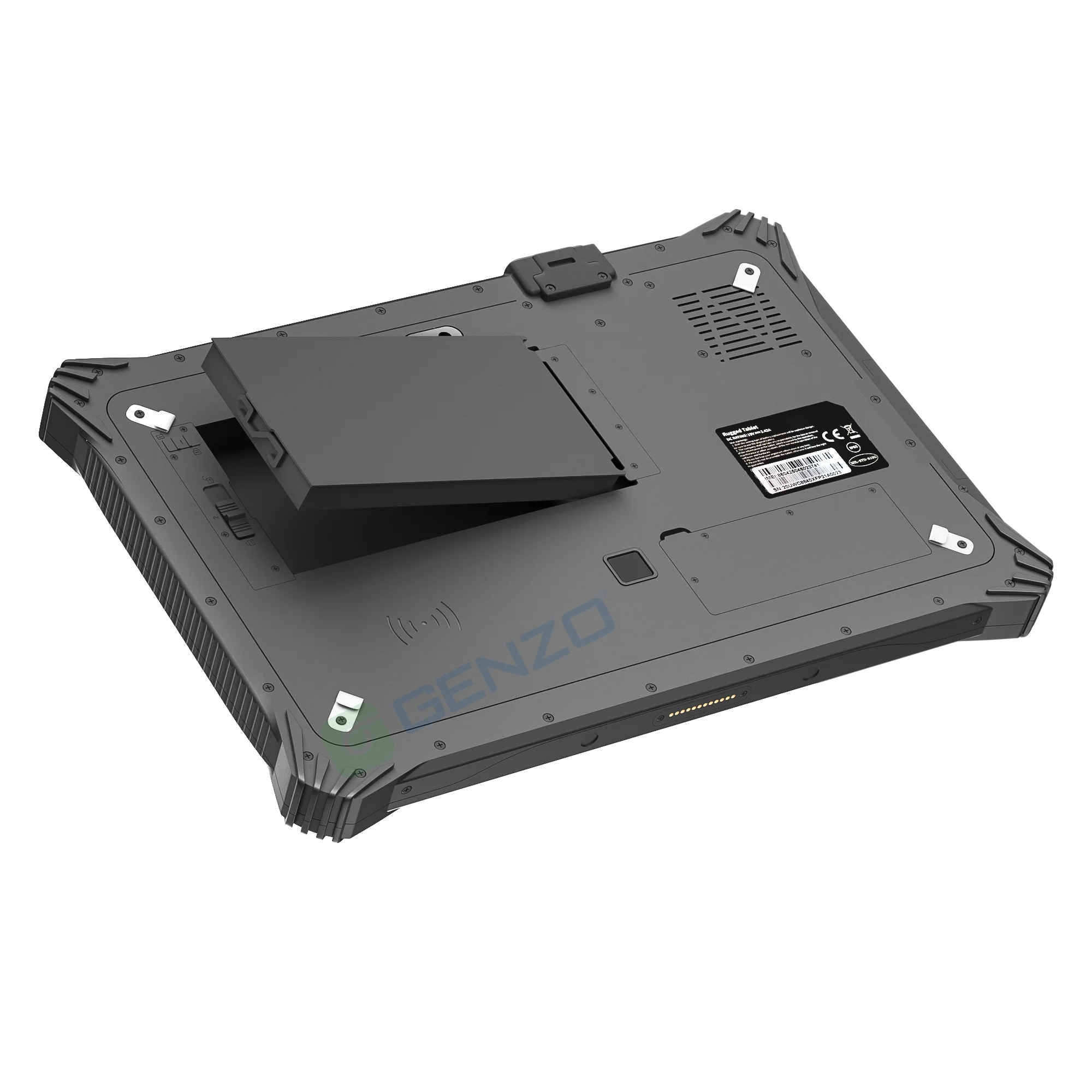

Battery(Small+Big) | Small Battery:Built in polymer lithium ion battery,Non-Removeable 7.4V/700mAh. 30mins(default 50% volumn，default200nit，play 1080P HD video) +Big Battery:Lithium-ion polymer battery , pluggable, Hot Swap,7.4V/6300mAh. 5-6hrs(default 50% volumn，default200nit，play 1080P HD video) | |
Speaker | Embedded 8Ω/0.8W waterproof speakerx 1 | |
Mic | Sensitivity:-42db, Output resistance:2.2kΩ | |
TPM | Built-in TPM2.0 | |
G_sensor | Gravity acceleration sensor | |
Fingerprint | Built-in ×1 SPI Fingerprint (windows hellow boot login) | |
Fan | Built-in ×1 IPX5 | |
Data Collection & Networking | ||
Barcode Scanner | 1D Optional Honeywell N6551; 2D Optional Honeywell N4680 hardcode(Code system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse) | |
NFC | Optional NXP100, 13.56MHz, ISO/IEC 14443A/B,ISO/IEC 15693, ISO/IEC 18092 | |
BT | BT5.0 (BLE) class1 transmission distance：10m | |
WIFI | WIFI 802.11(a/b/g/n/ac) dual frequency 2.4G+5.8G WIFI intel 3165D2WG (3.3v) | |
4G | MeiGlink SLM75-VE, LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8 China (China Unicom Telecom, mobile support is not good, only B8 supports no TDD band) Europe, Middle East, Africa, Taiwan, Japan | |
GPS | U-blox M8Q ,Support:GPS, Beidou module, glonass. Capture sensitivity: -160 dBm; Cool Start Time:less 50second,Hot Start Time:less 28second | |
OS | Window-s 10 Pro inactivated os(Free), Optiona Home/IOT/LTSC | |
Module extension (Note: The following modules are one of five) | ||
Ethernet interface | 1* RJ45 board,(10/100M/1000M) Ethernet interface (Standard Machine is Including RJ45 Port) | |
Serial port | 1* DB9 board | |
One-dimension barcode | 1* Honeywell N6551 | |
Two-dimension barcode | 1*Honeywell N4680 hardcode | |
USB2.0 | 1*USB2.0 | |
I/O Port & Appearance & Package | ||
I/O Port | HDMI 1.4a mini x 1, USB 3.0 Type-A x 1, Type-c x 1(USB3.0/HDMI/Charging), SIM Card x 1, TF Card x 1, RJ45 *1 12pin（USB&Docking charging） x 1, Φ3.5mm standard earphone jack x 1, Φ5.5mm DC 19V 3.42A DC jack x 1 | |
Keys | F KEY=Scanner key,Scanner key x1,No barcode then customizable ((GPIO) Volume adjustment key(+) x 1,Volume adjustment key(-) x 1,windows keyx 1,power keyx 1 | |
Indicator light | Power on is always blue, power off light is off ×1, (Red and Green) Charging red, full of green, red light flashing on low power, not discharging ×1 | |
Power Adaptor | AC100V ~ 240V, 19V3.42A/65W Output USA Standard CE approval. UK/EU Standard Optional | |
Dimension | 339.3*230.3*26 mm | |
Weight | Device unit: 1500g. | |

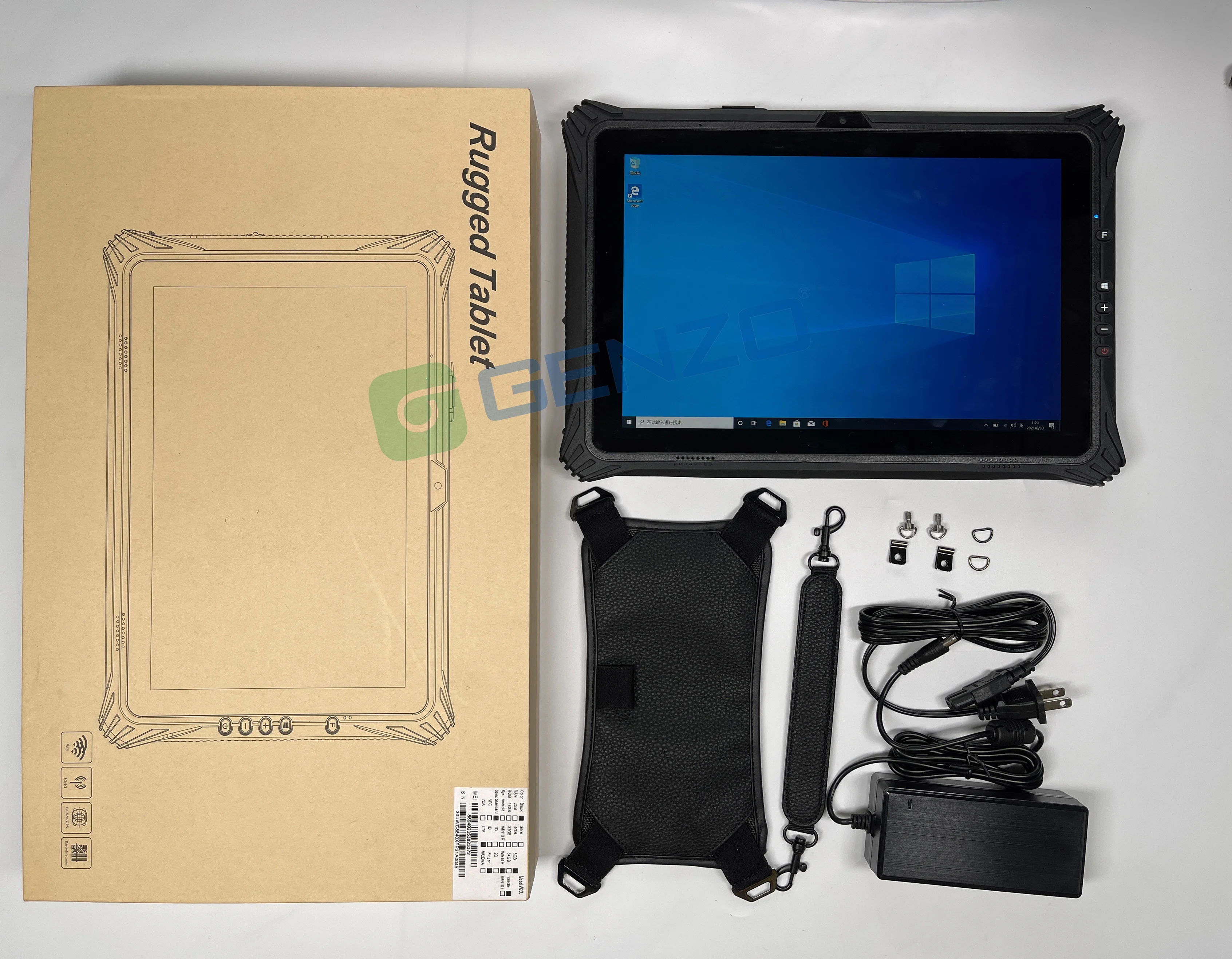

Package | USB cable/OTG cable/Charger 5V 3A/Packing box（Can be customized logo) | |
Certificate System & Reliability Design | ||

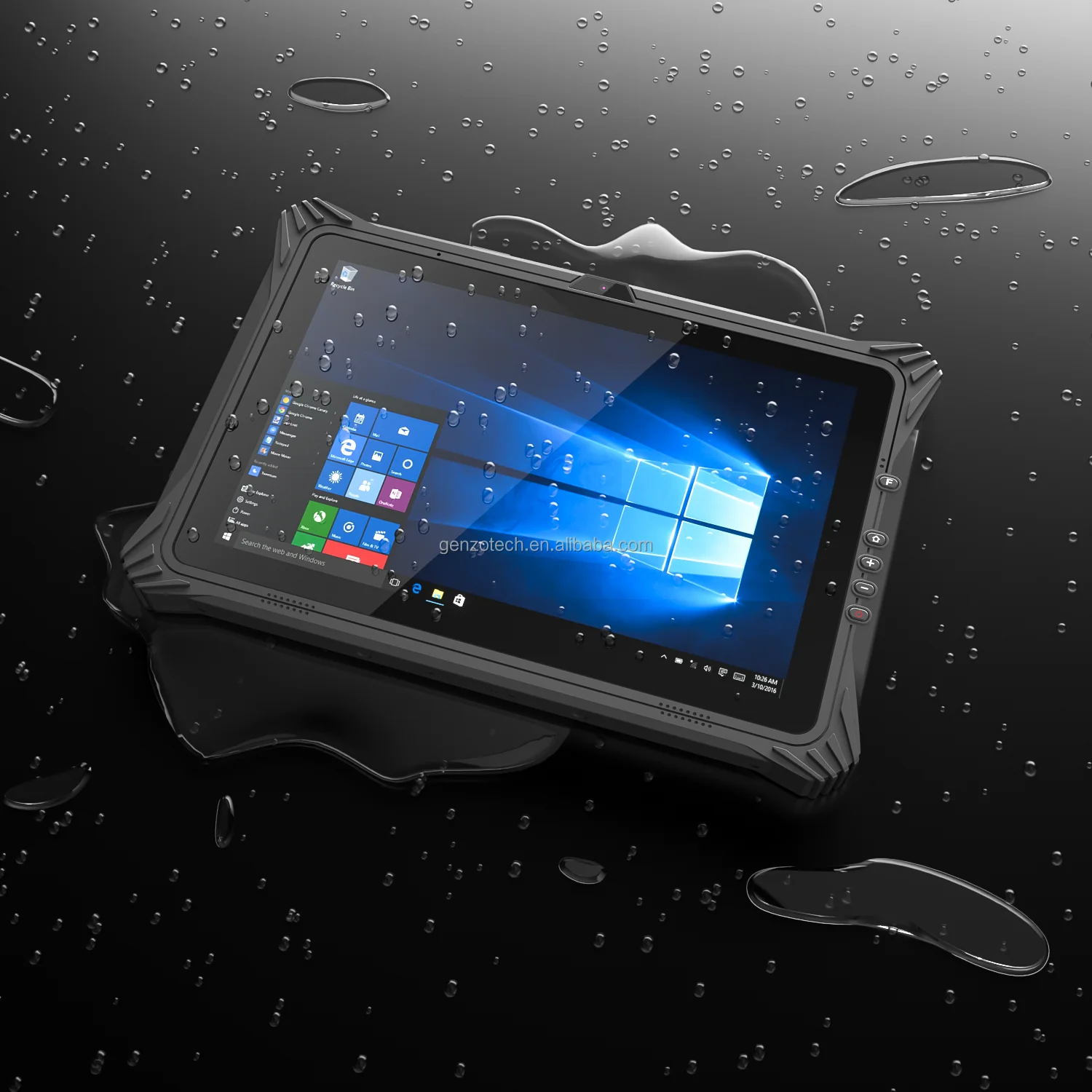

IP67/IP65 | IP65 Report:Water Resistance:IP-X5，Dust Resistance:P-6X R a.Inner Nozzle Diameter:6.3mm； b. Water Speed:12.5±0.625L/min； c. Water Pressure:Adjust according to water volumn； d.Central part of water volumn:A round with a diameter of about 40mm at the distance from the nozzle 2.5m. e.Spray time in surface of panele: About 1 min/Square meter； f.Test time:at least 3min； g.Distance between nozzle and panel surface:2.5～3m. After test,there is no water leakage in sample. | |
CE NB | YES | |
MIL-STD-810G | YES | |
Battery | UN38.3，MSDS,IEC62133 | |
Drop Height | 1.22m composite wood floors,in operation status | |
Operate Temperature | ‘-20 °C to 60 °C | |
Store Temperature | ’-30 °C to 70 °C | |
Humidity | Humidity: 95% Non-Condensing | |
Details Images
Optional Accessories

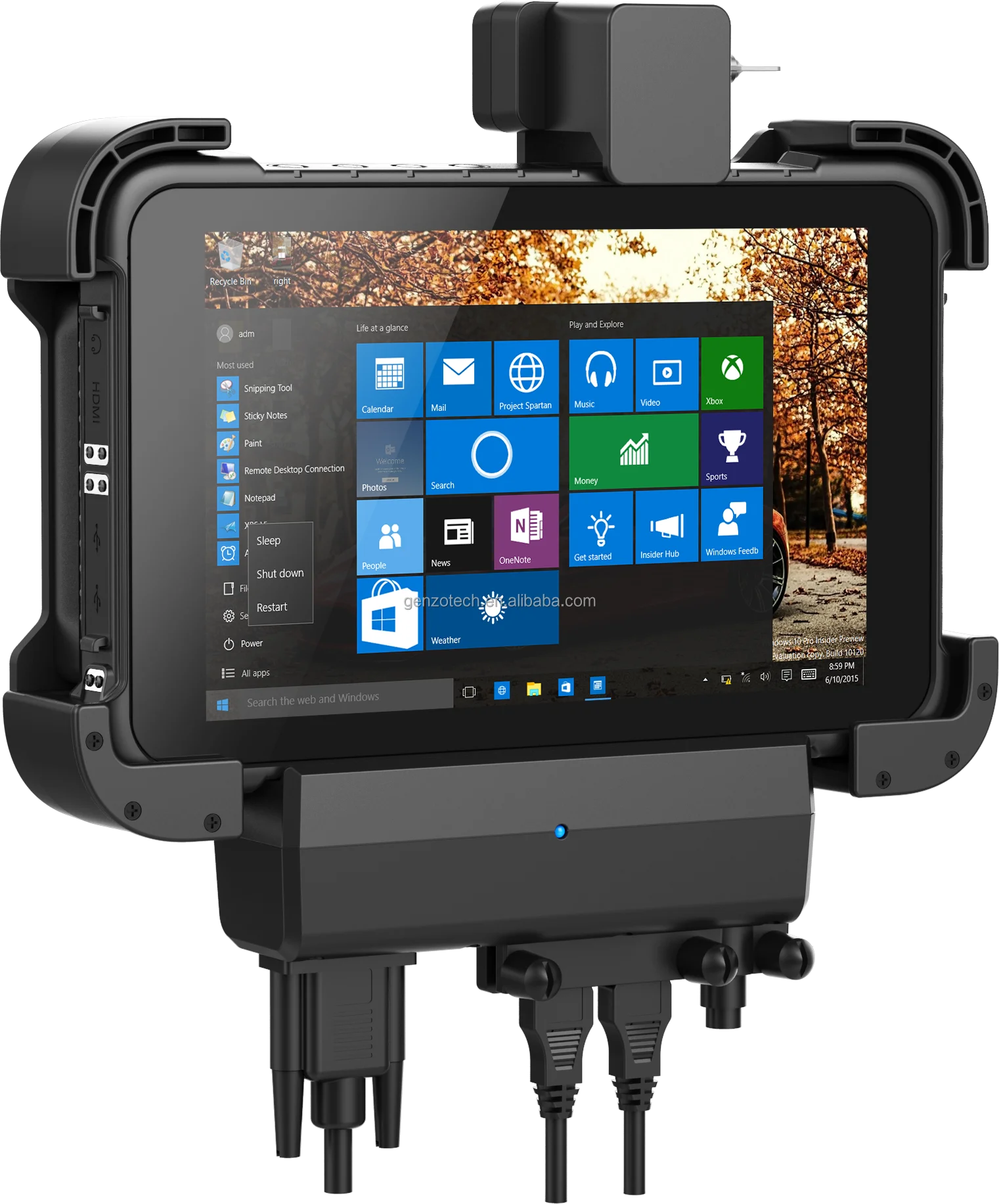

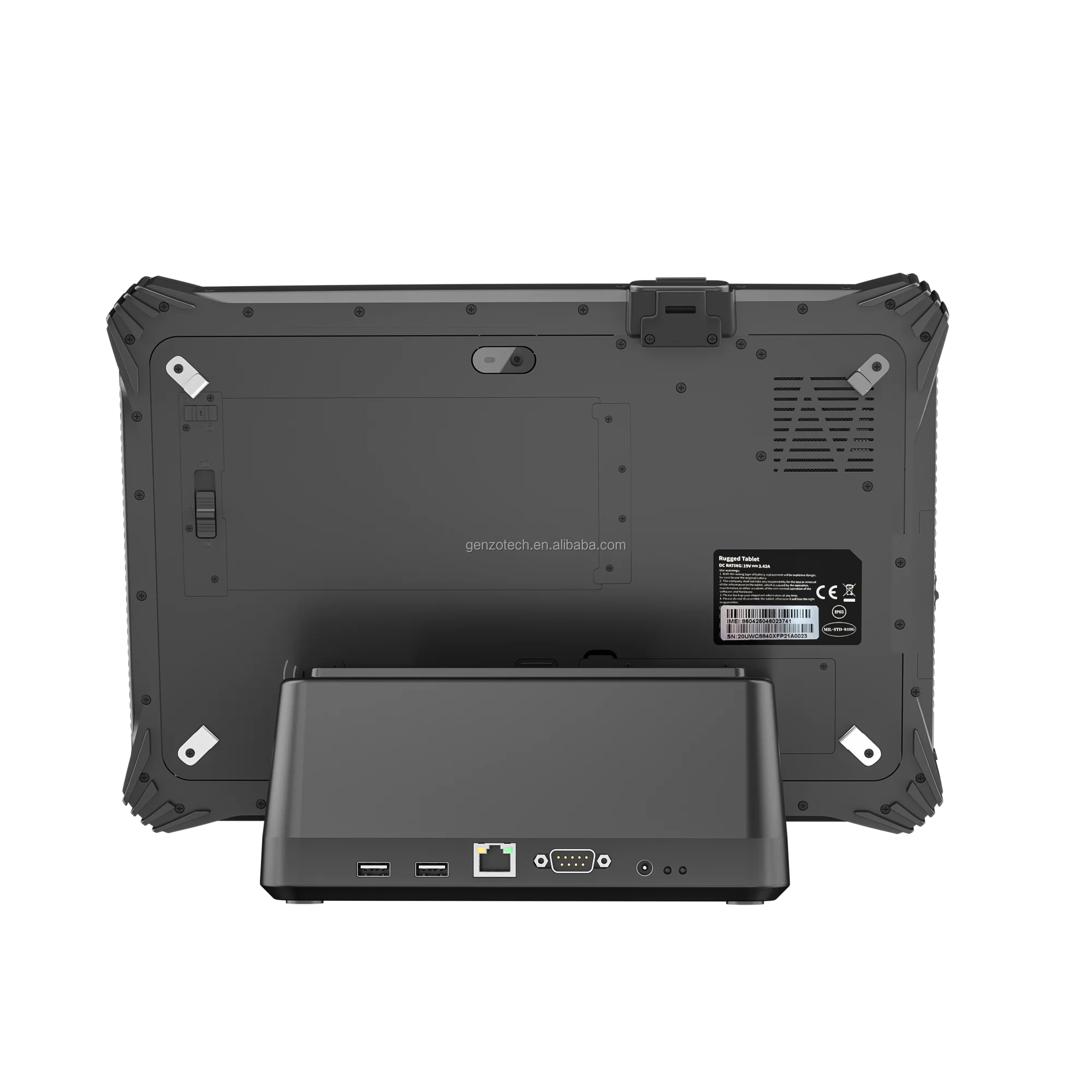

Vehicle Mount, Docking Charger, Leather Cover, Shoulder strap, Back Strap, Stylus, Car Charger, TP protective film
Leather Cover Six View
Leather Cover
Shoulder Strap With Leather Cover
Shoulder Strap With Leather Cover

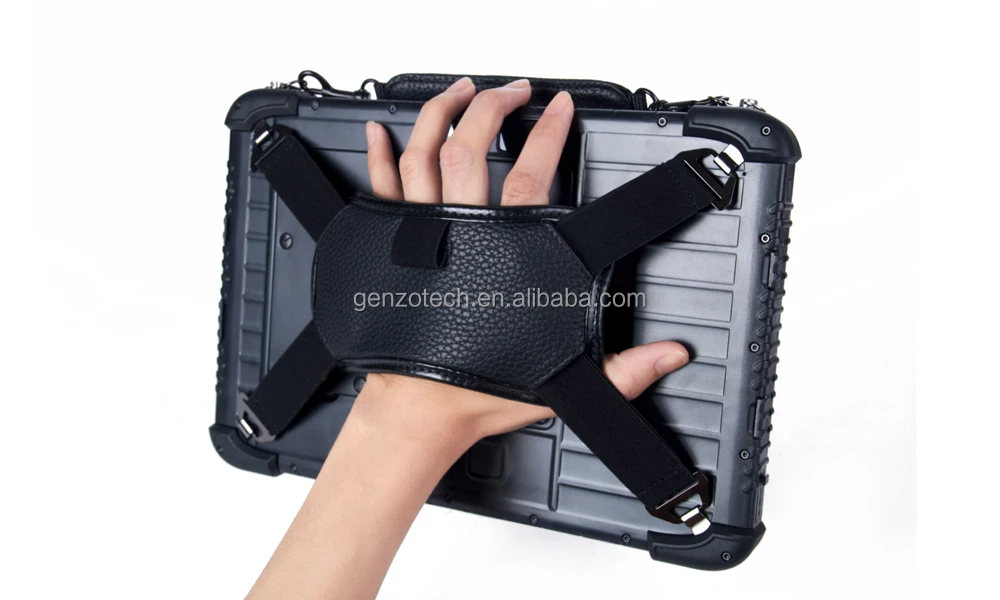

Back Strap with Leather Cover
Back Strap with Leather Cover
Stylus
Car Charger
TP protective film
Payment & Packing &Shipping
Company Introduction
FAQ
Q :Are you manufacturer?
A: Yes, we are manufacturers.We can provide OEM / ODM customized service according to our customers’ various application and demands.All of our products are fully patented, ID/MD design, hardware and software,mold,assembly are done by our own team.
Q: Would you provide SDK for me?
A: Yes, we offer free SDK if you order sample.In addition, we also have support engineers to assist you with software development.
Q: What is the minimum order(MOQ)?
A: We accept one unit for standard products.we can even customized with your logo if needed. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
Q: Can we get the free sample?
A: Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.
Q: Can i choose multiple function into 1 device?
A: Yes, you can choose multiple fuction into onedevice, Different functions depending on the product model,optional functions:RFID(LF/HF/UHF)1 Fingerprint/ Bar code scanner.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online,Western Union 1 Trade Assurance
Q: What's Your Products Warranty?
A: We Offer 18 Months Warranty after shipment sent.
Q: Can I extend the warranty?
A: We offer a deferred warranty for up to 36 Months, and the price for the warranty extension is 10% up.
Q: How long it will take for delivery?
A: For production lead time around 3-10 days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around 3-5 working days. For some remote place, delivery time maybe a little bit longer.
Q:How to repair the device if any problem ?
A: We will provide technical support online to solve problem; If for the hardware problem , we could send the parts or components and teach customer to fit if they have technician or can also send backto us to fix it.
Q: Can you do customized and preload our software?
A:We are professional rugged device manufacture with 10 years experiences
A: Yes, we are manufacturers.We can provide OEM / ODM customized service according to our customers’ various application and demands.All of our products are fully patented, ID/MD design, hardware and software,mold,assembly are done by our own team.
Q: Would you provide SDK for me?
A: Yes, we offer free SDK if you order sample.In addition, we also have support engineers to assist you with software development.
Q: What is the minimum order(MOQ)?
A: We accept one unit for standard products.we can even customized with your logo if needed. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
Q: Can we get the free sample?
A: Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.
Q: Can i choose multiple function into 1 device?
A: Yes, you can choose multiple fuction into onedevice, Different functions depending on the product model,optional functions:RFID(LF/HF/UHF)1 Fingerprint/ Bar code scanner.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online,Western Union 1 Trade Assurance
Q: What's Your Products Warranty?
A: We Offer 18 Months Warranty after shipment sent.
Q: Can I extend the warranty?
A: We offer a deferred warranty for up to 36 Months, and the price for the warranty extension is 10% up.
Q: How long it will take for delivery?
A: For production lead time around 3-10 days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around 3-5 working days. For some remote place, delivery time maybe a little bit longer.
Q:How to repair the device if any problem ?
A: We will provide technical support online to solve problem; If for the hardware problem , we could send the parts or components and teach customer to fit if they have technician or can also send backto us to fix it.
Q: Can you do customized and preload our software?
A:We are professional rugged device manufacture with 10 years experiences
