Product Description

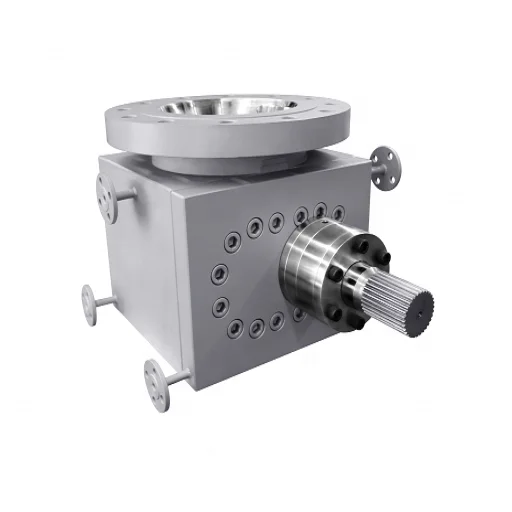

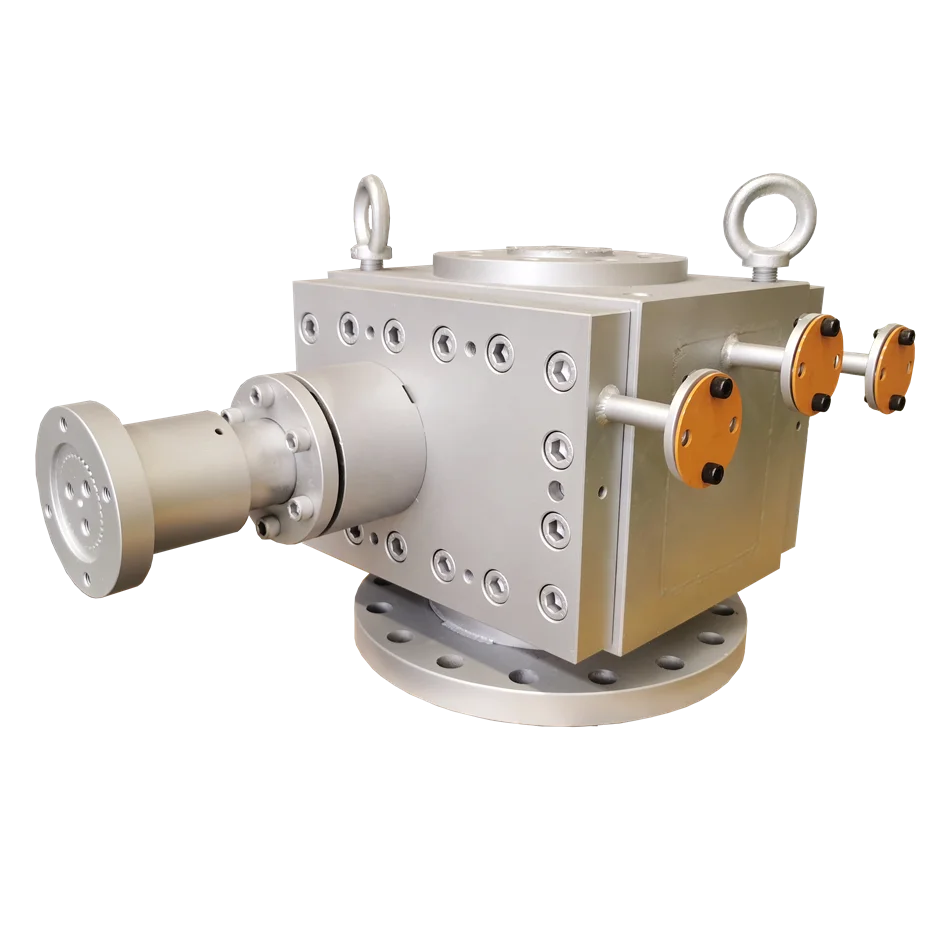

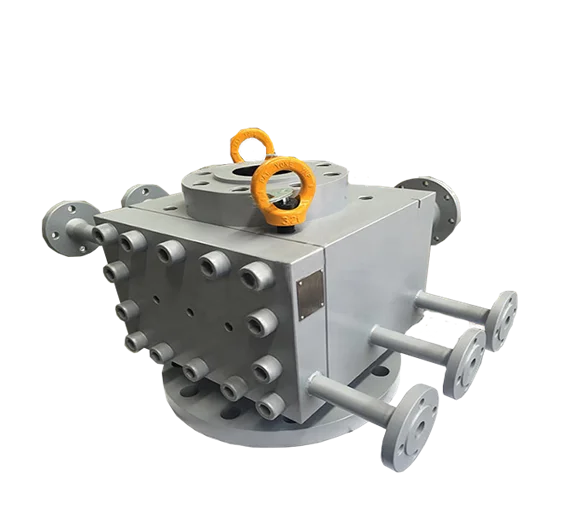

GY-F Series reactor discharge pump
Mainly used for high temperature and high viscosity polymer melt transportation, such as resin, chemical fiber and other industries, generally installed in the lower part of the reaction kettle, to make the material pump, or to transport medium and high viscosity medium in vacuum reactor. The large flange design of the suction inlet can make the high viscosity medium inhaled smoothly under the vacuum reaction condition, and complete the transportation and pressurization of the polymer material.
Application industry: resin &virgin polymer production
hot melt adhesives/ bitumen/ adhesives/ pharmaceuticals/food /oils /fuels / dyes /paints/
lubricants /and other high viscosity materials without granular impurities.
A range of typical pumping media:
PET PBT PTT PA6 PA66 PA12 PE PEK PMMA POM TUP PLA
LDPE LLDPE HDPE PP EVA PB PS HIPS ABS SAN PC PBS
Advantages:
1. can be applied to the working condition of high temperature and middle and high viscosity
2. lower pressure flow pulsation, easy to control
3. good self-priming performance, can be used in the condition of input vacuum.
4. precise structure, high precision and long service life.




Specification


Main structure:
Pump body: stainless steel, carbon steel,harrington alloy
gear: nitriding steel, tool steel, healical tooth
plain bearings: tool steel, titanium gallbladder alloy
shaft seal: mechanical seal, packing+spiral seal
heating system: electric heating, heat conduction oil heating


                                                                           GY-F Series Reactor discharge pump


Type


cc/r


Output pressure
(MPa)


Inlet pressure
(MPa)
Suggest use flow (L/h)

low viscosity
(1-1000Pa·s)

Usual viscosity
(1000~8000Pa·s)

High viscosity
(>8000Pa·s)
GY-F-31.5CC
31








≤15








Vacuum
～5.0
≤160
≤110
≤60
GY-F-50CC
50
≤250
≤180
≤100
GY-F-100CC
100
≤510
≤360
≤210
GY-F-150CC
150
≤820
≤570
≤340
GY-F-200CC
200
≤1000
≤700
≤400
GY-F-250CC
250
≤1300
≤900
≤500
GY-F-315CC
315
≤1600
≤1100
≤700
GY-F-500CC
500
≤2600
≤1800
≤1100
GY-F-800CC
800
≤3100
≤2100
≤1300
GY-F-1200CC
1200
≤4100
≤2900
≤1700


Installation
Generally installed in the lower part of the reactor, used as a discharge pump, the input shaft of the pump is arranged horizontally.

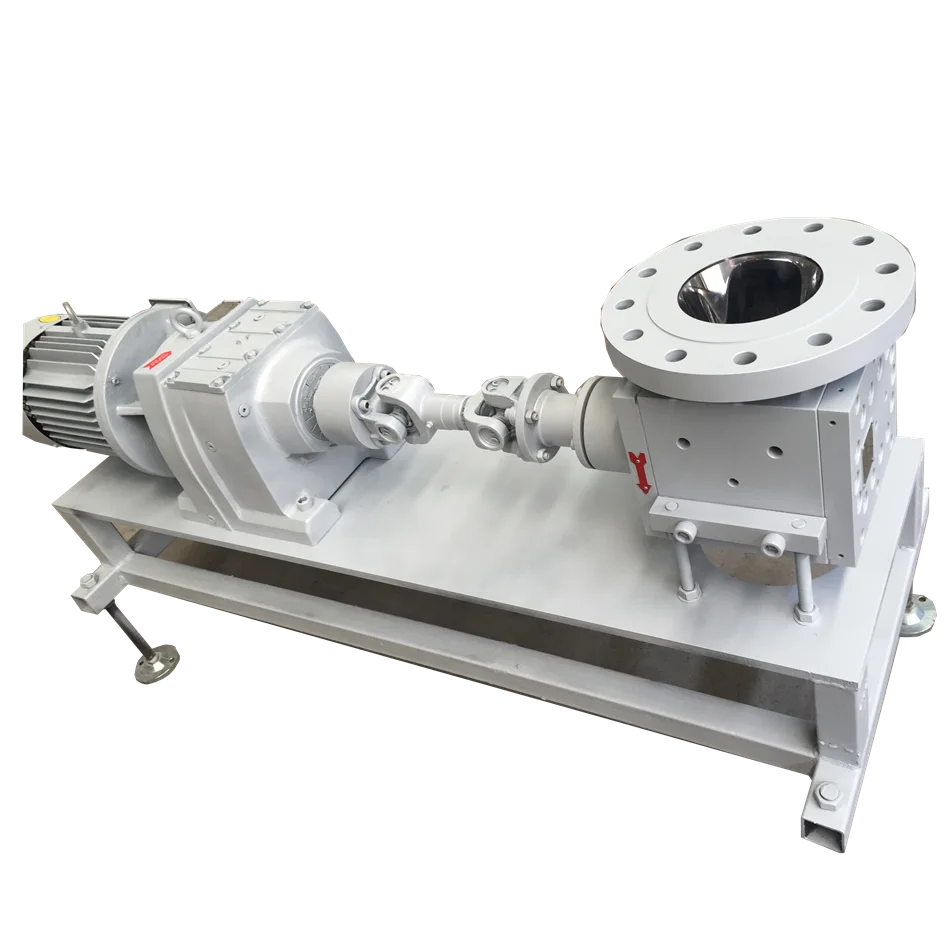

Driving mode: motor + reducer + universal coupling
